SEG14

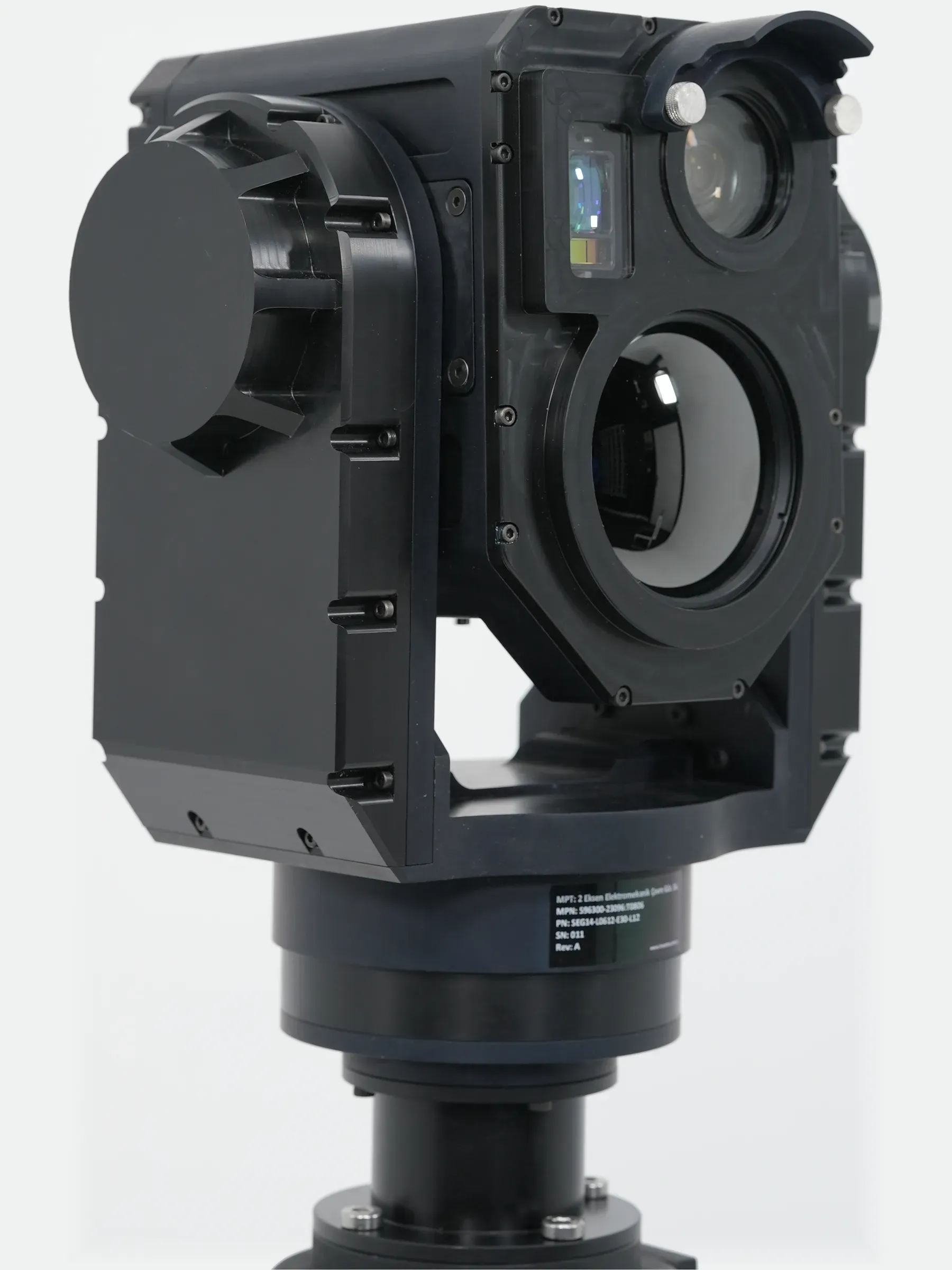

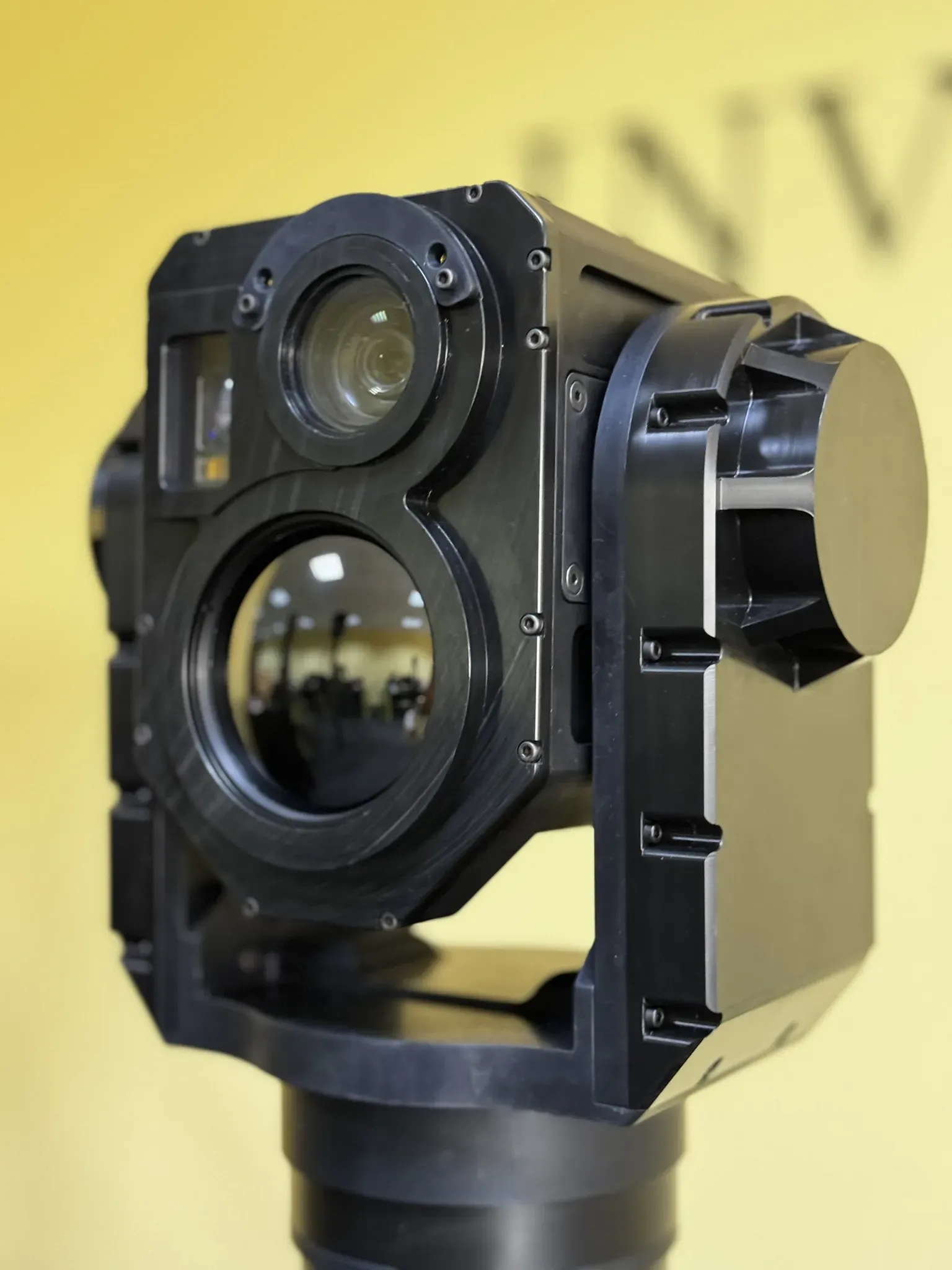

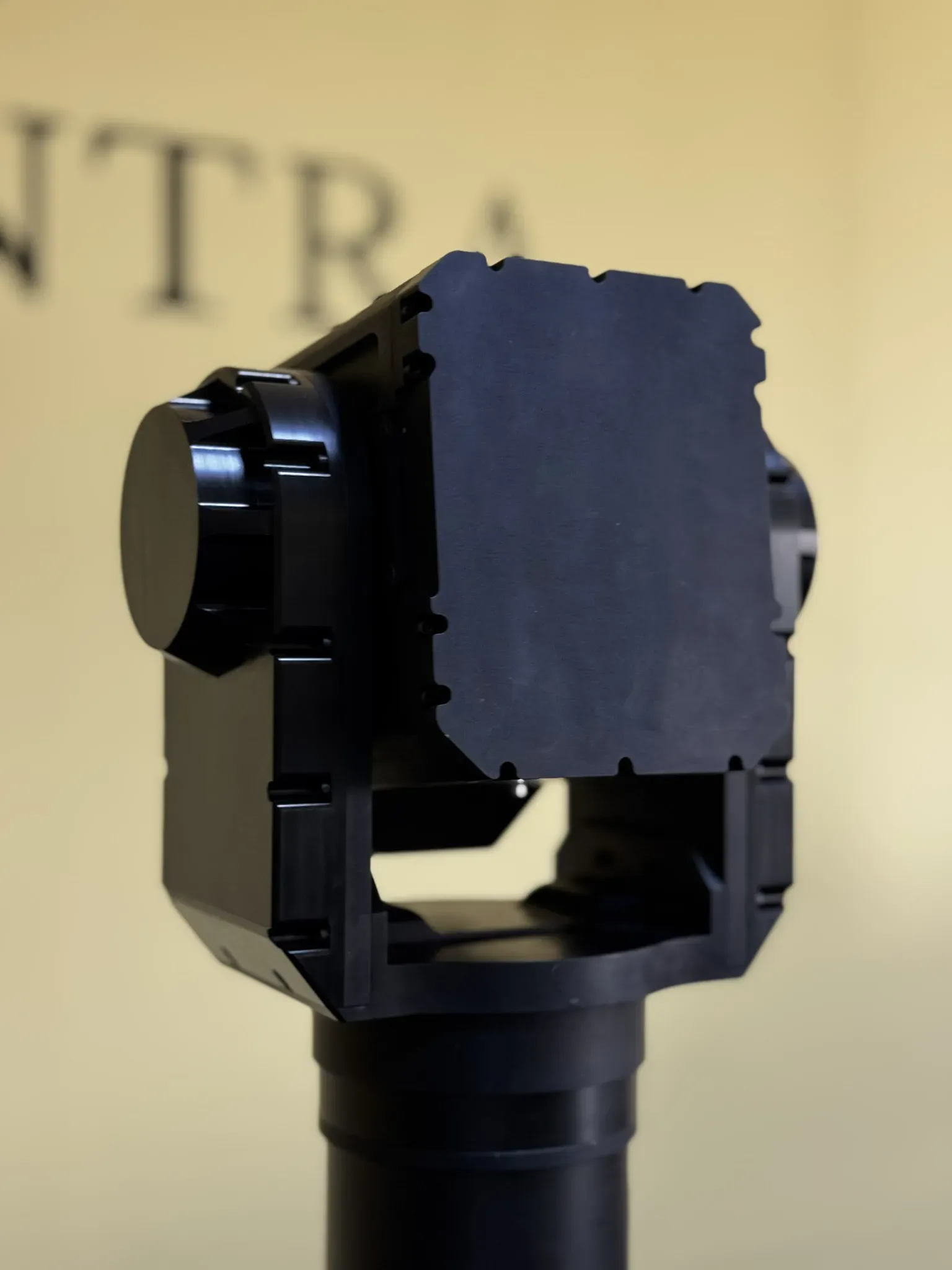

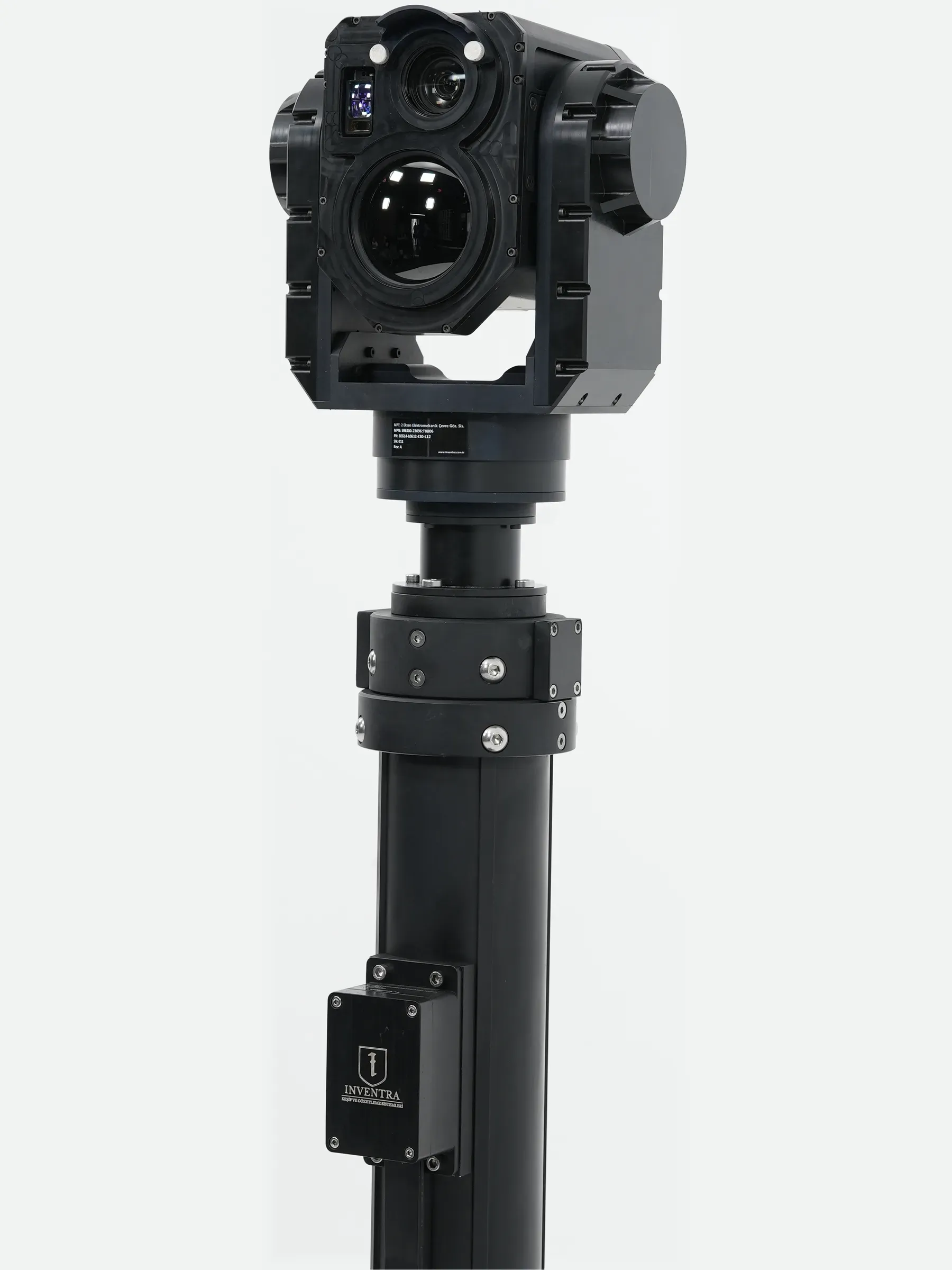

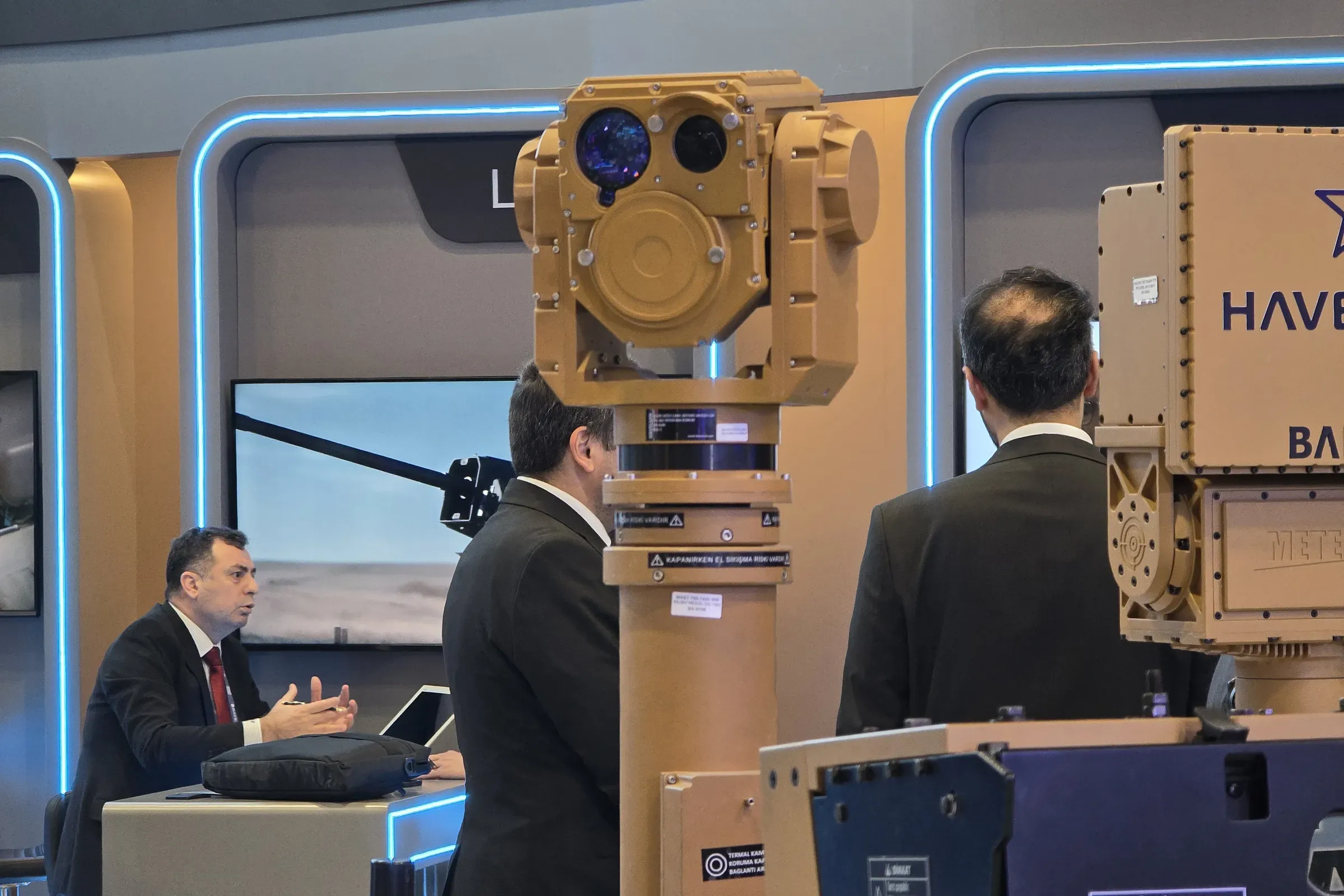

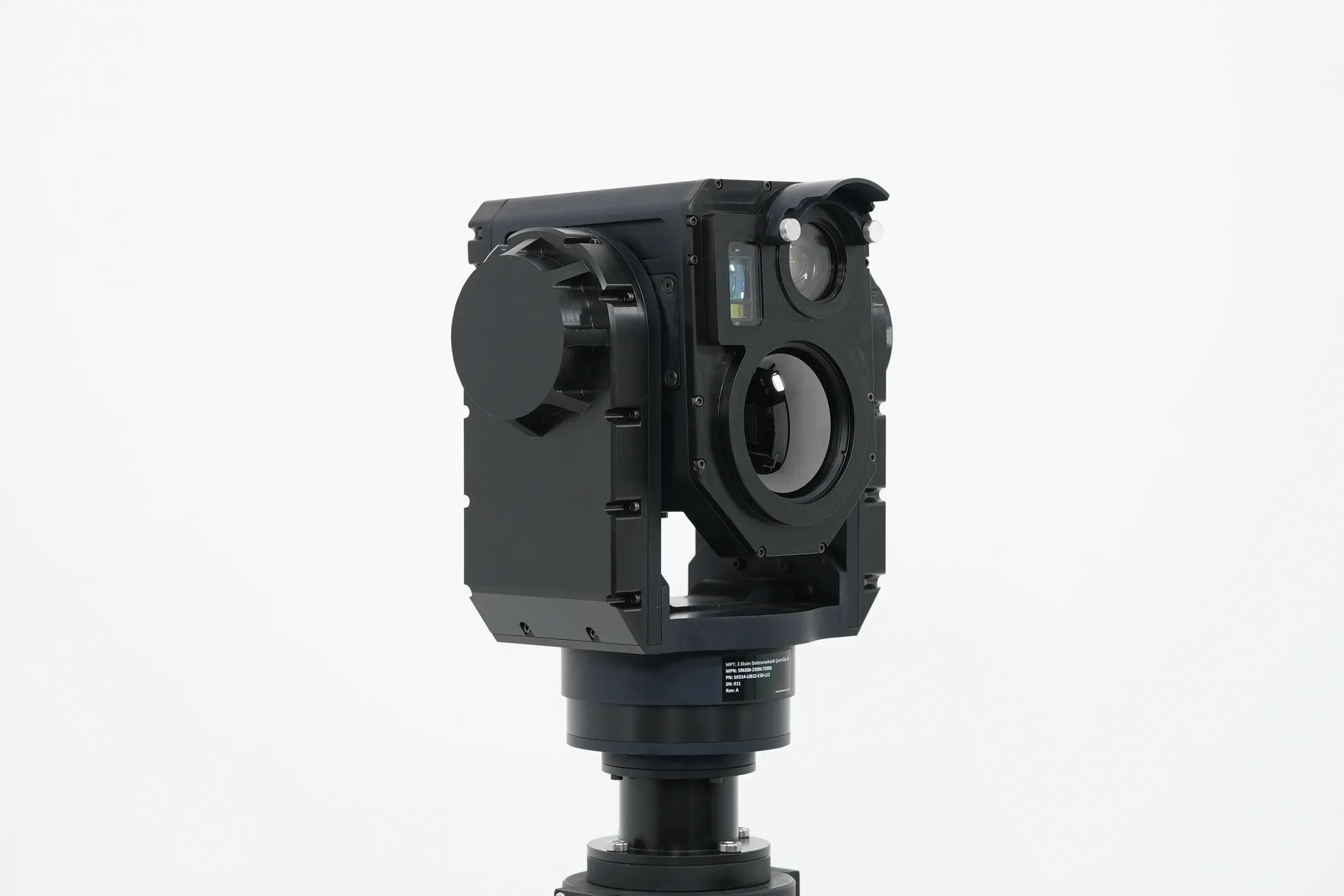

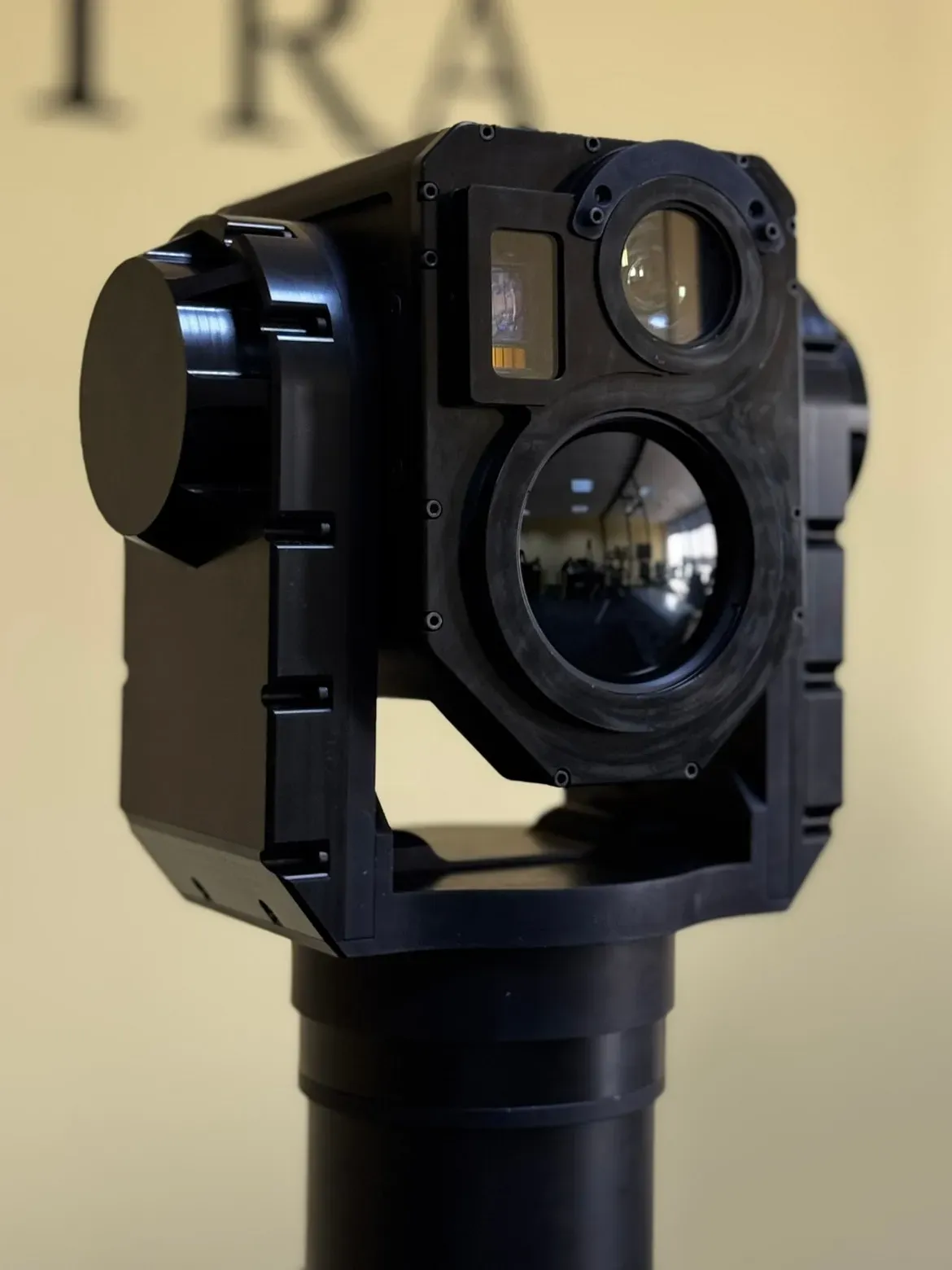

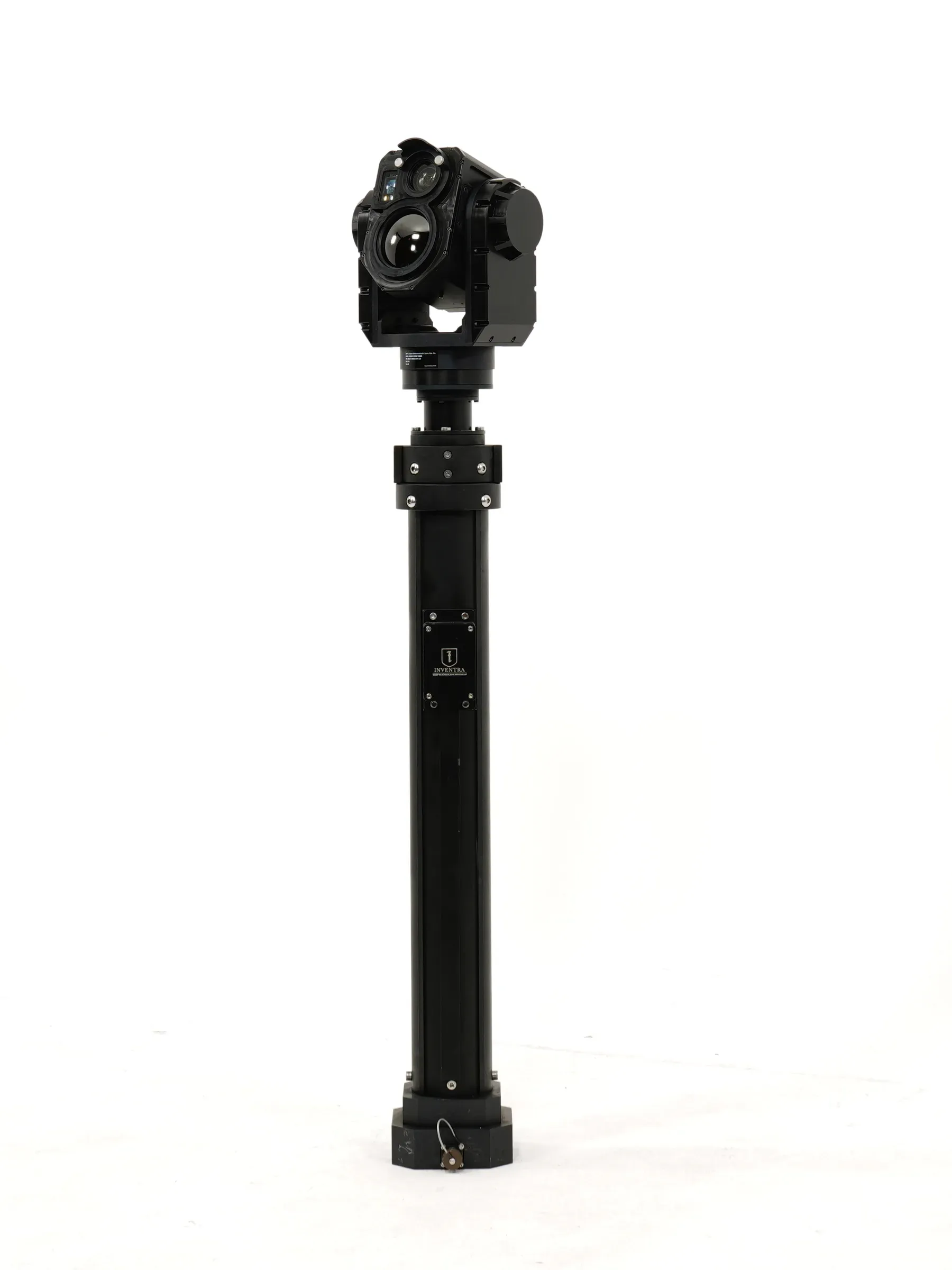

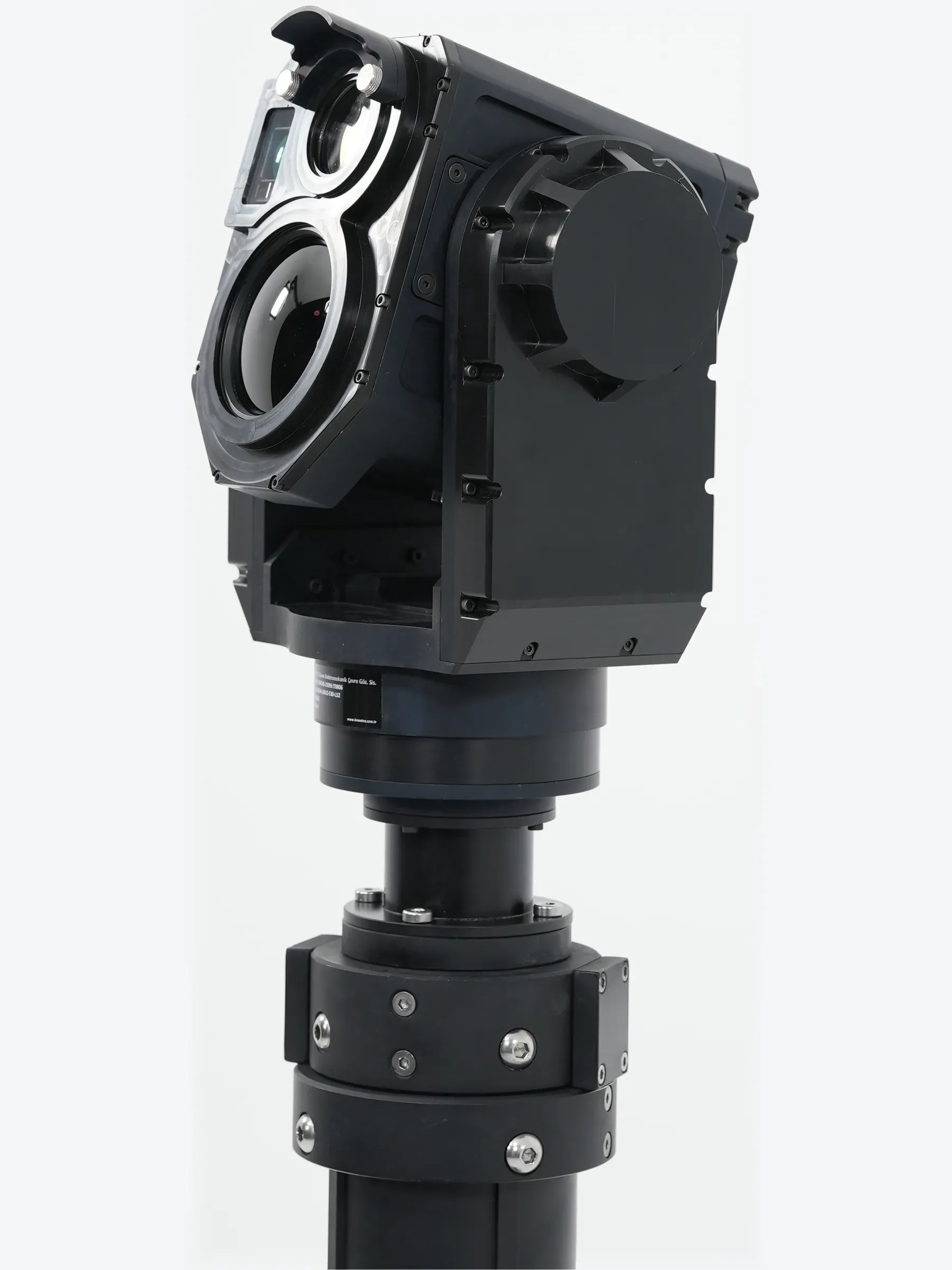

Multi Channel (EO-LWIR-LRF) Stabilised Gimbal System
Multi-channel gimbal with an optically zoomed LWIR channel and long-range rangefinder, under 8 kg, for precision targeting and intelligence gathering.
- LWIR
- 1.280 × 1.024 px
- 5-32.000 m
- 1.920 × 1.080 px
- Resolution
- 1.280 × 1.024 px
- Detector
- 5-32.000 m
- Ranging Scope
Highlights
01Long range
Laser ranging out to 32 km
The 1500 nm rangefinder reaches 32,000 m, which puts target measurement well beyond the range at which the thermal channel first detects.
- Triple channel: EO, LWIR and LRF in real time
02Thermal optics
3.2× optical zoom on the thermal channel
Most uncooled channels are fixed focal length. Here the thermal path zooms optically from 28 to 90 mm, so magnification is gained without giving up resolution to digital interpolation.
- NETD 30 mK with shutter and scene calibration
- 12 µm pitch 1280×1024 detector

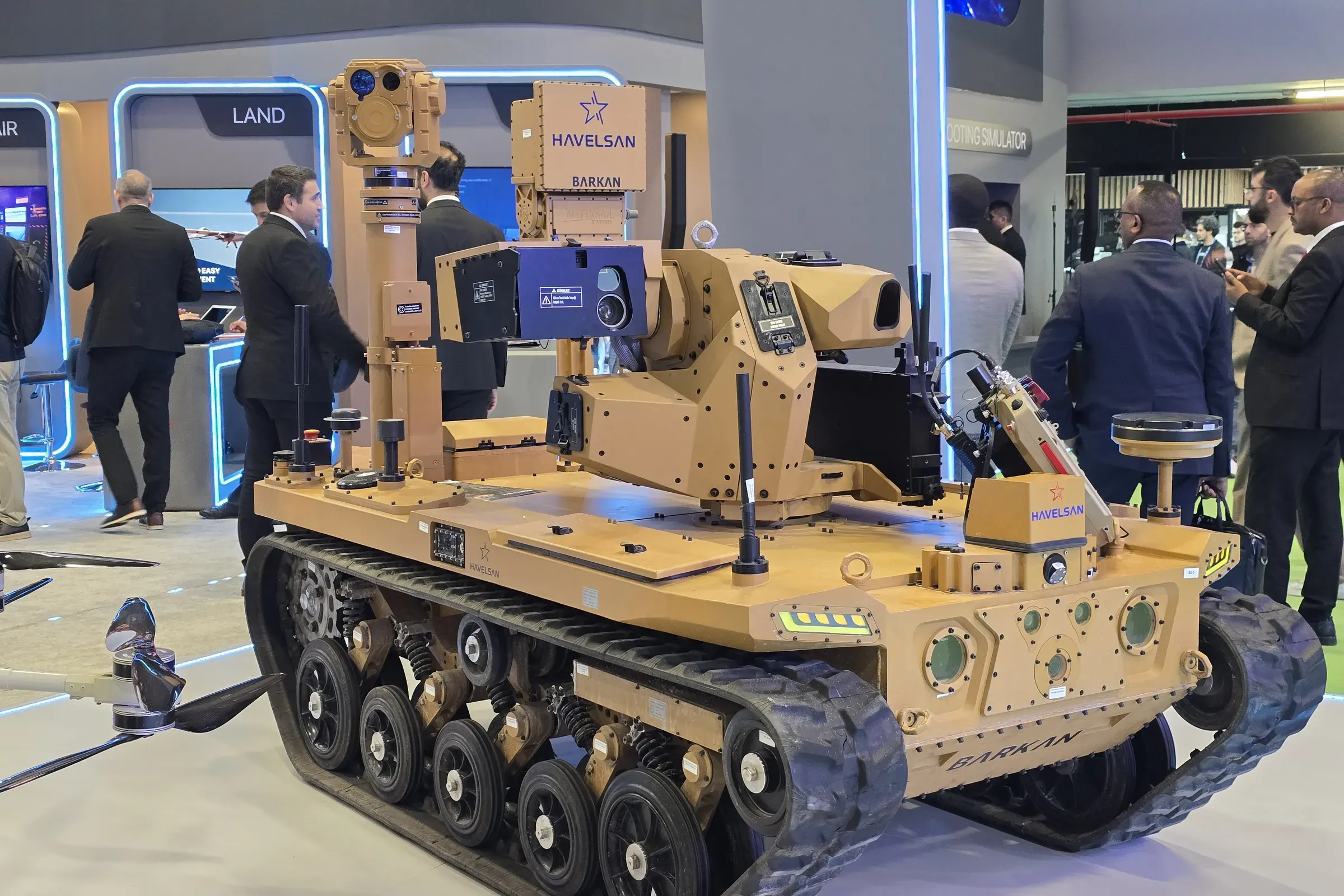

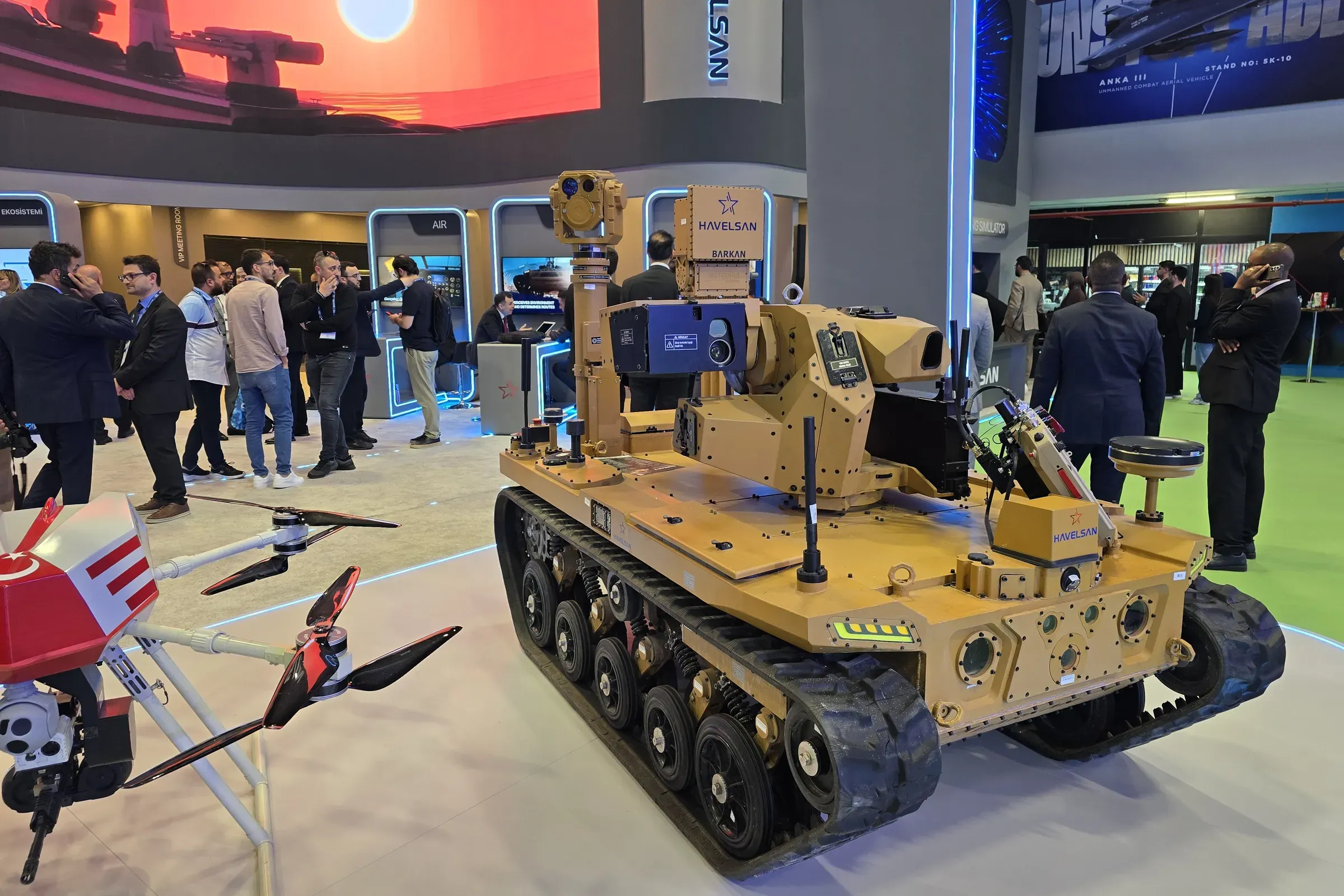

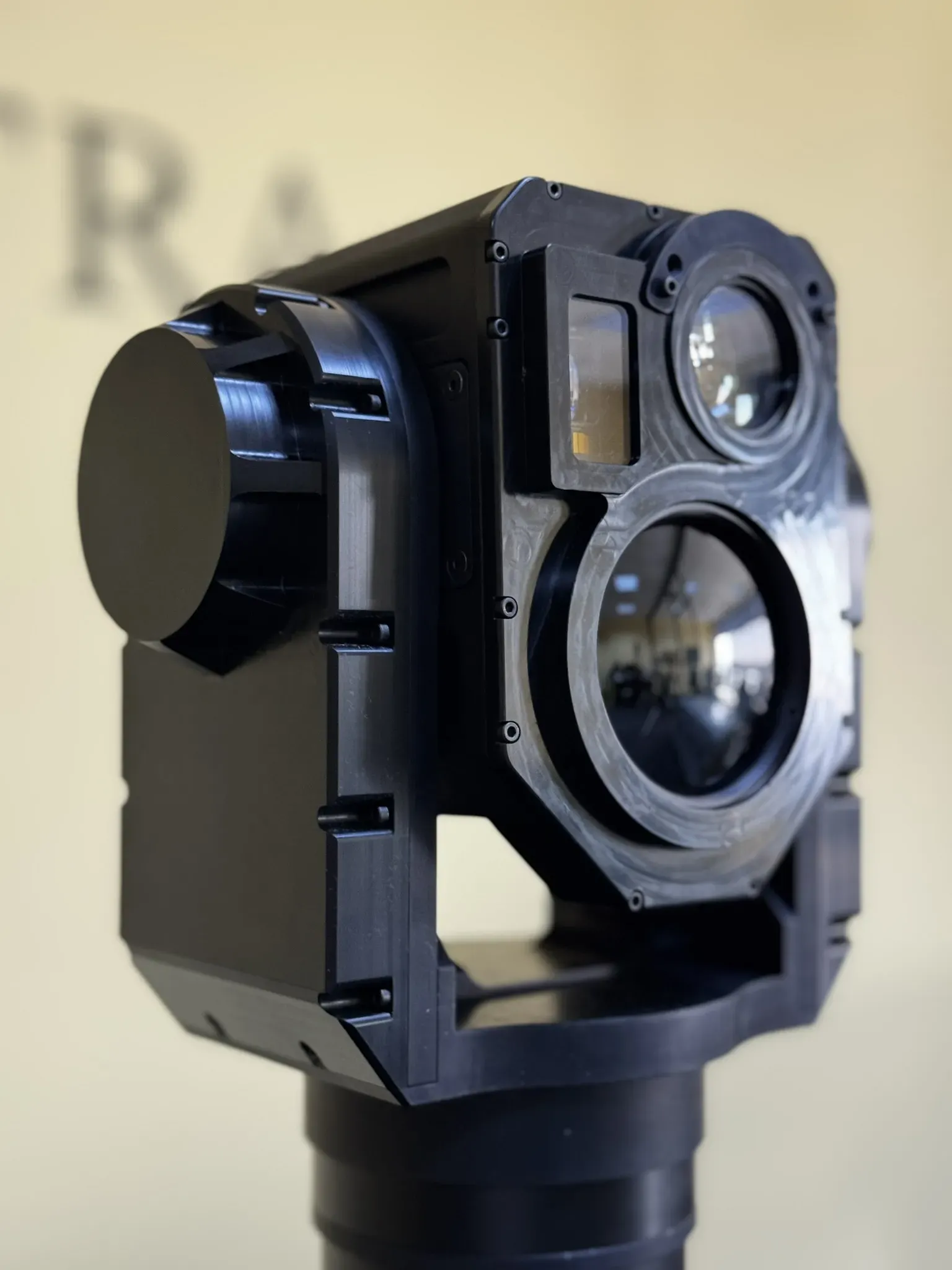

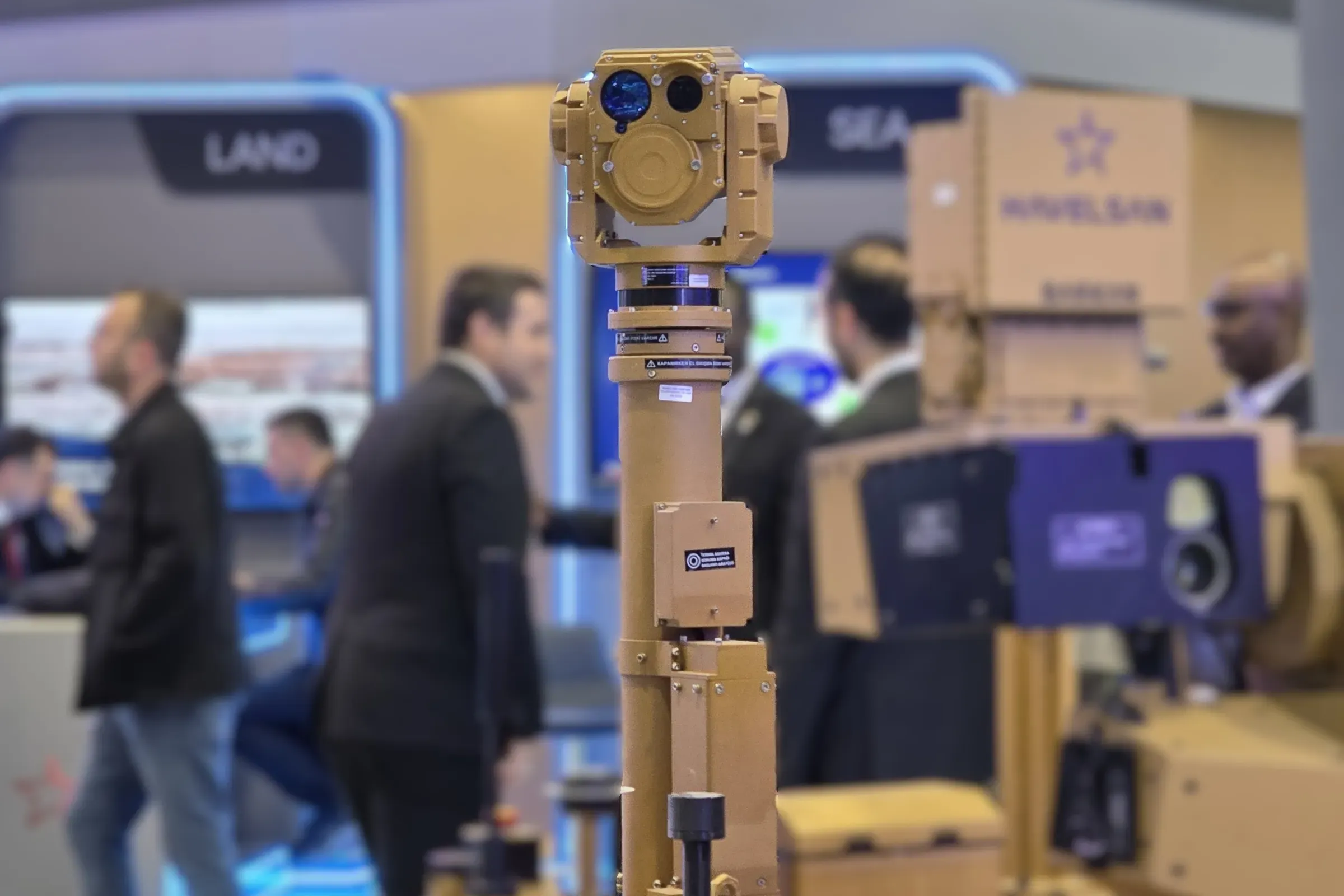

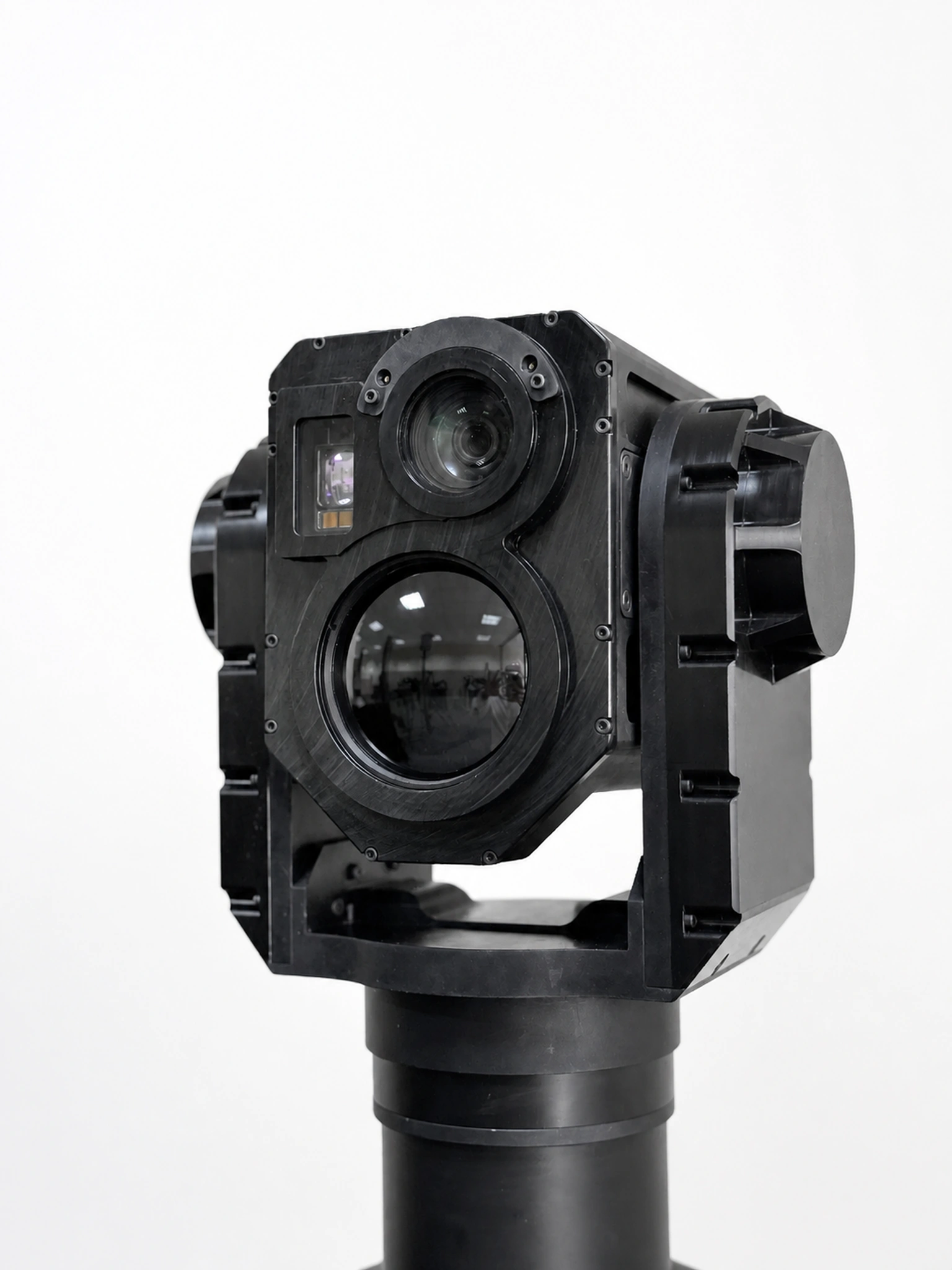

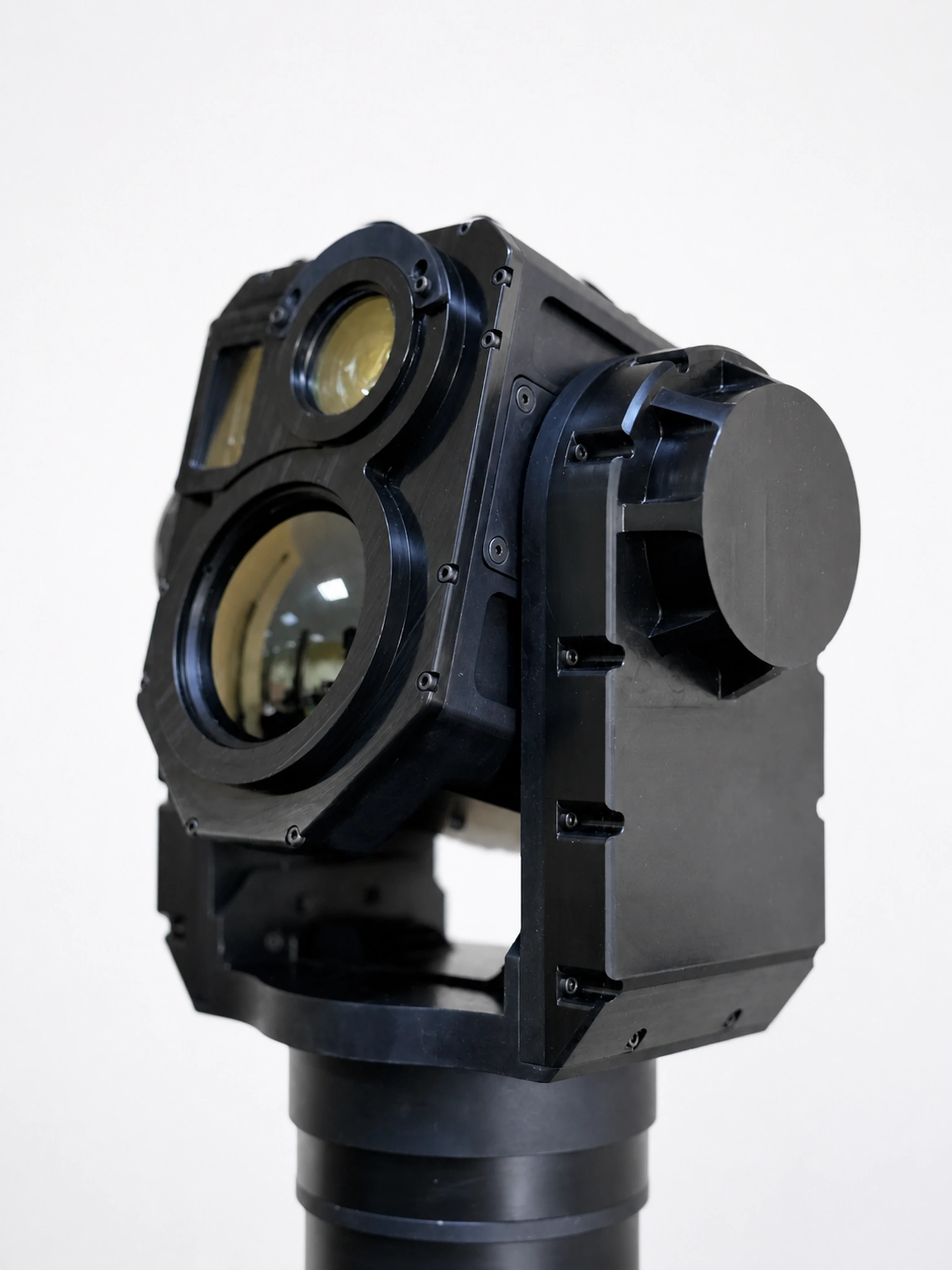

Gallery
Select a frame to open it at full size.
Configurations
| Part Number | Band | Detectorpx | Lens | Thermal zoom | NETDmK | EOpx | EO zoomx | Min. illum.lx | LRF Range | Laser Type |
|---|---|---|---|---|---|---|---|---|---|---|
| SEG14-L1203X-E1930X-LR32Standard | LWIR | 1.280 × 1.024 | 28-90 mm | 3,2 | 30 | 1.920 × 1.080 | 30 | 0,01 | 5-32.000 m | Eye-safe |
| SEG14-L0605X-E1930X-LR32 | LWIR | 640 × 512 | 30-150 mm | 5 | 30 | 1.920 × 1.080 | 30 | 0,01 | 5-32.000 m | Eye-safe |
| SEG14-L0625-E1930X-LR32 | LWIR | 640 × 512 | 25 | None | 50 | 1.920 × 1.080 | 30 | 0,01 | 5-32.000 m | Eye-safe |
Options
- LCKTLens Cleaning Kitordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Pan and Tilt – Nominal Speed | 180 °/s |
|---|---|
| Pan – Axis Range | 360° continuous |
| Tilt – Axis Range | ±45° |
| Weight | 8,0 kg |
| Spectral Band | LWIR |
|---|---|
| Detector | 1.280 × 1.024 px |
| Pixel Size | 12 µm |
| NETD | 30 mK |
| MRTD | 500 mK |
| Thermal Lens | 28-90 mm |
| Thermal Optical Zoom | 3,2× |
| Thermal Horizontal Field of View | 4,89° |
| Thermal Diagonal Field of View – Wide | 19,92° @ 28 mm |
| Thermal Diagonal Field of View – Narrow | 6,26° @ 90 mm |
| Thermal Digital Zoom | 12× |
| Resolution | 1.920 × 1.080 px |
|---|---|
| EO Optical Zoom | 30× |
| EO Horizontal Field of View | 63,7-2,3° |
| EO Digital Zoom | 12× |
| Minimum Illumination – High Sensitivity | 0,01 lx |
| Focusing System | Automatic |
| Ranging Scope | 5-32.000 m |
|---|---|
| Laser Wavelength | 1,5 µm |
| Laser Type | Eye-safe |
| Tracker Stabilisation | Two-axis IMU and encoder based dual-loop |
|---|---|
| Data Refresh Rate | 25 Hz |
| Output Lag | 100 ms |
| Target Size | 16 × 16-128 × 128 px |
| Power Consumption (Max) | 150 W |
|---|---|
| Operating Voltage | 18-32 VDC |
| Communication Interface | RS-422 |
| Communication Interface (Optional) | Ethernet |
| Connector Type | MIL-DTL-38999 |
| Video Output 1 | HD-SDI |
| Video Output 2 | Ethernet |
| Width | 325 mm |
|---|---|
| Depth | 257 mm |
| Height | 178 mm |
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes |
| EMI/EMC Standard | MIL-STD-461G |
|---|---|
| CE102 | Power Leads, 10 kHz – 10 MHz |
| CS101 | Power Leads, 30 Hz – 150 kHz |
| CS114 | Bulk Cable Injection, 10 kHz – 200 MHz |
| CS115 | Bulk Cable Injection, Impulse Excitation |
| CS116 | Damped Sinusoidal Transients, 10 kHz – 100 MHz |
| CS118 | Personnel Borne Electrostatic Discharge |
| RE102 | Electric Field, 10 kHz – 18 GHz |
| RS103 | Electric Field, 2 MHz – 18 GHz |
Documents
- DatasheetDownloadable — PDF, 215 KB
- User ManualOn Request
- 3D Model (STEP)On Request
- Mechanical Interface Control DocumentOn Request
- MIL-STD-810G Environmental Qualification ReportOn Request
- Electrical Interface Control DocumentOn Request
- Software Interface Control DocumentOn Request
- MIL-STD-461G EMI/EMC Test ReportOn Request
