Tripods

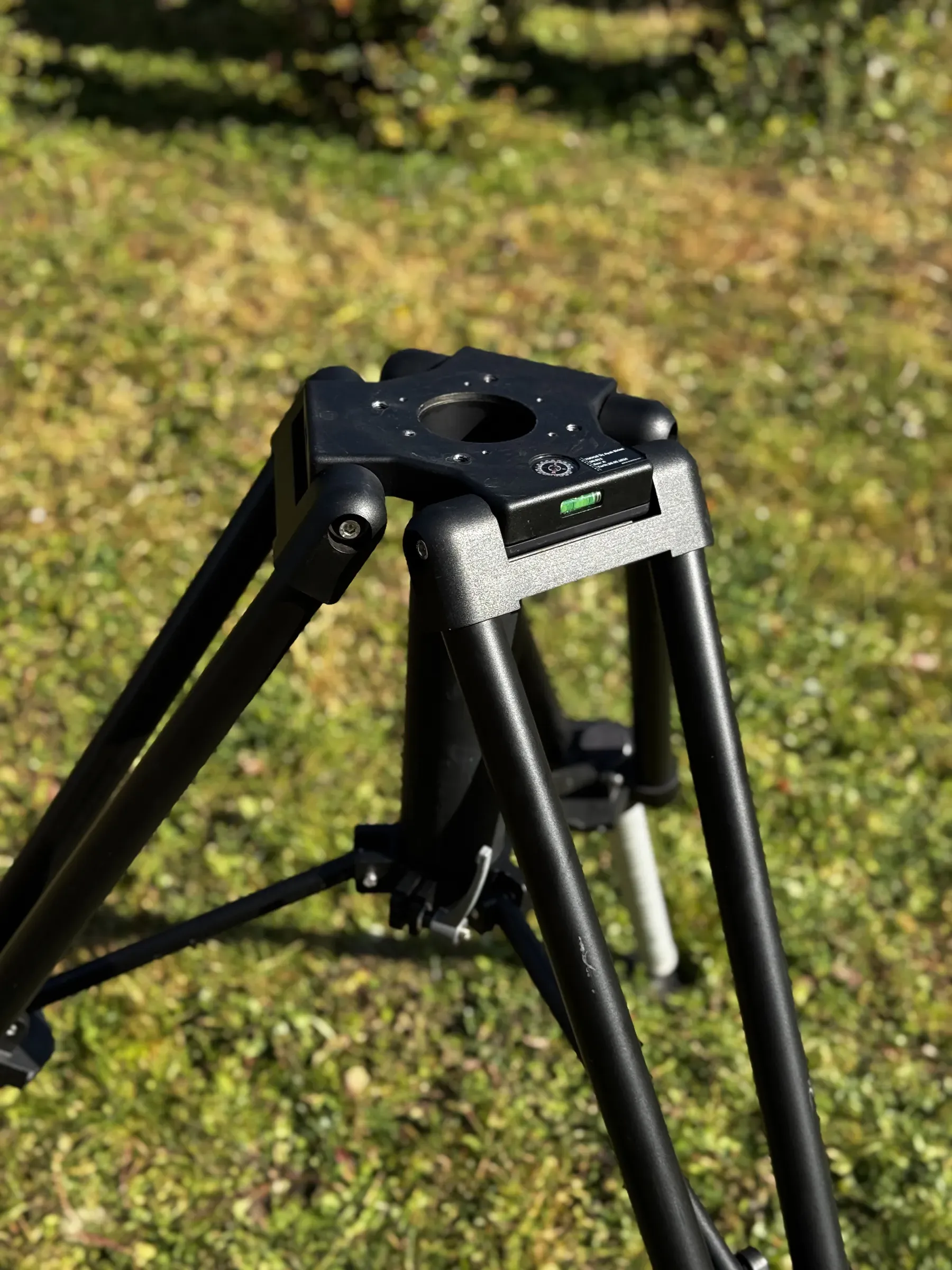

TMH10

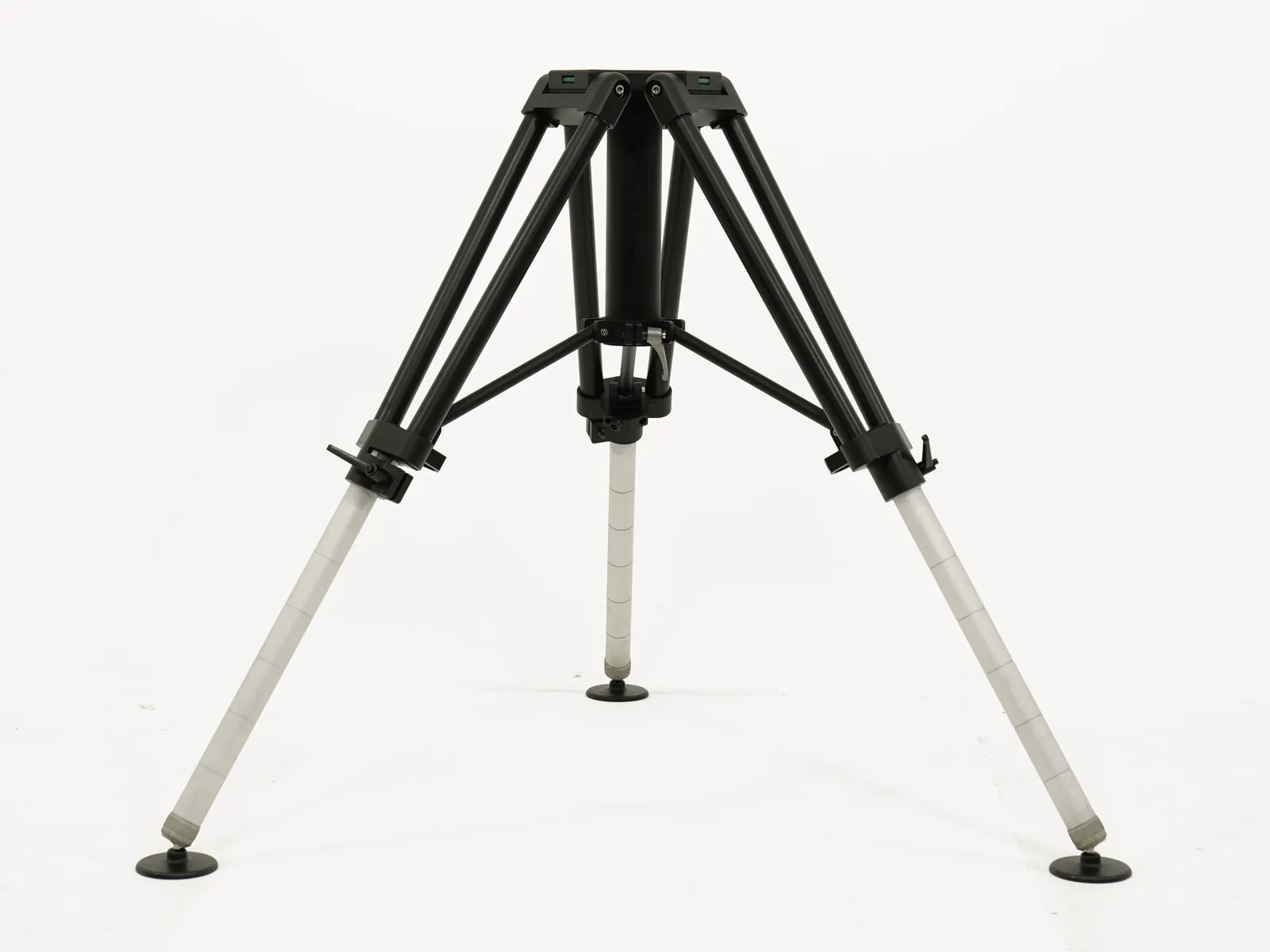

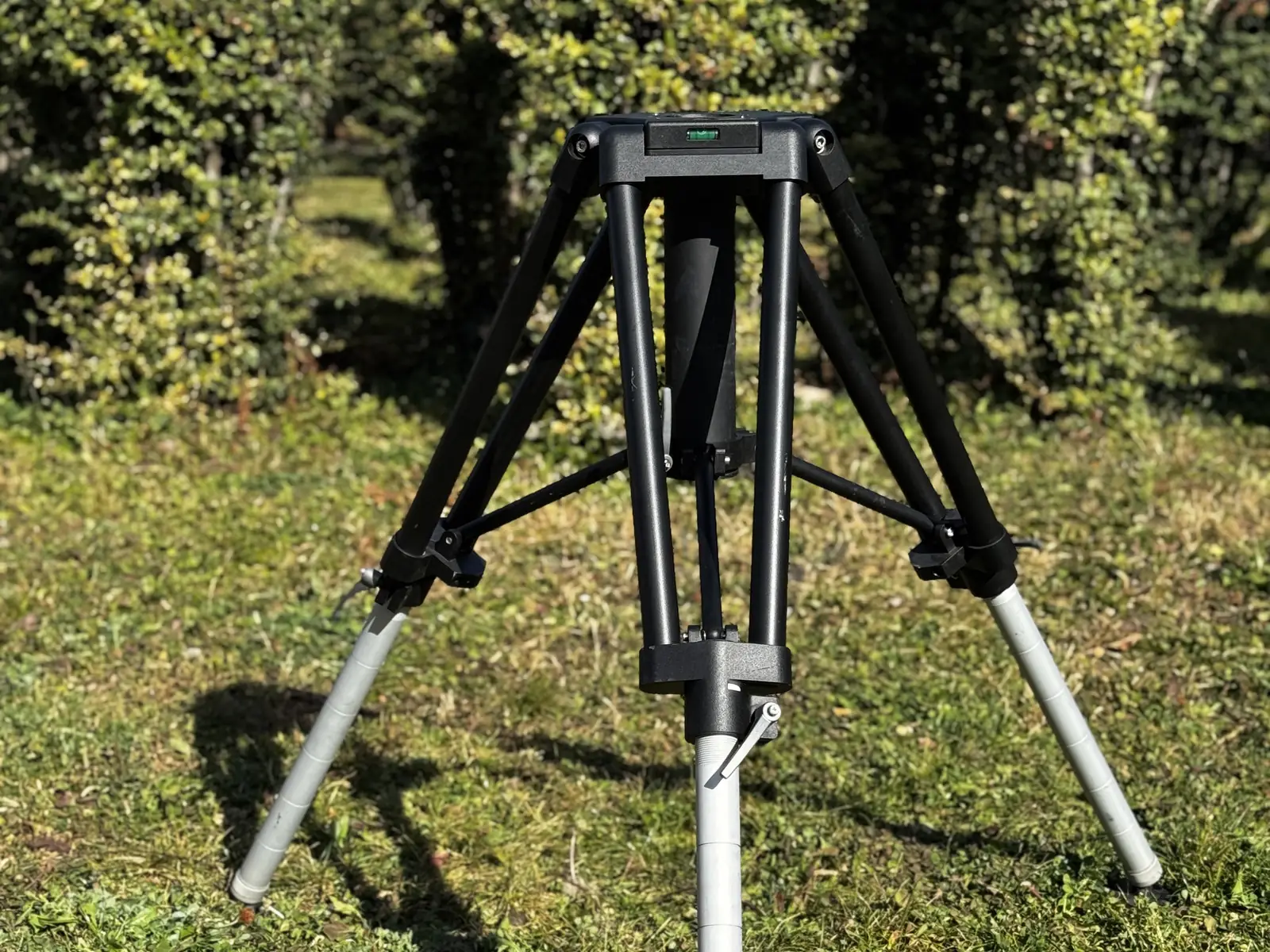

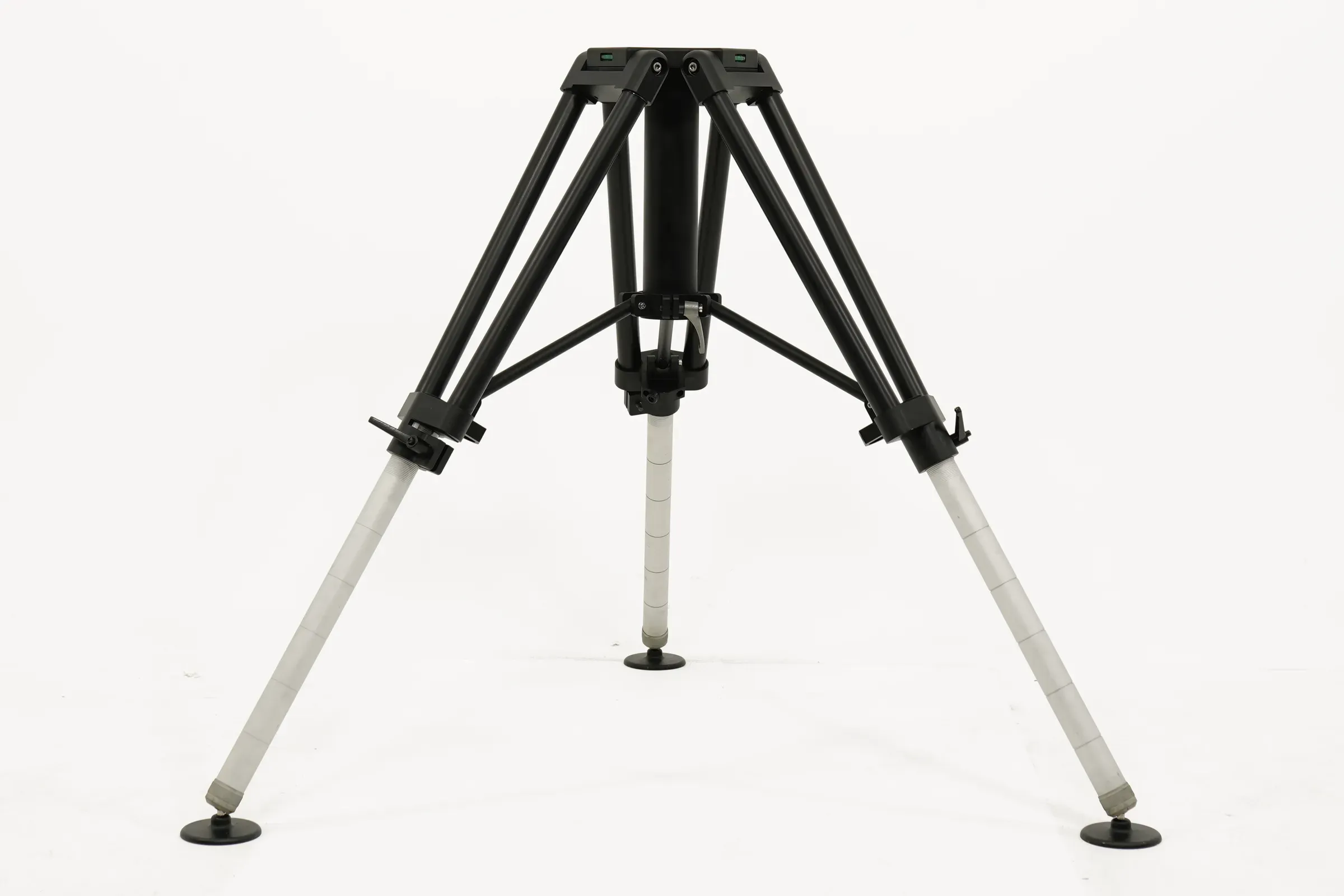

Heavy Duty Tripod

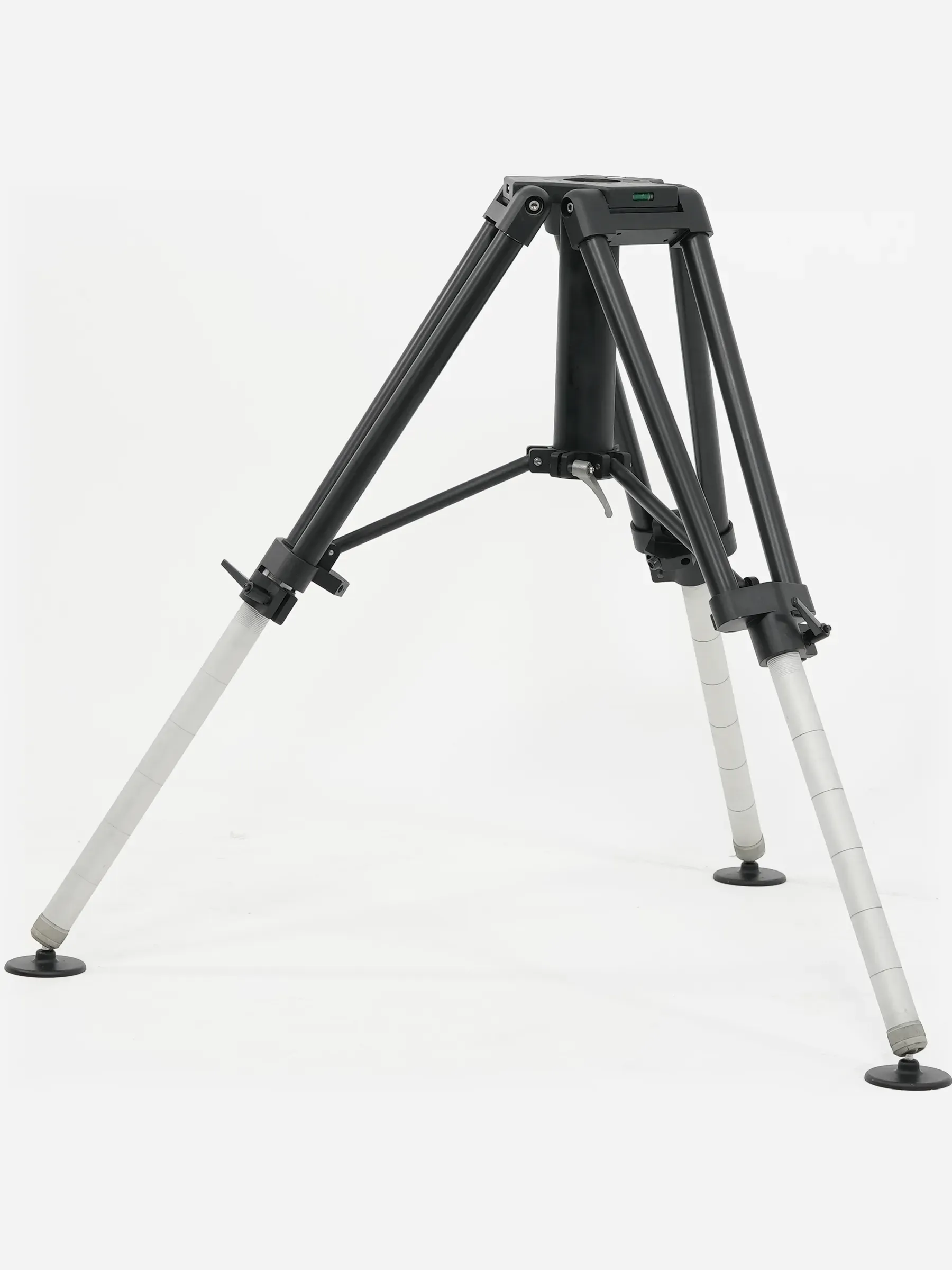

Heavy duty V-architecture tripod rated for 150 kg, with a large centre column and wide leg spacing for off-centre payloads.
- 150 kg payload
- 995 mm extended
- 14,7 kg weight
- 995 mm
- Extended Height
- 150 kg
- Rated Payload
- 14,7 kg
- Weight
Highlights
01150 kg
Heaviest payload in the tripod range

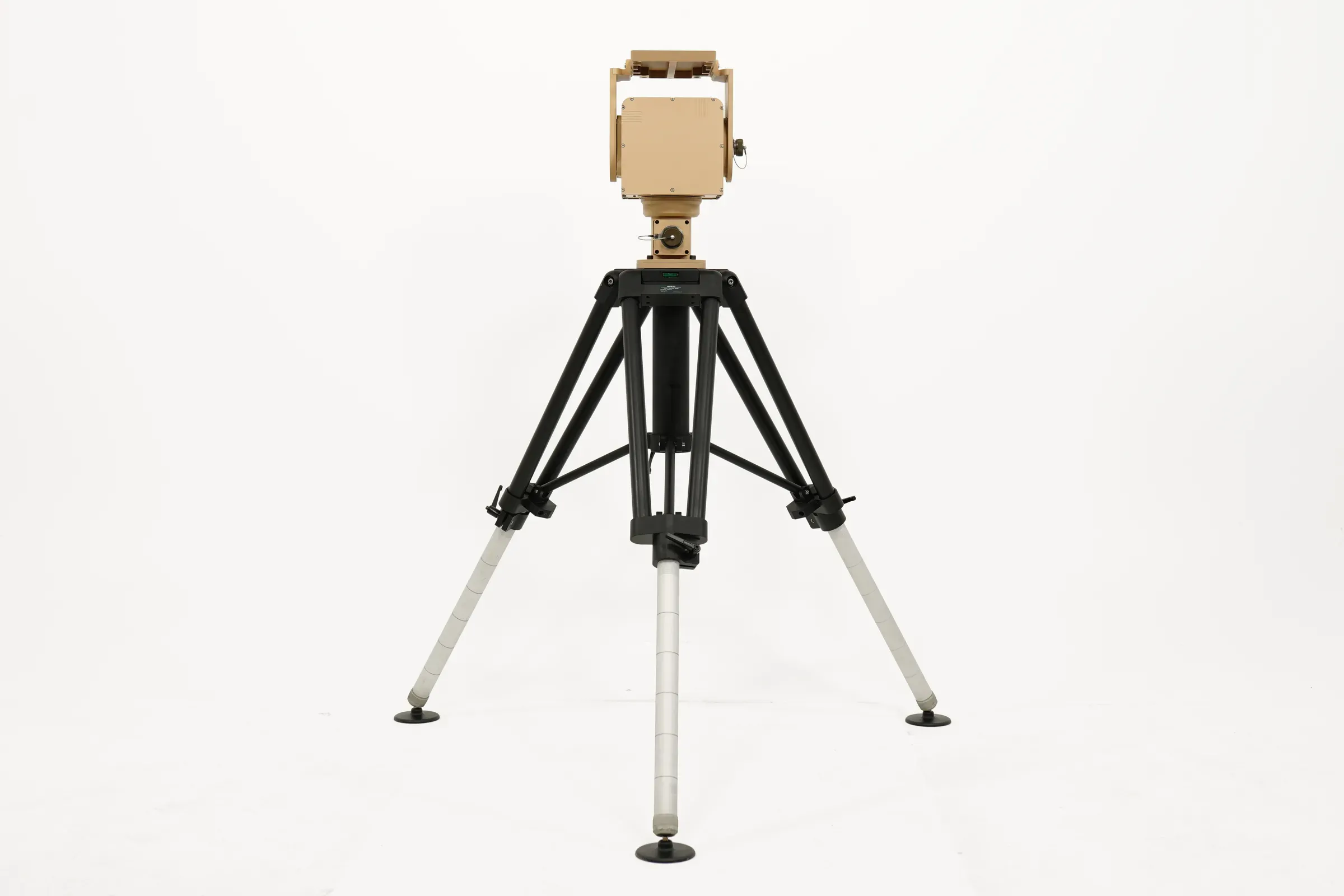

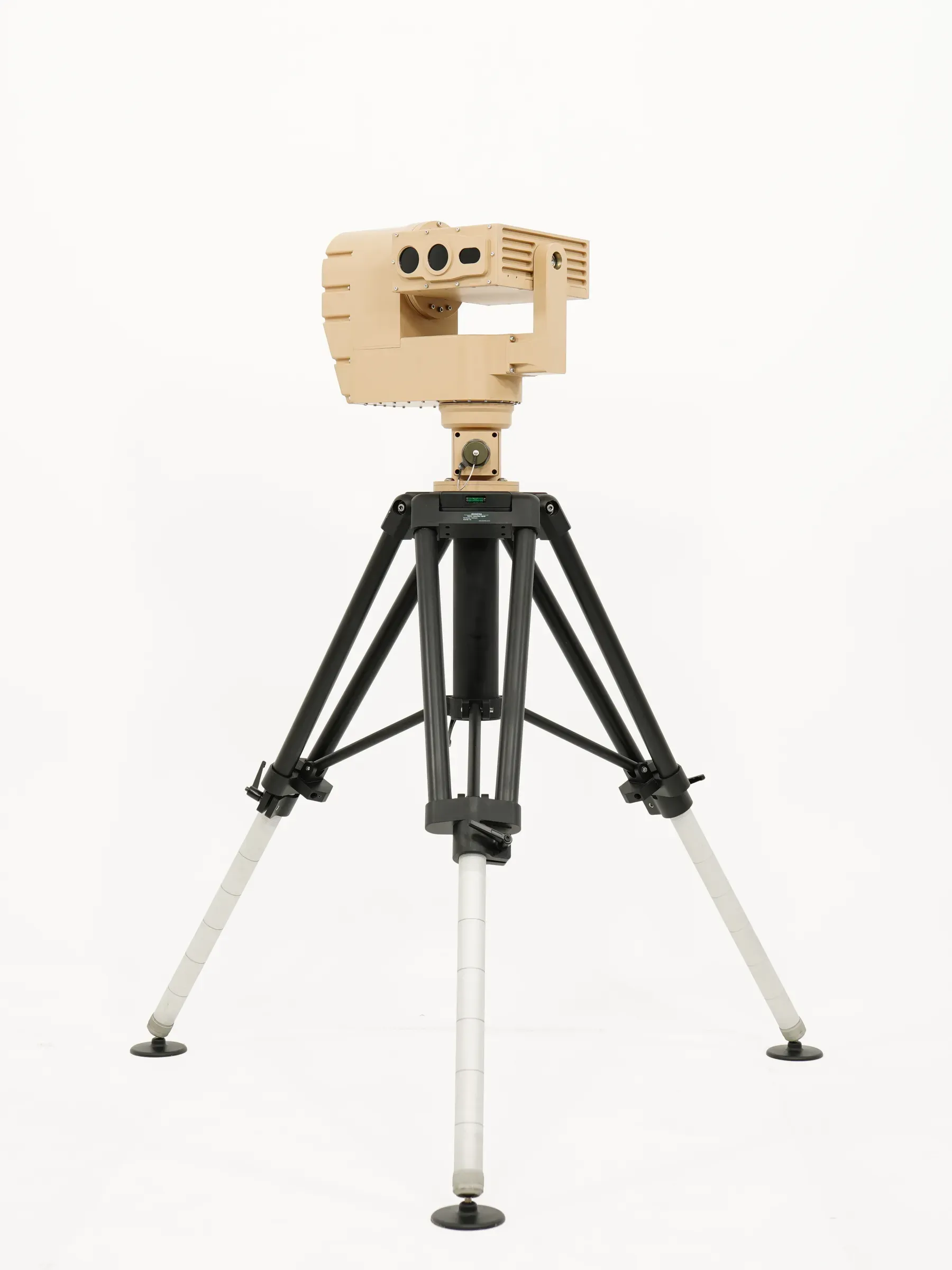

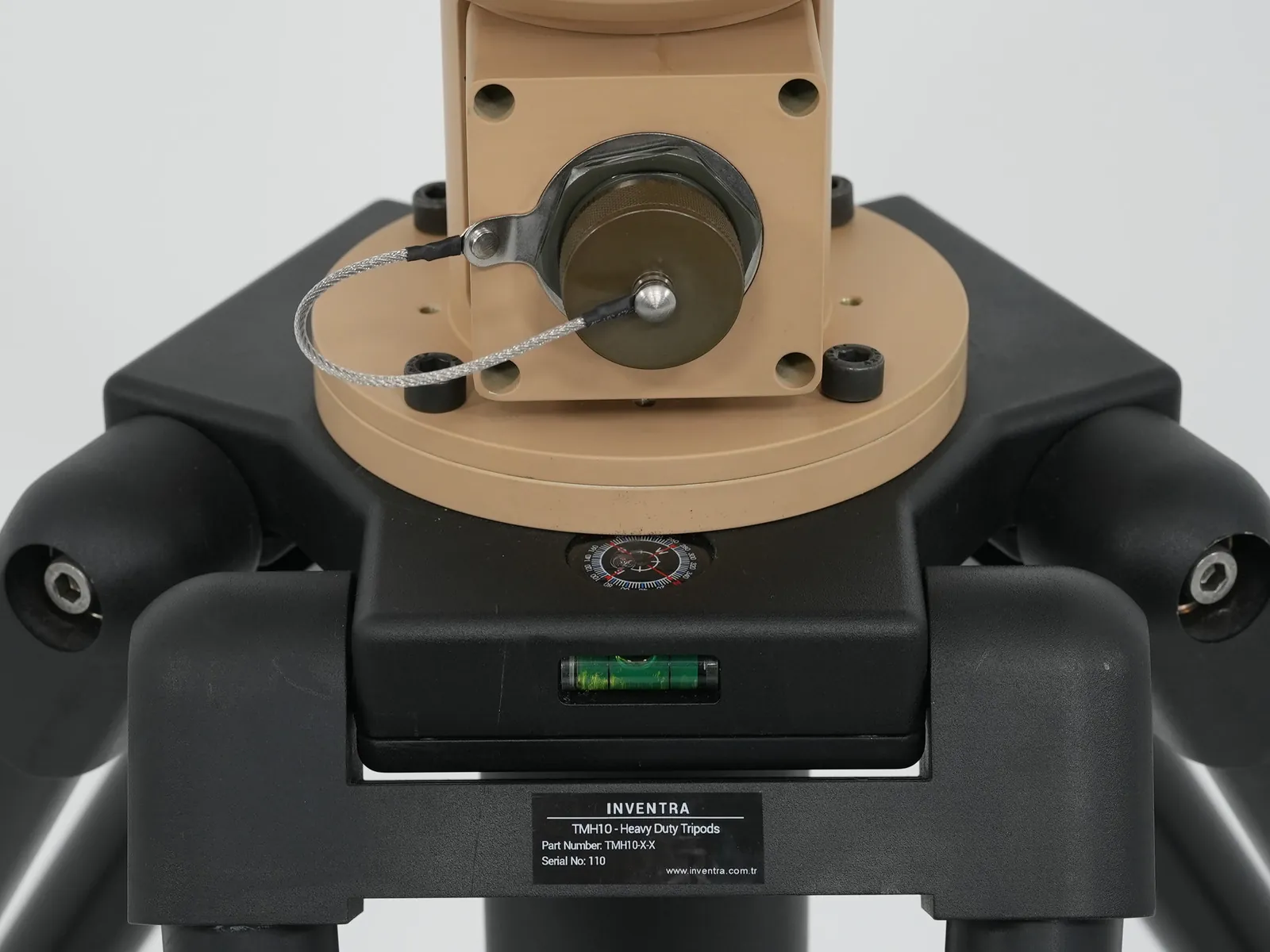

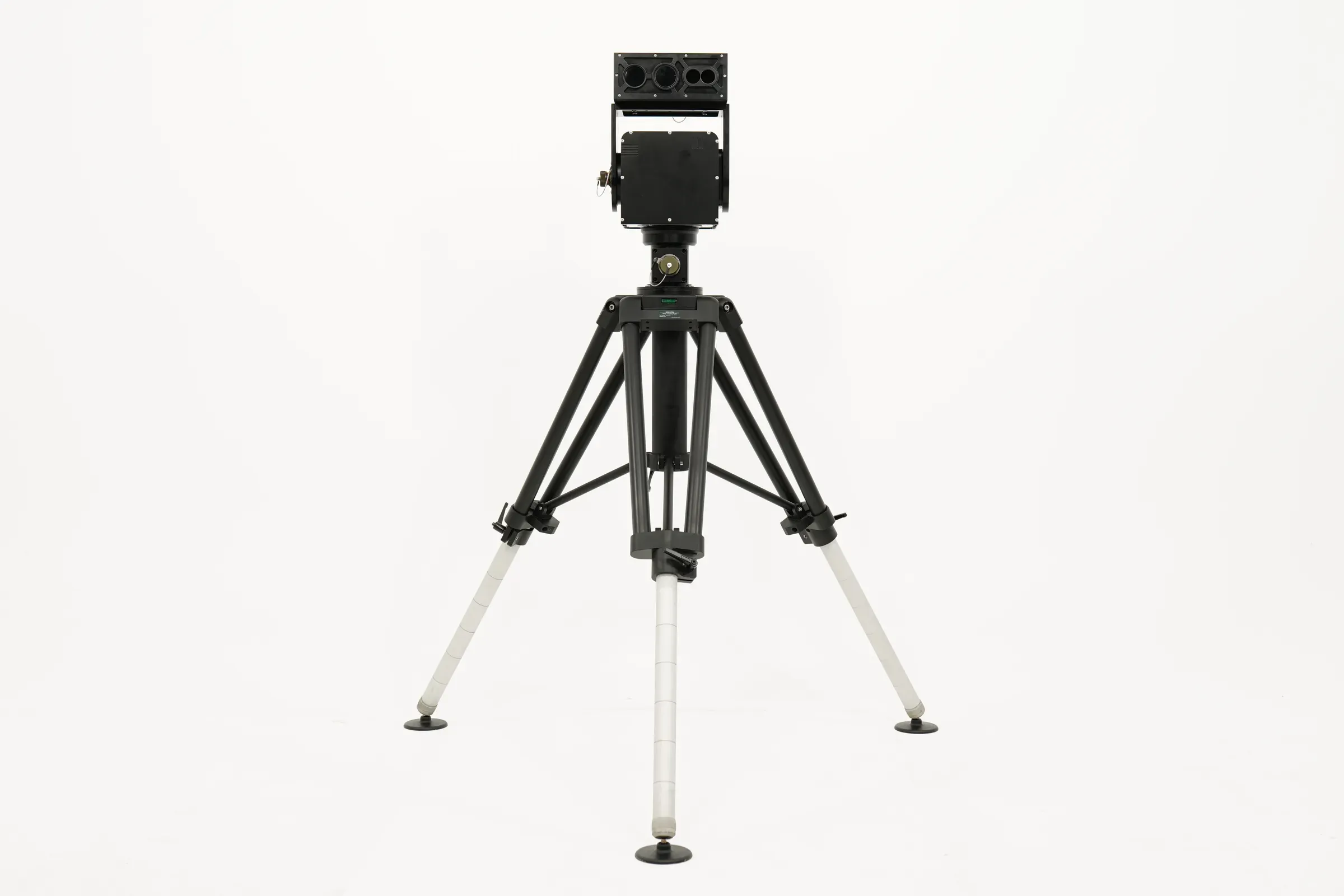

Rated payload is 150 kg, which covers a heavy pan-tilt unit with a cooled gimbal on top rather than a sensor alone.
- Working height 640 to 1250 mm
- 14.7 to 18.4 kg by configuration

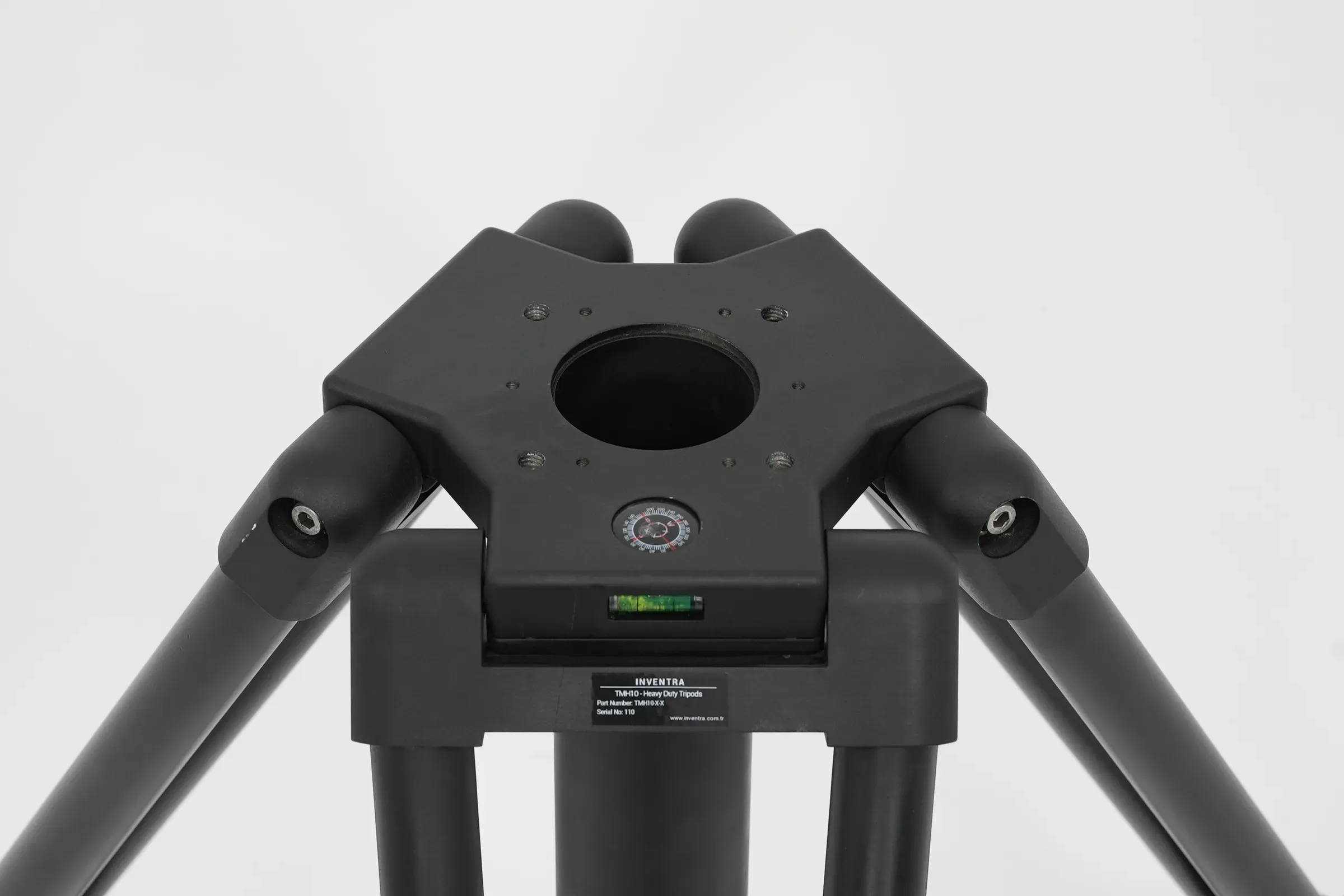

02V design

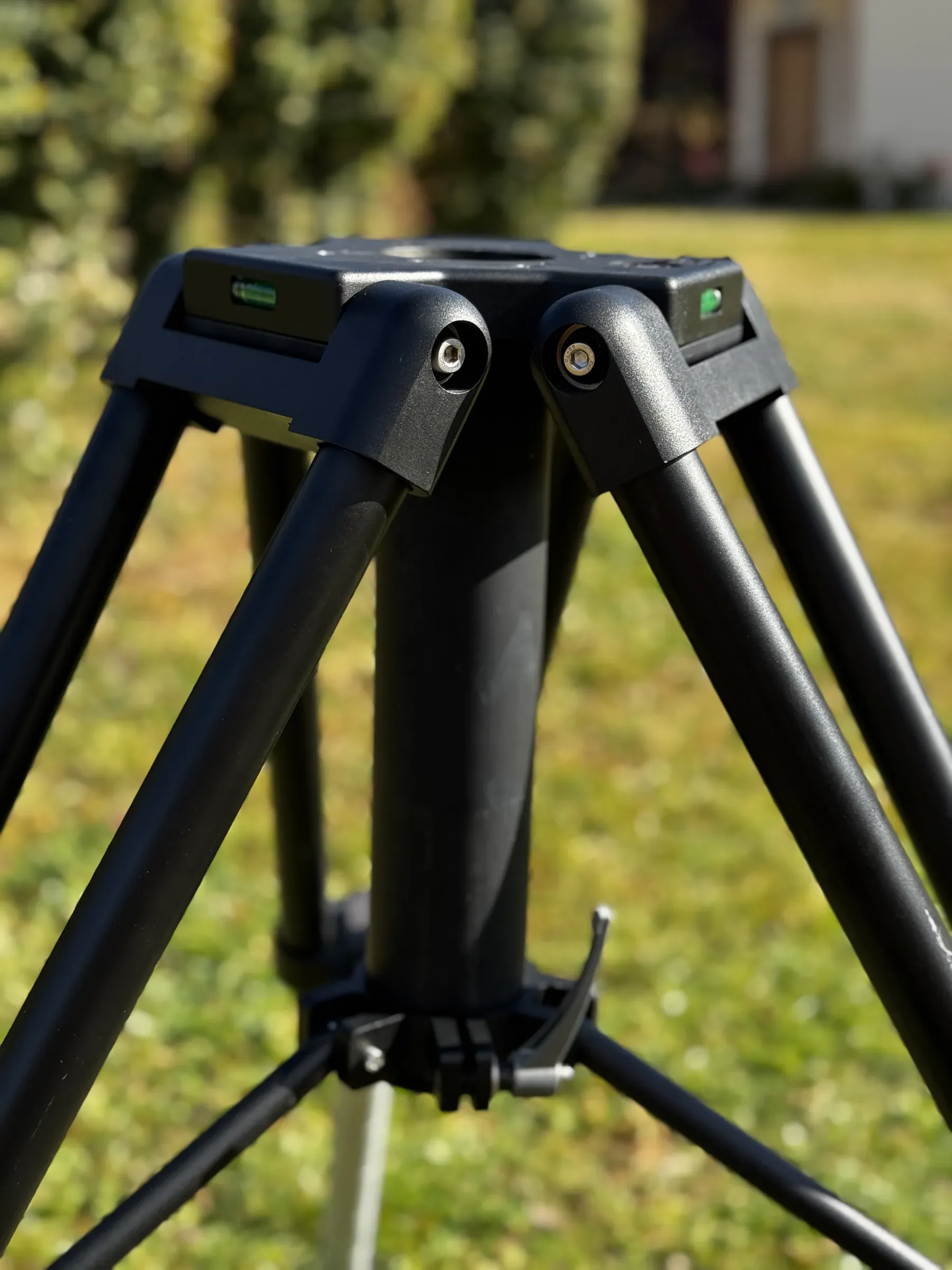

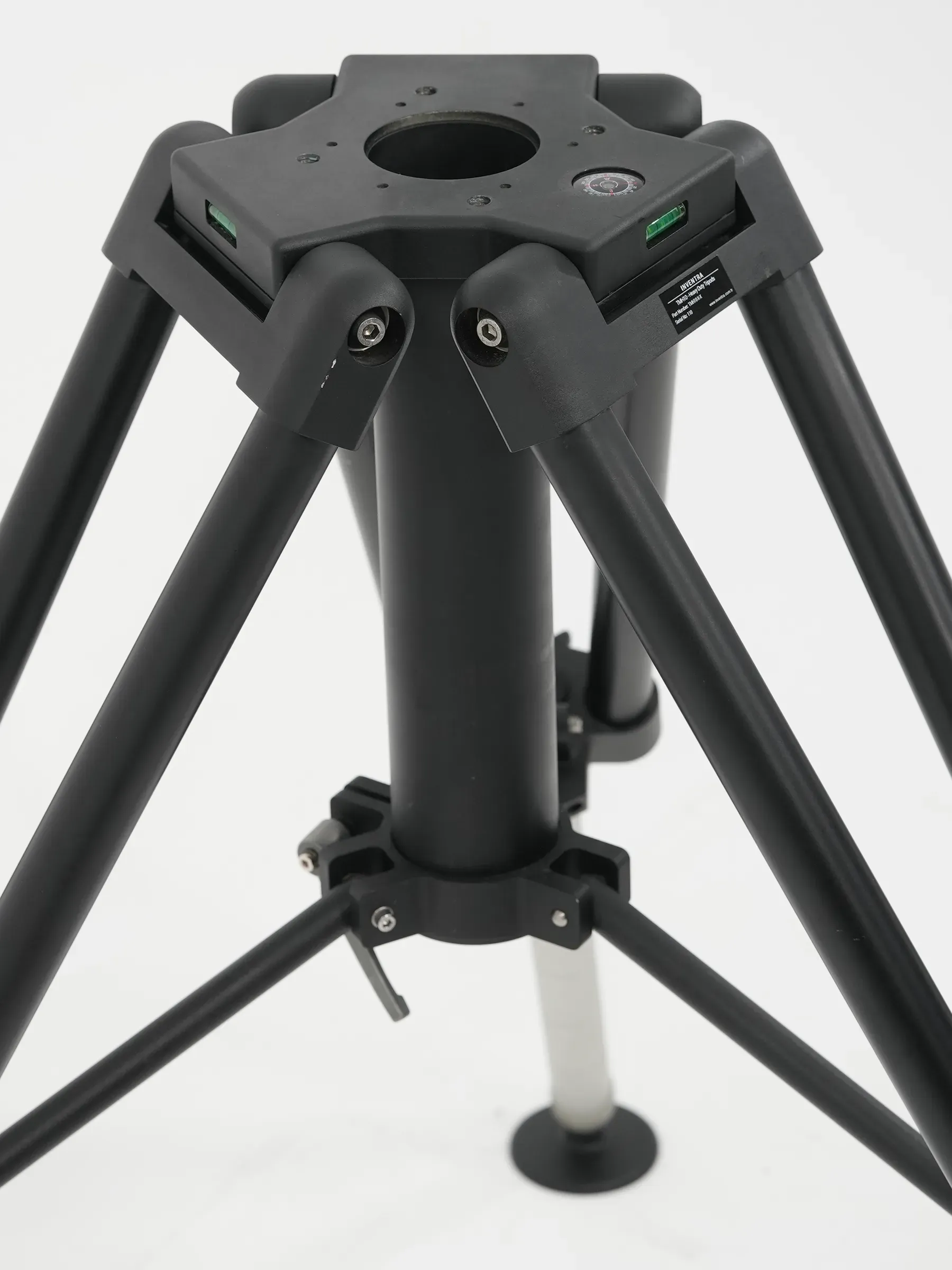

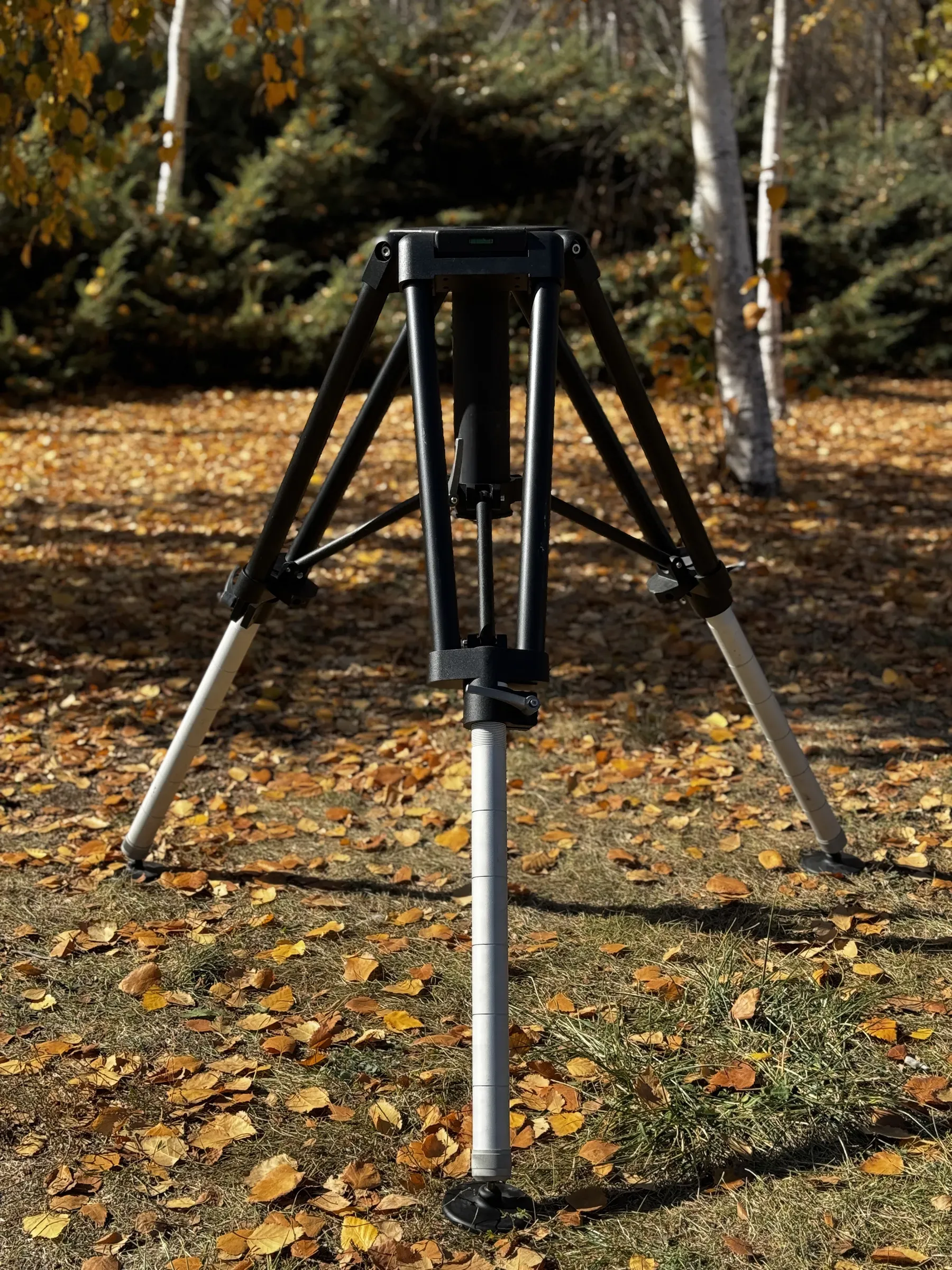

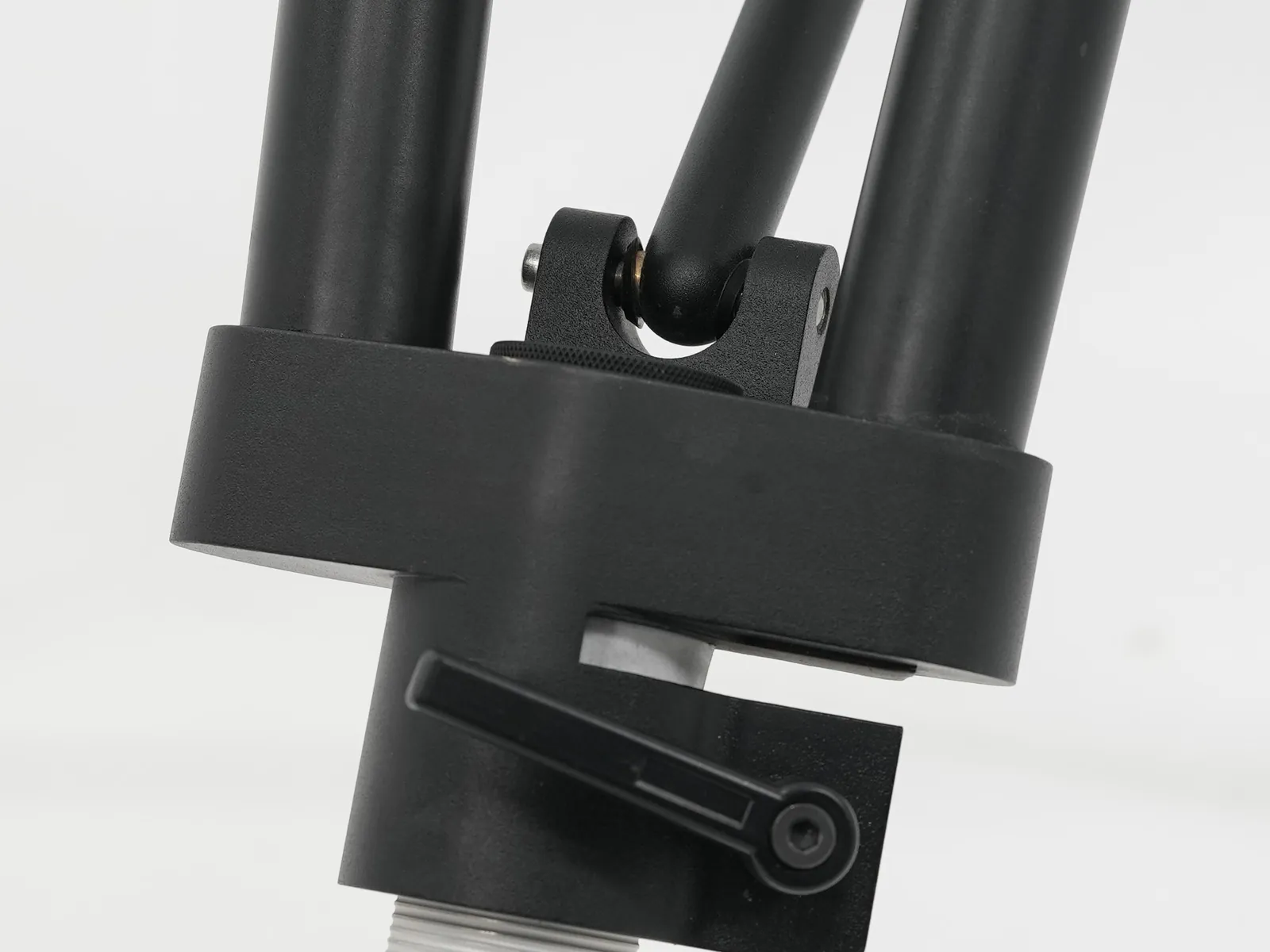

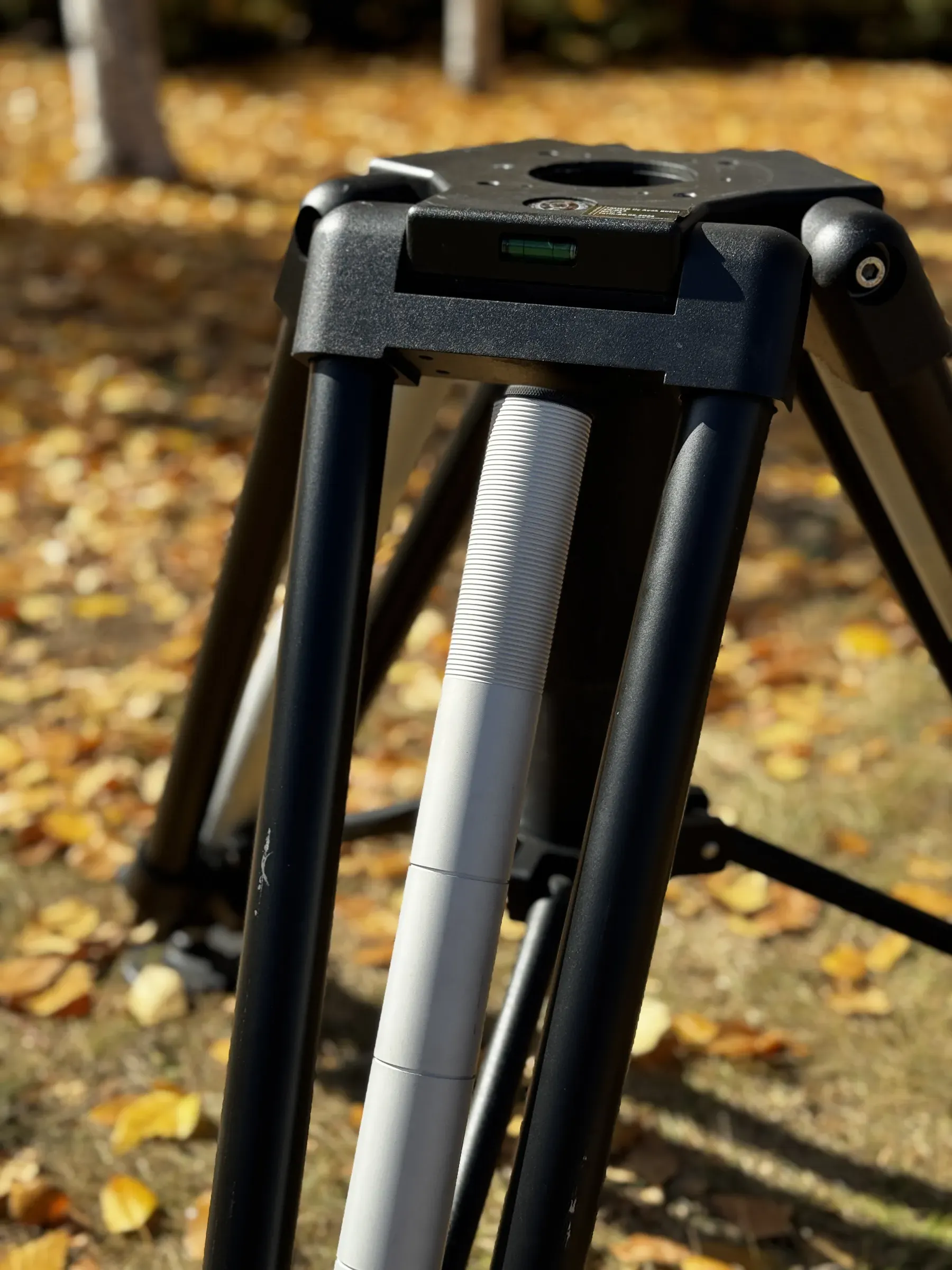

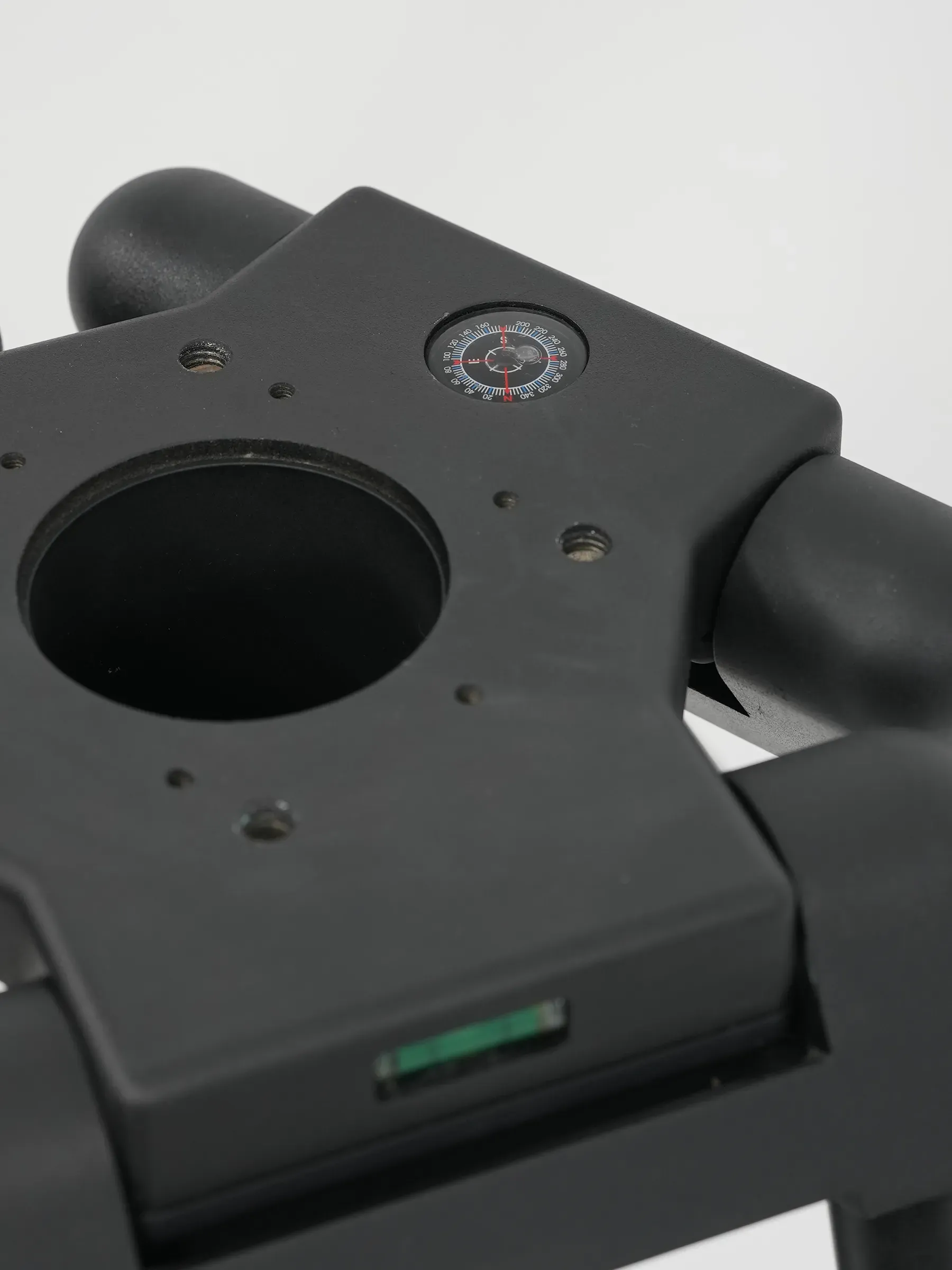

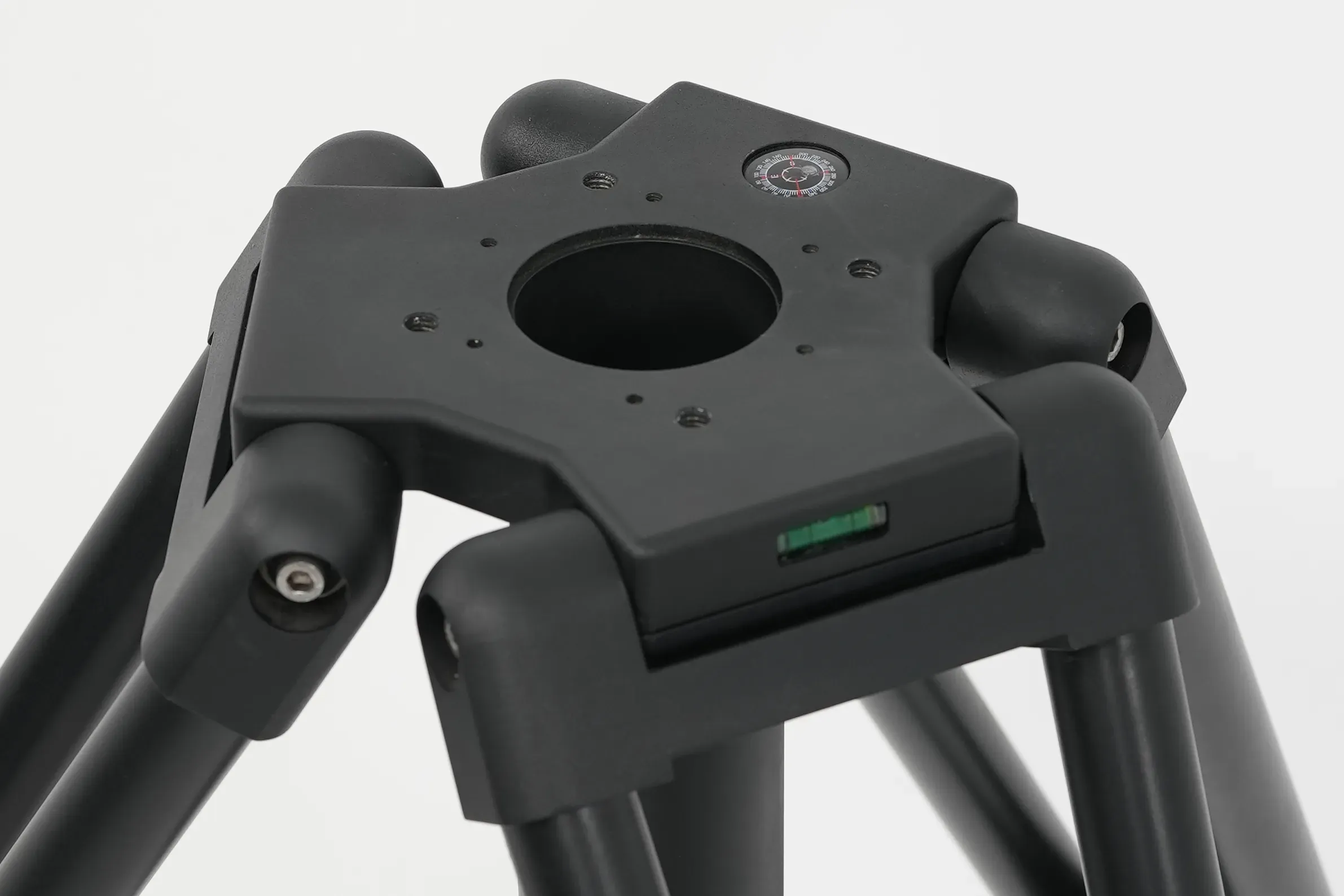

Large centre column for low deflection

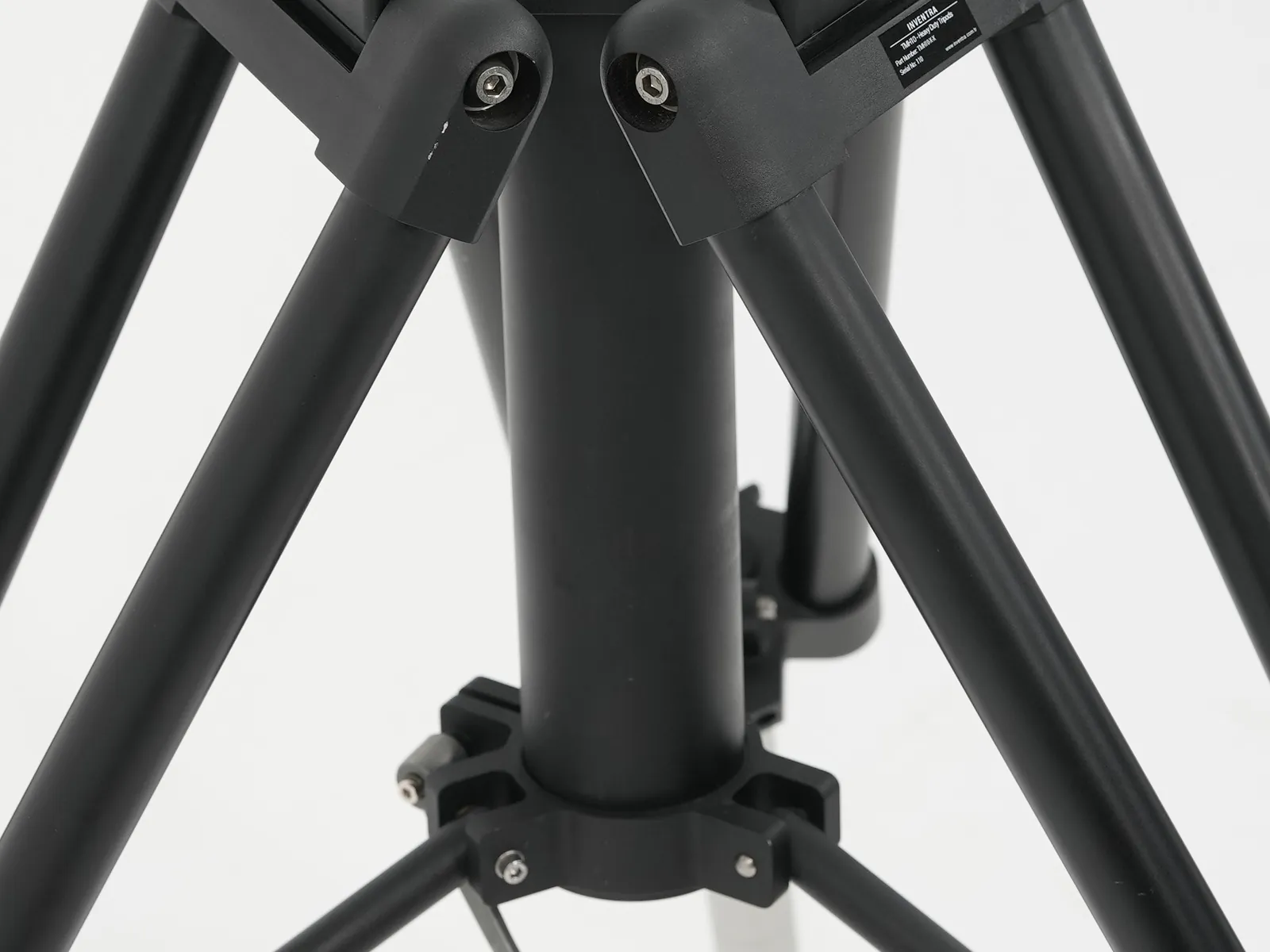

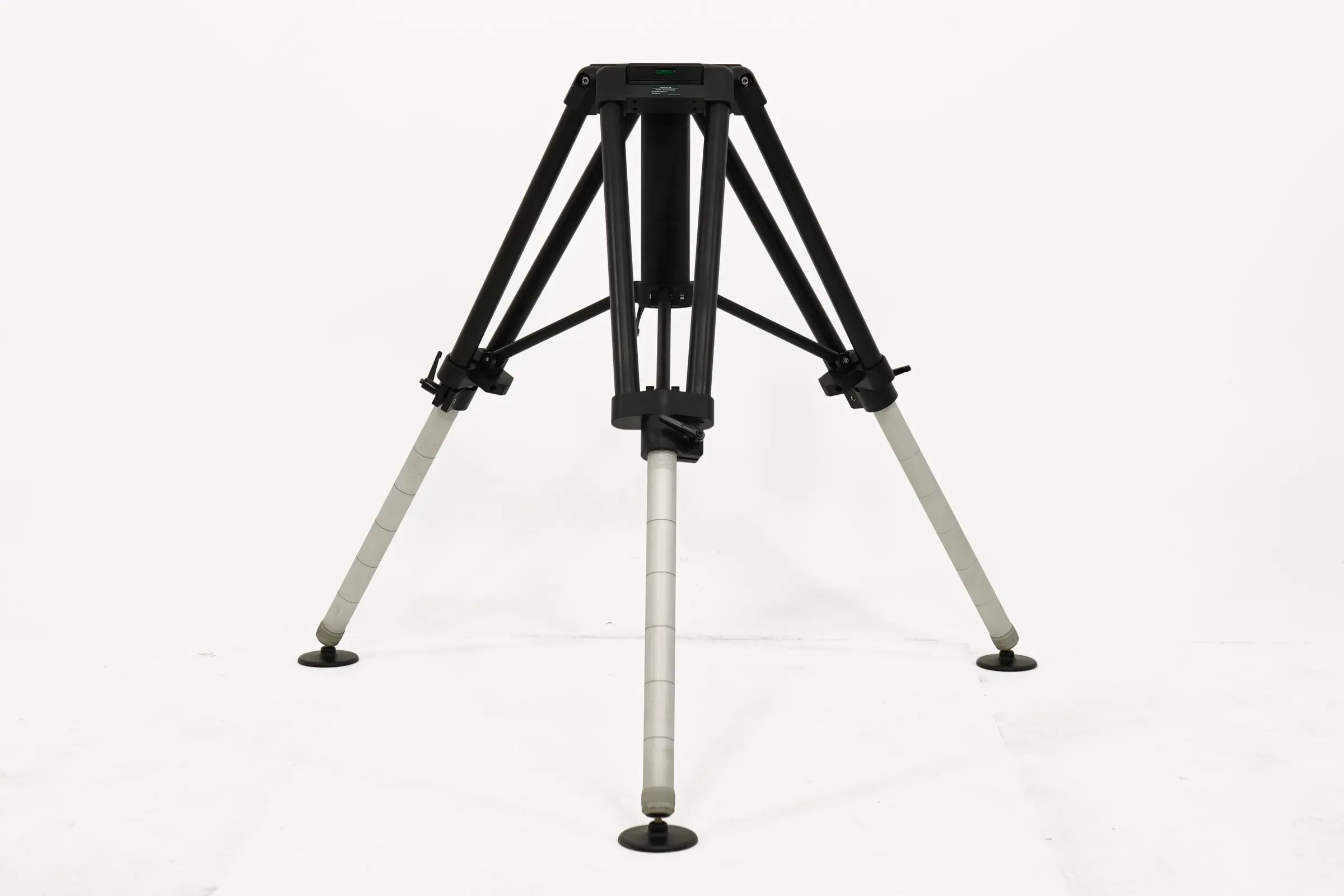

The V mechanical architecture with a large centre column is what holds twist and deflection down under load. A stabilised payload is only as steady as what it stands on.
- Aluminium 6061-T6, electrostatic powder coated
- 120 km/h wind load, MIL-STD-810G

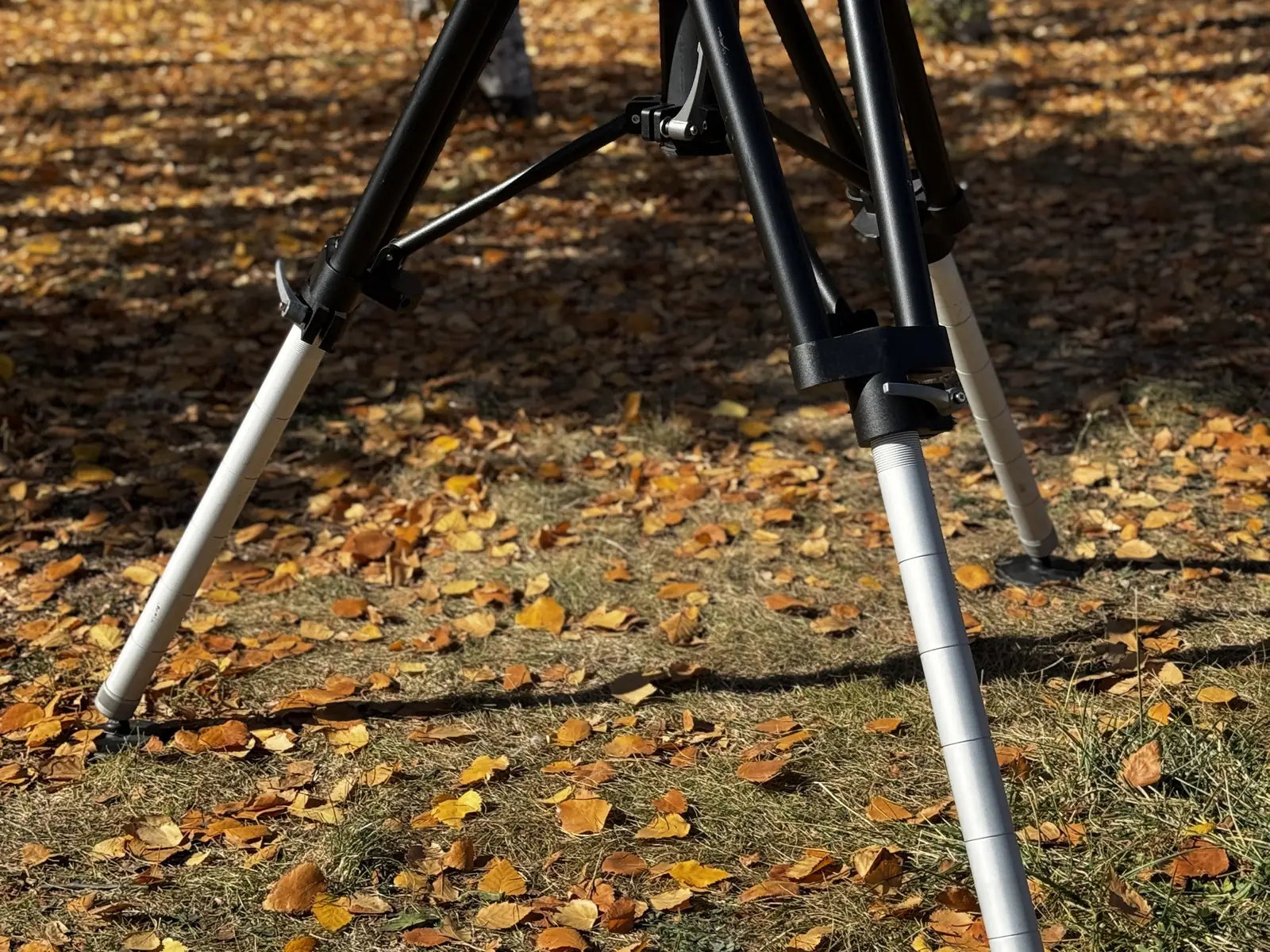

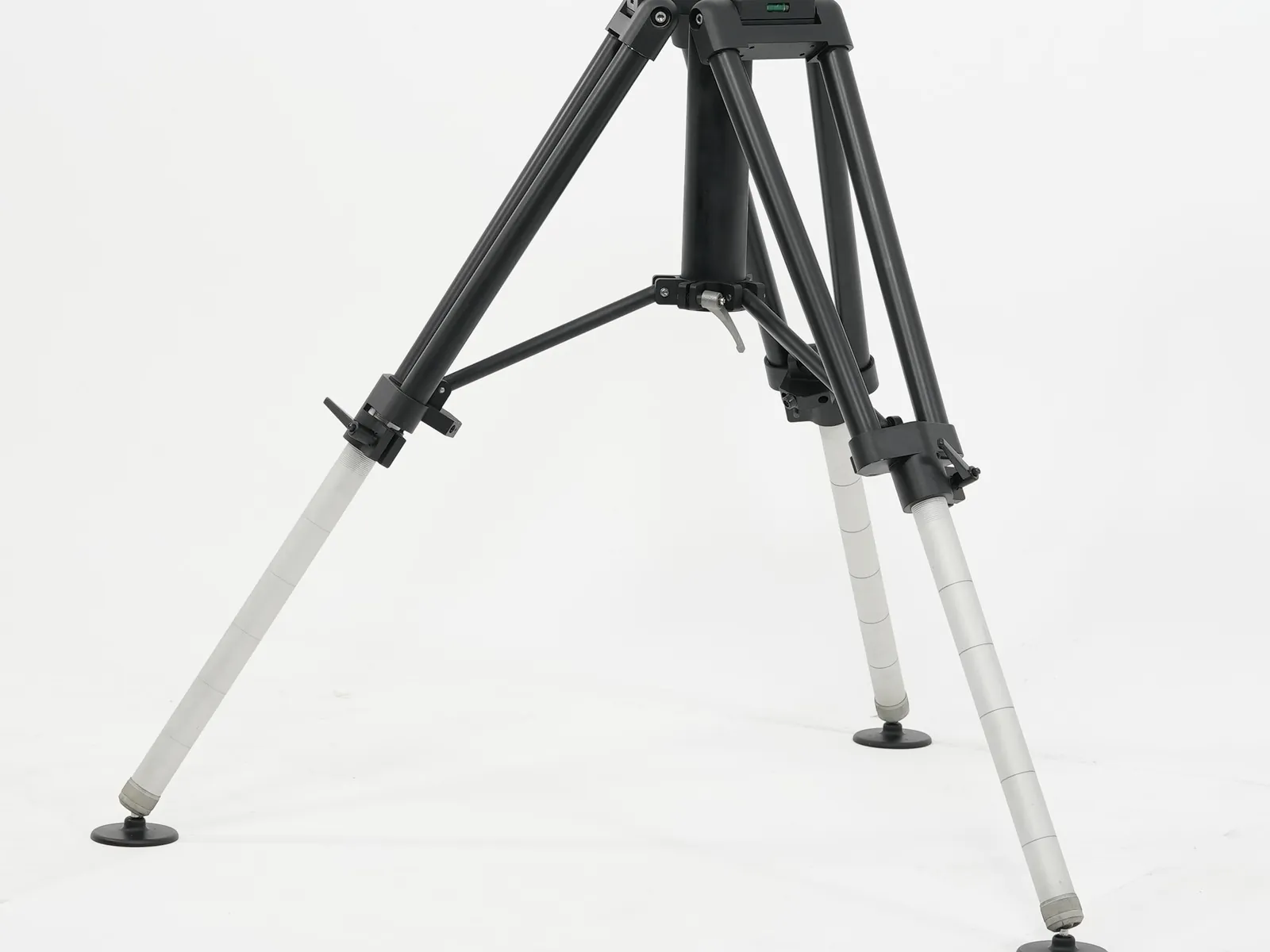

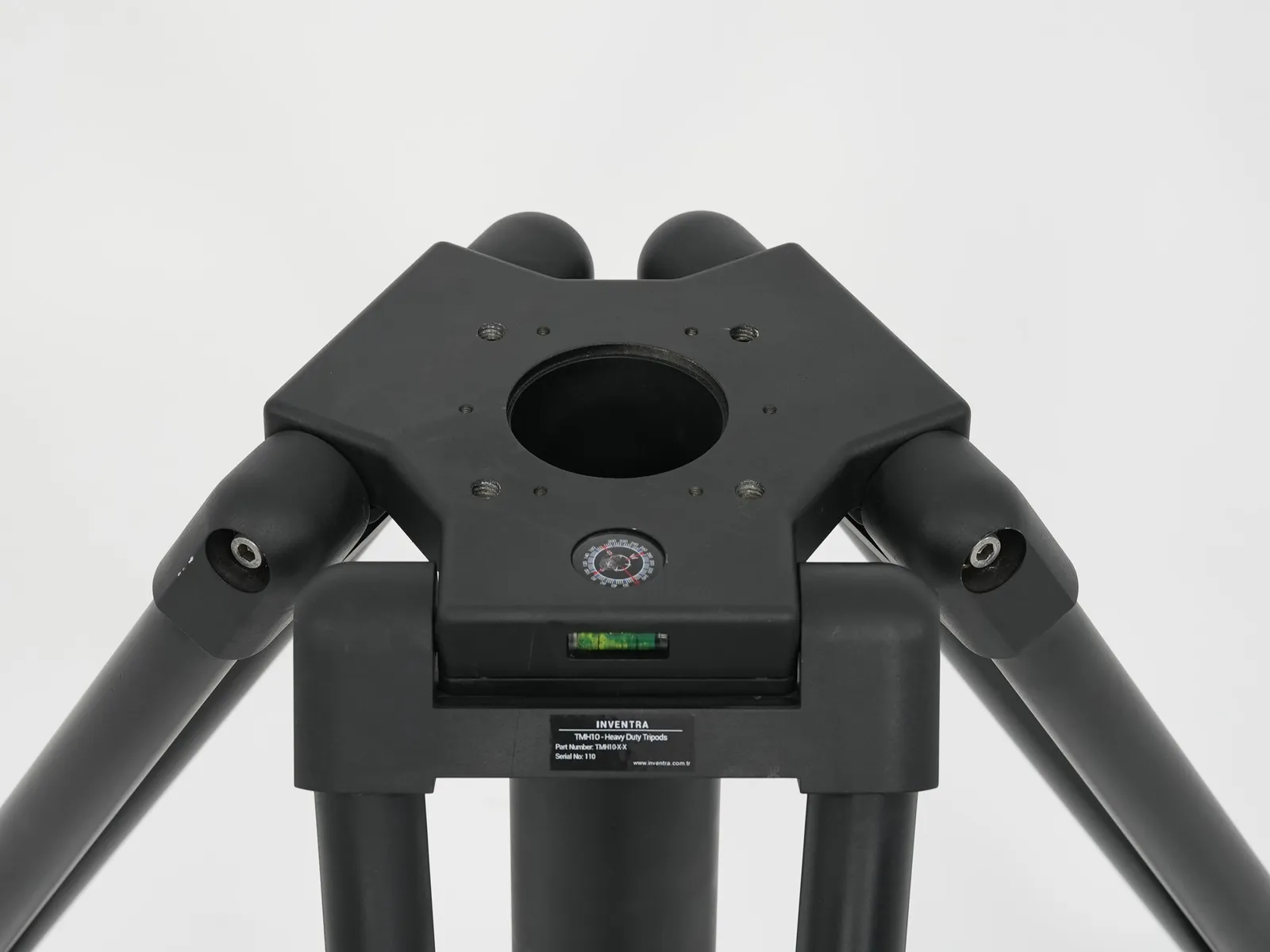

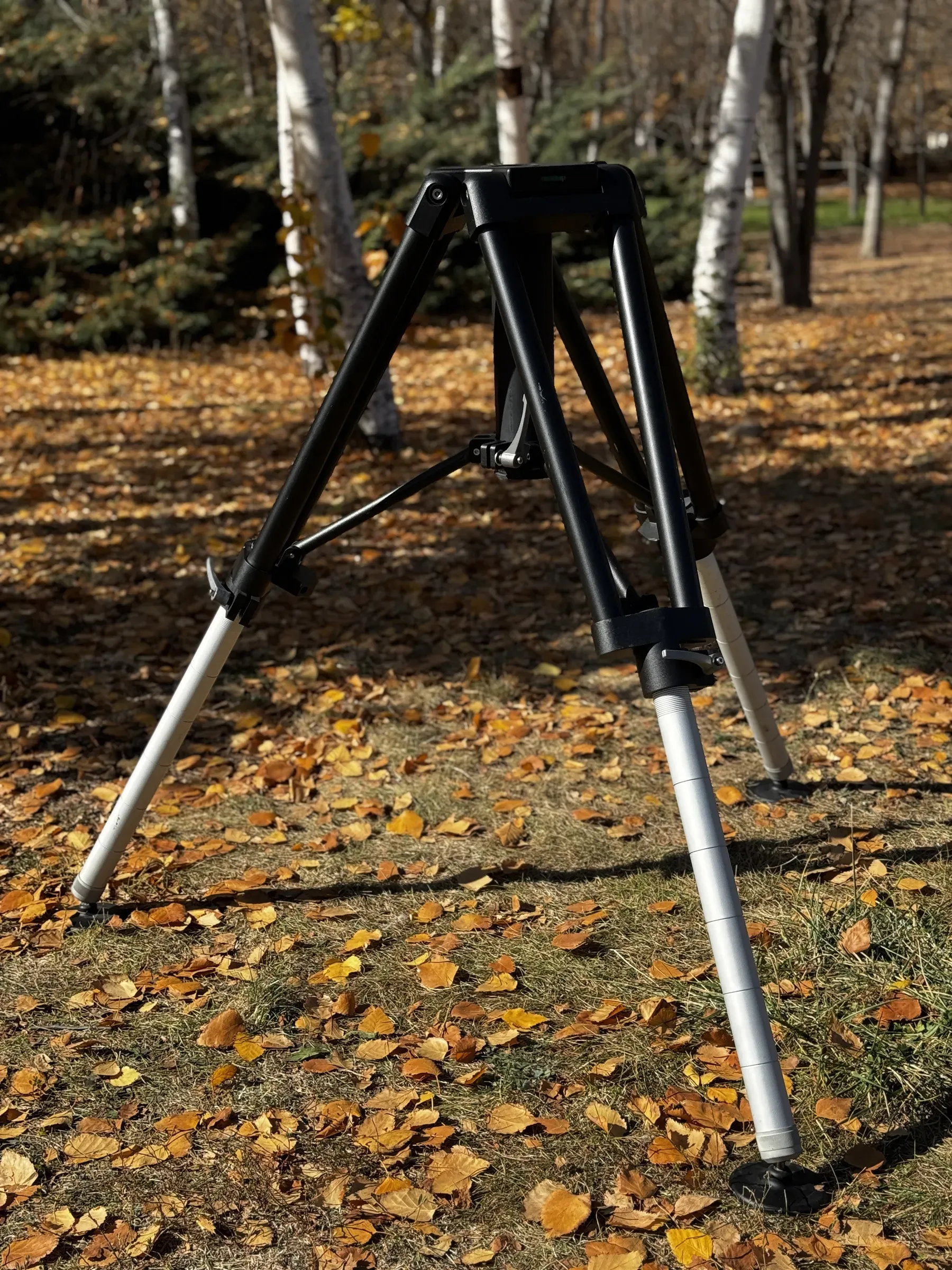

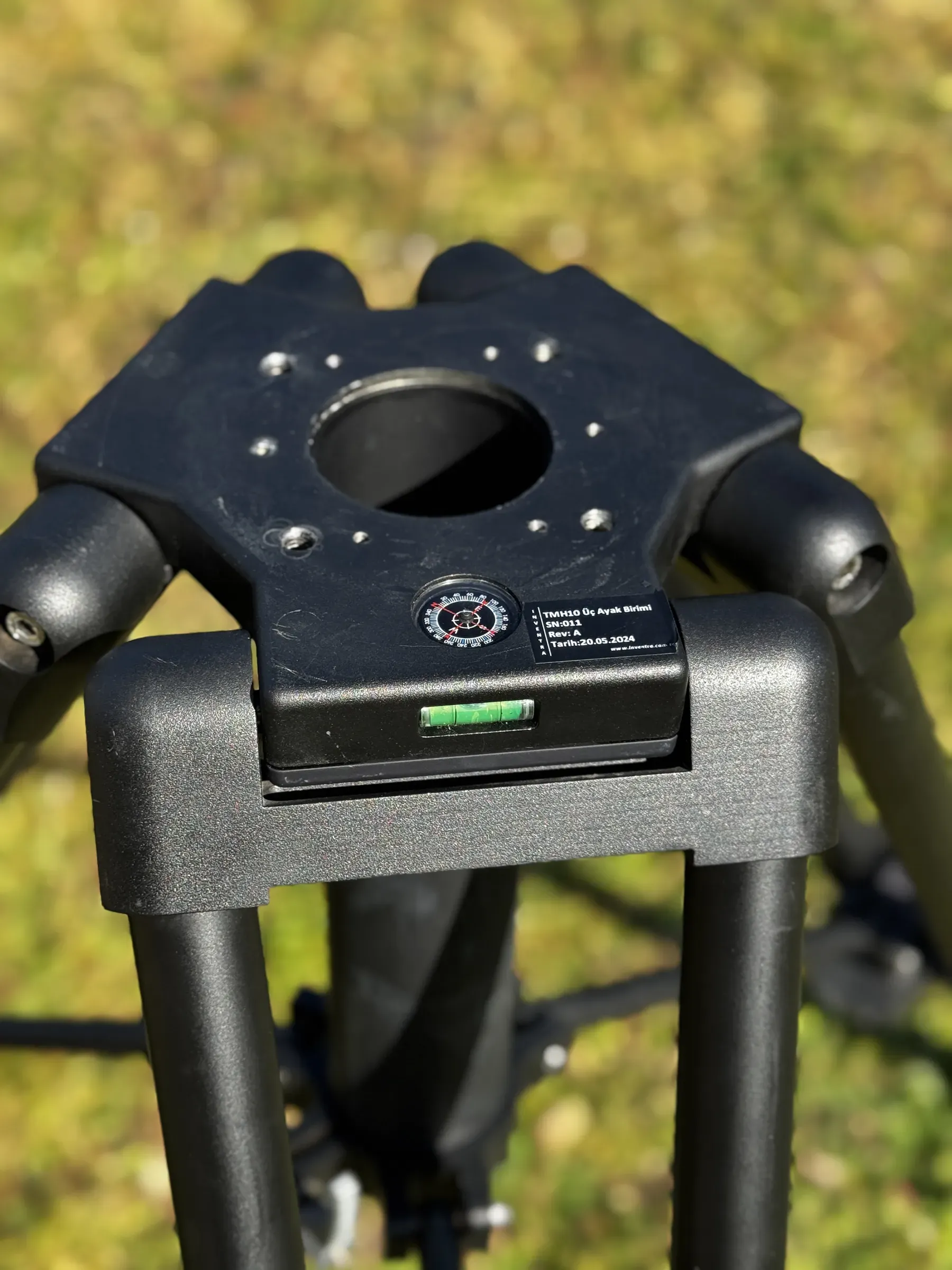

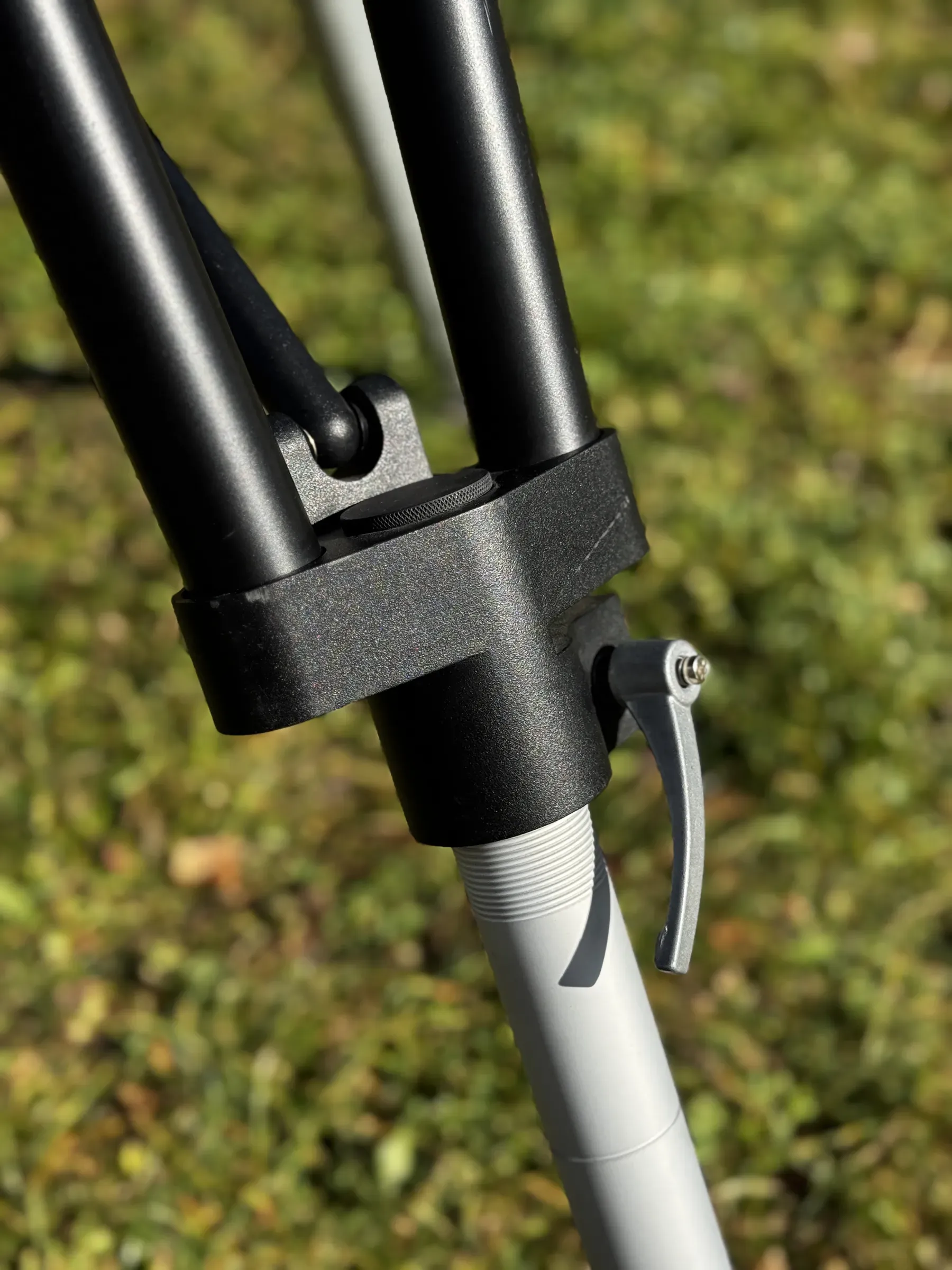

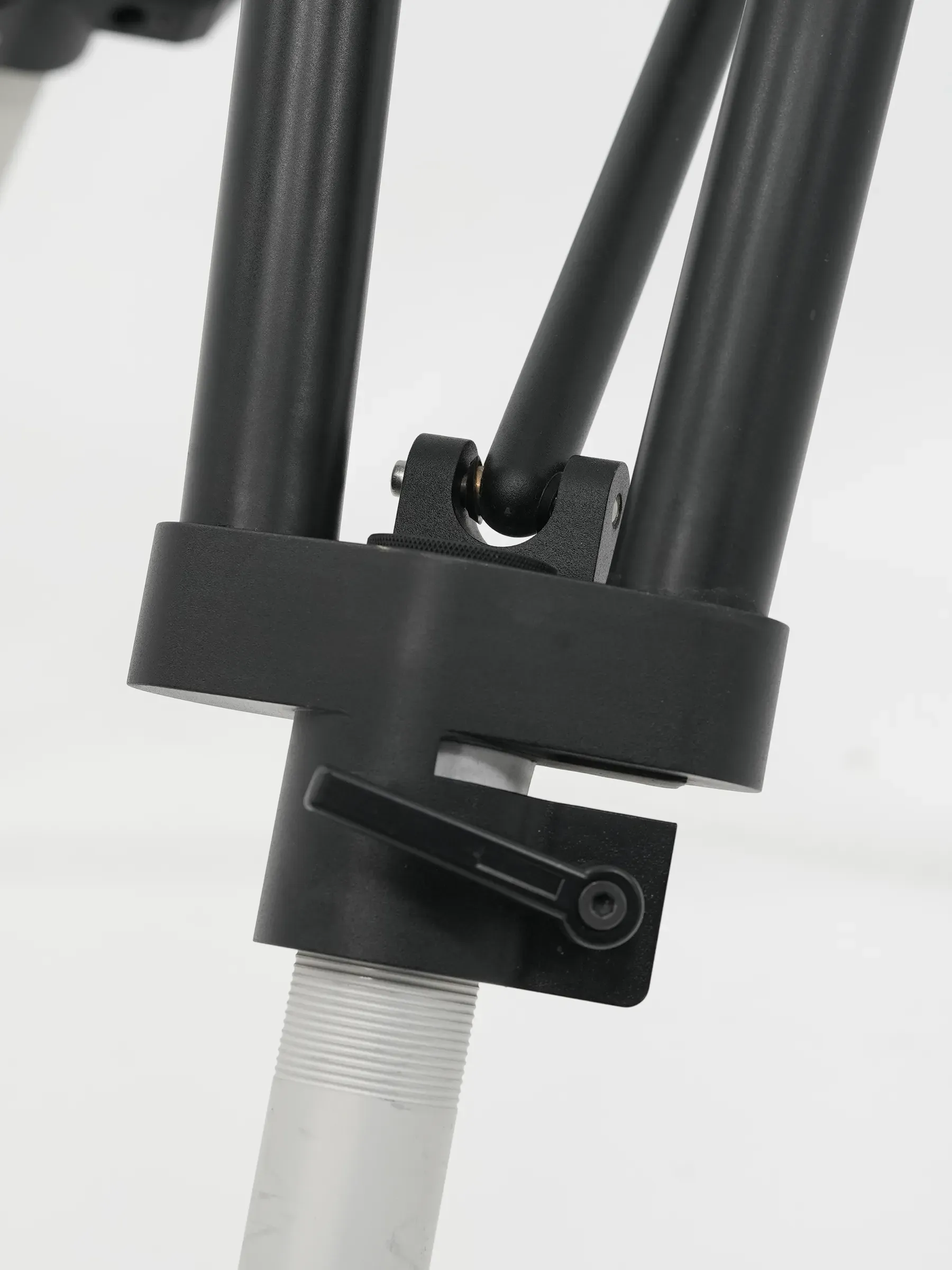

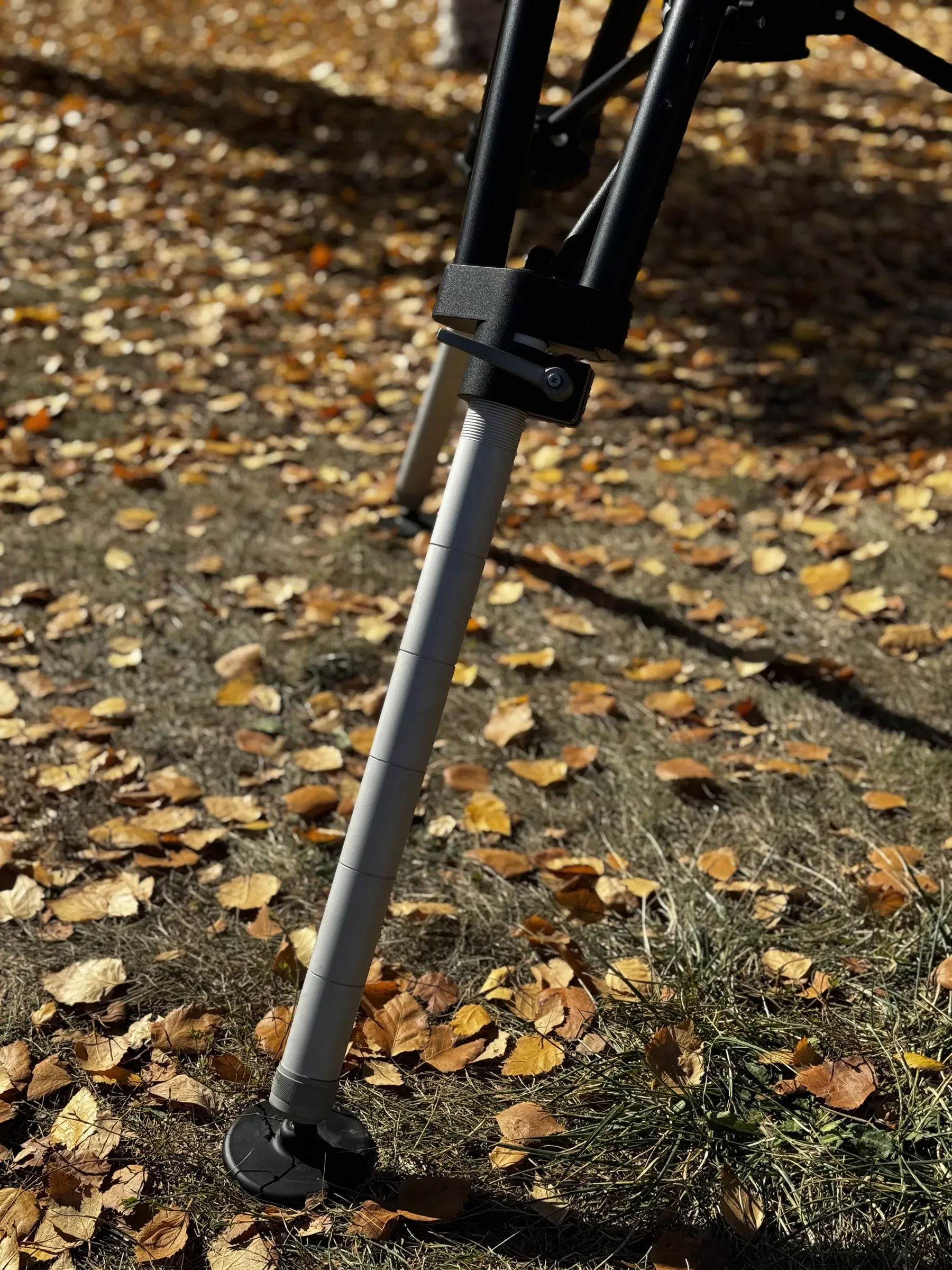

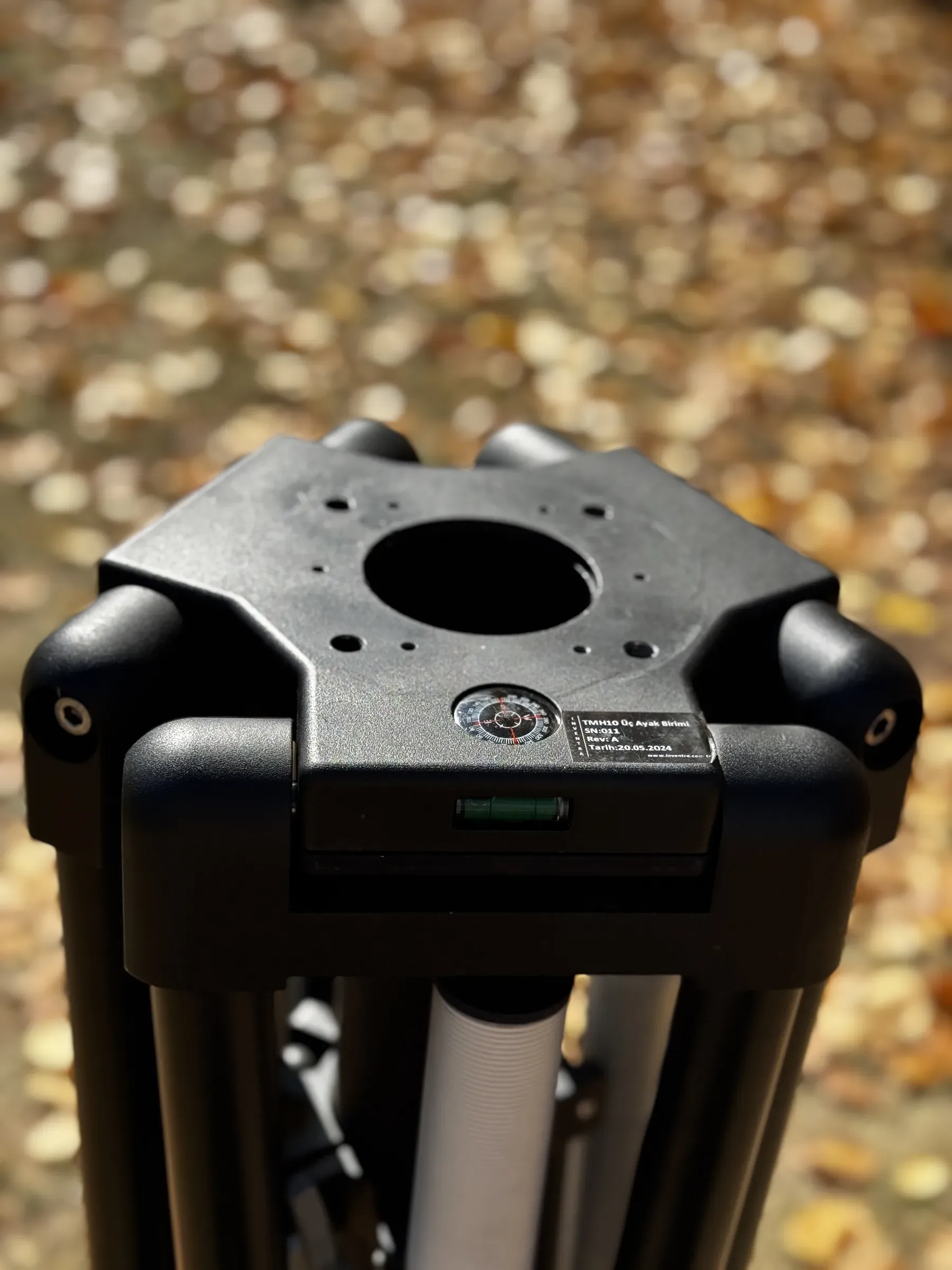

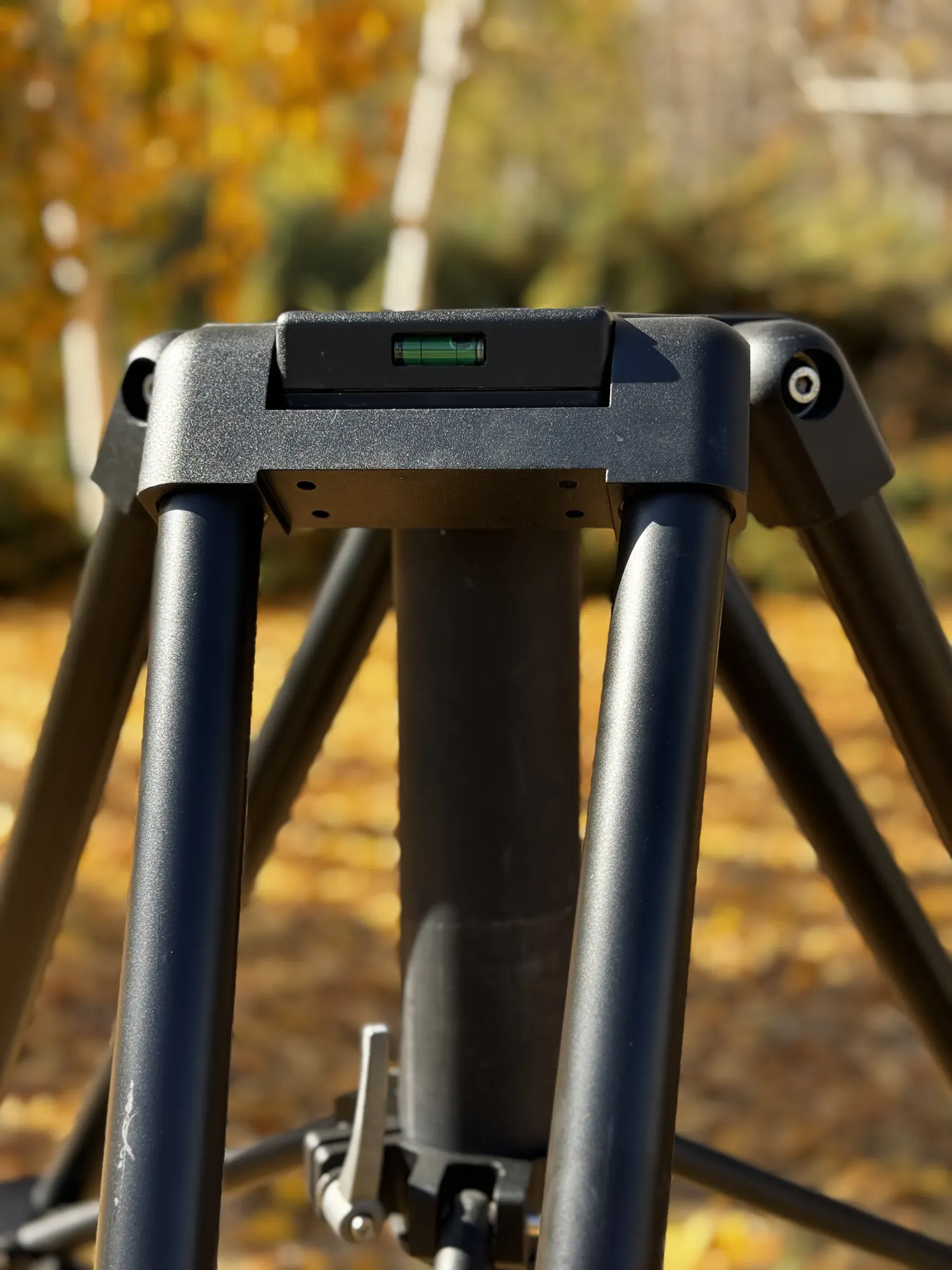

Gallery
Select a frame to open it at full size.
Configurations
| Part Number | retractedmm | extendedmm | payloadkg | Min. heightmm | weightkg | radiusmm |
|---|---|---|---|---|---|---|
| TMH10-0725-0995-0150Standard | 725 | 995 | 150 | 640 | 14,7 | 685 |
| TMH10-1055-1250-0150 | 1.055 | 1.250 | 150 | 895 | 18,4 | 900 |

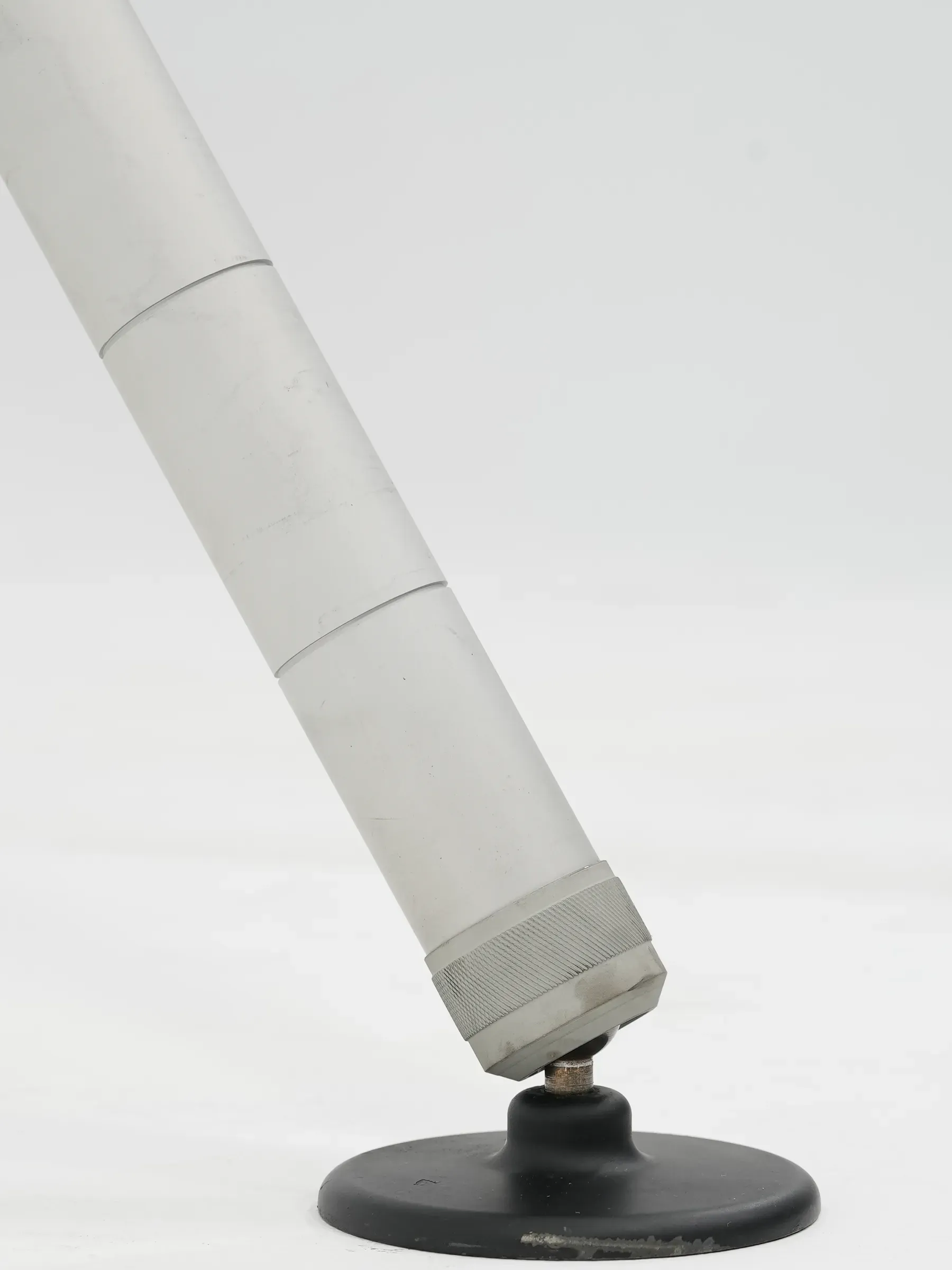

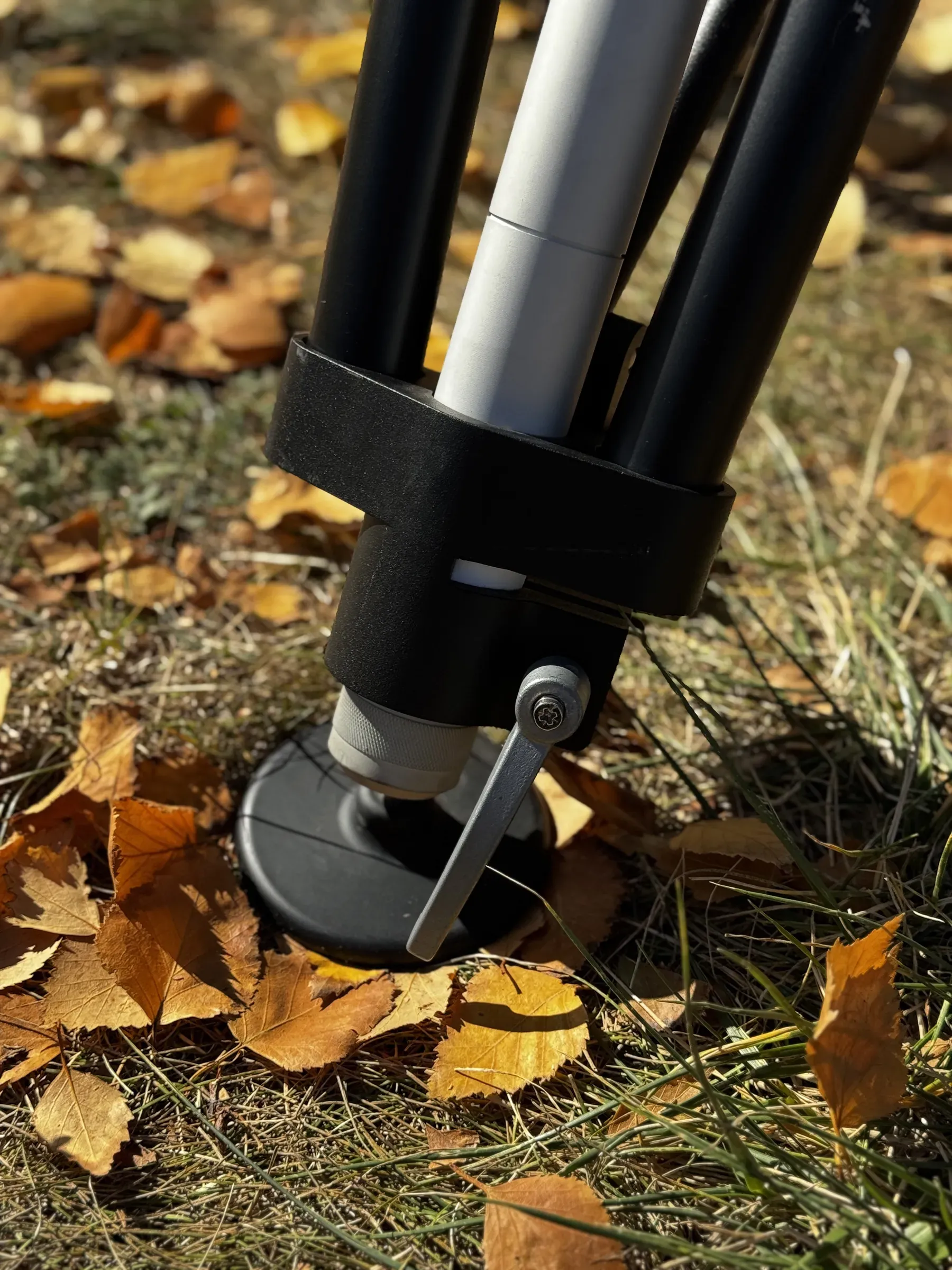

Options

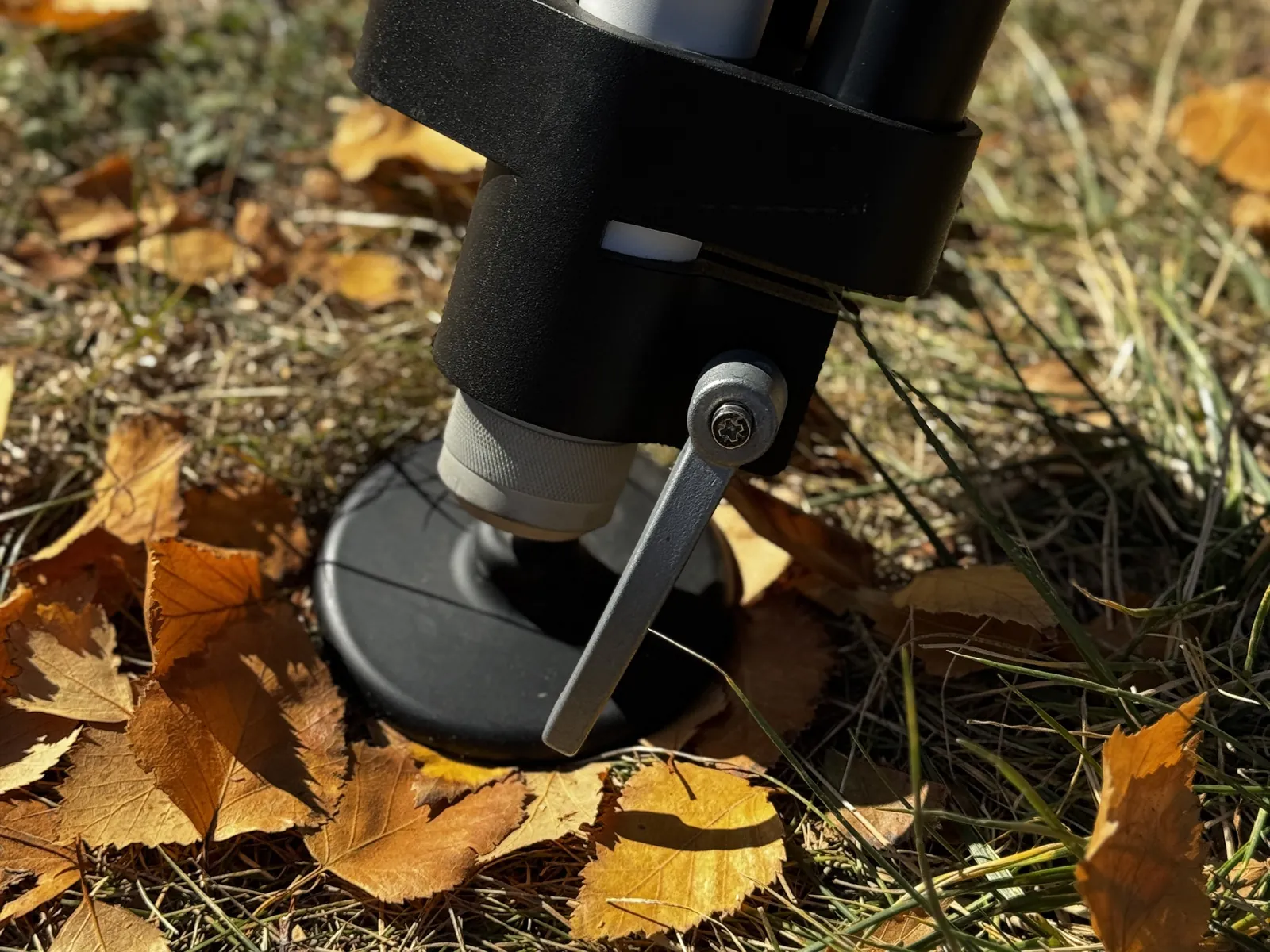

- FTCLFoot TypeClawfoot
- FTSPFoot TypeSpikefoot
- FTBLFoot TypeBallfoot
- PCBGPadded Carry Bagordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Extended Height | 995 mm |
|---|---|
| Retracted Height | 725 mm |
| Rated Payload | 150 kg |

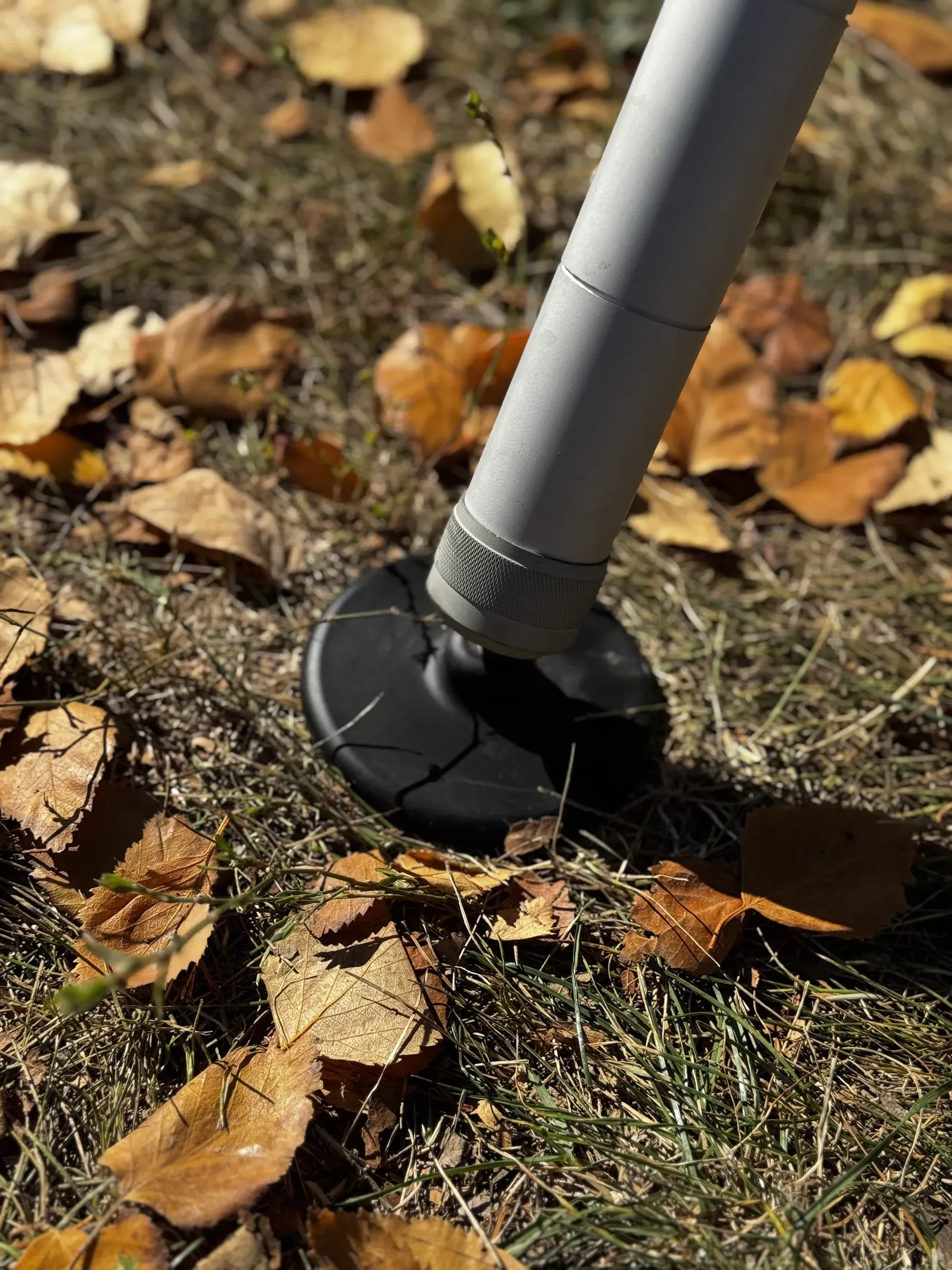

| Foot Type | Flatfoot |
| Minimum Working Height | 640 mm |
| Weight | 14,7 kg |
| Extended Radius | 685 mm |
|---|---|

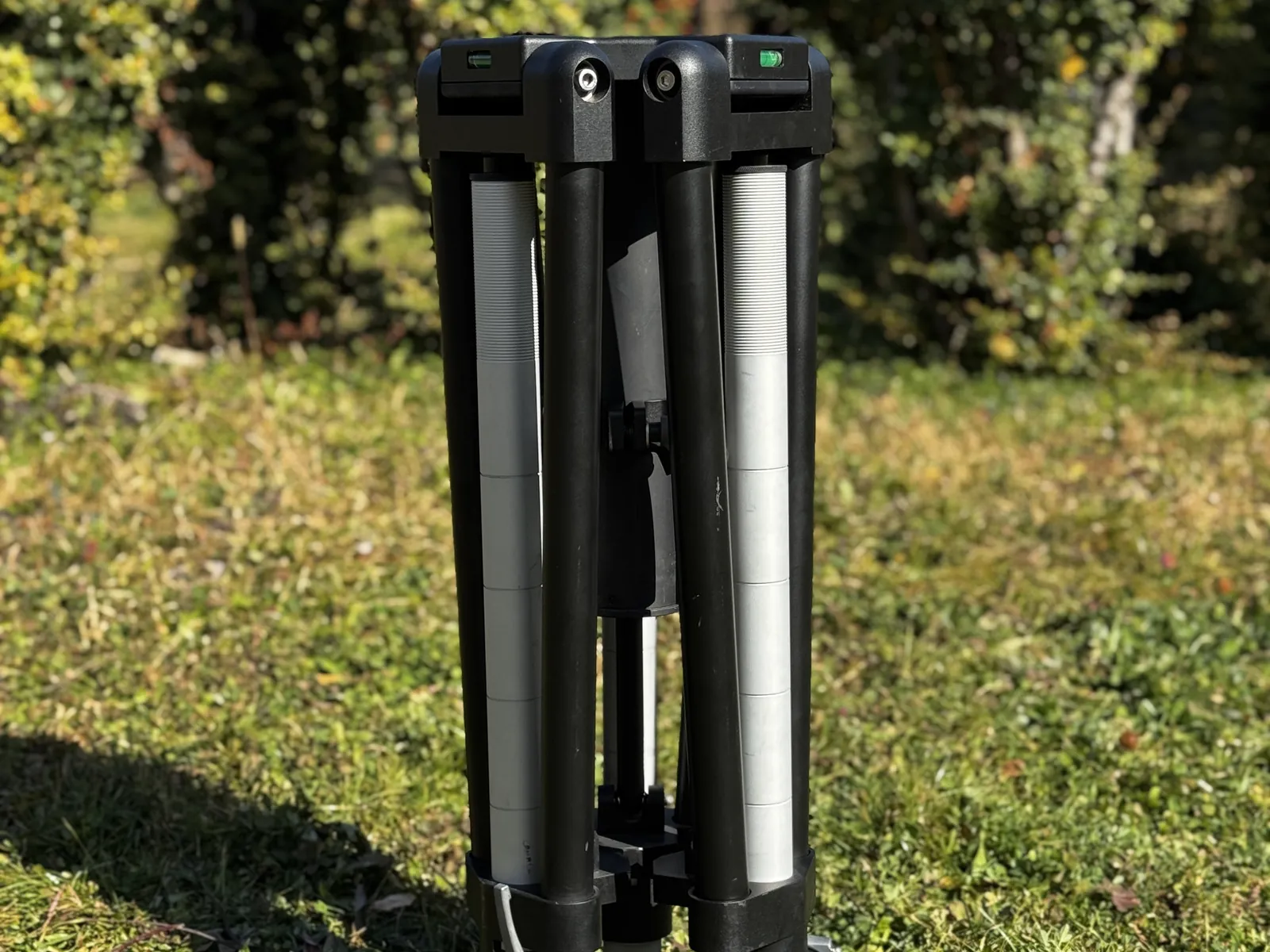

| Retracted Diameter | 280 mm |
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Humidity | Mtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. IV, transit drop in the transport case |
Documents
- DatasheetDownloadable — PDF, 294 KB
- User ManualOn Request
- 3D Model (STEP)On Request
- Mechanical Interface Control DocumentOn Request
- MIL-STD-810G Environmental Qualification ReportOn Request
