Pan-Tilt & Positioning Systems

Motorized and manual pan-tilt heads, rotators and goniometers for EO/IR sensors, radars and directional antennas. Brushless servo drives with zero-backlash gearing and 22-bit encoders, slip rings up to 76 lines carrying 1 Gbit Ethernet and HD-SDI, qualified to MIL-STD-810G and MIL-STD-461G.

PED08

Compact Electromechanical Pan-Tilt

Compact brushless pan-tilt for thermal imagers and directional antennas, with zero gear backlash and 22-bit encoders in a 9 kg envelope.

Learn More

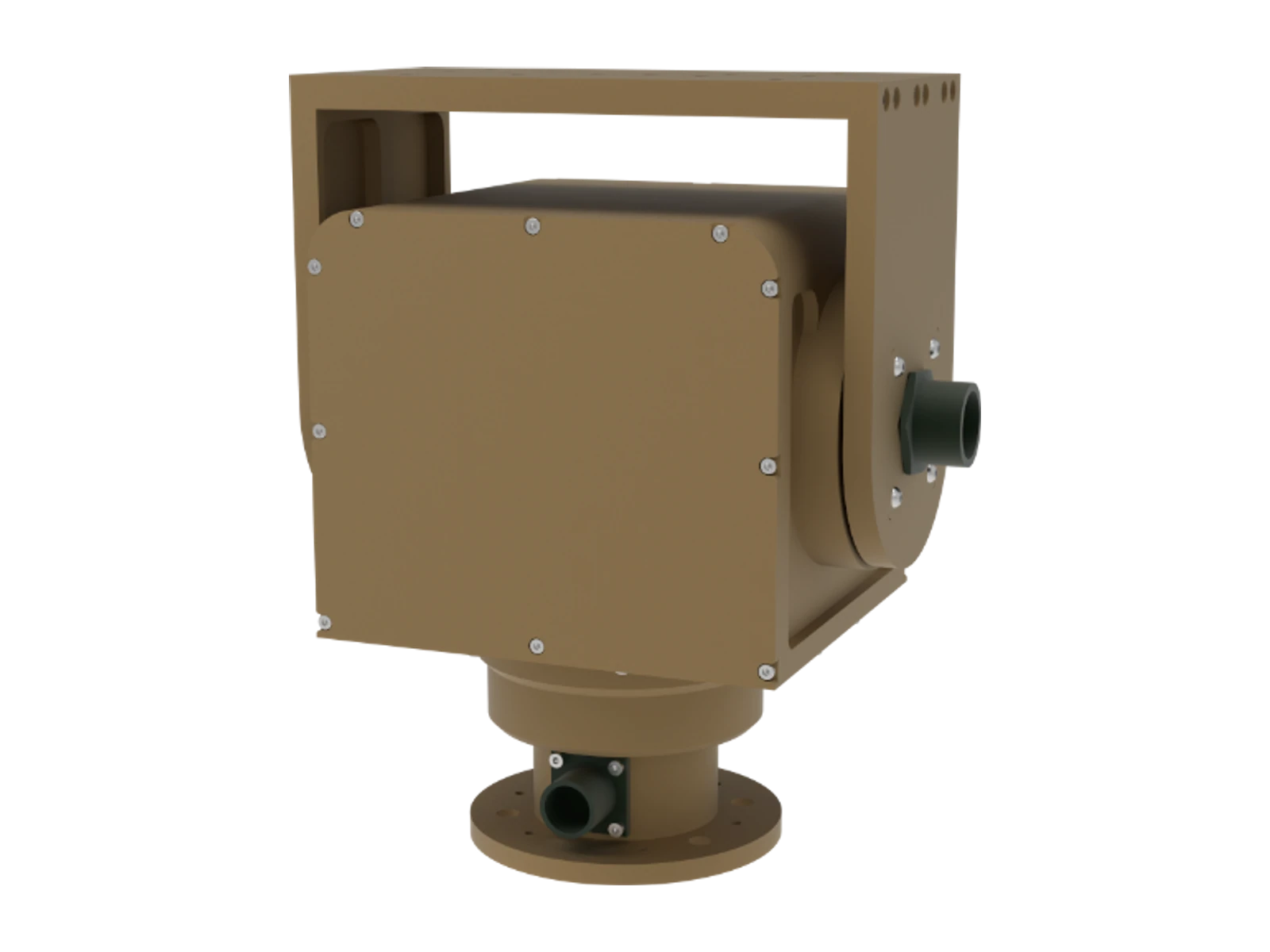

PED08 — Compact Electromechanical Pan-Tilt

PED10

Ultra Precision Electromechanical Pan-Tilt

Ultra precision pan-tilt rated for 30 million revolutions without maintenance, reaching 180 degrees per second at 0.002 degree axis resolution.

Learn More

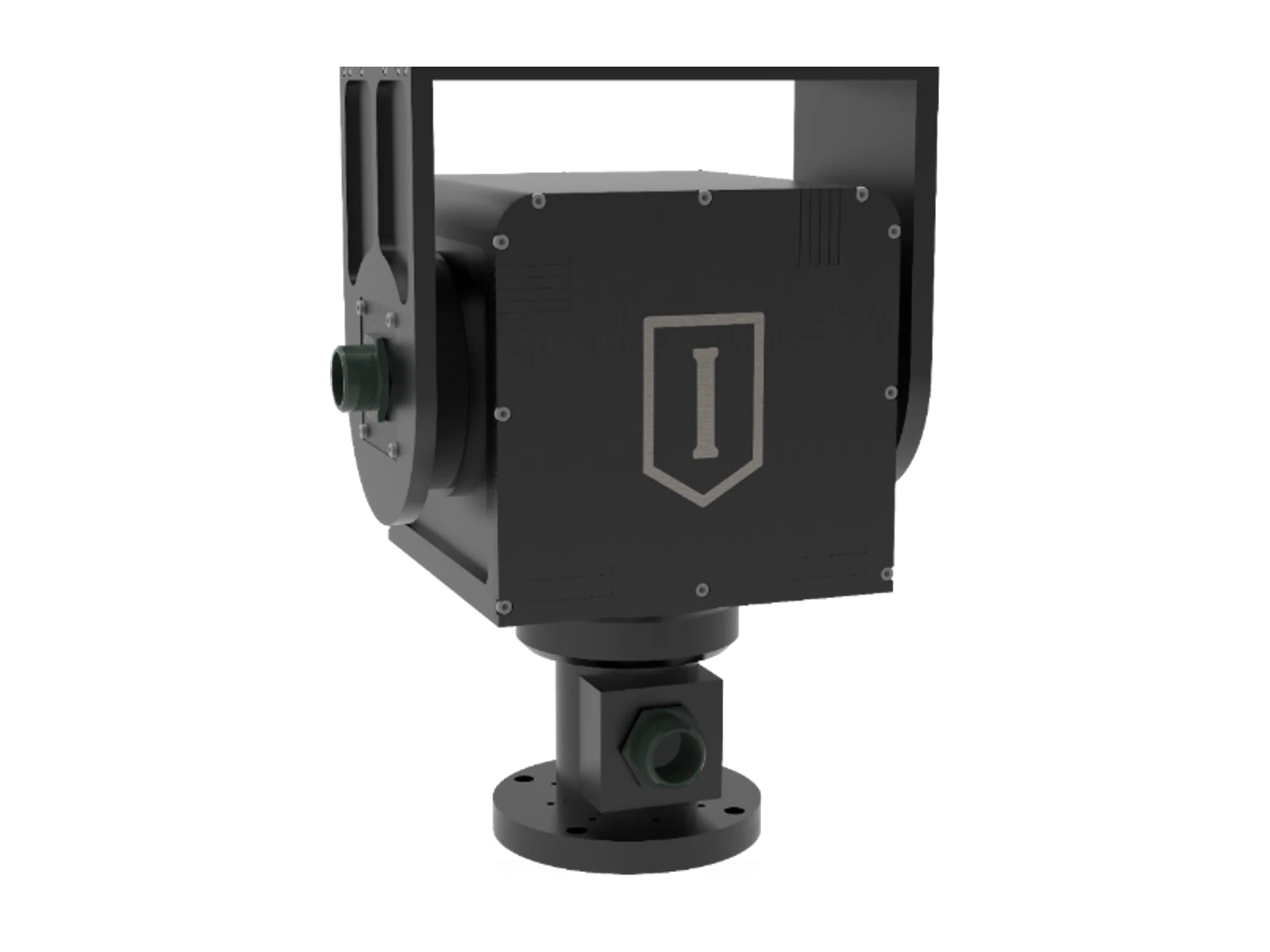

PED10 — Ultra Precision Electromechanical Pan-Tilt

PED12

Stabilized Electromechanical Pan-Tilt

Gyro-stabilized high-capacity pan-tilt with a configurable U-arm, built for long-range surveillance from vehicles and unstable platforms.

Learn More

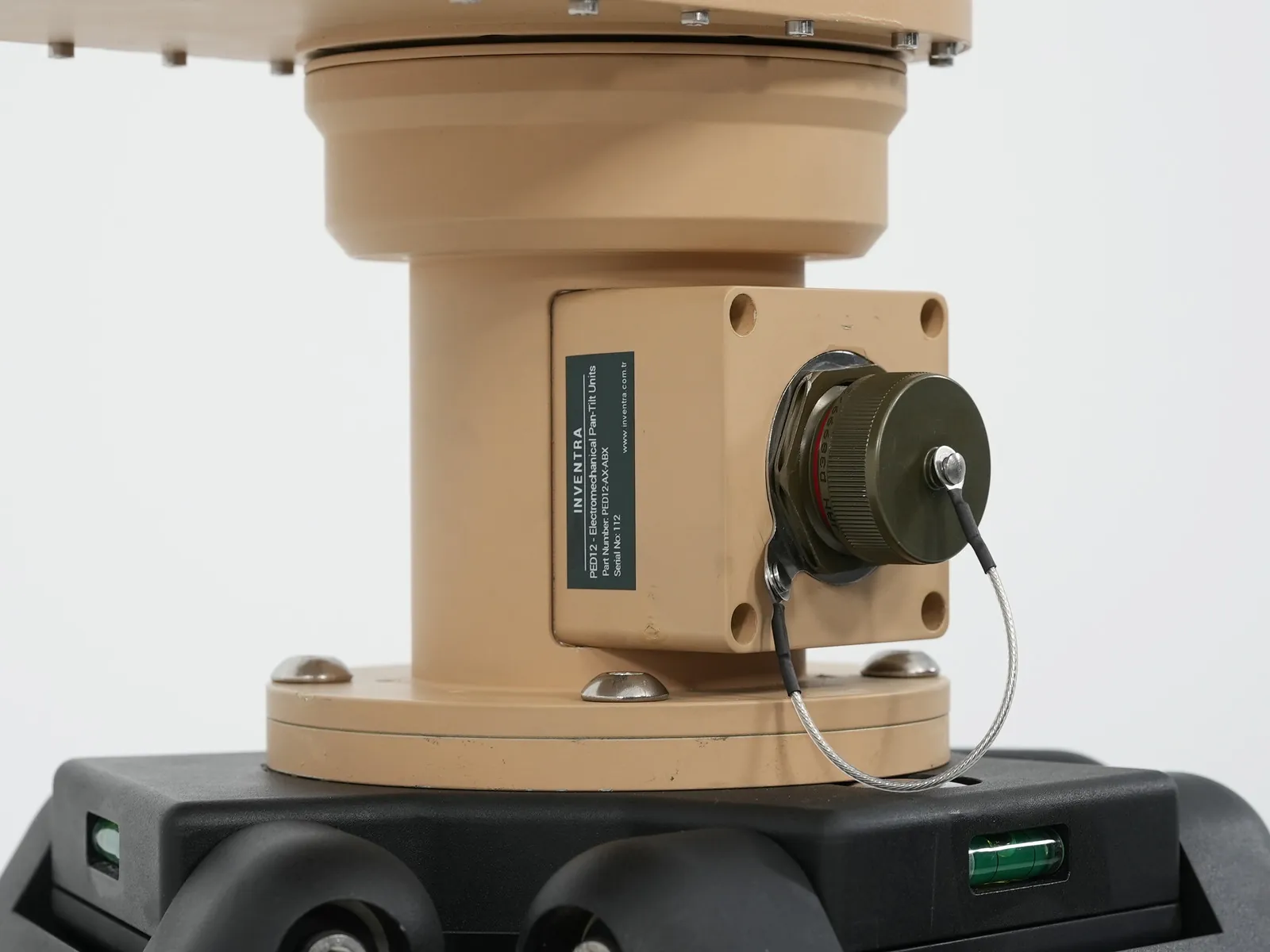

Pan-tilt body with the connector block and identification label at their clearest

PEG03

Lightweight Goniometer

Man-portable digital goniometer under 3 kg giving 0.1 mil resolution and 1 mil accuracy on both axes for line-of-sight measurement.

Learn More

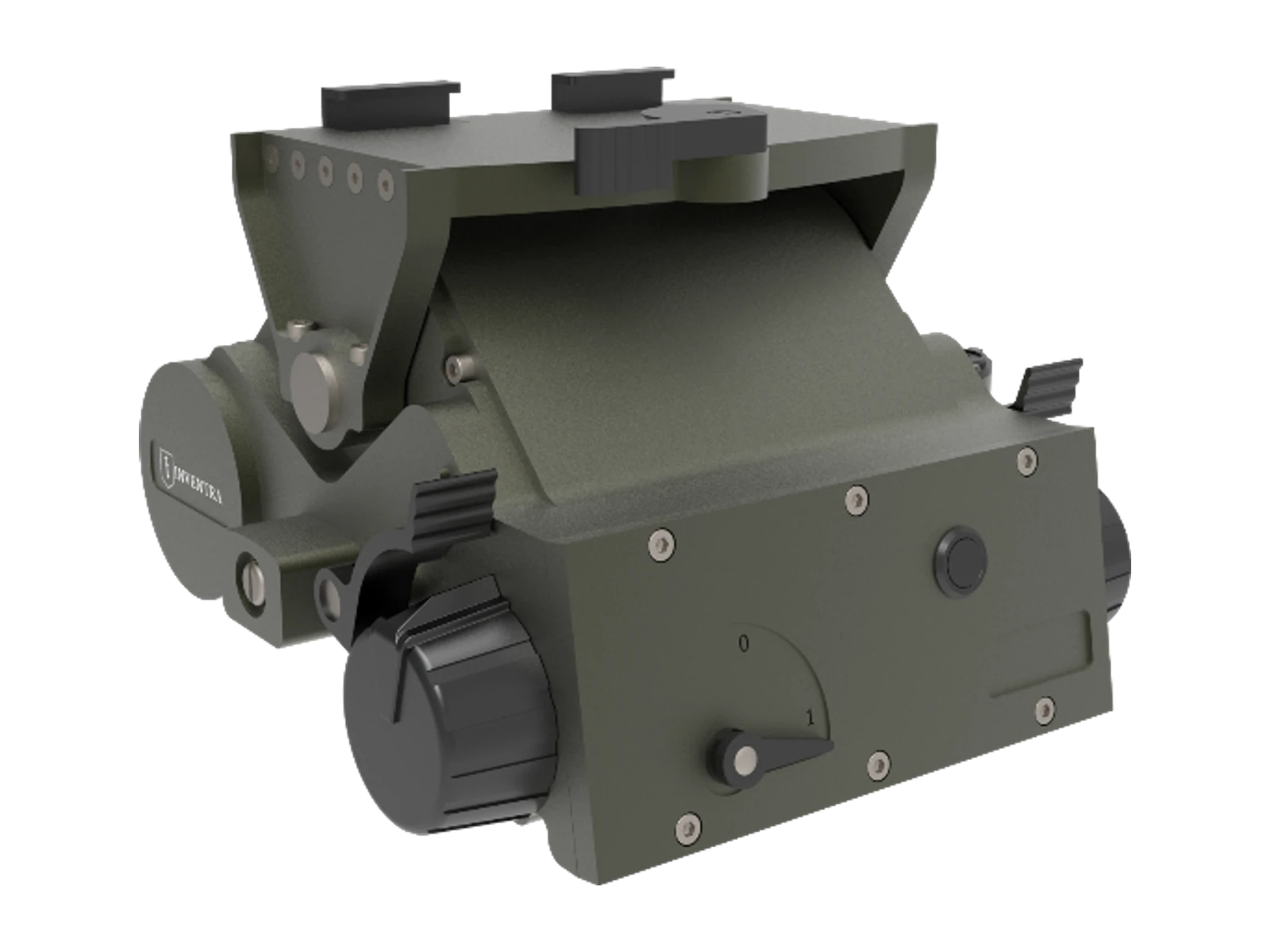

PEG03 — Lightweight Goniometer

PES10

Ultra Precision Electromechanical Rotator

Single-axis zero-backlash rotator from 185 to 1032 Nm nominal torque, for radar arrays and directional antennas needing continuous rotation.

Learn More

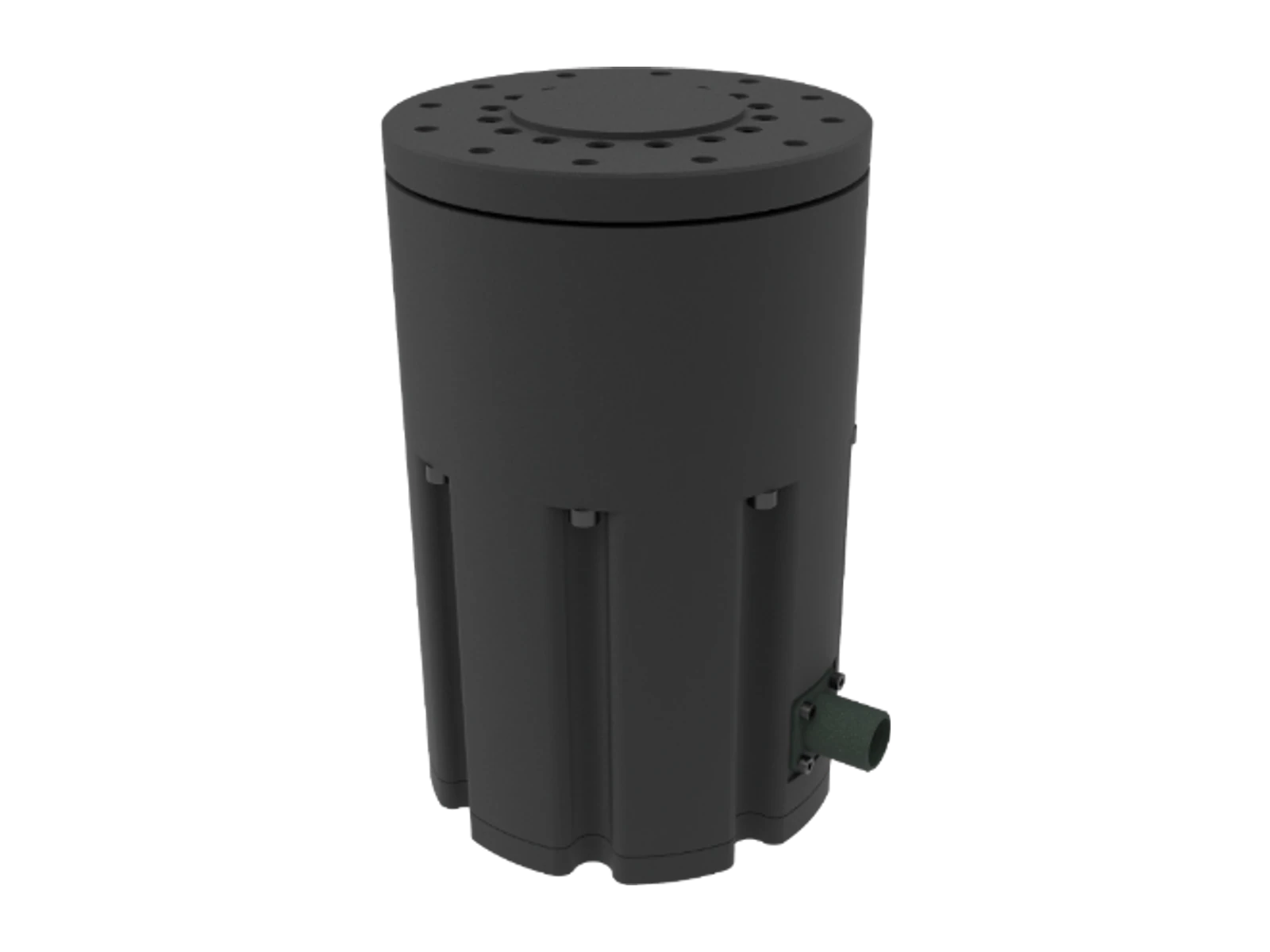

PES10 — Ultra Precision Electromechanical Rotator

PMD01

Lightweight Manual Pan-Tilt

Manual pan-tilt head under 1.4 kg with viscous damping and independent braking, for aligning EO sensors, designators and long-range optics.

Learn More

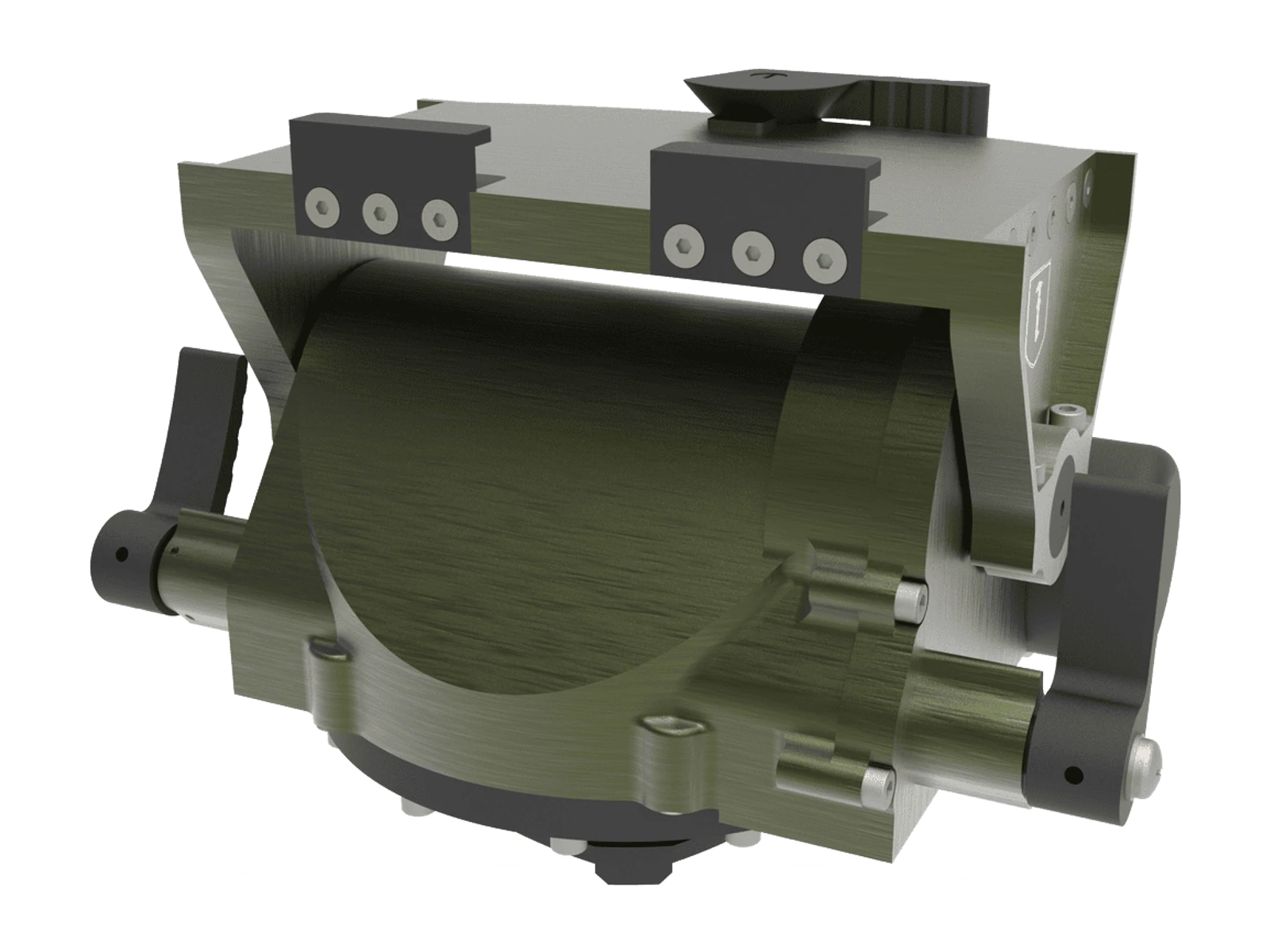

PMD01 — Lightweight Manual Pan-Tilt

Compare Models

PED08 — Compact Electromechanical Pan-Tilt

PED08

Compact Electromechanical Pan-Tilt

Learn More
PED10 — Ultra Precision Electromechanical Pan-Tilt

PED10

Ultra Precision Electromechanical Pan-Tilt

Learn More
Pan-tilt body with the connector block and identification label at their clearest

PED12

Stabilized Electromechanical Pan-Tilt

Learn More
PEG03 — Lightweight Goniometer

PEG03

Lightweight Goniometer

Learn More
PES10 — Ultra Precision Electromechanical Rotator

PES10

Ultra Precision Electromechanical Rotator

Learn More
PMD01 — Lightweight Manual Pan-Tilt

PMD01

Lightweight Manual Pan-Tilt

Learn More

Pan Nominal Torque

30–85 Nm by configuration

60–185 Nm by configuration

60–185 Nm by configuration

—

185–1032 Nm

—

Pan Peak Torque

50–120 Nm

100–225 Nm

100–225 Nm

—

250–1114 Nm

—

Tilt Nominal Torque

85–135 Nm

185–275 Nm

185–275 Nm

—

—

—

Tilt Peak Torque

120–225 Nm

225–475 Nm

225–475 Nm

—

—

—

Momentary Peak Torque

Up to 400 Nm

Up to 875 Nm

Up to 875 Nm

—

—

—

Axis Speed

6–48 °/s

28–180 °/s

28–180 °/s

—

25 / 10 / 6 / 4.5 °/s by model

—

Pan Axis Range

N × 360° continuous

N × 360° continuous

N × 360° continuous

N × 360° continuous

N × 360° continuous

N × 360° continuous

Tilt Axis Range

—

Axis Resolution

0.02 °

0.002 °

0.002 °

0.0056° (0.1 mil) on both axes

—

0.084° (1.5 mil) on both axes

Positioning Accuracy

0.12 °

0.032–0.038 °

0.028–0.038 °

0.056° (1 mil) on both axes

0.042–0.065 °

—

Gear Backlash

0 °

0 °

—

—

0 °

—

Stabilization Type

Optional two-axis stabilization

Optional two-axis stabilization; dual-loop control to 0.001° with secondary encoder

Gyro stabilization; dual-loop control to 0.001° with secondary encoder

—

—

—

Service Life

—

30 million revolutions without maintenance

—

—

30 million revolutions slip ring

—

Stabilization Accuracy

—

—

0.04 °

—

—

—

Payload Capacity

—

—

—

12 kg

—

10 kg

Fine Adjustment Range

—

—

—

±0.8438° (15 mil) on both axes

—

Pan ±2.50°, tilt ±1.13°

Actuation Type

—

—

—

Manual with high-resolution encoders

—

Manual with viscous axis damping

Positioning Repeatability

—

—

—

—

0.031–0.056 °

—

Weight

9.0 kg (10.5 kg for A1-B1)

16.1 kg (19.5 kg for A1-B1)

16.1 kg (17.5 kg for A1-B1)

< 3.0 kg

9.5–18.1 kg

< 1.4 kg

Width

220 mm

250 mm

430 mm

173 mm

—

173 mm

Height

287 mm (depends on slip ring)

350–395 mm (depends on slip ring)

445 mm (depends on slip ring)

115 mm

215–250 mm

110 mm

Depth

160 mm

202 mm

270 mm

183 mm

—

120 mm

Slip Ring Lines

Up to 76 lines (10 A power, 1 Gbit Ethernet, RS-422, RS-232, HD-SDI)

Up to 76 lines (1 Gbit Ethernet, RS-422, RS-232, HD-SDI)

Up to 76 lines (1 Gbit Ethernet, RS-422, RS-232, HD-SDI)

—

36

—

Independent Axis Braking

—

—

—

Available on both axes

—

Available on both axes

Diameter

—

—

—

—

135–240 mm

—

Material

—

—

—

—

Aluminium 6061-T6 / stainless steel AISI 316

—

Operating Voltage

18–48 V

18–48 V

—

—

24–48 V

—

Control Interface

Ethernet, RS-485, RS-422 full duplex, USB

Ethernet, RS-485, RS-422 full duplex, USB

Ethernet, RS-485, RS-422 full duplex, USB

—

Ethernet, RS-485, RS-422 full duplex, USB

—

Connector Type

MIL-DTL-38999

MIL-DTL-38999

MIL-DTL-38999

—

MIL-DTL-38999

—

IP Rating

IP65

IP65

IP65

IP65

IP65

IP65

Wind Load

120 km/h

120 km/h

120 km/h

120 km/h

—

120 km/h

Operating Temperature

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

Storage Temperature

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

Qualification Standard

EMI/EMC Qualification

—

—

Shock Qualification

—

Humidity Qualification

—

Salt Fog Qualification

—

Dust and Sand Qualification

—

Low Pressure Qualification

—

—

—

—

Vibration Qualification

—

—

—

Rain Qualification

—

—

—

—

—
