Mast Systems

Telescopic masts driven by threaded shafts, telescopic screw shafts or hand cranks, elevating payloads from 5 kg to 192 kg. Configurations cover ultra-compact UGV masts, flange-locked vehicle masts, square-profile shelter masts and portable tripod-mast systems reaching 15 m. Qualified to MIL-STD-810G with 120 km/h wind load.

MEM10

Ultra Stable Electromechanical Mast System

Ultra-rigid mast using individual telescopic screw shafts per section, carrying up to 125 kg with minimum twist for long-range electro-optics.

Learn More
MEM10 — Ultra Stable Electromechanical Mast System

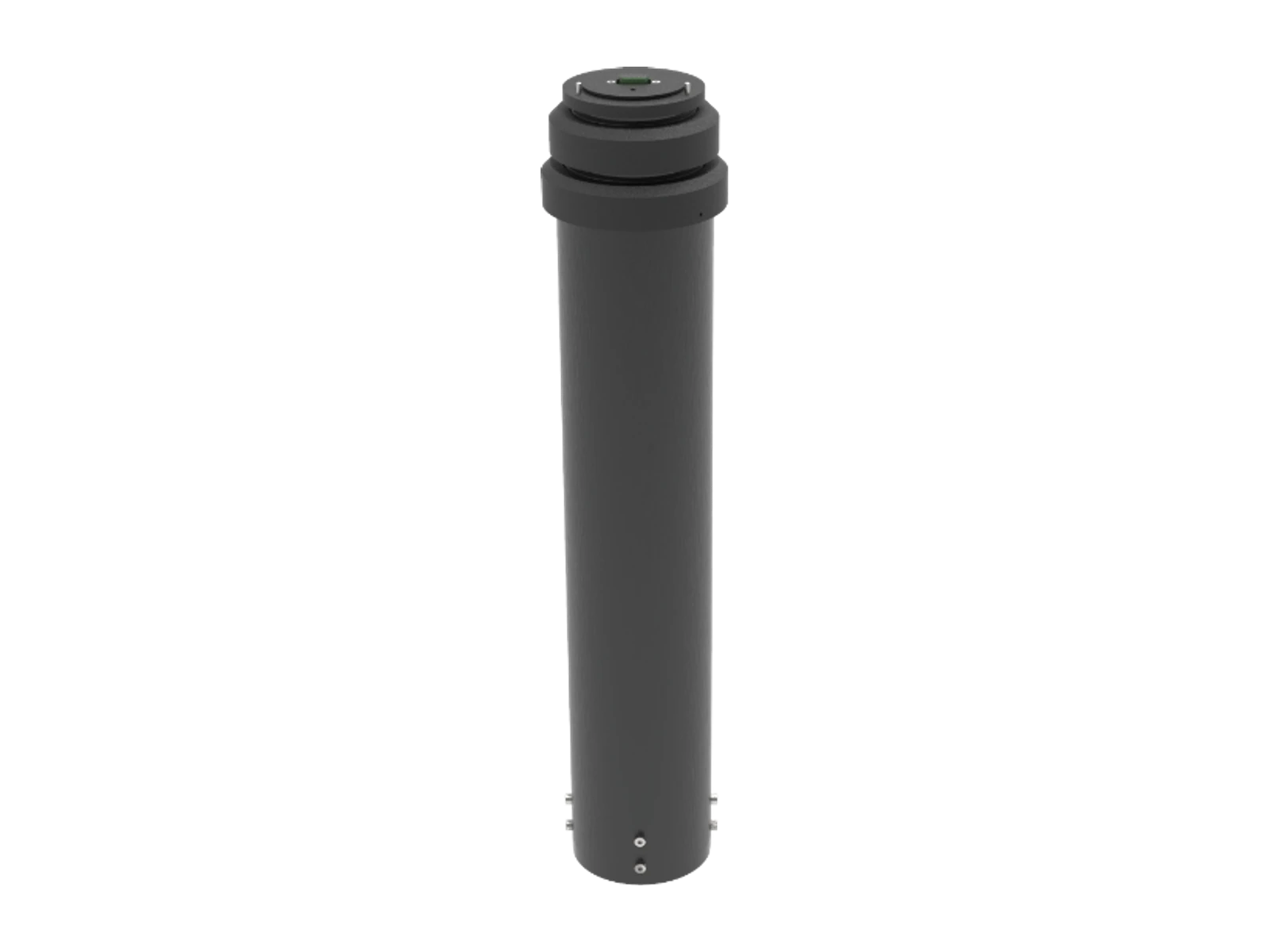

MES01

Ultra Compact Electromechanical Mast System

All-in-one motorized mast for unmanned ground vehicles, lifting 5 to 10 kg from a 535 mm nested length with motor, control and cabling inside.

Learn More
MES01 — Ultra Compact Electromechanical Mast System

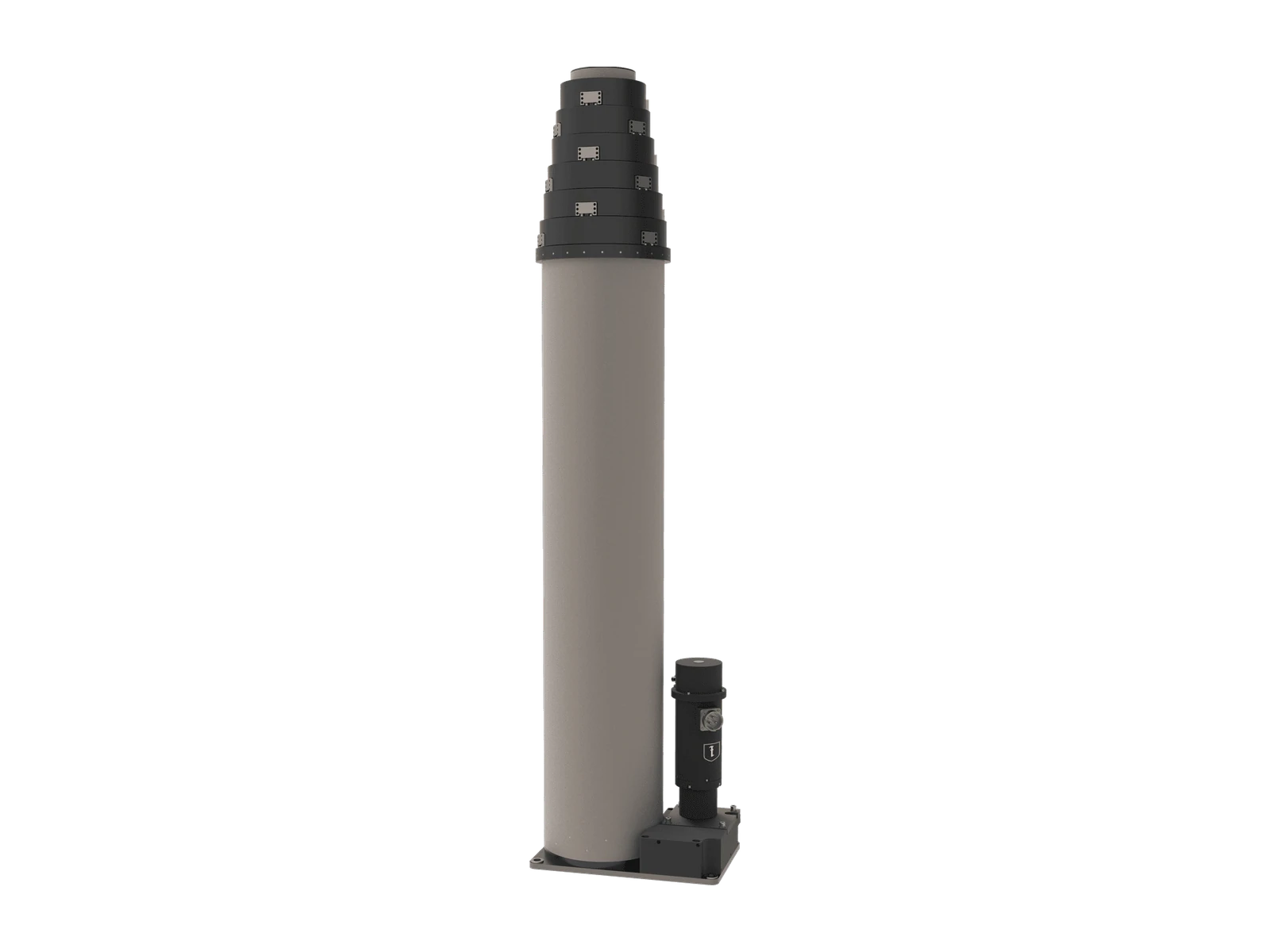

MES10

Locked Electromechanical Mast System

Flange-locked motorized mast in 55 published configurations, elevating up to 192 kg to 10 m for imaging, radar and communication payloads.

Learn More
MES10 — Locked Electromechanical Mast System

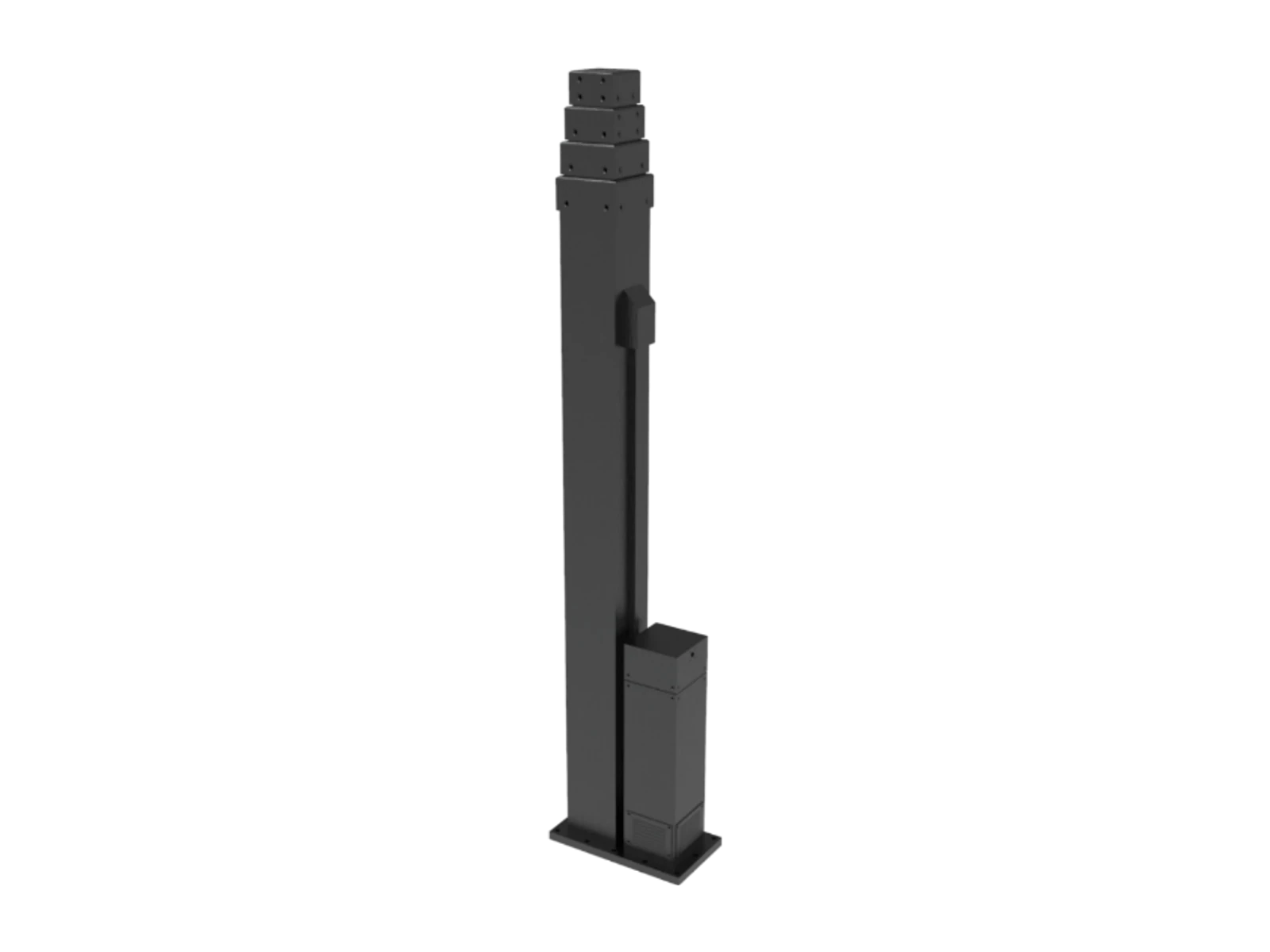

MES20

Modular Electromechanical Mast System

Square-profile motorized mast driven by a patented hybrid screw shaft, reaching 14 m with 41 to 78 kg payload for shelters and trailers.

Learn More
MES20 — Modular Electromechanical Mast System

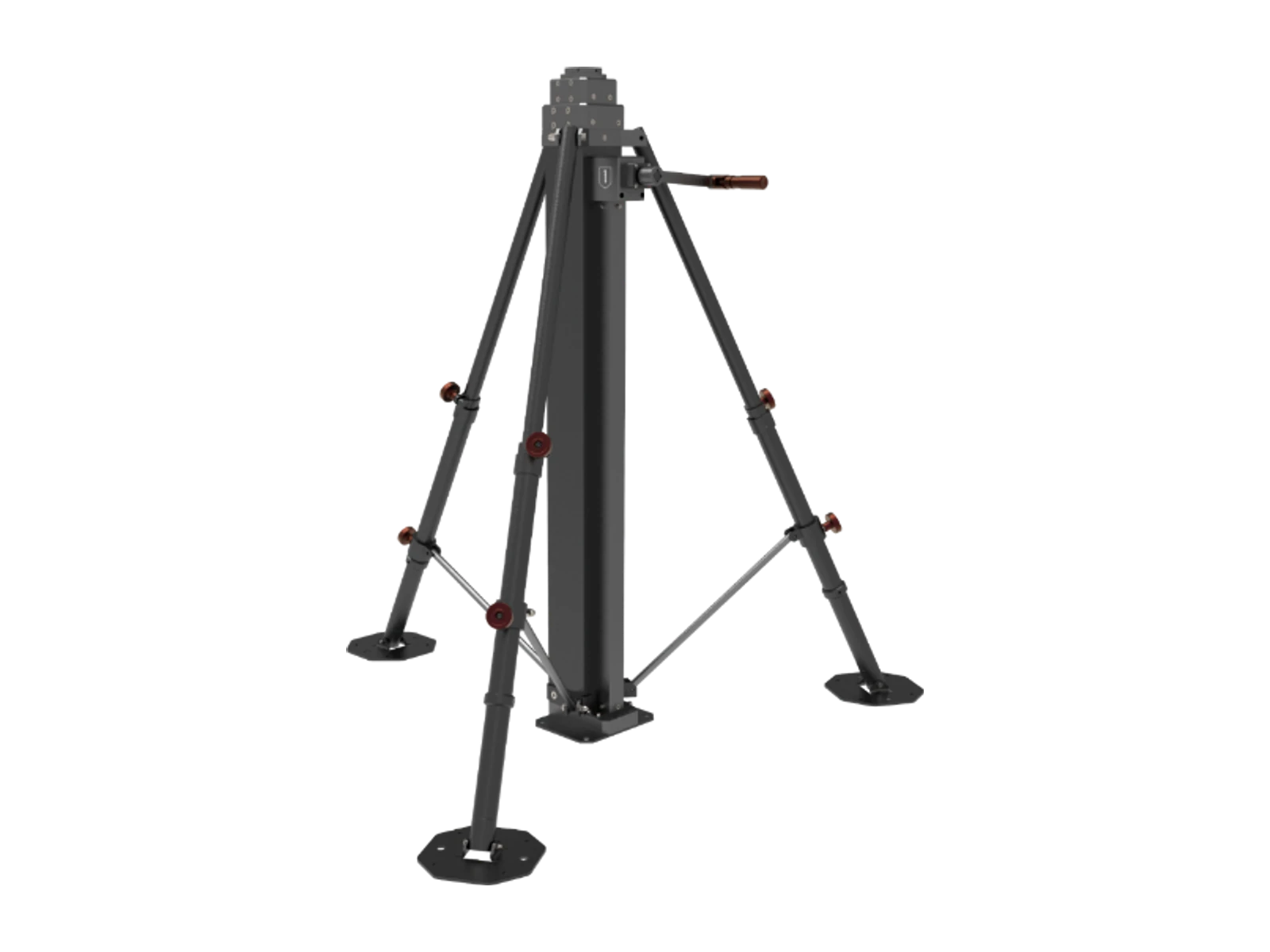

MMS20

Modular Manual Mast System

Hand-cranked version of the modular square-profile mast, reaching 14 m with 21 to 58 kg payload and no external power requirement.

Learn More
MMS20 — Modular Manual Mast System

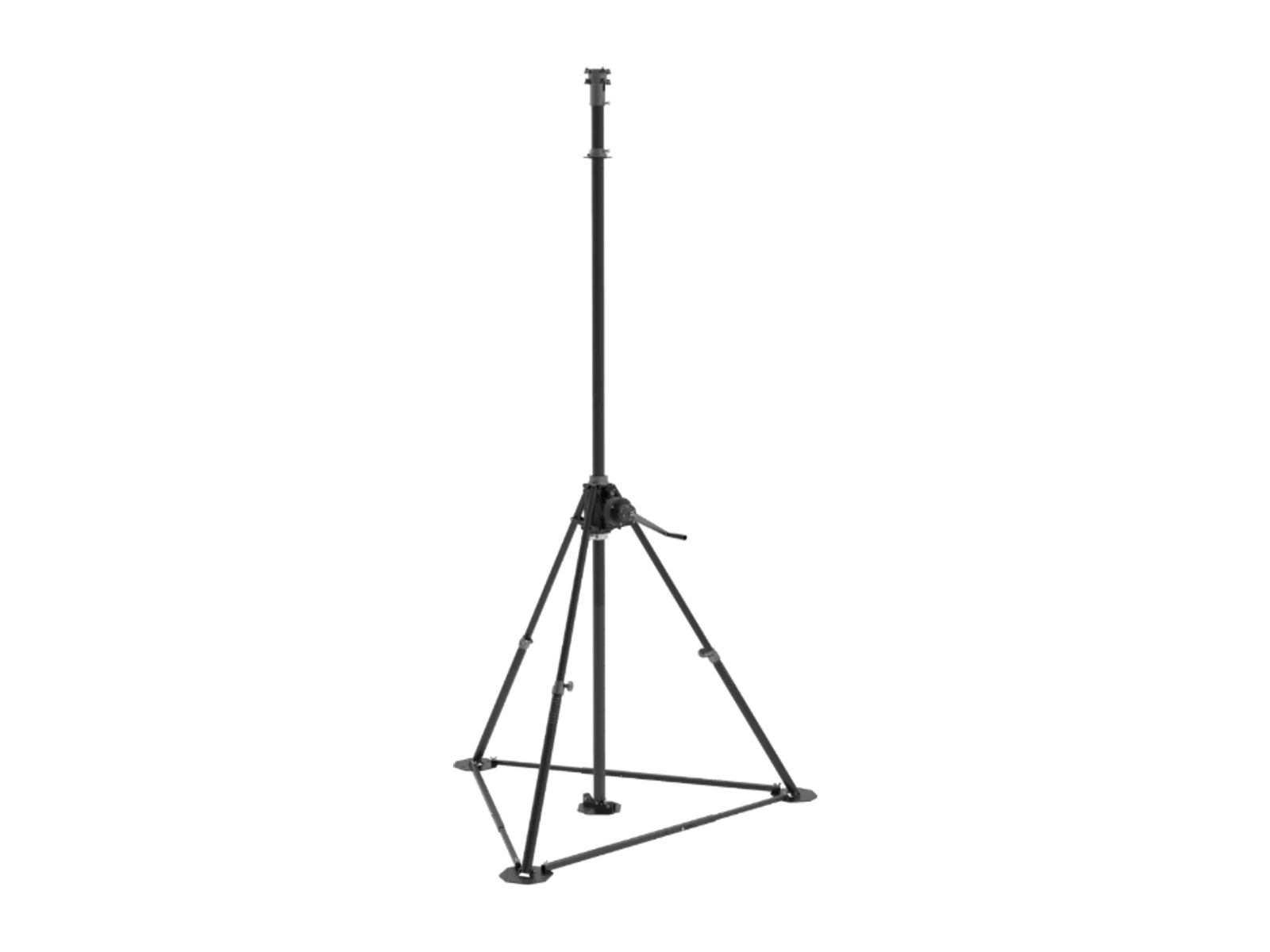

MMT10

Ultra Portable Tripod/Mast System

Portable tripod-mast that grows to 15 m by adding sections through the crane arm, deployable by one person from a single wheeled bag.

Learn More
MMT10 — Ultra Portable Tripod/Mast System

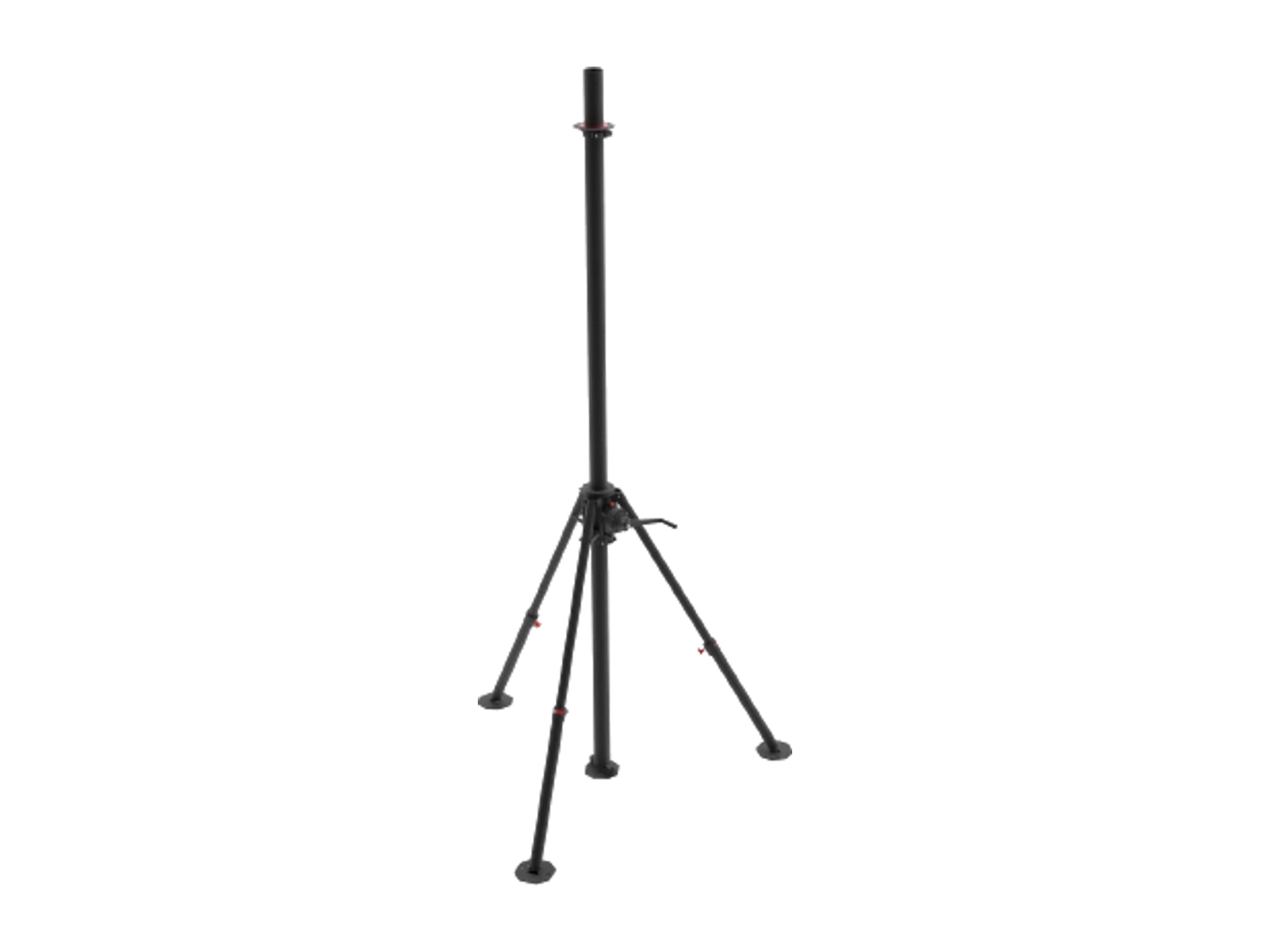

MMT20

Heavy Duty Portable Tripod/Mast System

Reinforced version of the portable tripod-mast, carrying 35 to 90 kg to 15 m while keeping single-person installation.

Learn More
MMT20 — Heavy Duty Portable Tripod/Mast System

Compare Models

MEM10 — Ultra Stable Electromechanical Mast System

MEM10

Ultra Stable Electromechanical Mast System

Learn More
MES01 — Ultra Compact Electromechanical Mast System

MES01

Ultra Compact Electromechanical Mast System

Learn More
MES10 — Locked Electromechanical Mast System

MES10

Locked Electromechanical Mast System

Learn More
MES20 — Modular Electromechanical Mast System

MES20

Modular Electromechanical Mast System

Learn More
MMS20 — Modular Manual Mast System

MMS20

Modular Manual Mast System

Learn More
MMT10 — Ultra Portable Tripod/Mast System

MMT10

Ultra Portable Tripod/Mast System

Learn More
MMT20 — Heavy Duty Portable Tripod/Mast System

MMT20

Heavy Duty Portable Tripod/Mast System

Learn More

Retracted Height

1000–2000 mm

535–700 mm

1150–2350 mm

1200–3300 mm

1200–3300 mm

1110 mm

1400 mm

Extended Height

Payload Capacity

100–125 kg

5–10 kg

45–192 kg

41–78 kg

21–58 kg

10–60 kg

35–90 kg

Opening Time

45–120 s

30–40 s

—

60–150 s

—

—

—

Number of Sections

3–5

3

4–9

3–5

3–5

2–15

2–15

Actuation Type

Motorized, individual telescopic screw shafts with 4-way keyways

Motorized, threaded rod

Motorized with flange locking system

Motorized, patented hybrid threaded shaft drive

Manual, patented hybrid trapezoidal screw and steel wire actuator

Manual push or cable driven winch

Manual push or cable driven winch

Deployment Time

—

—

—

—

5–20 min

5–30 min depending on section count

5–30 min depending on section count

Reverse Drive

—

—

—

—

—

Available with self-locking

Available with self-locking

Weight

72–219 kg

4–8 kg

—

32–85 kg

32–85 kg

15–42 kg incl. tripod

32–92 kg incl. tripod

Node Diameter

180–230 mm

92–100 mm

—

—

—

—

—

External Finish

RAL 9005 matte black electrostatic powder coating

RAL 9005 matte black electrostatic powder coating

Available colour finishes

RAL 9005 matte black electrostatic powder coating

RAL 9005 matte black electrostatic powder coating

RAL 9005 matte black electrostatic powder coating

RAL 9005 matte black electrostatic powder coating

Locking Mechanism

—

—

Flange lock, in field service since 1977

—

—

—

—

Main Tube Diameter

—

—

150–250 mm

—

—

—

—

End Tube Diameter

—

—

90–170 mm

—

—

—

—

Section Width

—

—

—

140–180 mm

140–180 mm

—

—

Base Diameter

—

—

—

—

—

1900 mm

1900 mm

Material

—

—

—

—

—

Aluminium 6xxx series, stainless and carbon steel lower components

Aluminium 6xxx series, stainless and carbon steel lower components

Operating Voltage

28 VDC (MIL-STD-1275)

28 VDC (MIL-STD-1275)

28 VDC (MIL-STD-1275)

28 VDC (MIL-STD-1275)

—

—

—

Control Interface

RS-485 / RS-422 / Ethernet

TTL / RS-485 / RS-422

Ethernet or RS-422

RS-485 / RS-422

—

—

—

Connector Type

MIL-DTL-38999

MIL-DTL-38999

MIL-DTL-38999

MIL-DTL-38999

—

—

—

Internal Payload Lines

—

Up to 15 internal payload lines

—

—

—

—

—

Wind Load

120 km/h at 1 m²

60 km/h at 0.2 m²

120 km/h

120 km/h

120 km/h

120 km/h at 0.5 m² (2–5 m) to 0.1 m² (14–15 m)

120 km/h at 0.5 m² (2–5 m) to 0.2 m² (10–15 m)

Operating Temperature

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

−32 °C to +60 °C

−40 °C to +60 °C

Storage Temperature

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

−40 °C to +70 °C

—

Qualification Standard

Vibration Qualification

Shock Qualification

Rain Qualification

Humidity Qualification

Dust and Sand Qualification

IP Rating

—

—

—

—

—

IP65

IP65
