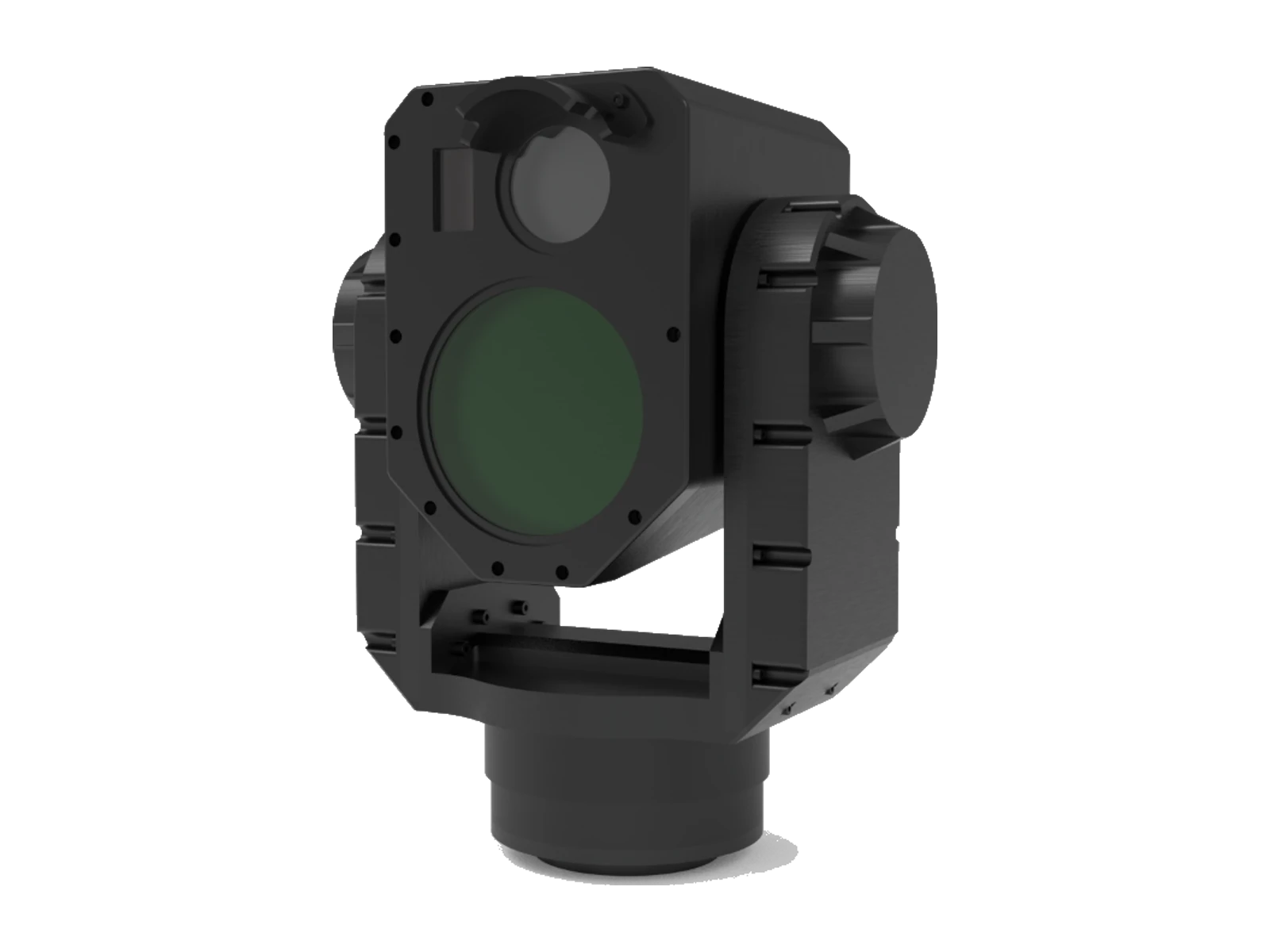

Thermal Imagers
Compare Models
4 models
Performance Parameters
Pan and Tilt – Nominal Speed
180 °/s
180 °/s
180 °/s
—
Pan – Axis Range
360° continuous
360° continuous
360° continuous
—
Tilt – Axis Range
—
Weight
4,4 kg
4,6 kg
8,0 kg
18,4 kg
Accuracy
—
—
—
0,05°
Thermal Imager Module
Spectral Band
LWIR
LWIR
LWIR
MWIR
Detector
640 × 512 px
640 × 512 px
1.280 × 1.024 px
1.280 × 1.024 px
Pixel Size
12 µm
12 µm
12 µm
12 µm
NETD
50 mK
50 mK
30 mK
20 mK
MRTD
500 mK
500 mK
500 mK
—
Thermal Lens
25 mm
25 mm
28-90 mm
37,5-750 mm
Thermal Optical Zoom
None
None
3,2×
20×
Thermal Horizontal Field of View
17,7°
17,7°
4,89°
1,17°
Thermal Digital Zoom
12×
12×
12×
12×
Thermal Diagonal Field of View – Wide
—
—
19,92° @ 28 mm
—
Thermal Diagonal Field of View – Narrow
—
—
6,26° @ 90 mm
—
EO Camera Module
Resolution
EO Optical Zoom
30×
30×
30×
50×
EO Horizontal Field of View
63,7-2,3°
63,7-2,3°
63,7-2,3°
61,9-1,3°
EO Digital Zoom
12×
12×
12×
12×
Minimum Illumination – High Sensitivity
0,01 lx
0,01 lx
0,01 lx
0,001 lx
Focusing System
Automatic
Automatic
Automatic
Automatic
Tracker
Tracker Stabilisation
Two-axis IMU and encoder based dual-loop
Two-axis IMU and encoder based dual-loop
Two-axis IMU and encoder based dual-loop
Fibre gyro and encoder based dual-loop
Data Refresh Rate
25 Hz
25 Hz
25 Hz
25 Hz
Output Lag
100 ms
100 ms
100 ms
100 ms
Target Size
16 × 16-128 × 128 px
16 × 16-128 × 128 px
16 × 16-128 × 128 px
16 × 16-128 × 128 px
Electrical & Interface
Power Consumption (Max)
150 W
150 W
150 W
150 W
Operating Voltage
18-32 VDC
18-32 VDC
18-32 VDC
18-32 VDC
Communication Interface
RS-422
RS-422
RS-422
RS-422
Communication Interface (Optional)
Ethernet
Ethernet
Ethernet
Ethernet
Connector Type
MIL-DTL-38999
MIL-DTL-38999
MIL-DTL-38999
MIL-DTL-38999
Video Output 1
HD-SDI
HD-SDI
HD-SDI
HD-SDI
Video Output 2
Ethernet
Ethernet
Ethernet
Ethernet
Mechanical Data
Diameter
155 mm
160 mm
—
—
Height
235 mm
256 mm
178 mm
155 mm
Material – Main Body
Aluminium 6061-T6
Aluminium 6061-T6
Aluminium 6061-T6
Aluminium 6061-T6
Surface Finish
Electrostatic Powder Coating
Electrostatic Powder Coating
Electrostatic Powder Coating
Electrostatic Powder Coating
Standard Colour
RAL 9005 Matte Black
RAL 9005 Matte Black
RAL 9005 Matte Black
RAL 9005 Matte Black
Width
—
—
325 mm
325 mm
Depth
—
—
257 mm
360 mm
Accessories
Installation Manual
1 × Installation Manual
1 × Installation Manual
1 × Installation Manual
1 × Installation Manual
Laser Range Finder
Ranging Scope
—
5-5.000 m
5-32.000 m
5-32.000 m
Laser Wavelength
—
1,5 µm
1,5 µm
1,5 µm
Laser Type
—
Eye-safe
Eye-safe
Eye-safe
Designator
Output Energy
—
—
—
50 mJ
Wavelength
—
—
—
1.064 nm
Pulse Width
—
—
—
10-25 ns
Pulse Codes
—
—
—
