Tripods

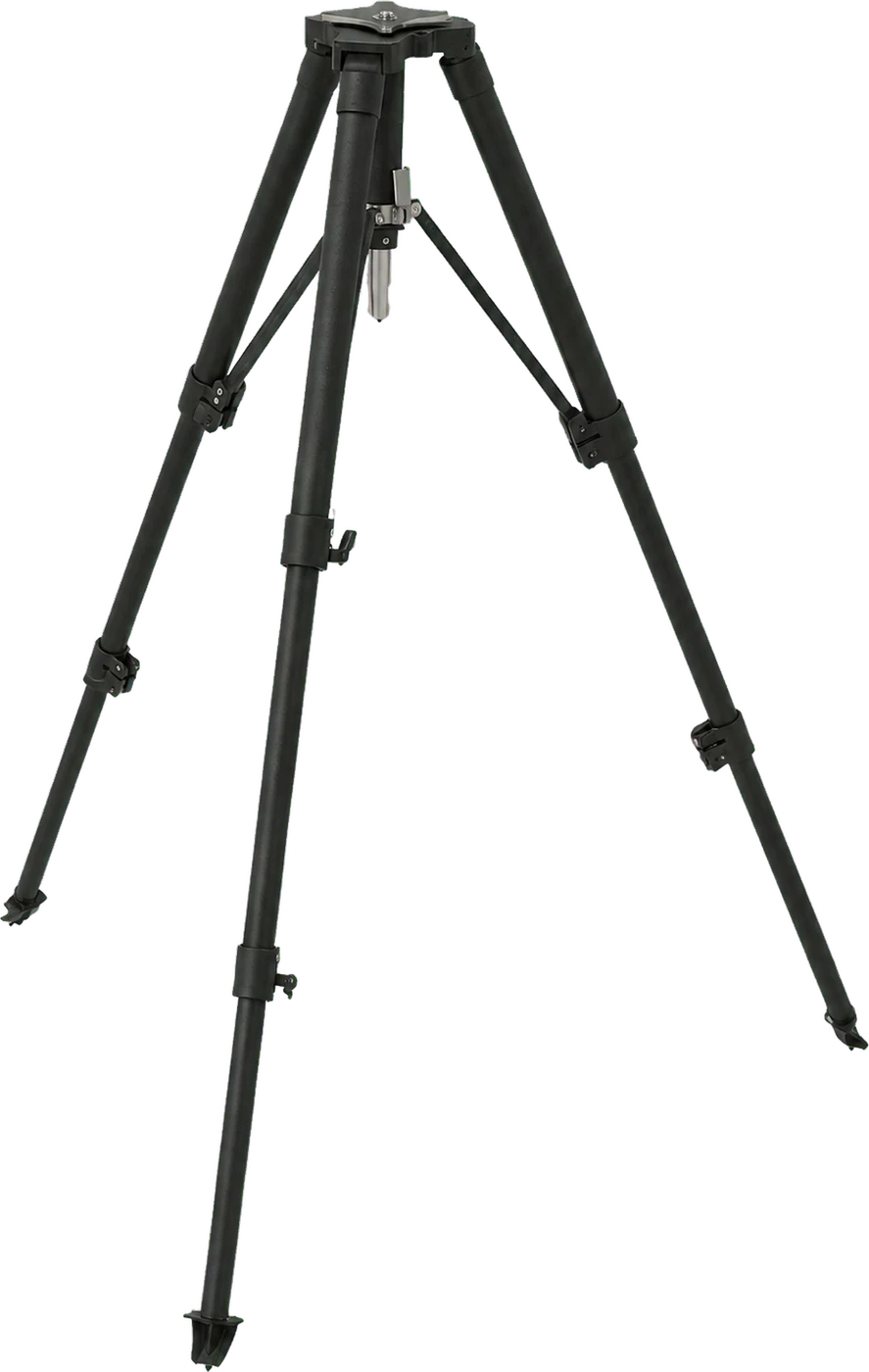

TMM10

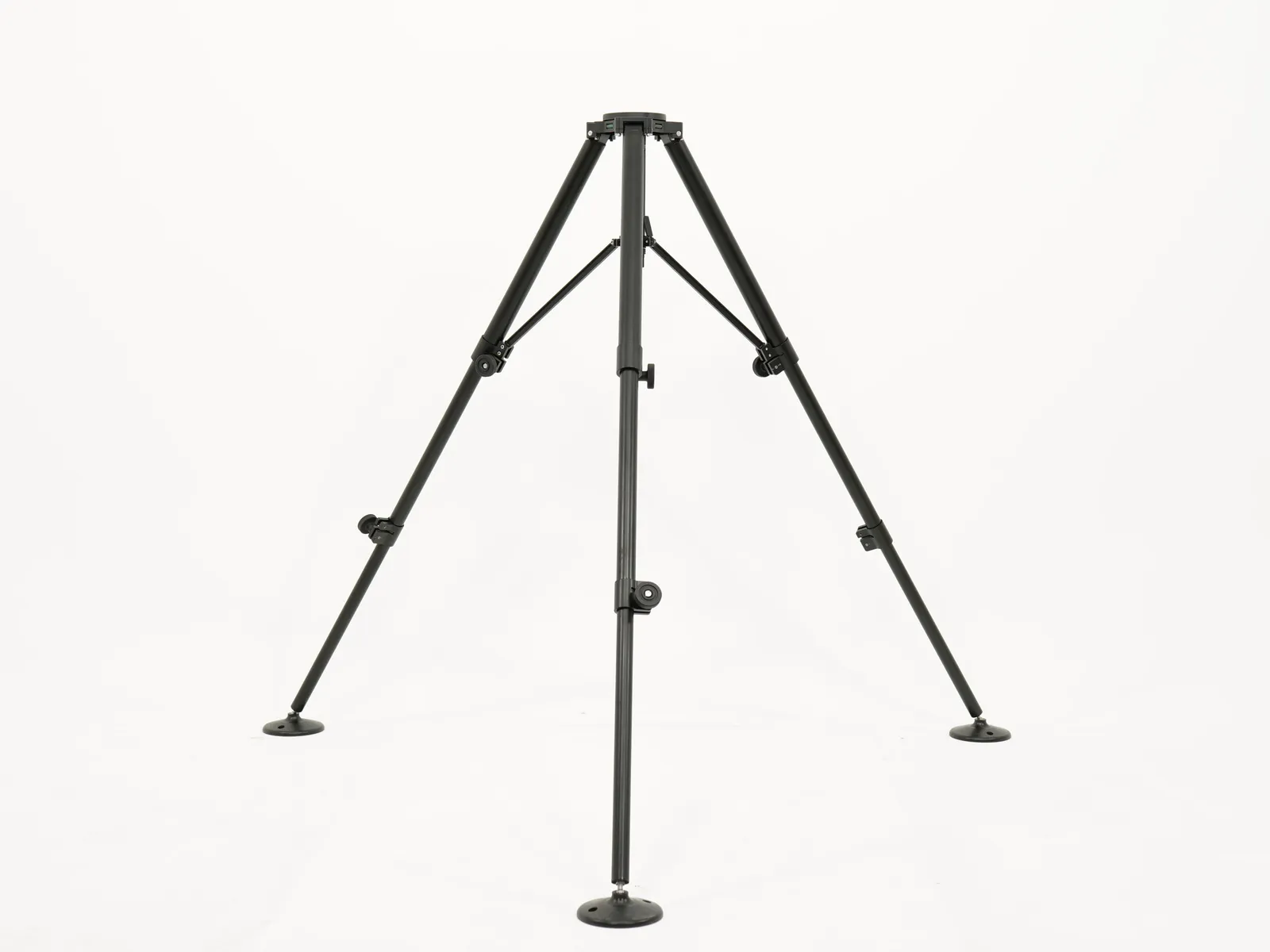

Medium Duty Tripod
Medium duty tripod carrying up to 60 kg with thick-walled anodised tubes, built for tactical radar and reconnaissance optics.
- 40 kg payload
- 1.266 mm extended
- 5,2 kg weight
- 1.266 mm
- Extended Height
- 40 kg
- Rated Payload
- 5,2 kg
- Weight
Highlights
01Capacity
60 kg from a 4.3 kg tripod
The lighter configuration weighs 4.3 kg and takes 60 kg of payload. Thick-walled anodised tubes carry that load without the mass a steel tripod would need.
- Payload 40 to 60 kg by configuration
- Working height 864 to 1266 mm

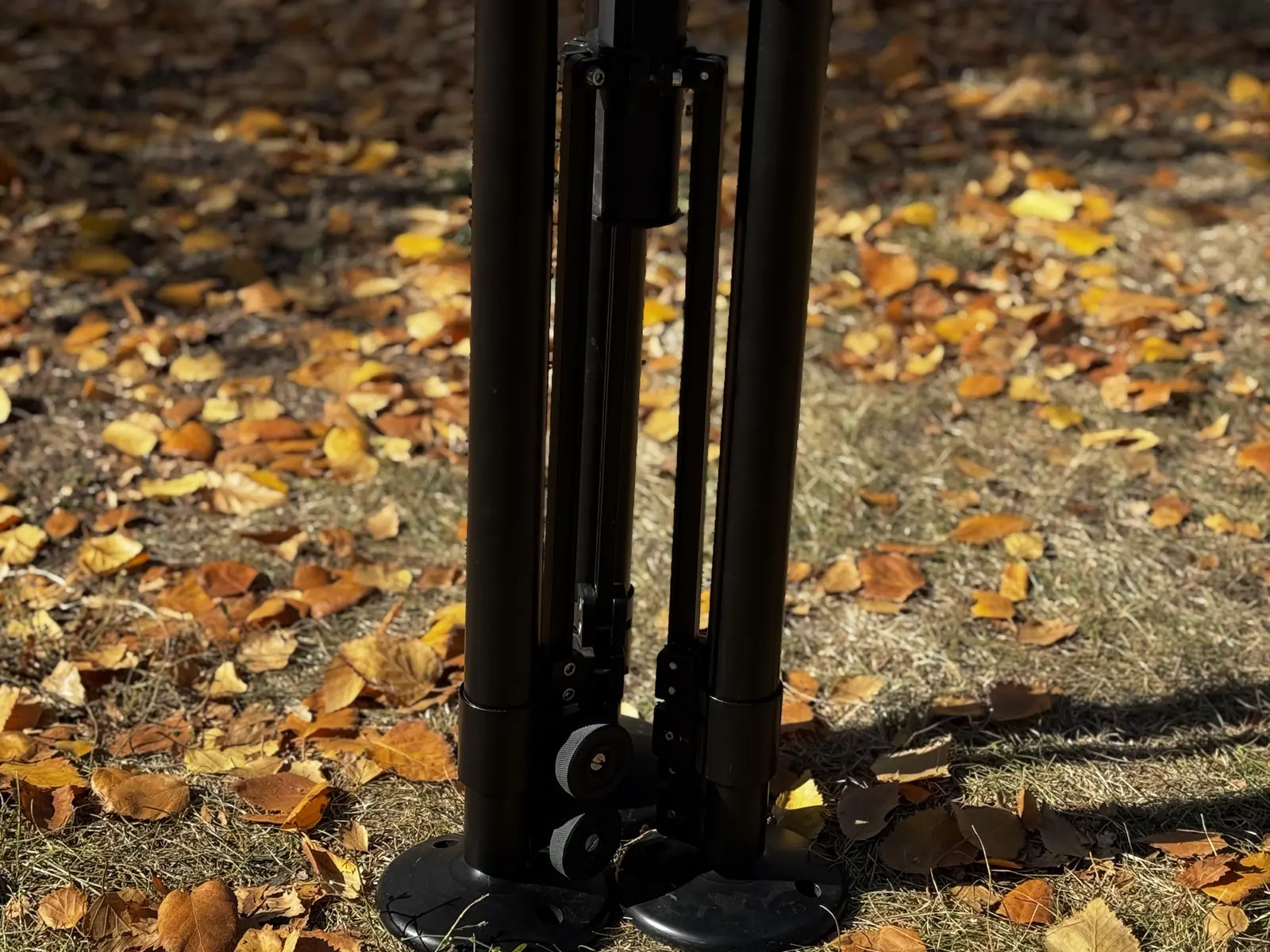

02Tool-free feet

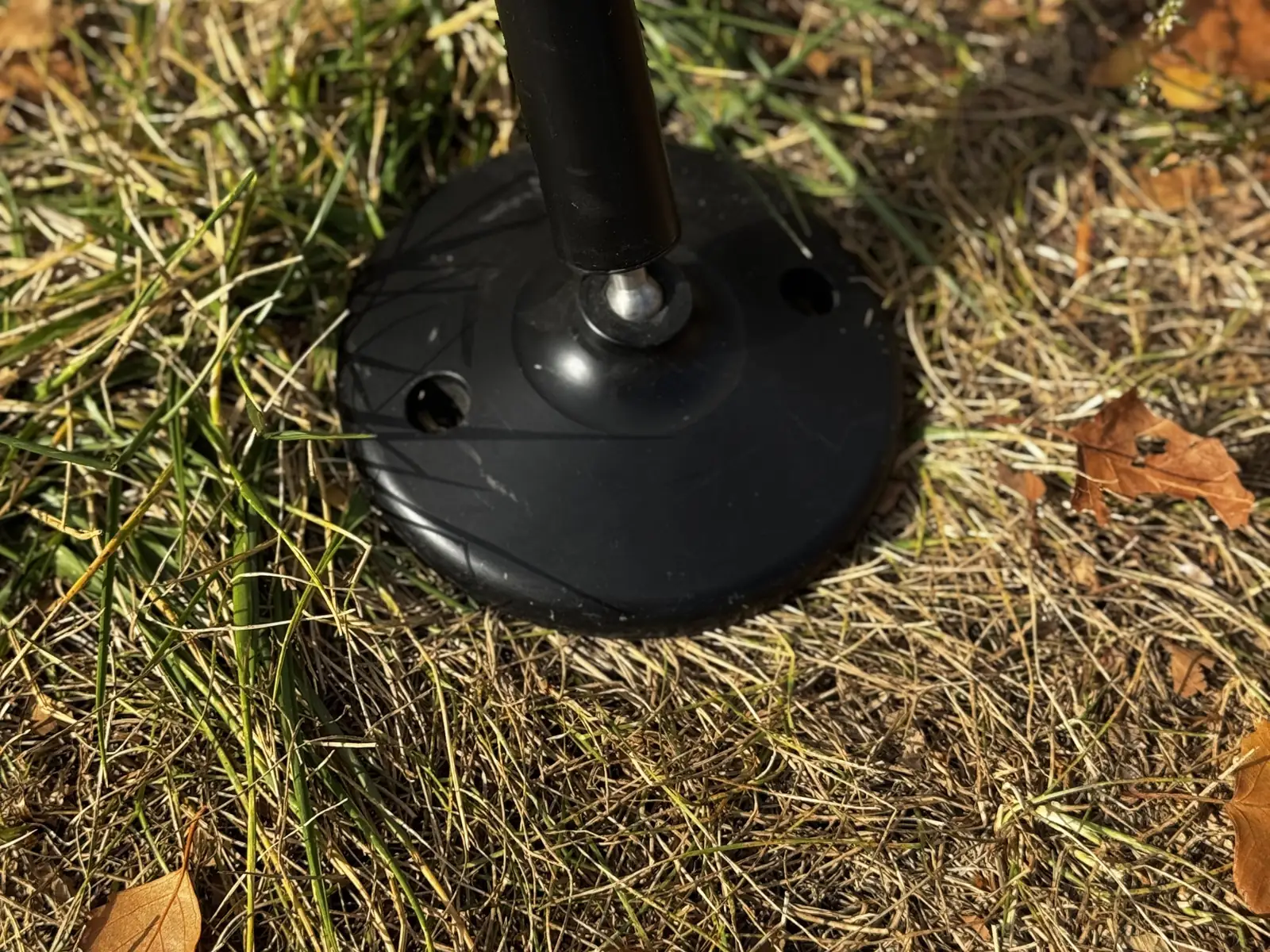

Foot type changed without tools

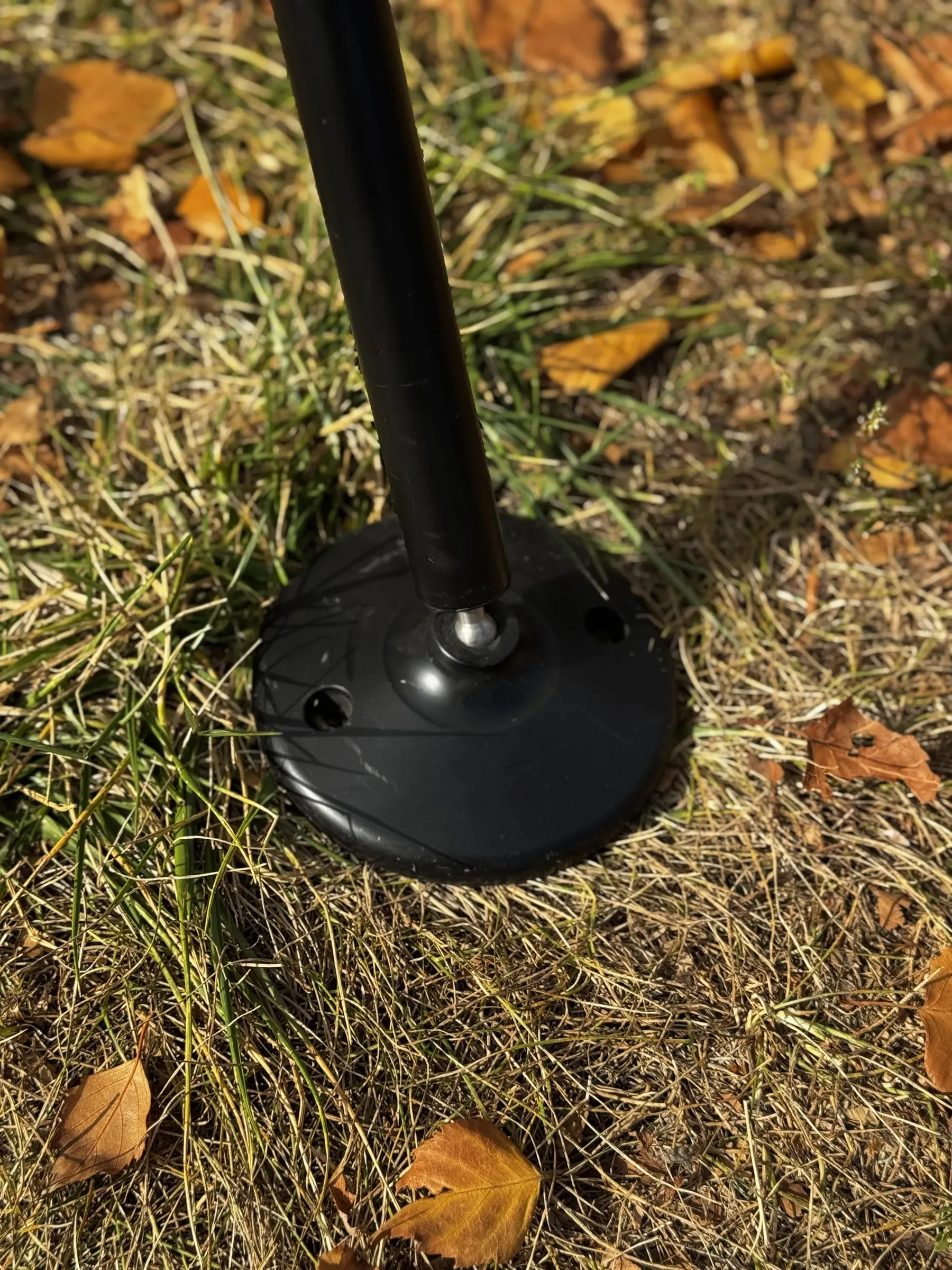

Feet are swapped by hand, so the tripod moves from soft ground to hard standing without unpacking a tool roll. Footplates, pin sets and tie-down kits are available.
- Ground anchor and pinning capability
- Two to three leg sections

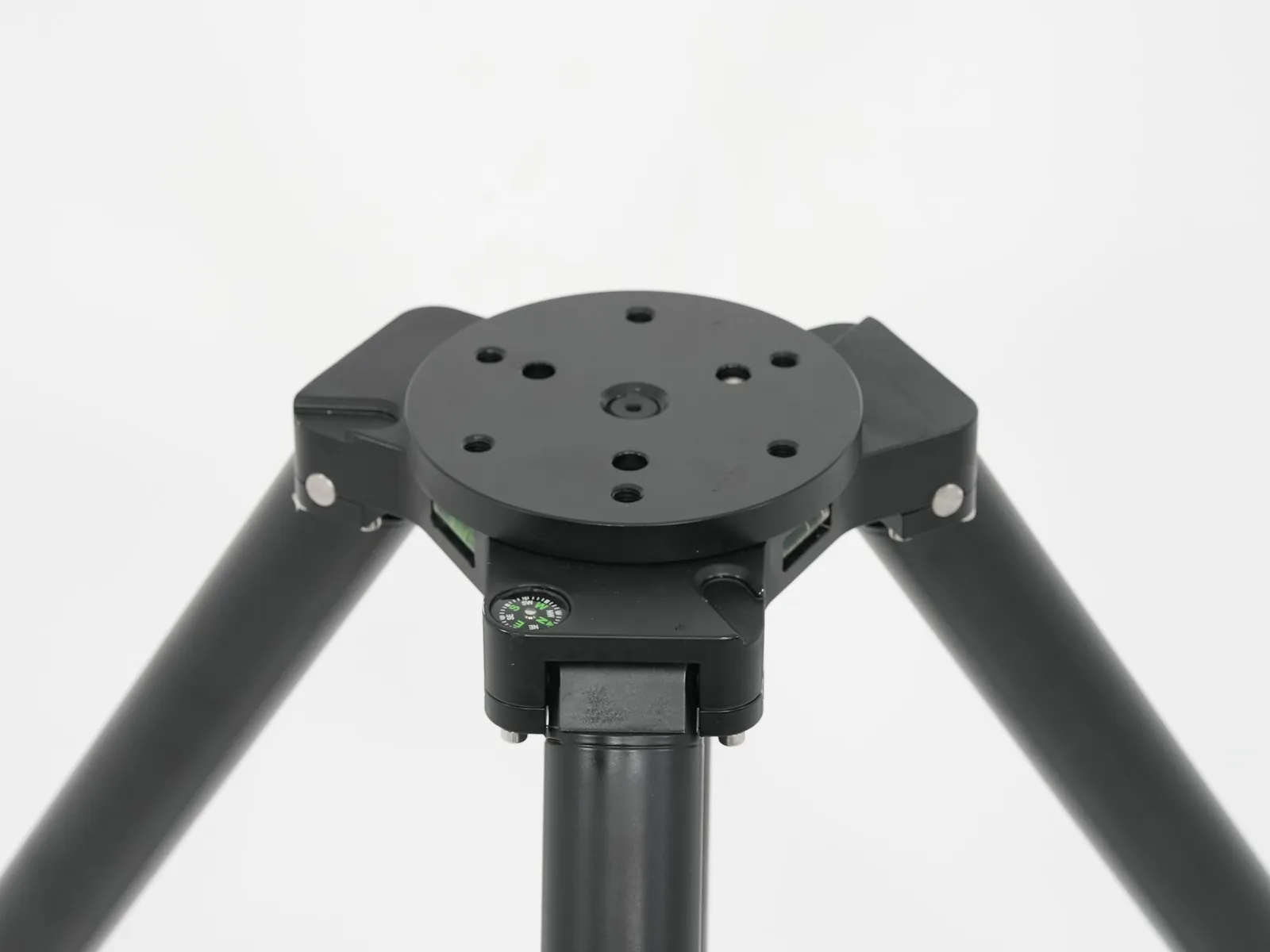

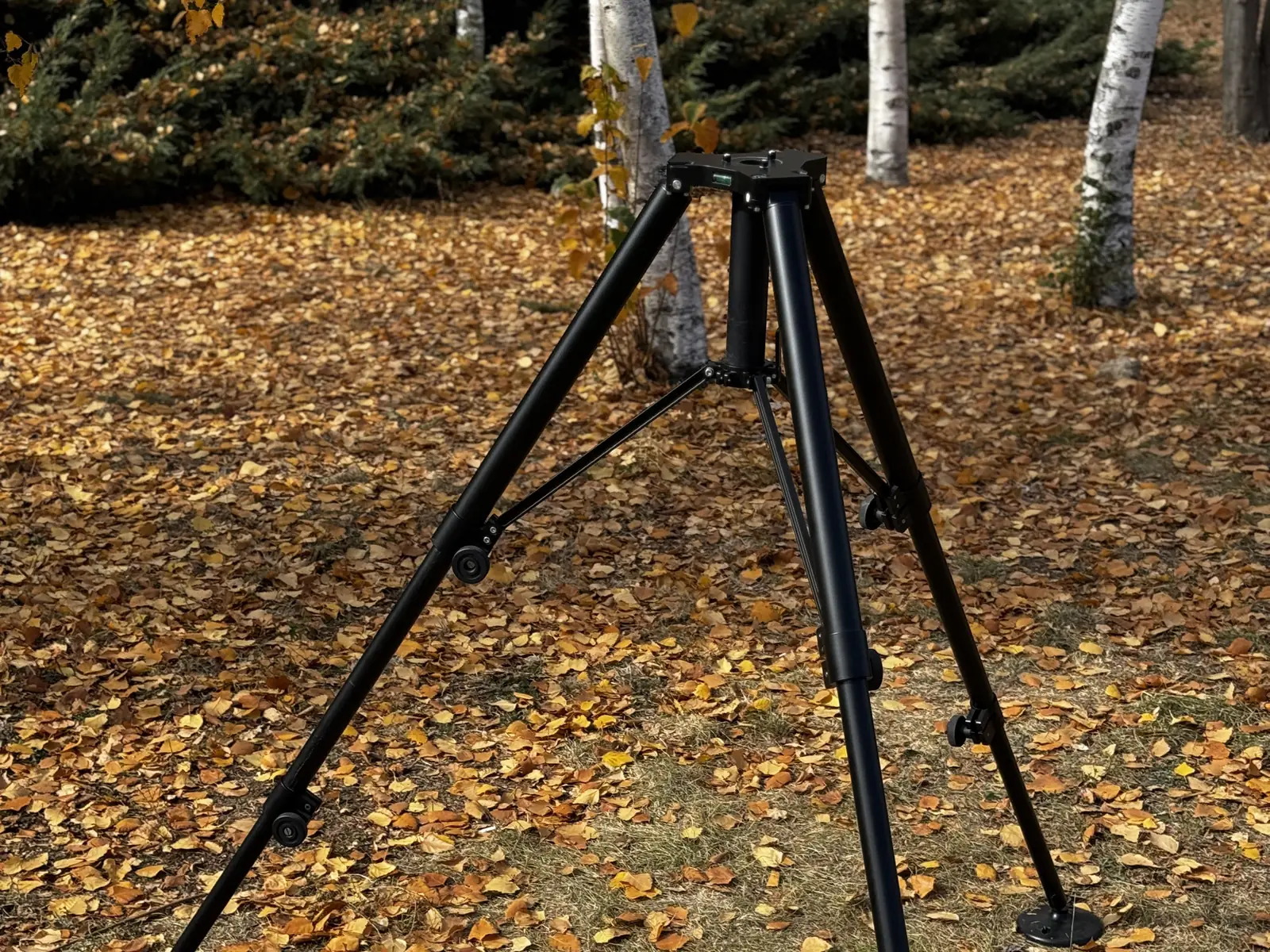

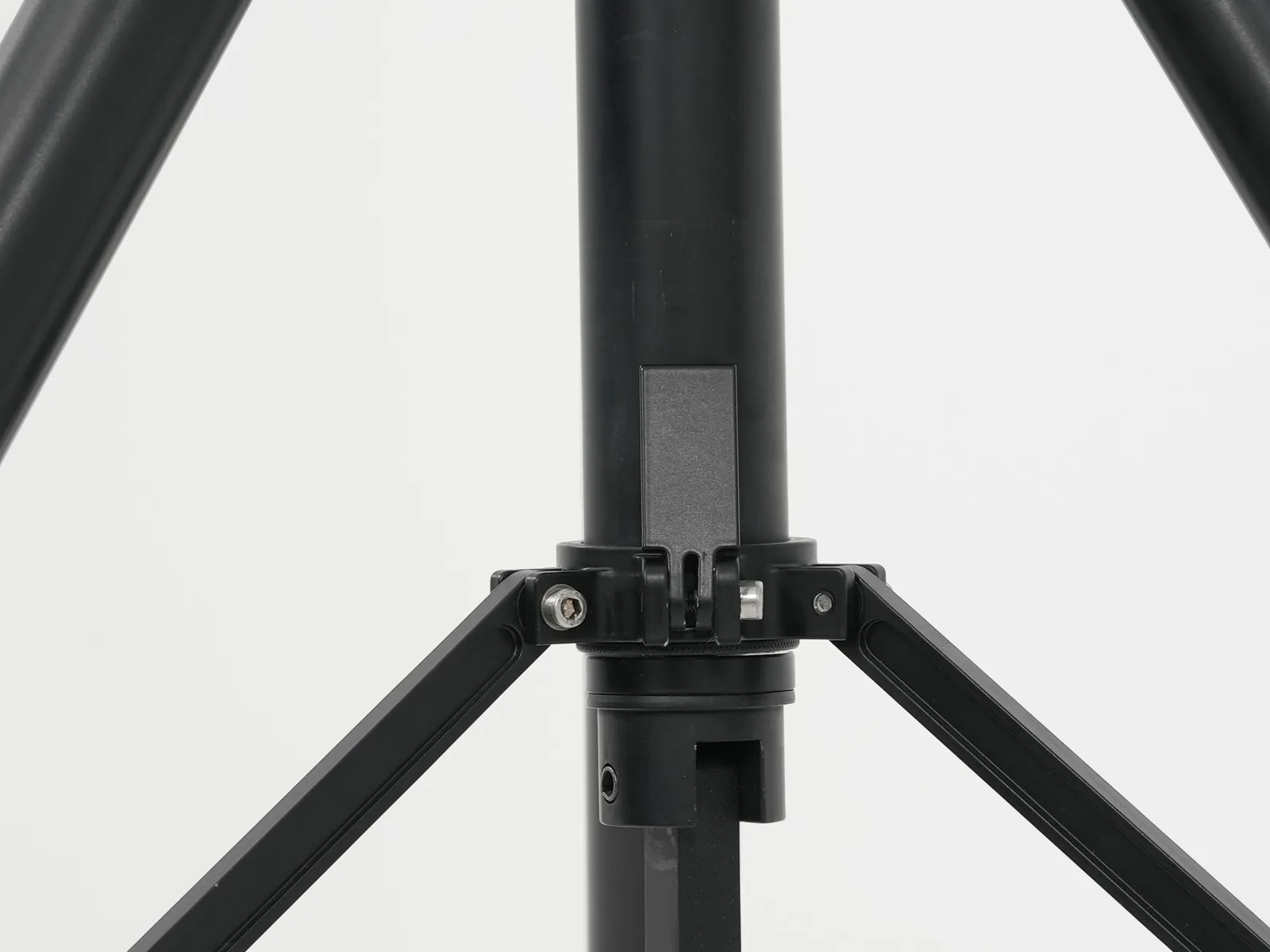

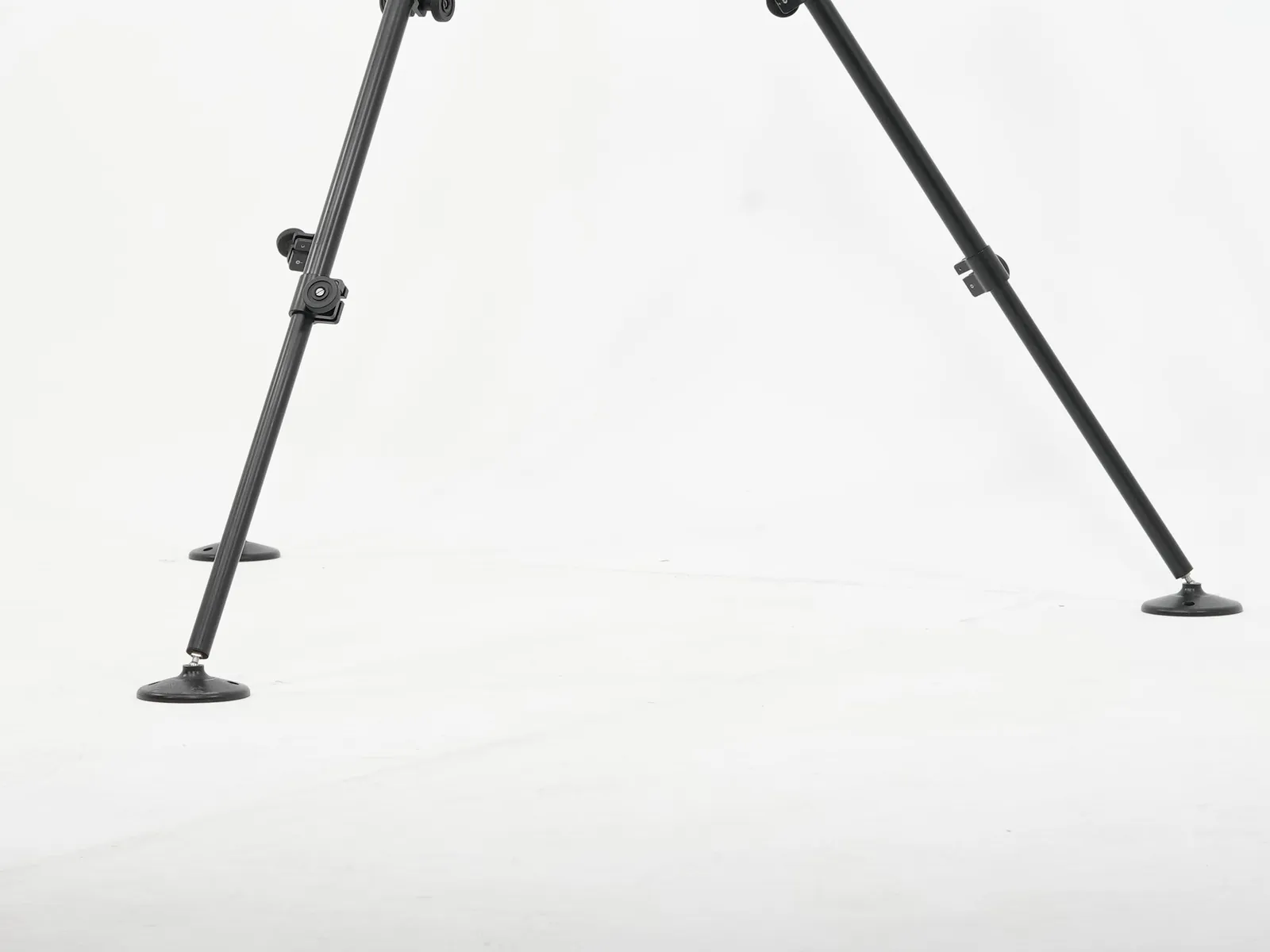

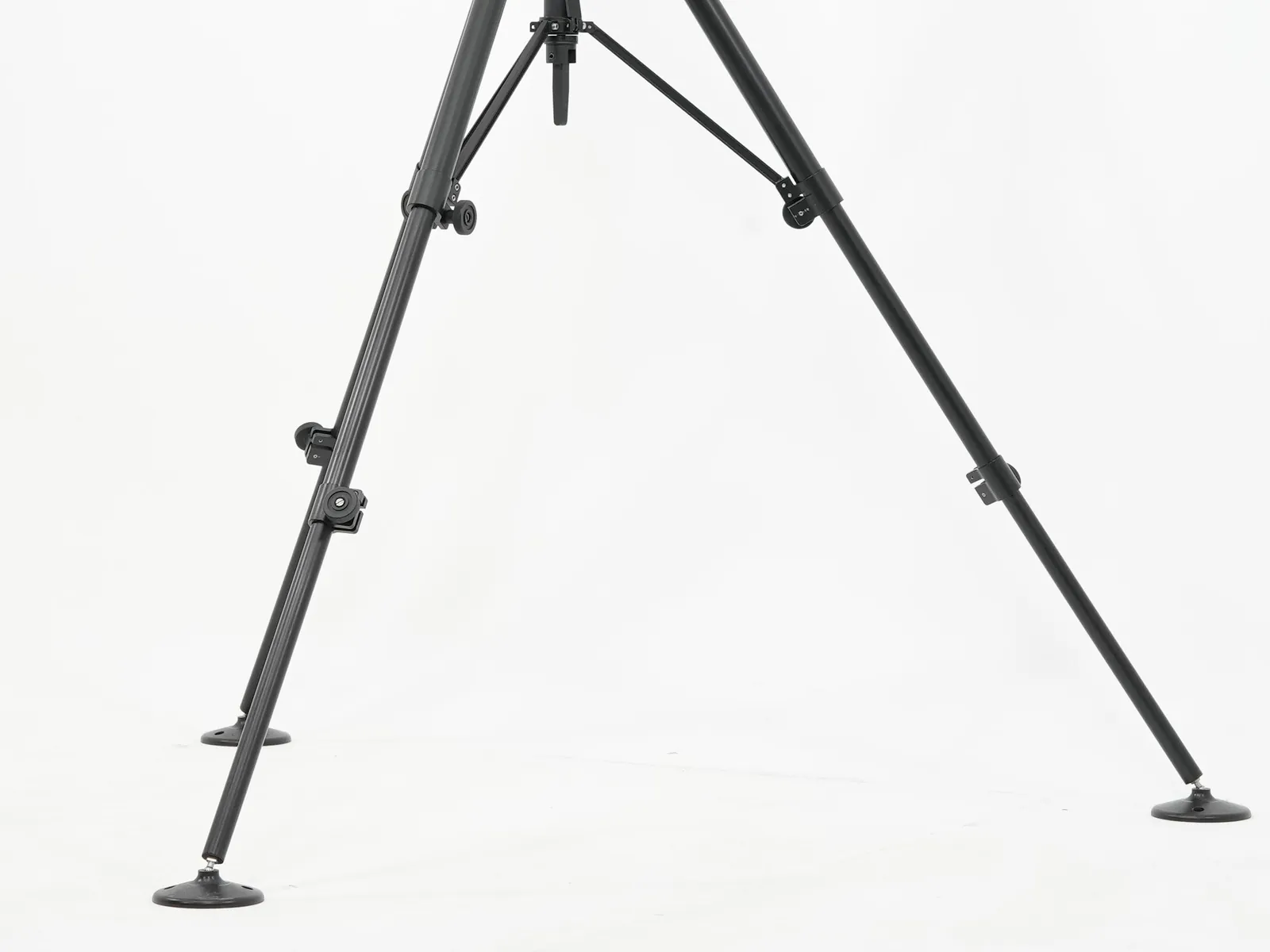

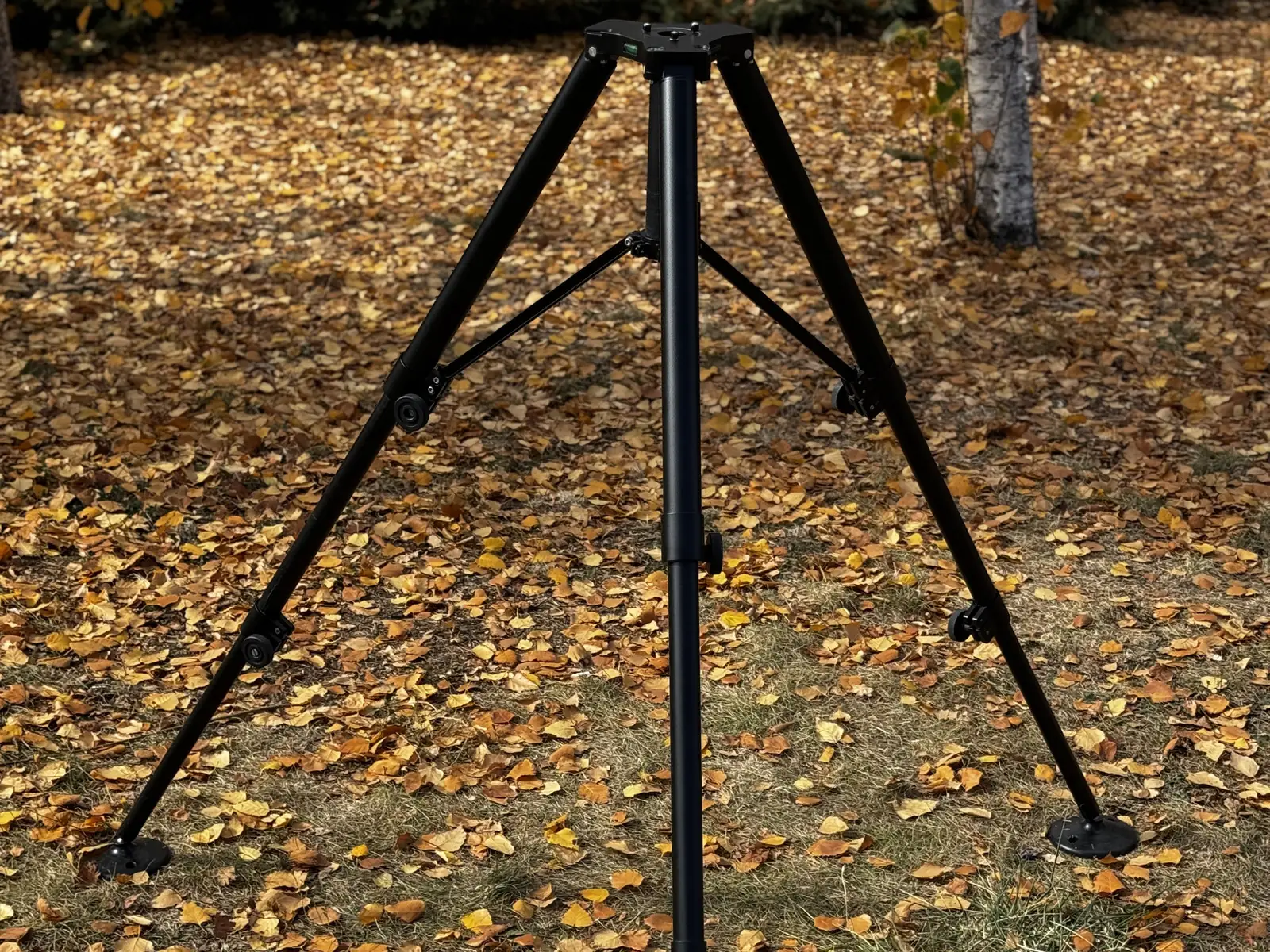

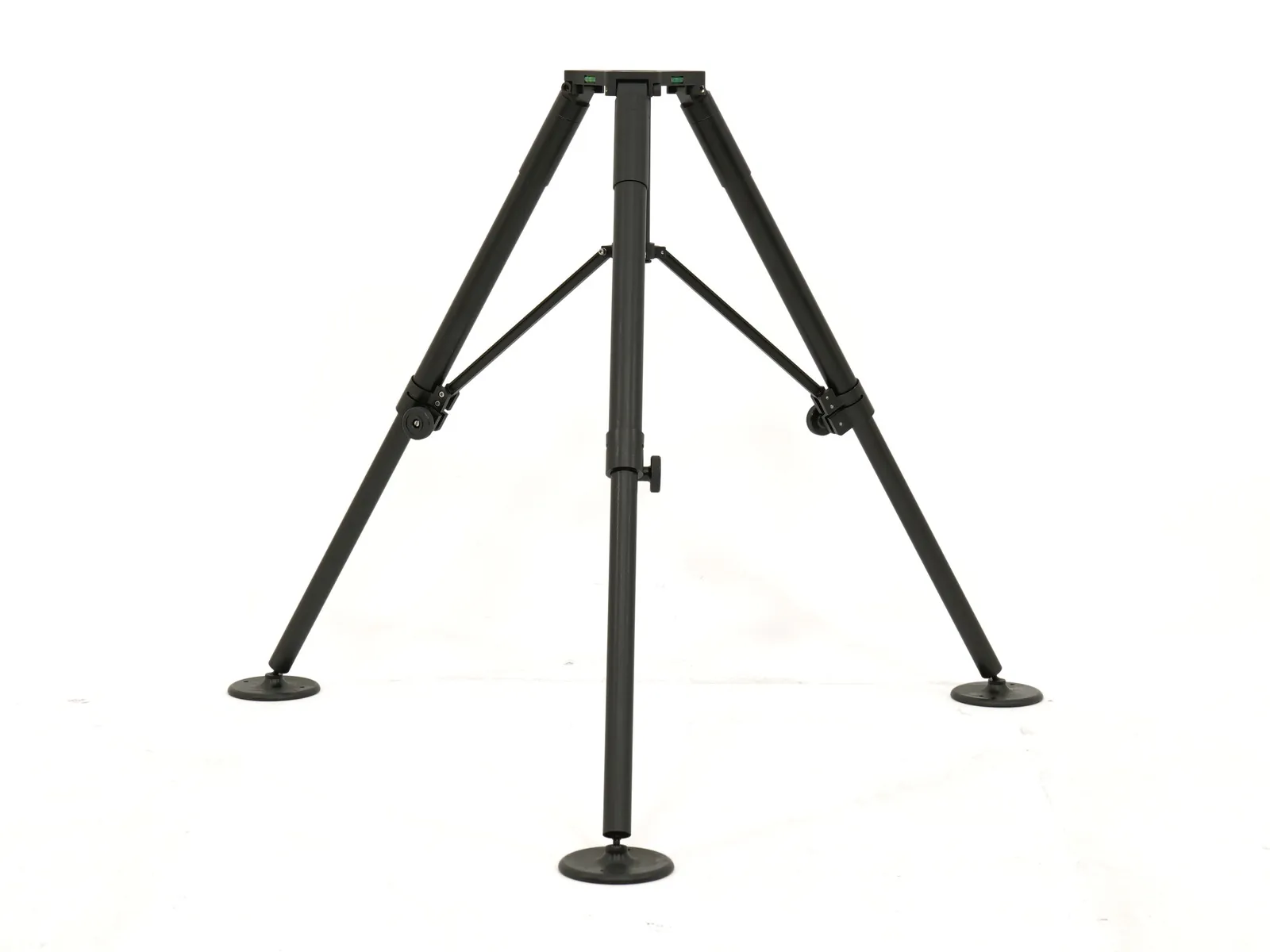

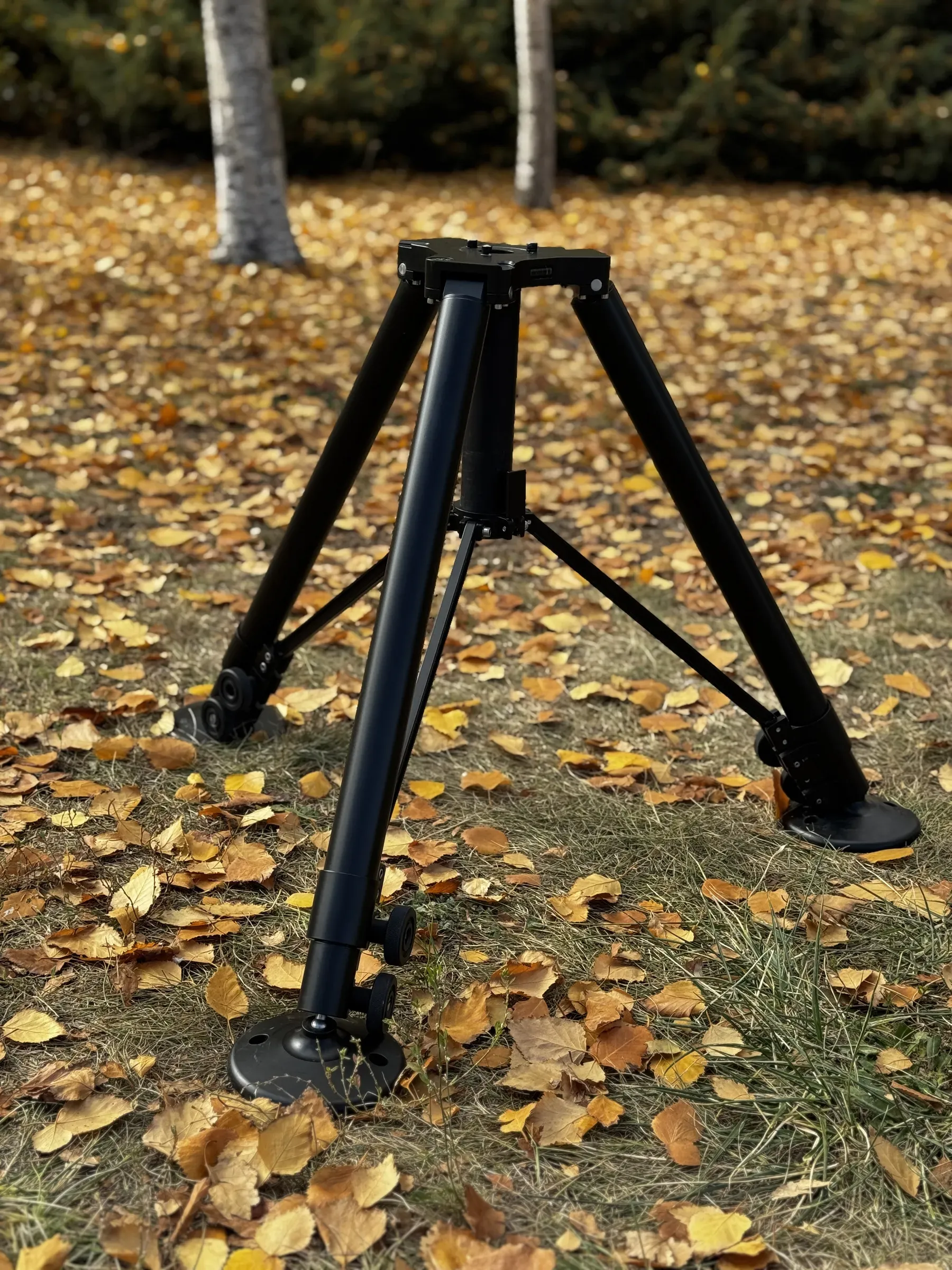

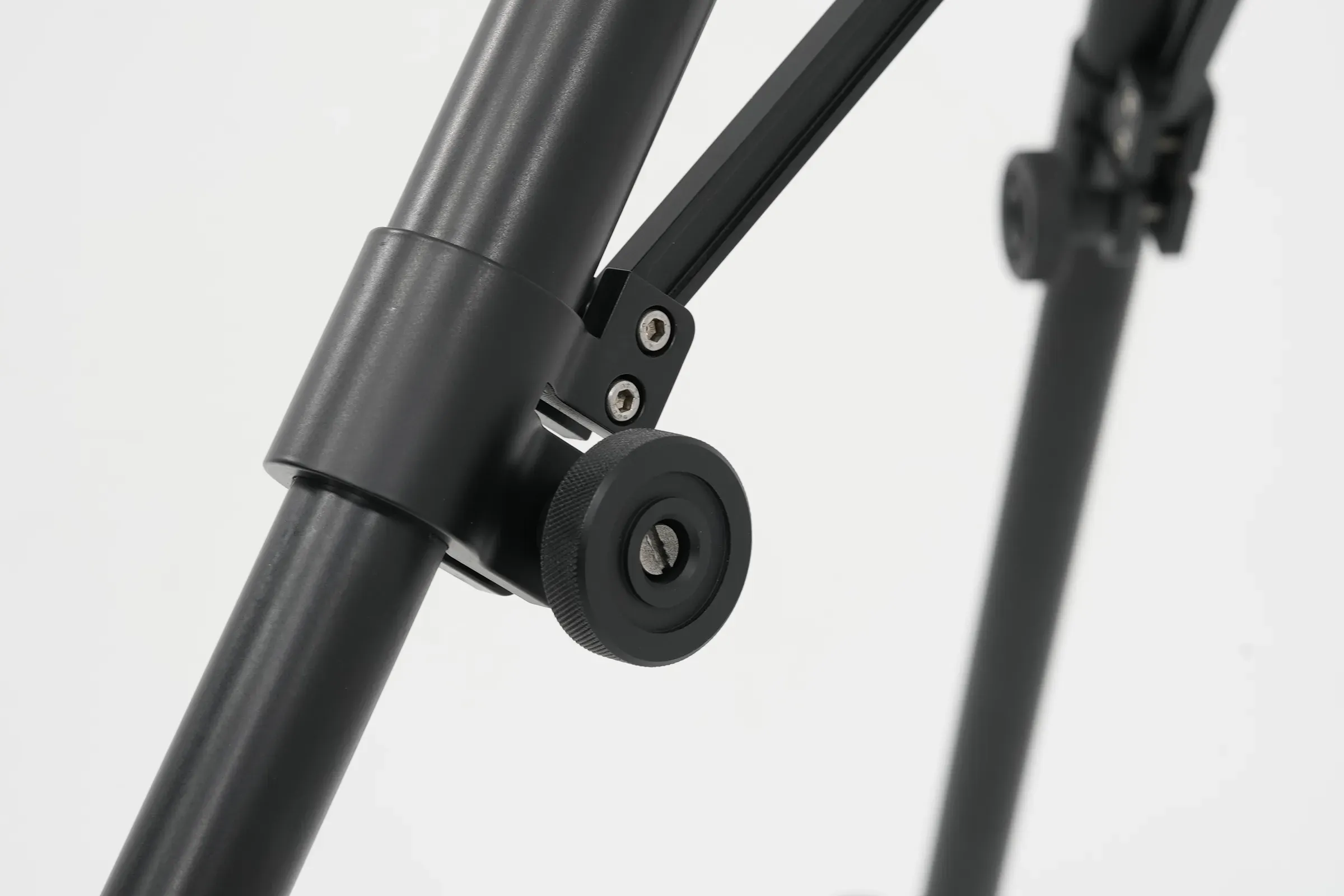

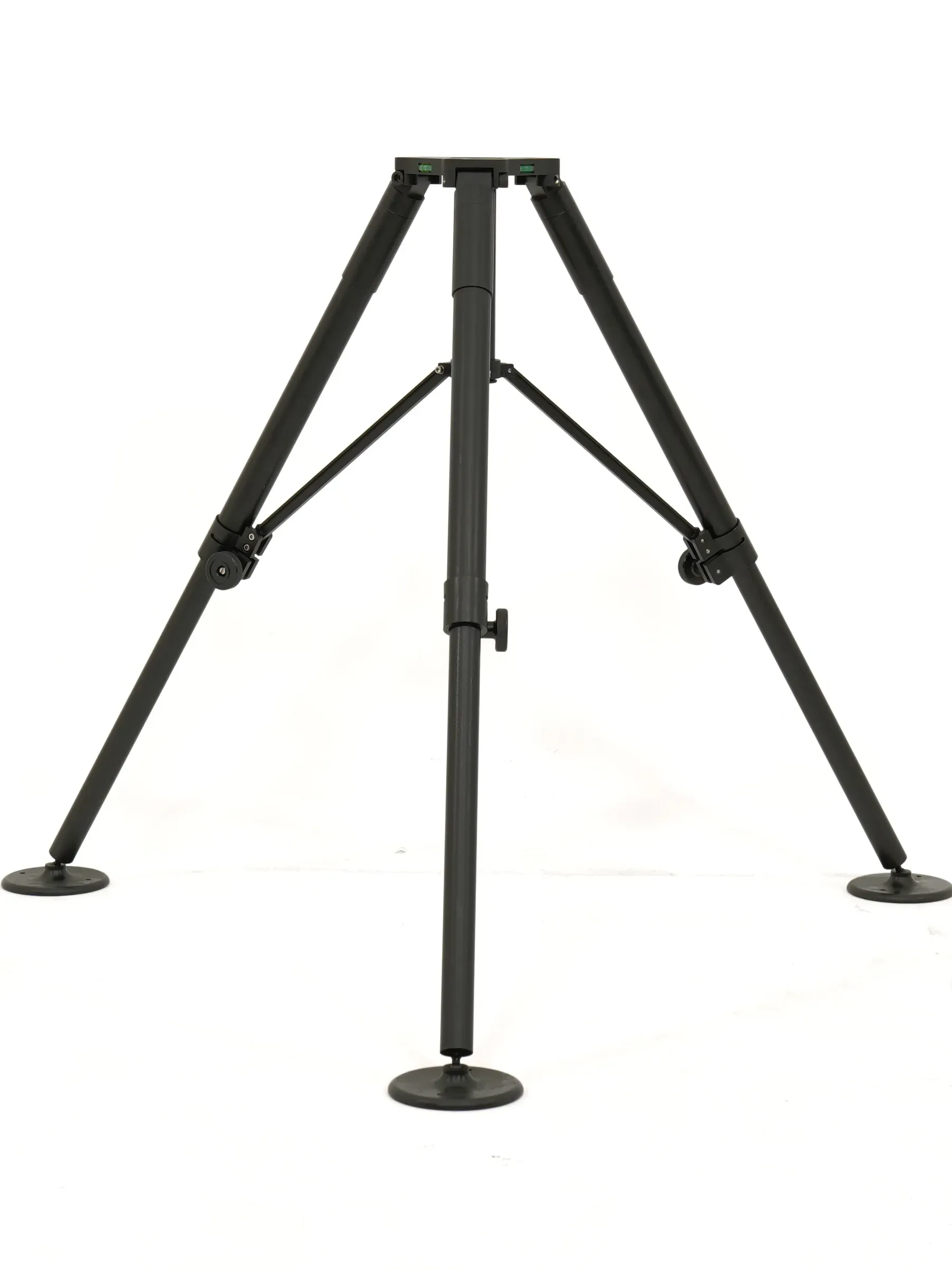

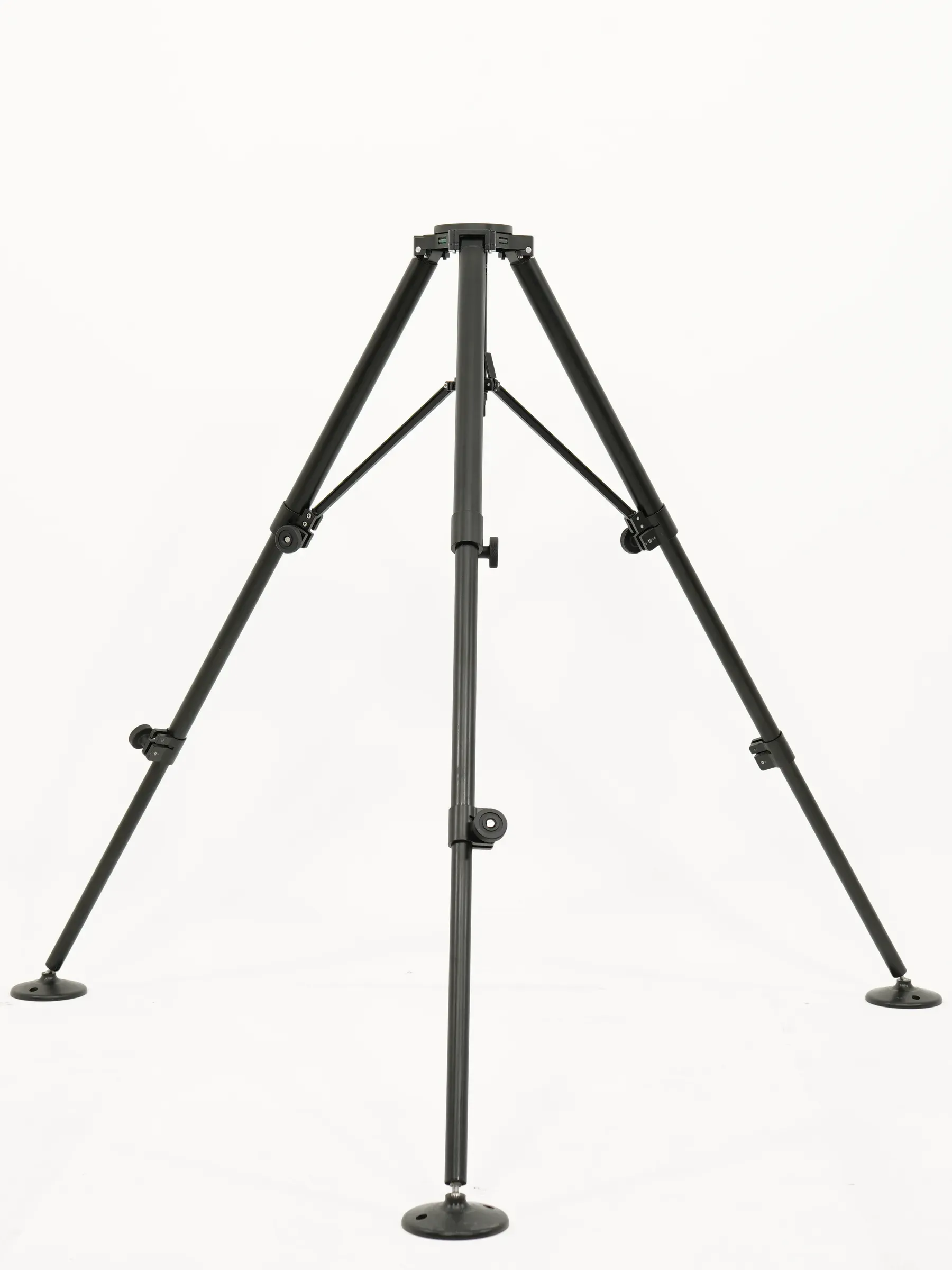

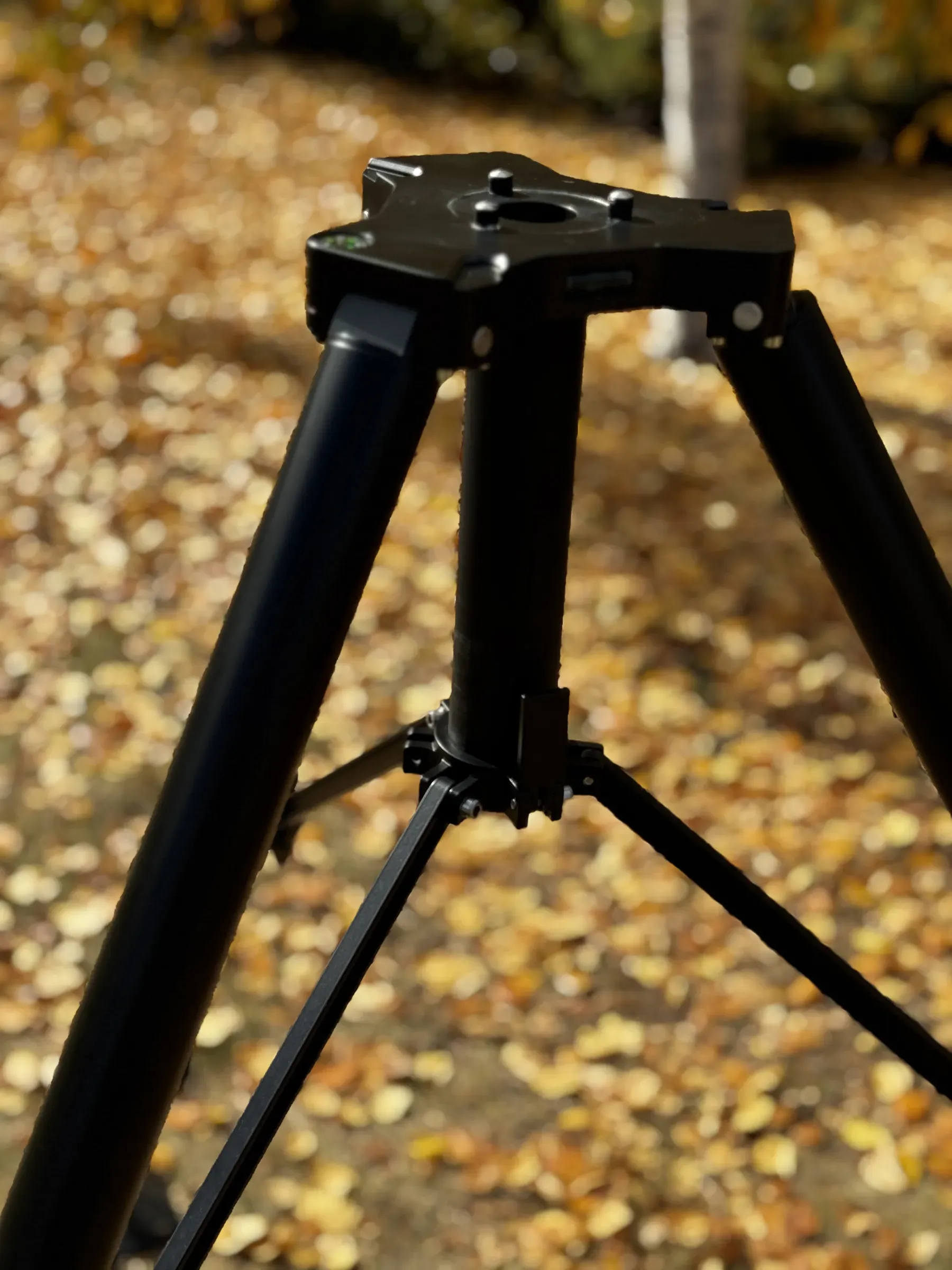

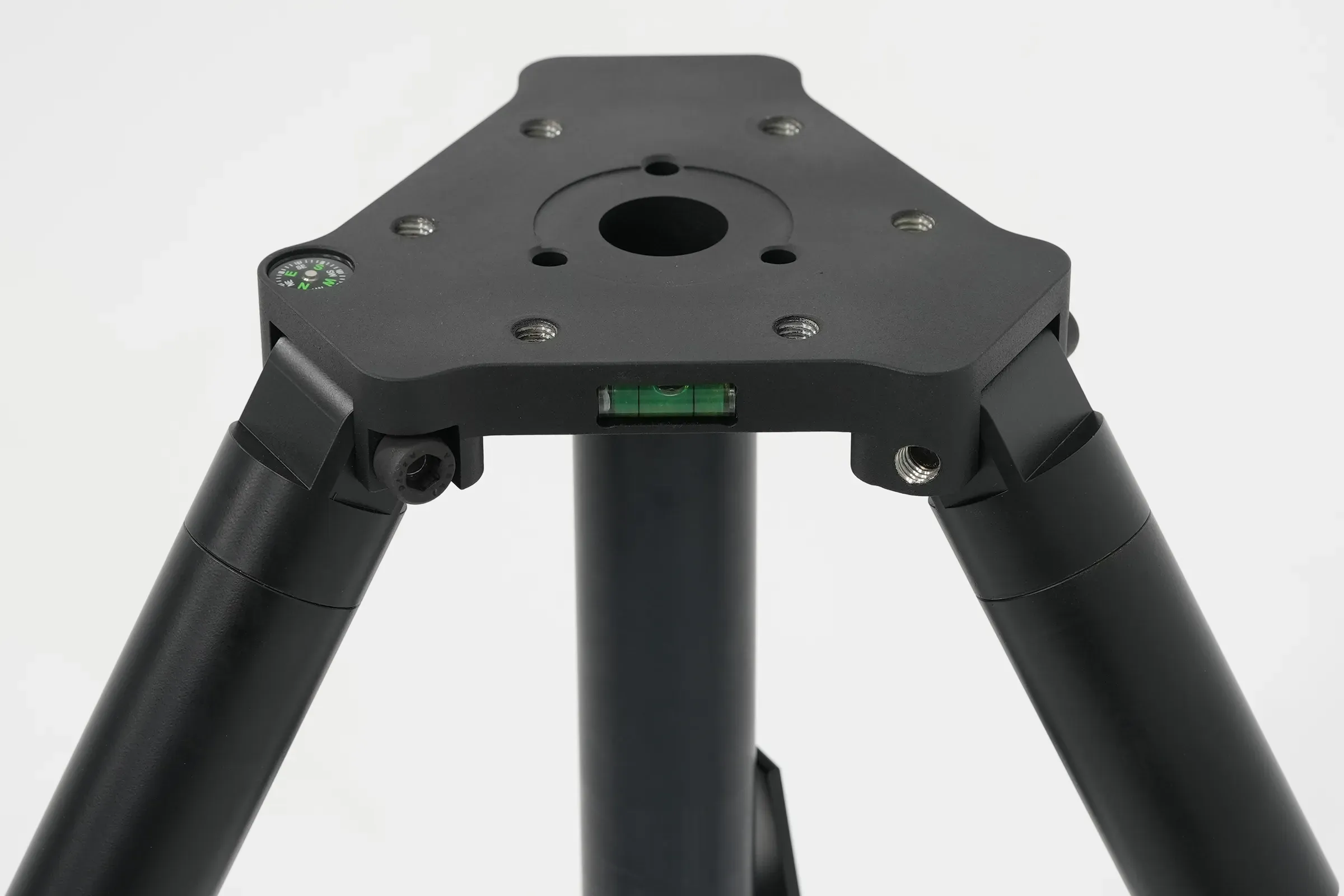

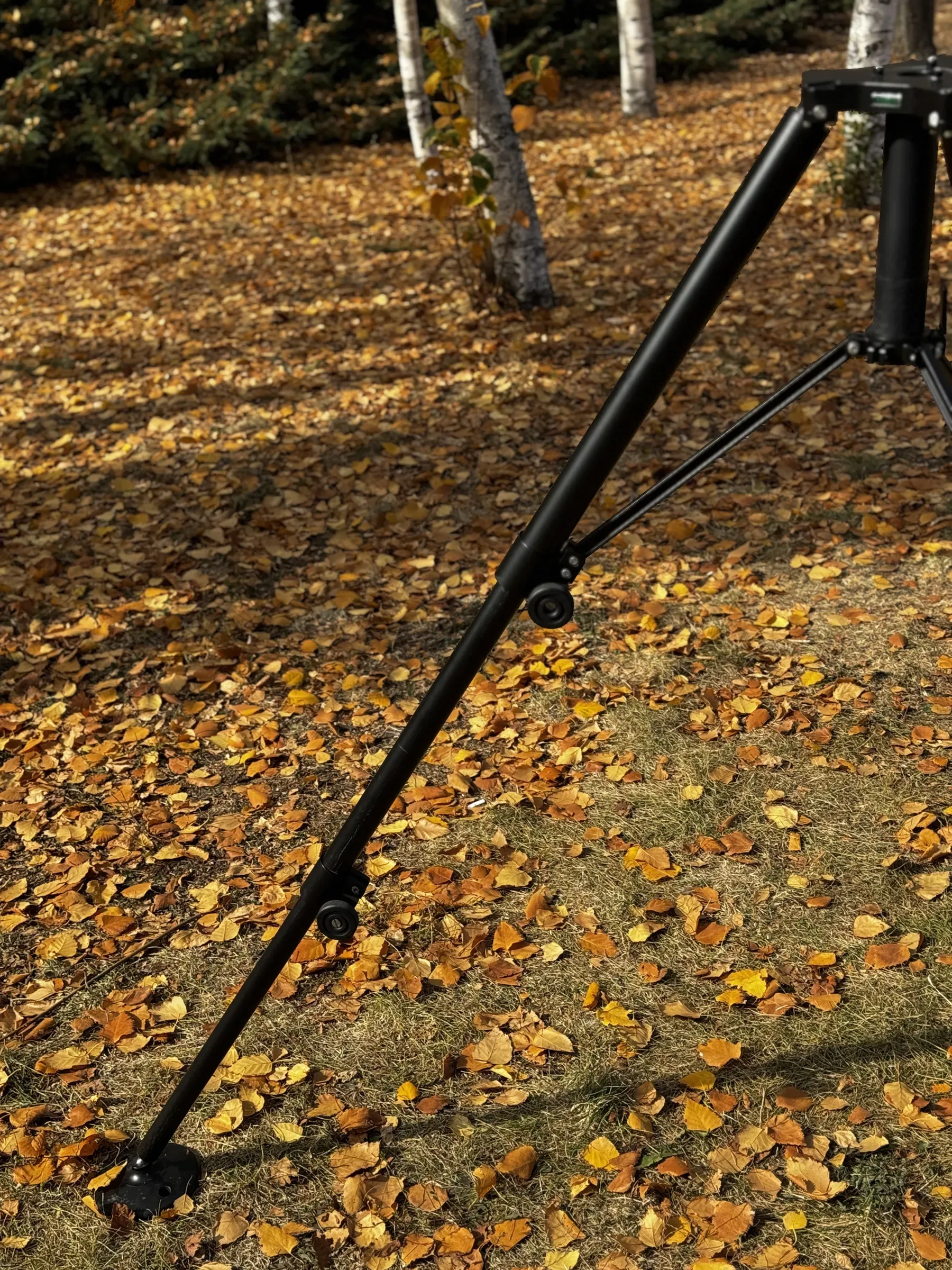

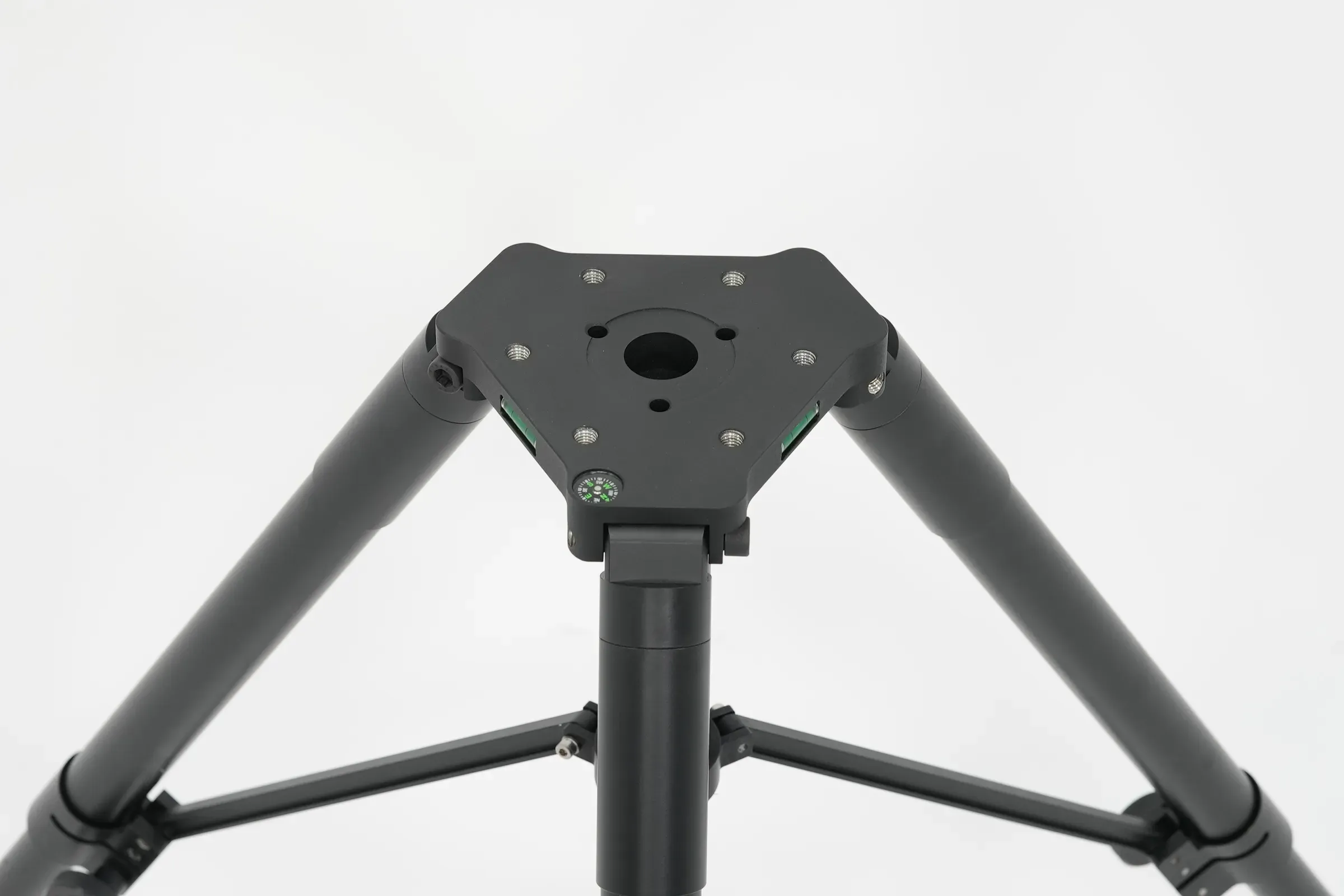

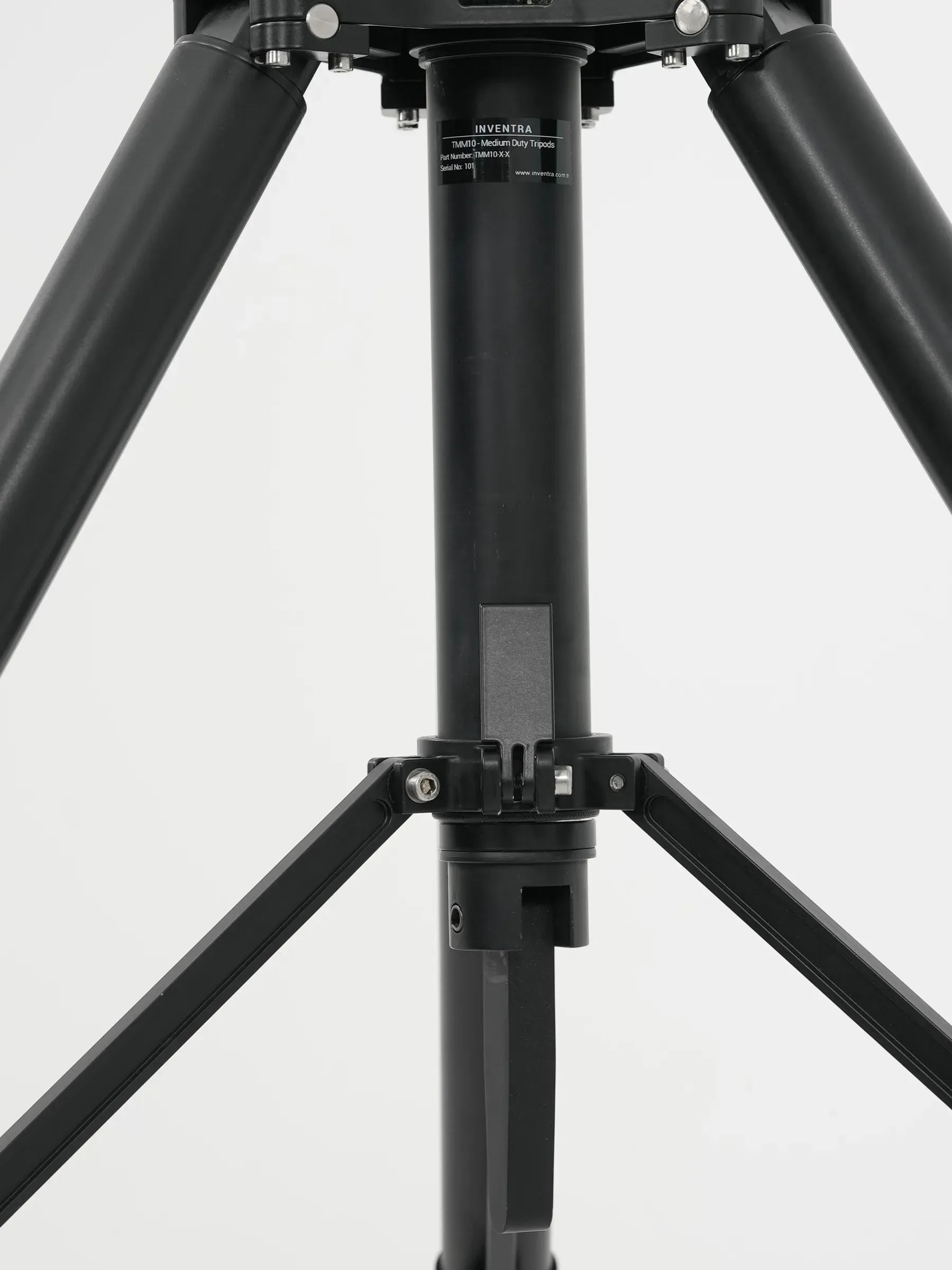

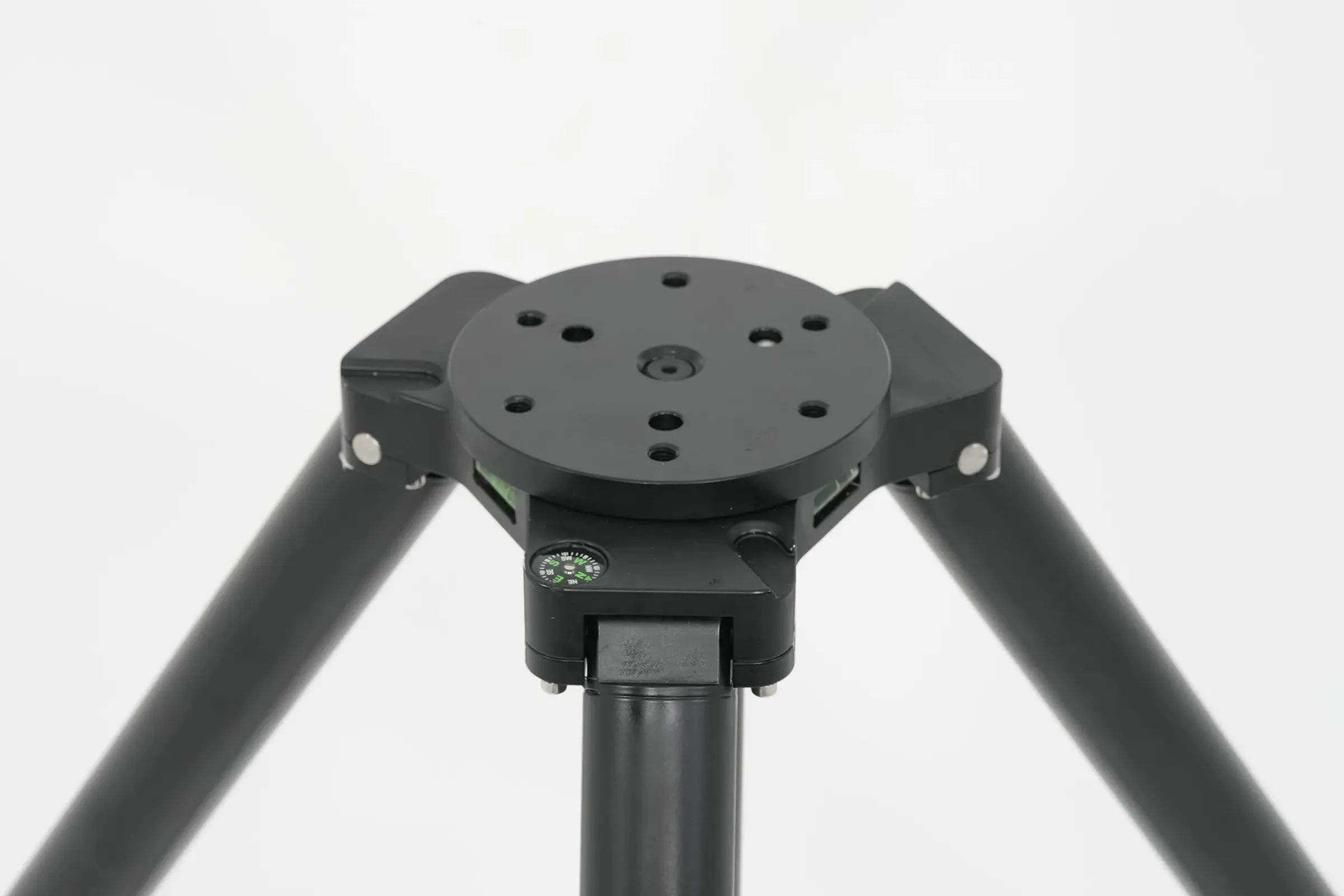

Gallery

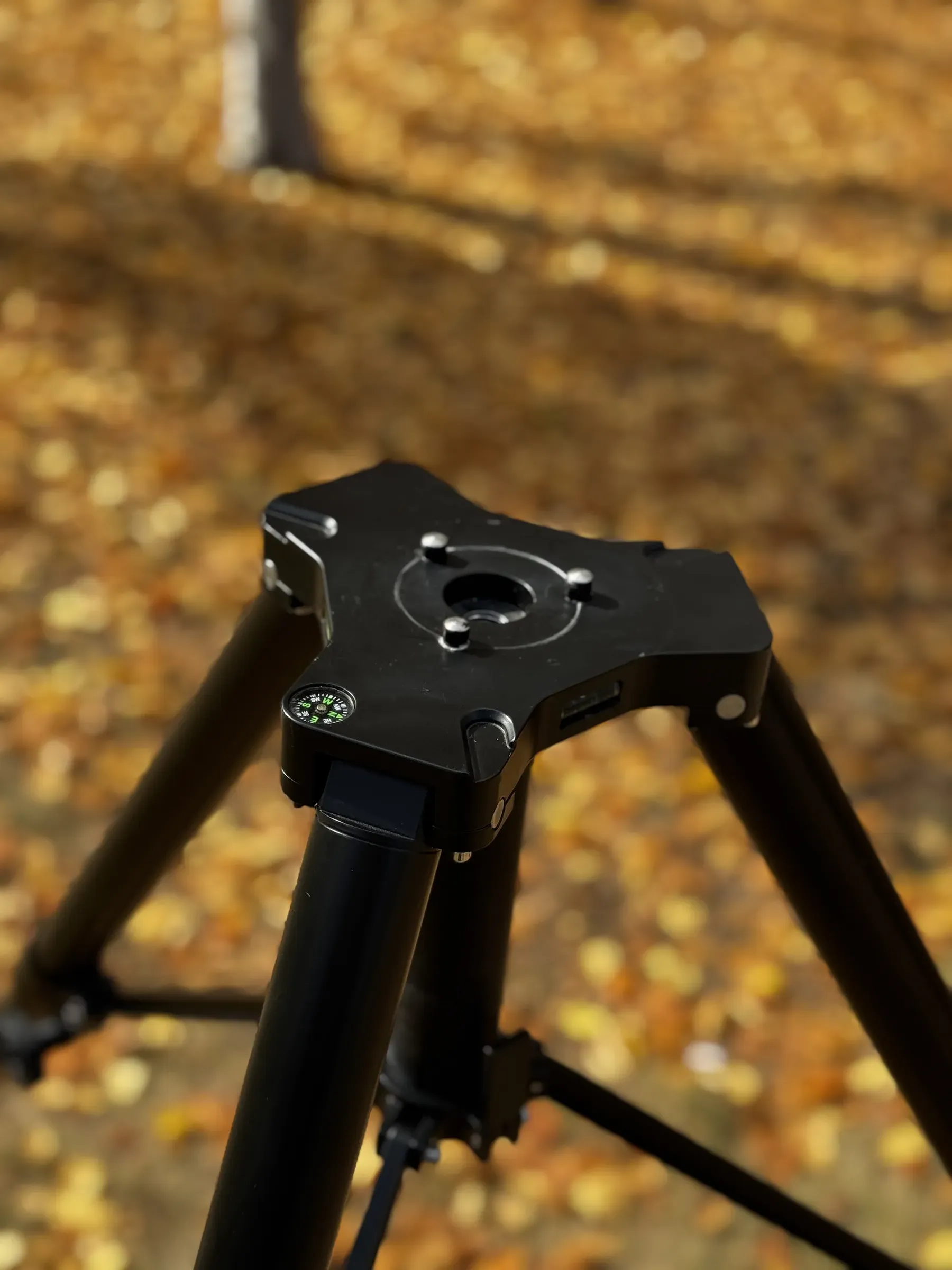

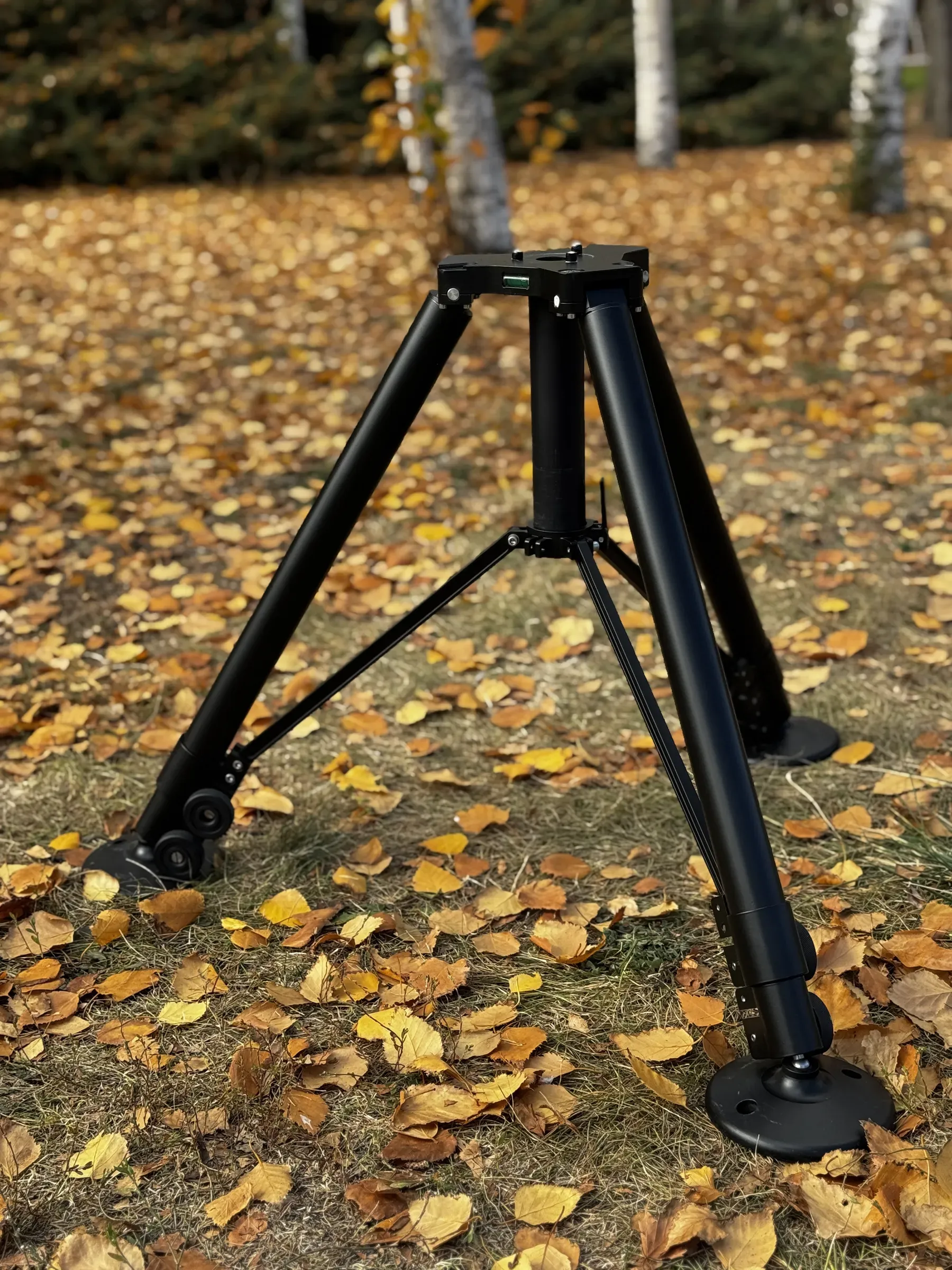

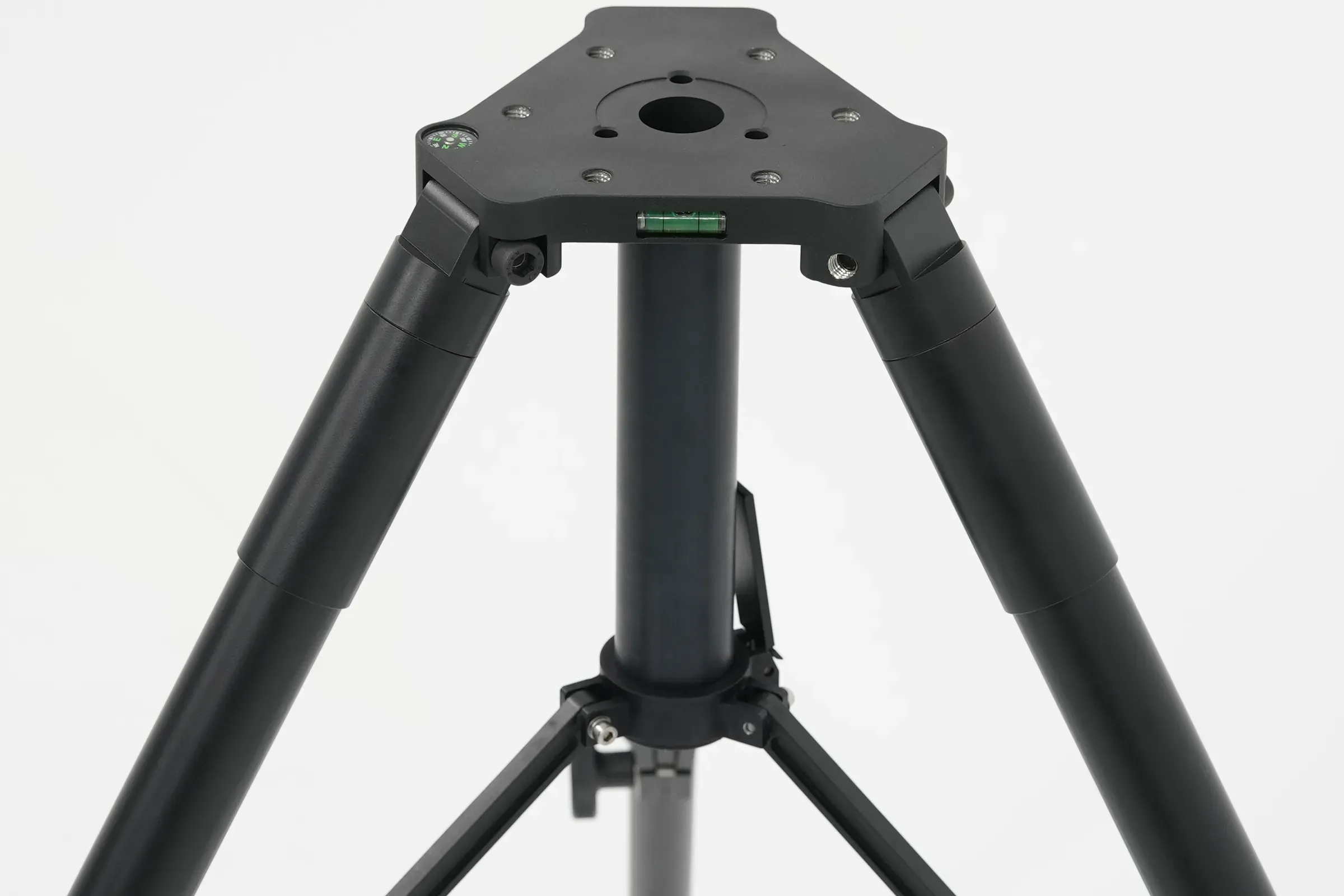

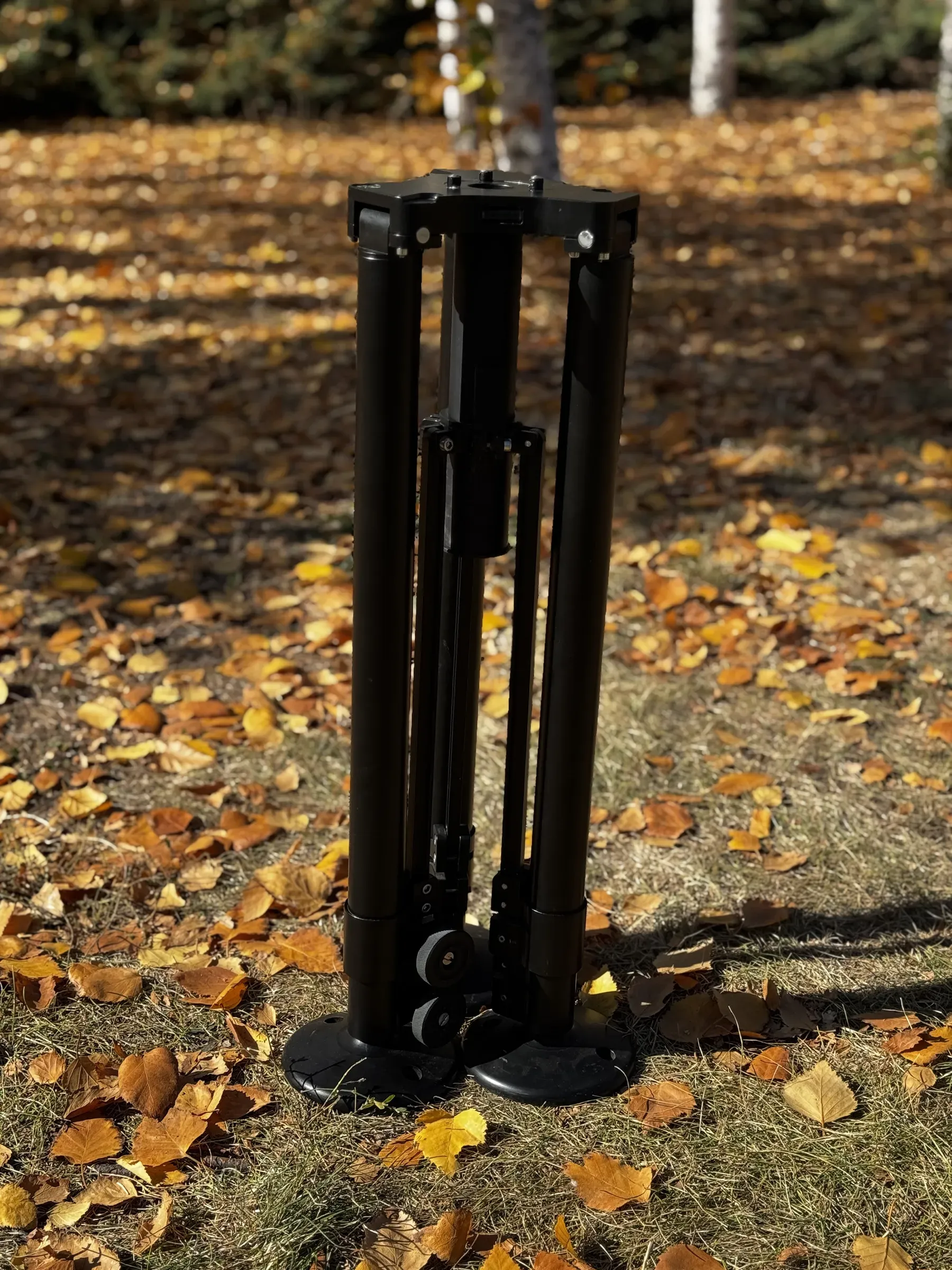

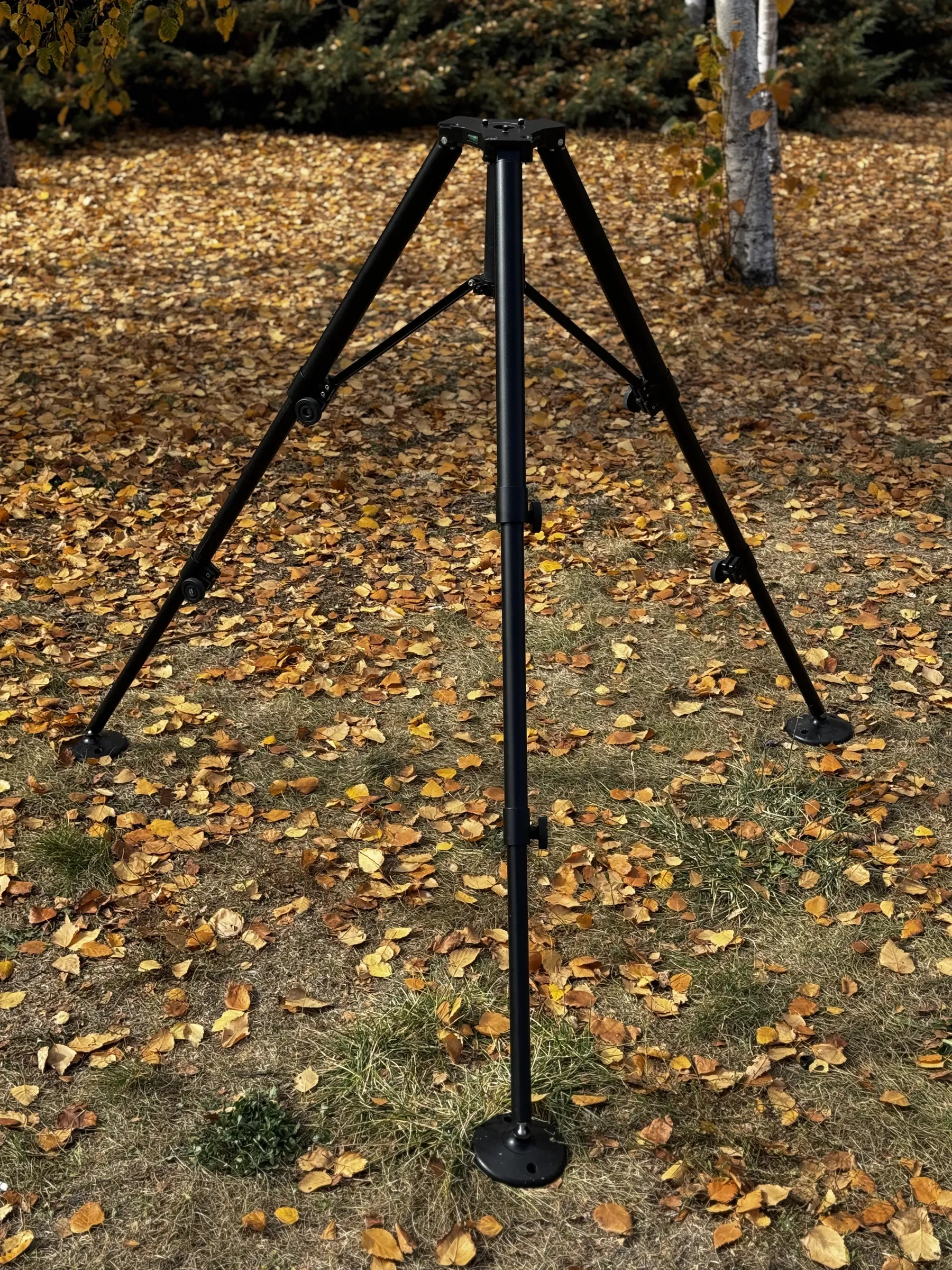

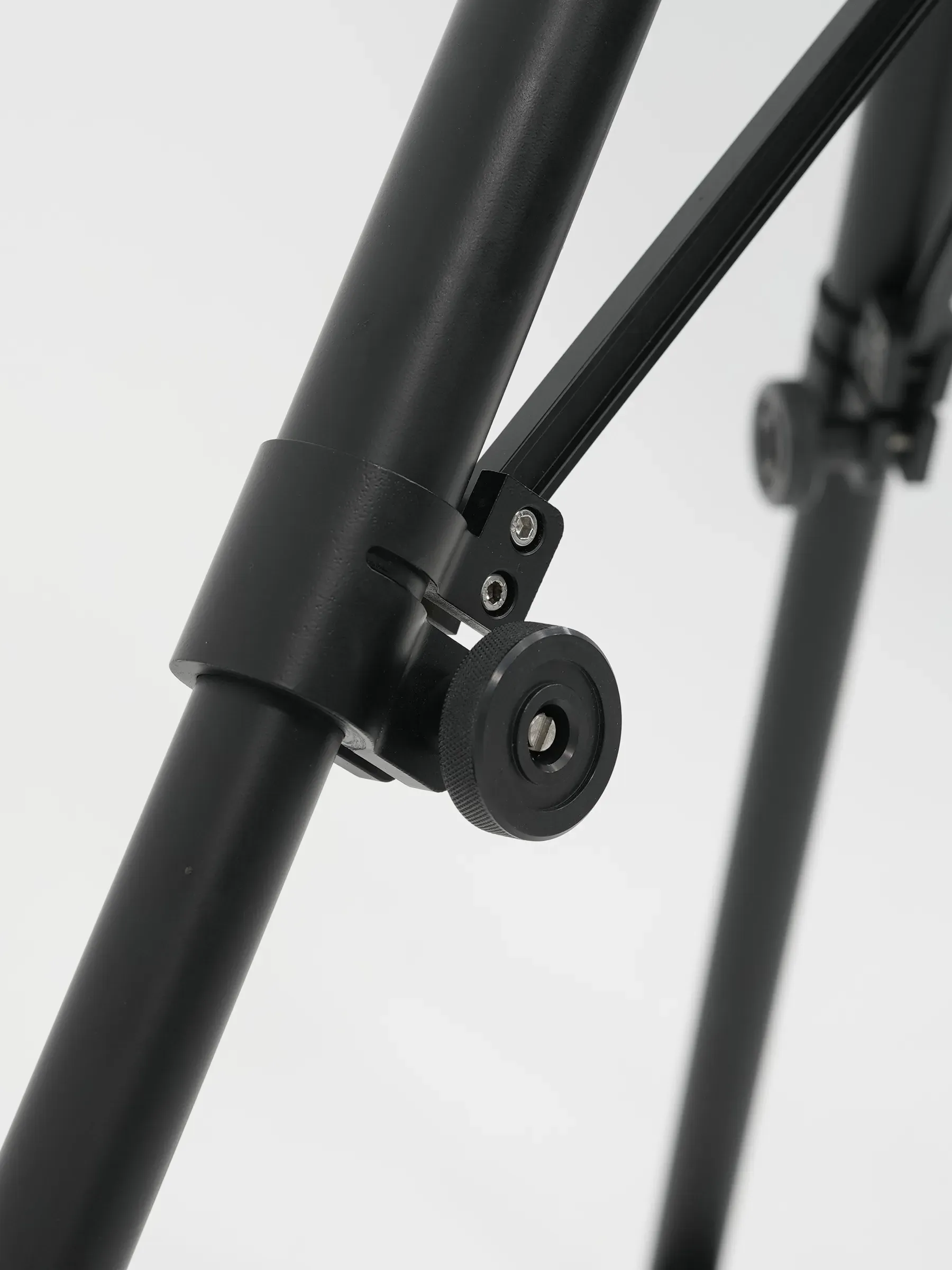

Select a frame to open it at full size.
Configurations
| Part Number | retractedmm | extendedmm | payloadkg | weightkg | radiusmm | sections |
|---|---|---|---|---|---|---|
| TMM10-0637-1266-0040Standard | 637 | 1.266 | 40 | 5,2 | 875 | 3 |
| TMM10-0588-0864-0060 | 588 | 864 | 60 | 4,3 | 632 | 2 |
Options
- FTCLFoot TypeClawfoot
- FTSPFoot TypeSpikefoot
- FTBLFoot TypeBallfoot
- PCBGPadded Carry Bagordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Extended Height | 1.266 mm |
|---|---|
| Retracted Height | 637 mm |
| Rated Payload | 40 kg |
| Foot Type | Flatfoot |
| Weight | 5,2 kg |
| Extended Radius | 875 mm |
|---|---|
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Number of Sections | 3 |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Humidity | Mtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. IV, transit drop in the transport case |
Documents
- DatasheetDownloadable — PDF, 234 KB
- User ManualOn Request
- 3D Model (STEP)On Request
- Mechanical Interface Control DocumentOn Request
- MIL-STD-810G Environmental Qualification ReportOn Request
Application Areas
Technical Discussion and Quotation
Tell us the platform and the constraint. Our engineering team answers with a configuration that fits it.
