Mast Systems

MES01

Ultra Compact Electromechanical Mast System

All-in-one motorized mast for unmanned ground vehicles, lifting 5 to 10 kg from a 535 mm nested length with motor, control and cabling inside.

  • 3 sections
  • 5 kg payload
  • Motorized
1.160 mm
Extended Height
5 kg
Rated Payload
120 km/h
Wind Load
DatasheetCompare Models

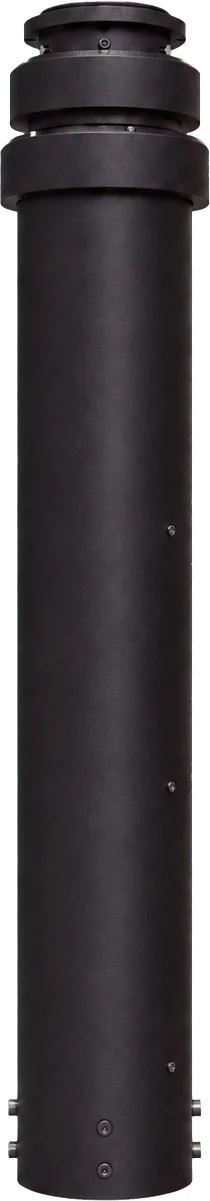

MES01 retracted

Highlights

The INVENTRA label on the junction box

01Compact

535 mm nested, 4 kg at the light end

The catalogue calls this the most compact motorised mast for unmanned ground vehicles. Nested length starts at 535 mm and the lightest configuration weighs 4 kg.

  • Extends from 1160 to 1500 mm
  • Payload 5 to 10 kg, opens in 30 to 40 s
Where the column sits on its base plate

02Integrated drive

Motor, gearbox, sensors and cabling inside

The actuating motor, gear units, screw shafts, sensors, control cards and payload cabling are all inside the one enclosure. The integrator connects a payload and a supply, not a drive train.

  • Up to 15 payload lines carried internally
  • Fully enclosed, maintenance-free design

Configurations

Part NumberretractedmmextendedmmpayloadkgweightkgopeningsNode Ømm
MES01-0535-1160-0005Standard5351.160543092
MES01-0700-1500-00107001.50010840100

Options

Each code is four characters and is appended to the part number, the label language code last.

  • LPEKLightning Protection and Earthing Kitordered separately
  • SPPCSpiral Payload Cableordered separately
  • HEX1Height Extenderordered separately1.000 mm
  • IFPSIngress / Frost Protection Sleeveordered separately
  • LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish

Specifications

Performance Parameters
Rated Payload5 kg
Wind Load120 km/h
Wind Load Reference Area0,4 m²
Actuating MechanismMotorized
Drive TypeThreaded Rod
Retracted Height535 mm
Extended Height1.160 mm
Weight4 kg
Opening Time30 s
Electrical & Interface
Operating Voltage18-32 VDC
Power StandardMIL-STD-1275
Communication InterfaceRS-422
Communication Interface (Optional)Ethernet
Connector TypeMIL-DTL-38999
Mechanical Data
Node Diameter92 mm
Number of Sections3
Material – Main BodyAluminium 6061-T6
Surface FinishElectrostatic Powder Coating
Standard ColourRAL 9005 Matte Black
Accessories
Installation Manual1 × Installation Manual
Environmental Qualifications
Environmental StandardMIL-STD-810G
High Temperature – OperationalMtd. 501.5, Proc. II, +60 °C
High Temperature – StorageMtd. 501.5, Proc. I, +70 °C
Low Temperature – OperationalMtd. 502.5, Proc. II, -32 °C
Low Temperature – StorageMtd. 502.5, Proc. I, -40 °C
Low Pressure – OperationalMtd. 500.5, Proc. II, 10.500 ft
Low Pressure – StorageMtd. 500.5, Proc. I, 37.000 ft
HumidityMtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h
RainMtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face
Salt FogMtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying
Blowing DustMtd. 510.5, Proc. I
Blowing SandMtd. 510.5, Proc. II
VibrationMtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3
ShockMtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes
EMI / EMC
EMI/EMC StandardMIL-STD-461G
CE102Power Leads, 10 kHz – 10 MHz
CS101Power Leads, 30 Hz – 150 kHz
CS114Bulk Cable Injection, 10 kHz – 200 MHz
CS115Bulk Cable Injection, Impulse Excitation
CS116Damped Sinusoidal Transients, 10 kHz – 100 MHz
CS118Personnel Borne Electrostatic Discharge
RE102Electric Field, 10 kHz – 18 GHz
RS103Electric Field, 2 MHz – 18 GHz

Documents

  • DatasheetDownloadable — PDF, 355 KB
  • User ManualOn Request
  • 3D Model (STEP)On Request
  • Mechanical Interface Control DocumentOn Request
  • MIL-STD-810G Environmental Qualification ReportOn Request
  • Electrical Interface Control DocumentOn Request
  • Software Interface Control DocumentOn Request
  • MIL-STD-461G EMI/EMC Test ReportOn Request
Request Quote

Application Areas

Technical Discussion and Quotation

Tell us the platform and the constraint. Our engineering team answers with a configuration that fits it.

Request QuoteMast Systems

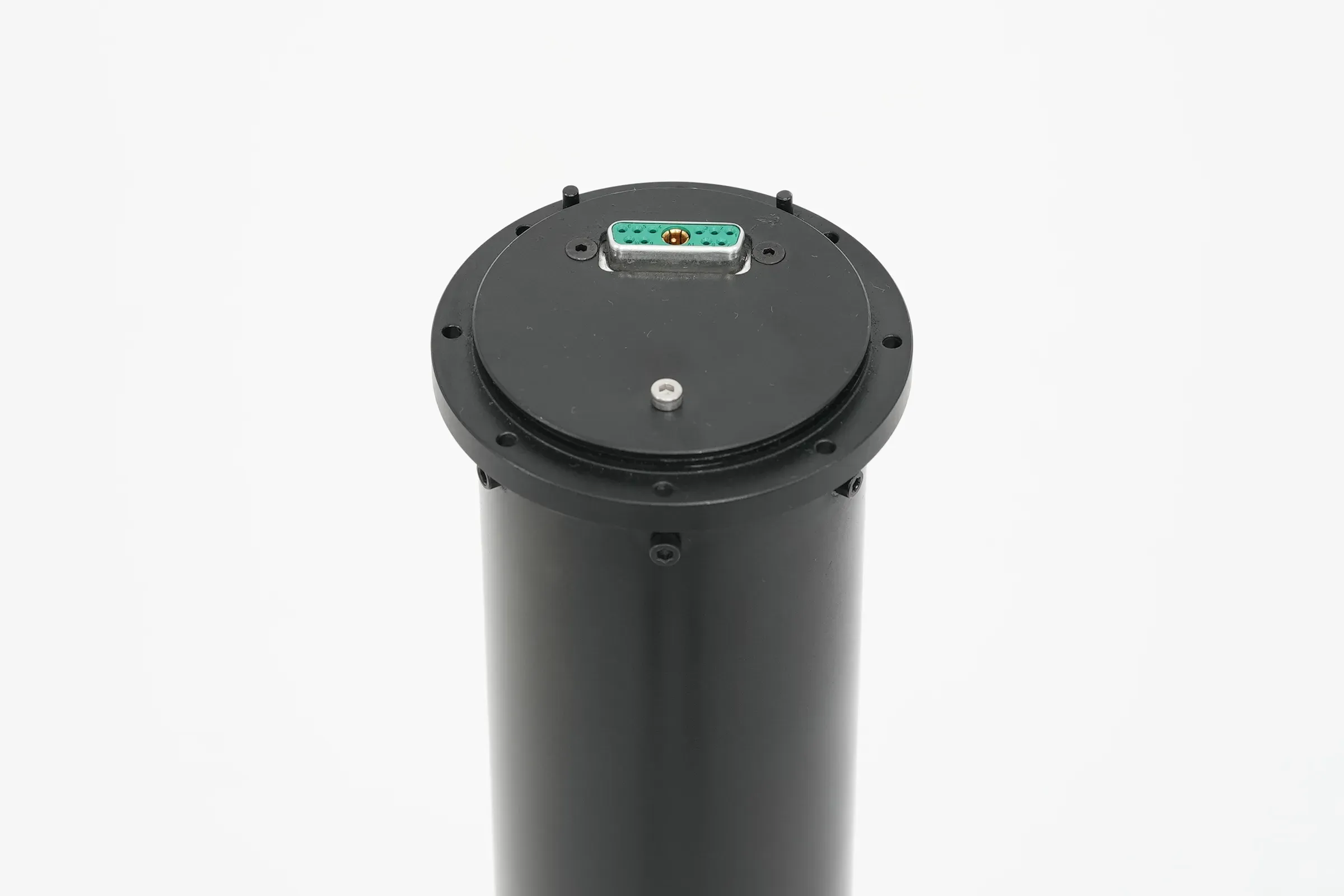

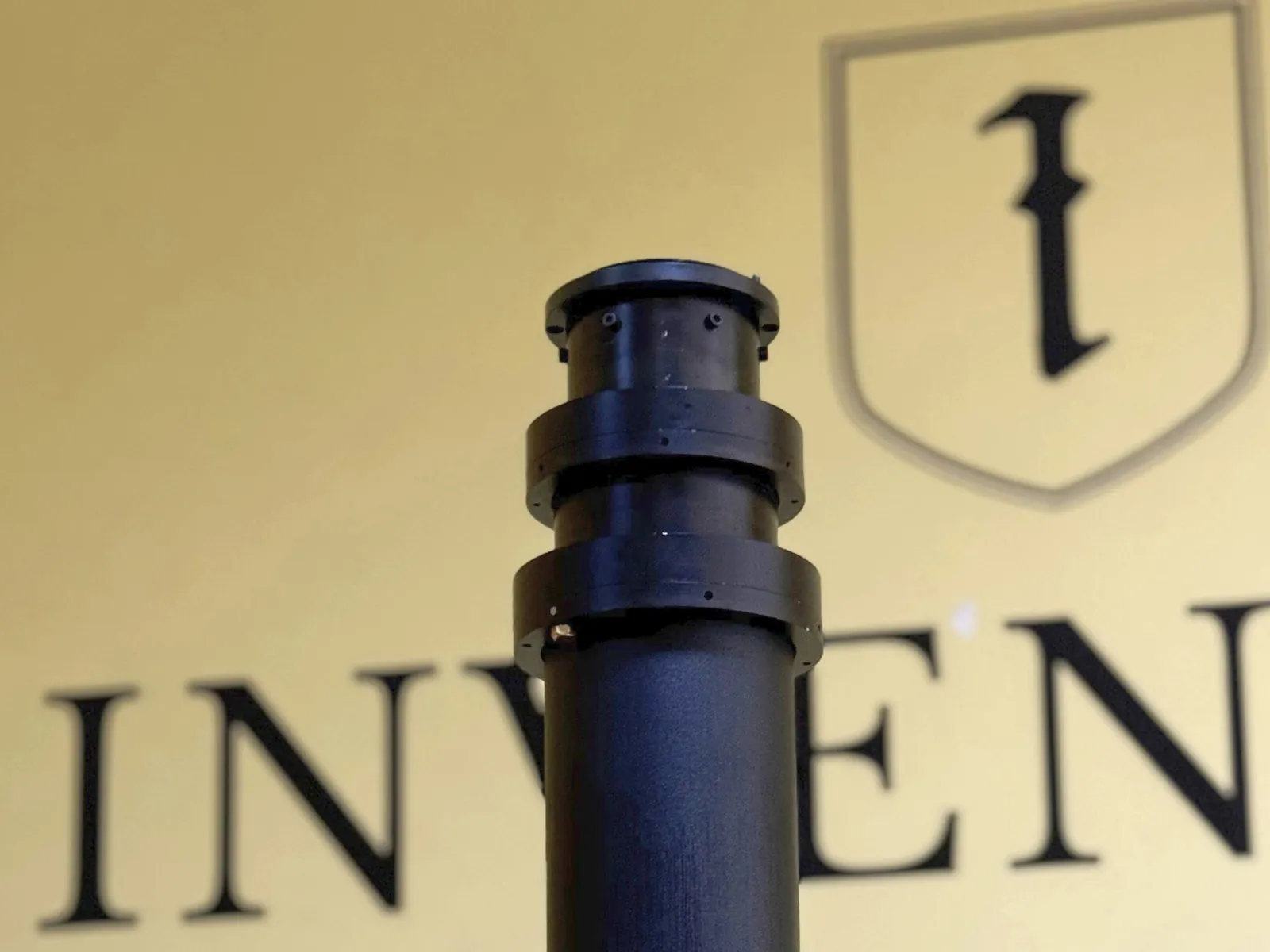

The mast top plate and its payload connector

The mast top plate and its payload connector

1 / 57

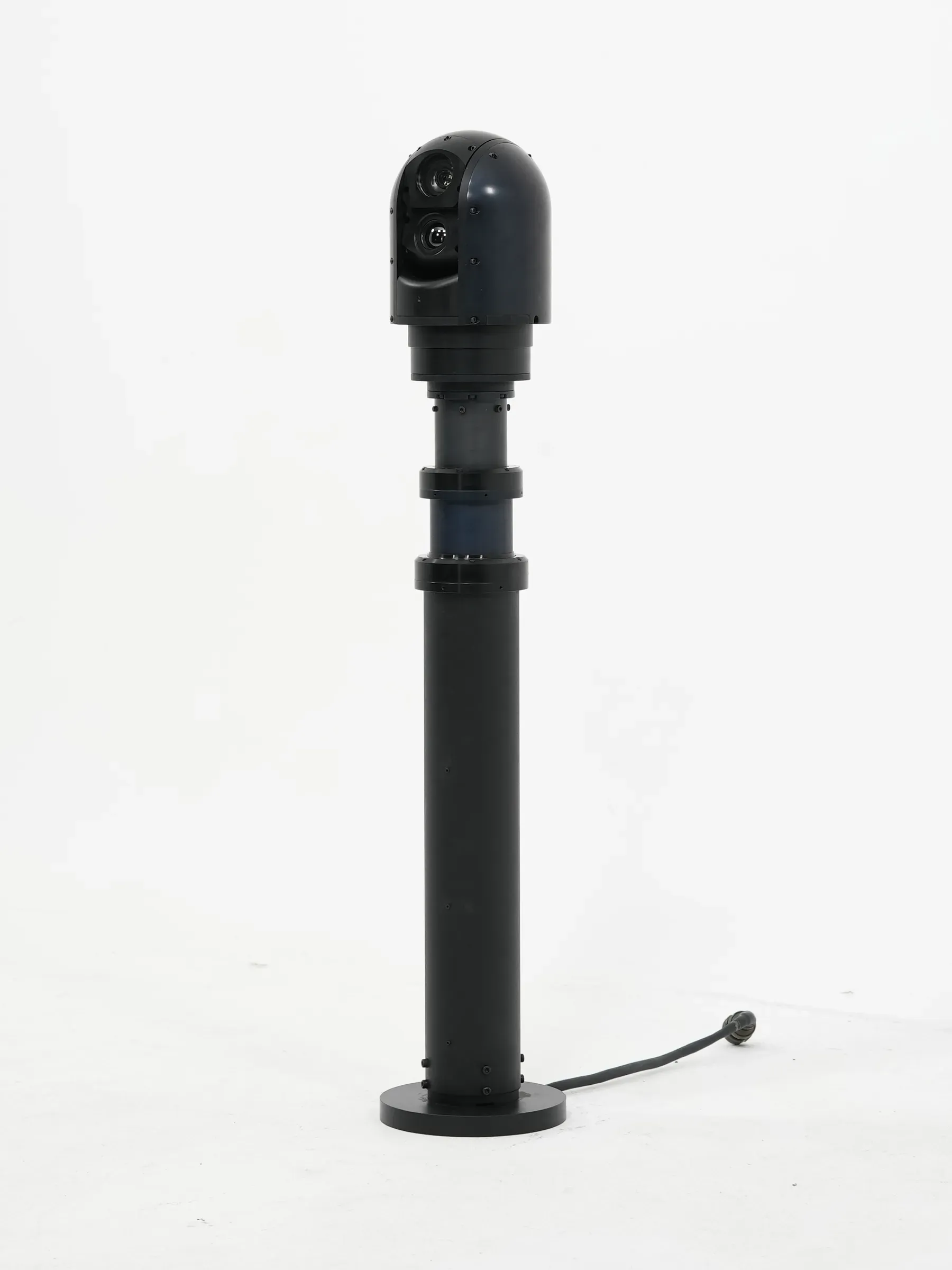

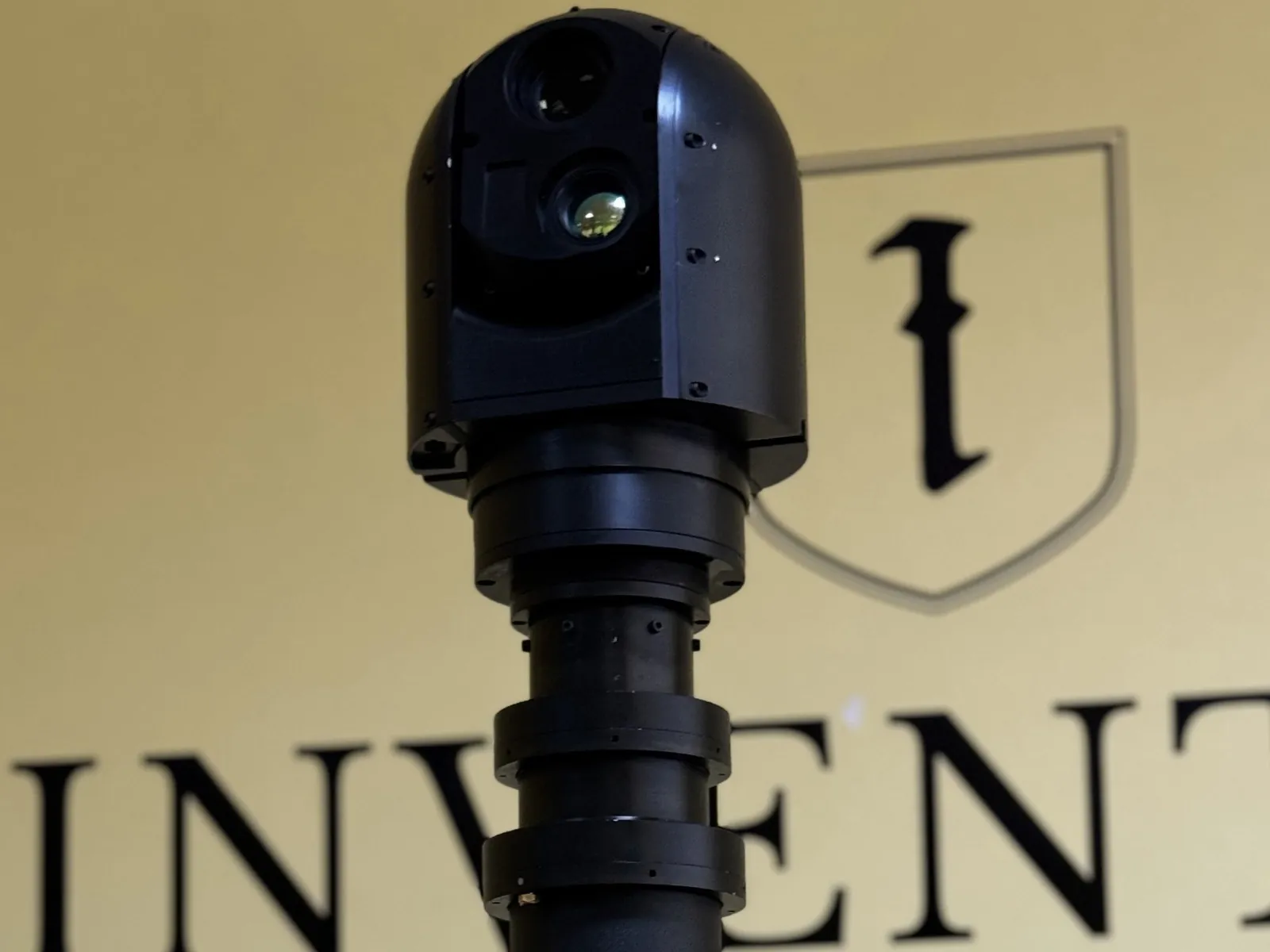

MES01 extended with a camera head

MES01 extended with a camera head

2 / 57

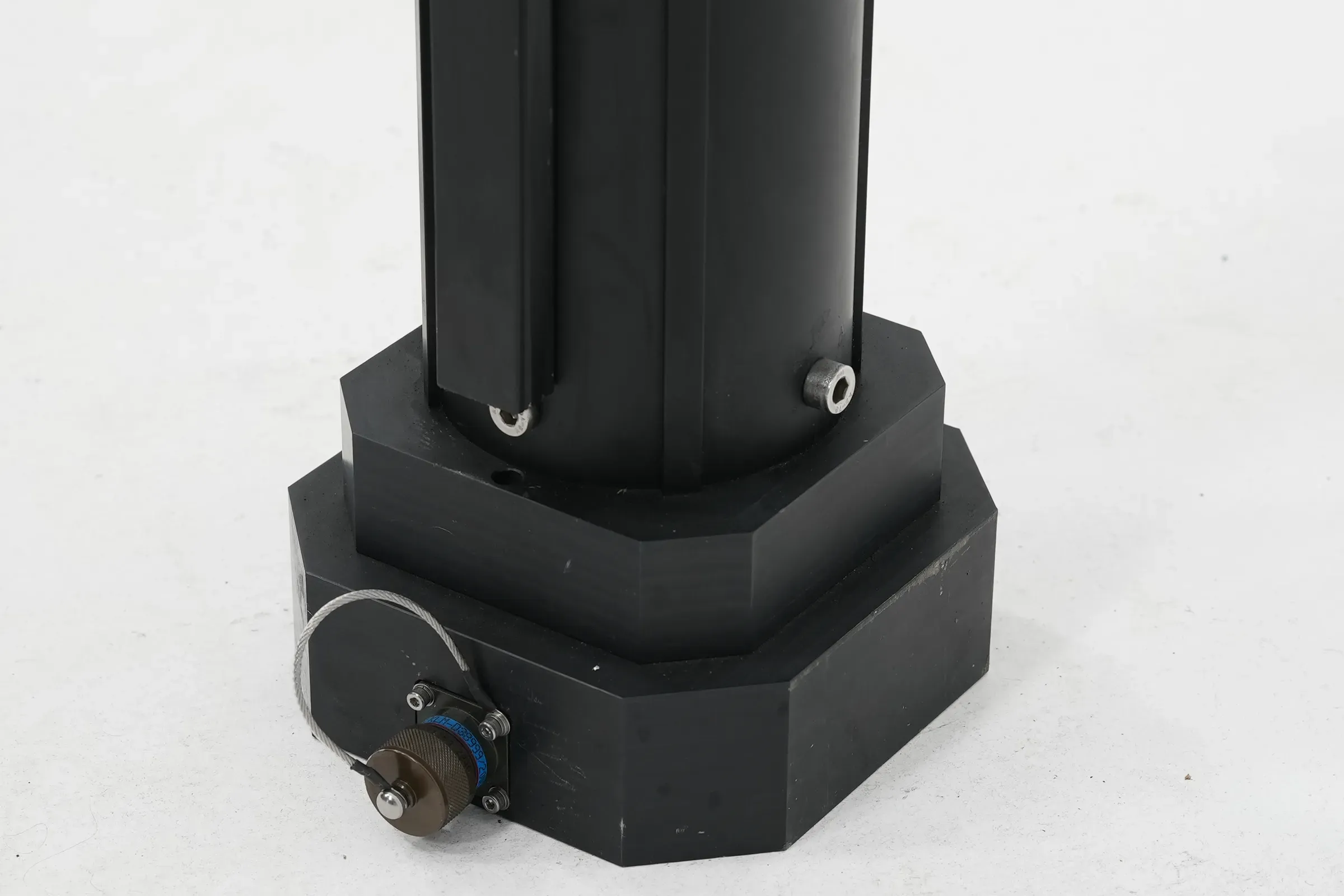

The base plate and the drive motor

The base plate and the drive motor

3 / 57

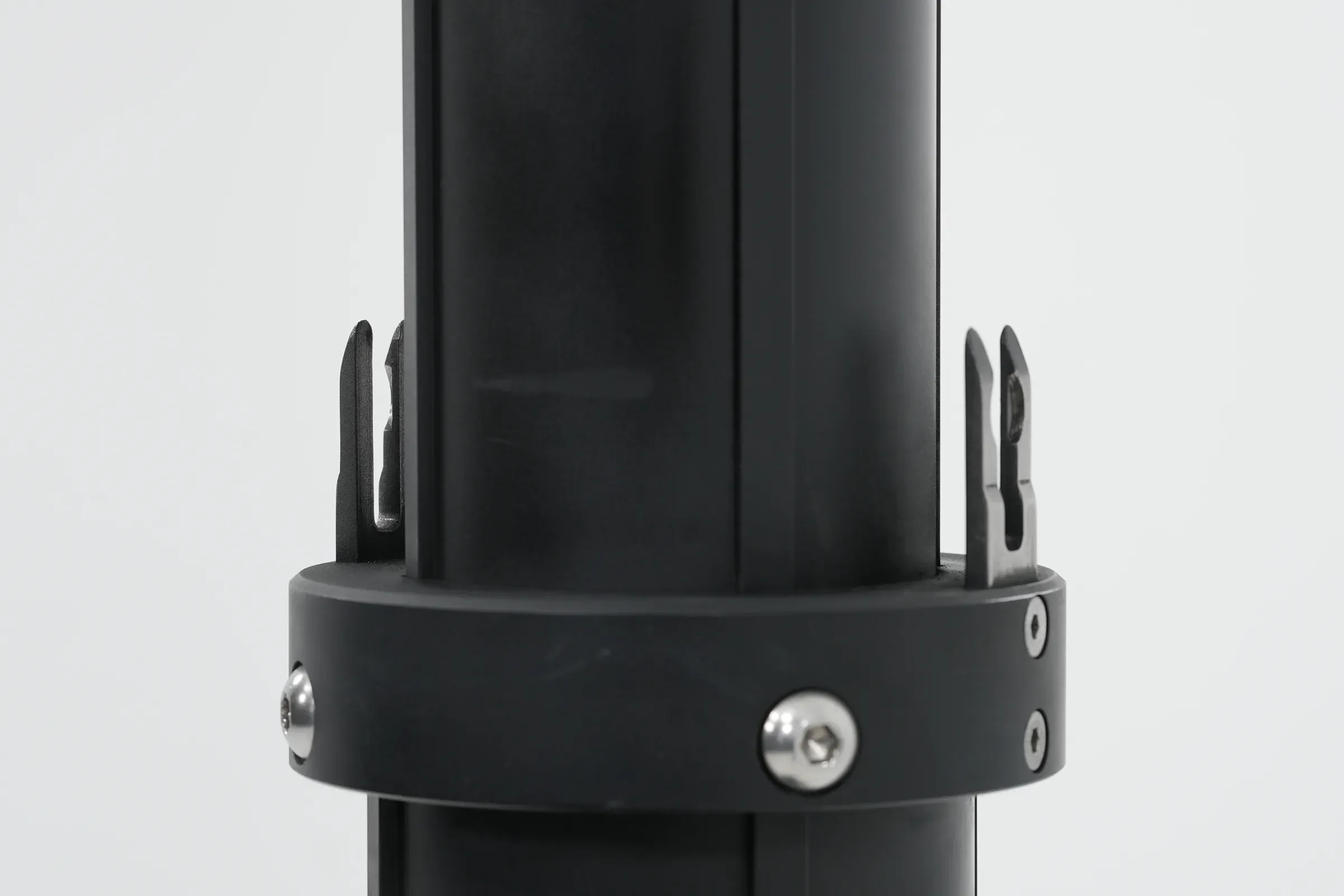

The clamp the payload bolts to

The clamp the payload bolts to

4 / 57

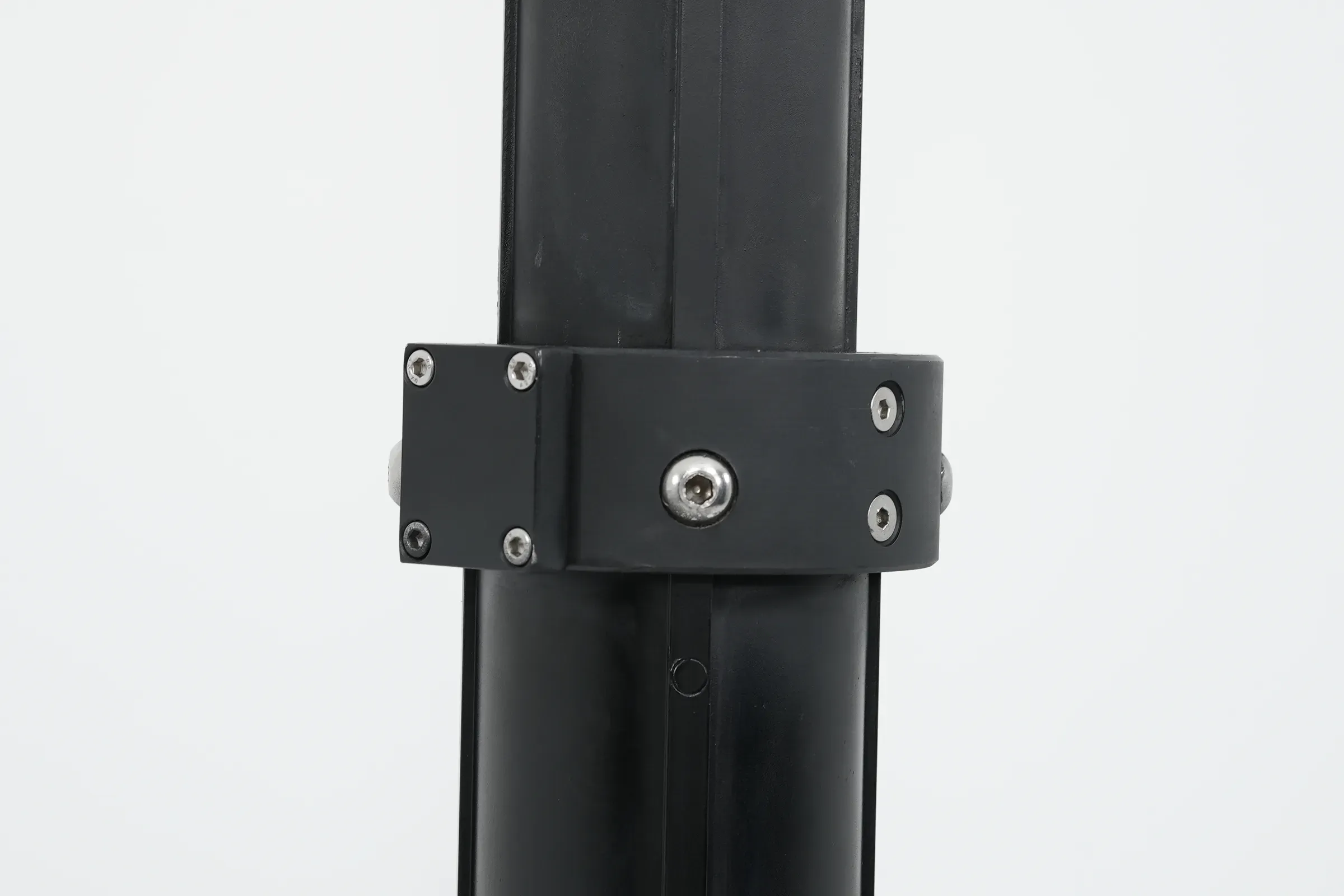

The mast clamp

The mast clamp

5 / 57

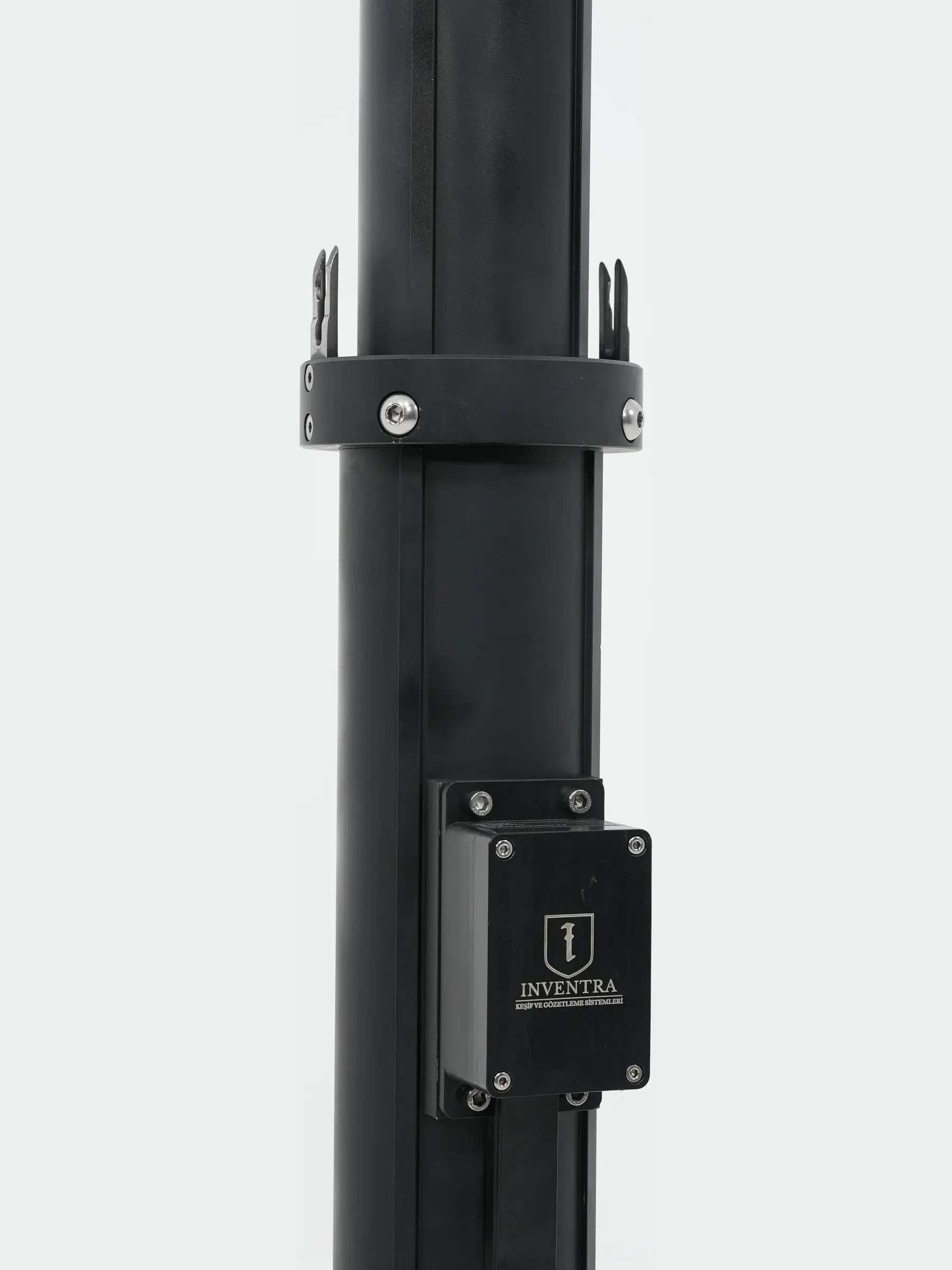

The clamp and the junction box

The clamp and the junction box

6 / 57

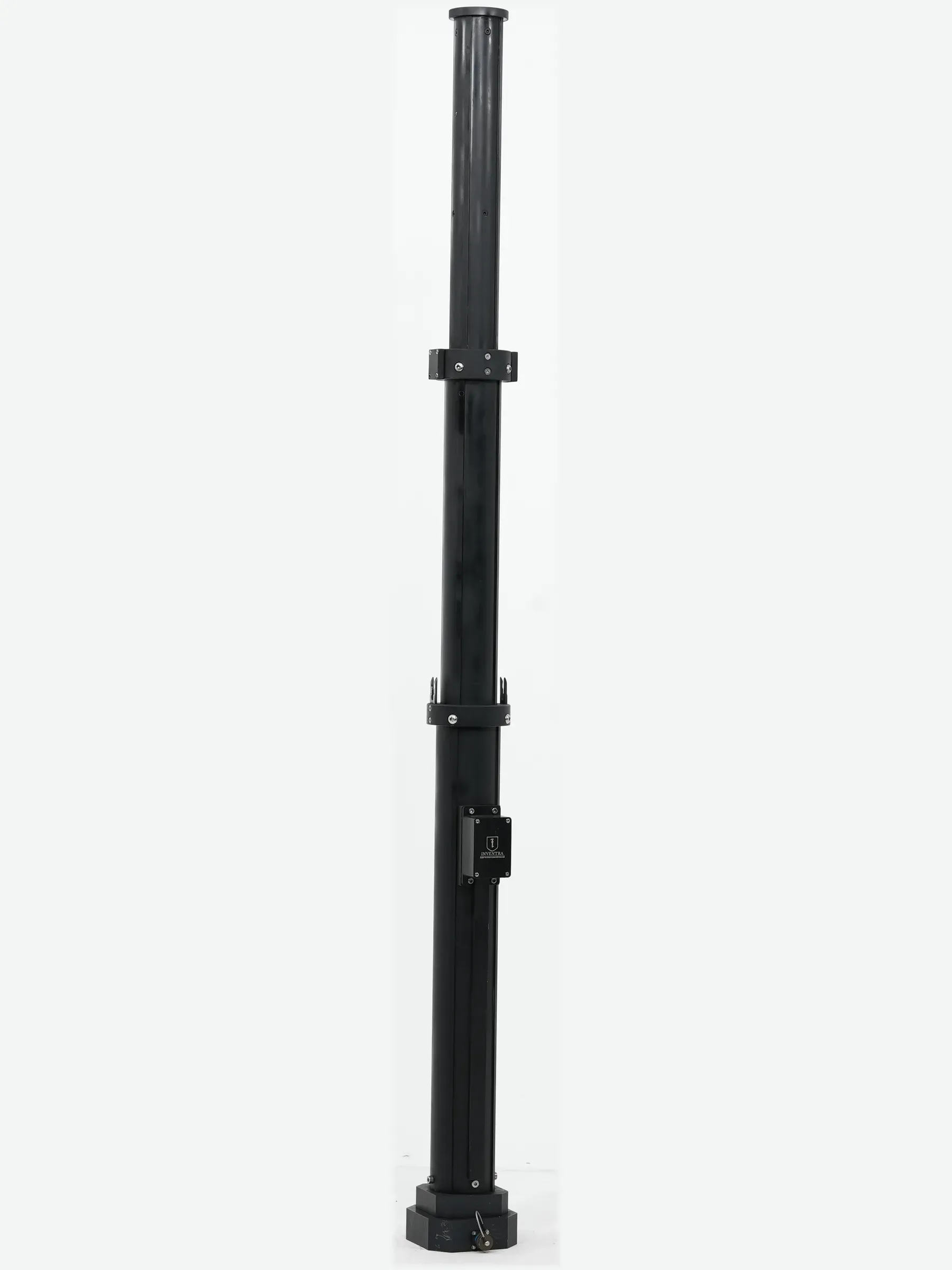

MES01 at full stroke

MES01 at full stroke

7 / 57

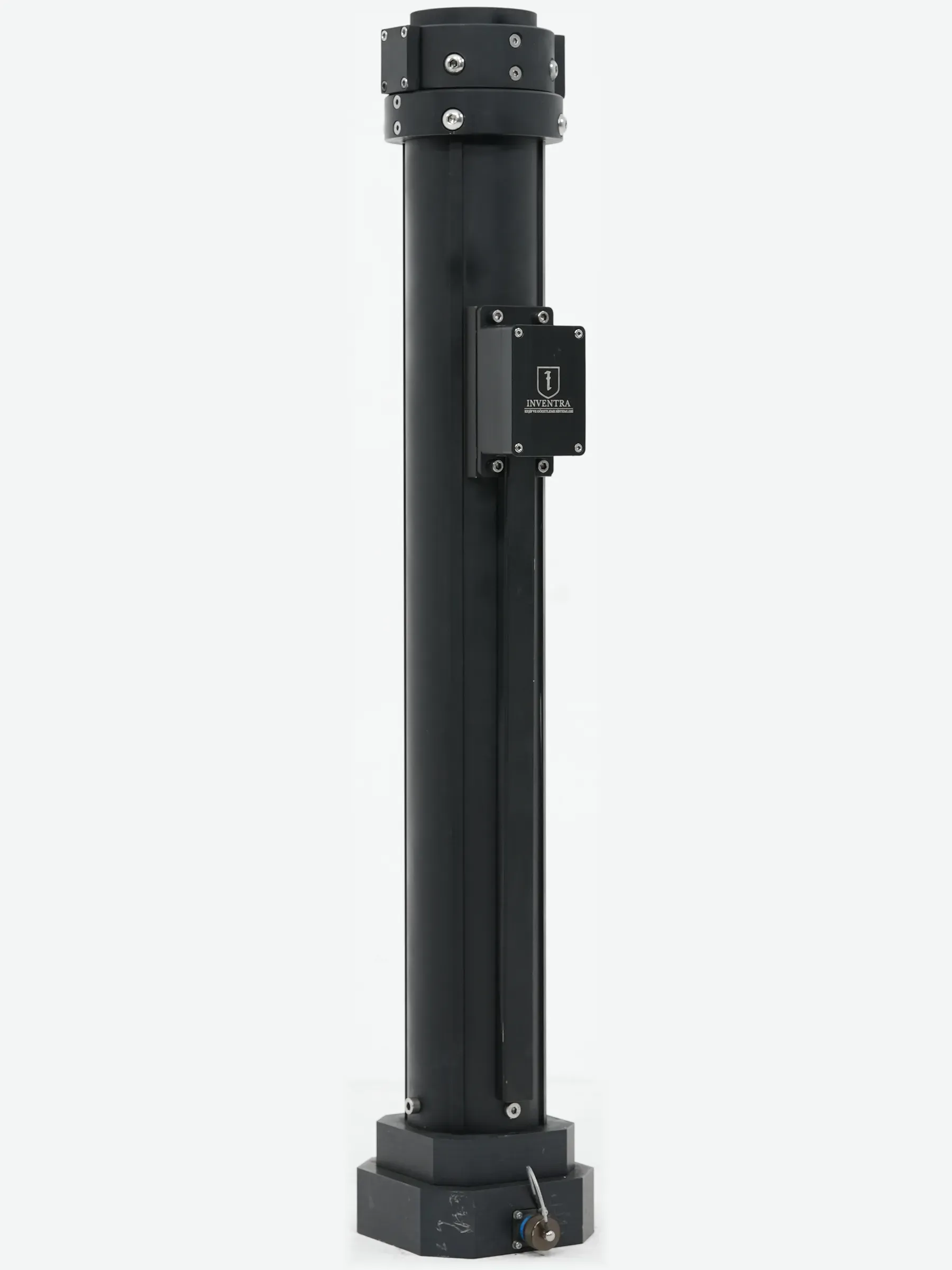

MES01 retracted on its base plate

MES01 retracted on its base plate

8 / 57

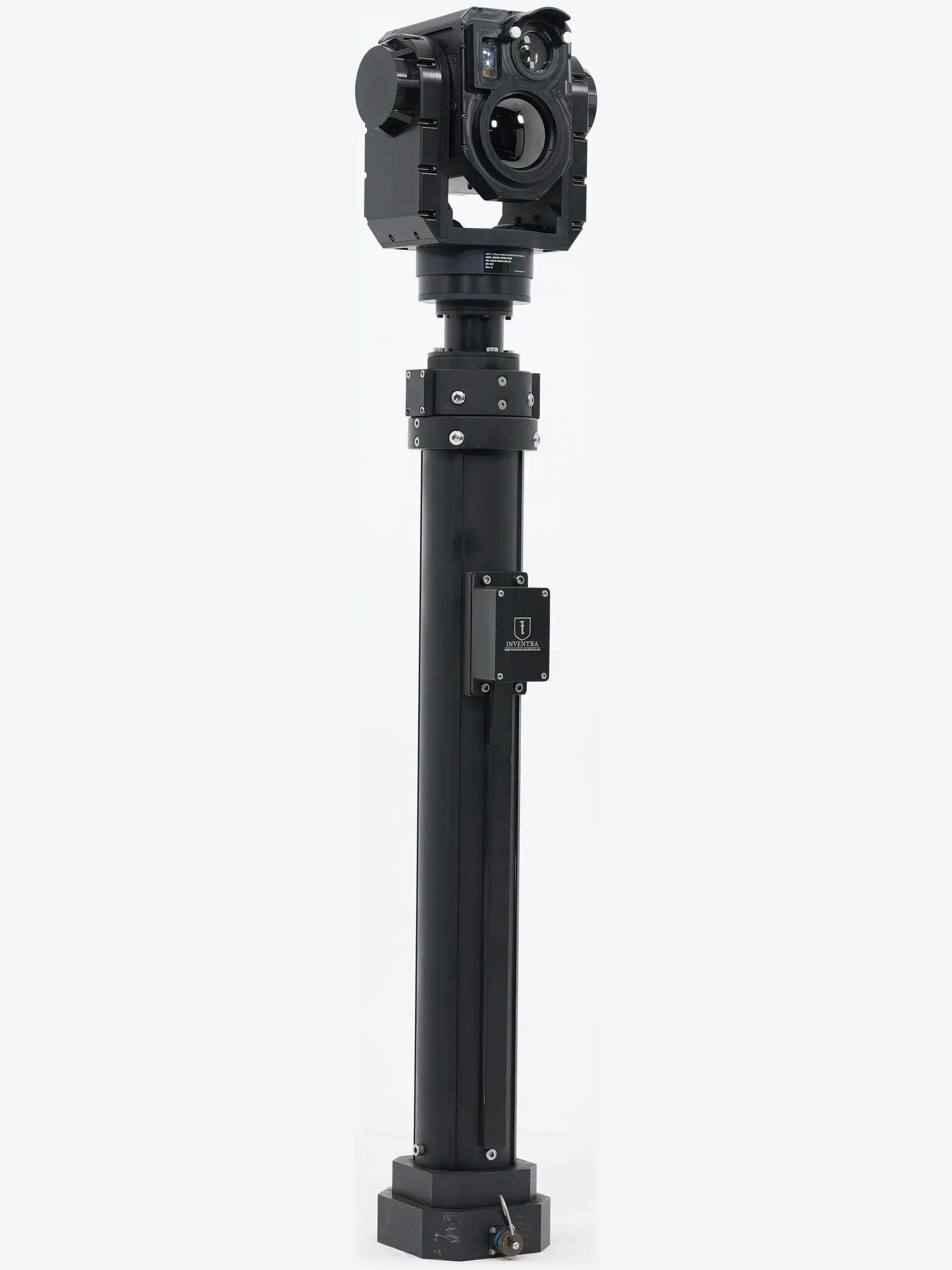

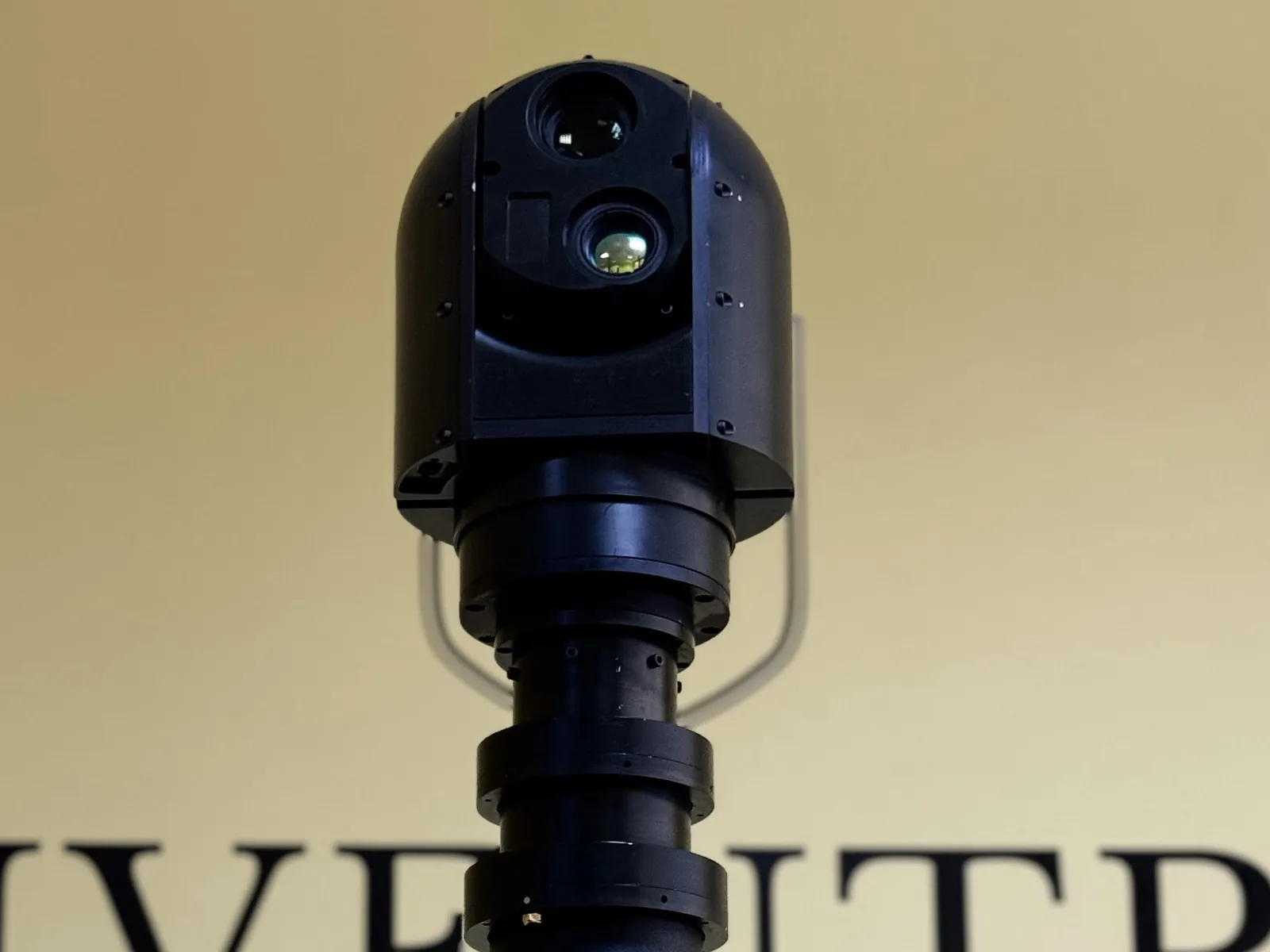

MES01 retracted under a gimbal head

MES01 retracted under a gimbal head

9 / 57

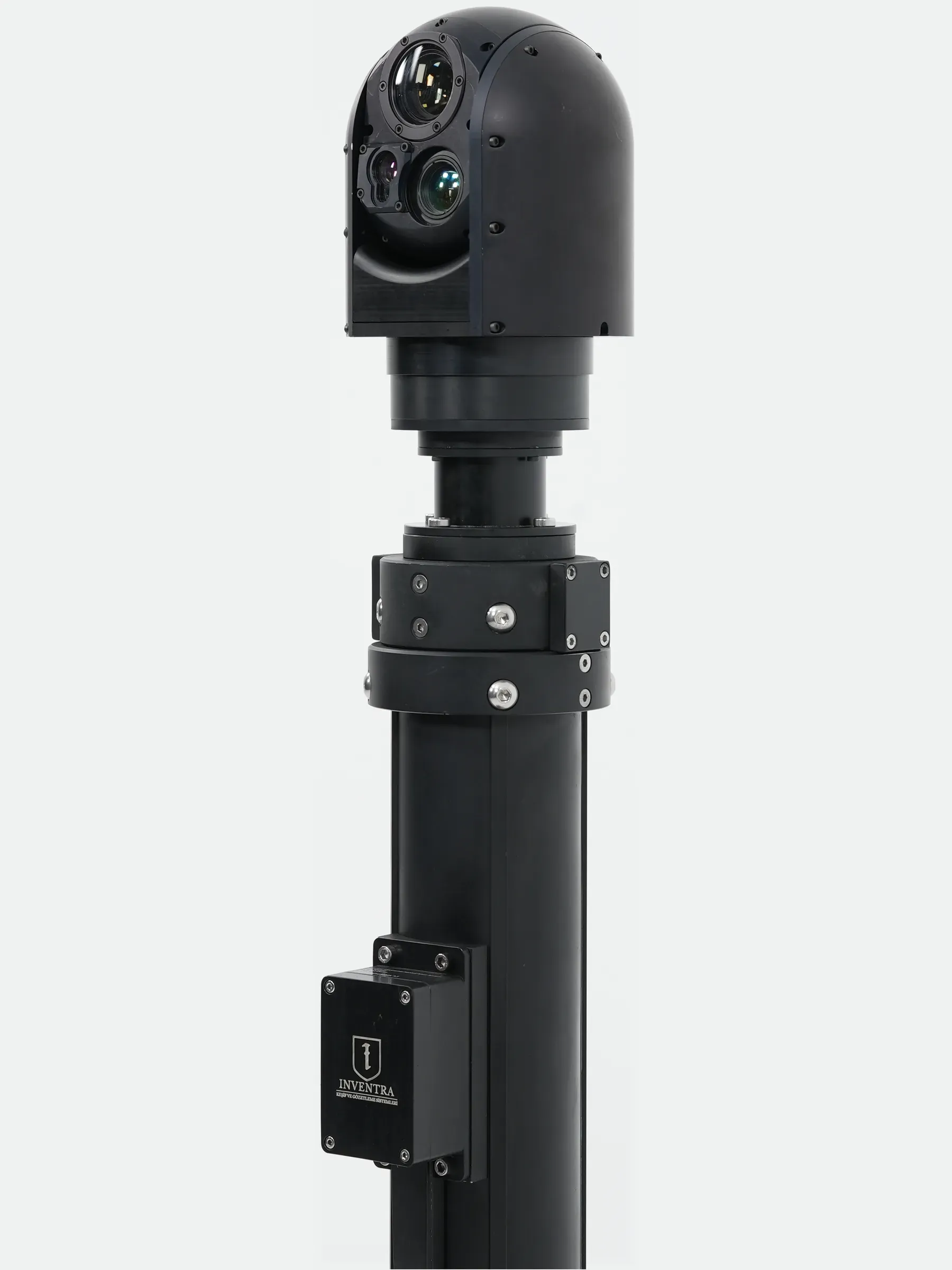

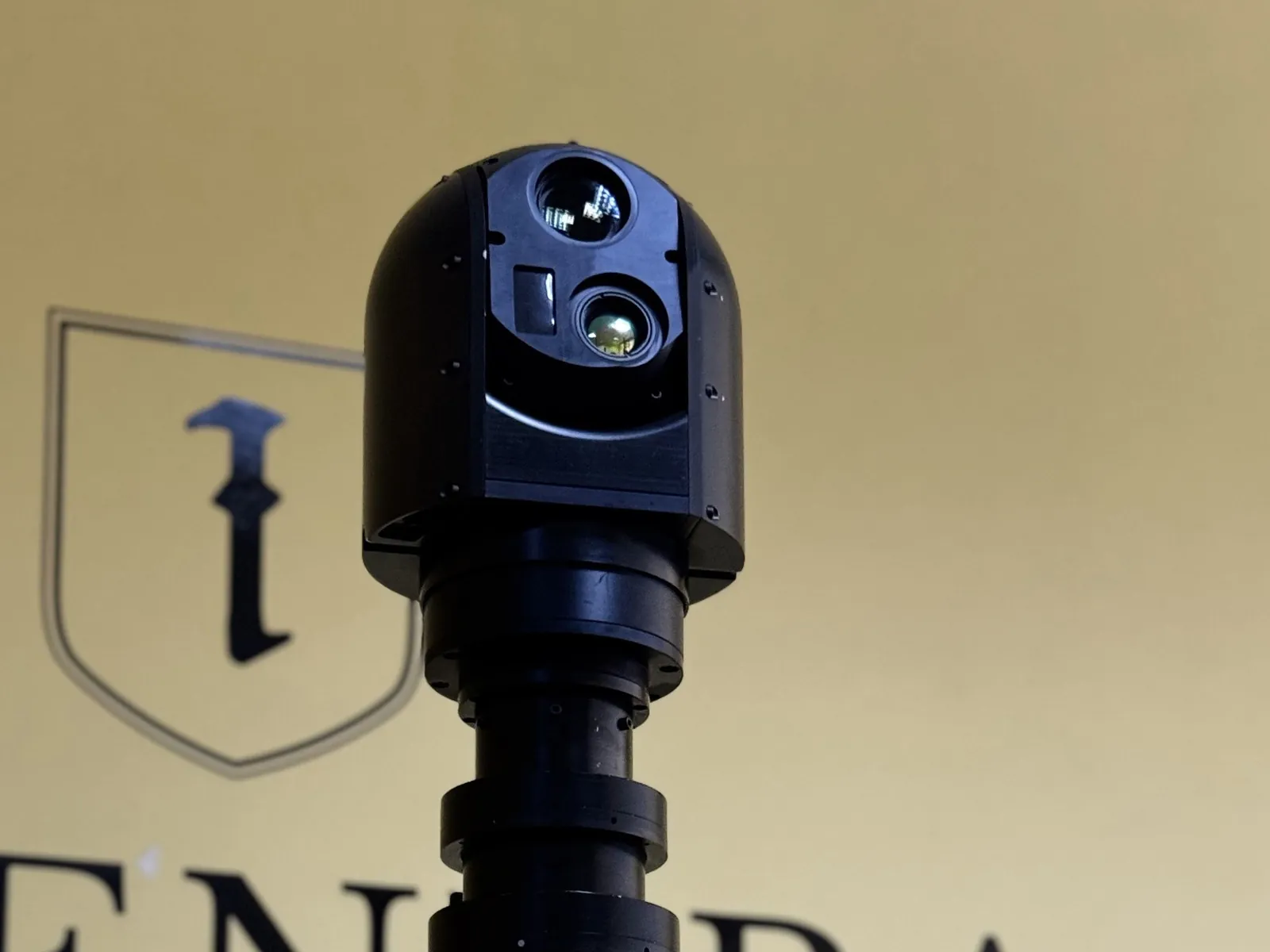

The dome camera on top of the mast

The dome camera on top of the mast

10 / 57

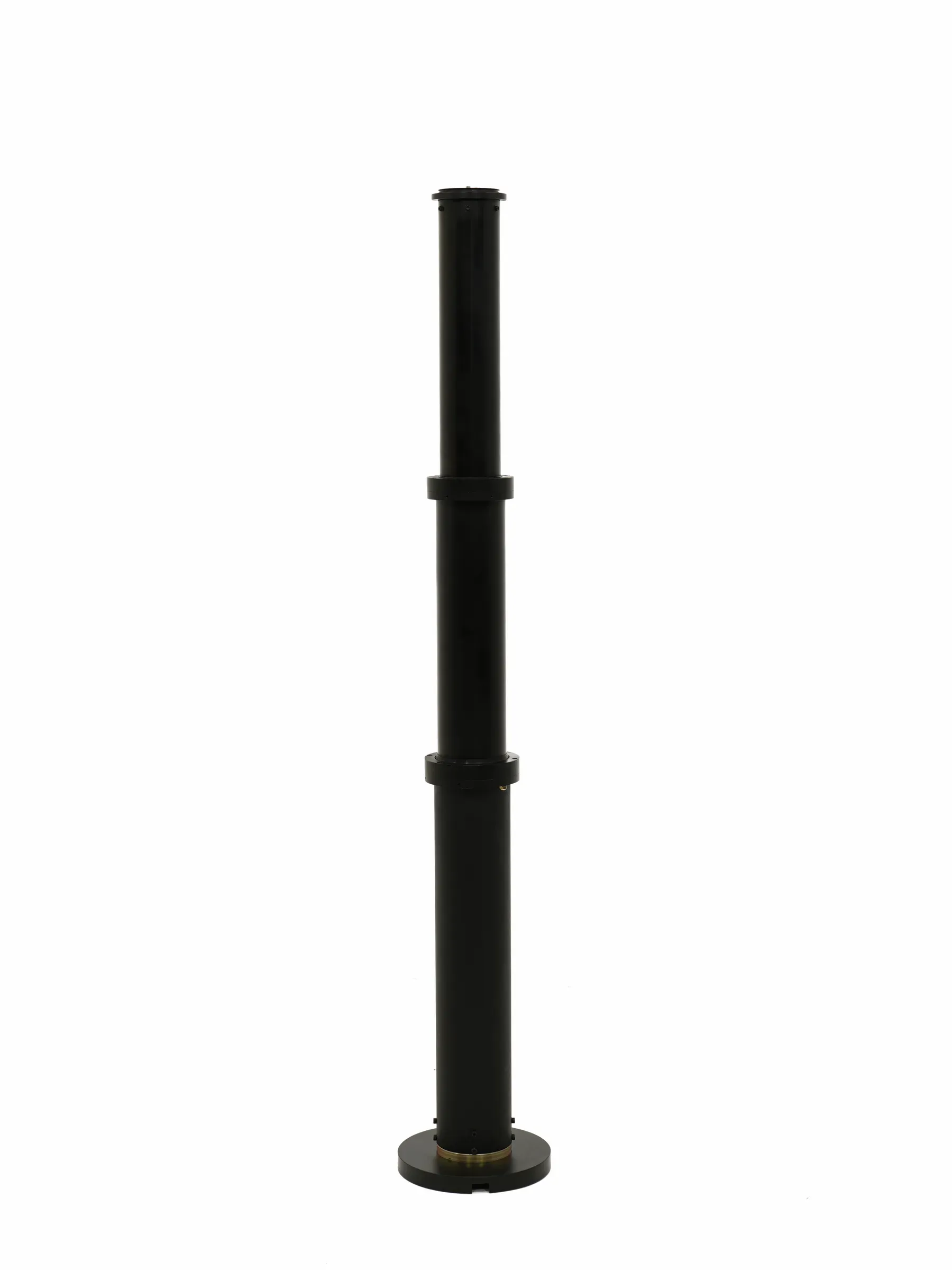

MES01 half extended

MES01 half extended

11 / 57

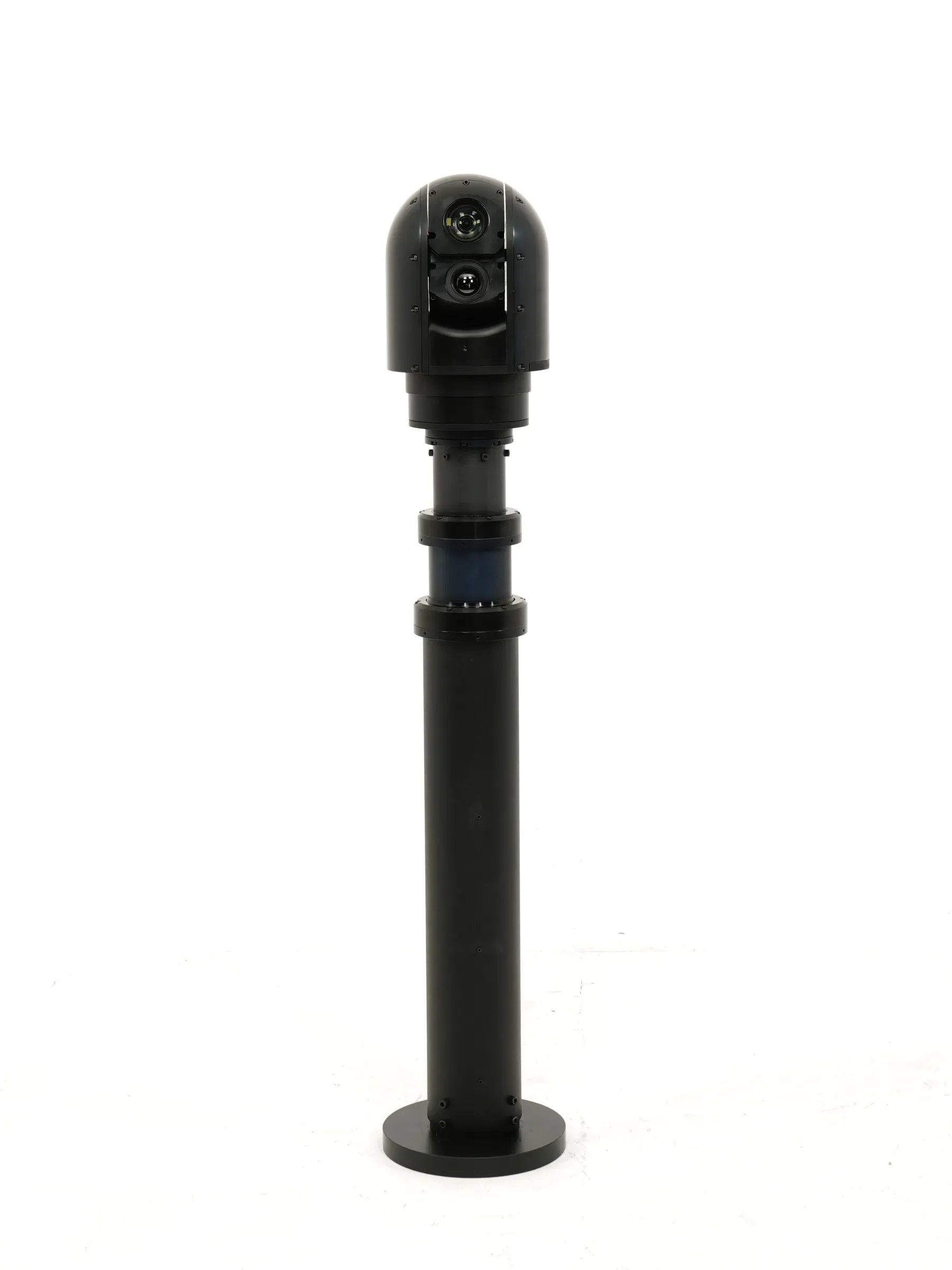

MES01 half extended with a dome camera

MES01 half extended with a dome camera

12 / 57

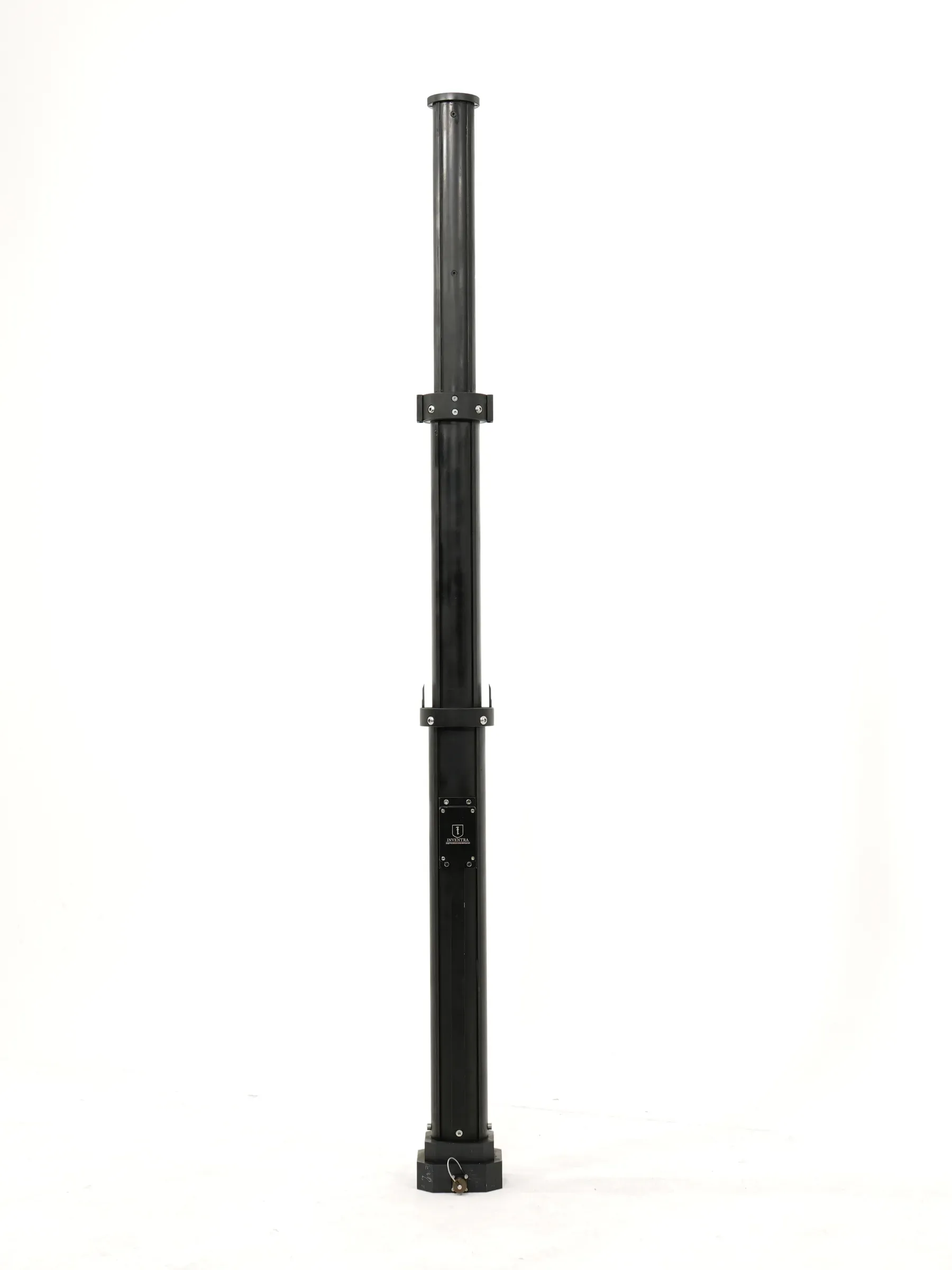

MES01 at full height, no payload

MES01 at full height, no payload

13 / 57

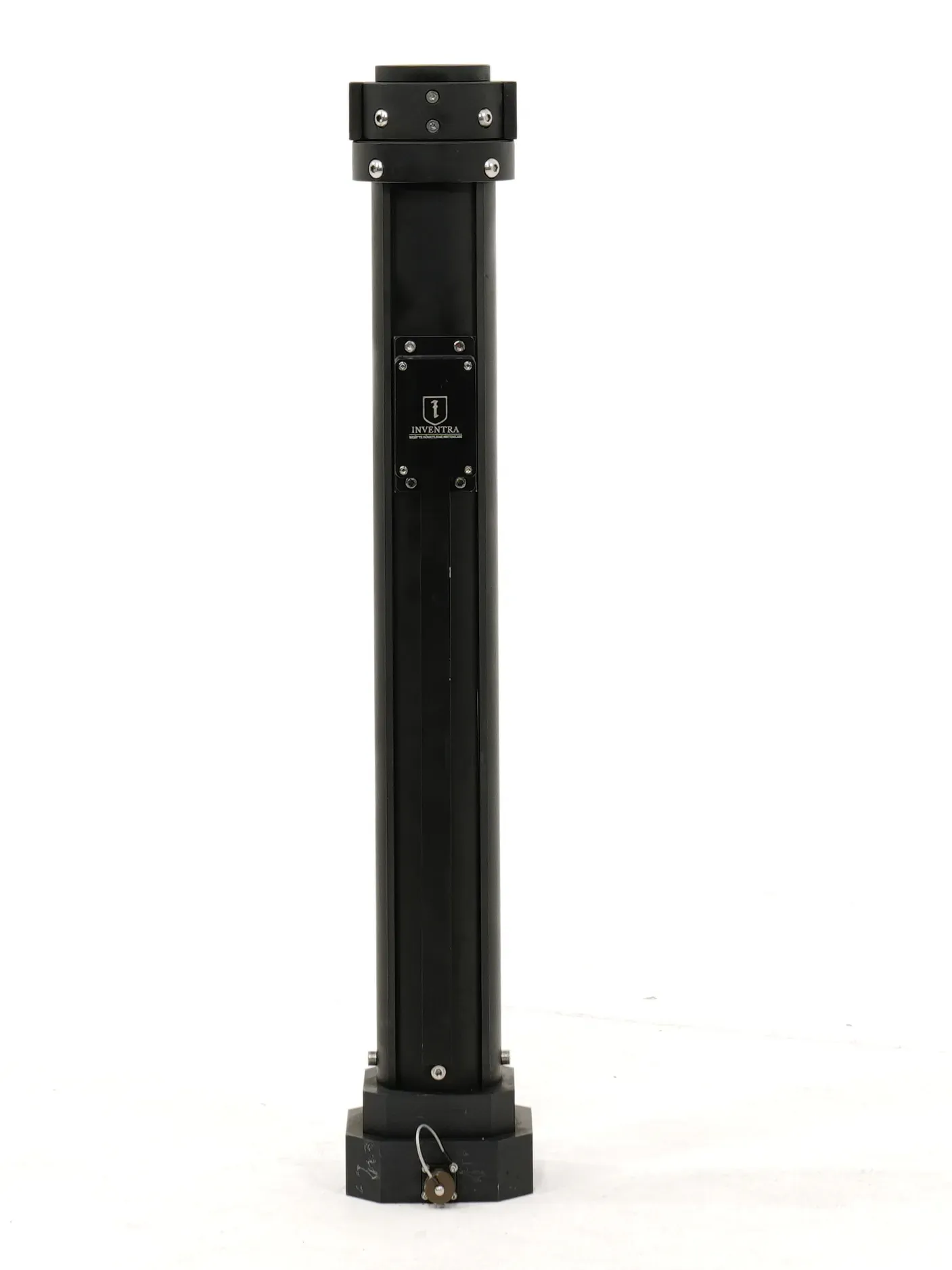

MES01 packed down, payload plate on top

MES01 packed down, payload plate on top

14 / 57

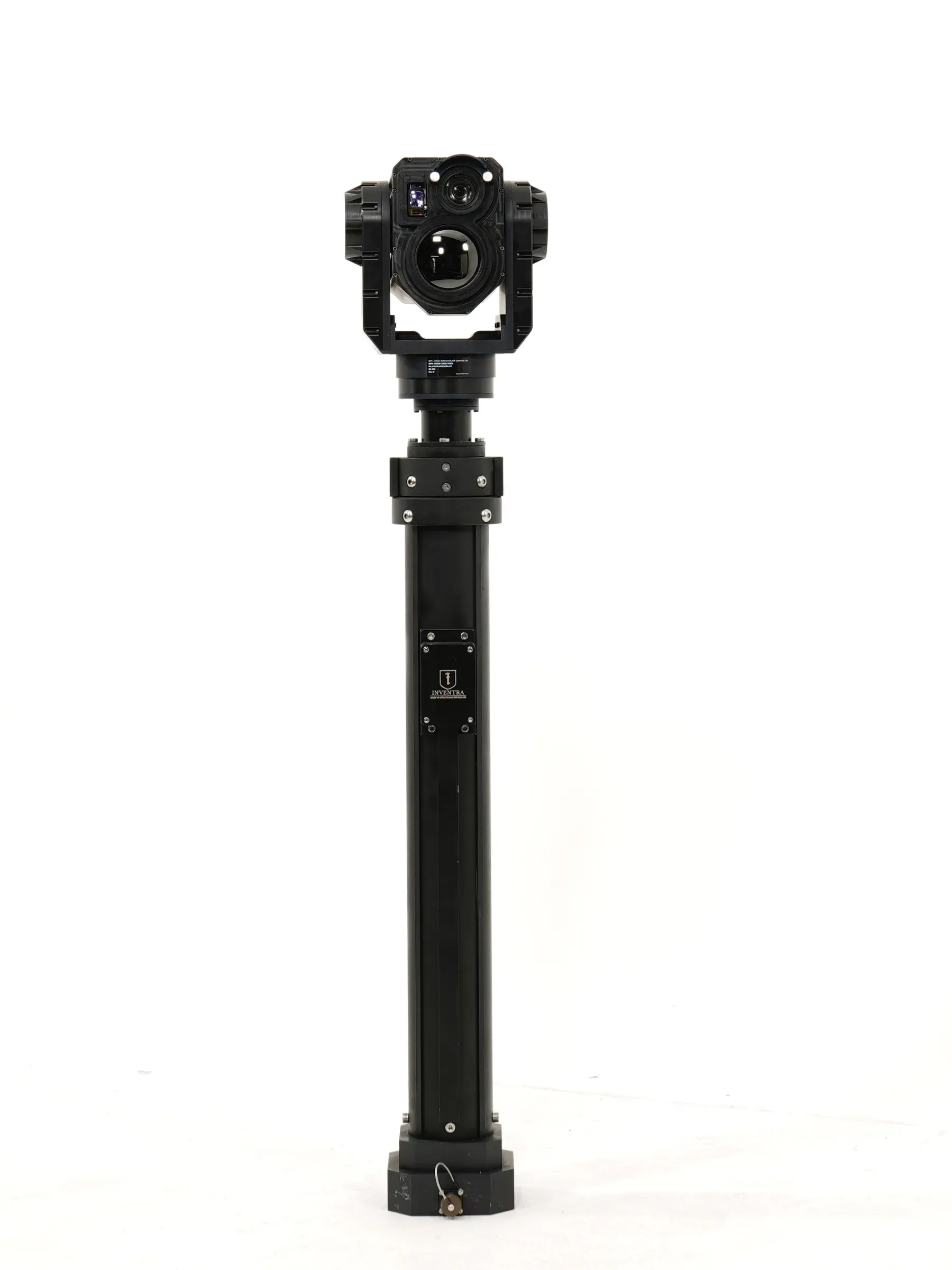

MES01 half extended with a sensor head

MES01 half extended with a sensor head

15 / 57

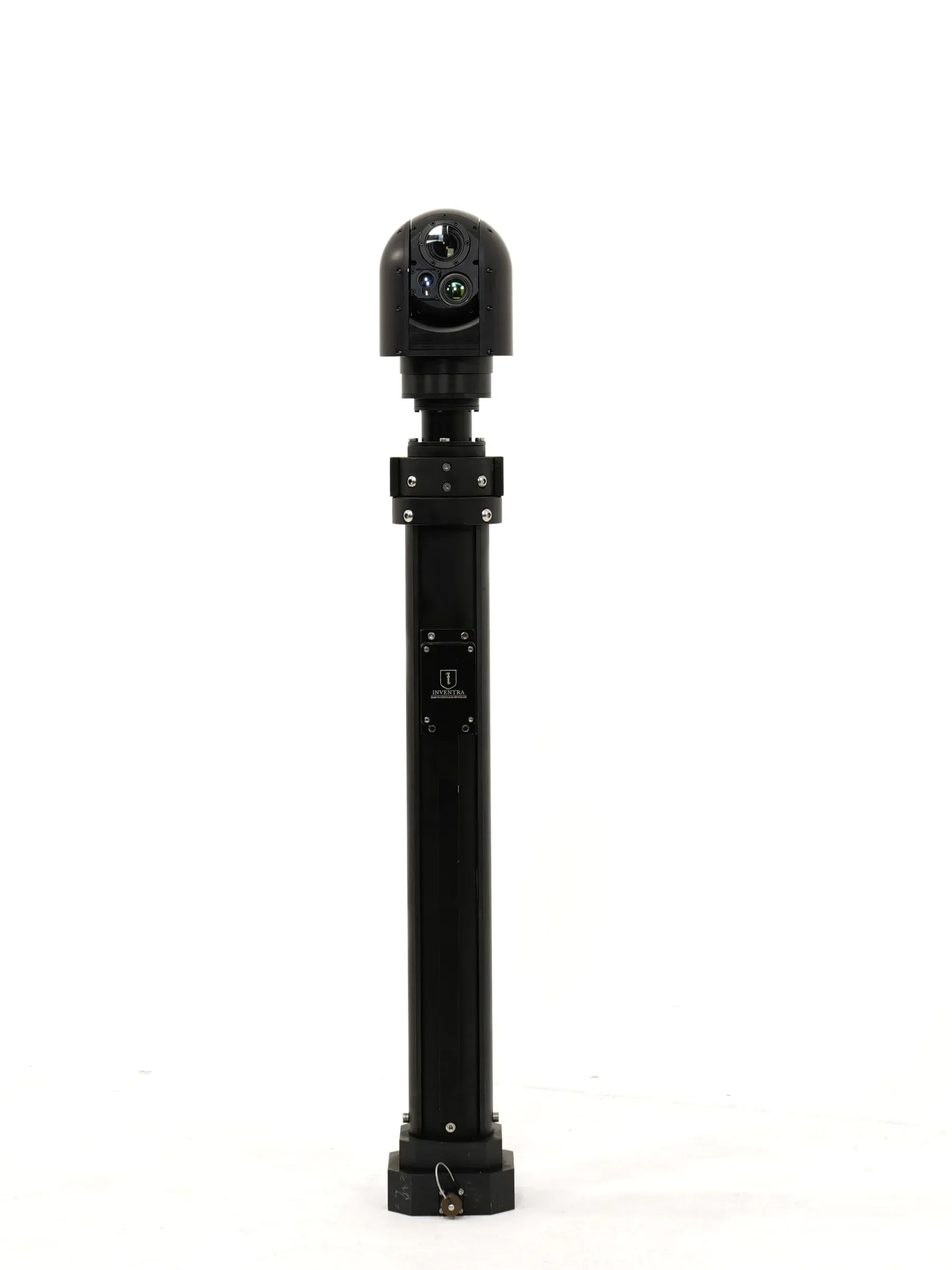

MES01 up one stage with a dome head

MES01 up one stage with a dome head

16 / 57

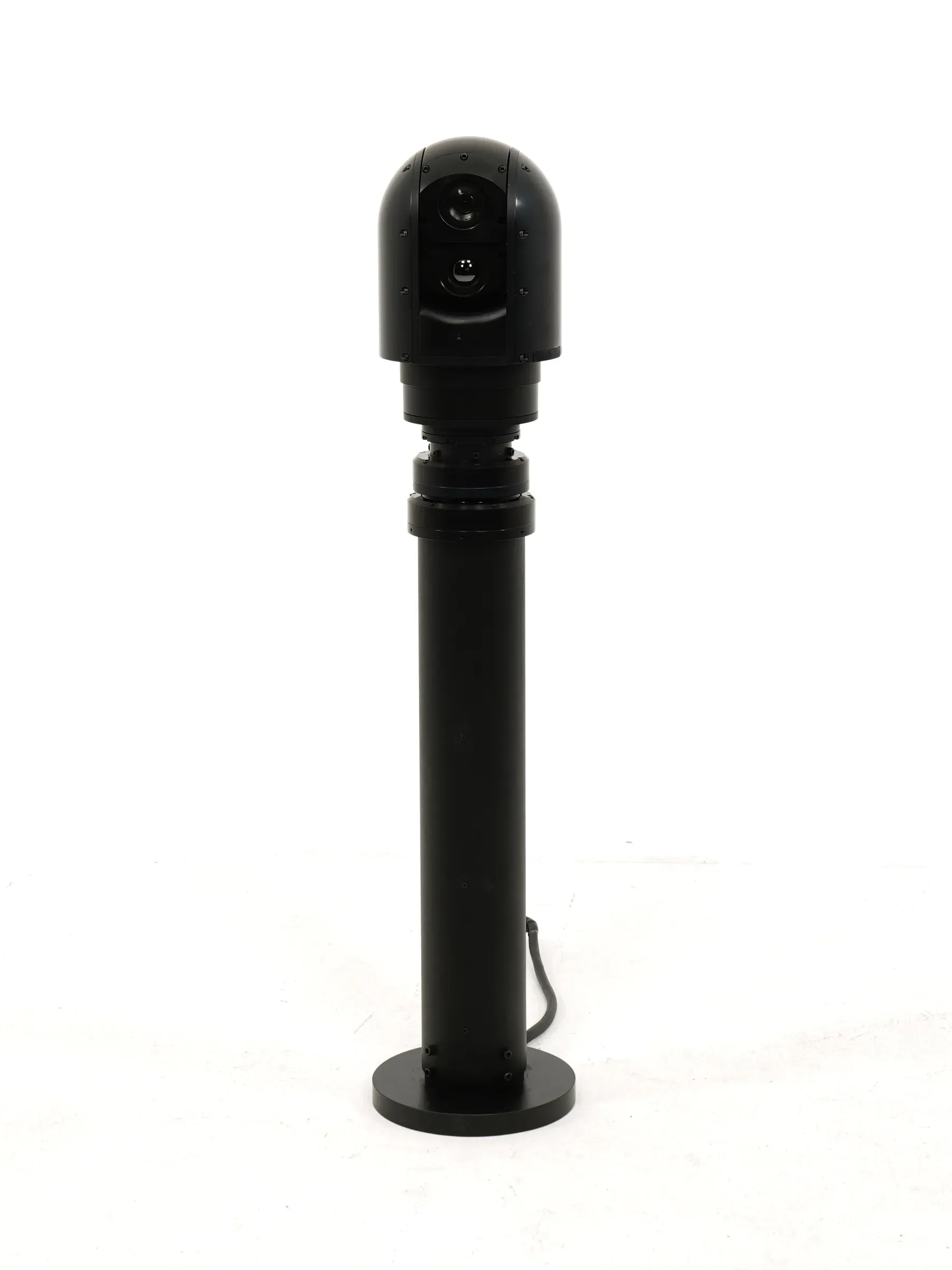

MES01 retracted with the dome head on

MES01 retracted with the dome head on

17 / 57

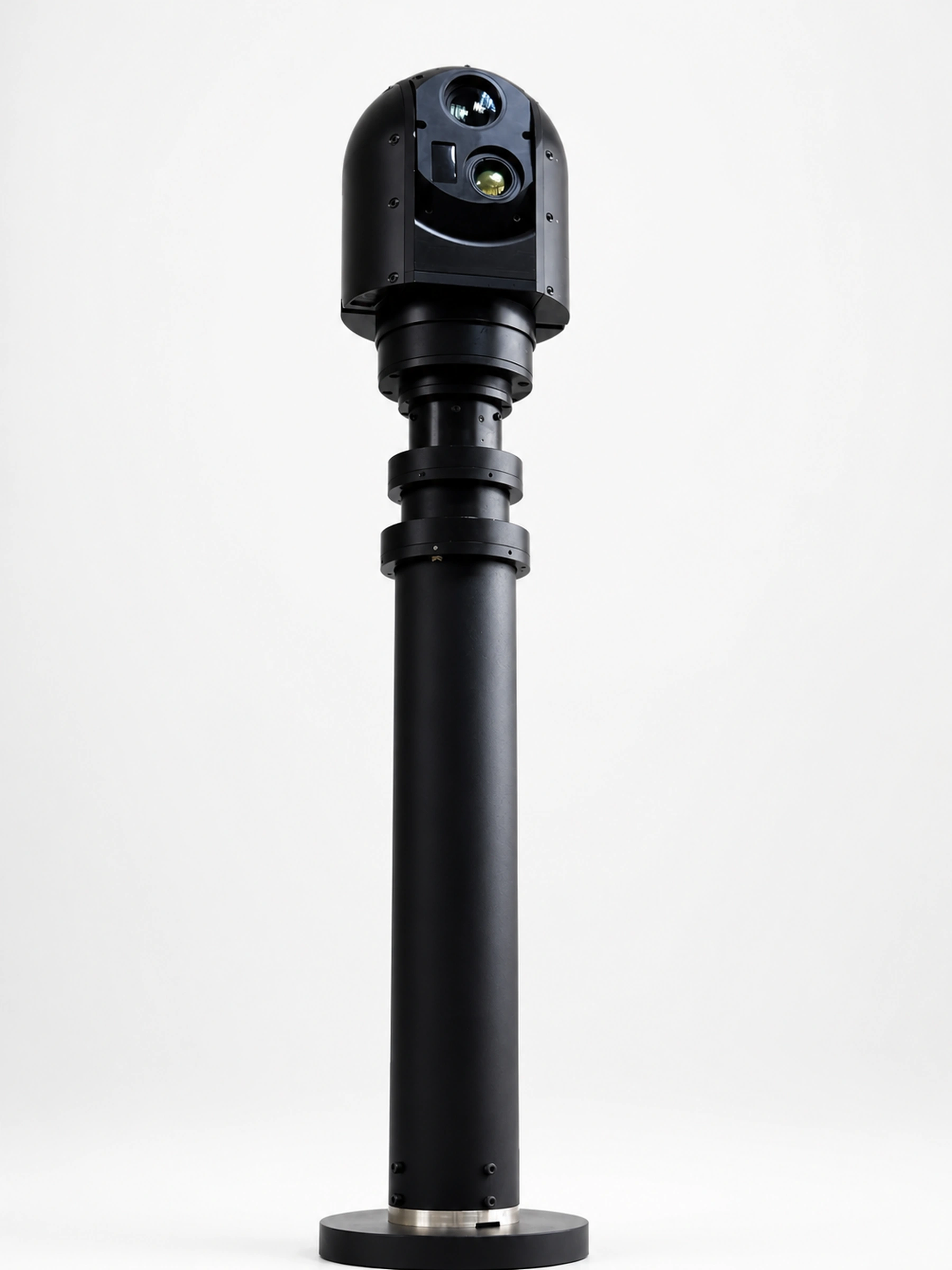

MES01 with a multi-sensor head

MES01 with a multi-sensor head

18 / 57

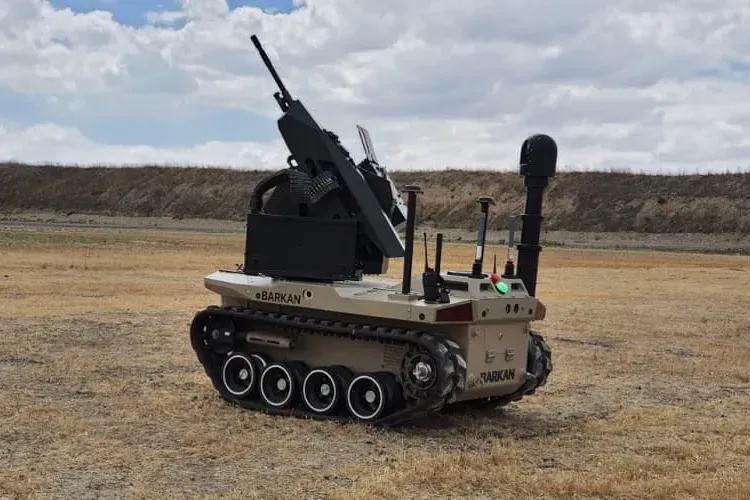

MES01 on a BARKAN out in the open

MES01 on a BARKAN out in the open

19 / 57

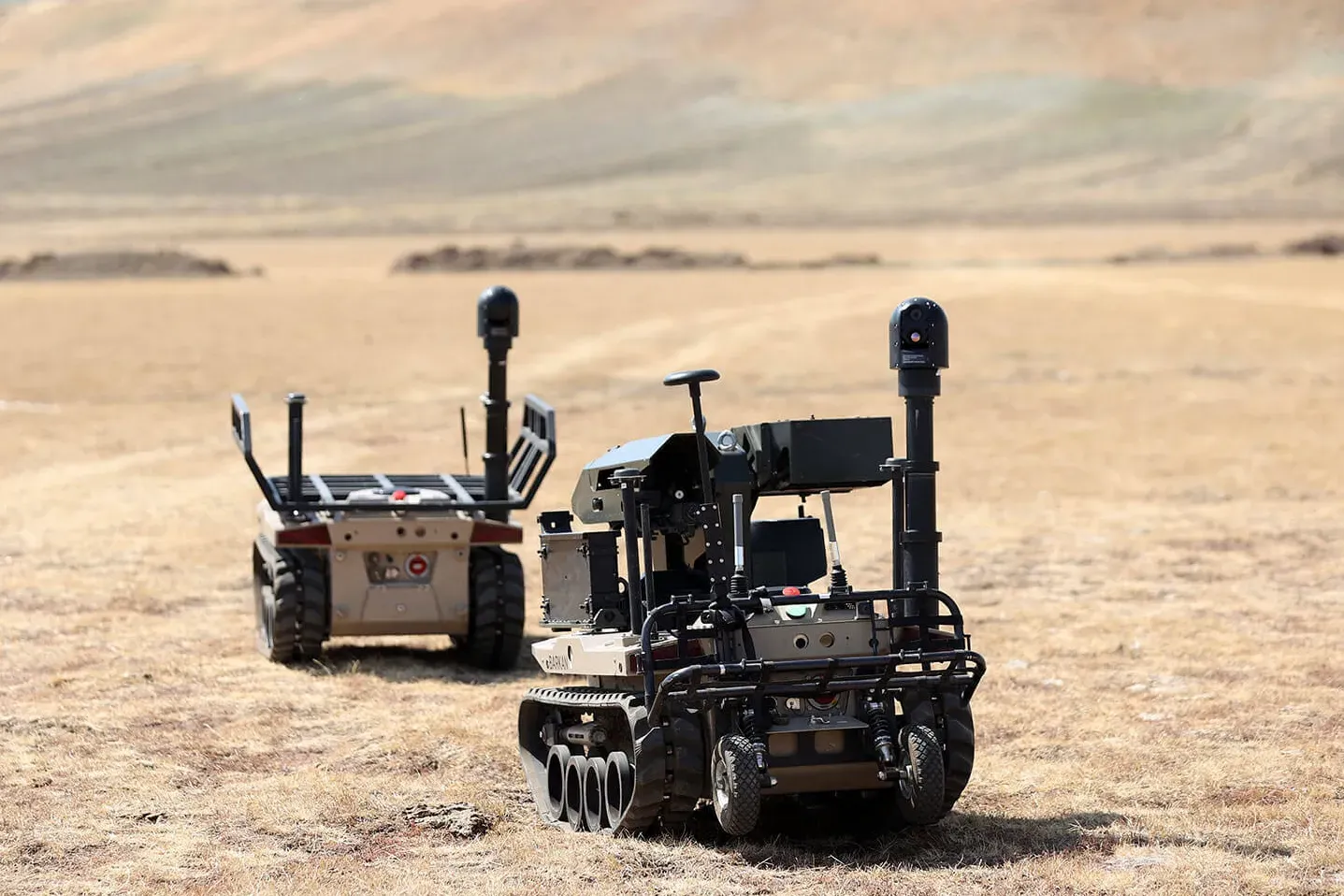

Two robots on the dust flat, one with the mast up

Two robots on the dust flat, one with the mast up

20 / 57

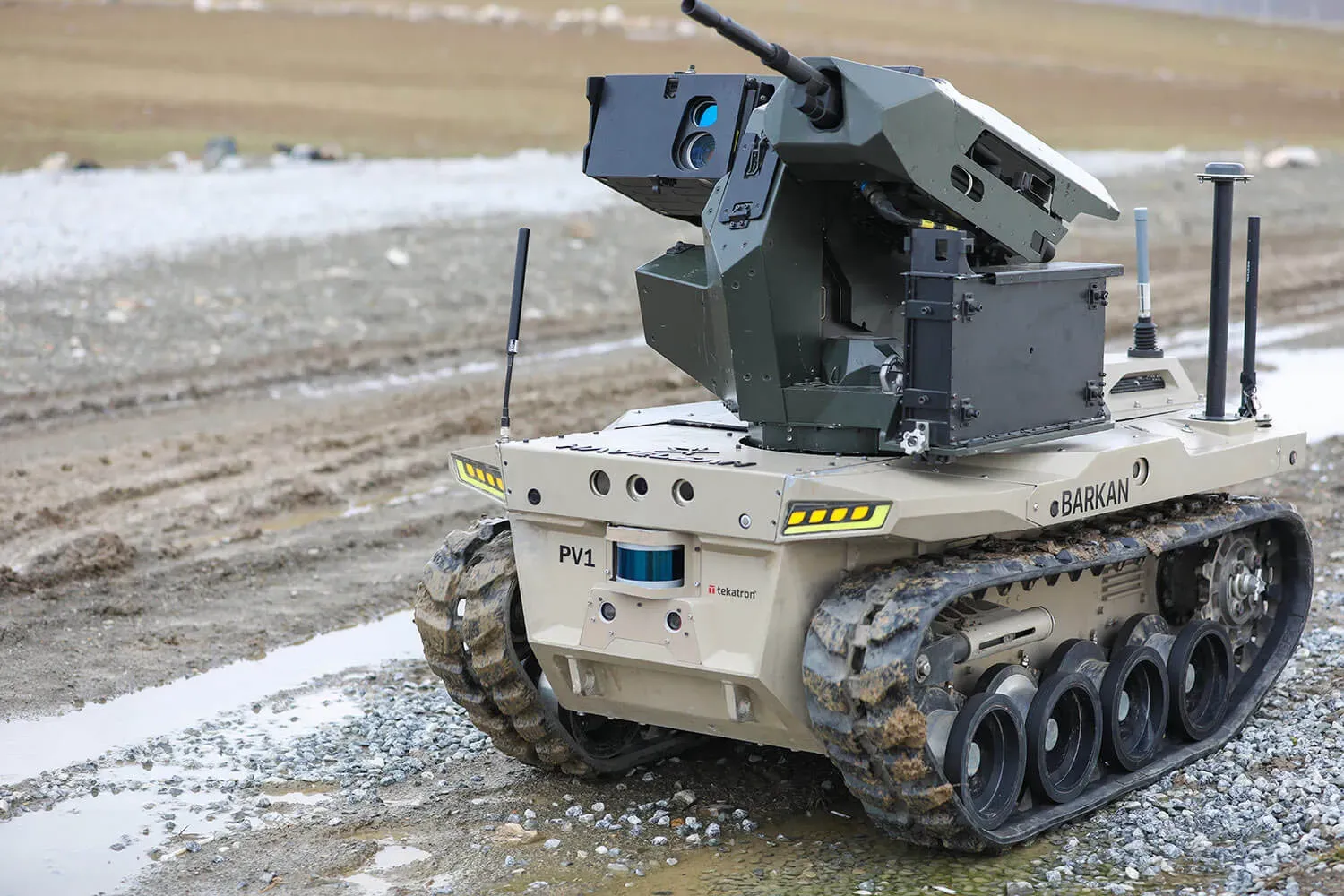

MES01 on a BARKAN PV1 on the gravel track

MES01 on a BARKAN PV1 on the gravel track

21 / 57

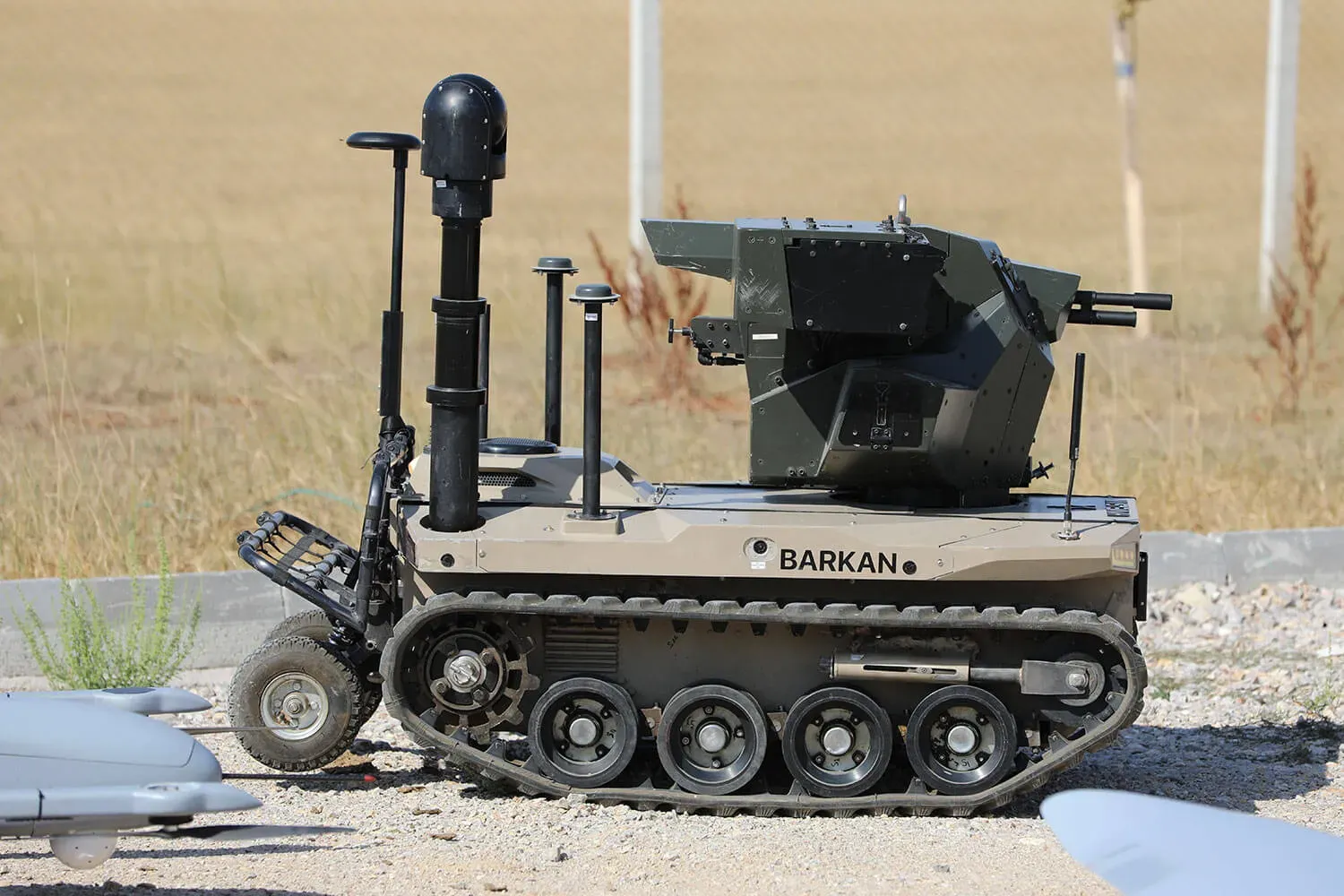

BARKAN in dry grass, mast above the weapon station

BARKAN in dry grass, mast above the weapon station

22 / 57

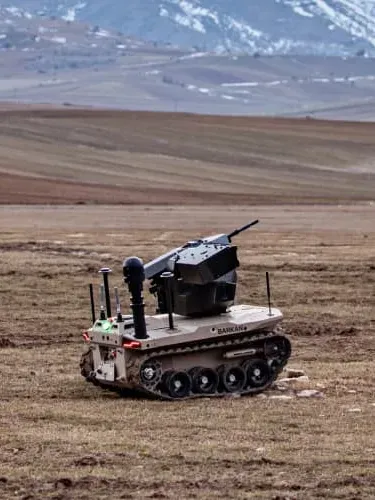

MES01 extended on the snowy plateau

MES01 extended on the snowy plateau

23 / 57

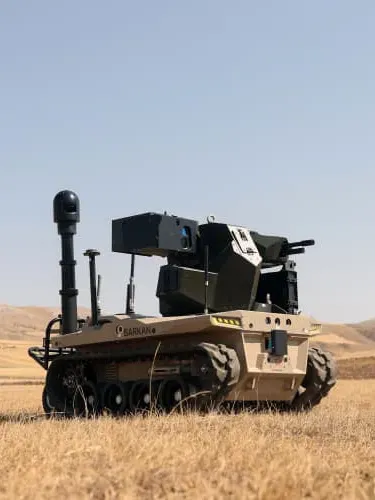

The mast clearing the vehicle roof

The mast clearing the vehicle roof

24 / 57

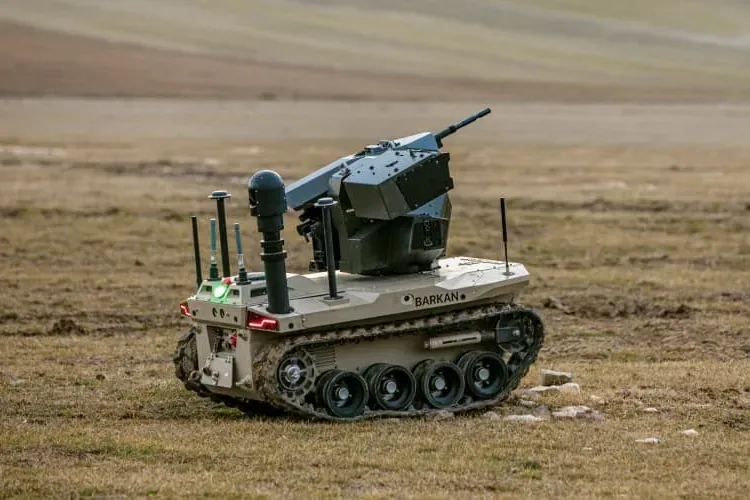

MES01 on a BARKAN in low sun

MES01 on a BARKAN in low sun

25 / 57

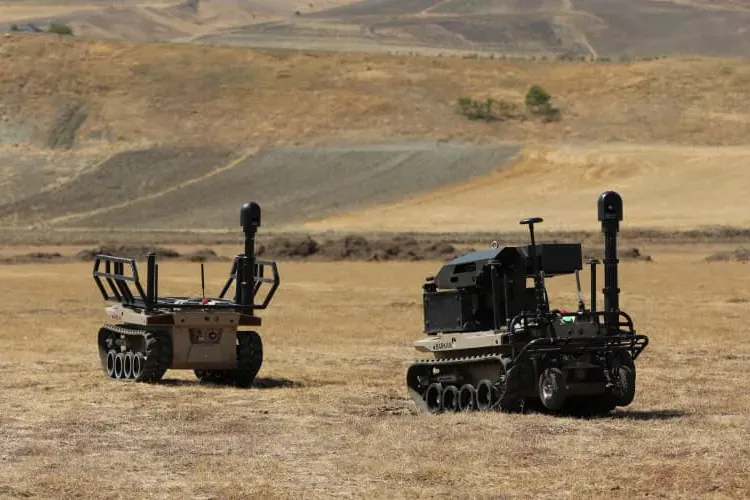

Two robots on the hillside, both masts up

Two robots on the hillside, both masts up

26 / 57

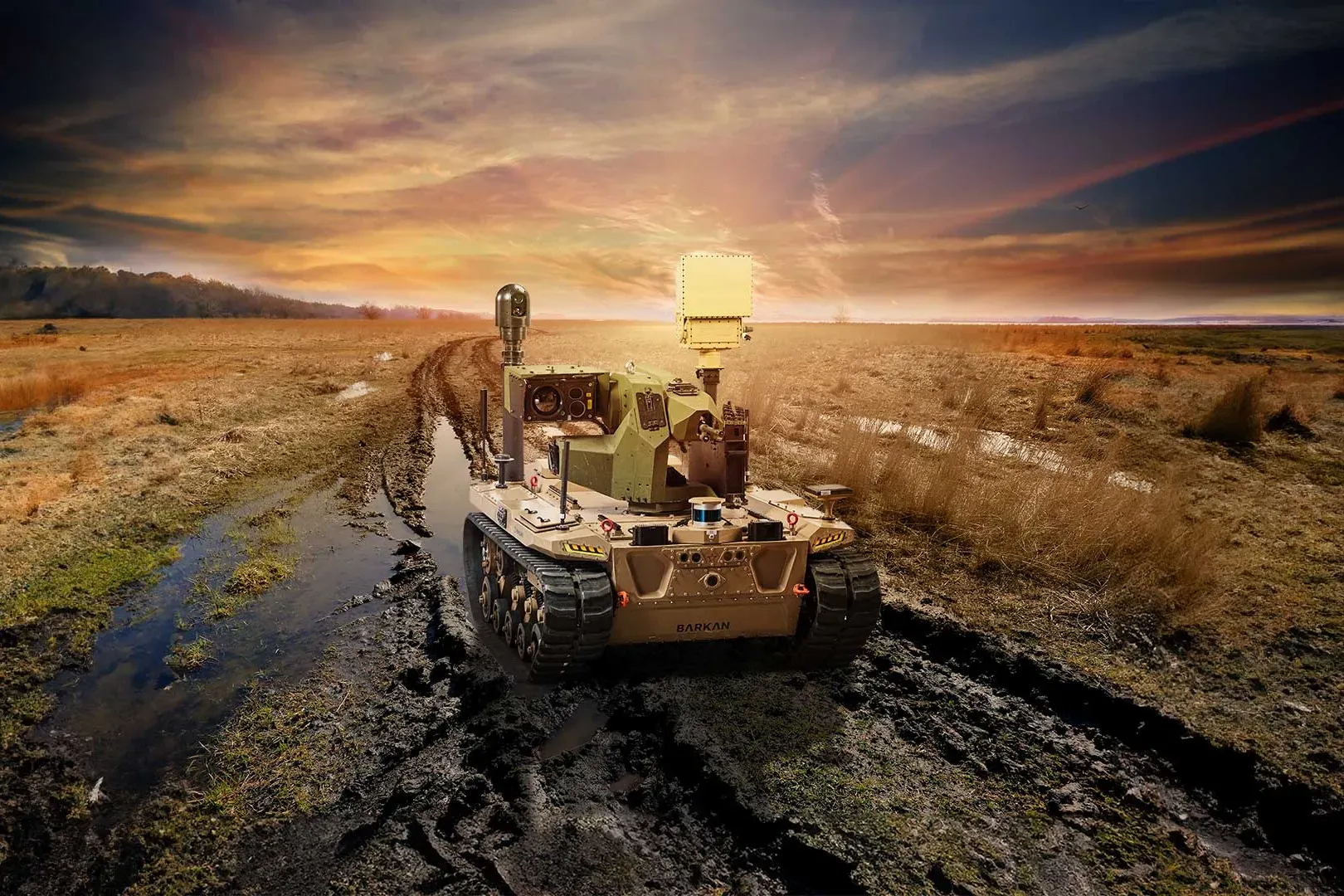

The mast and its panel antenna on the muddy track

The mast and its panel antenna on the muddy track

27 / 57

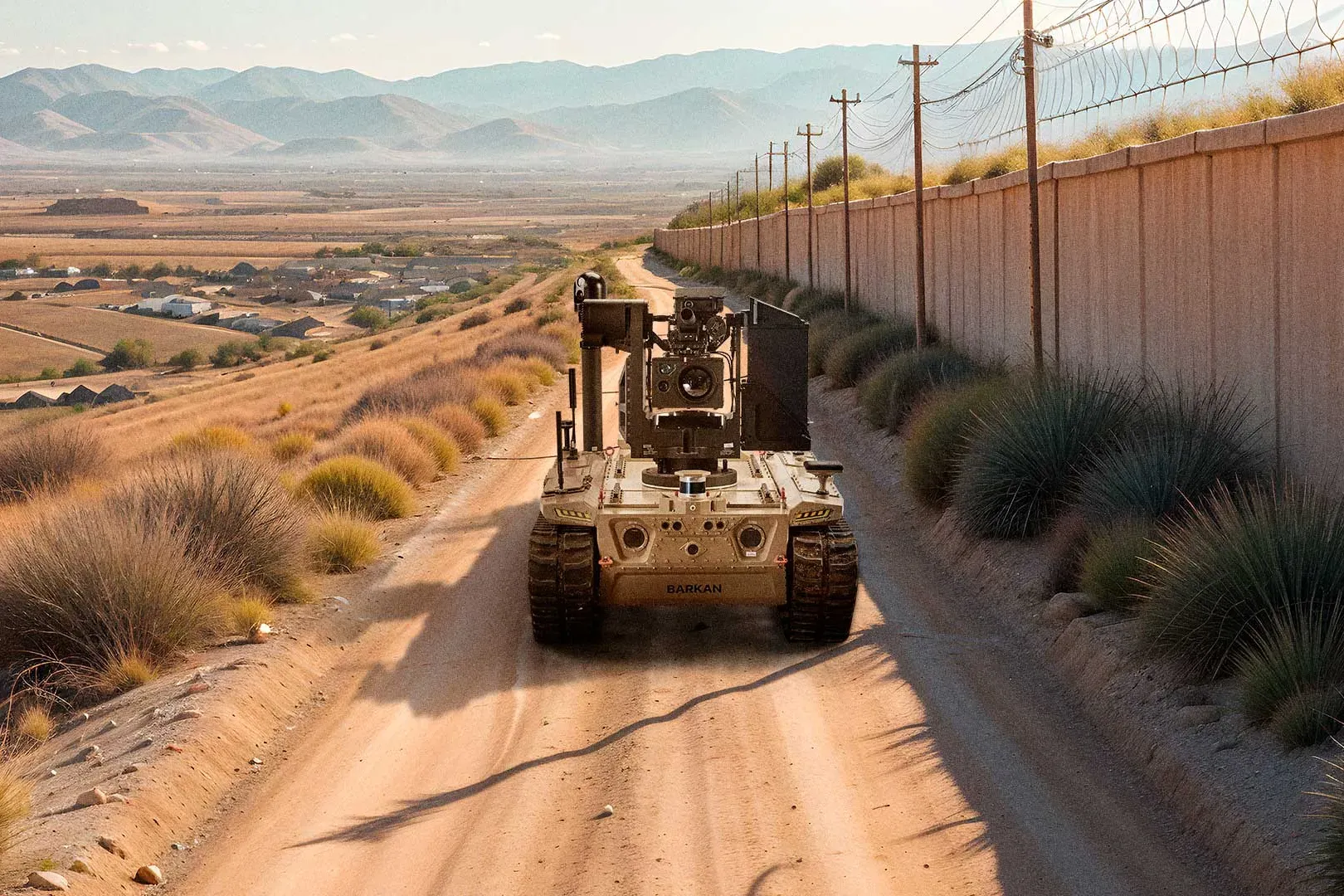

MES01 on the road along the perimeter fence

MES01 on the road along the perimeter fence

28 / 57

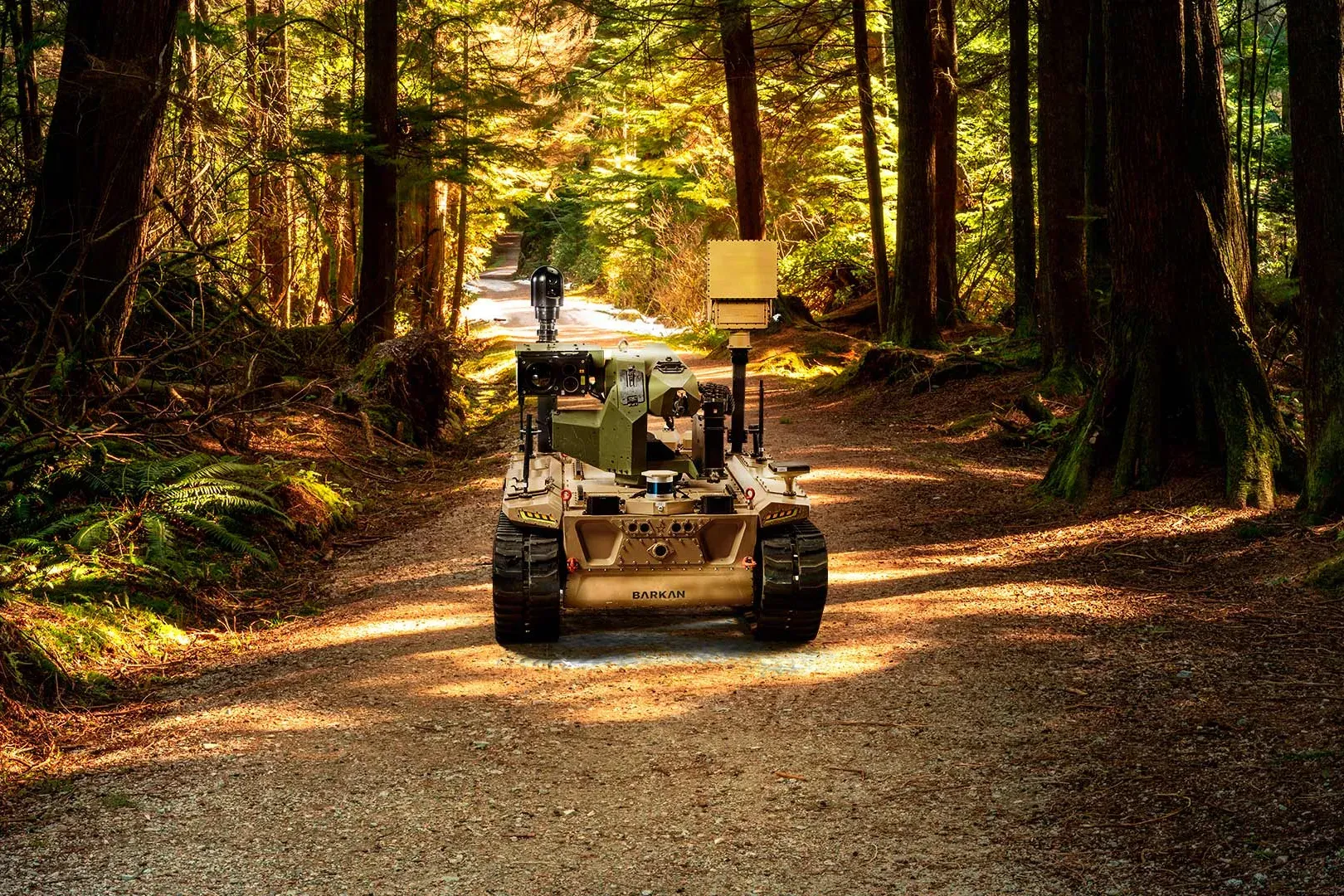

MES01 extended on a forest track

MES01 extended on a forest track

29 / 57

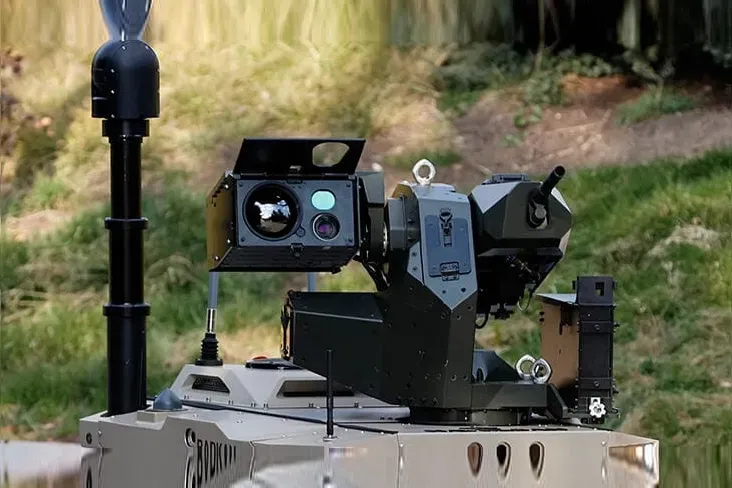

The mast and the sight on the BARKAN deck

The mast and the sight on the BARKAN deck

30 / 57

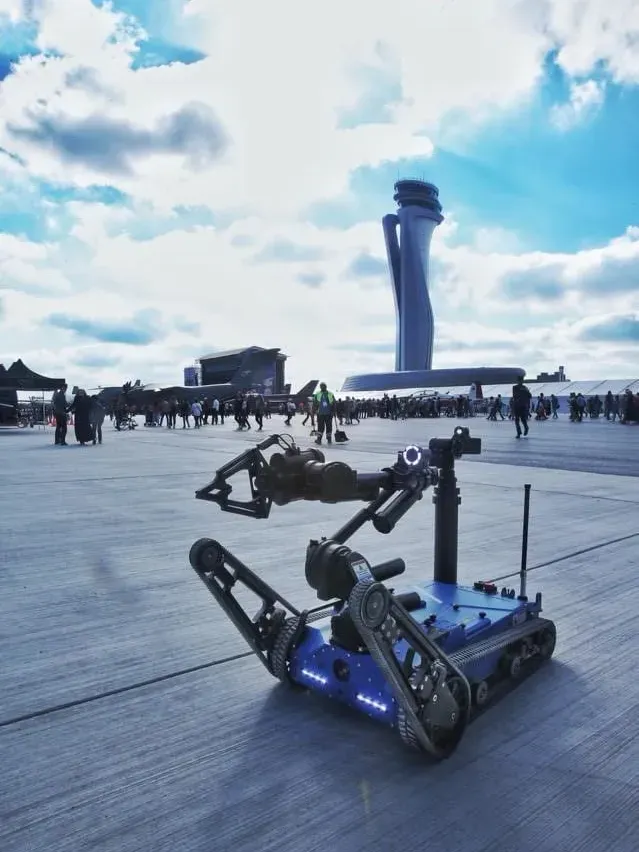

MES01 on a manipulator robot on the apron

MES01 on a manipulator robot on the apron

31 / 57

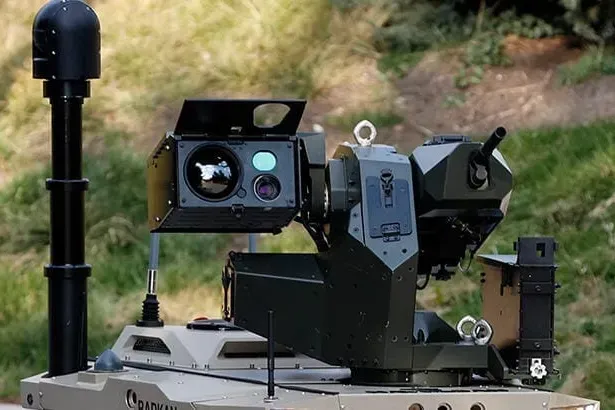

The telescoping column rising past the optics

The telescoping column rising past the optics

32 / 57

MES01 on a BARKAN on the paved path

MES01 on a BARKAN on the paved path

33 / 57

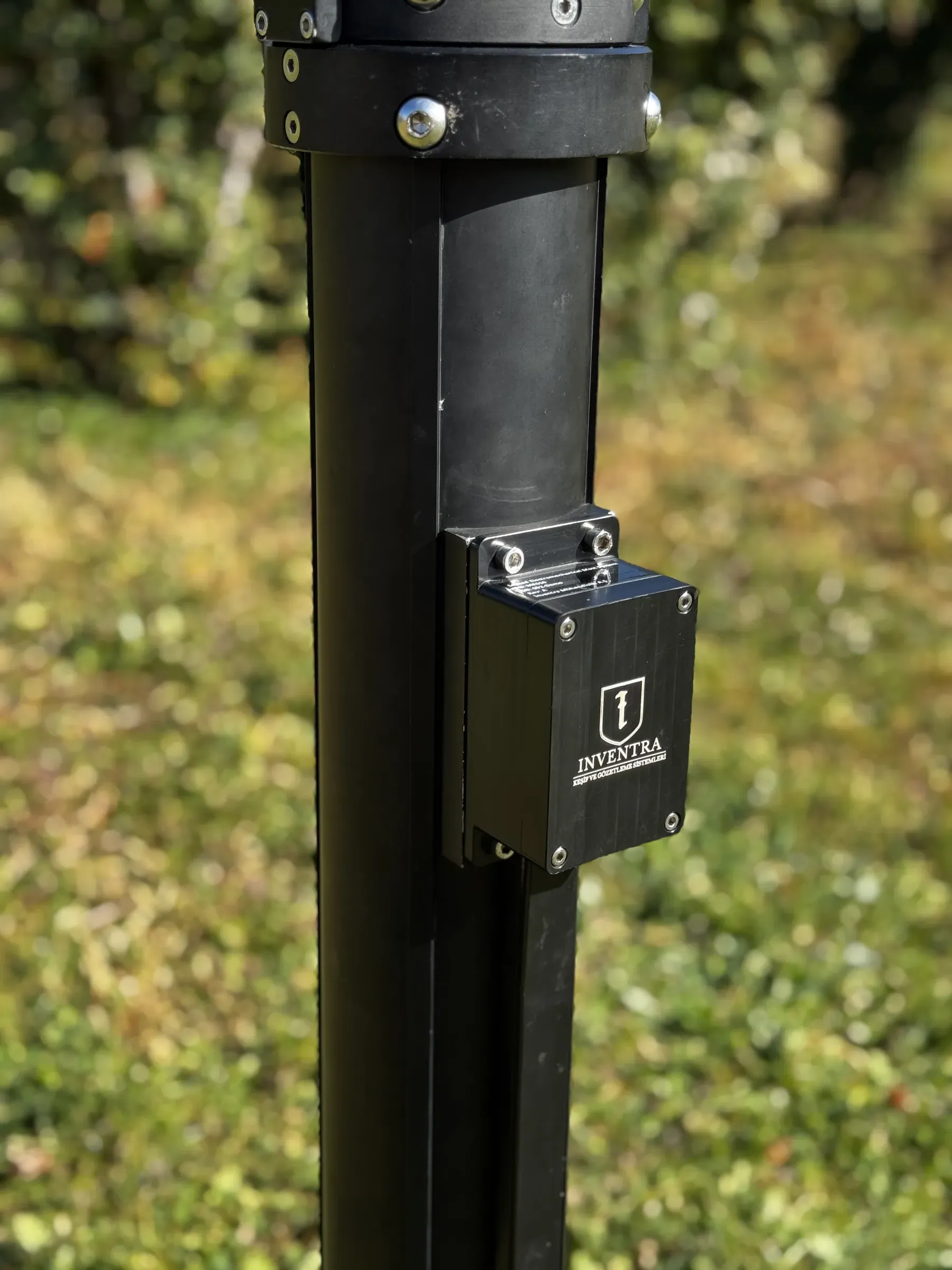

The junction box on the mast

The junction box on the mast

34 / 57

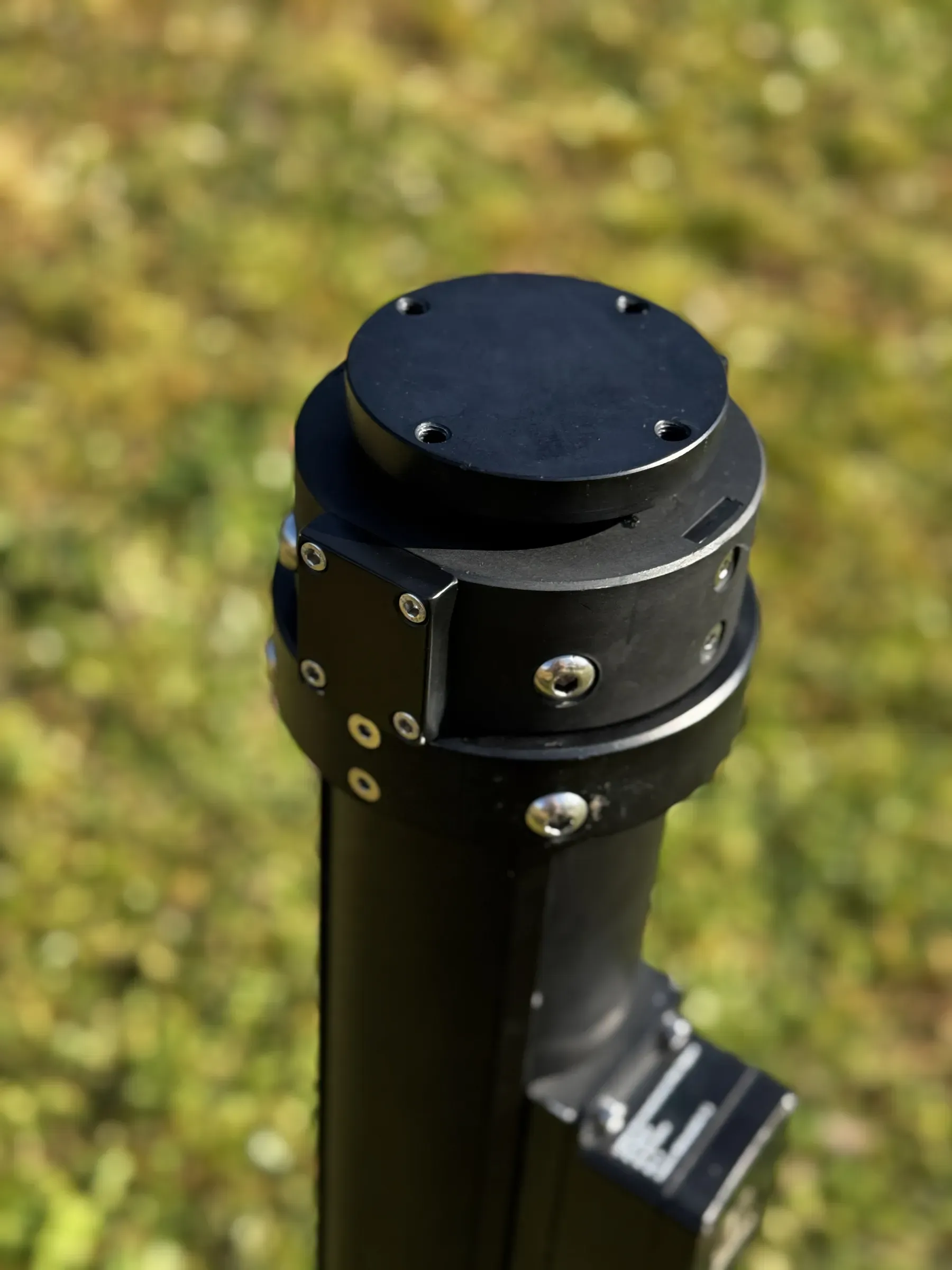

The cap on the top section

The cap on the top section

35 / 57

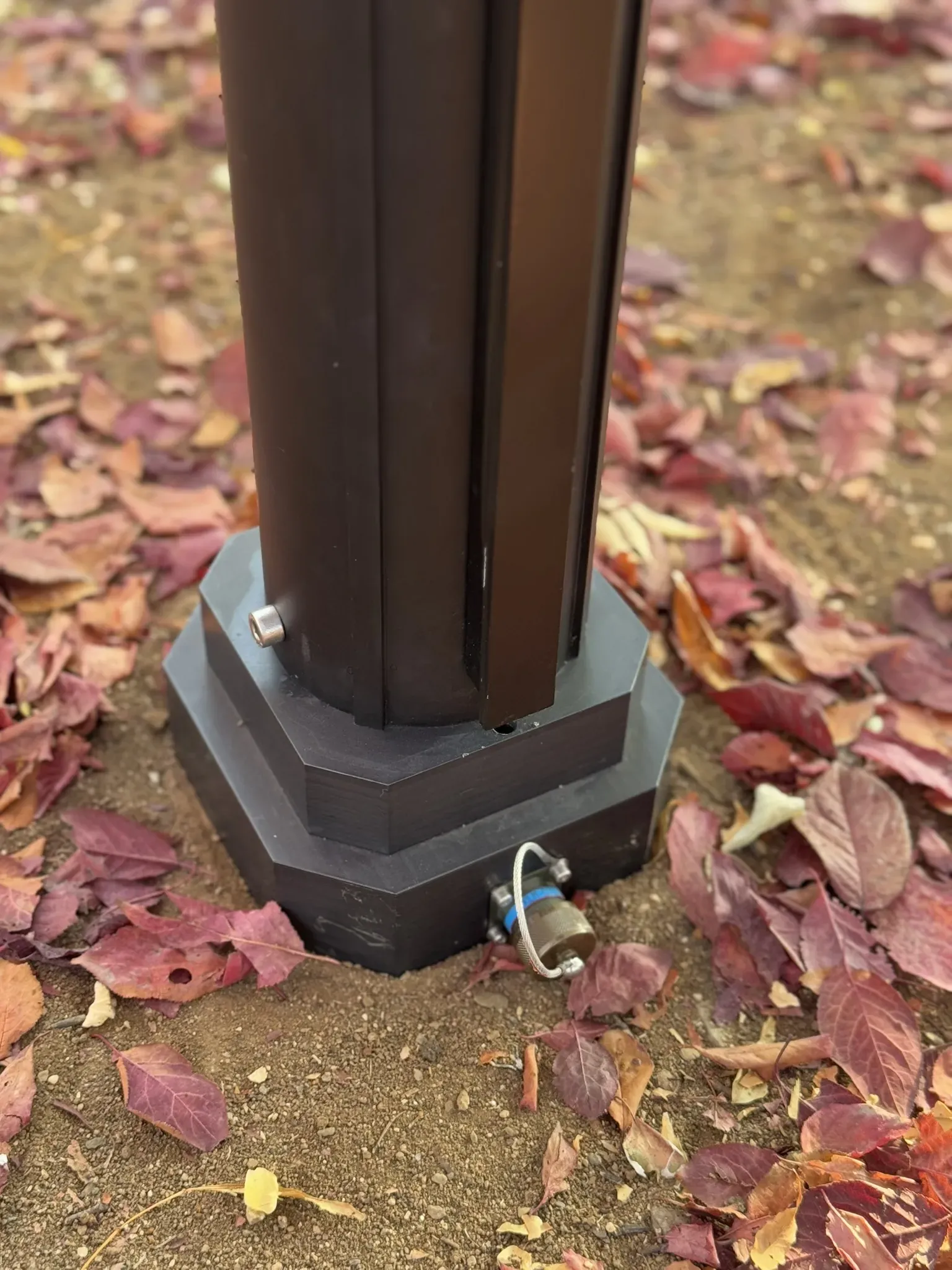

The octagonal foot plate

The octagonal foot plate

36 / 57

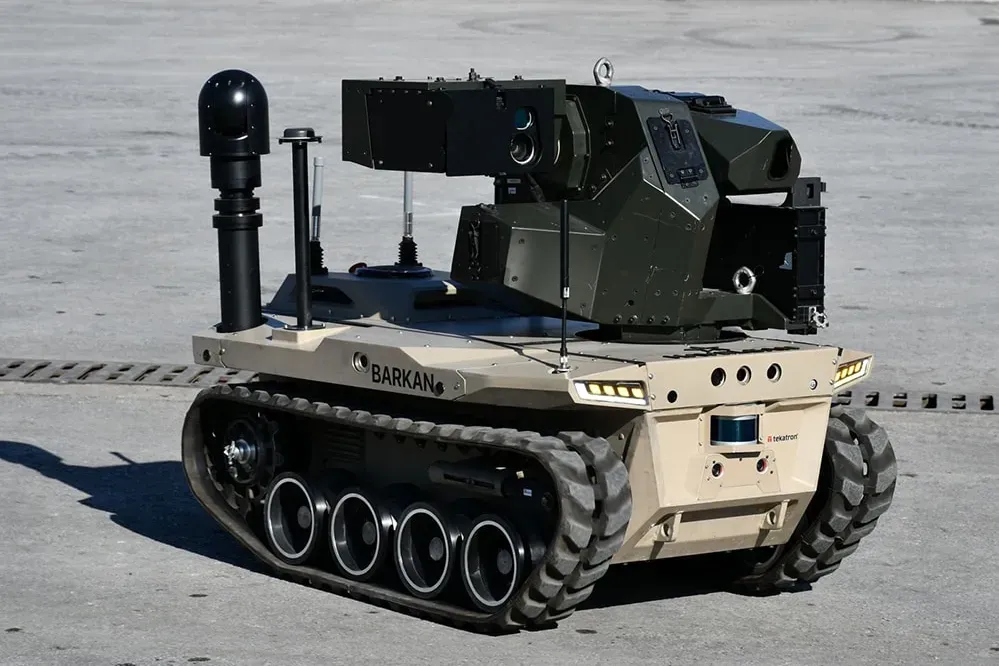

MES01 on a BARKAN on tarmac

MES01 on a BARKAN on tarmac

37 / 57

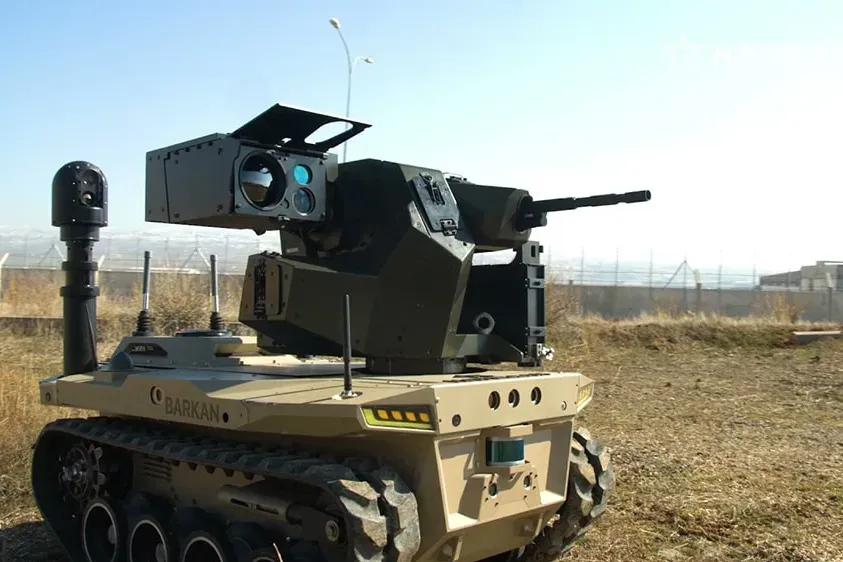

BARKAN against the sky with the mast up

BARKAN against the sky with the mast up

38 / 57

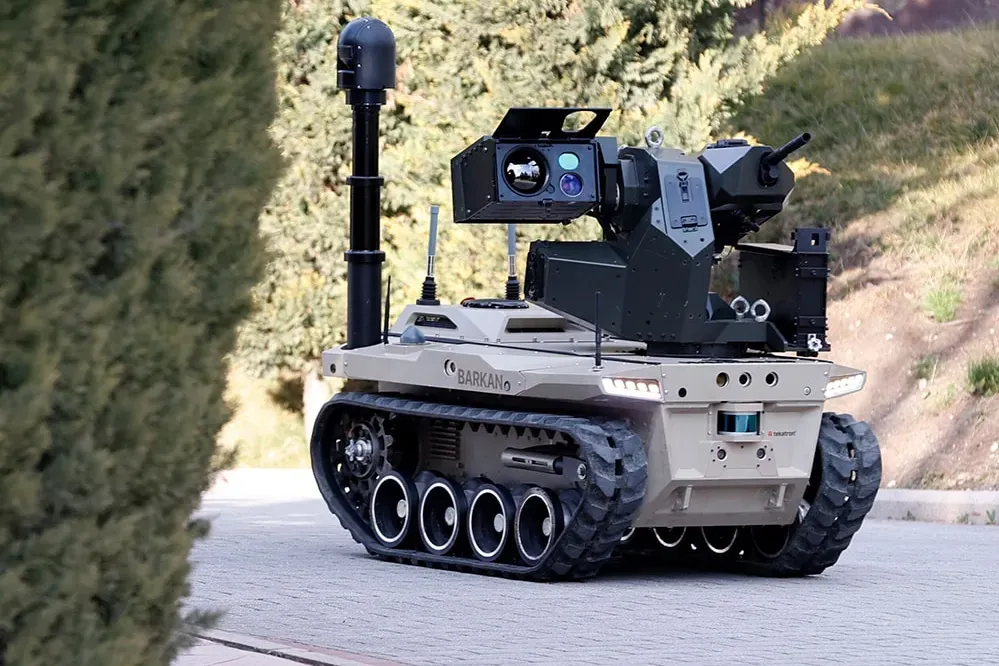

MES01 extended beside the cypress hedge

MES01 extended beside the cypress hedge

39 / 57

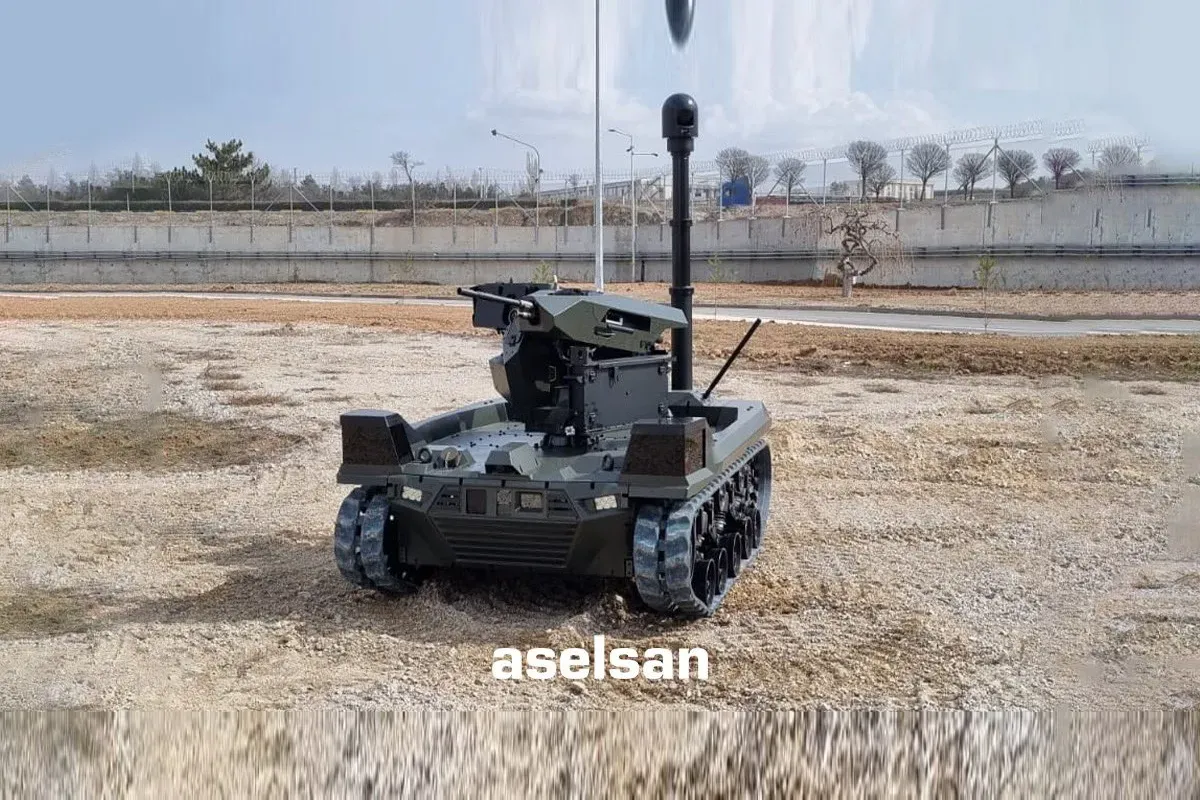

The mast up in front of the treeline

The mast up in front of the treeline

40 / 57

MES01 on a tracked robot

MES01 on a tracked robot

41 / 57

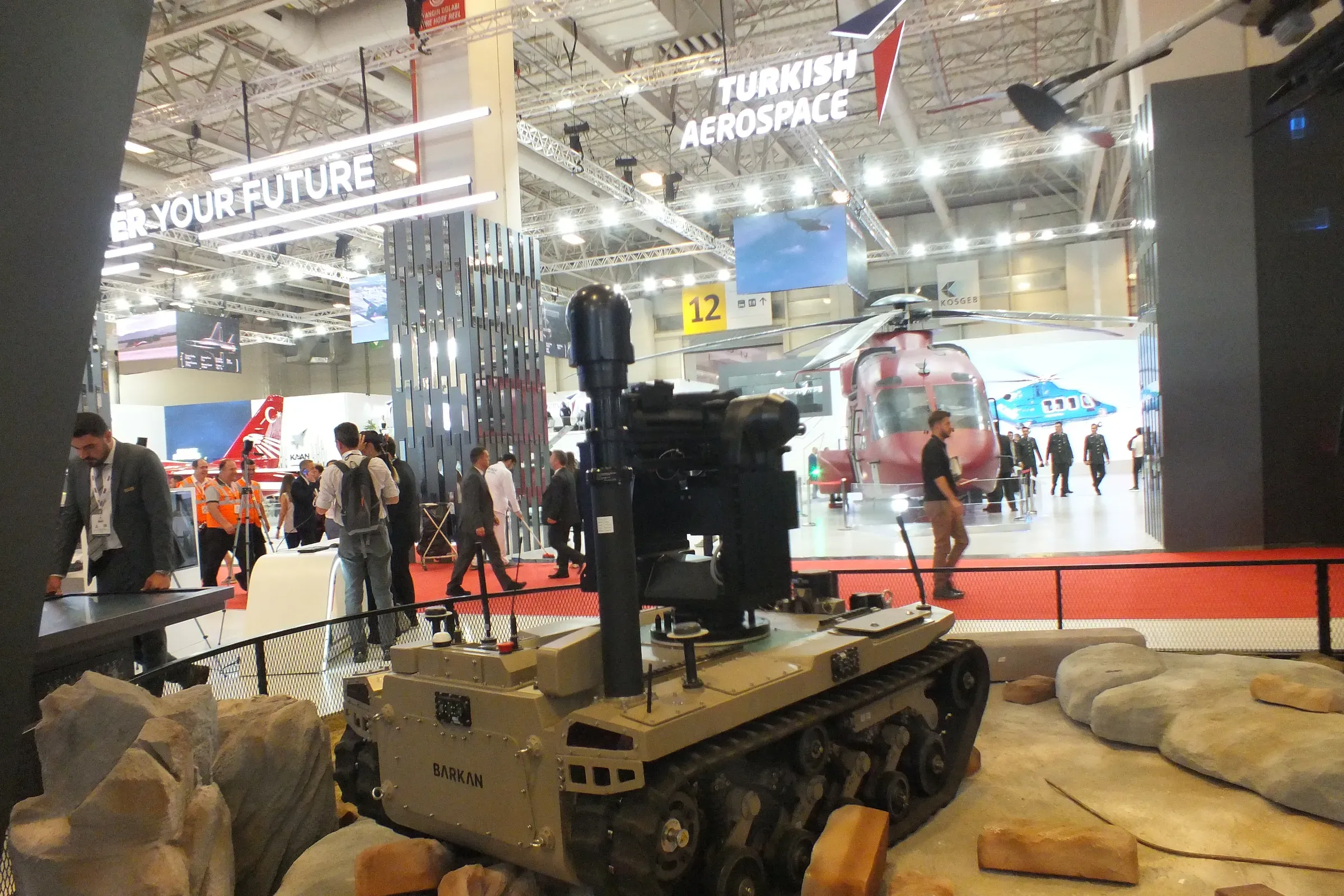

MES01 extended on a BARKAN

MES01 extended on a BARKAN

42 / 57

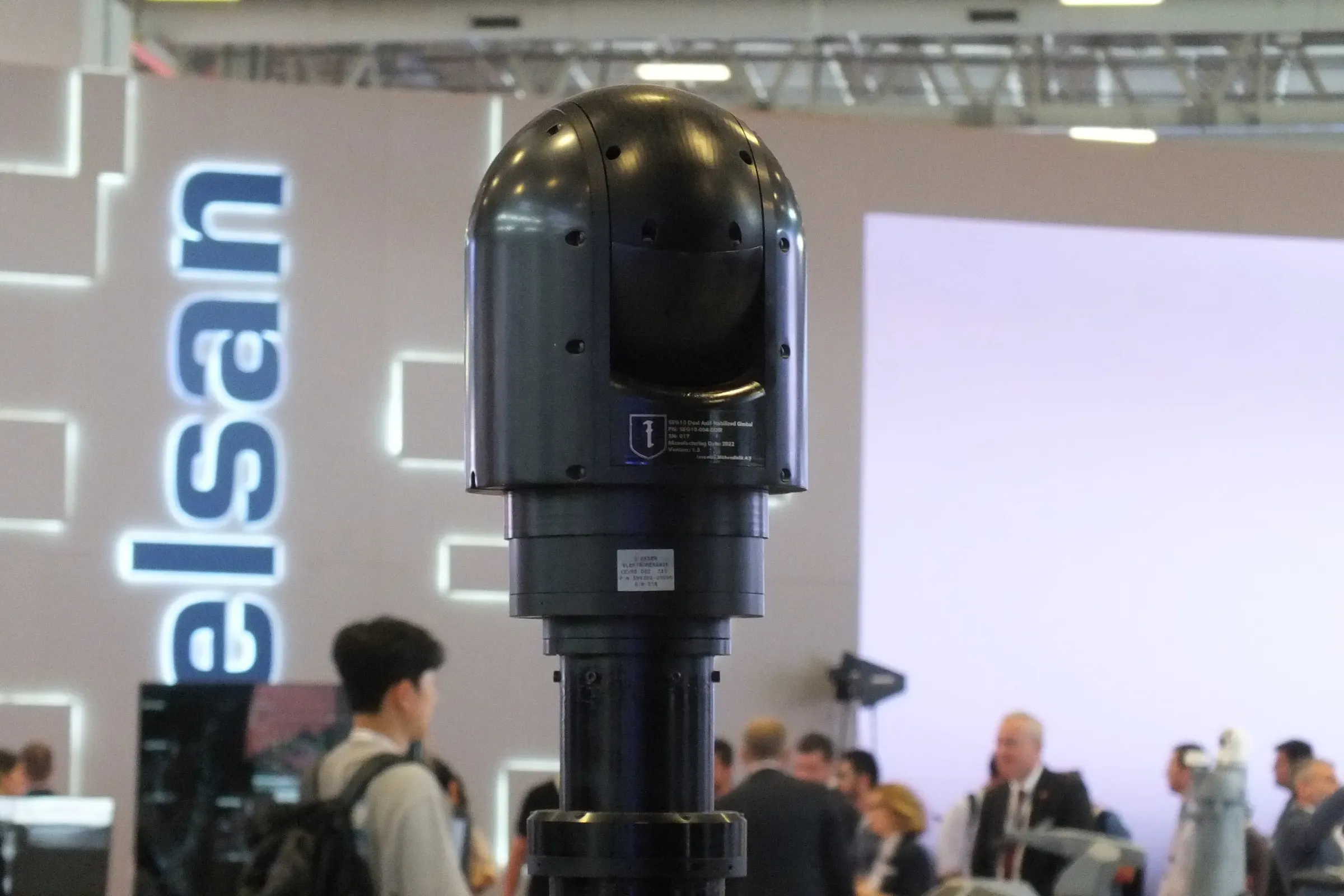

The sensor head on the mast at the ASELSAN stand

The sensor head on the mast at the ASELSAN stand

43 / 57

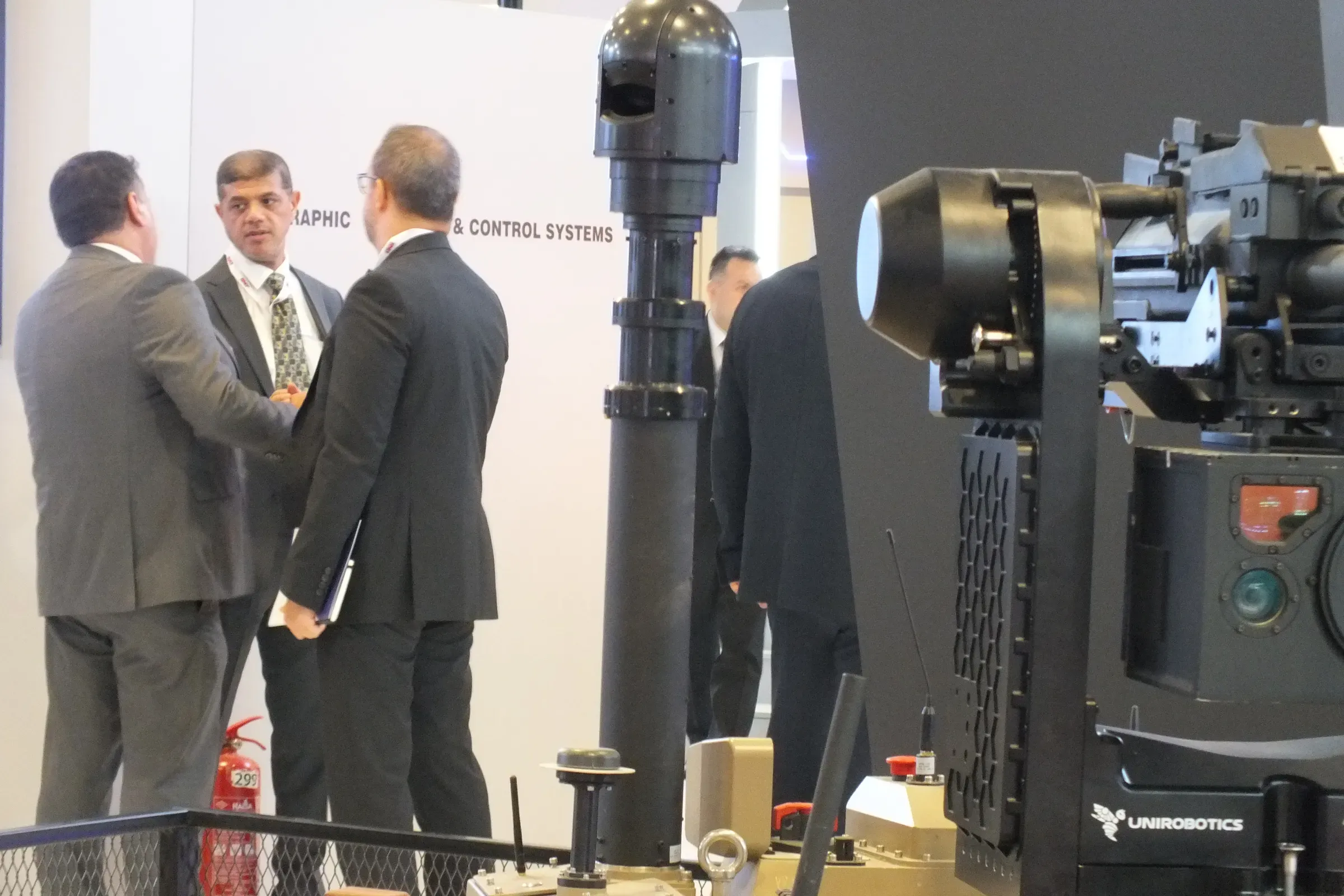

MES01 on the Unirobotics stand

MES01 on the Unirobotics stand

44 / 57

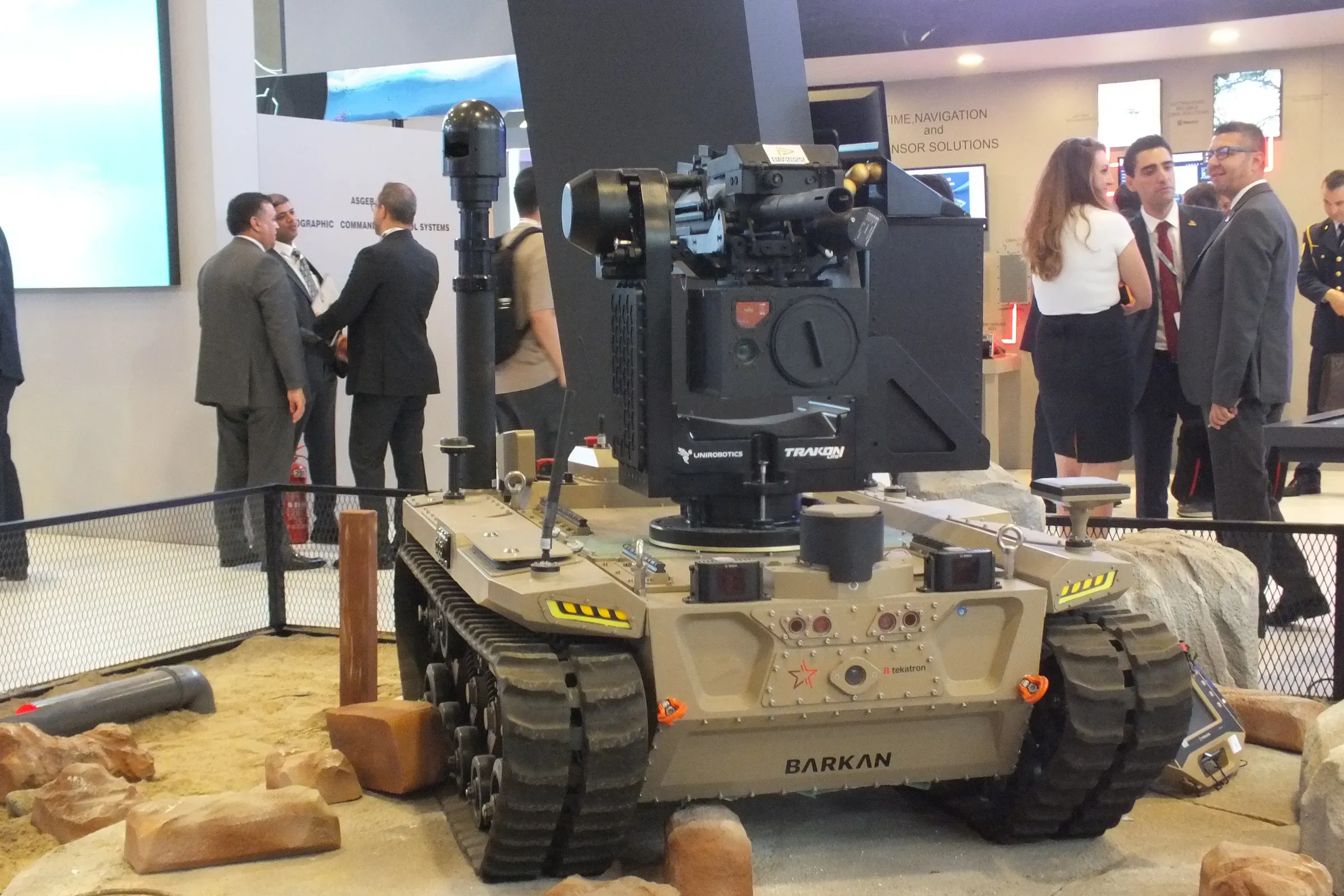

MES01 on a BARKAN in the show diorama

MES01 on a BARKAN in the show diorama

45 / 57

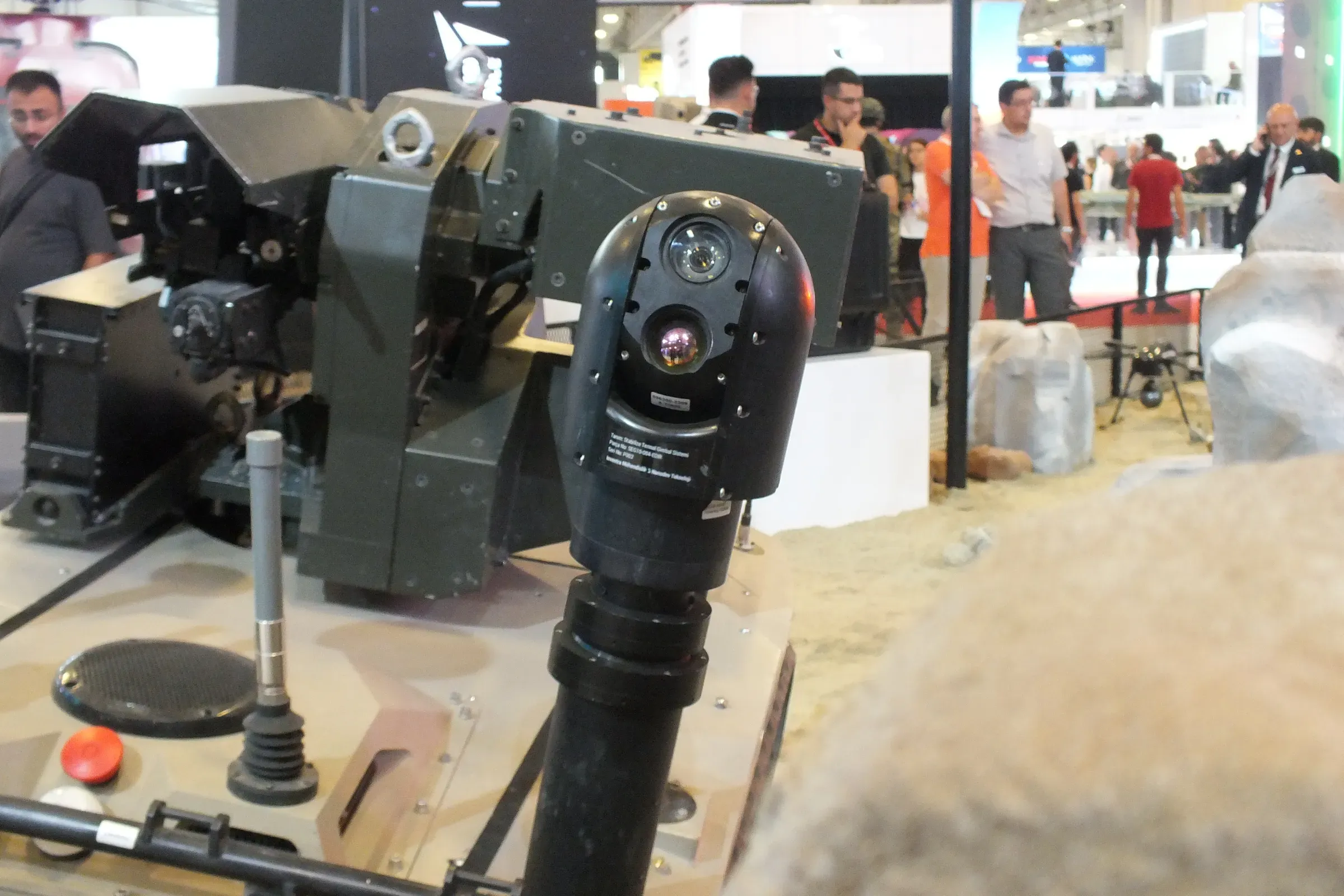

The mast head beside the vehicle gimbal

The mast head beside the vehicle gimbal

46 / 57

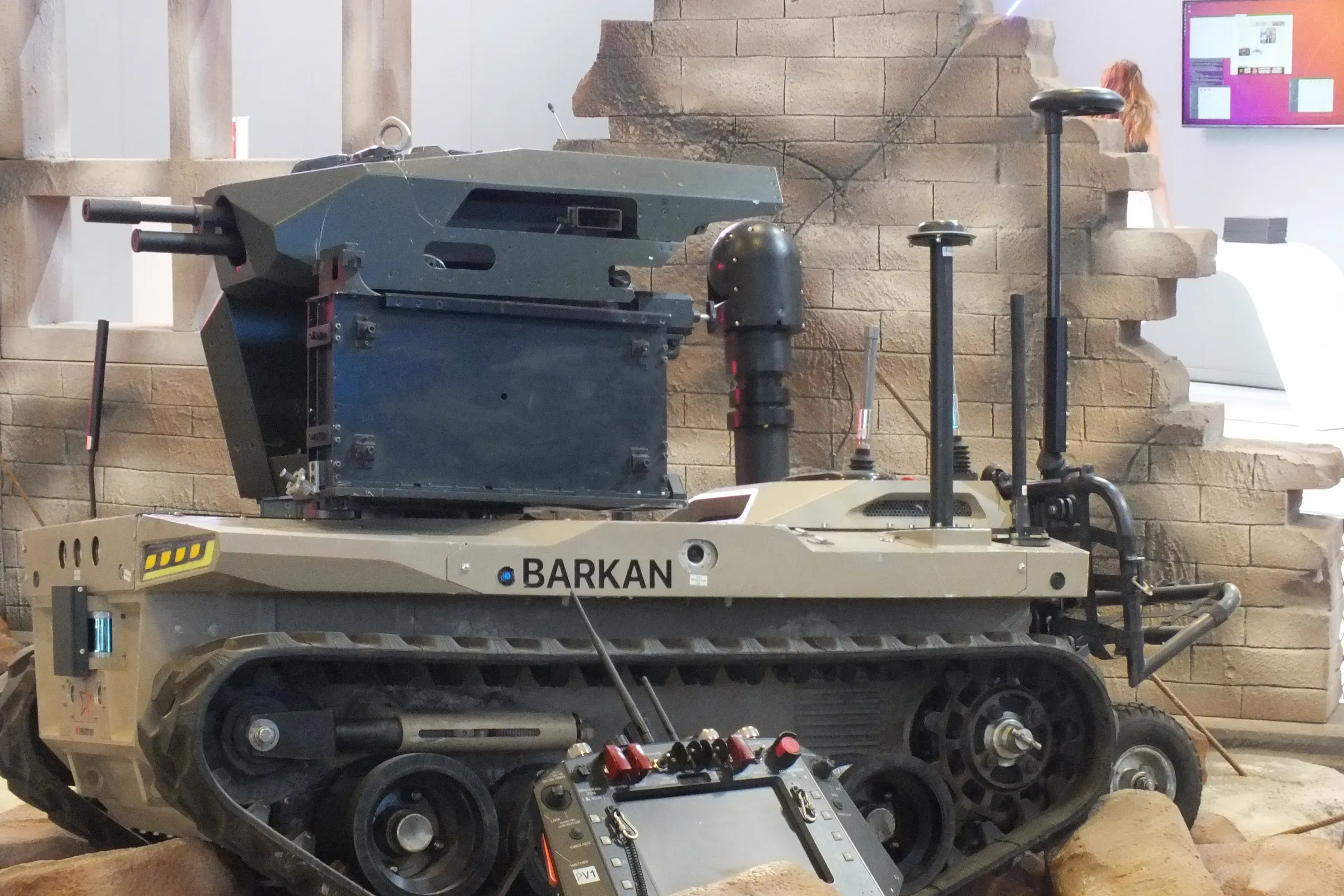

BARKAN with MES01 extended

BARKAN with MES01 extended

47 / 57

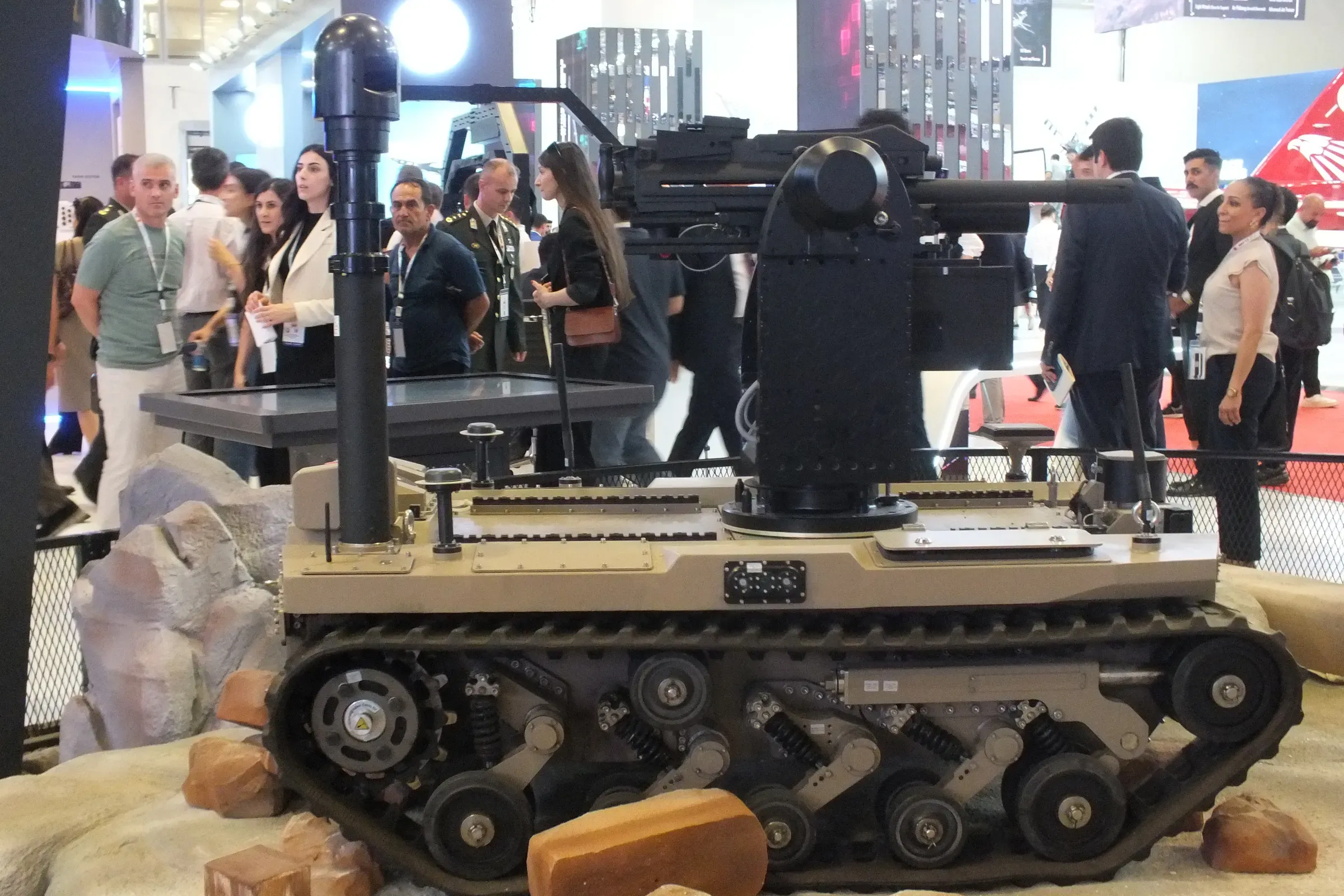

The mast extended at the corner of the tracked chassis

The mast extended at the corner of the tracked chassis

48 / 57

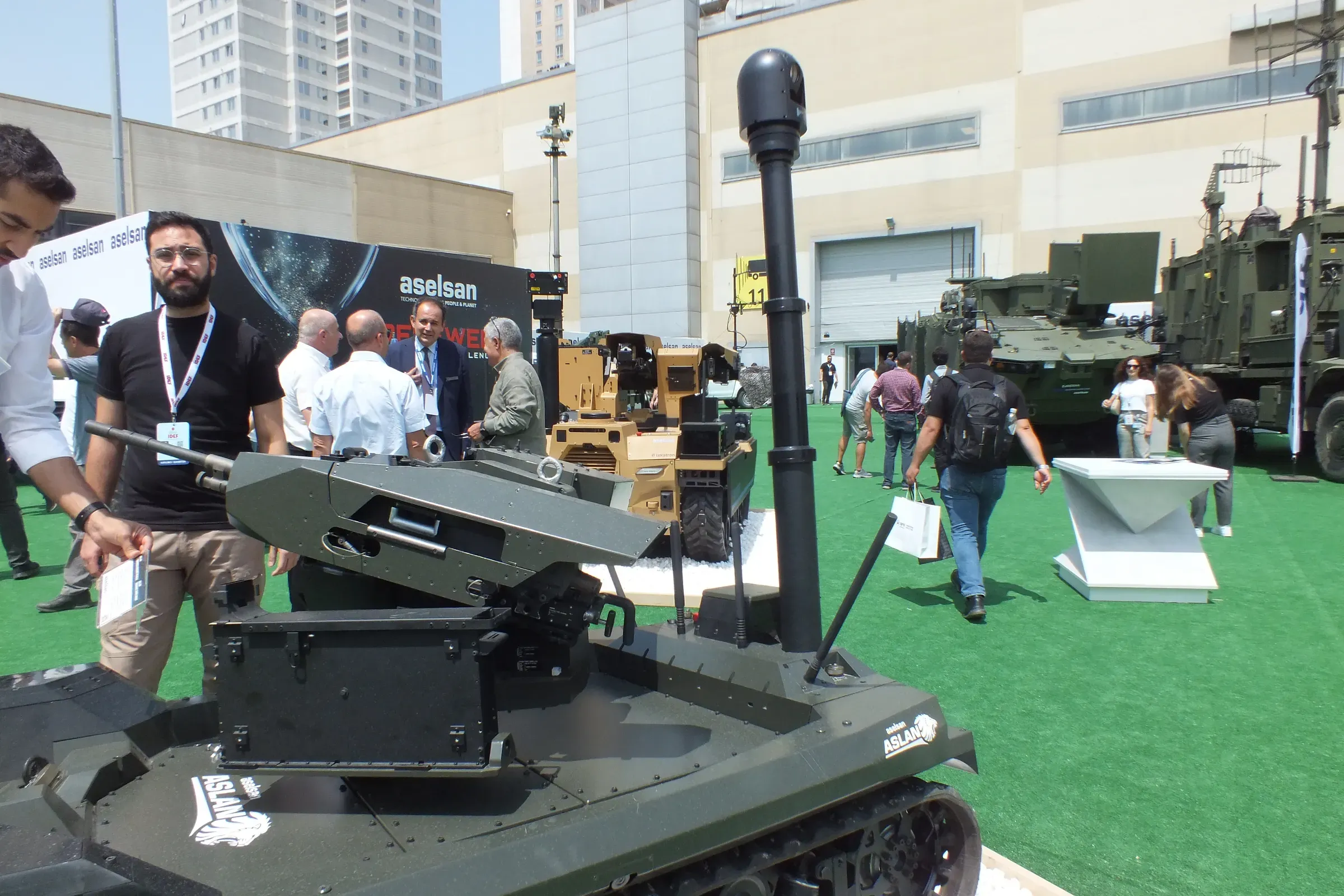

MES01 on a ground robot outdoors

MES01 on a ground robot outdoors

49 / 57

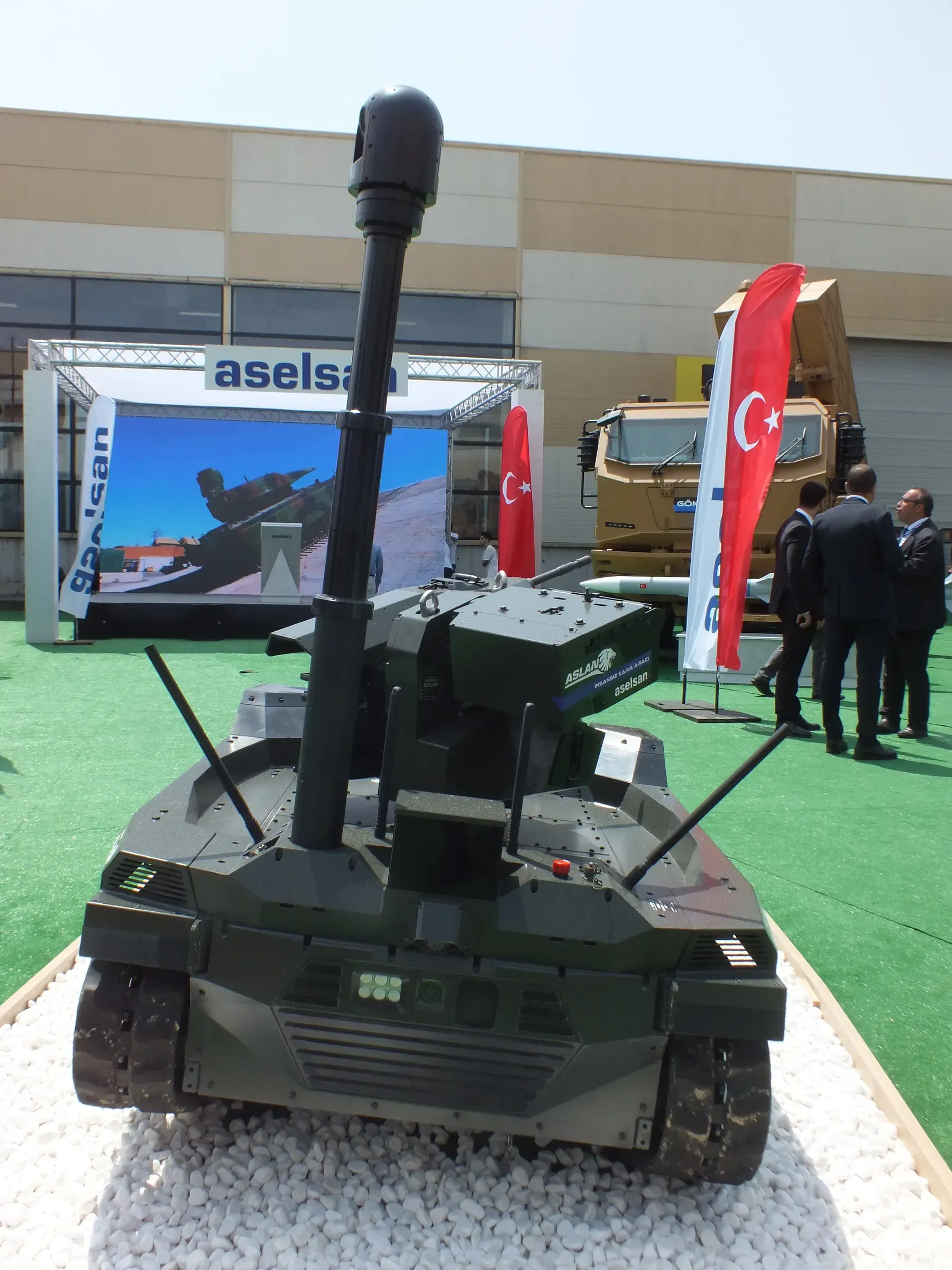

MES01 on a green ground robot

MES01 on a green ground robot

50 / 57

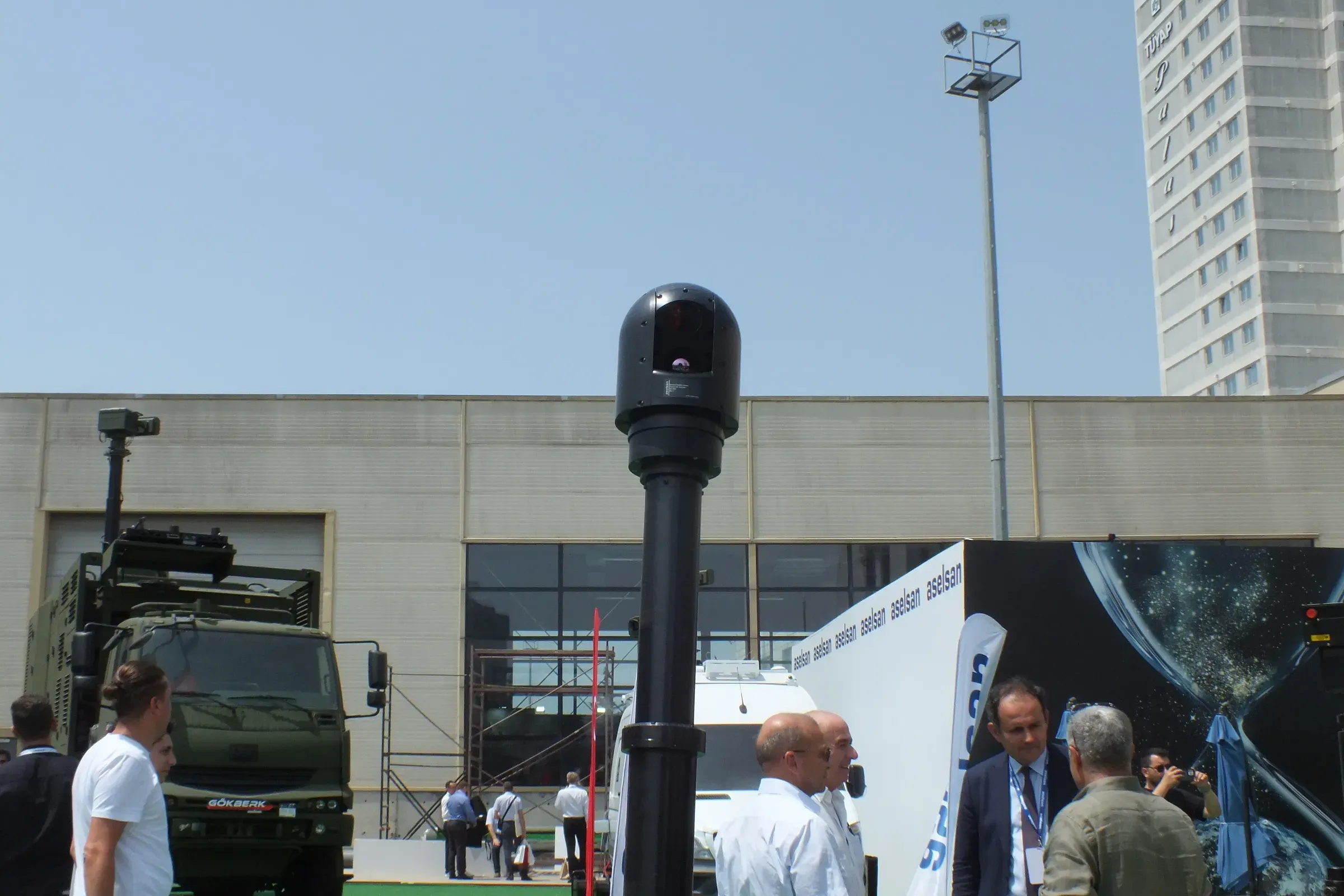

The mast head against open sky

The mast head against open sky

51 / 57

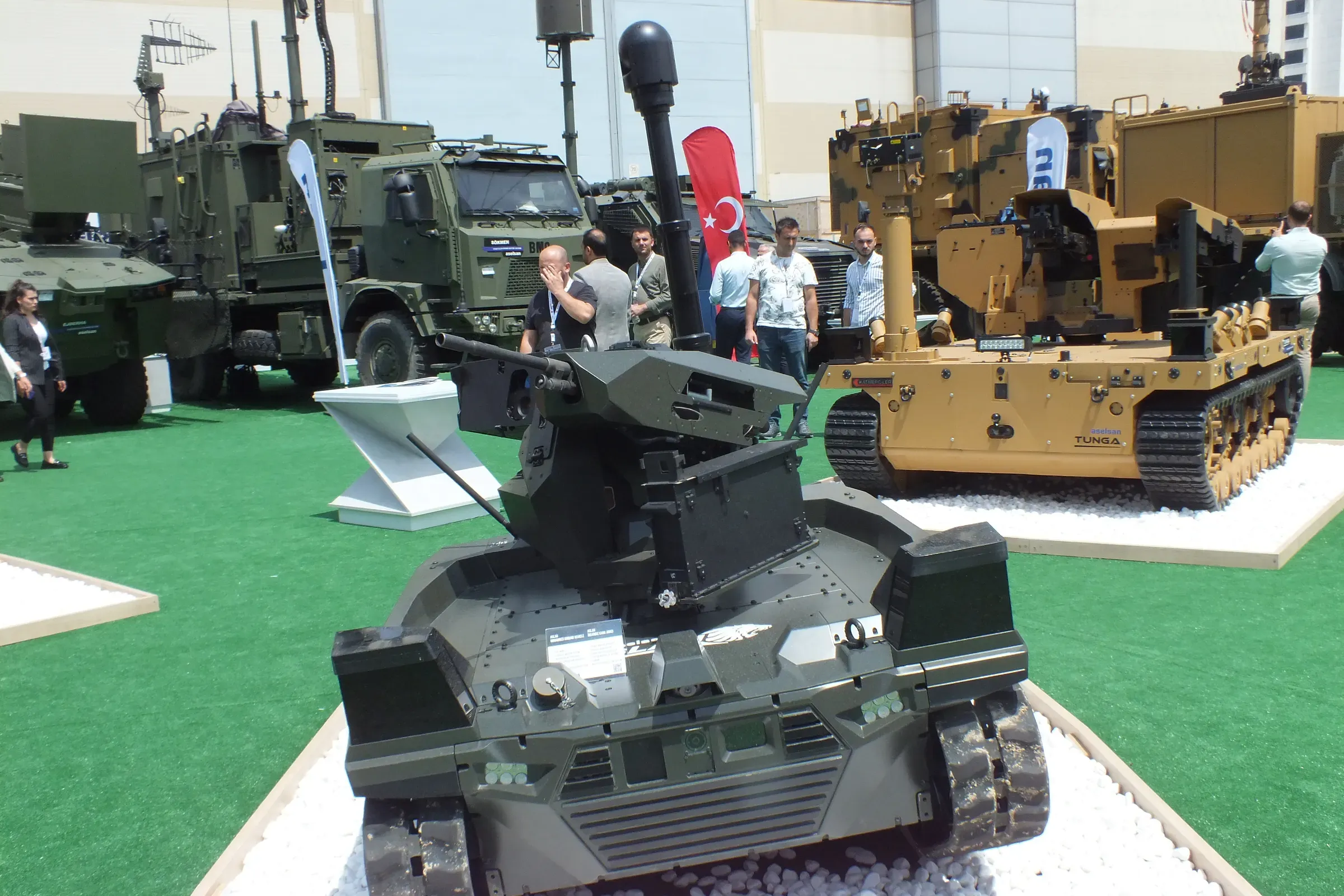

MES01 in the outdoor display

MES01 in the outdoor display

52 / 57

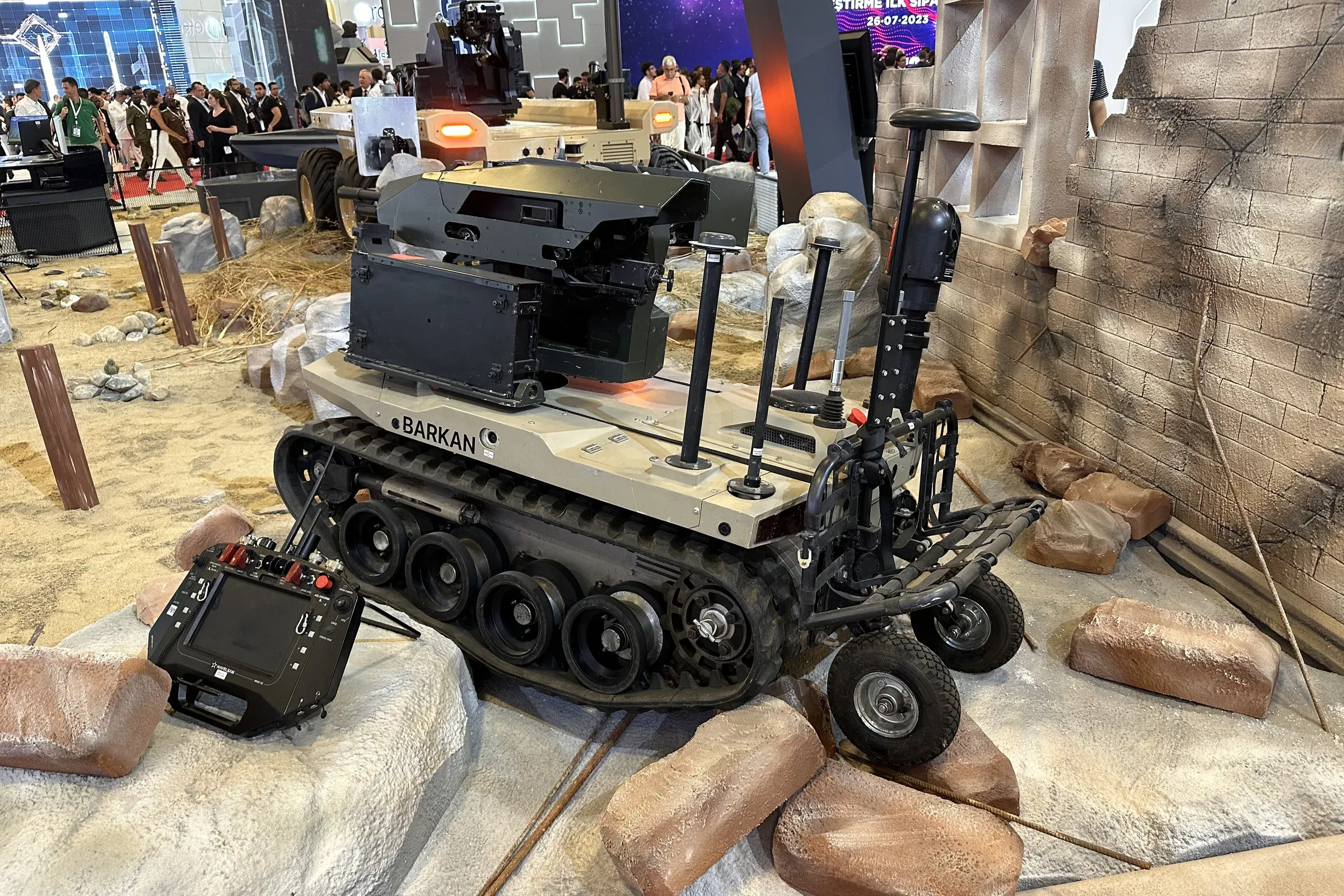

MES01 on a BARKAN, its controller alongside

MES01 on a BARKAN, its controller alongside

53 / 57

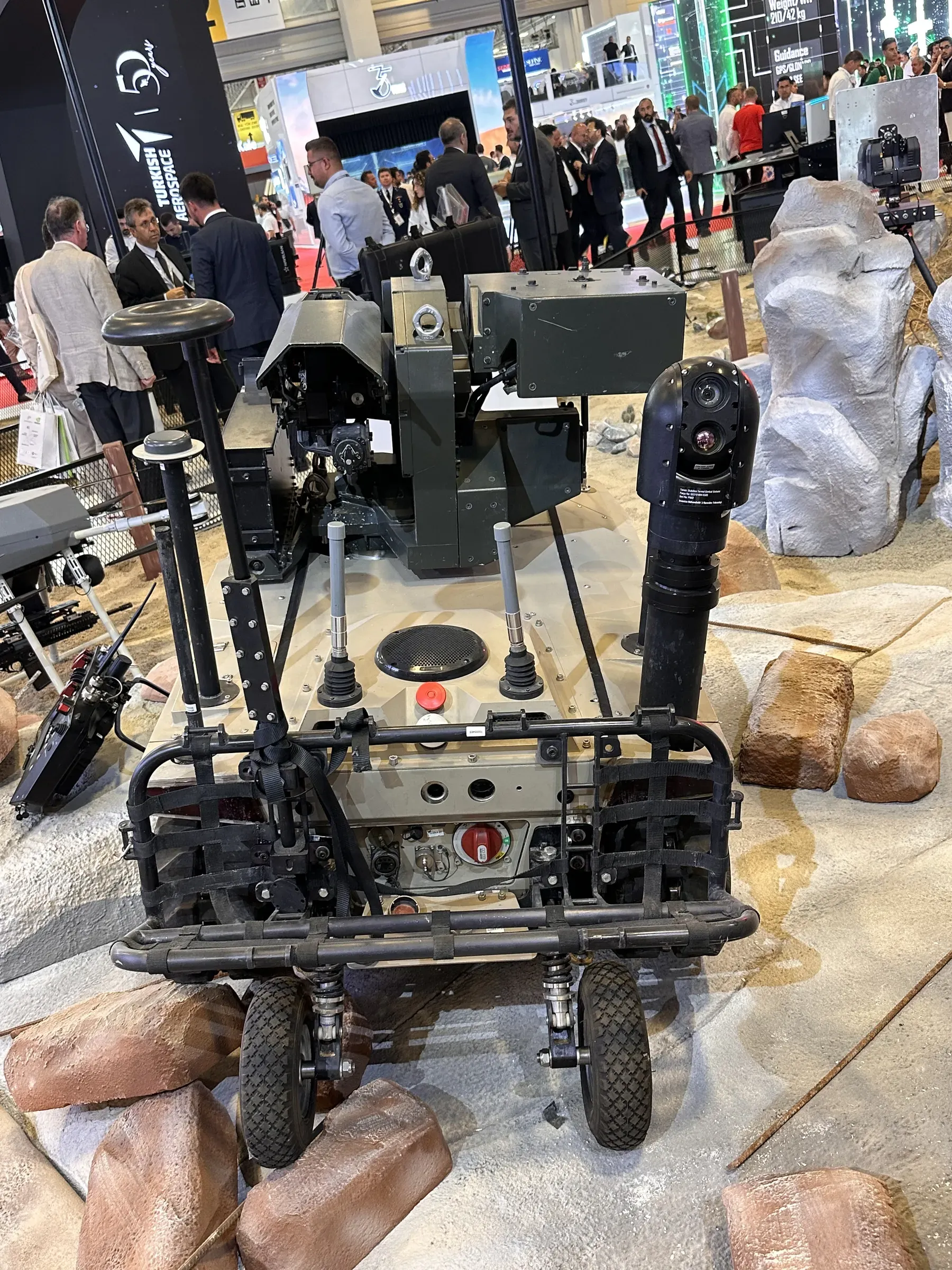

The mast rising between the payload frames

The mast rising between the payload frames

54 / 57

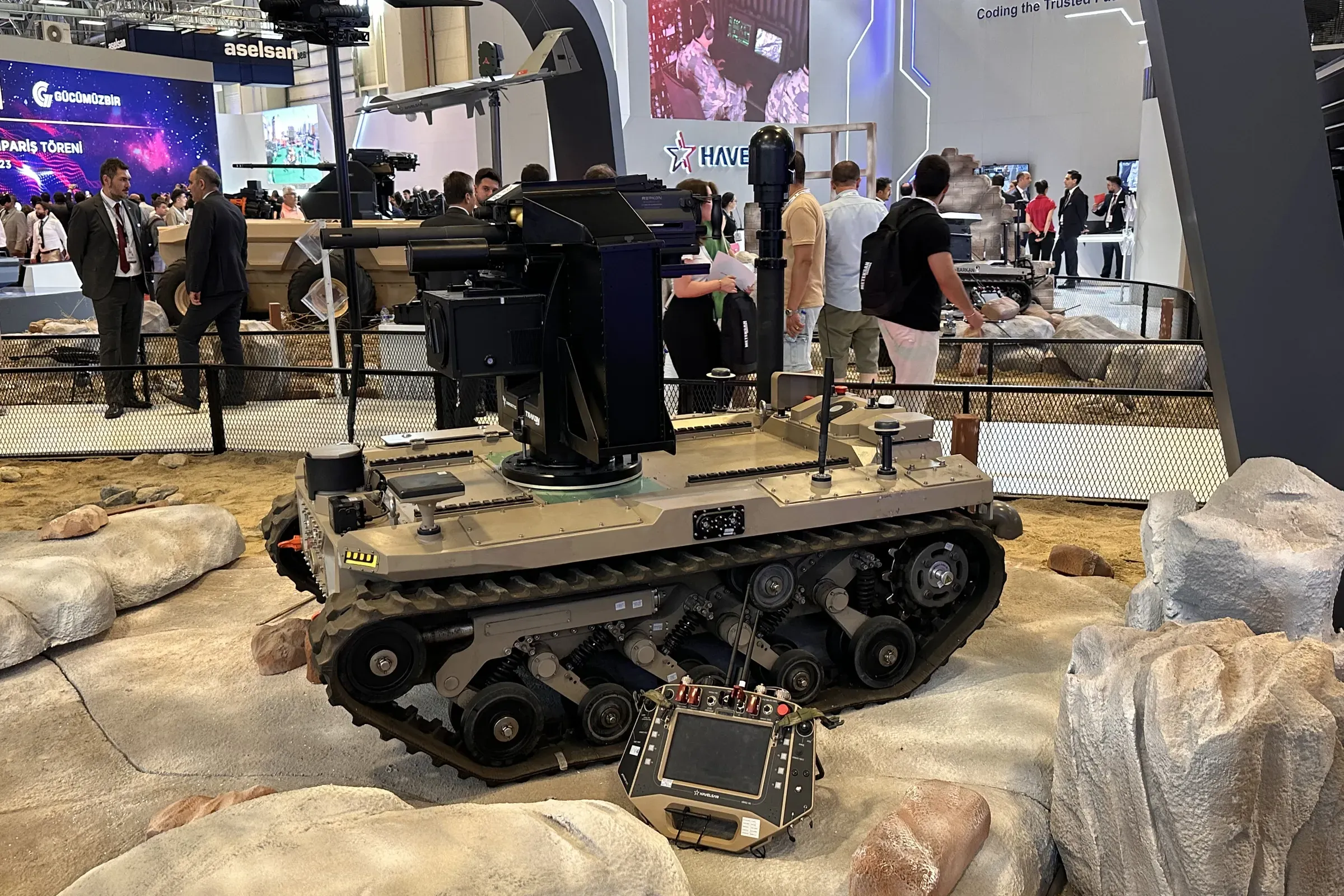

The mast clearing the turret on a BARKAN

The mast clearing the turret on a BARKAN

55 / 57

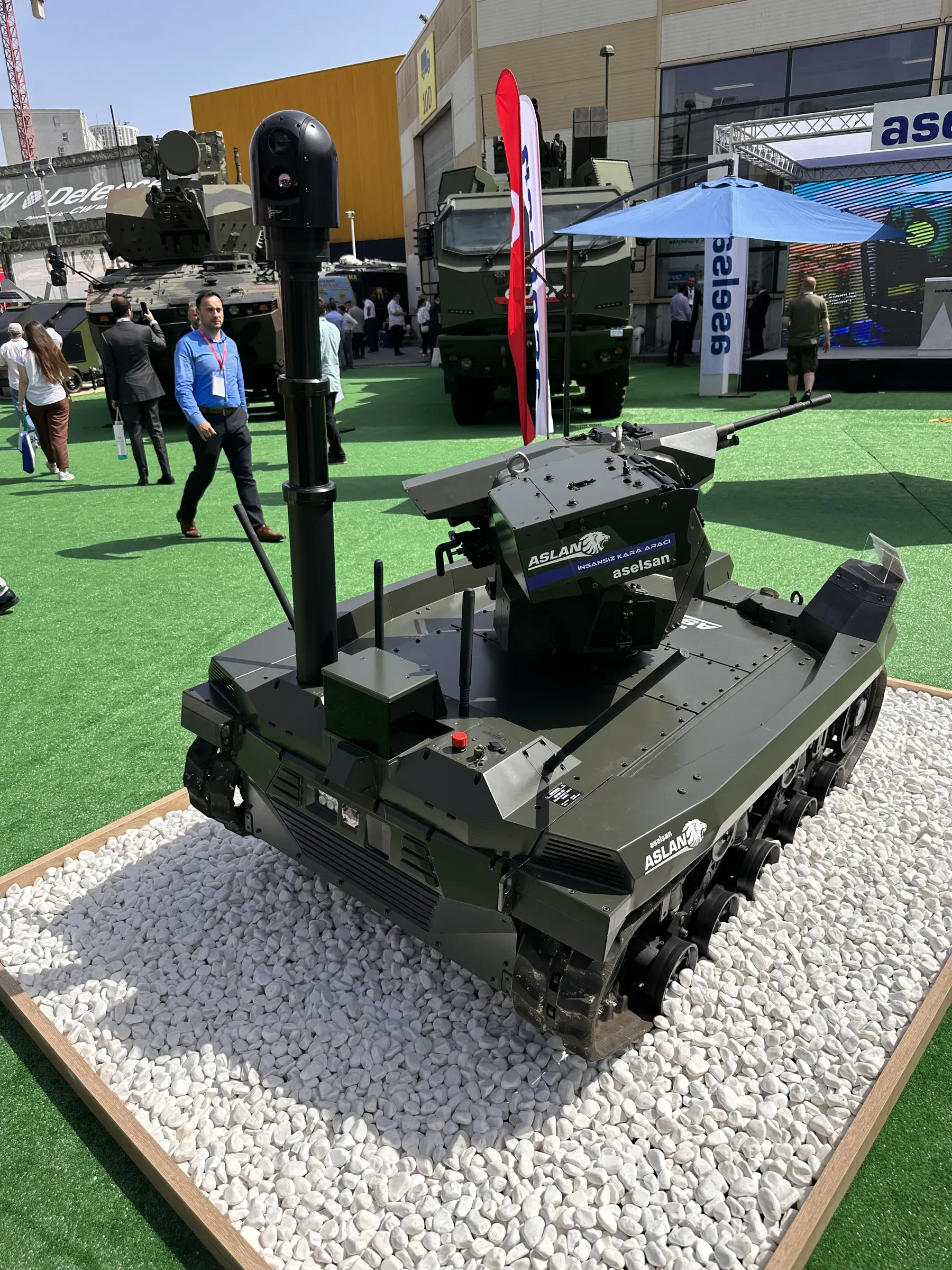

The mast rising past the flags

The mast rising past the flags

56 / 57

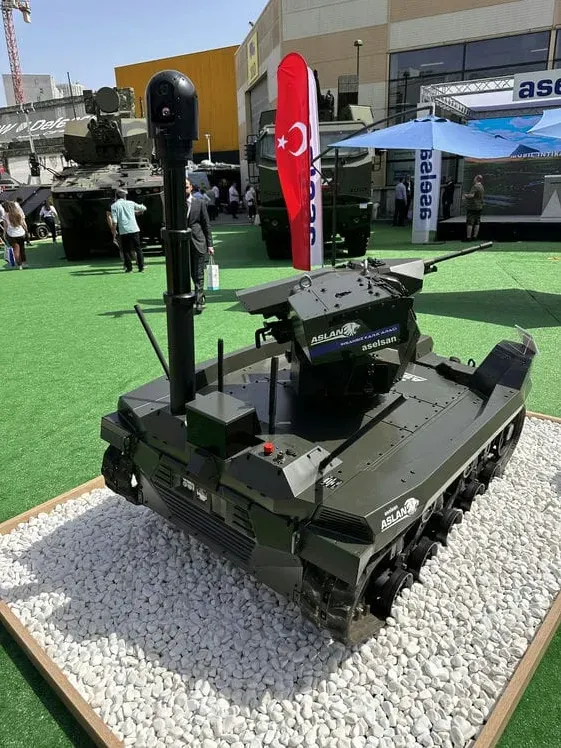

The mast standing beside the sight
