Tripods

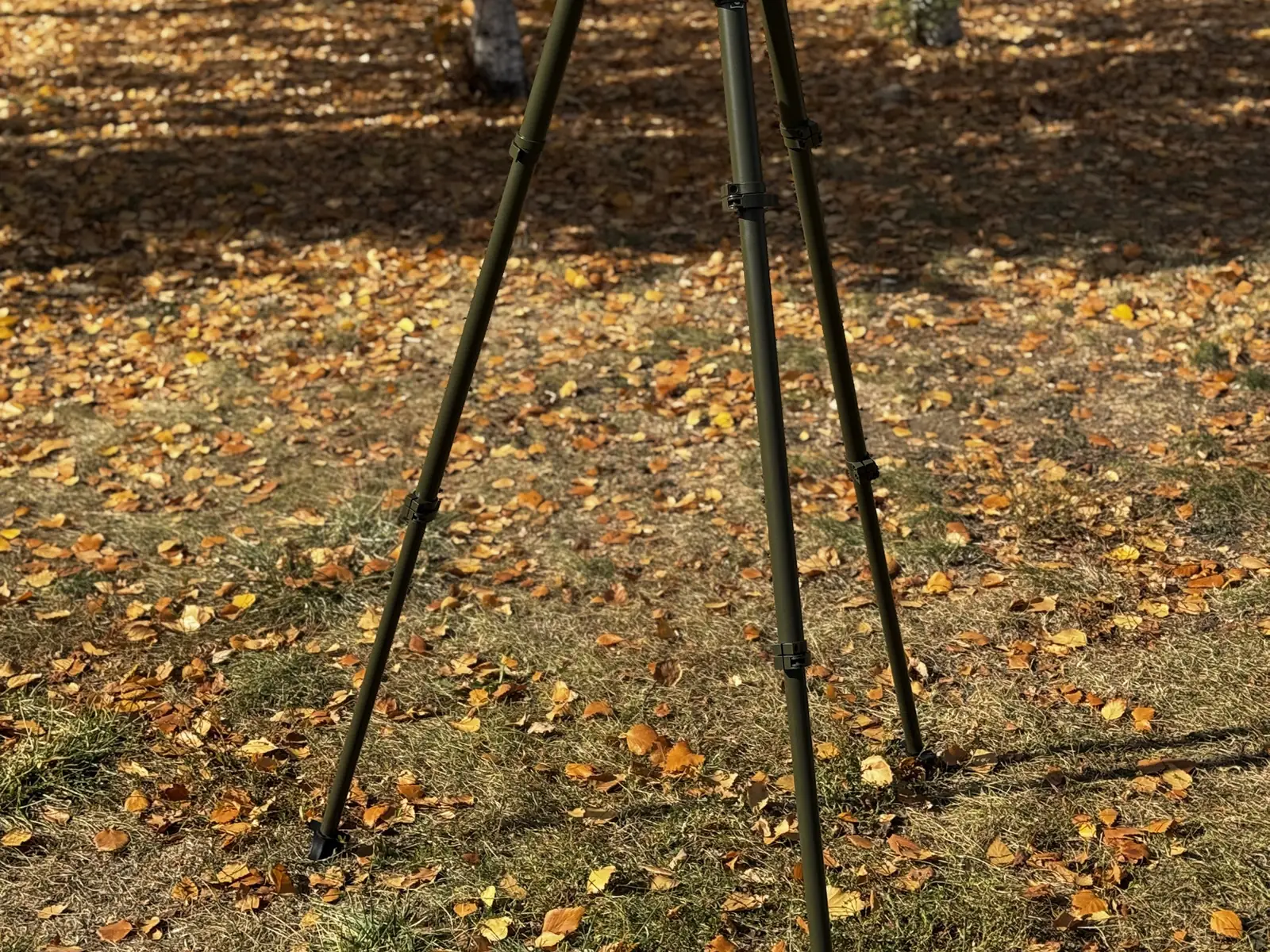

TML10
Ultra Lightweight Tripod
Aluminium tripod from 1.95 kg with a patented zero-clearance interface, for laser designators and long-range thermal imagers.
- 25 kg payload
- 1.450 mm extended
- 2,50 kg weight

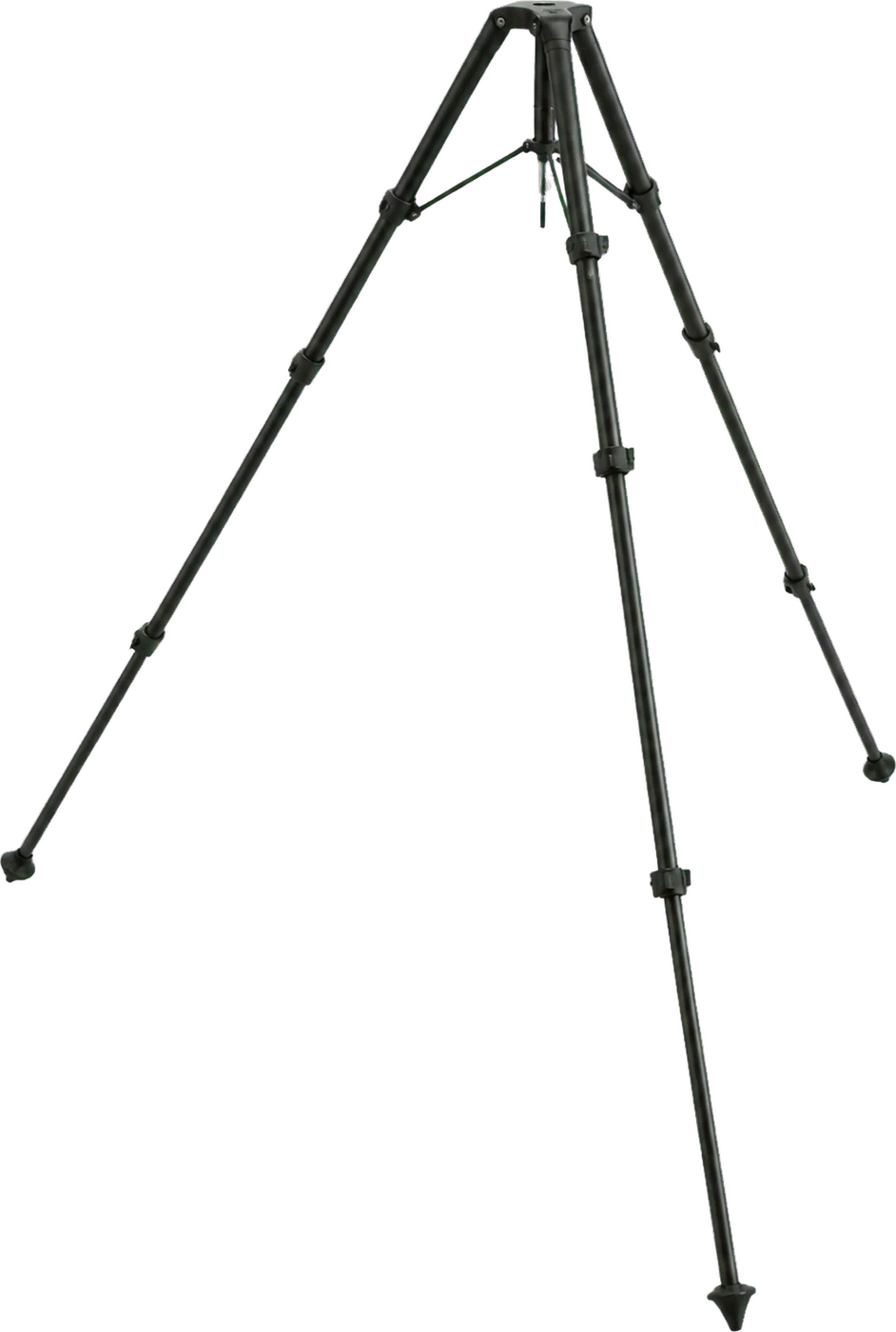

- 1.450 mm
- Extended Height
- 25 kg
- Rated Payload
- 2,50 kg
- Weight
Highlights

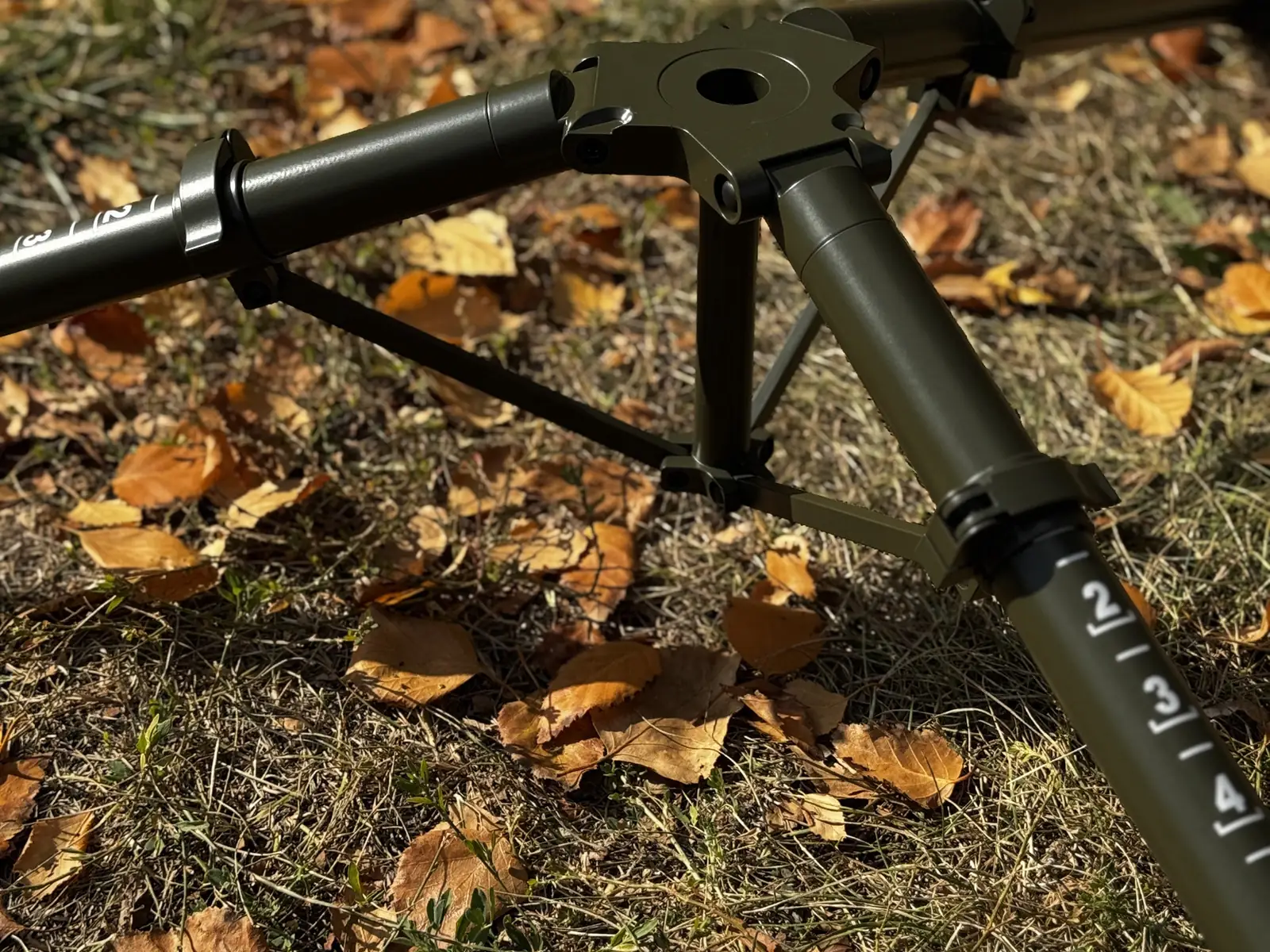

01Zero clearance
Patented design for designator-class work
The patented zero clearance mechanical design removes the play that a general purpose tripod carries, which is what qualifies it for a laser designator or a long-range thermal imager.
- Payload 25 to 35 kg by configuration
- Aluminium 6061-T6 construction

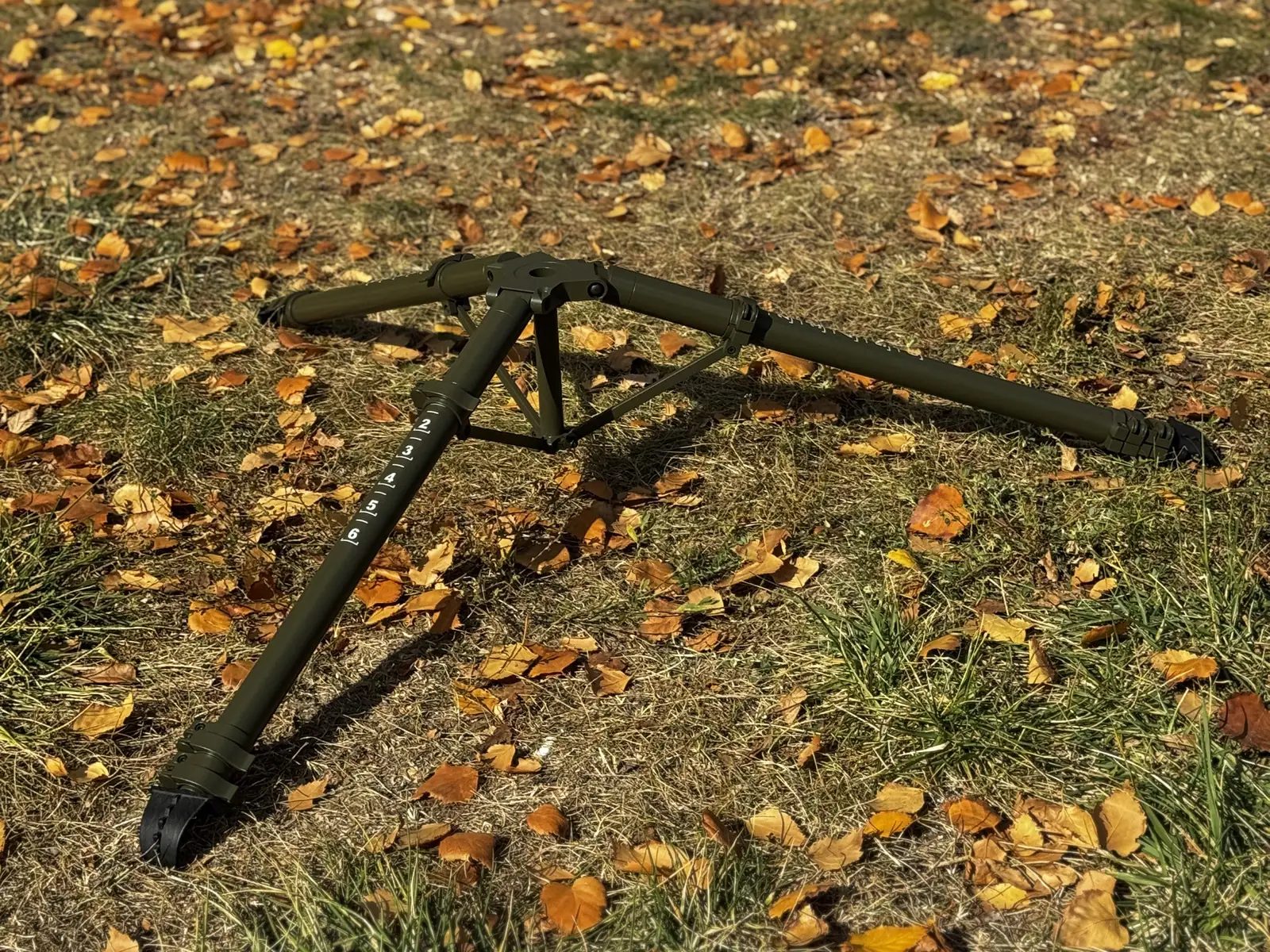

02Under 2 kg
1.95 kg carrying up to 35 kg
The lightest configuration weighs 1.95 kg and still takes 35 kg. Working height runs from 140 mm prone to 1450 mm standing depending on the configuration chosen.

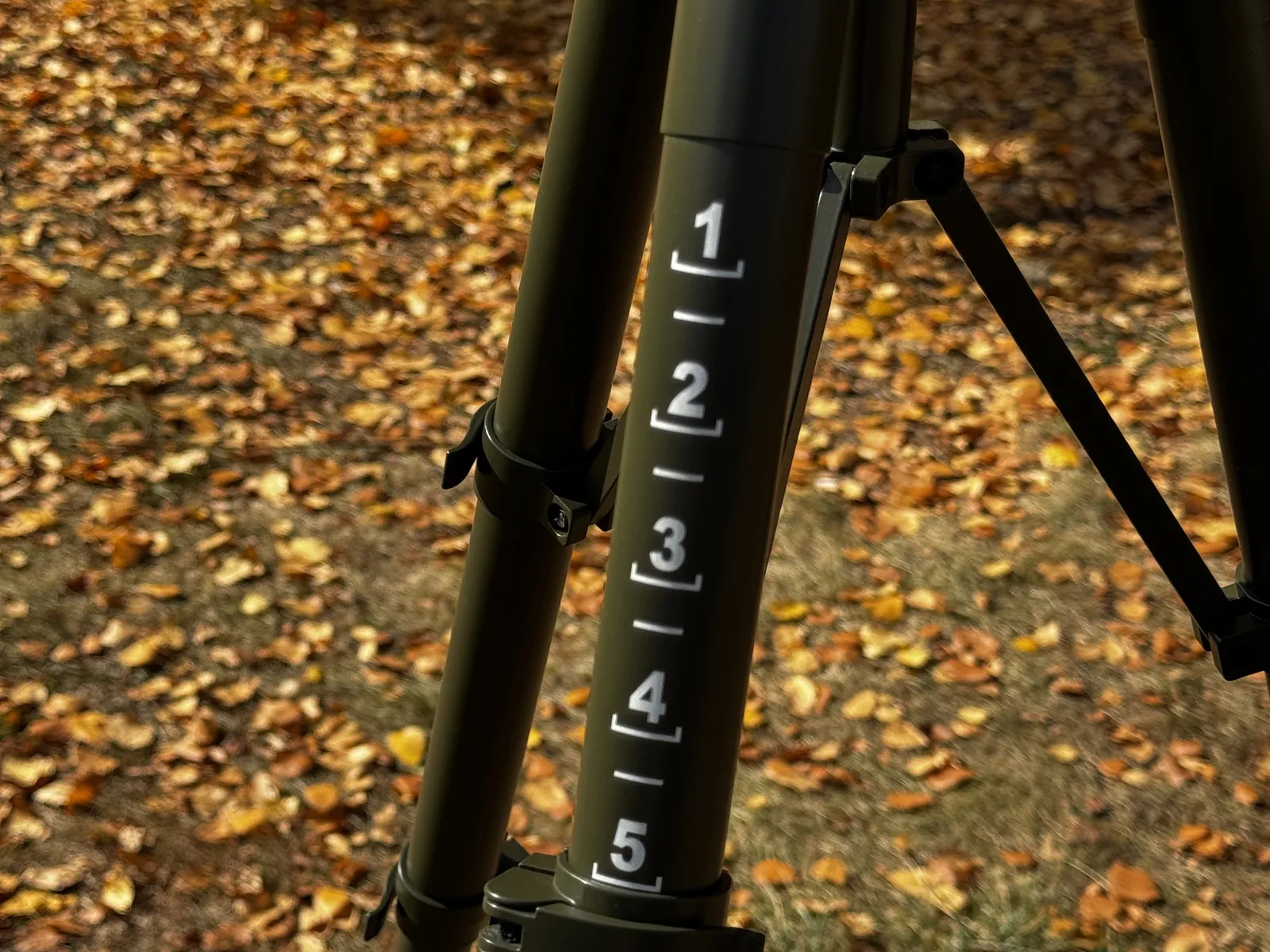

- Three operational heights: prone, sitting, standing
- Extended radius 420 to 600 mm

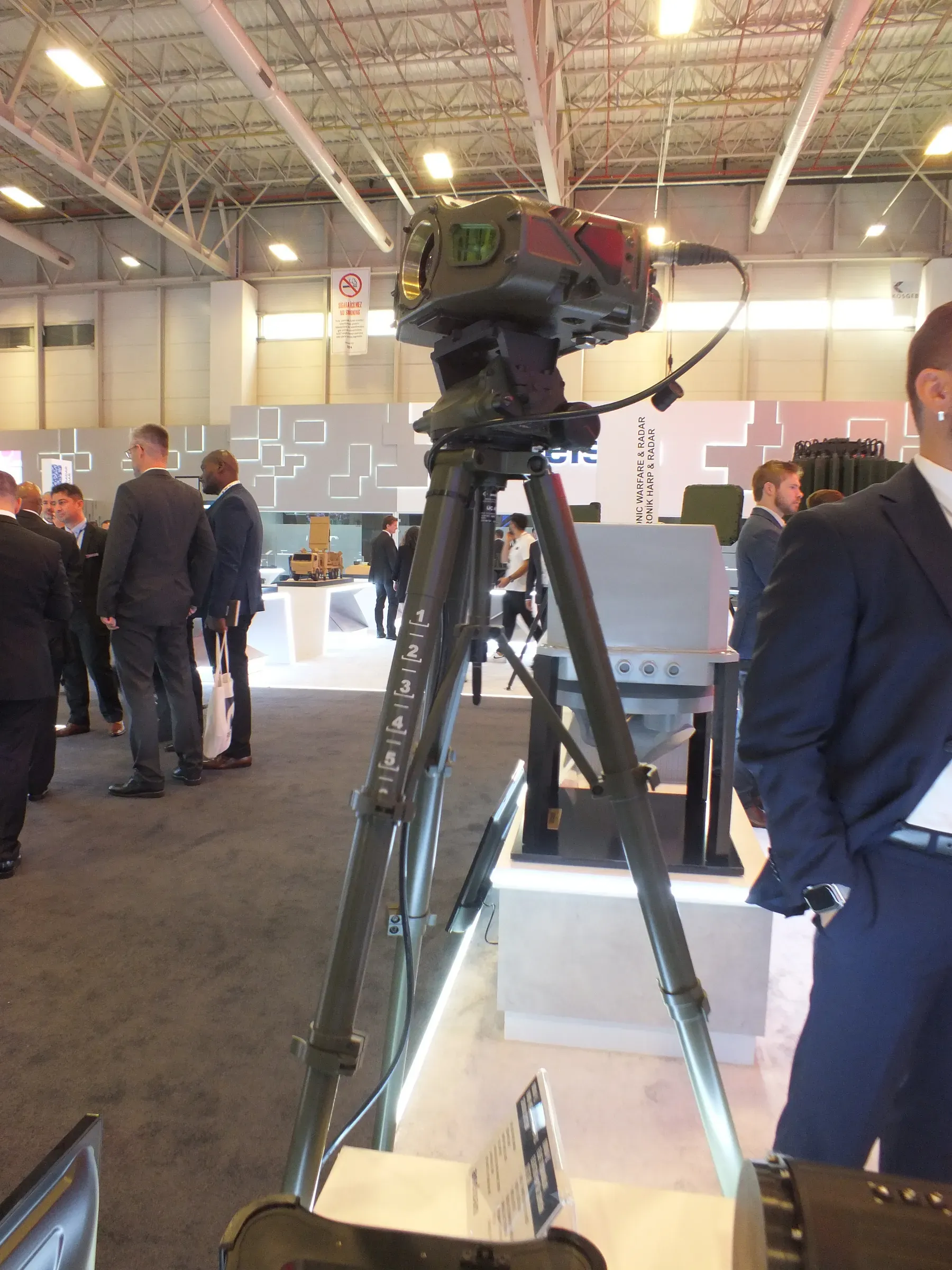

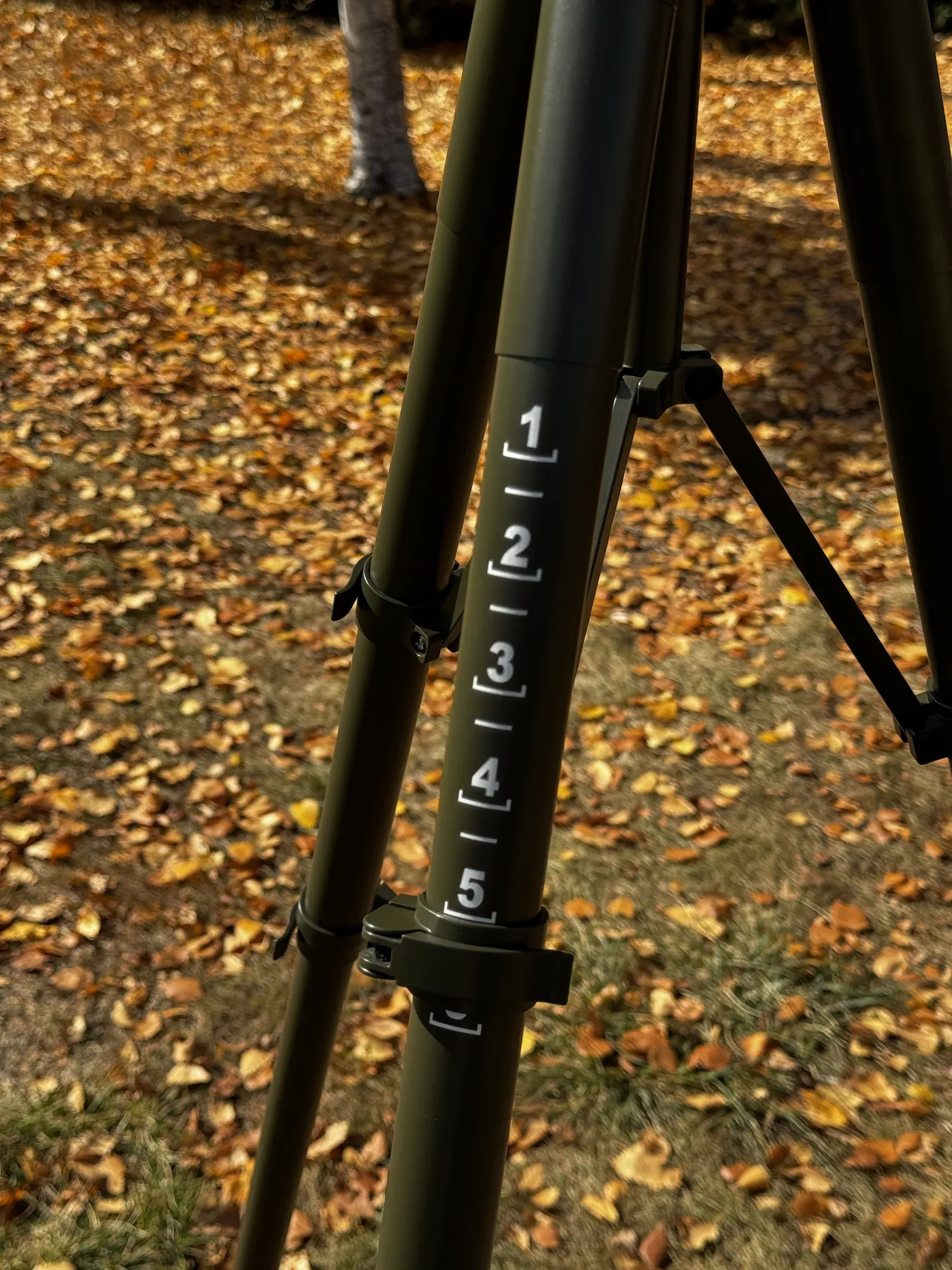

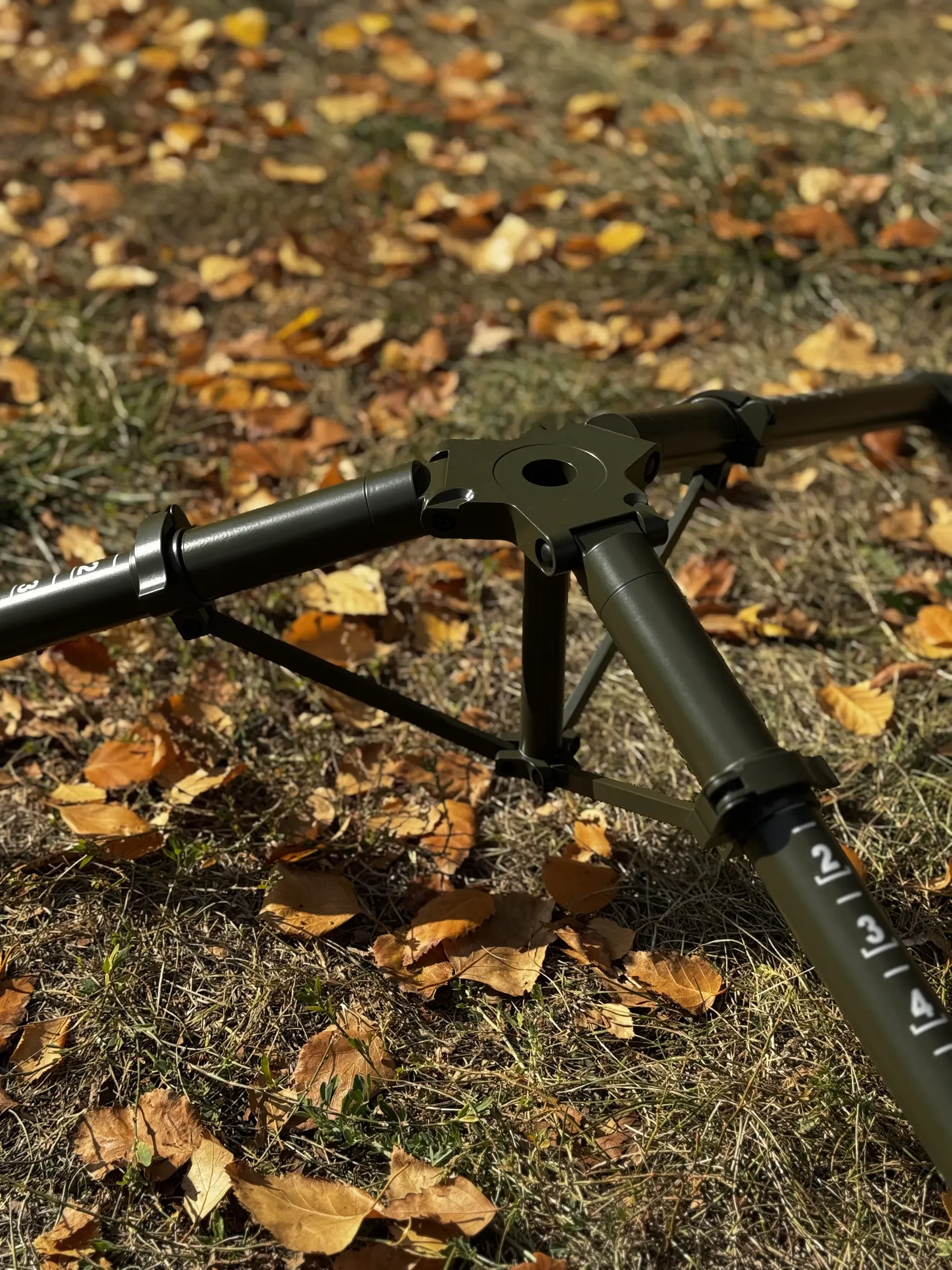

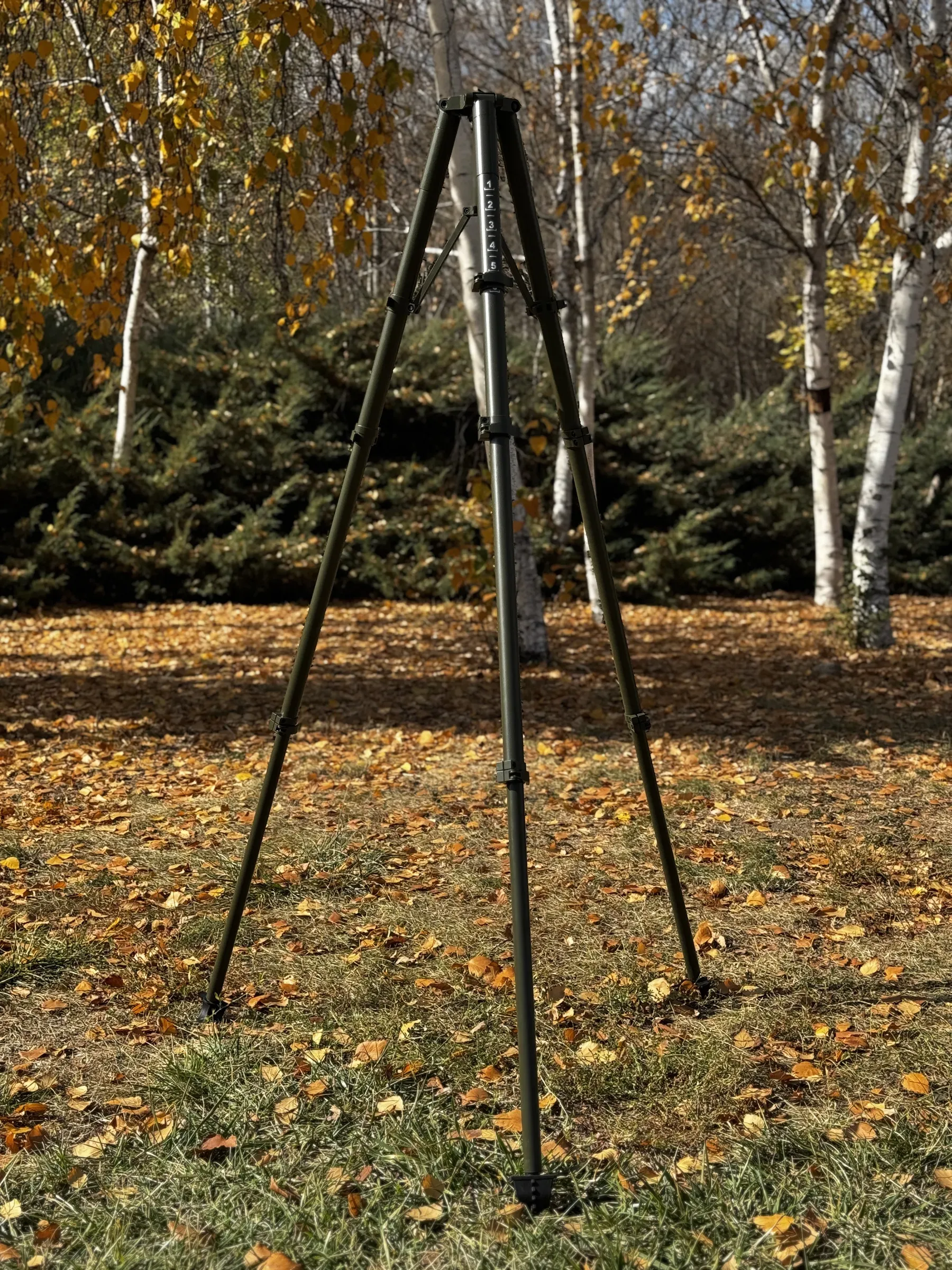

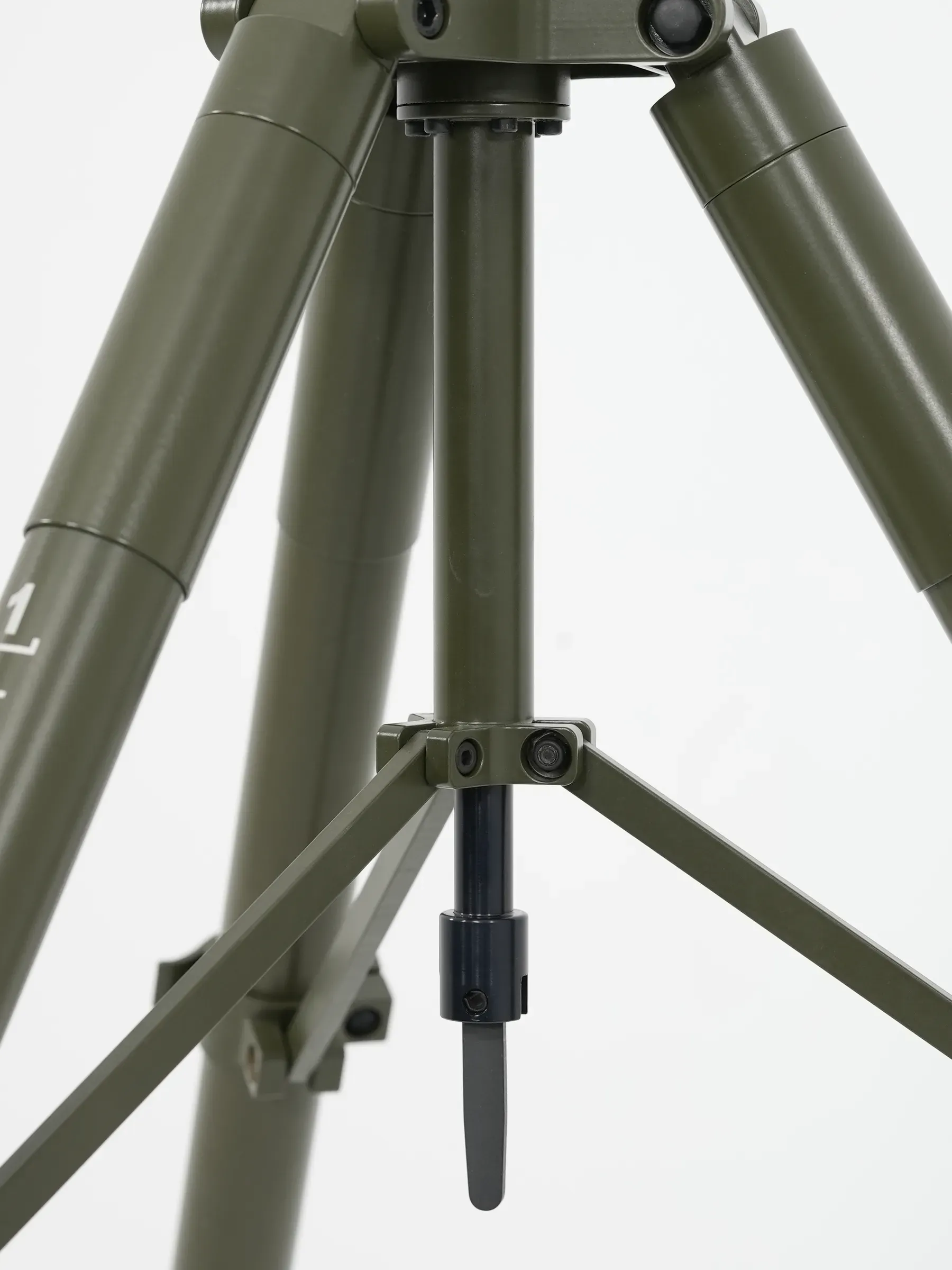

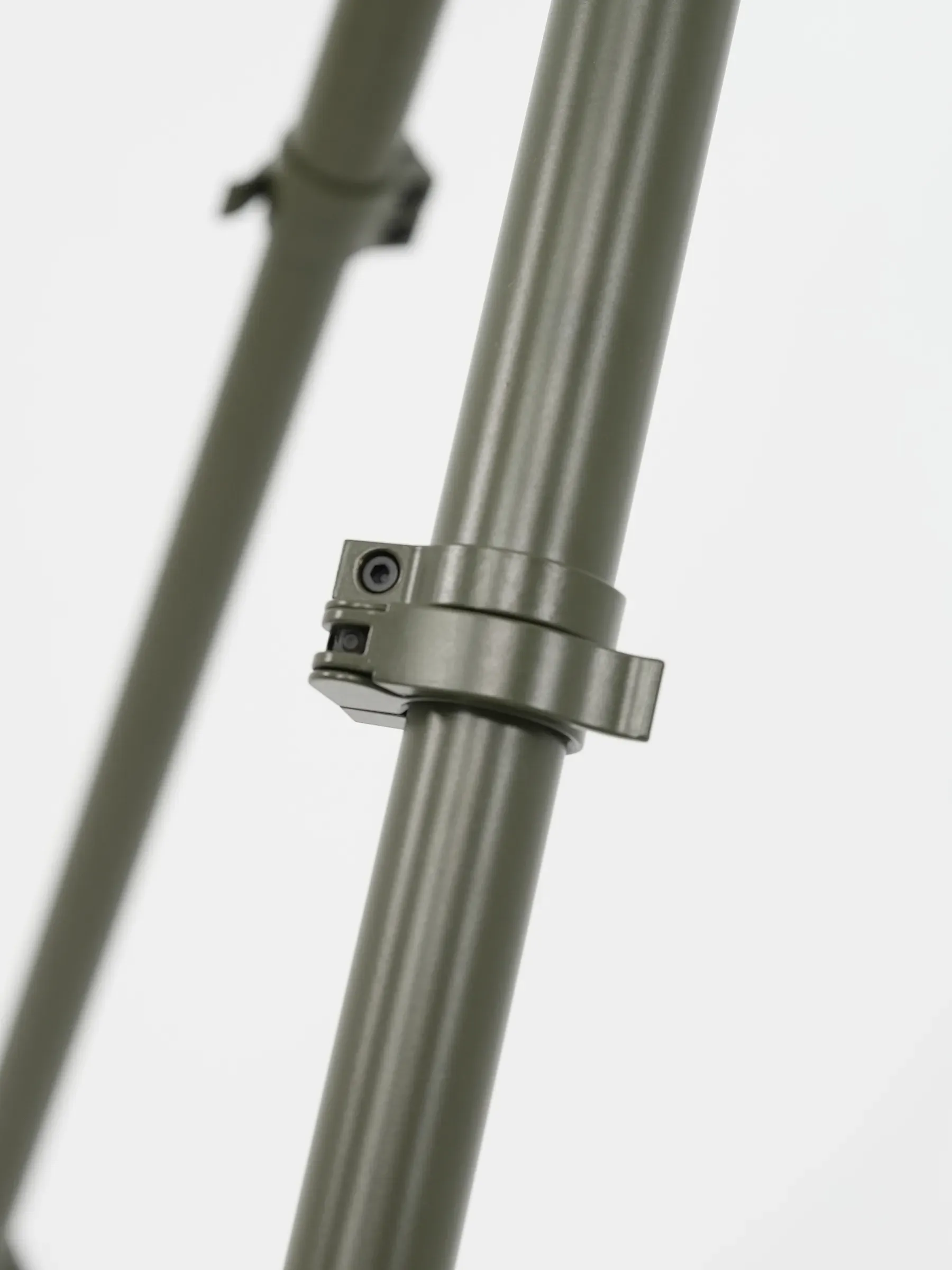

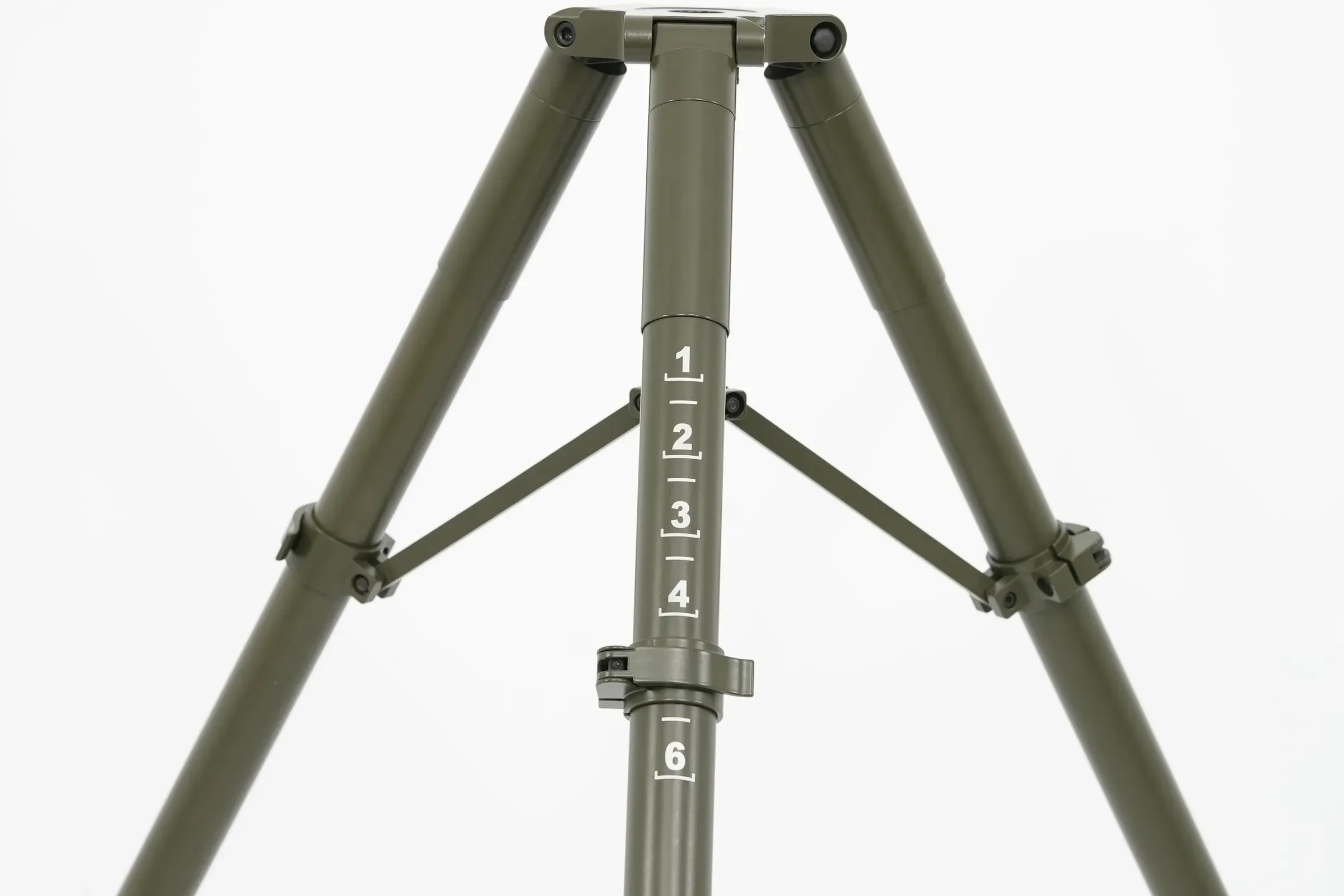

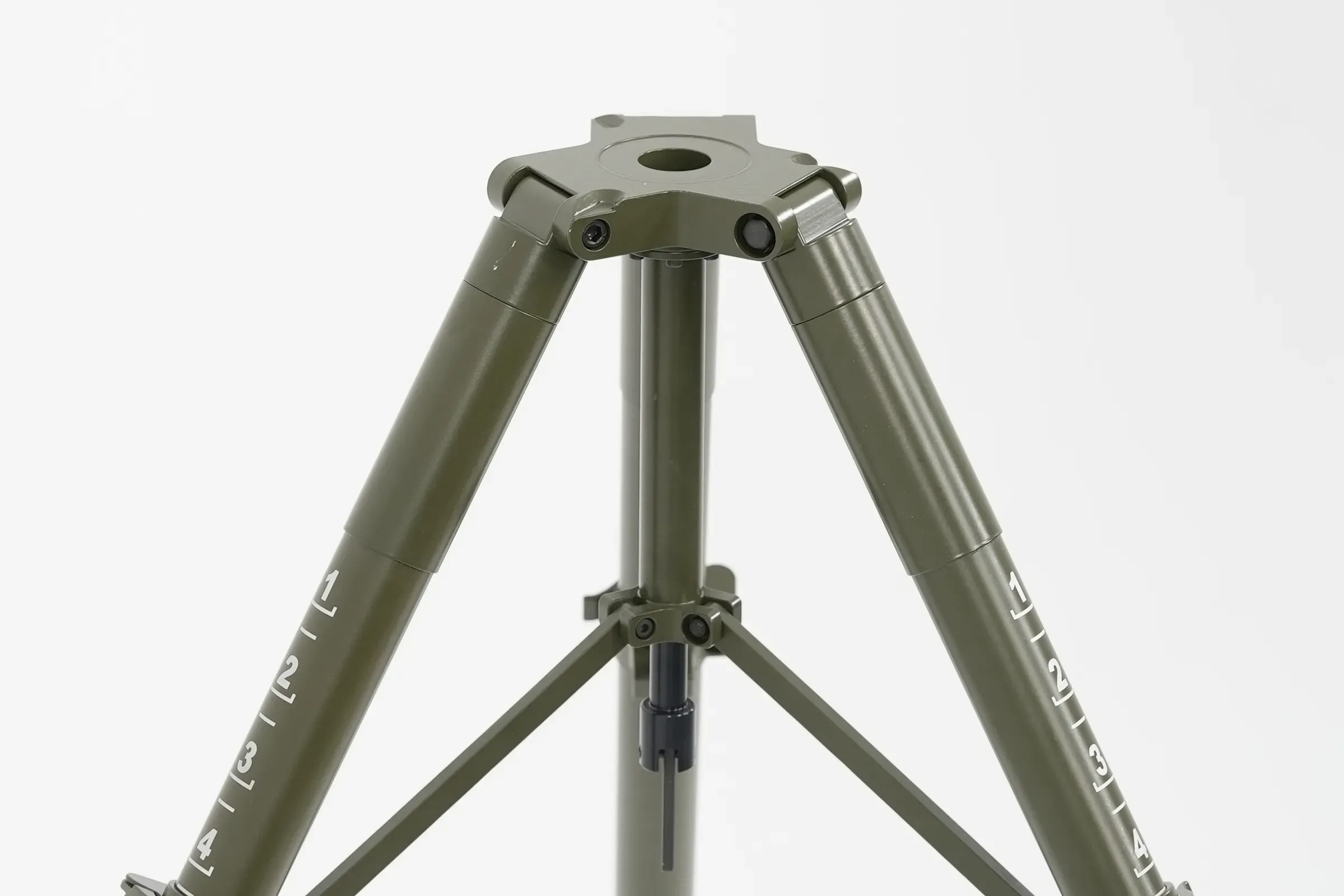

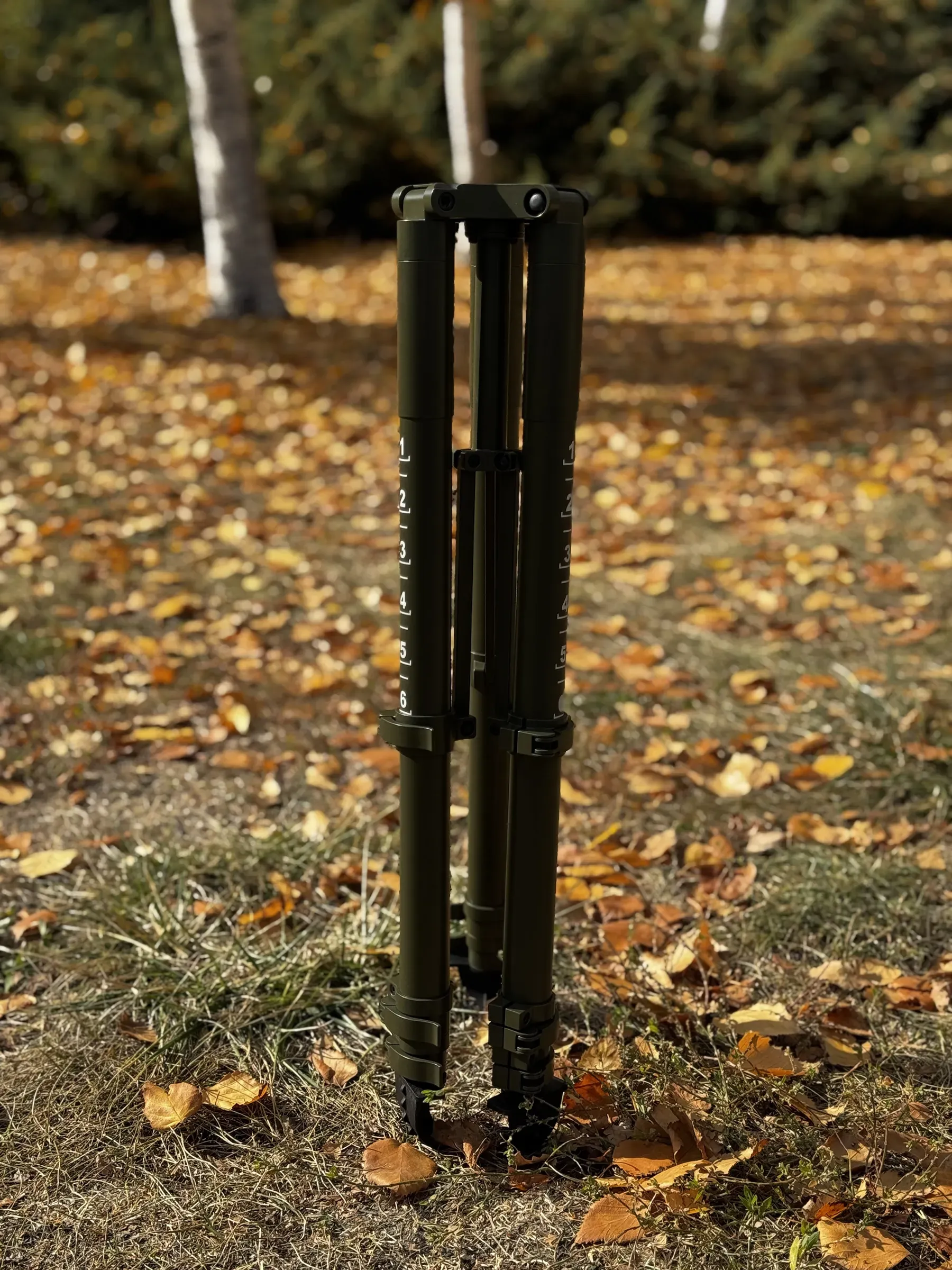

Gallery
Select a frame to open it at full size.
Configurations
| Part Number | retractedmm | extendedmm | payloadkg | Min. heightmm | weightkg | radiusmm |
|---|---|---|---|---|---|---|
| TML10-0600-1450-0025Standard | 600 | 1.450 | 25 | 150 | 2,5 | 600 |
| TML10-0585-0975-0035 | 585 | 975 | 35 | 140 | 1,95 | 420 |
Options

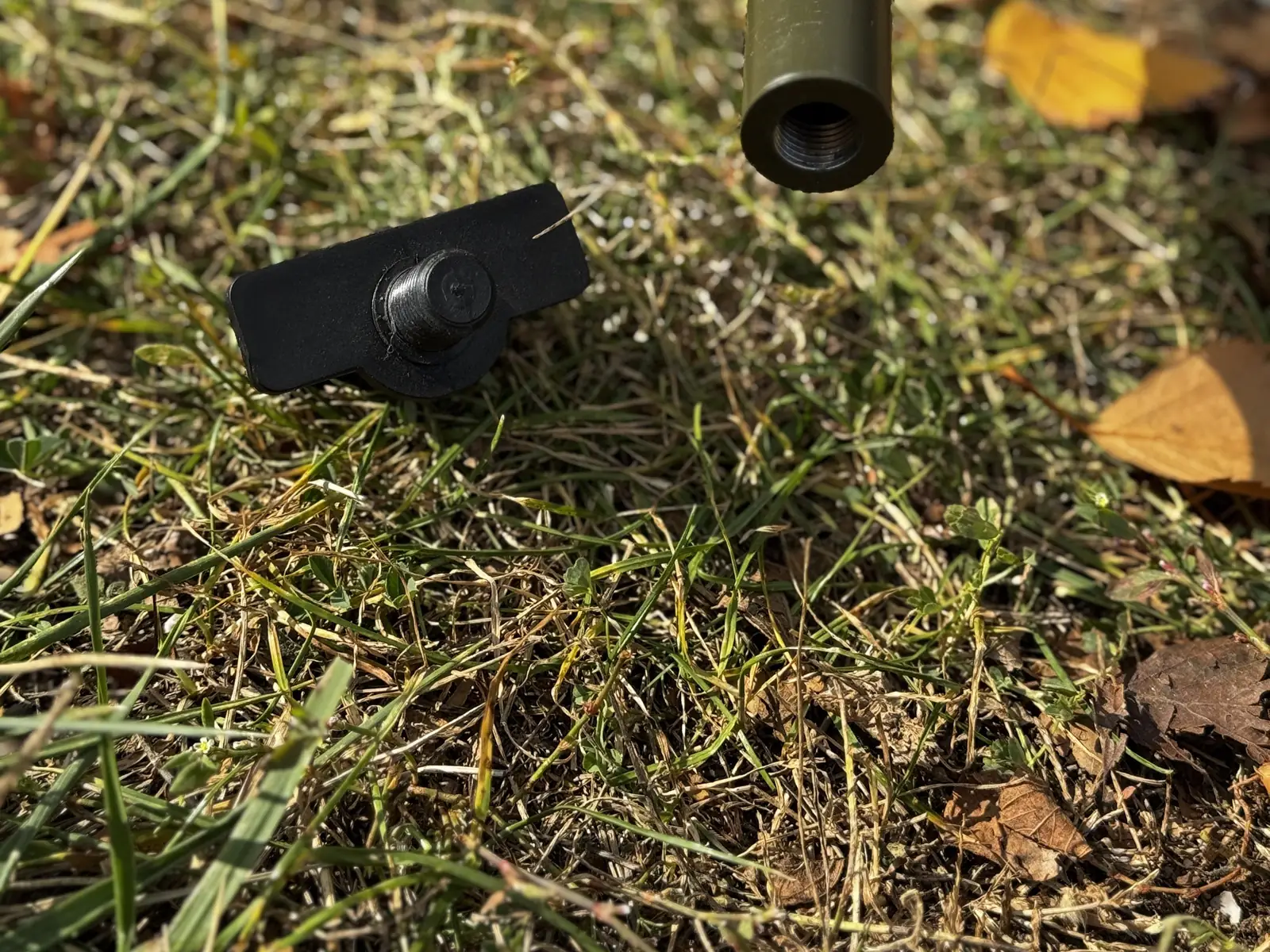

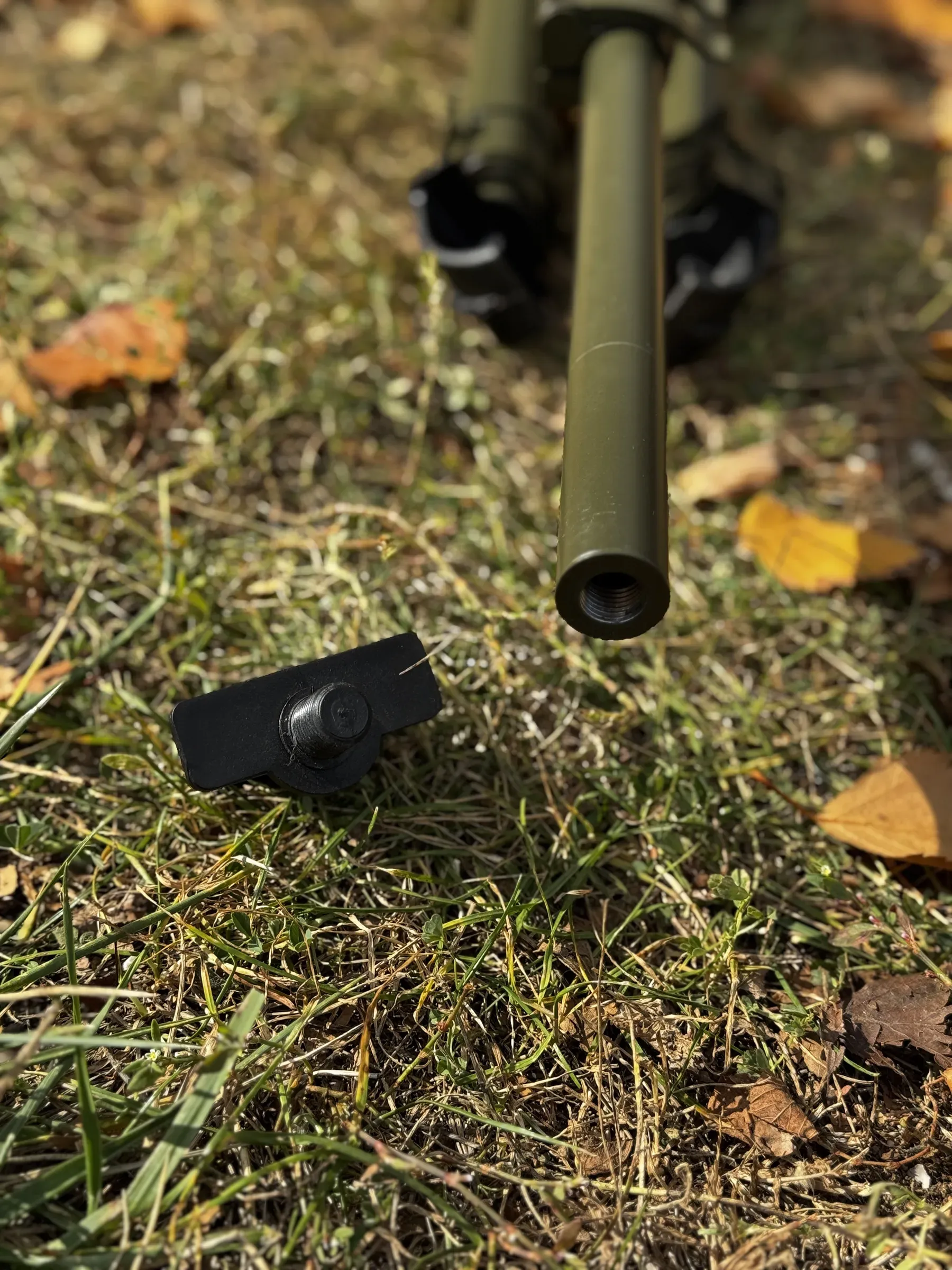

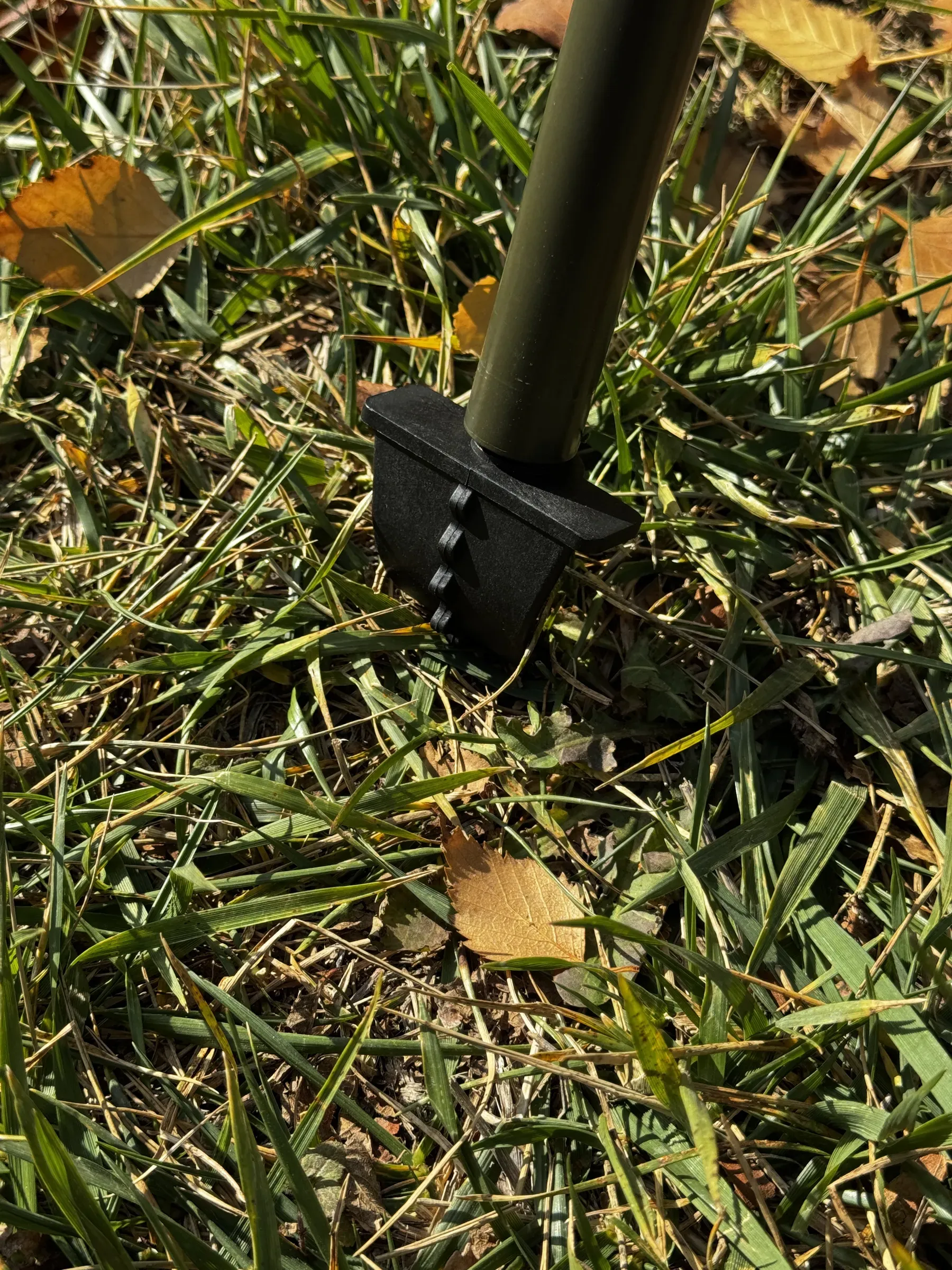

- FTCLFoot TypeClawfoot

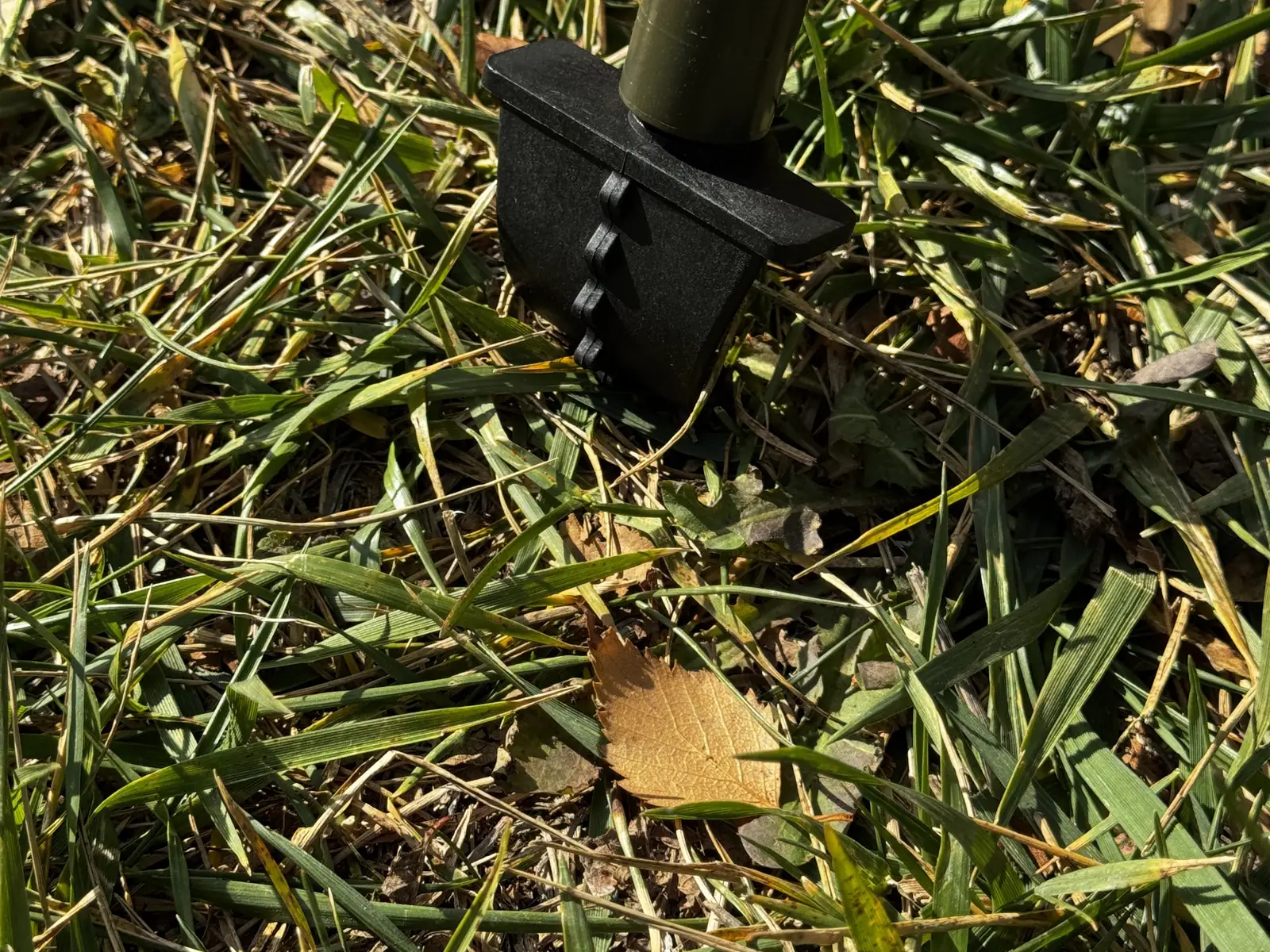

- FTSPFoot TypeSpikefoot
- FTBLFoot TypeBallfoot
- PCBGPadded Carry Bagordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Extended Height | 1.450 mm |
|---|---|
| Retracted Height | 600 mm |
| Rated Payload | 25 kg |
| Foot Type | Flatfoot |
| Minimum Working Height | 150 mm |
| Weight | 2,50 kg |
| Extended Radius | 600 mm |
|---|---|
| Retracted Diameter | 150 mm |
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Humidity | Mtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. IV, transit drop in the transport case |
Documents
- DatasheetDownloadable — PDF, 277 KB
- User ManualOn Request
- 3D Model (STEP)On Request
- Mechanical Interface Control DocumentOn Request
- MIL-STD-810G Environmental Qualification ReportOn Request
