Tripods & Deployment Supports
Light, medium and heavy duty tripods for thermal imagers, laser designators, reconnaissance optics and surveillance radars. Independently adjustable leg angles and telescopic leg lengths, interchangeable feet, ground anchor points and a patented zero-clearance interface on the lightweight line. Qualified to MIL-STD-810G.

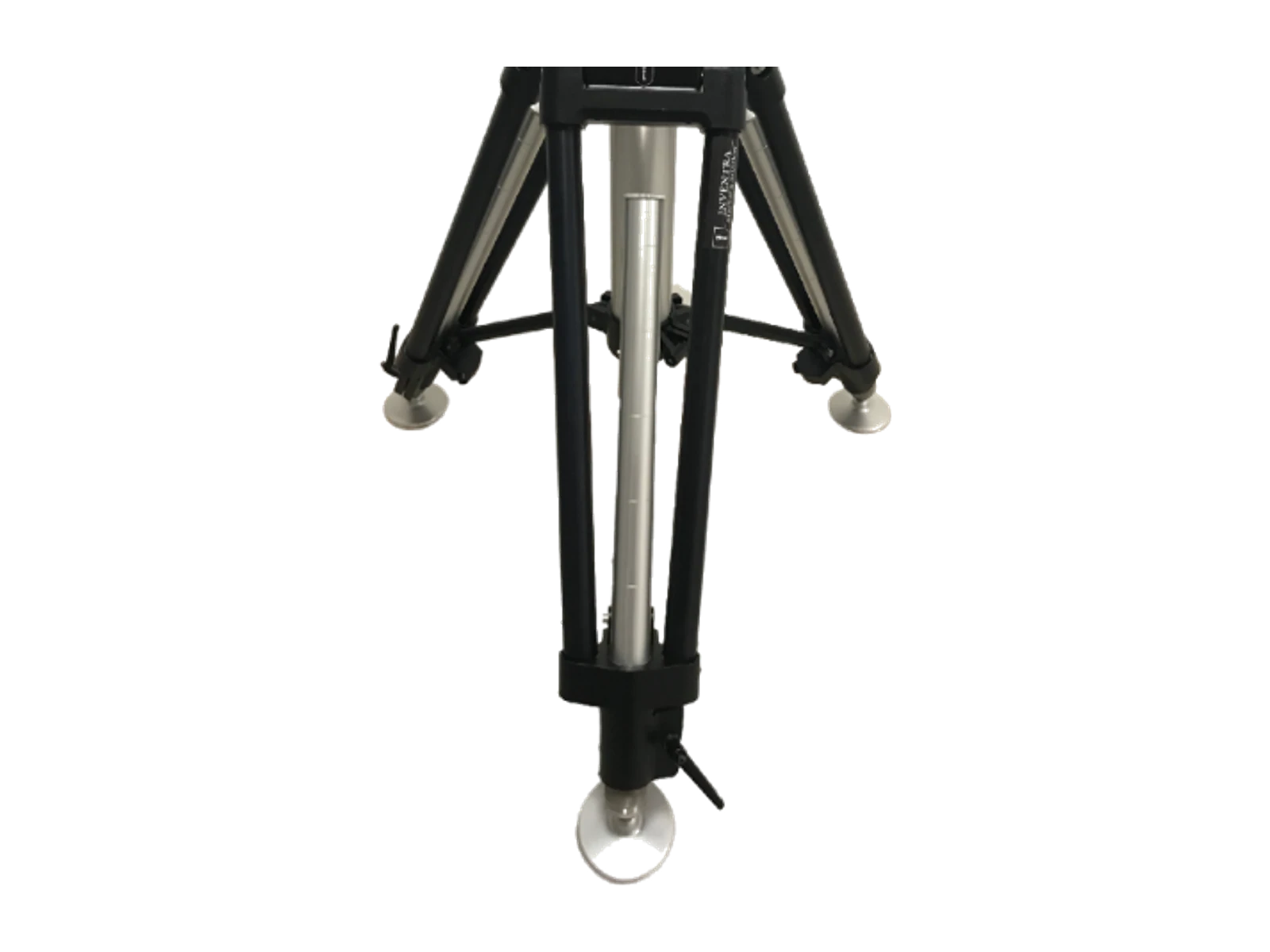

TMH10
Heavy Duty Tripod
Heavy duty V-architecture tripod rated for 150 kg, with a large centre column and wide leg spacing for off-centre payloads.
Learn More

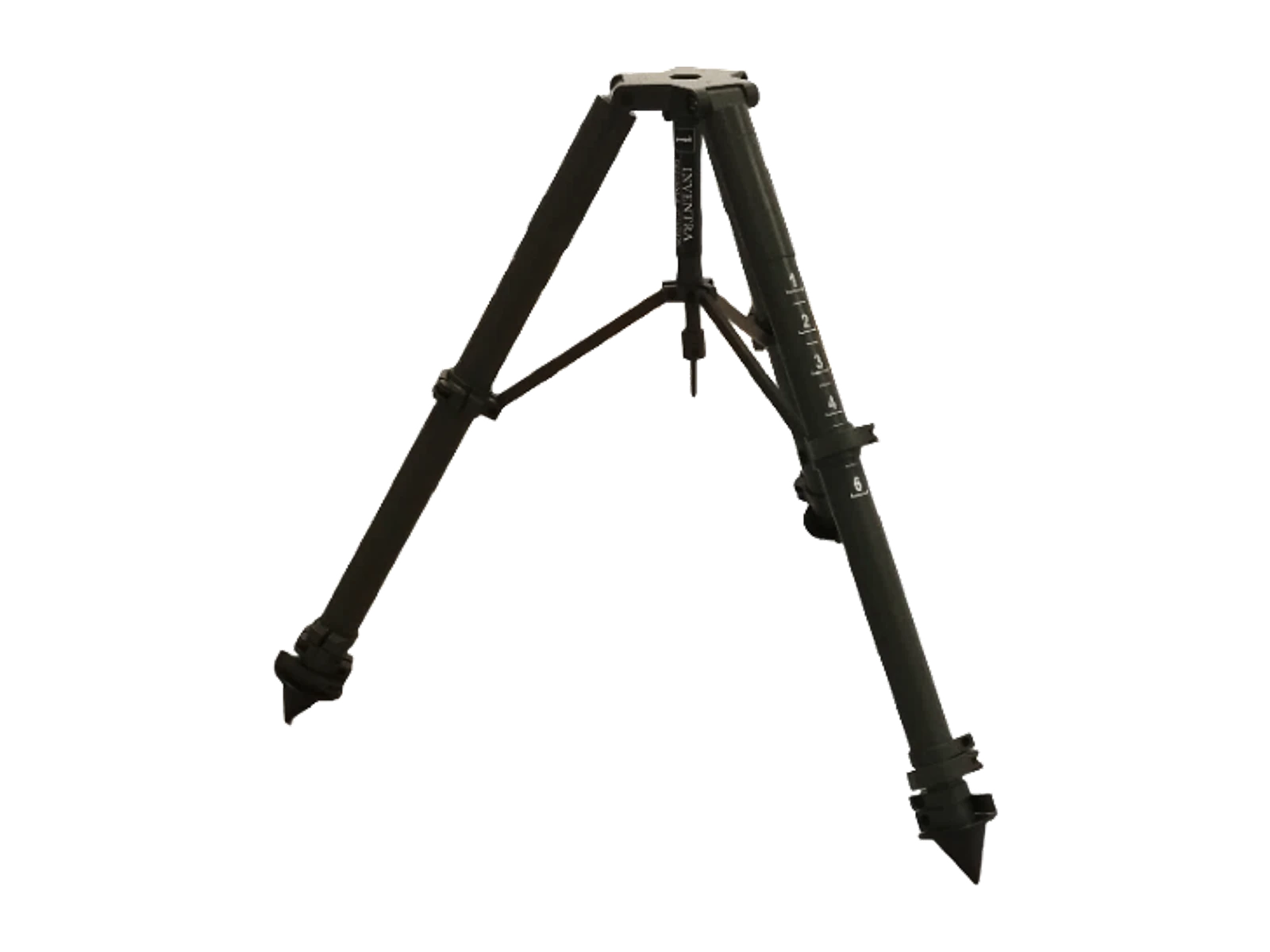

TML10
Ultra Lightweight Tripod
Aluminium tripod from 1.95 kg with a patented zero-clearance interface, for laser designators and long-range thermal imagers.
Learn More

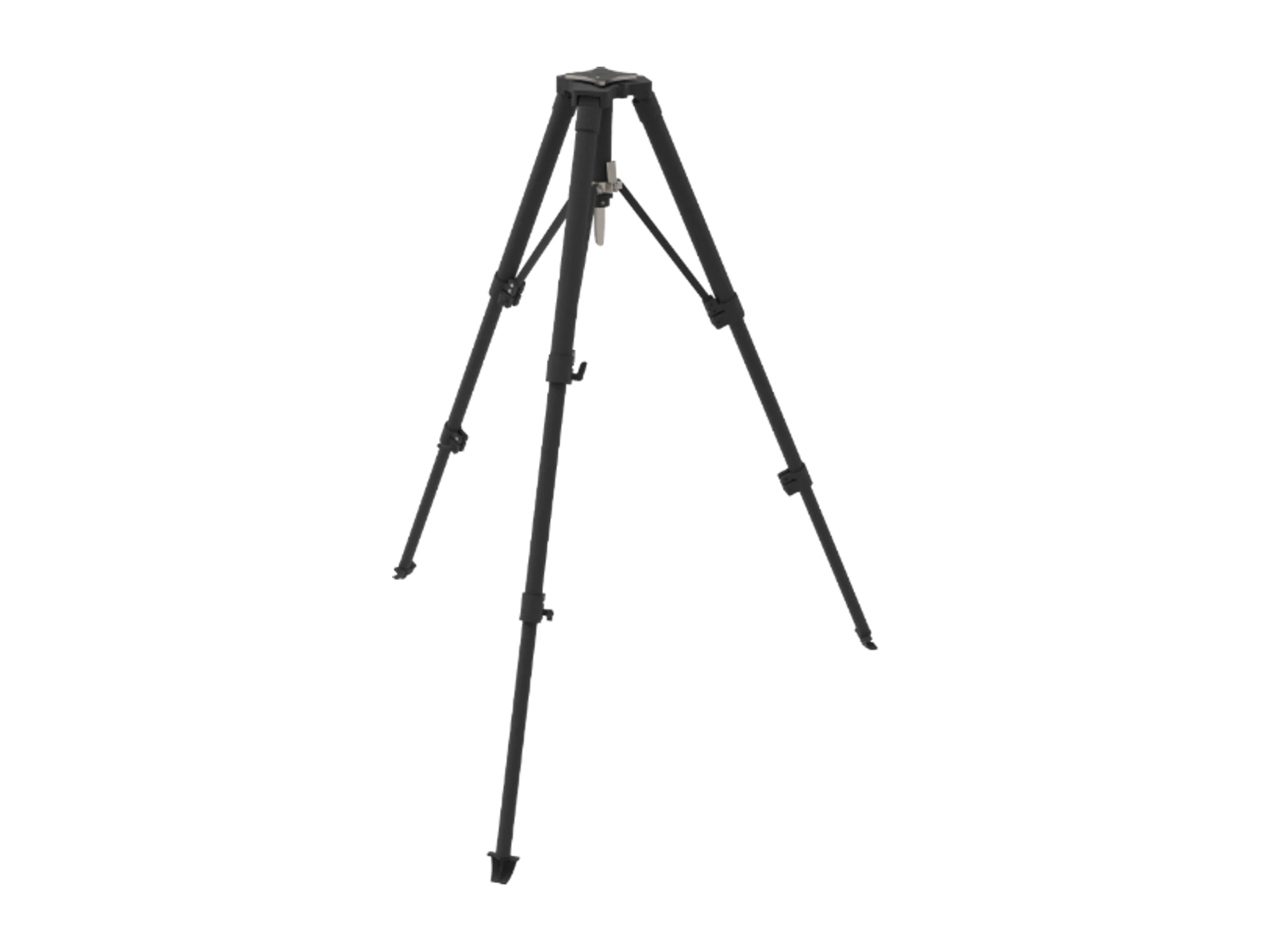

TMM10
Medium Duty Tripod
Medium duty tripod carrying up to 60 kg with thick-walled anodized tubes, built for tactical radar and reconnaissance optics.
Learn More
Compare Models
Payload Capacity
150 kg
25–35 kg
40–60 kg
Minimum Working Height
640–895 mm
140–150 mm
—
Retracted Height
725–1055 mm
585–600 mm
588–637 mm
Extended Height
Number of Sections
—
2–3
2–3
Weight
14.7–18.4 kg
1.95–2.5 kg
4.3–5.2 kg
Extended Radius
685–900 mm
420–600 mm
632–875 mm
Retracted Diameter
280 mm
150 mm
—
Leg Tube Diameter (Top)
34.5 mm
34 mm
—
Leg Tube Diameter (Bottom)
40 mm
—
—
Material
Aluminium 6061-T6 / stainless steel AISI 316
Aluminium 6061-T6
Aluminium 6061-T6 / stainless steel AISI 316
Wind Load
80 km/h
80 km/h
80 km/h
Operating Temperature
−40 °C to +80 °C
−40 °C to +80 °C
−40 °C to +80 °C
Qualification Standard
Vibration Qualification
Humidity Qualification
Rain Qualification
Salt Fog Qualification
Dust and Sand Qualification
