Mast Systems

MMW10

Winch-Driven Telescopic Manual Mast System

Tripod mast raised by a winch arm, lifting 50 kg to 2500 mm from a 25 kg unit that one person sets up in five minutes. Also configurable as electromechanical.

  • MIL-STD-810G
1200 mm
Retracted Height
2500 mm
Extended Height
50 kg
Payload Capacity
Request QuoteCompare Models

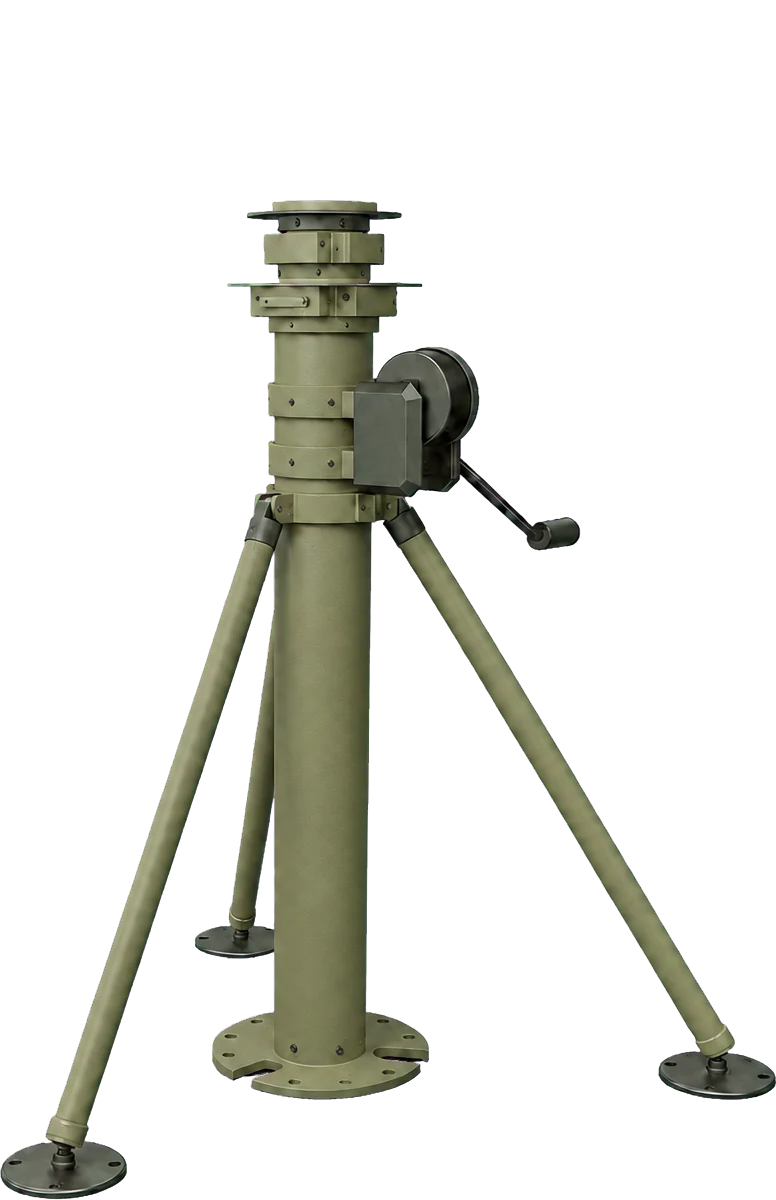

MMW10 — Winch-Driven Telescopic Manual Mast System

Highlights

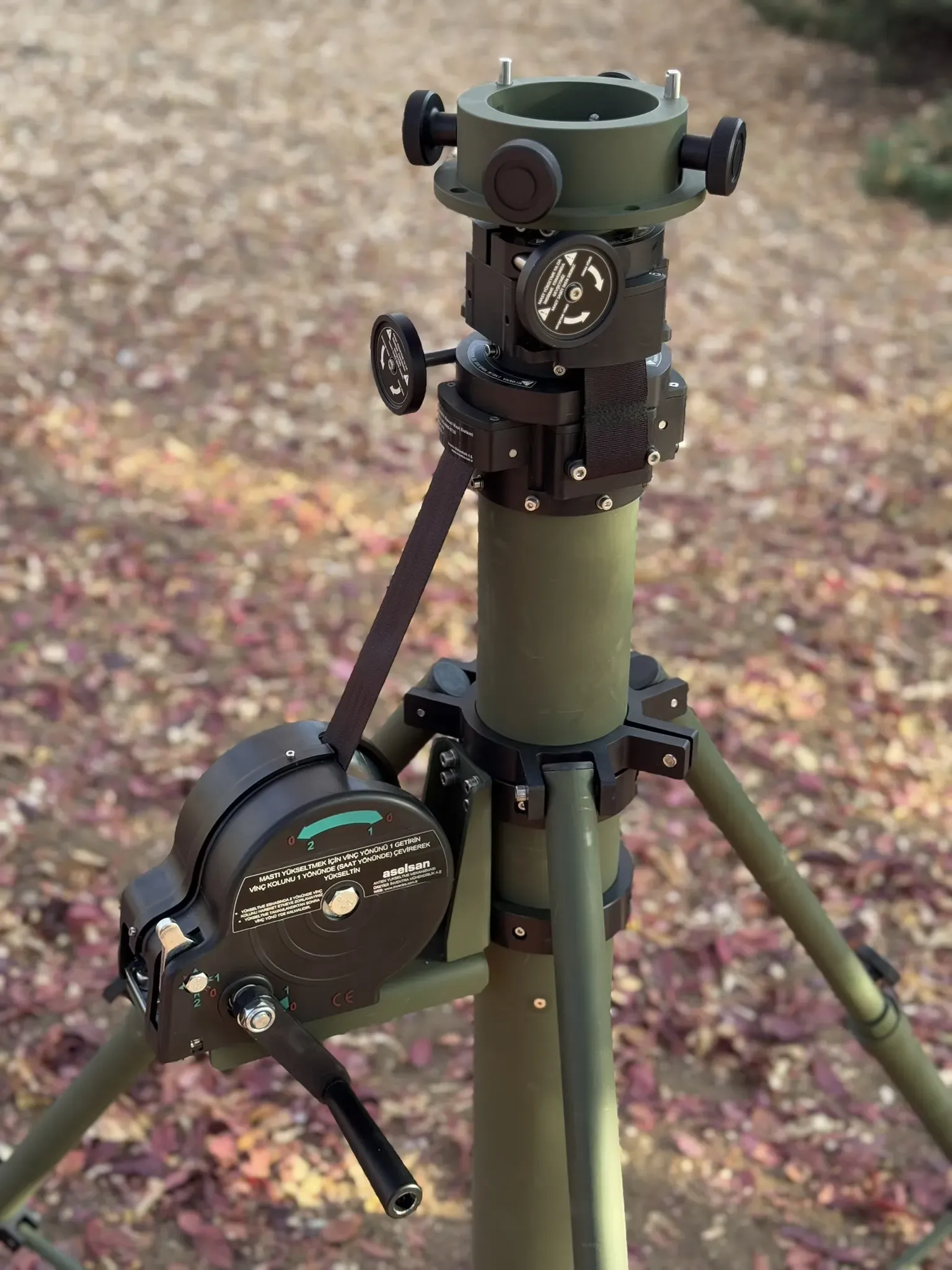

Mast head, rotator and winch with crank handle fitted, tripod standing on a gravel path.

01Winch drive

One arm raises every section together

A winch arm on the tripod body opens the sections synchronously, so the mast rises evenly rather than one stage at a time. Manual locks hold each section once the mast is up.

  • Opens in 60 s, deployed in 5 minutes
  • Three sections, 98 mm section width

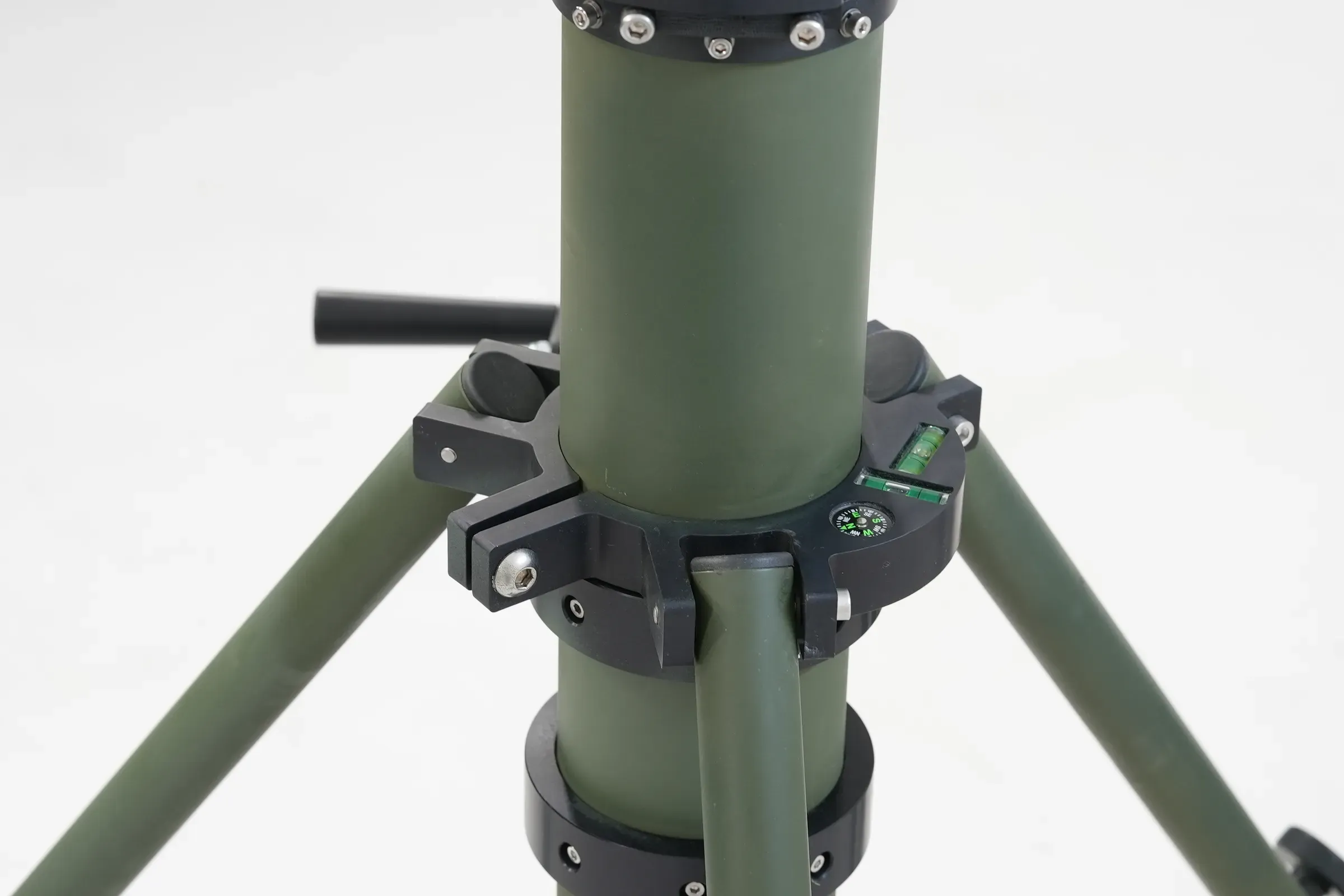

Close-up of olive green crane-arm mast collar clamp and locking lever where the tubular pole meets its tripod legs.

02Weight

50 kg of payload on a 25 kg mast

High specific strength material and the mechanical design keep the unit at 25 kg while it carries 50 kg. One person deploys it, and the mast travels with its stakes, wheeled transport case and installation guide.

  • 25 kg mast weight, 50 kg payload
  • Extended height 2500 mm

Field Video

Video pending

Specifications

Performance
Retracted Height1200 mm
Extended Height2500 mm
Payload Capacity50 kg
Opening Time60 s
Deployment Time5 min
Number of Sections3
Actuation TypeManual
Mechanical
Weight25 kg
Section Width98 mm
Locking MechanismManual section locks
Environmental
Wind Load120 km/h at 1 m²
Operating Temperature−32 °C to +60 °C
Storage Temperature−40 °C to +70 °C
Qualification StandardMIL-STD-810G
Vibration QualificationMIL-STD-810G Method 514.6 Proc. I Cat. 20, Fig. 514.6C-3
Shock QualificationMIL-STD-810G Method 516.6 Proc. I, 20 g / 11 ms
Rain QualificationMIL-STD-810G Method 506.5 Proc. I, 1.7 mm/min
Humidity QualificationMIL-STD-810G Method 507.5 Proc. I, 90% non-condensing
Dust and Sand QualificationMIL-STD-810G Method 510.5 Proc. I and II

Values are for the standard configuration. Mission-specific configurations are offered on request.

Request Quote

Documents

  • DatasheetOn request
  • User ManualOn request
  • 3D Model (STEP)On request
  • Mechanical Interface Control DocumentOn request
  • MIL-STD-810G Environmental Qualification ReportOn request
Request Quote

Application Areas

Technical discussion and quotation

Tell us the platform and the constraint. Our engineering team answers with a configuration that fits it.

Request QuoteMast Systems

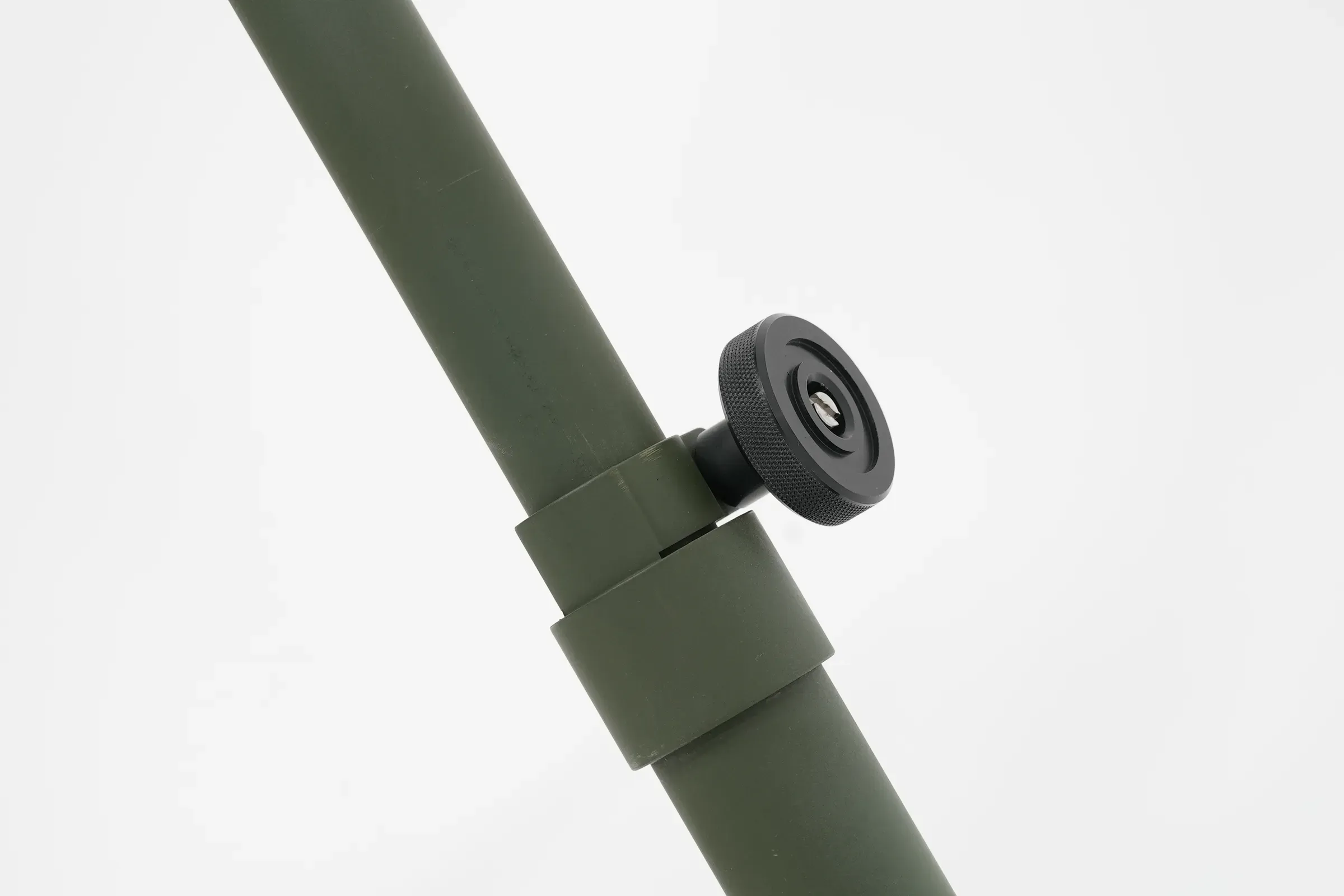

Angled tripod leg with its clamping collar and black locking knob against a light backdrop.

1 / 41

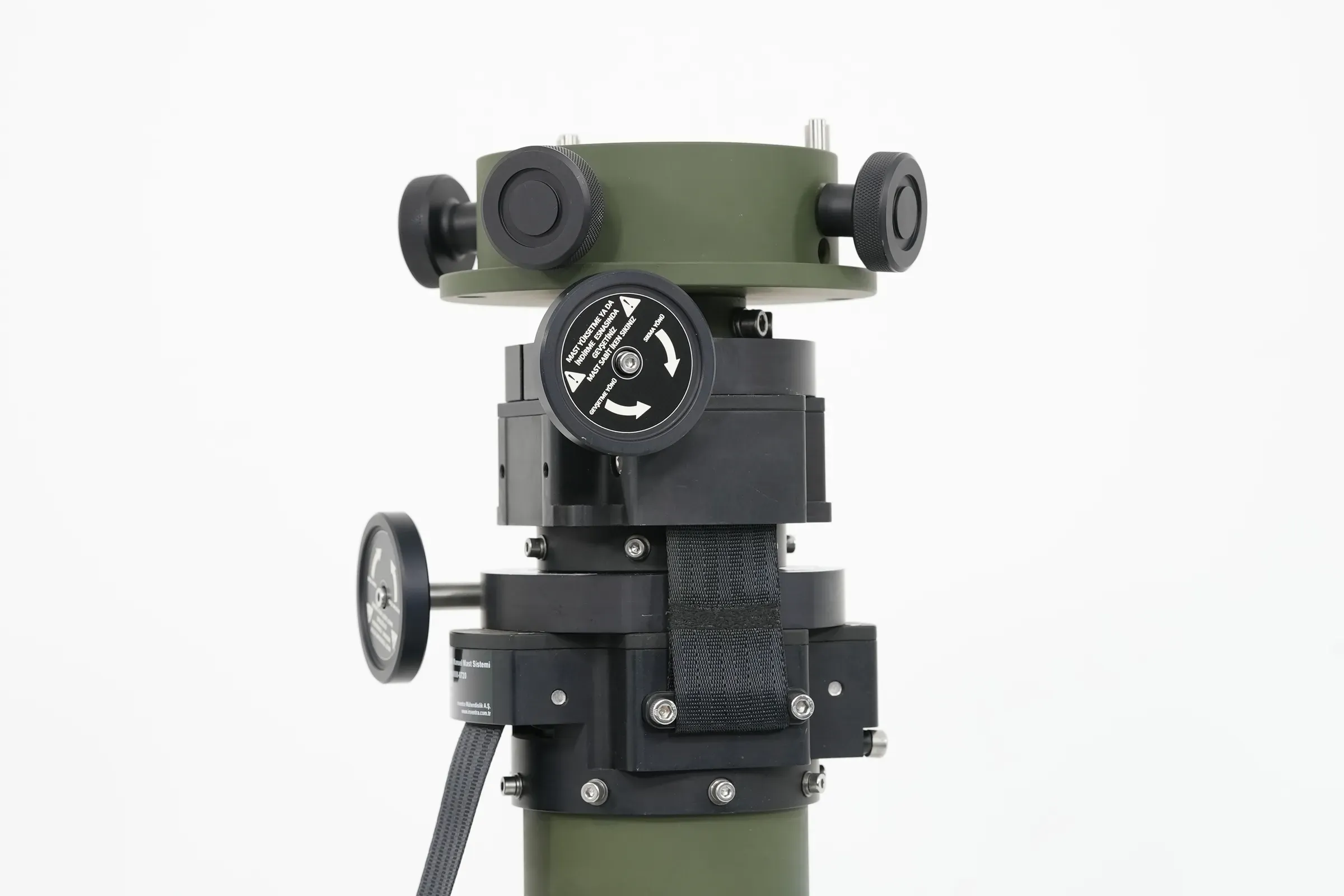

Mast head with payload mounting ring, rotator knobs and gearbox above the olive pole.

2 / 41

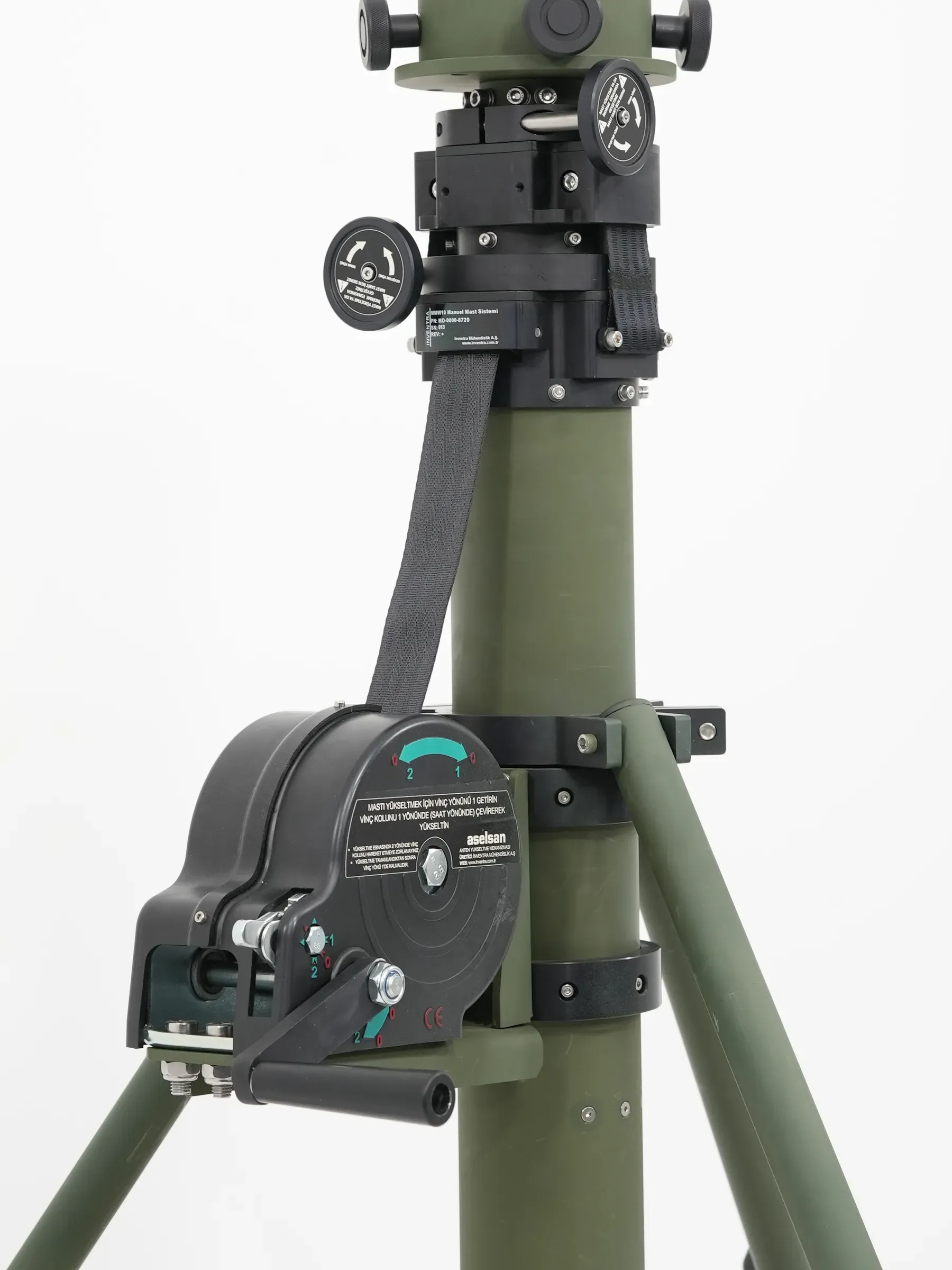

Upper mast showing head assembly, lifting strap and black winch drum with crank spindle.

3 / 41

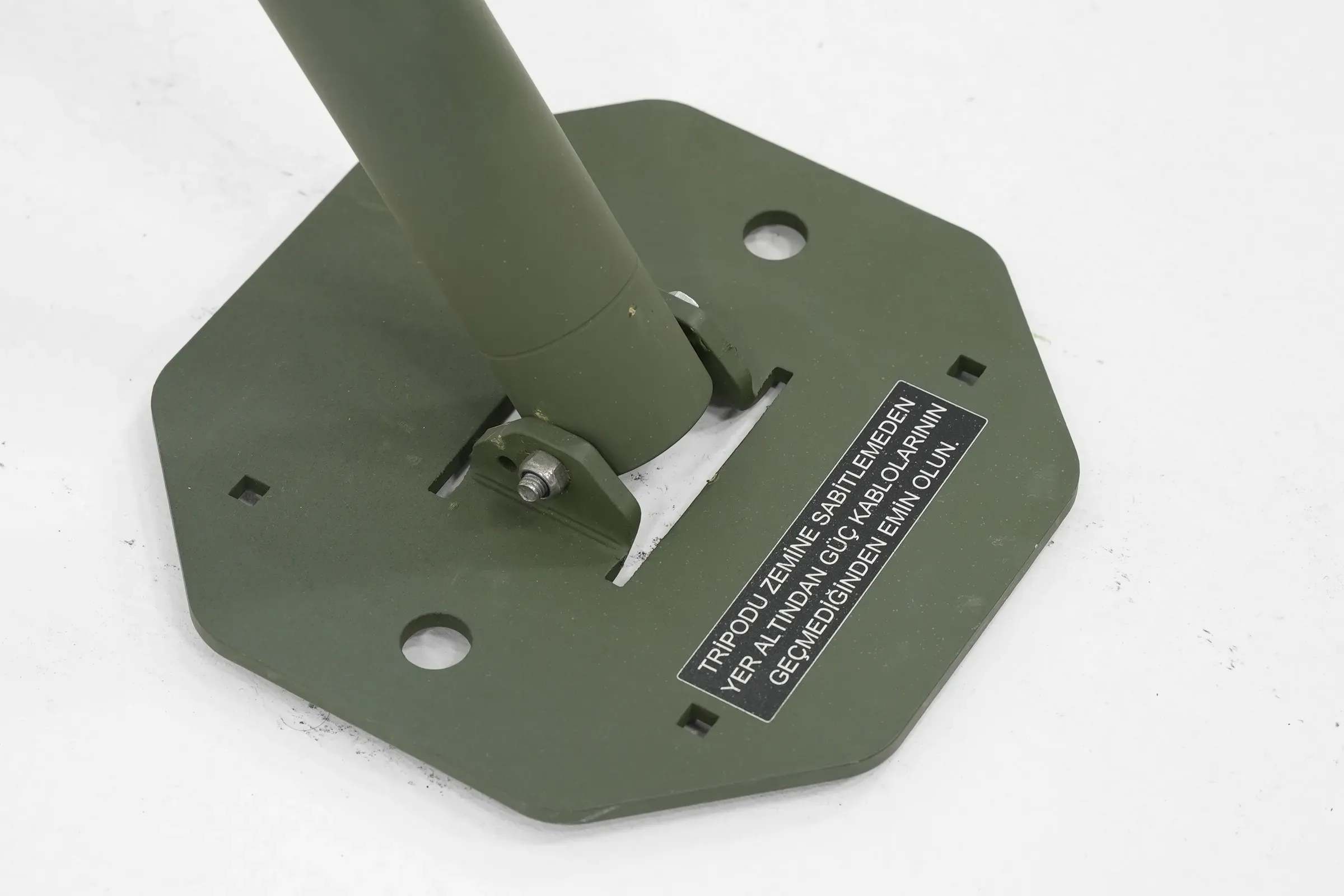

Olive octagonal footplate with tripod leg bolted in and Turkish instruction label attached.

4 / 41

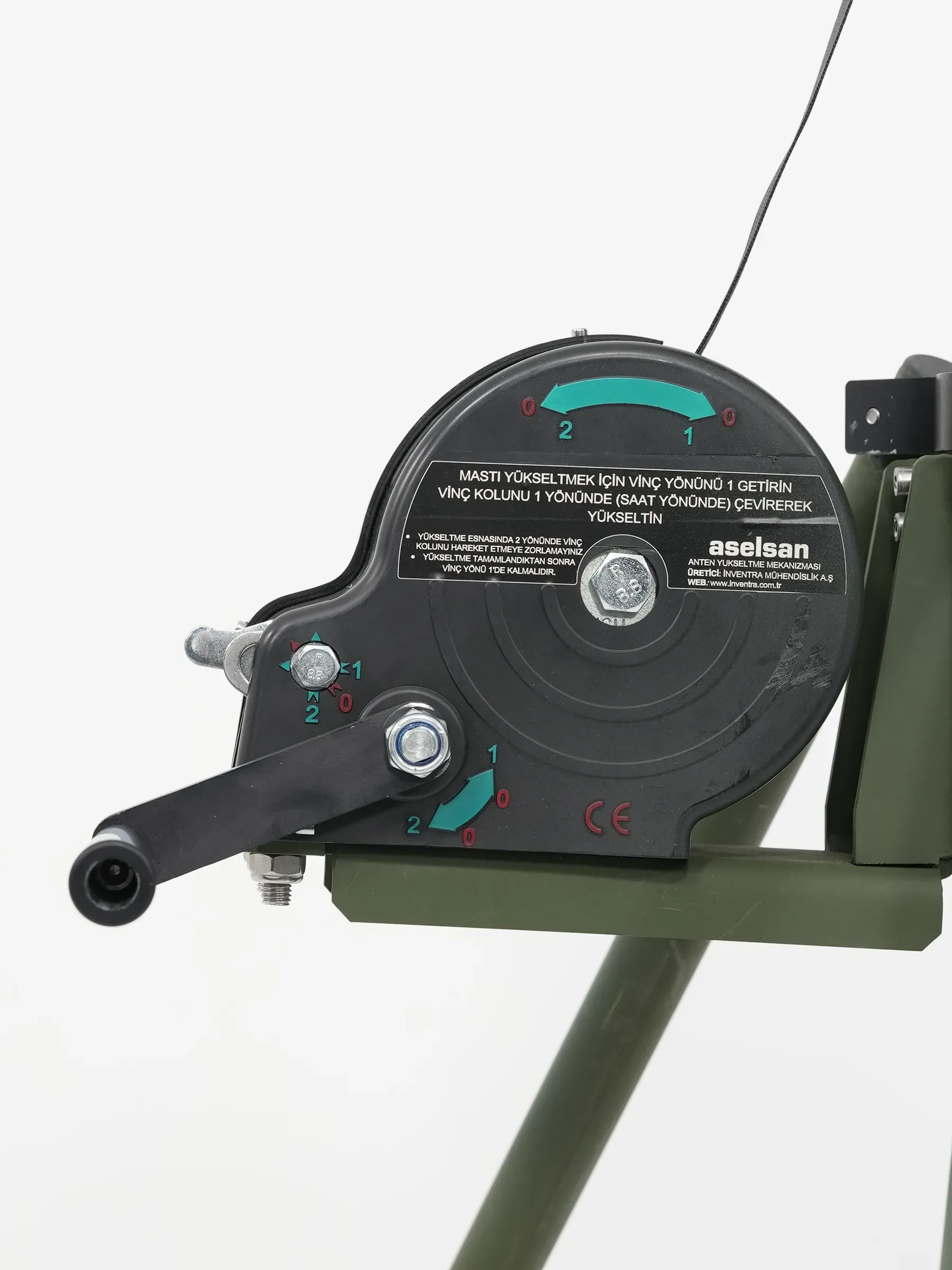

Close-up of the hand winch with crank arm and ASELSAN-labelled instruction plate on the mast.

5 / 41

Close-up of olive green crane-arm mast collar clamp and locking lever where the tubular pole meets its tripod legs.

6 / 41

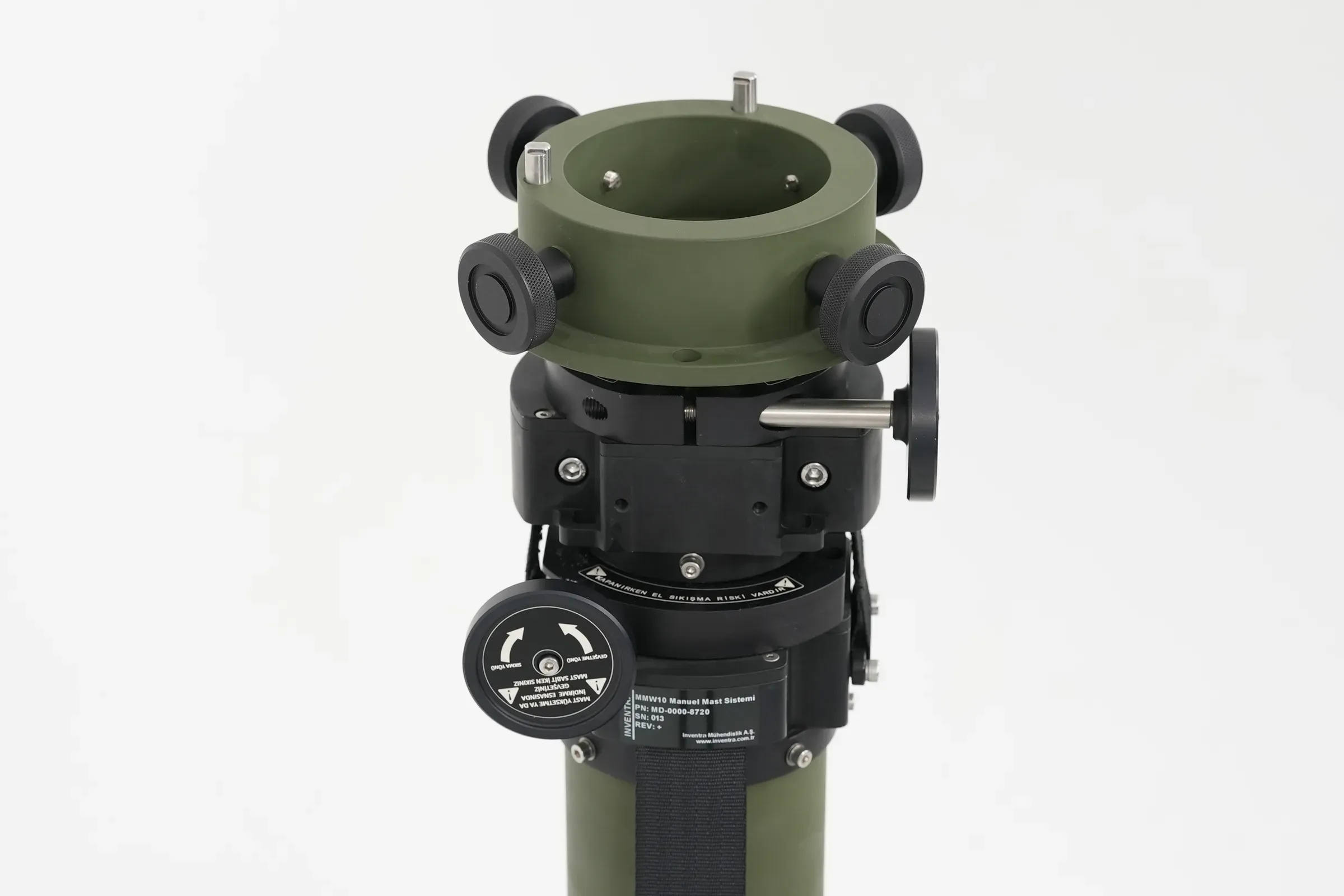

Top-down view of open mast tube mouth with black clamp ring, locking handles and instruction label below.

7 / 41

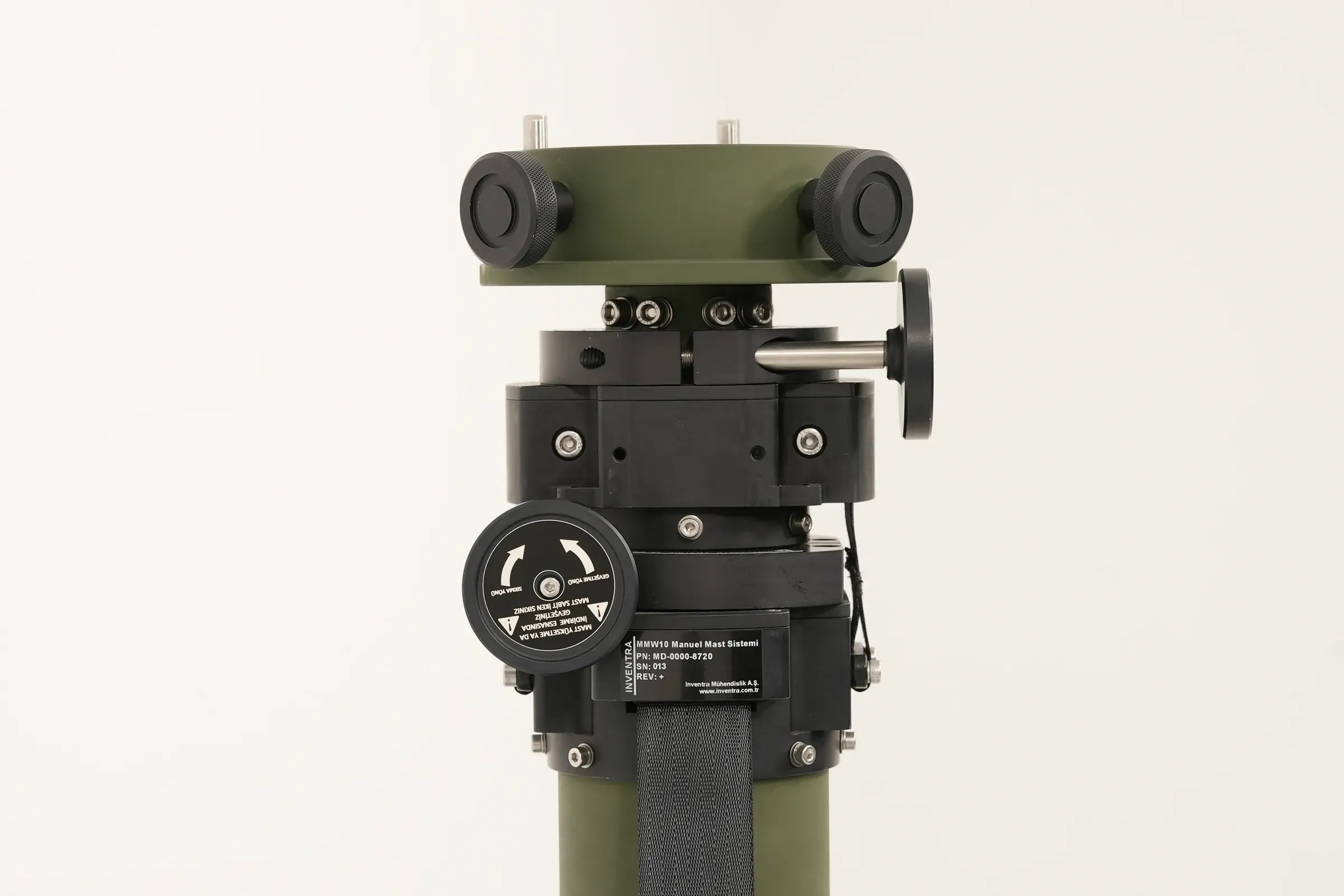

Side view of the black head assembly and clamp mechanism at the top of the olive green mast tube.

8 / 41

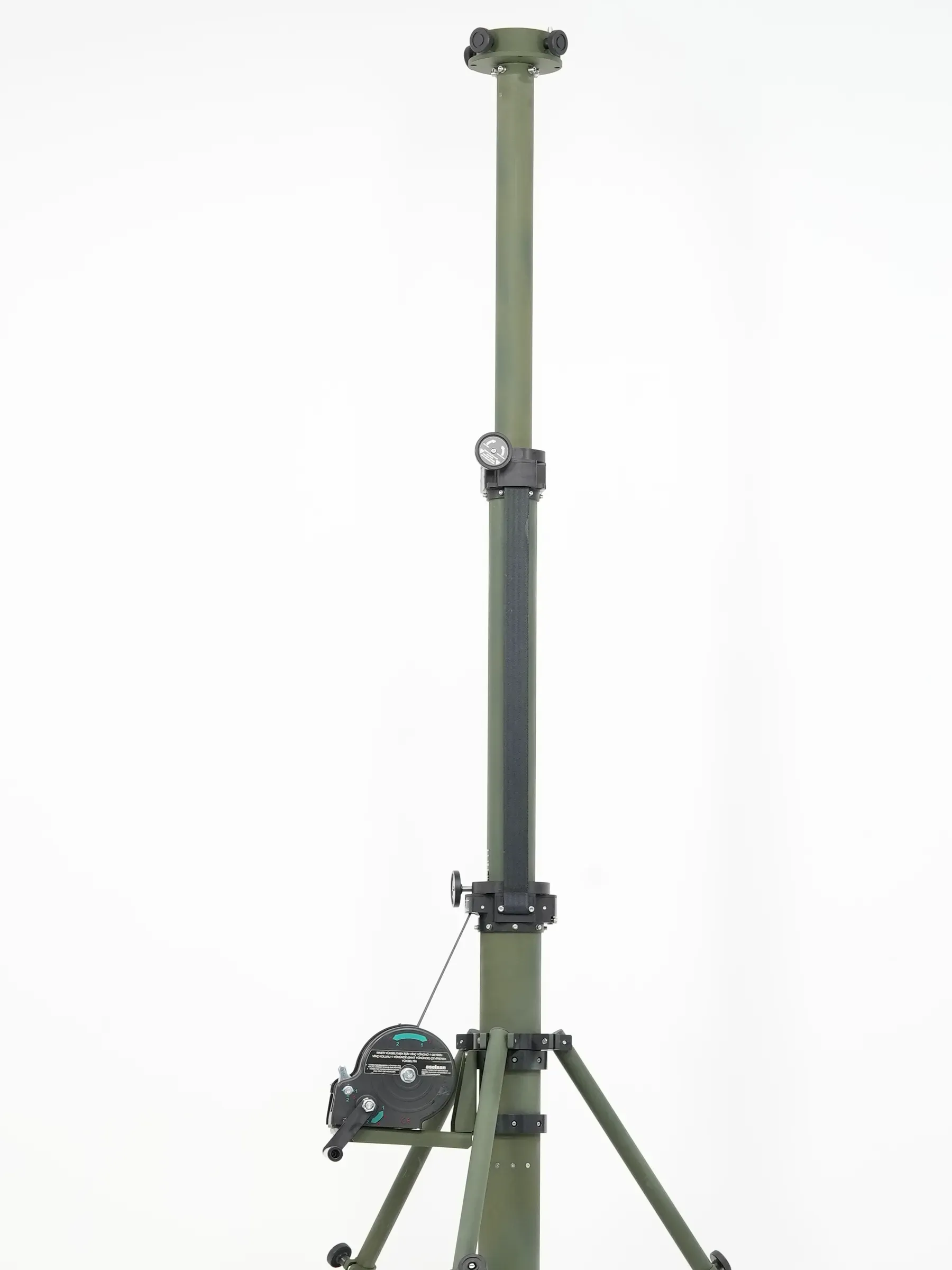

Full olive green telescopic crane-arm mast standing extended on three splayed legs with hand winch fitted.

9 / 41

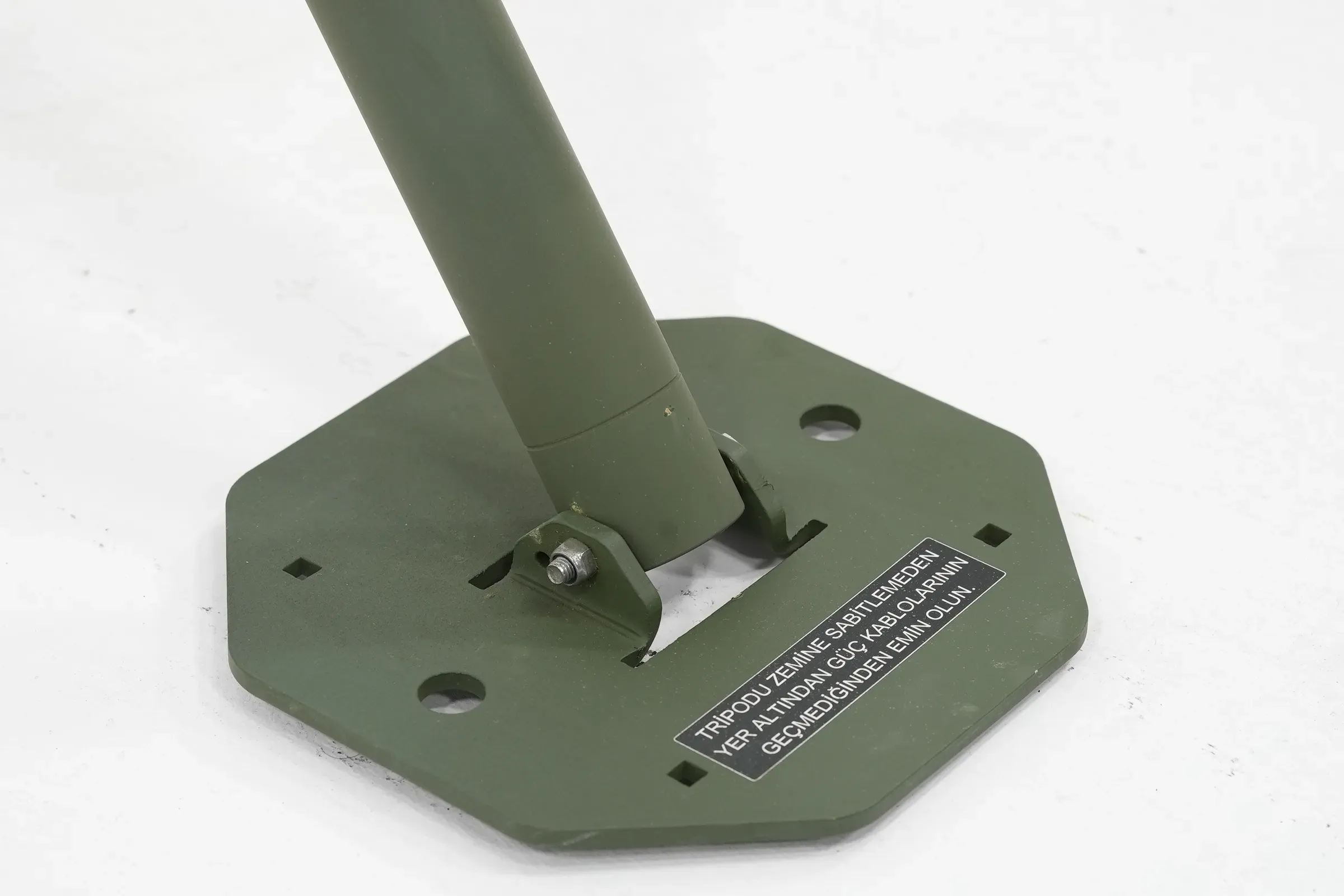

Angled foot detail showing the mast tube bolted to an octagonal olive green base plate with warning label.

10 / 41

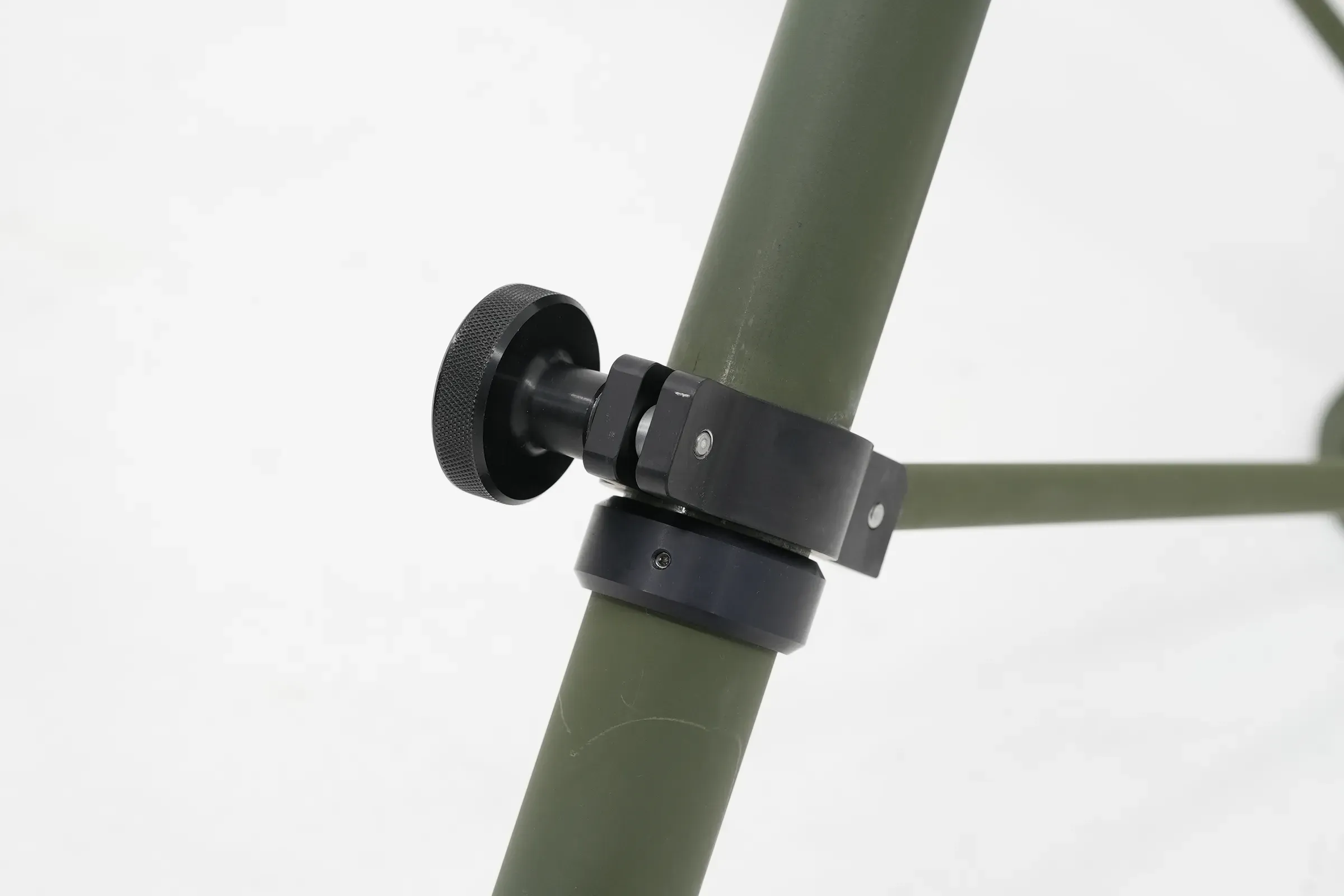

Detail of black hinge collar joining a diagonal leg strut to the olive green mast tube.

11 / 41

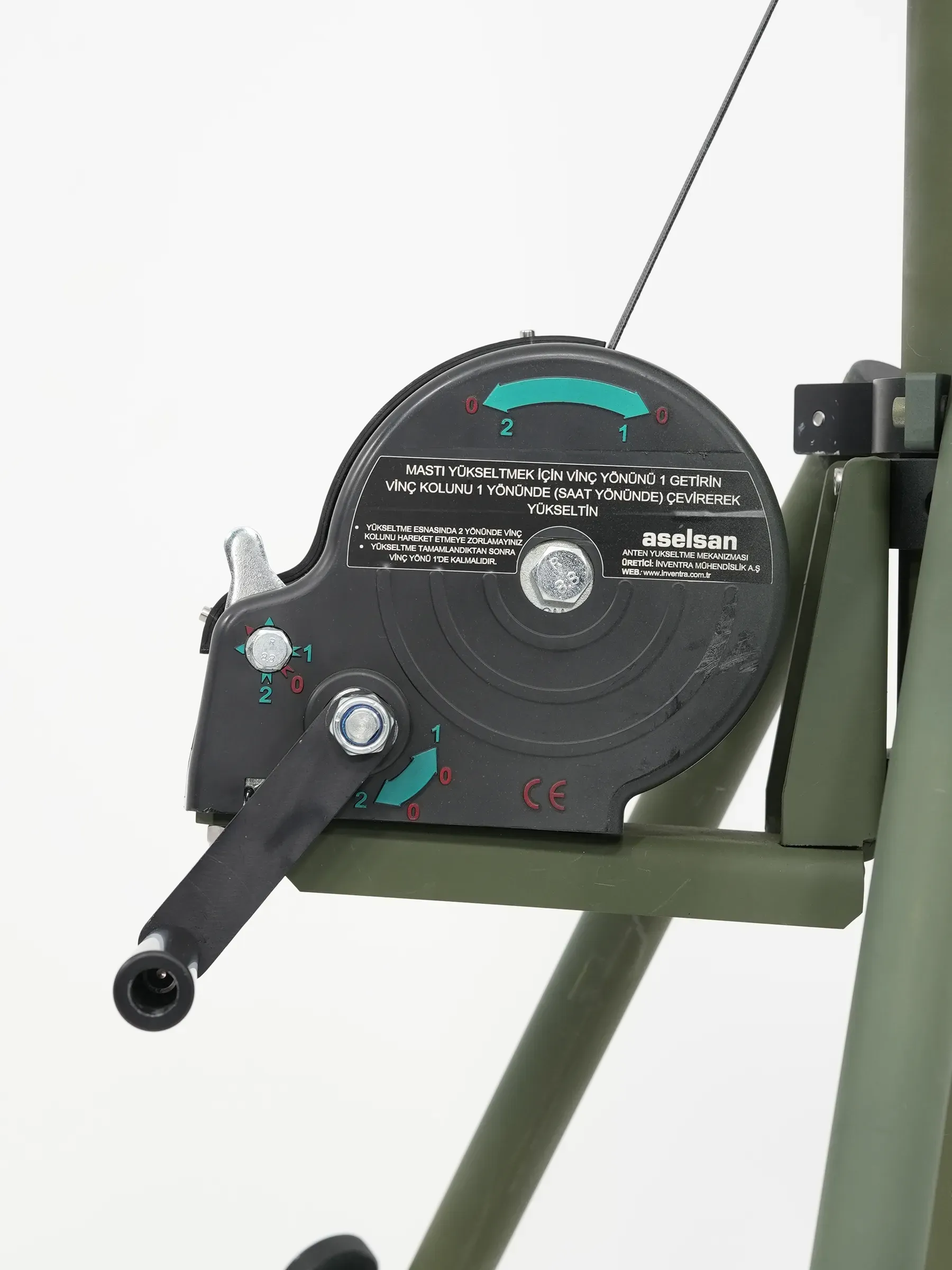

Hand winch drum with crank handle and Turkish instruction label mounted on the mast leg frame.

12 / 41

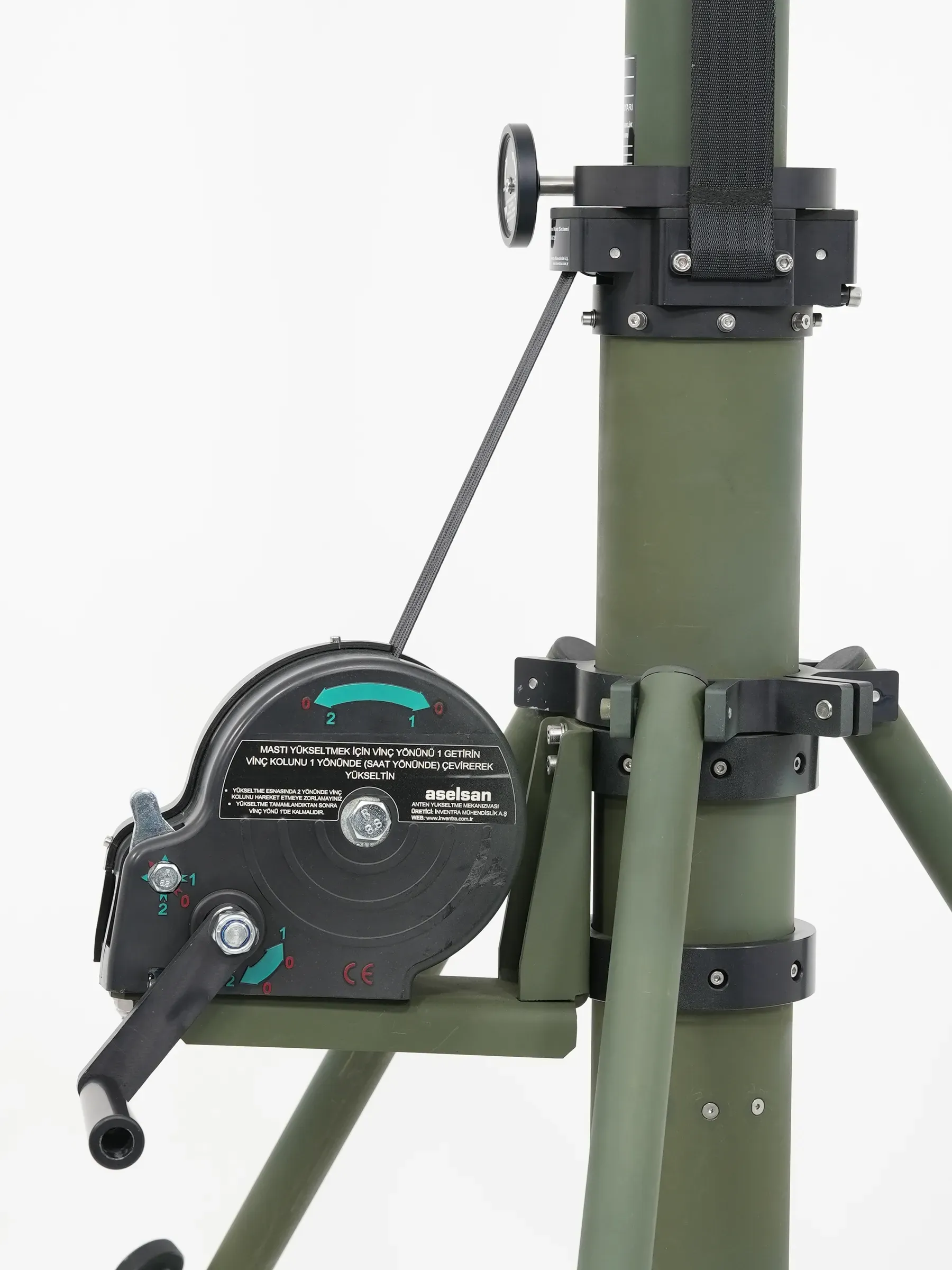

Winch, cable run and clamp brackets along the olive green mast tube seen from a low angle.

13 / 41

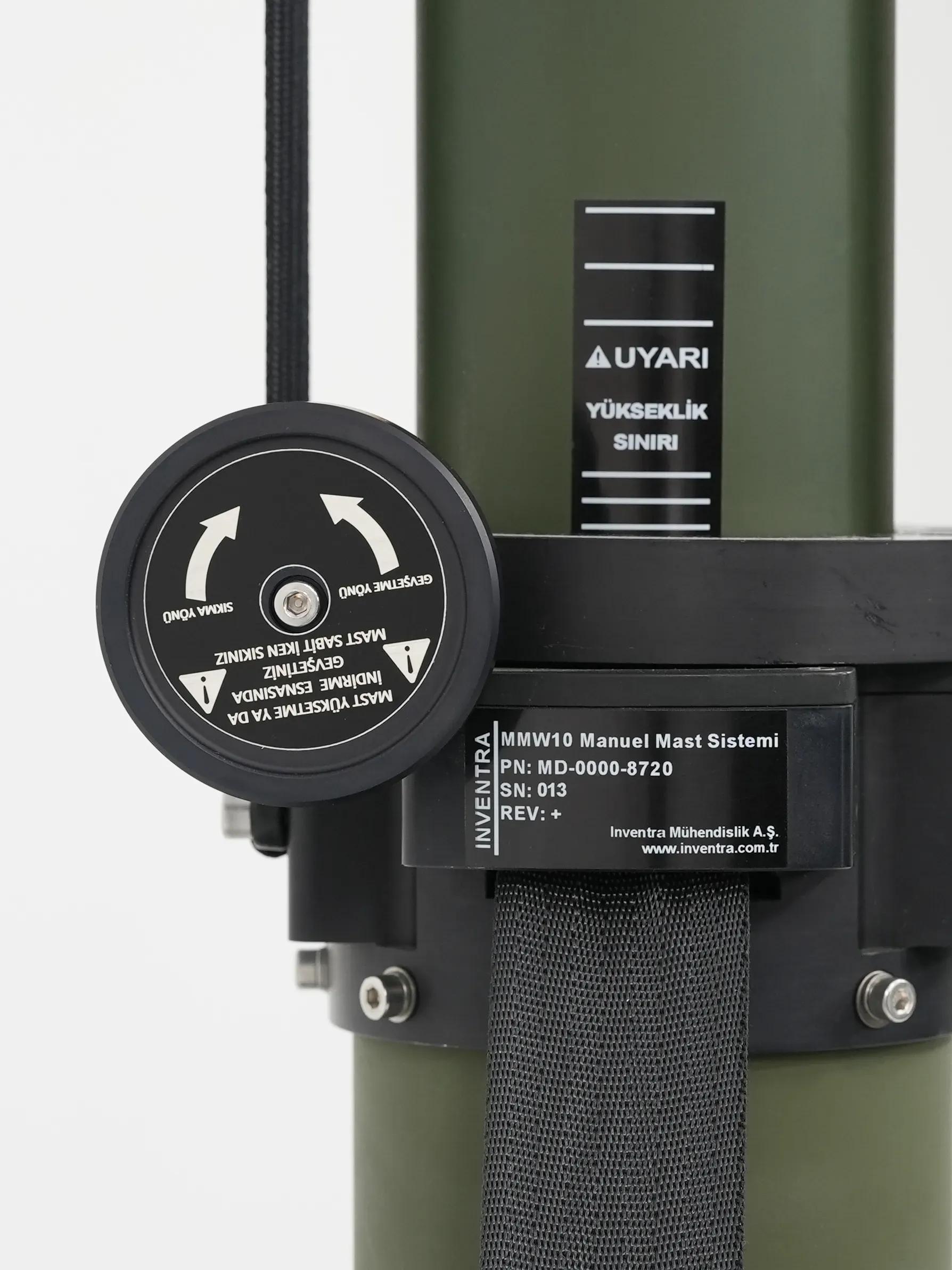

Mid-mast detail of the black cable guide, warning plate and product data label on the green tube.

14 / 41

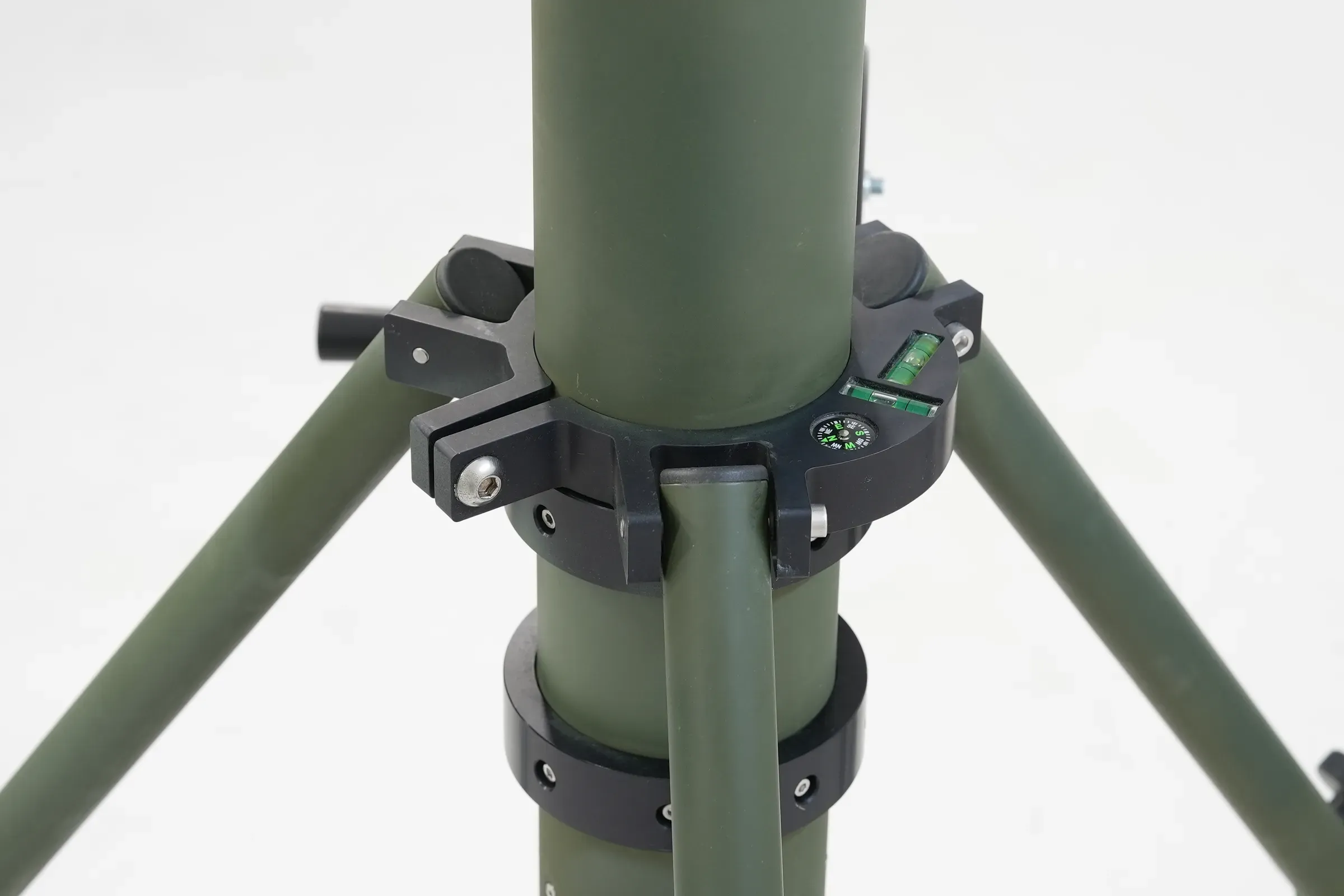

Clamp collar and leg attachment brackets on the lower section of the olive green mast tube.

15 / 41

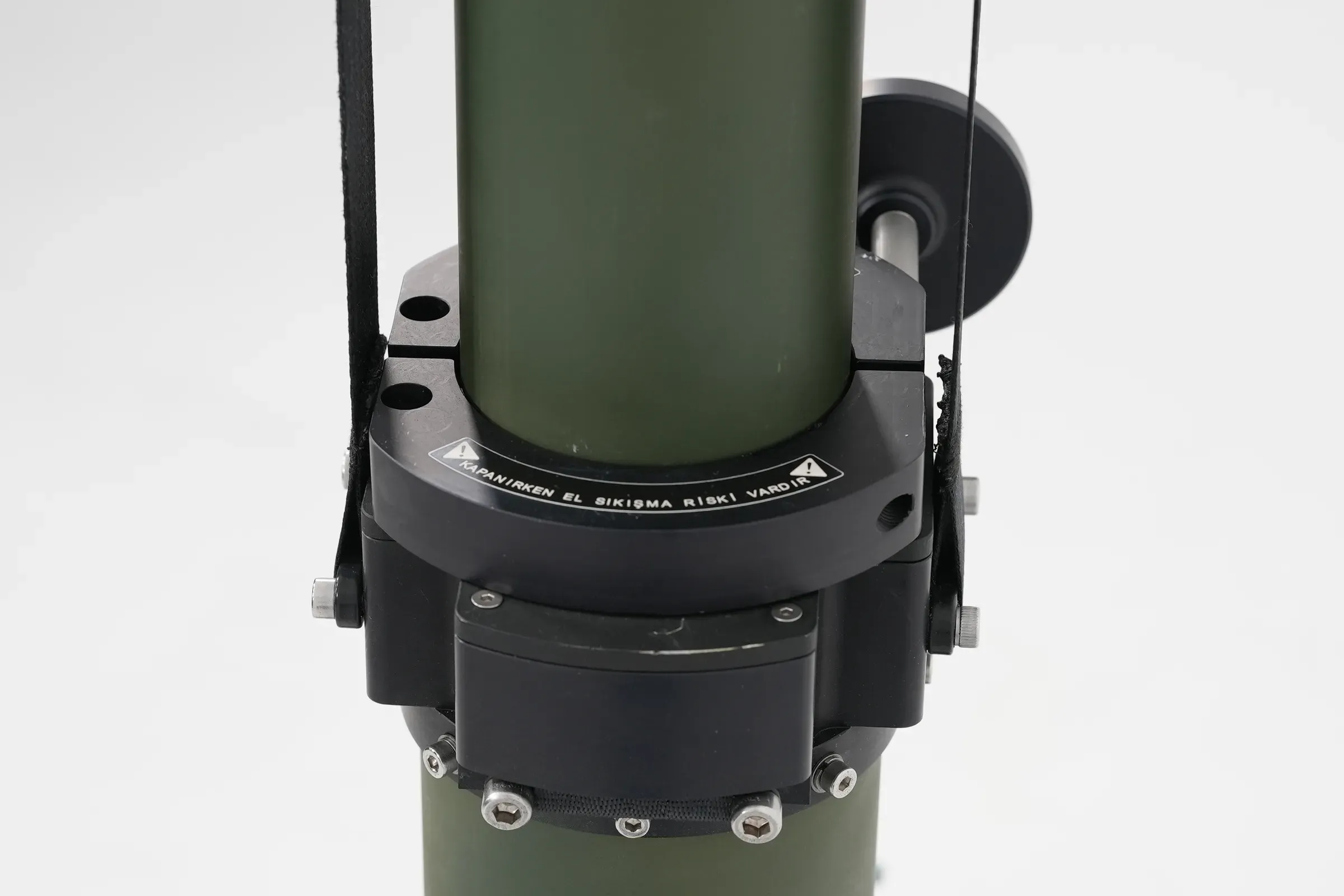

Black upper drive housing and cable brackets bolted around the top of the olive green mast tube.

16 / 41

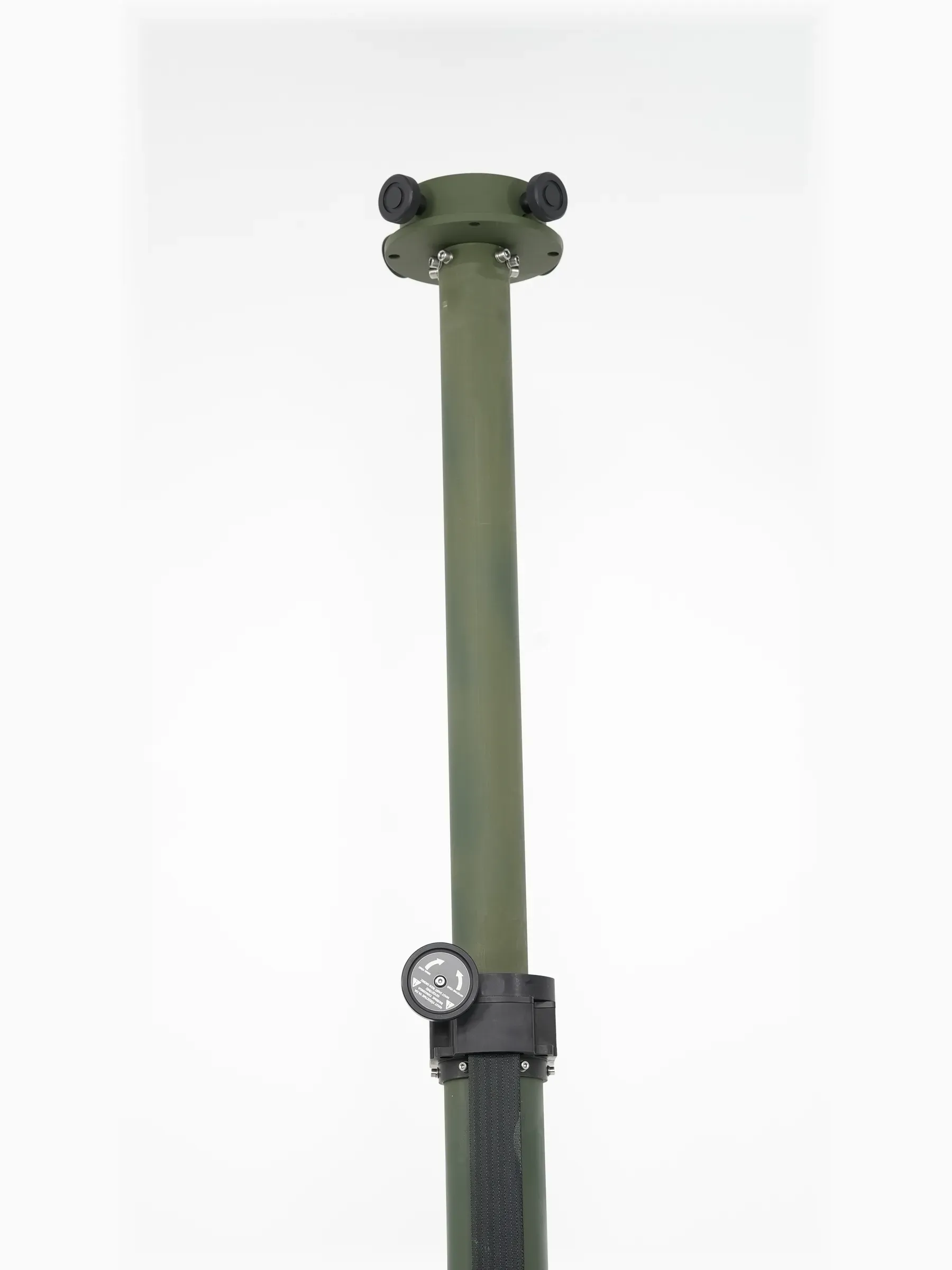

Extended slim mast tube with flanged top plate and mid-height black locking collar, shot from below.

17 / 41

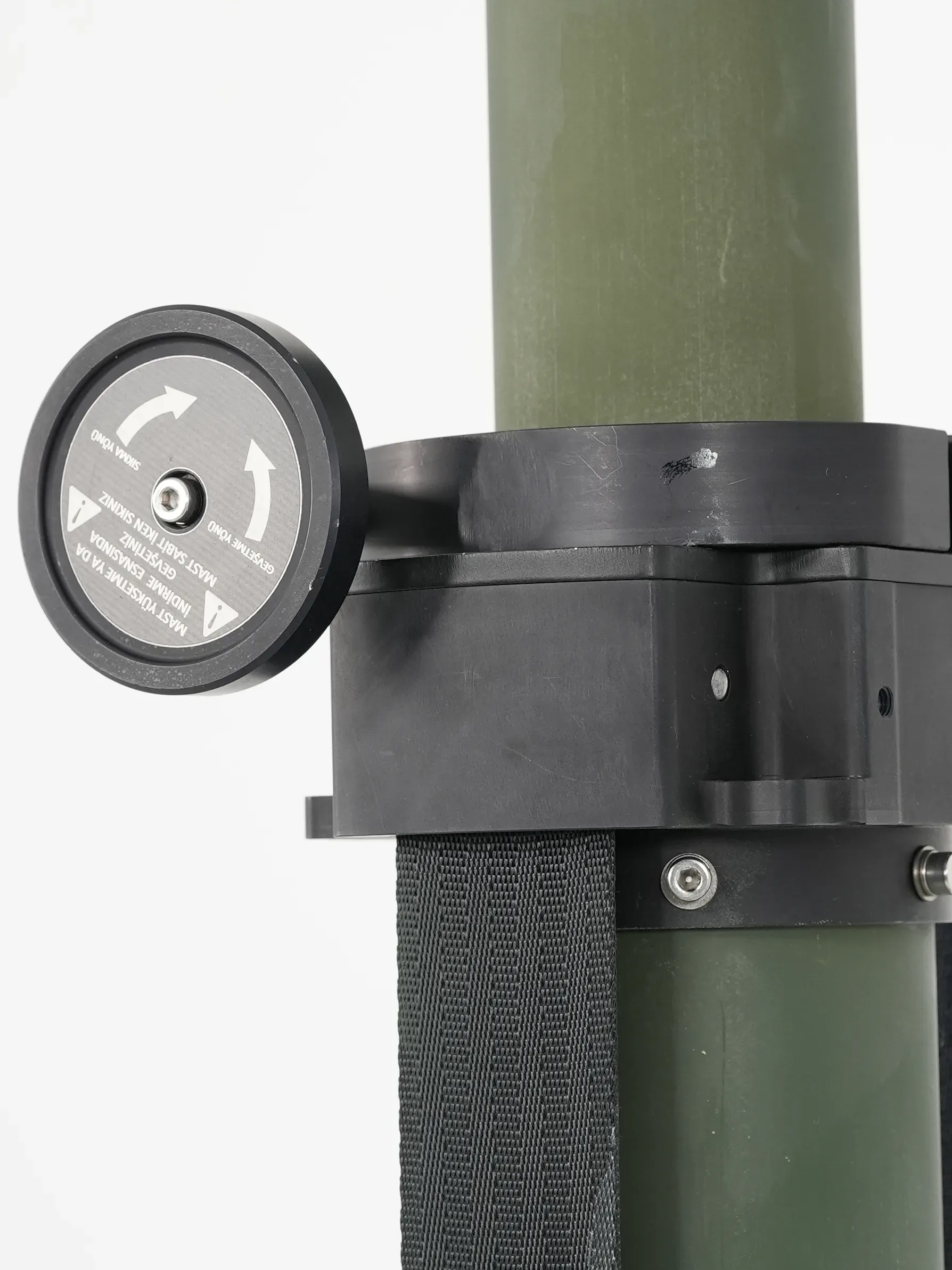

Side detail of the black rotating collar with dial marking and webbing strap on the green mast tube.

18 / 41

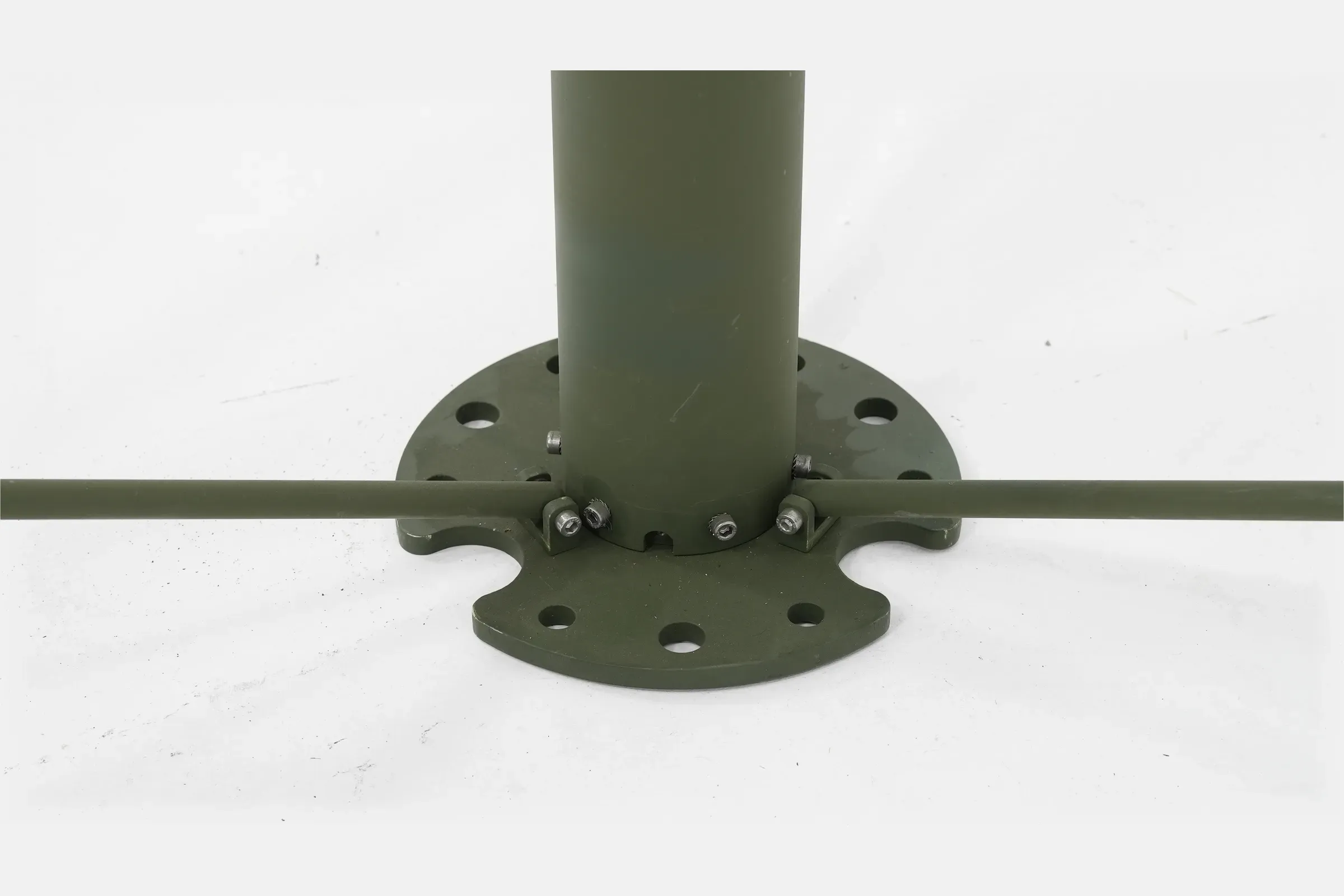

Base flange detail where the olive green mast tube bolts onto a circular ground plate with leg strut.

19 / 41

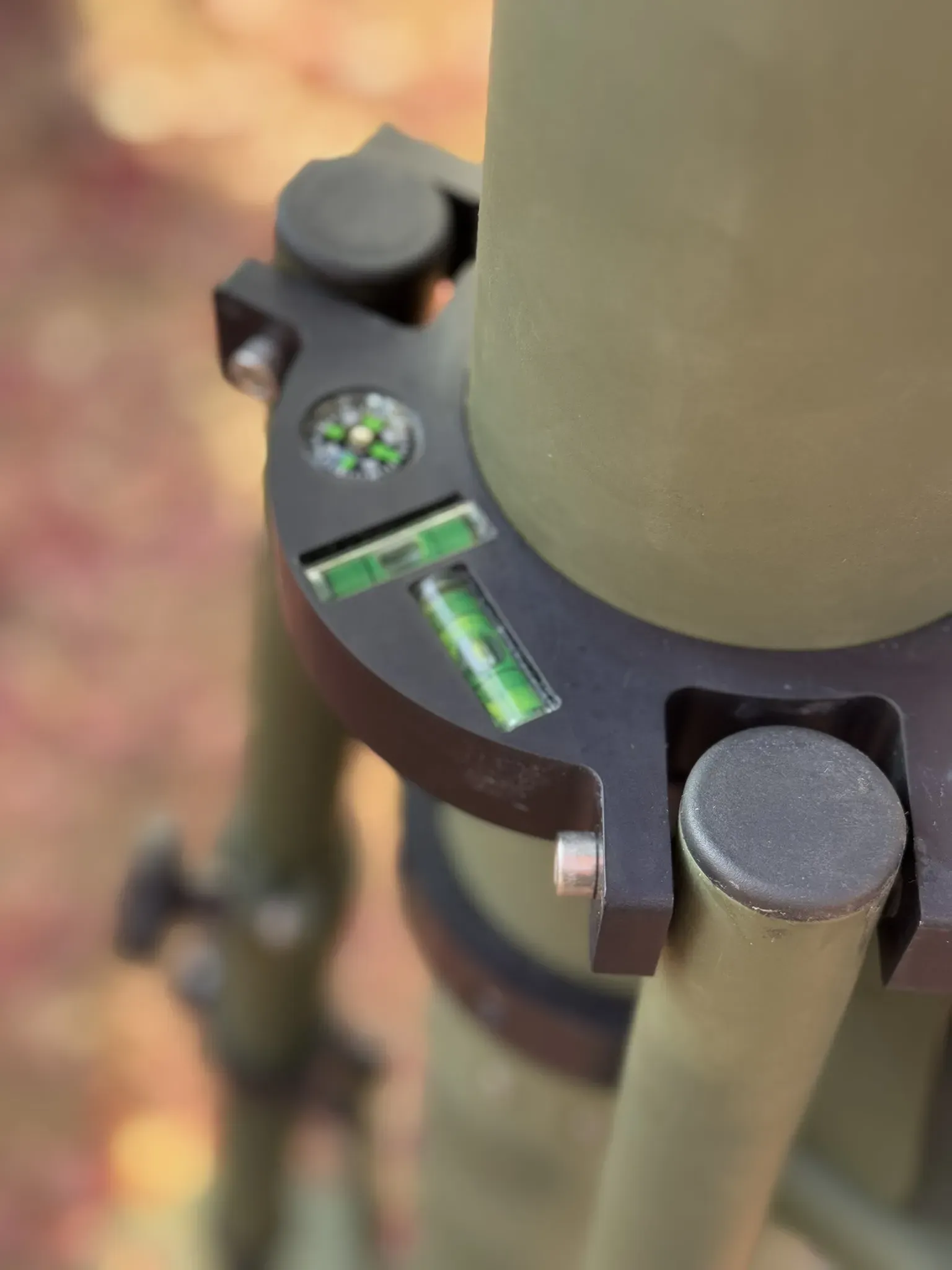

Close-up of the olive levelling collar with bubble level and compass clamped around the mast tube.

20 / 41

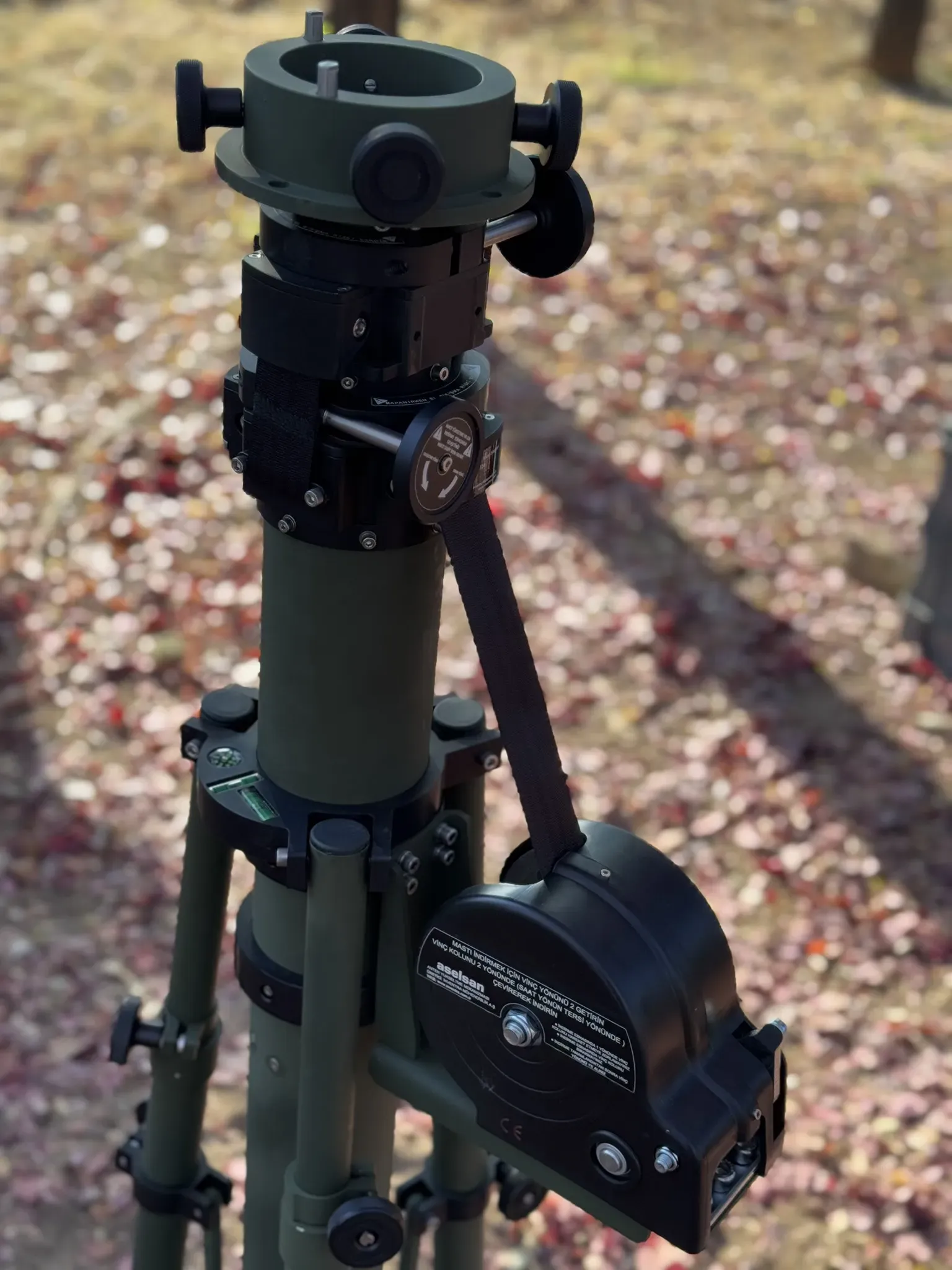

Upper mast head with rotator knobs and black winch assembly, standing on gravel outdoors.

21 / 41

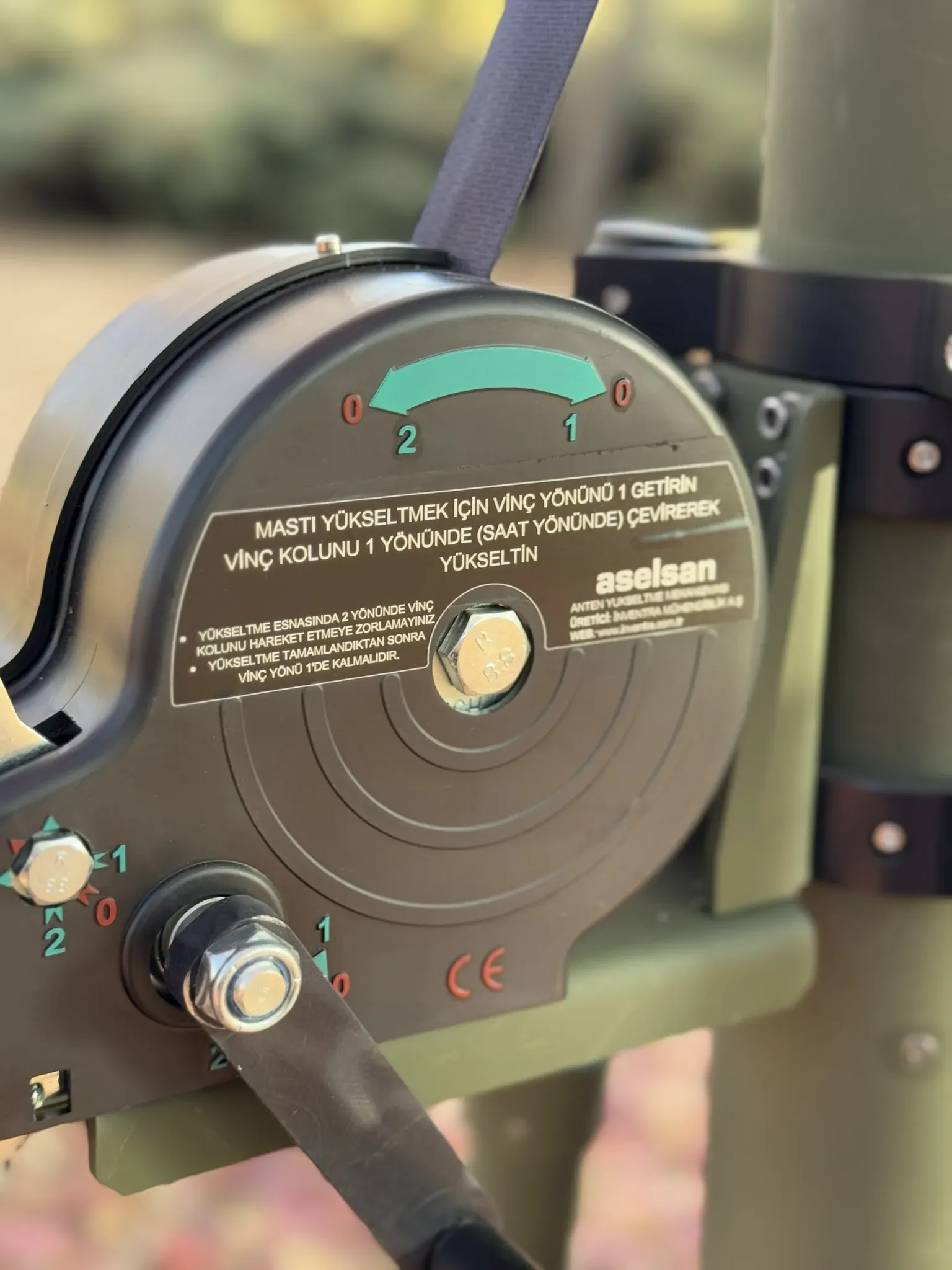

Close-up of the hand winch drum with Turkish operating instructions and an ASELSAN maker label.

22 / 41

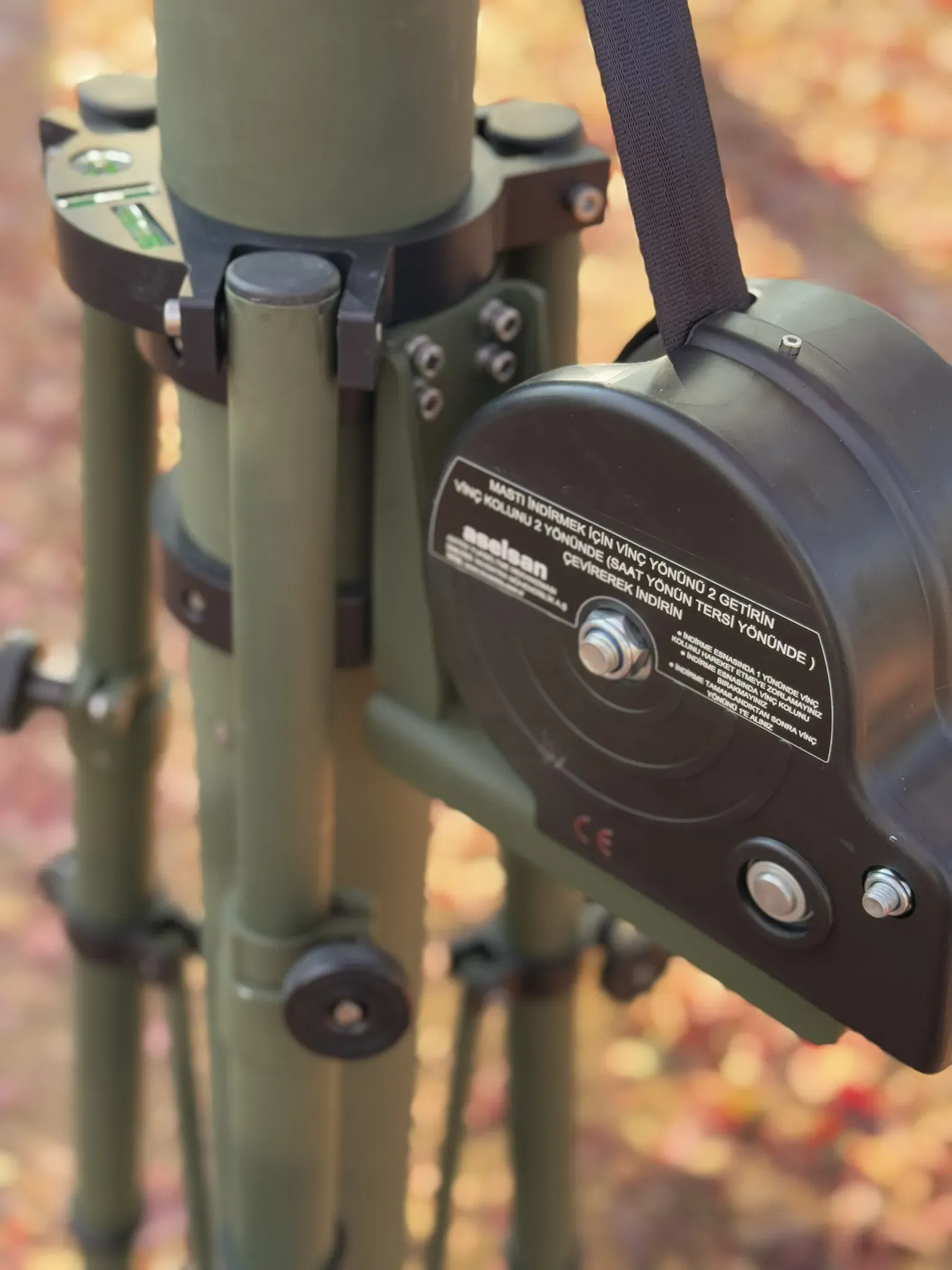

Winch housing and lifting strap on the olive mast between tripod legs, ASELSAN label readable.

23 / 41

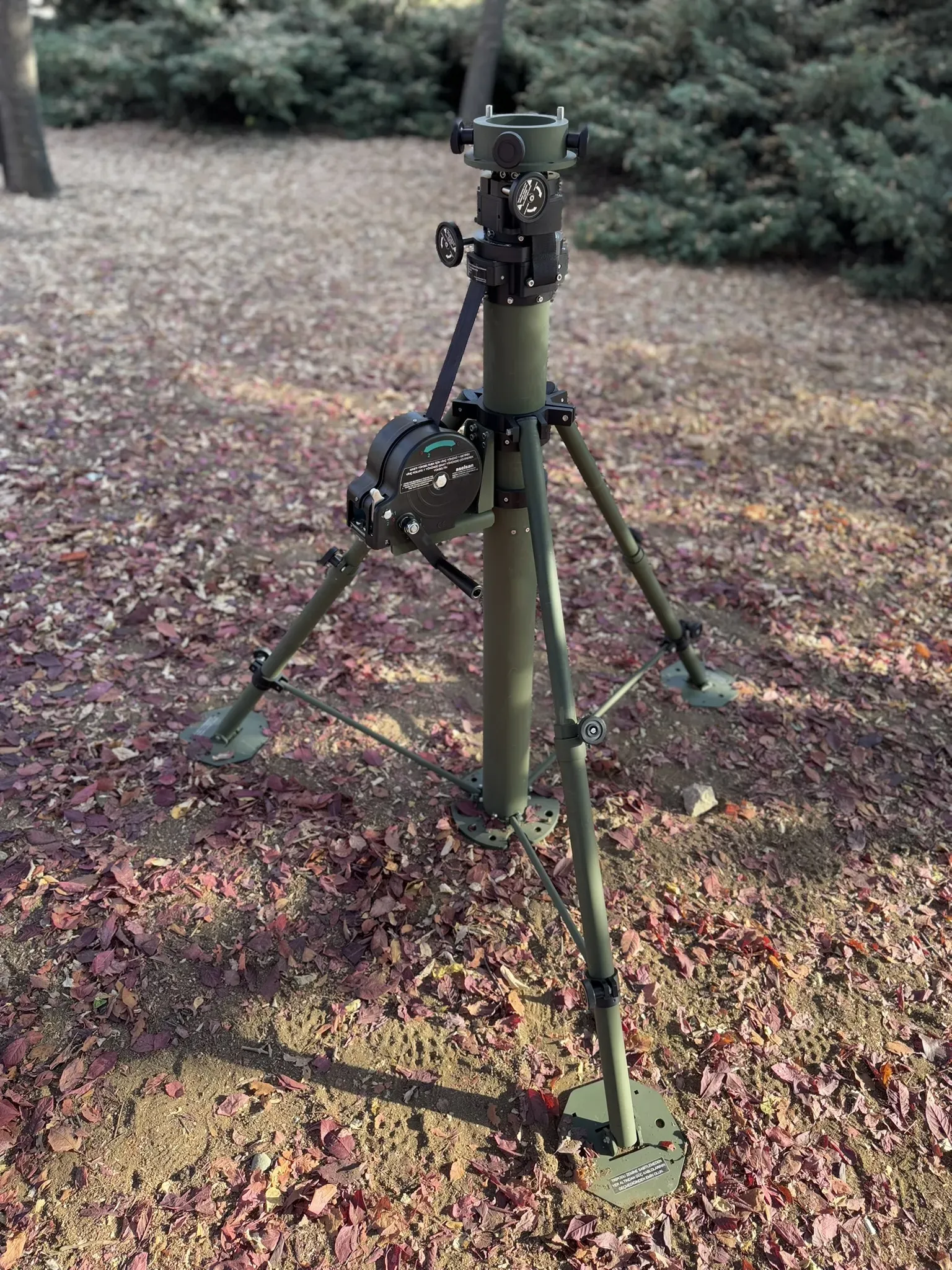

Crane-arm mast stowed on its splayed tripod on leaf-covered ground in front of evergreens.

24 / 41

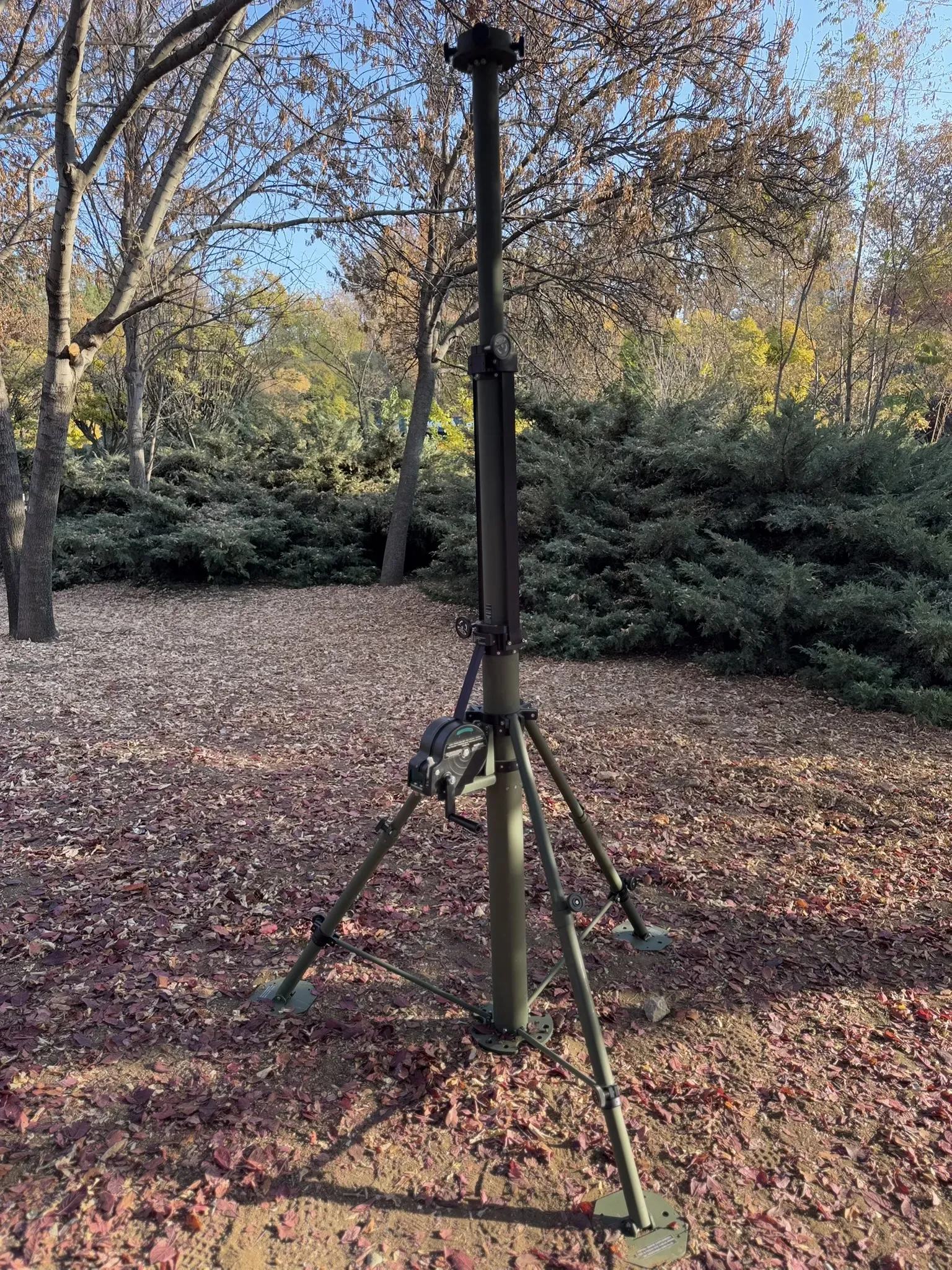

Partly raised olive mast on tripod standing in open woodland with bare autumn trees behind.

25 / 41

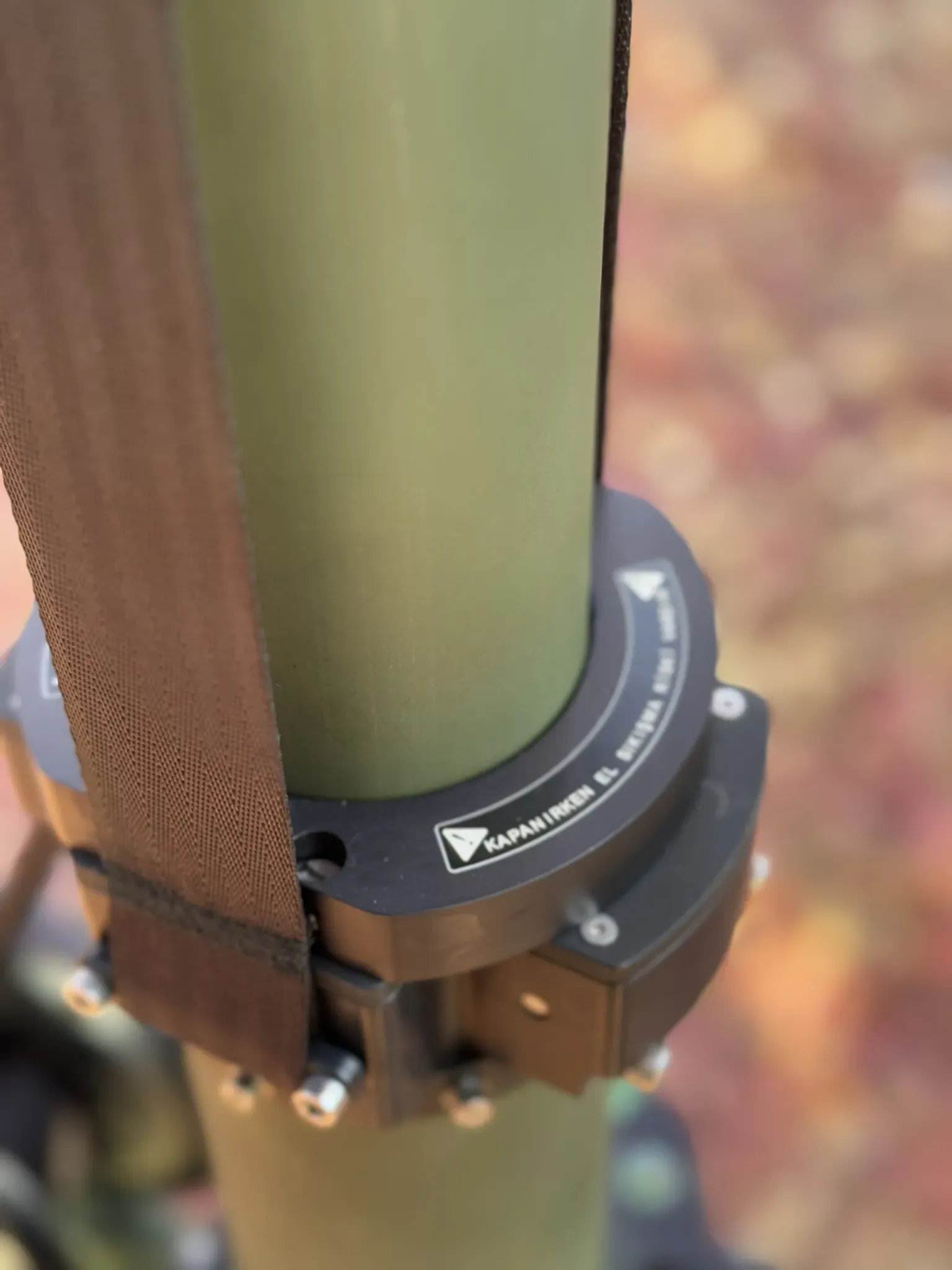

Close-up of the clamping collar and lifting strap wrapped around the olive telescopic tube.

26 / 41

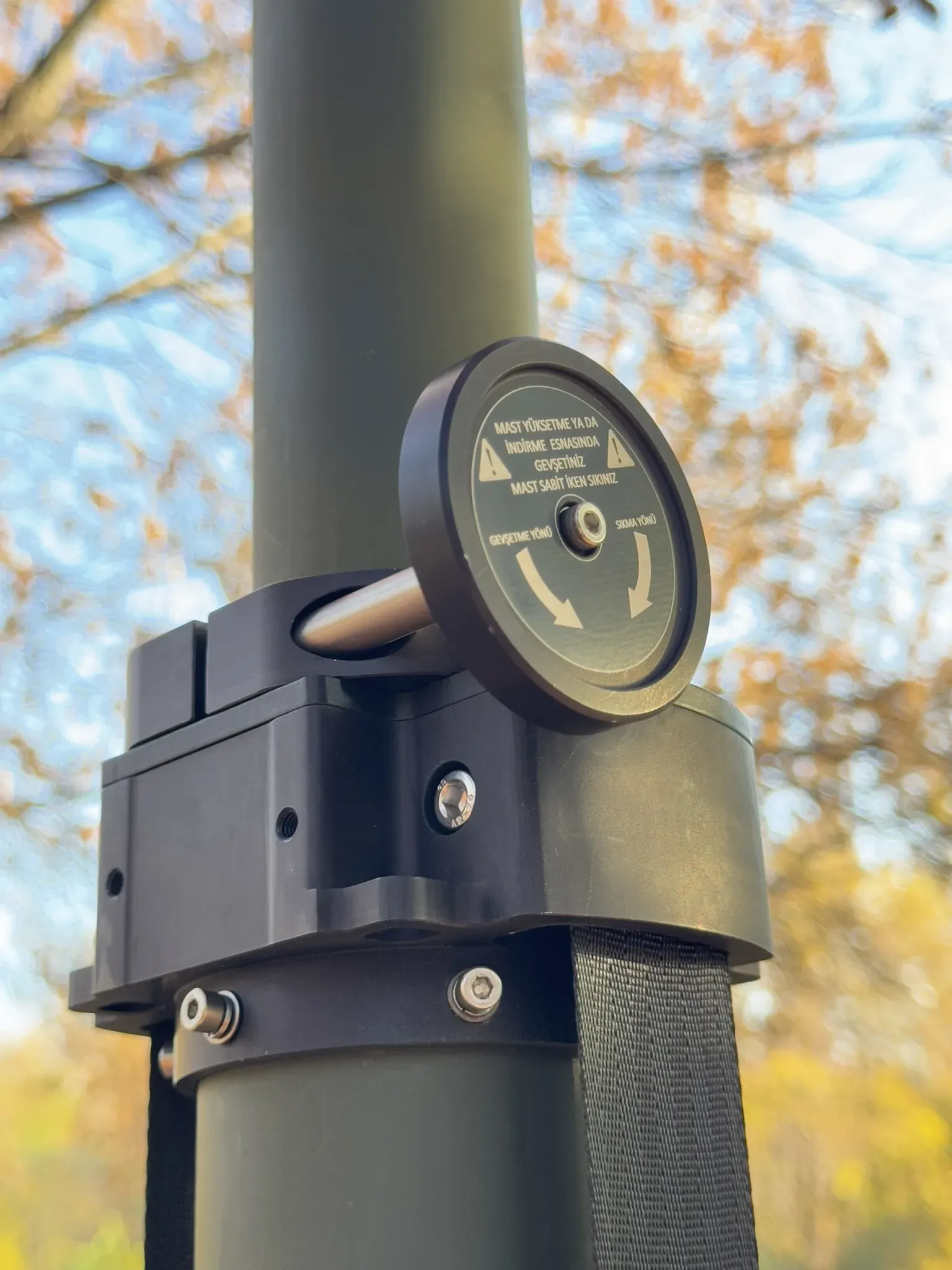

Rotating locking dial on the mast collar with strap, shot upward against sky and yellow leaves.

27 / 41

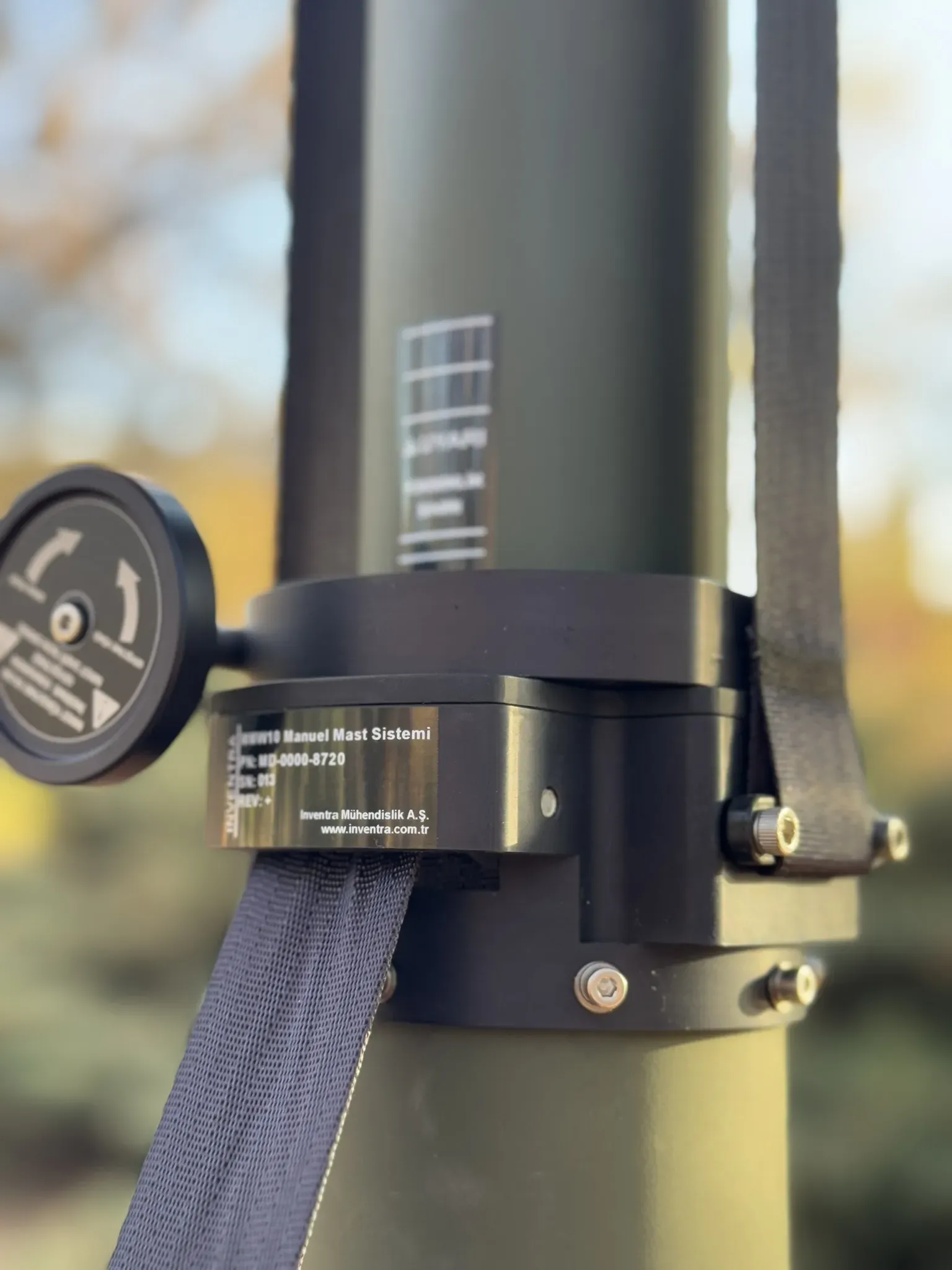

Mast collar carrying the Inventra manual mast system nameplate, locking dial and lifting strap.

28 / 41

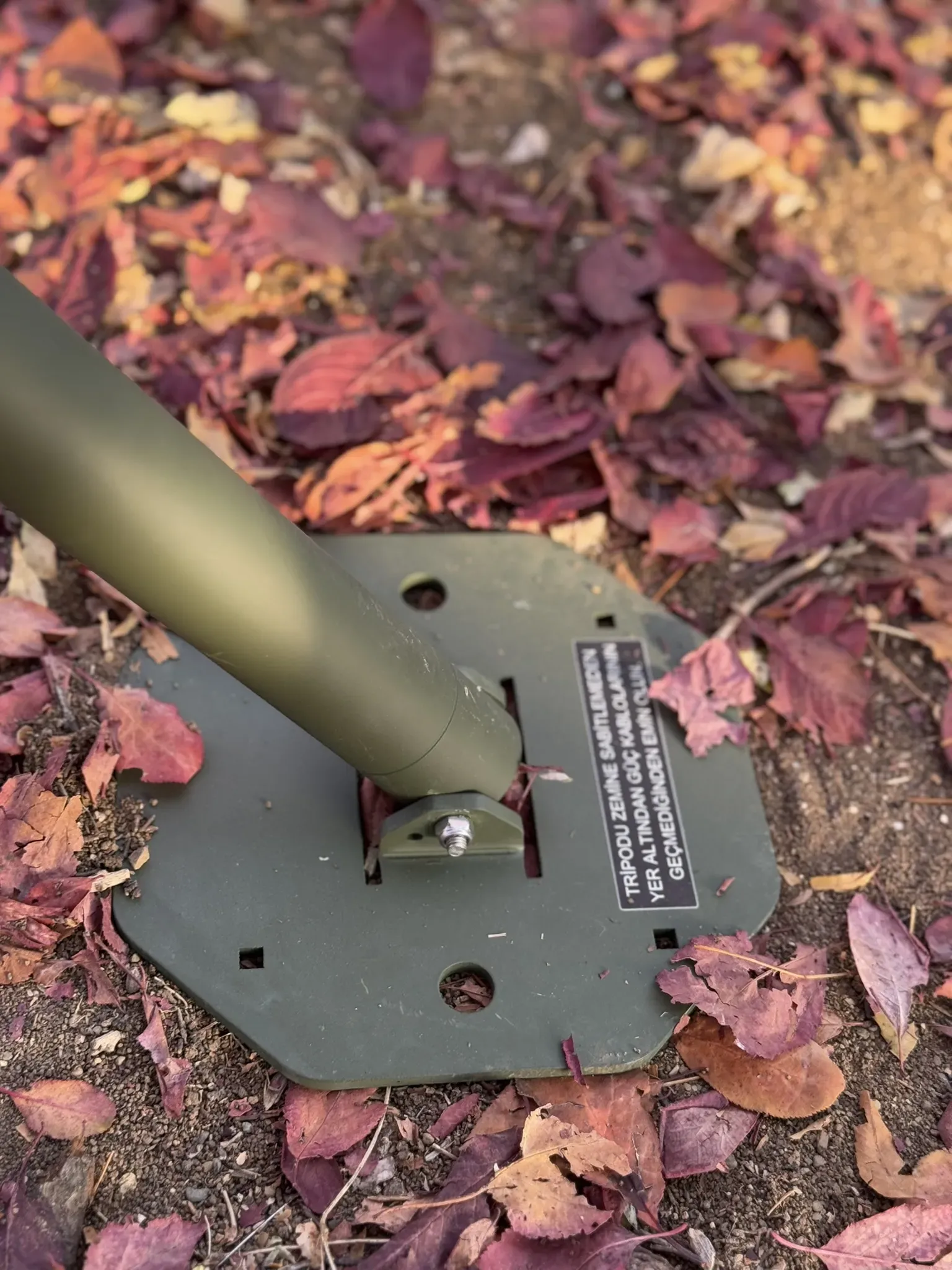

Tripod leg bolted into its olive octagonal footplate resting on red fallen leaves.

29 / 41

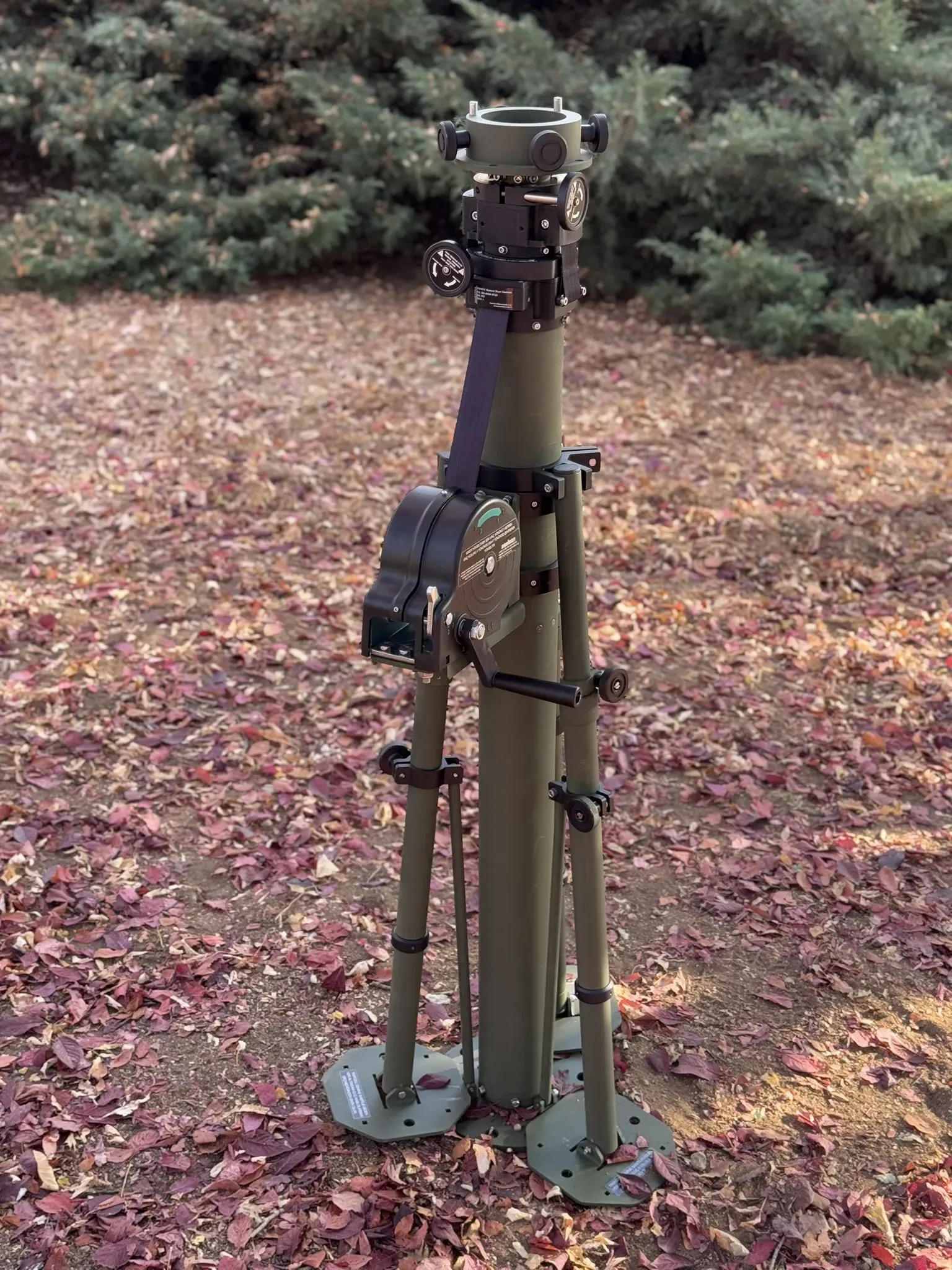

Stowed crane-arm mast on tripod with winch on the pole, evergreen hedge behind.

30 / 41

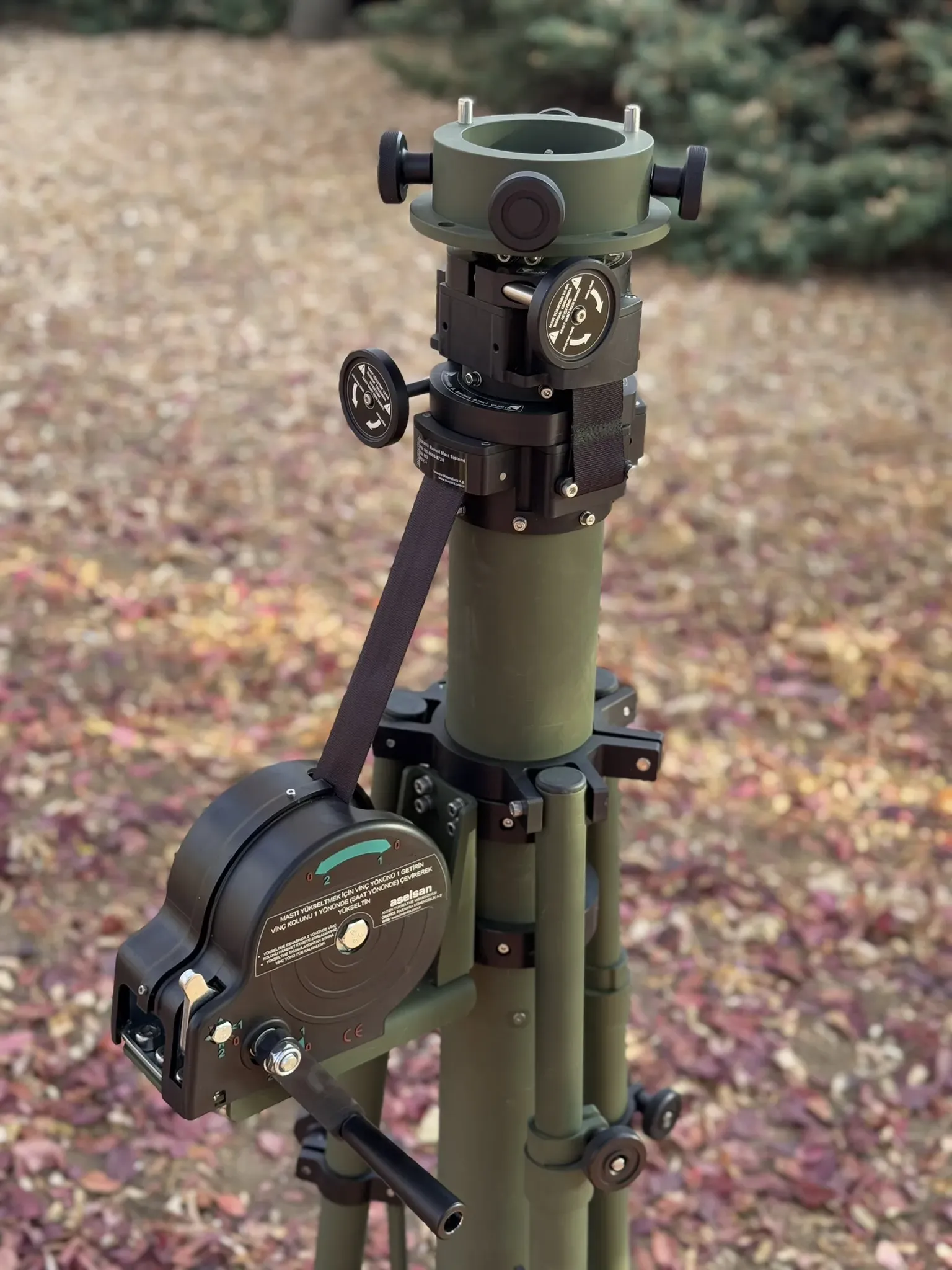

Three-quarter view of the mast head, rotator knobs and side-mounted winch above the tripod.

31 / 41

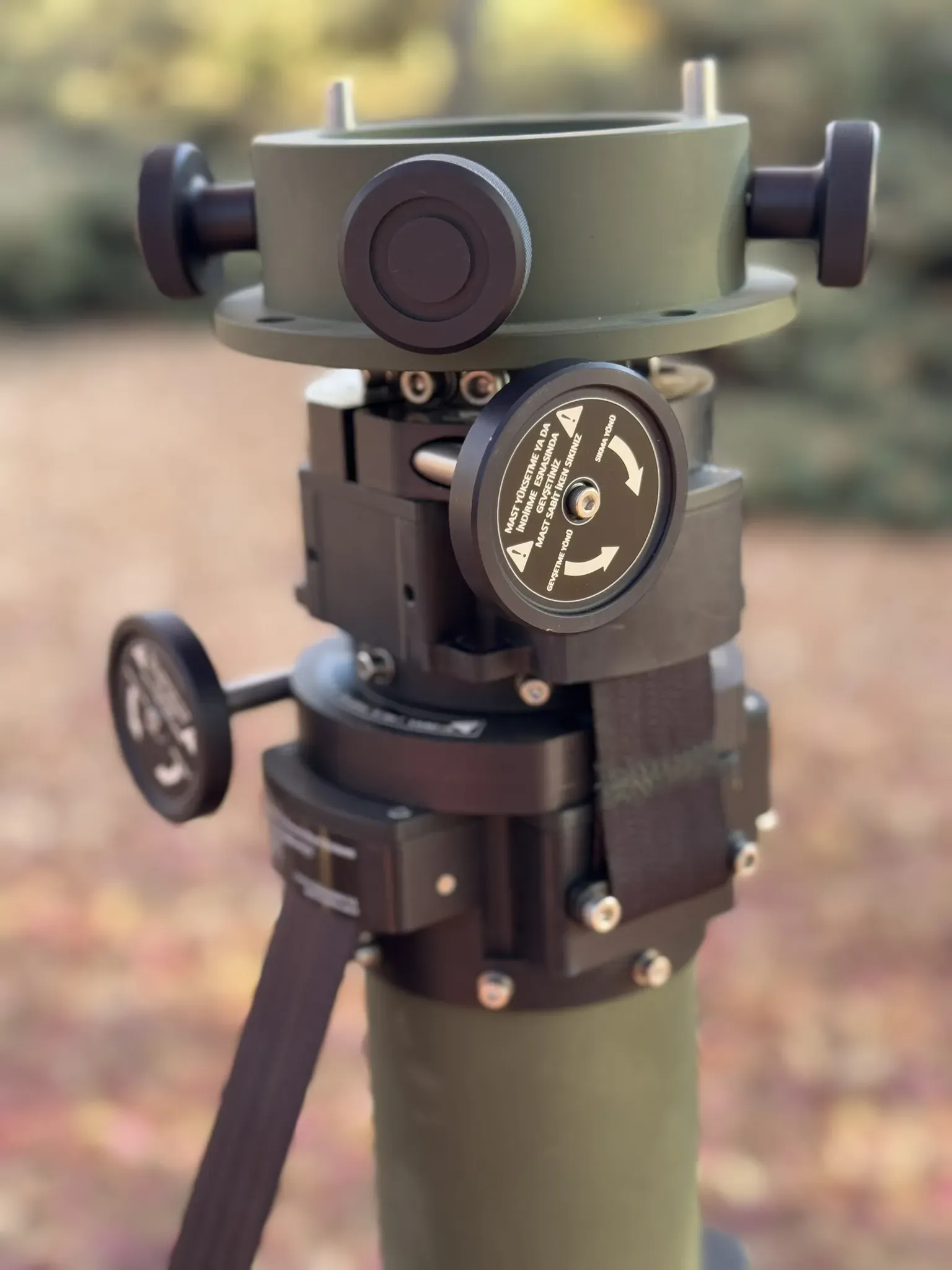

Close-up of the empty payload mounting ring with locking knobs at the top of the mast.

32 / 41

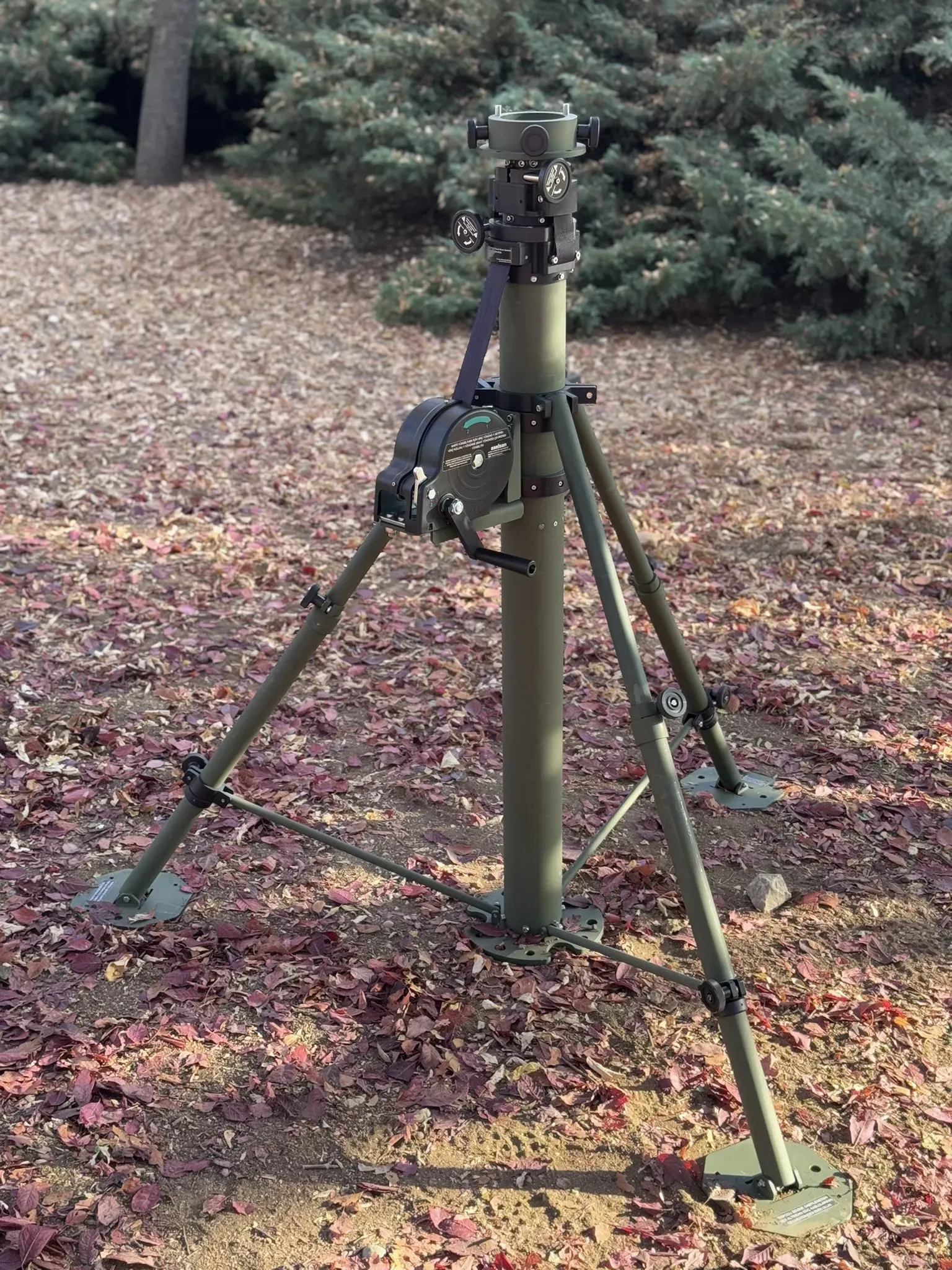

Stowed mast with widely splayed tripod legs and footplates on leaf-covered woodland ground.

33 / 41

Mast head, rotator and winch with crank handle fitted, tripod standing on a gravel path.

34 / 41

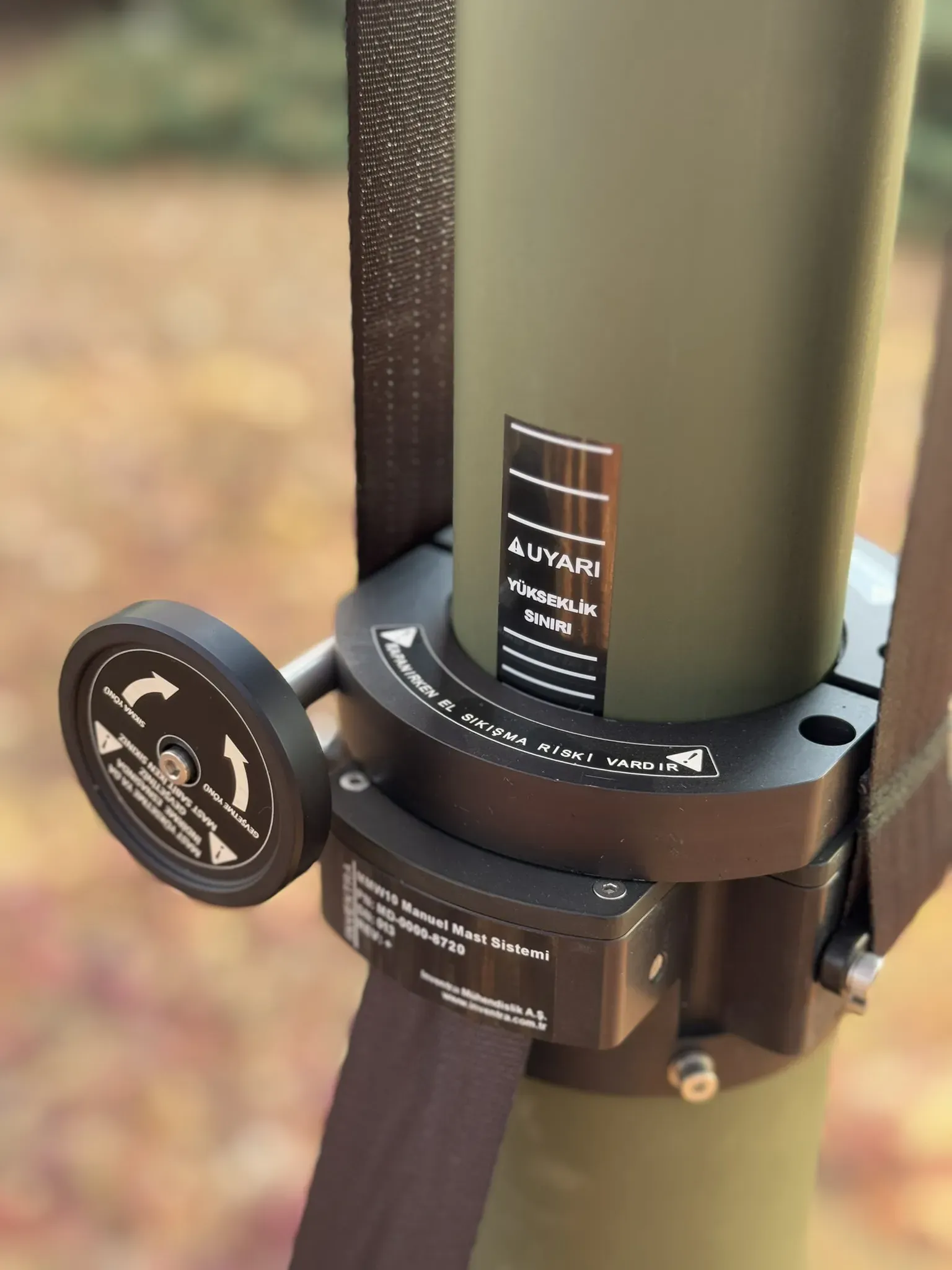

Collar clamp on the olive tube with Turkish warning label, locking dial and lifting strap.

35 / 41

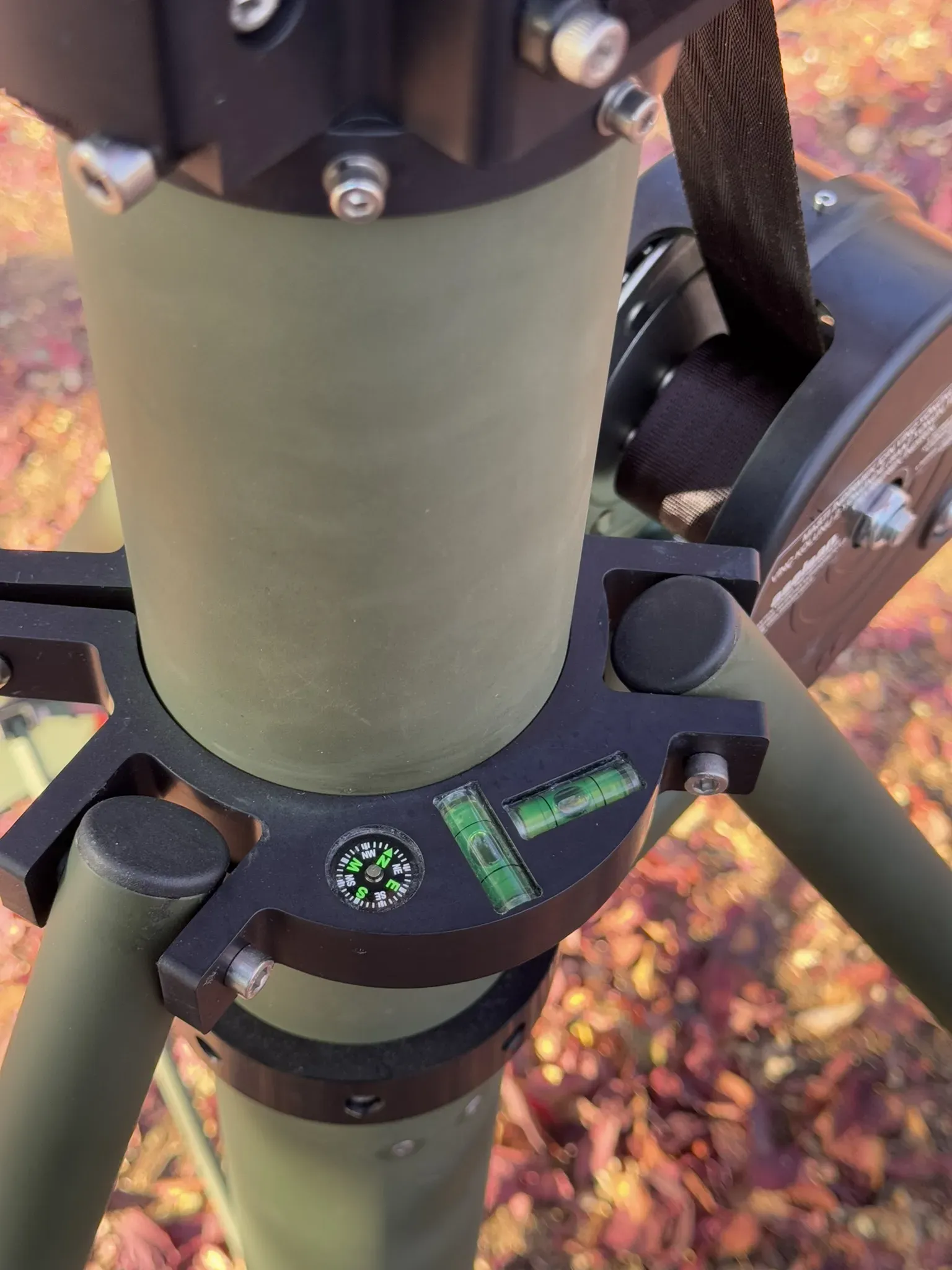

Levelling collar with bubble level and compass where the tripod legs meet the mast tube.

36 / 41

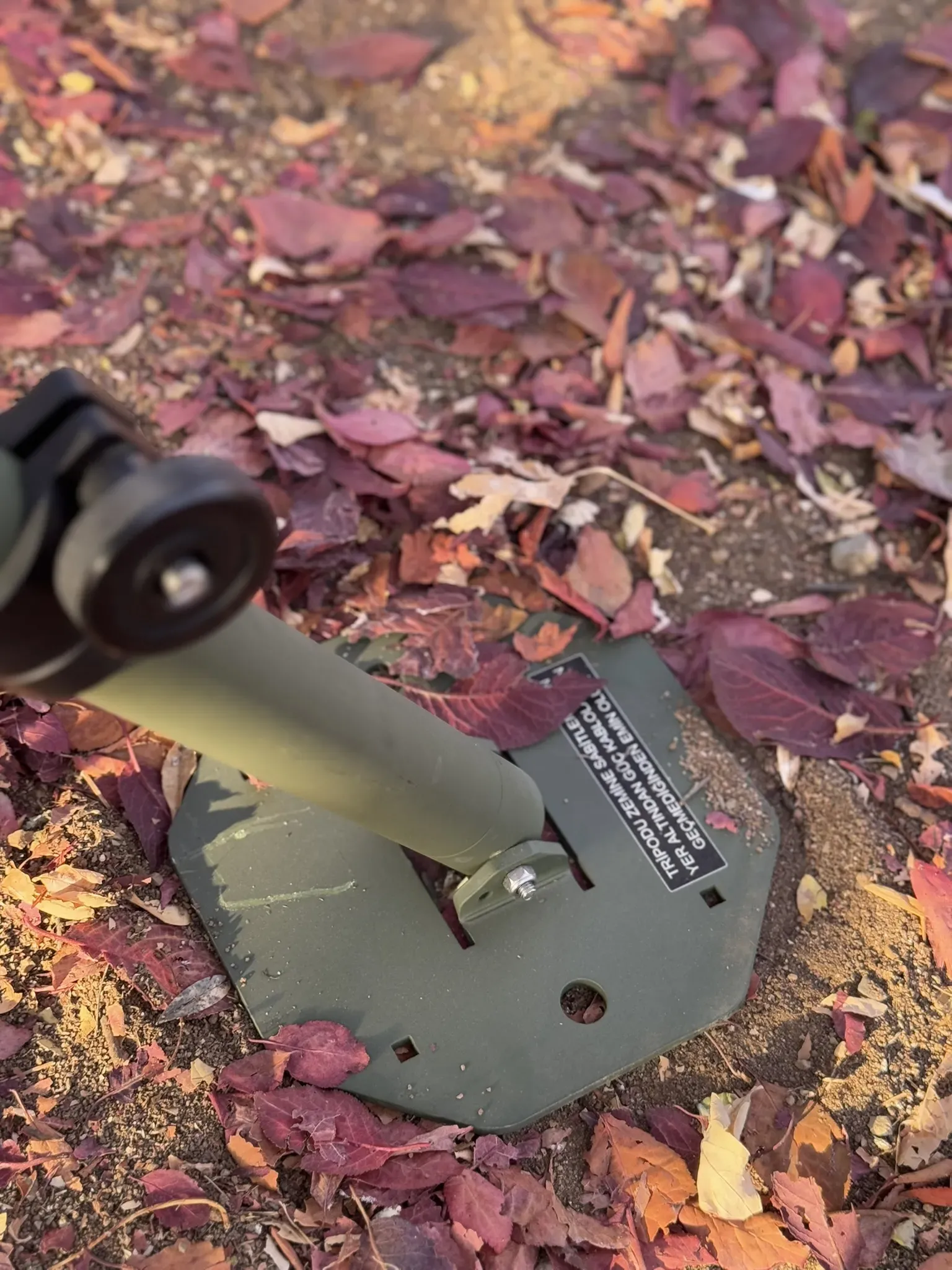

Tripod leg foot bolted to its olive octagonal plate lying on red and brown leaves.

37 / 41

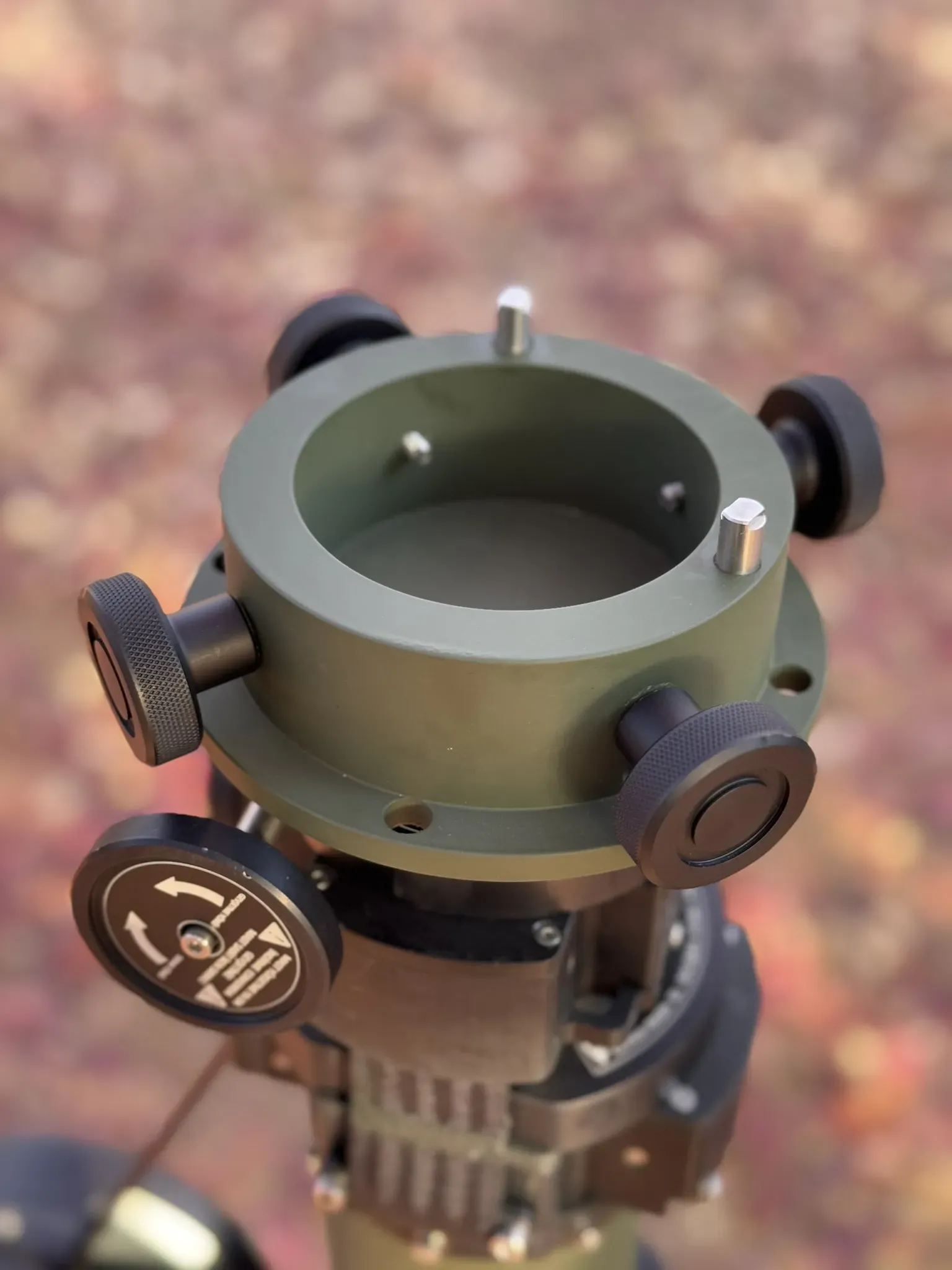

Top-down view into the empty circular payload mount ring with four locking knobs.

38 / 41

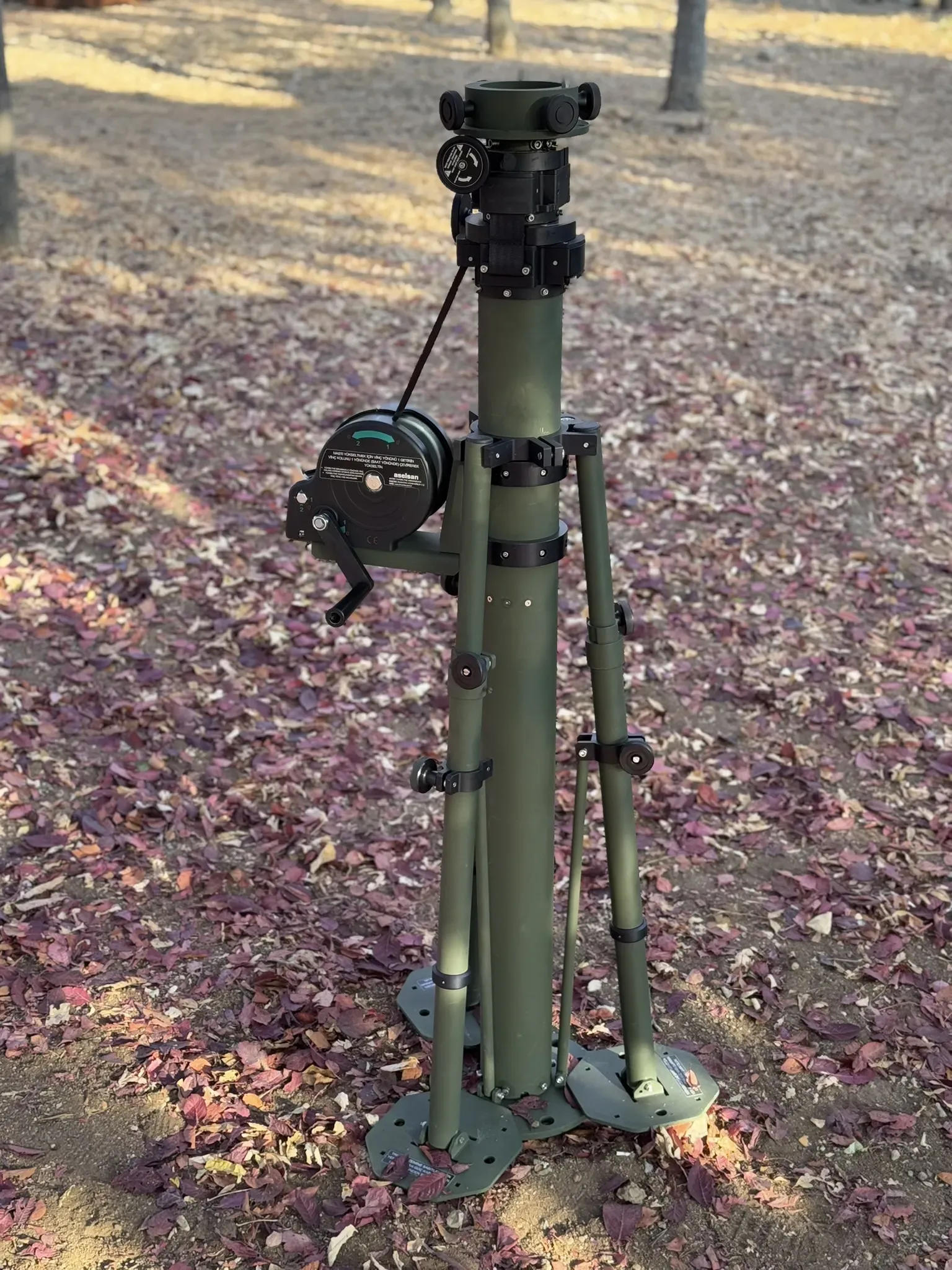

Stowed mast on tripod with side winch, standing on a sunlit leaf-strewn woodland path.

39 / 41

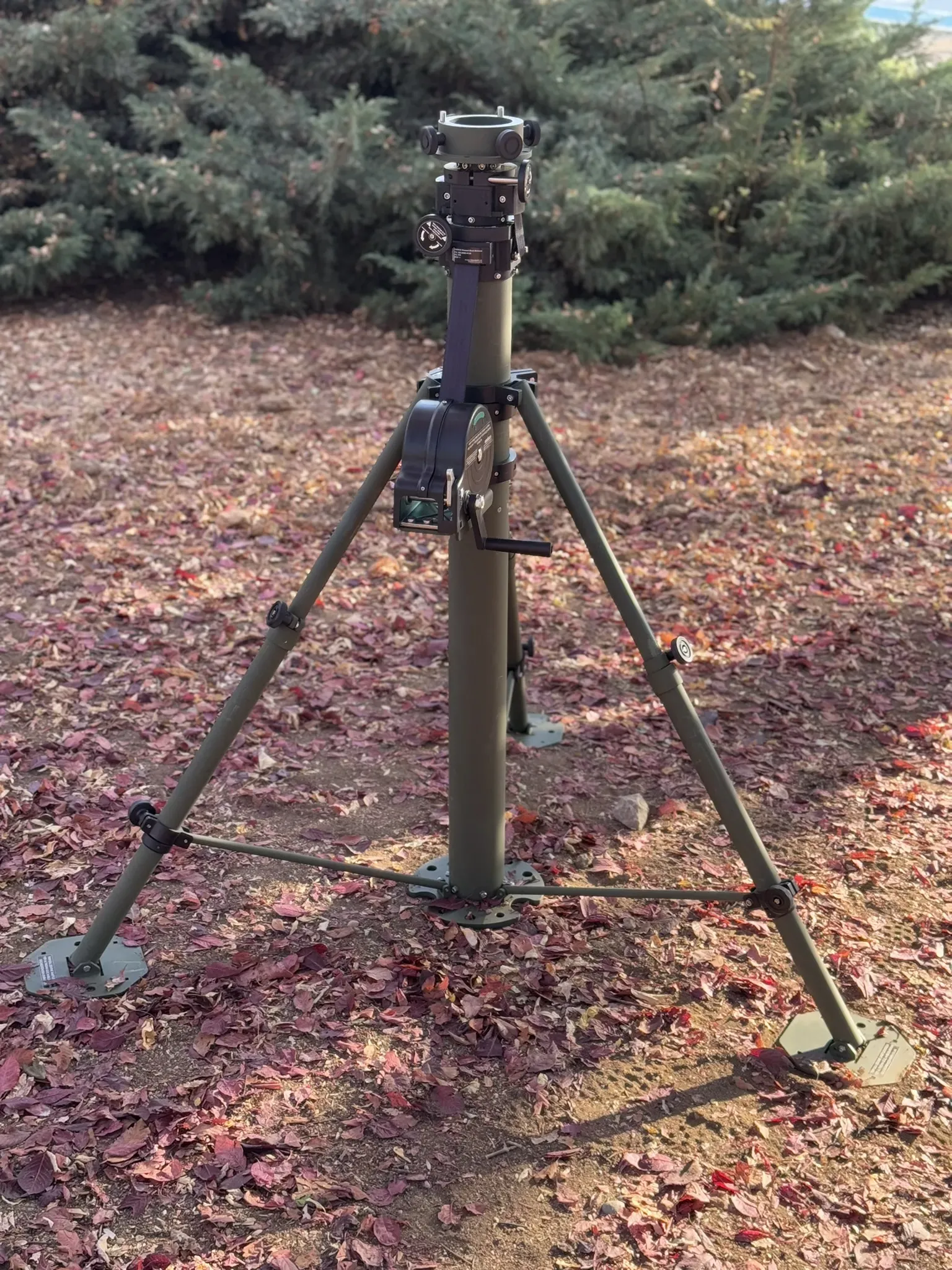

Crane-arm mast stowed on its tripod on leaf-covered ground with dense evergreens behind.

40 / 41

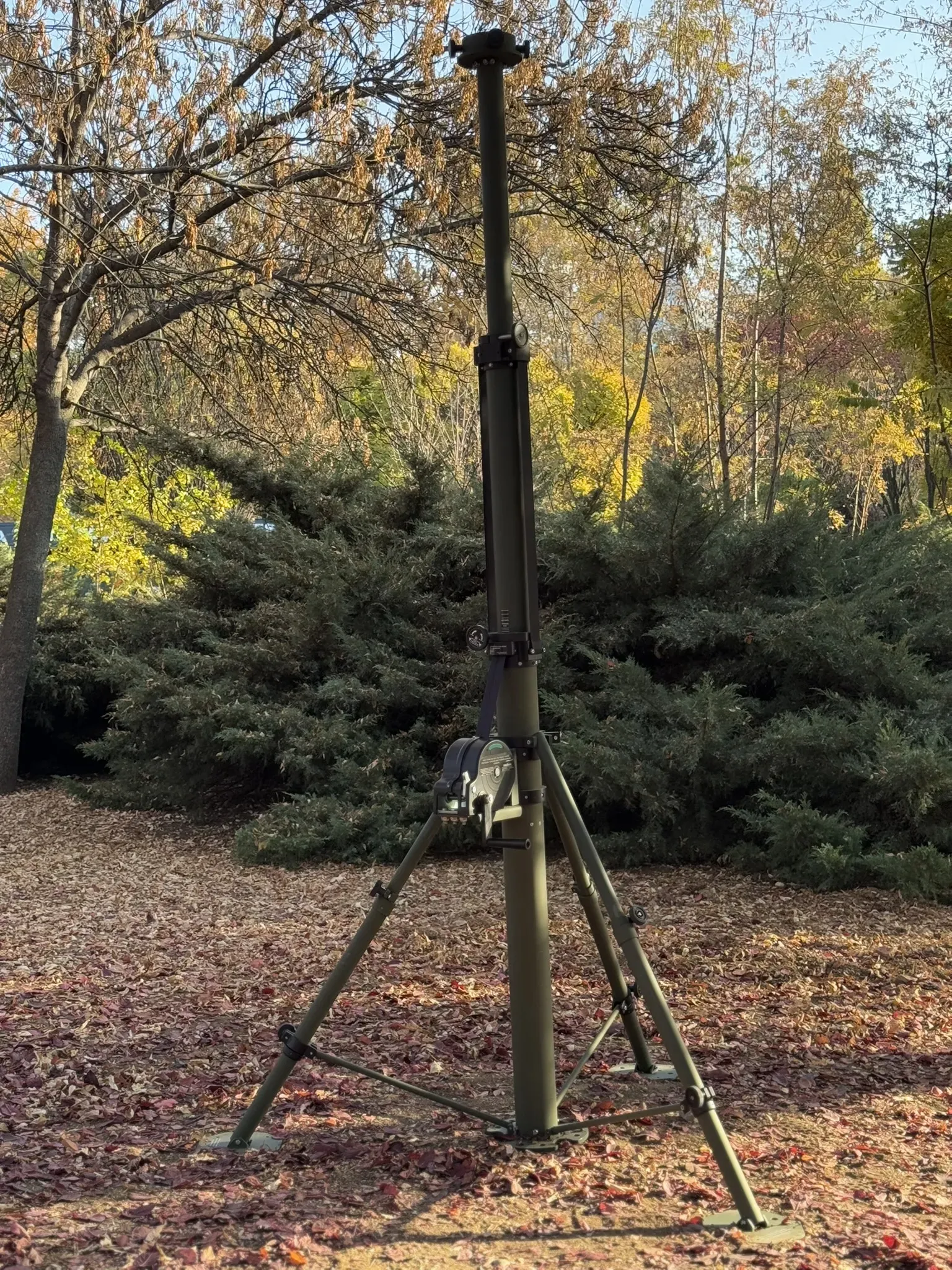

Mast fully extended to full height on its tripod in woodland, autumn trees behind.

41 / 41
