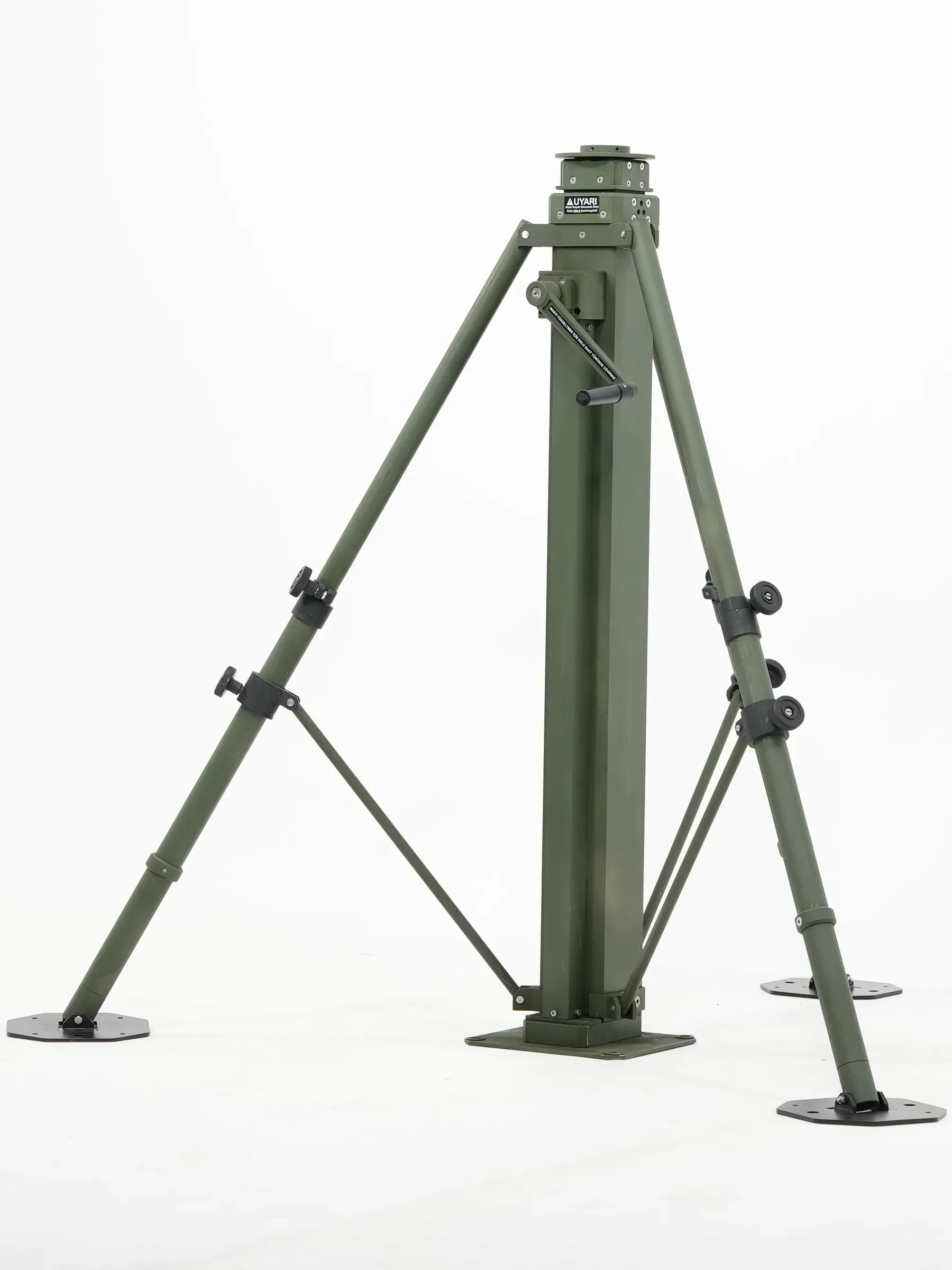

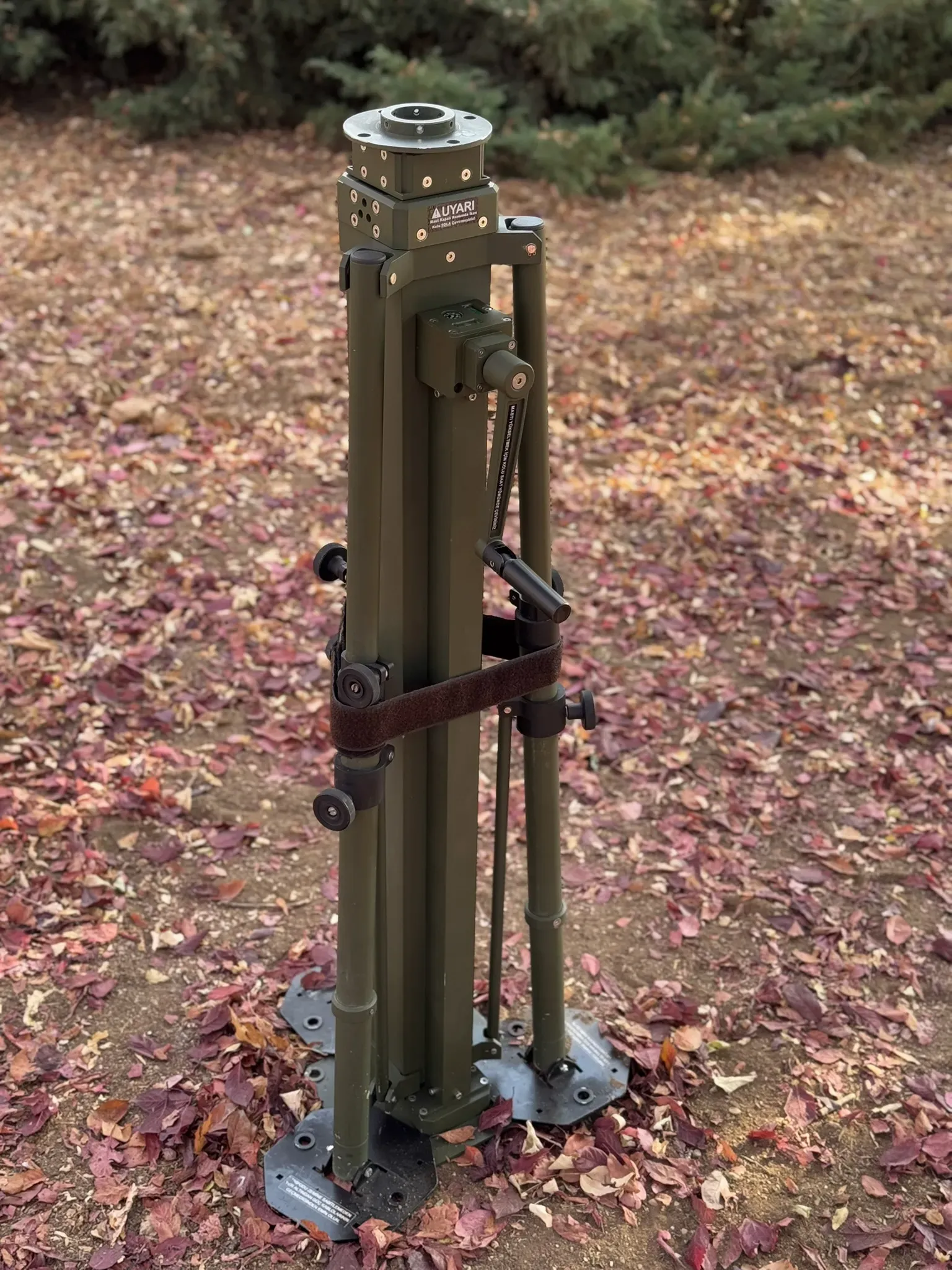

MMS20
Modular Manual Mast System
Hand-cranked version of the modular square-profile mast, reaching 14 m with 21 to 58 kg payload and no external power requirement.
- 3 sections
- 58 kg payload
- Manual
- 2.500 mm
- Extended Height
- 58 kg
- Rated Payload
- 120 km/h
- Wind Load
Highlights
01Patented actuator
Trapezoidal screws with steel wire
The patented hybrid actuator combines trapezoidal screws with steel wires. It gives a manual mast the reach of a motorised one without the weight that a full screw drive would add.
- 32 to 85 kg mast weight for 14 m of reach
- High specific strength materials throughout
02Synchronised sections
All sections move together, not in sequence

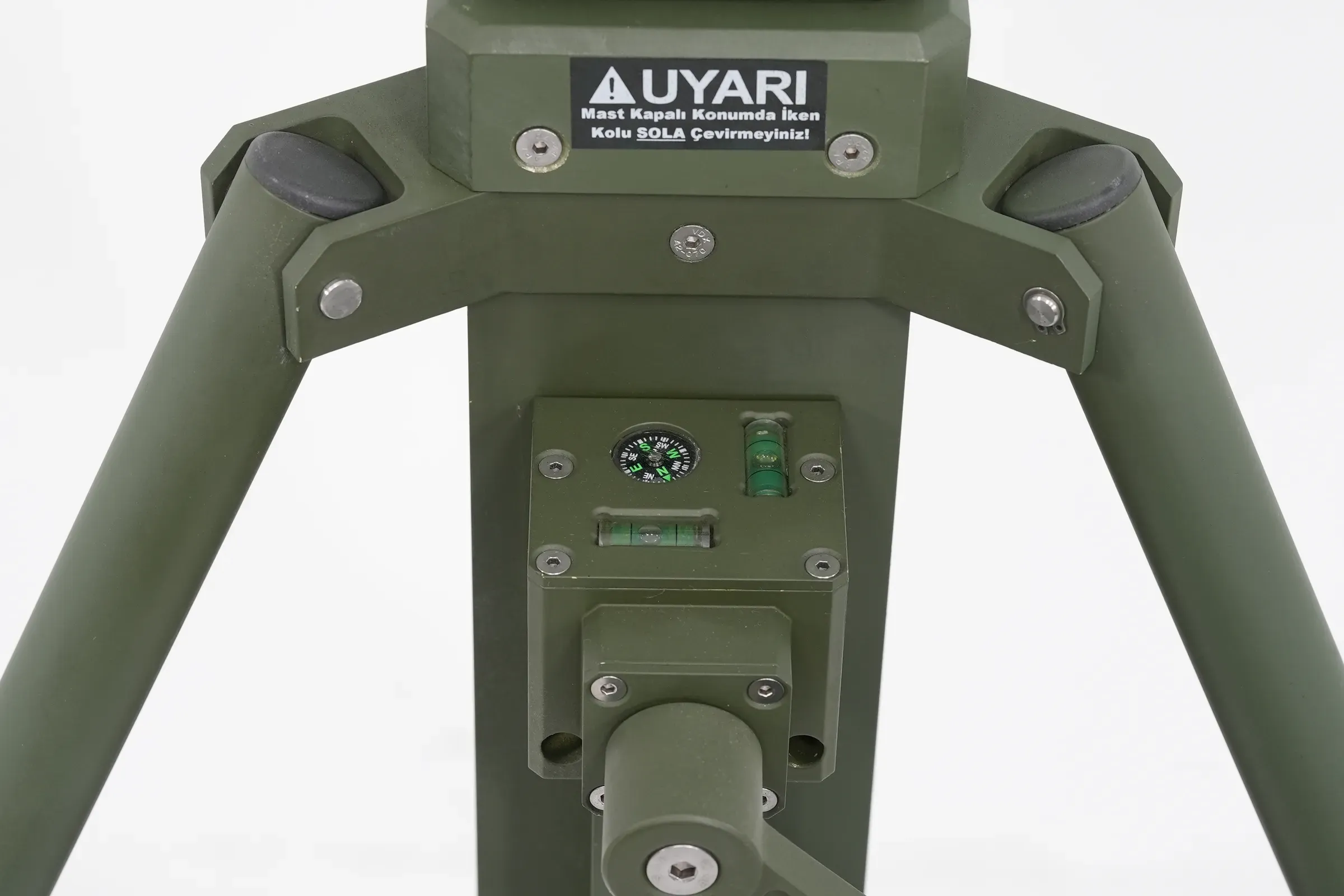

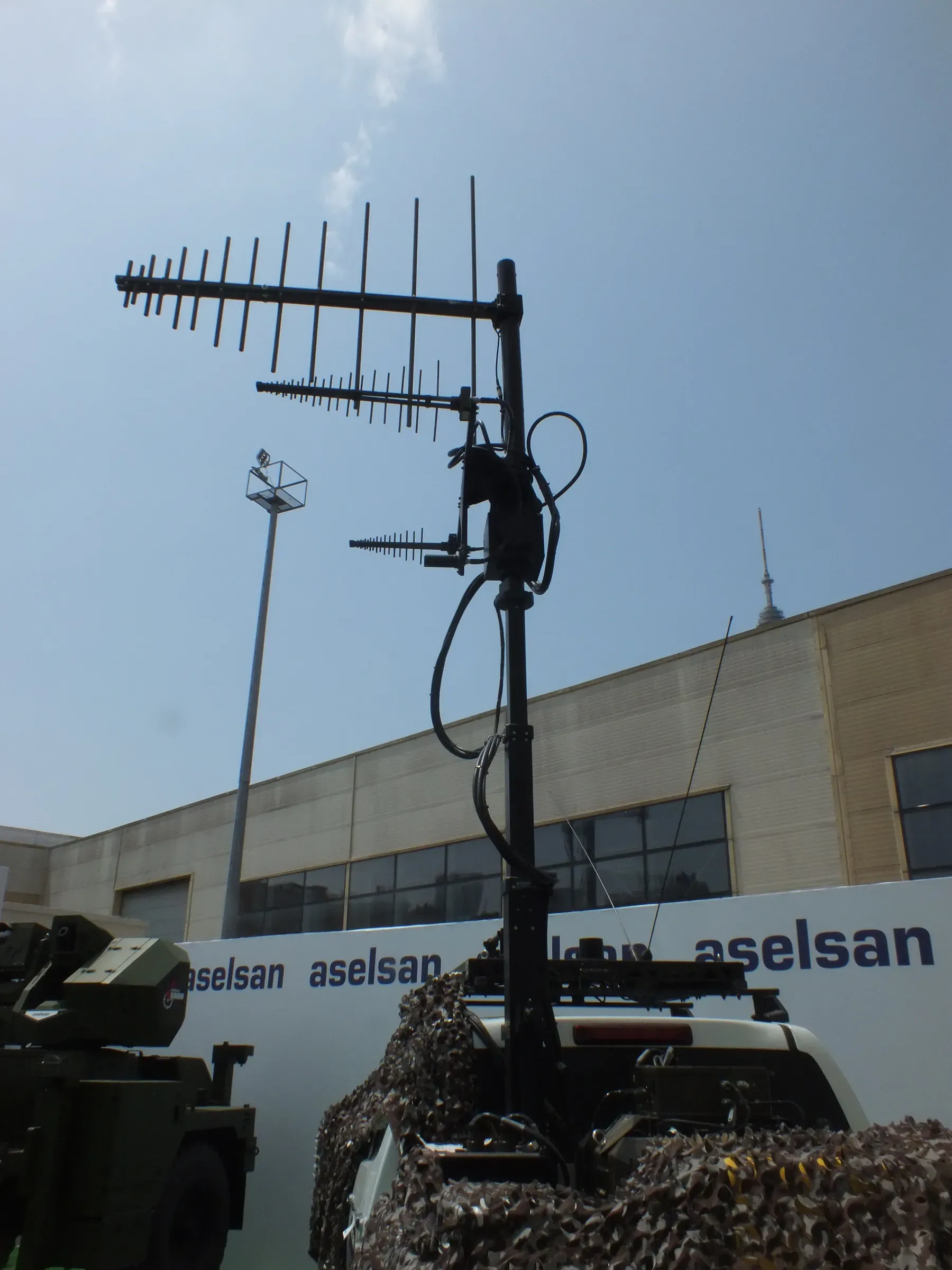

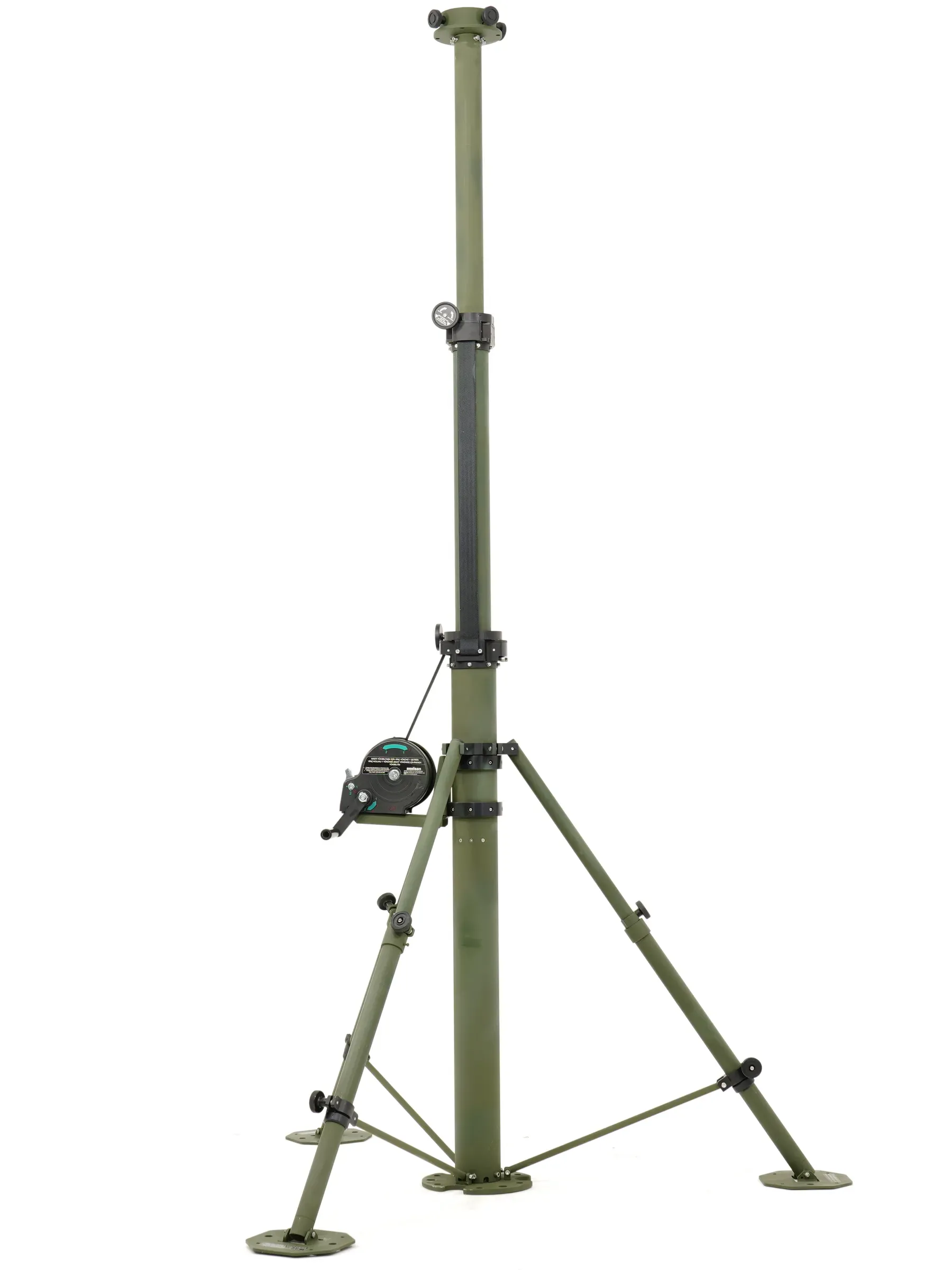

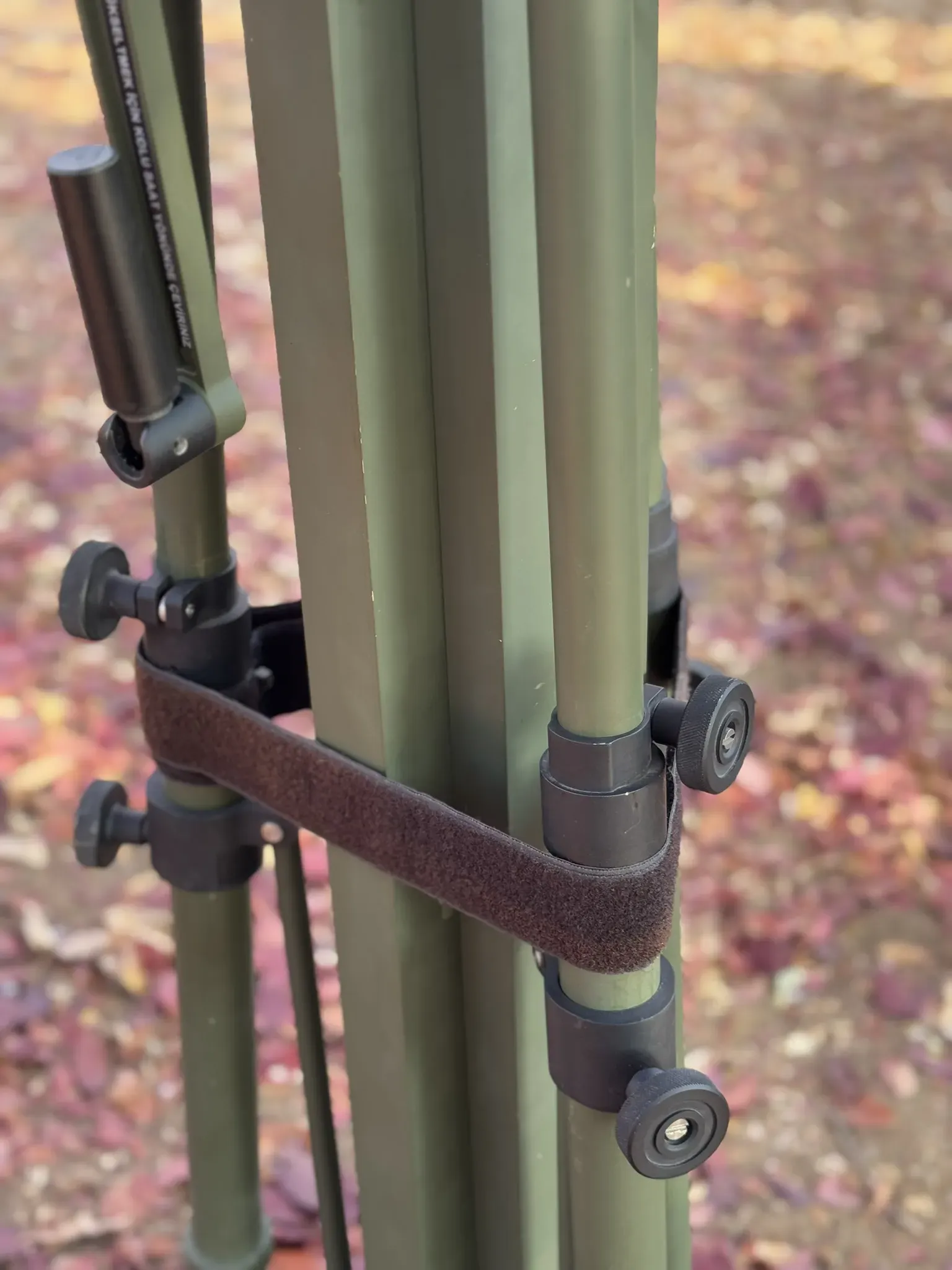

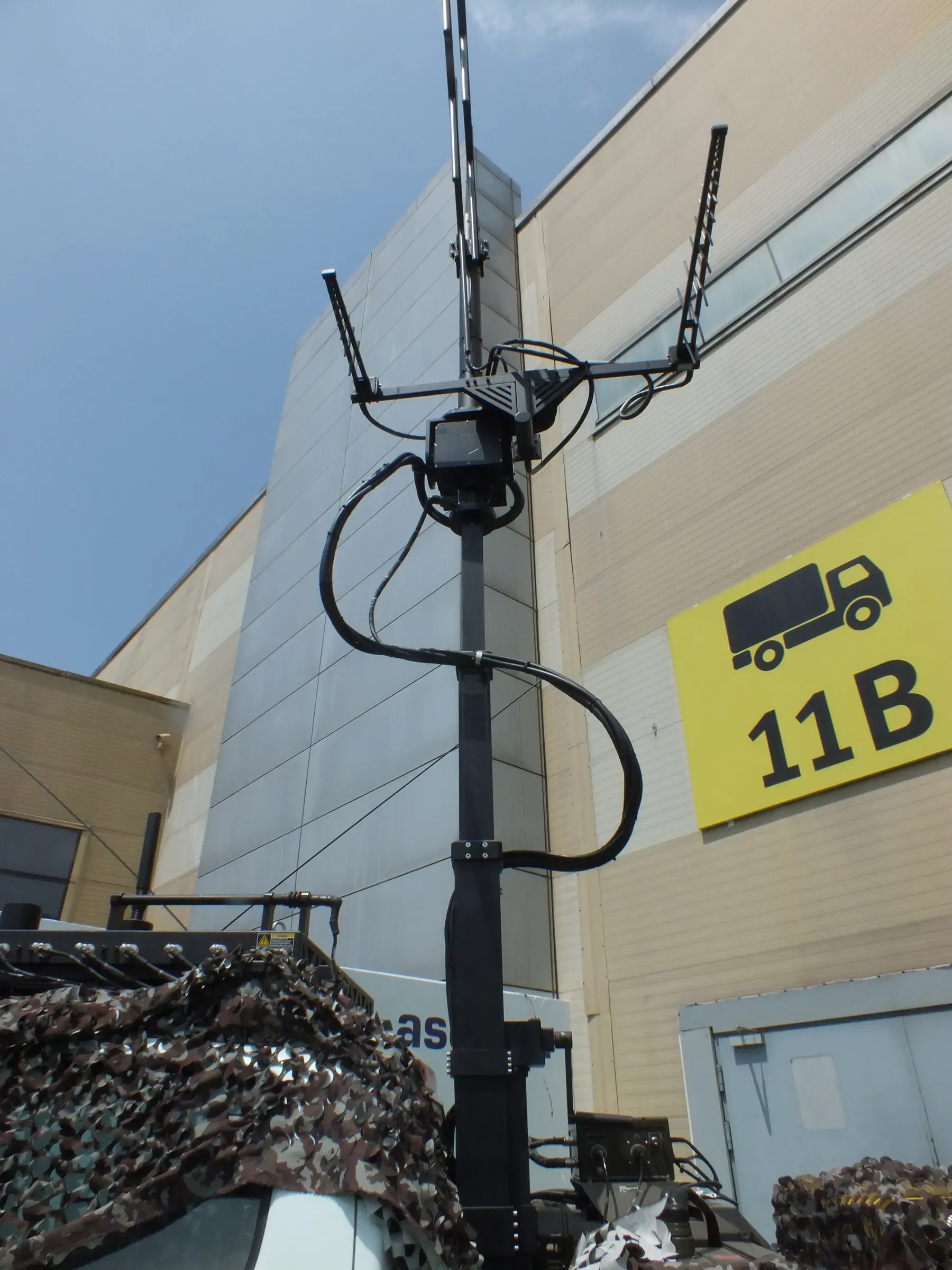

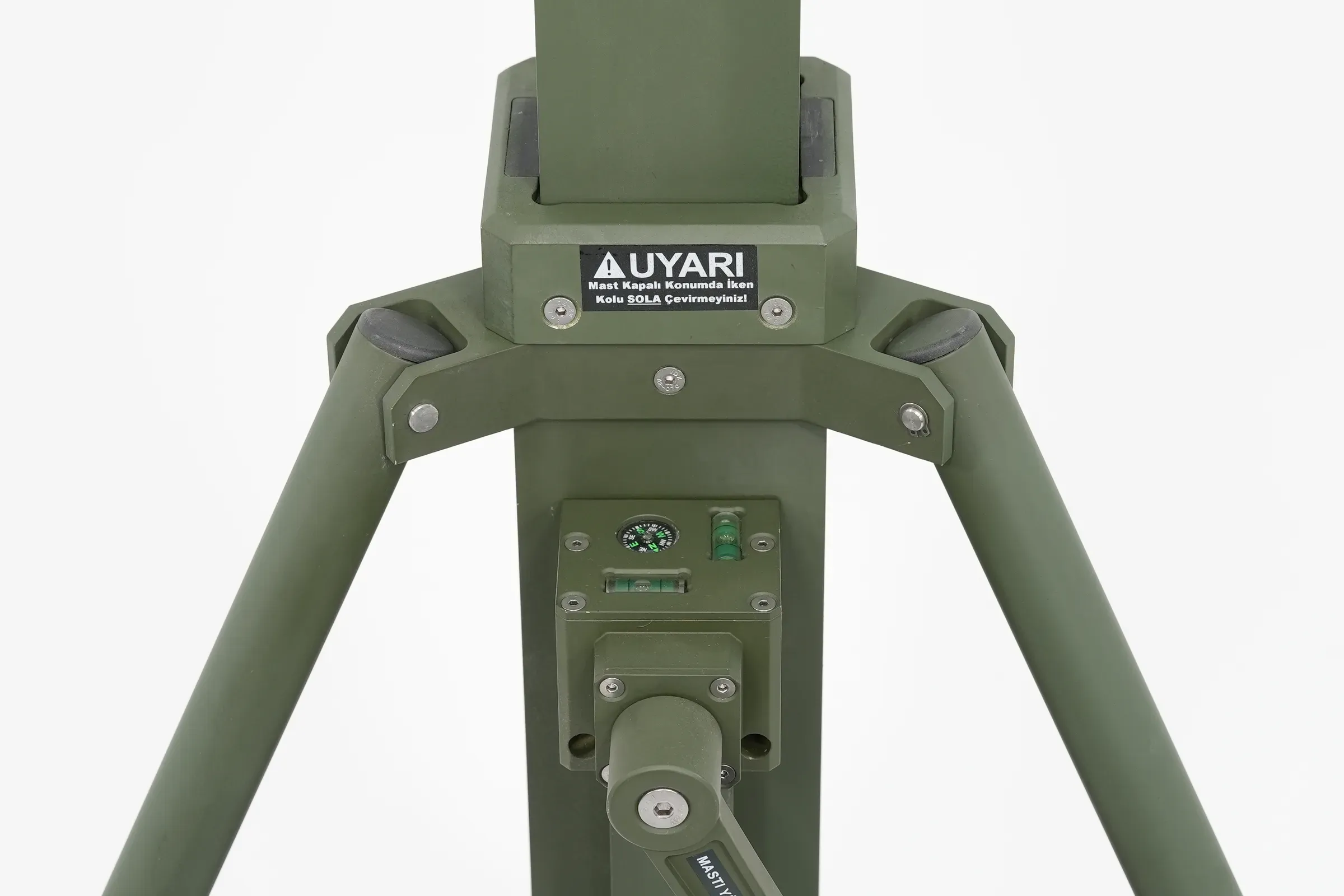

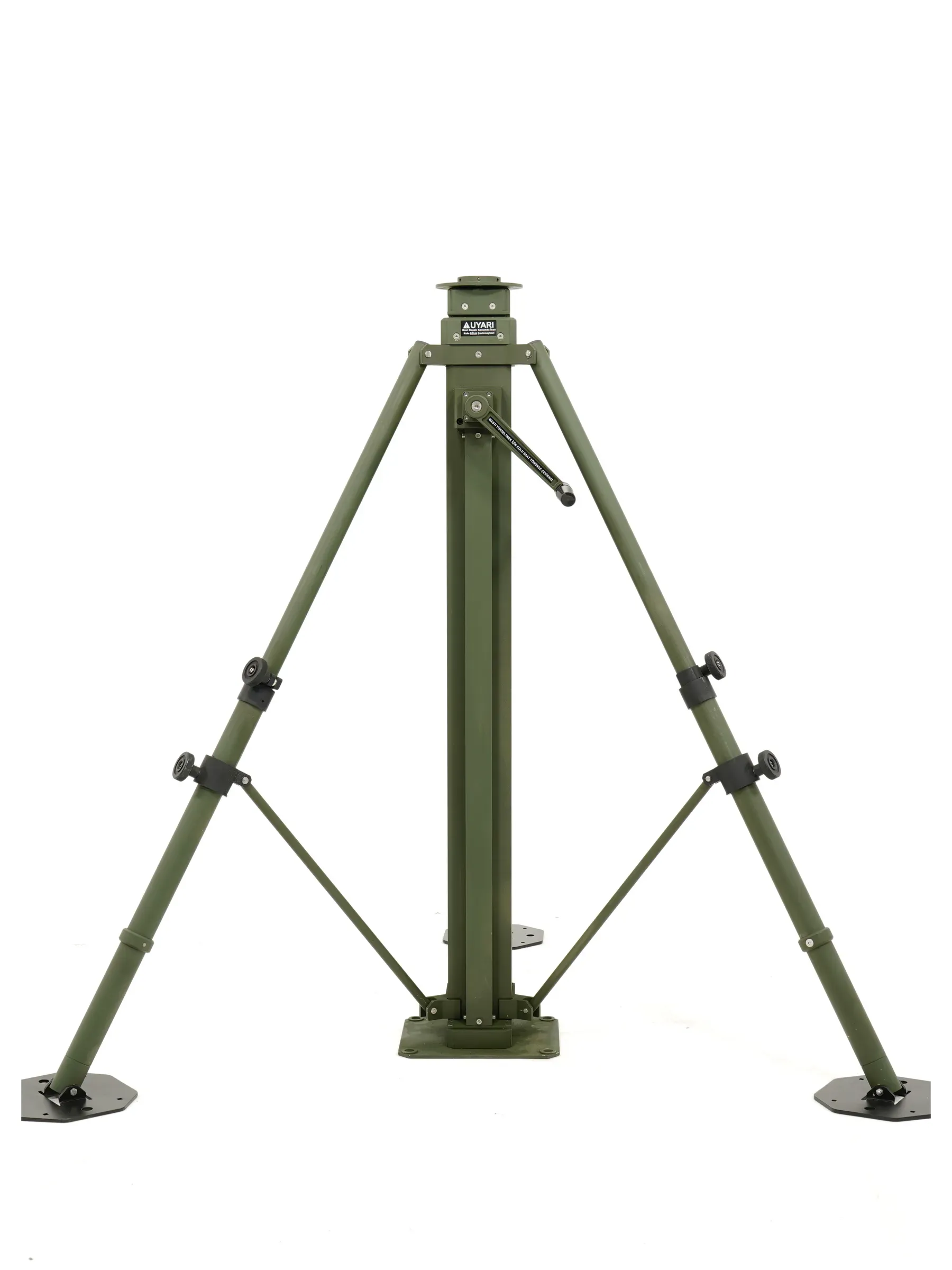

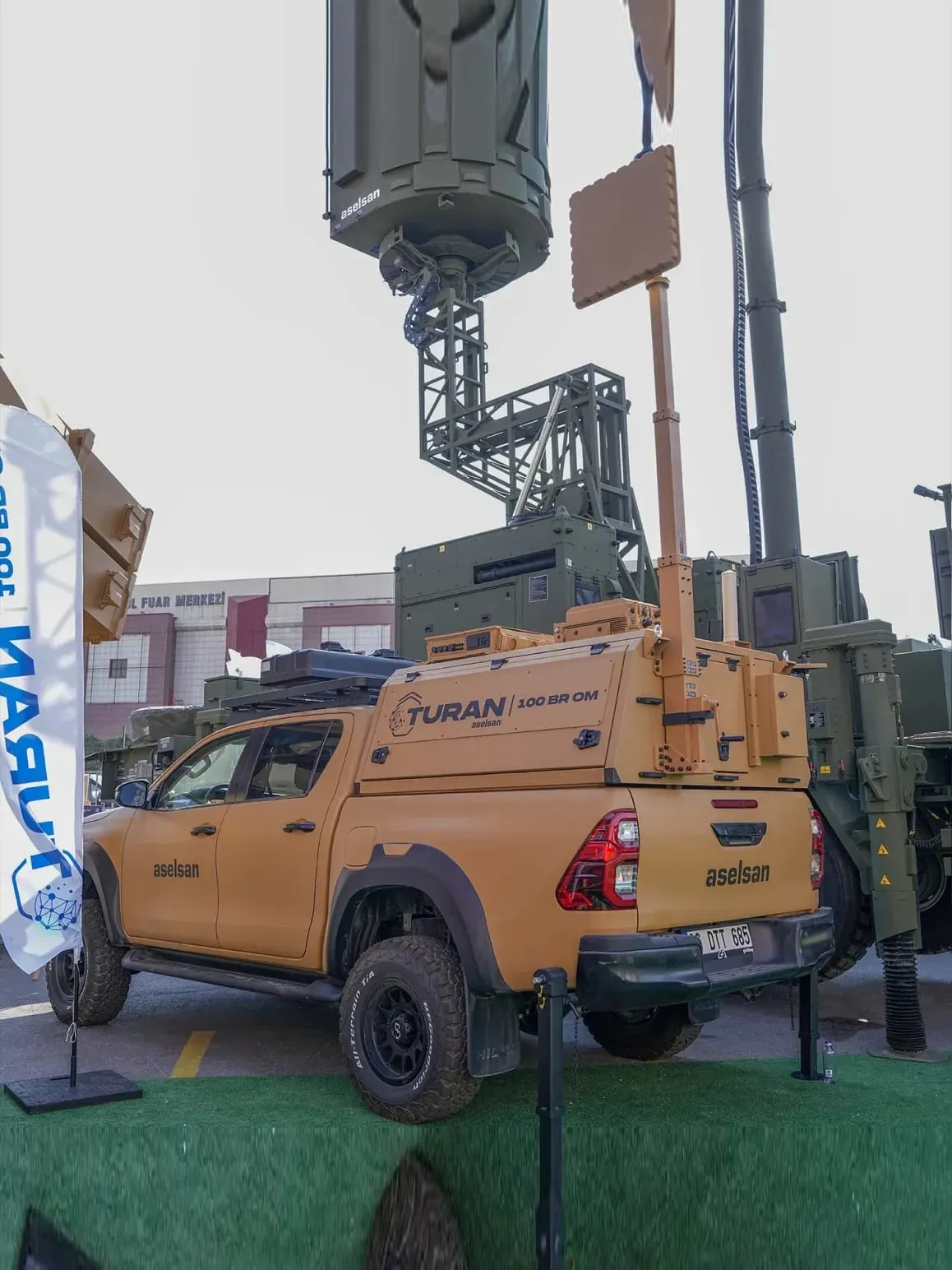

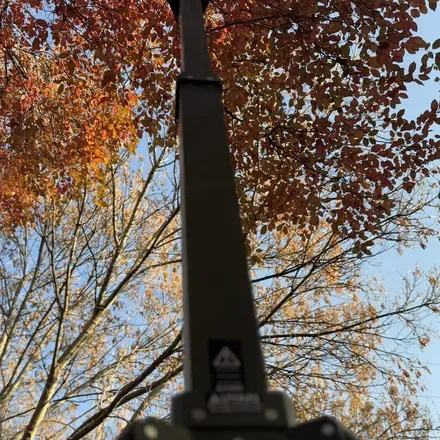

The sections are synchronised through the actuation, so the mast rises evenly rather than one stage at a time. Deployment and retraction stay stable throughout the travel.
- Deploys in 5 to 20 minutes by configuration
- Three to five sections

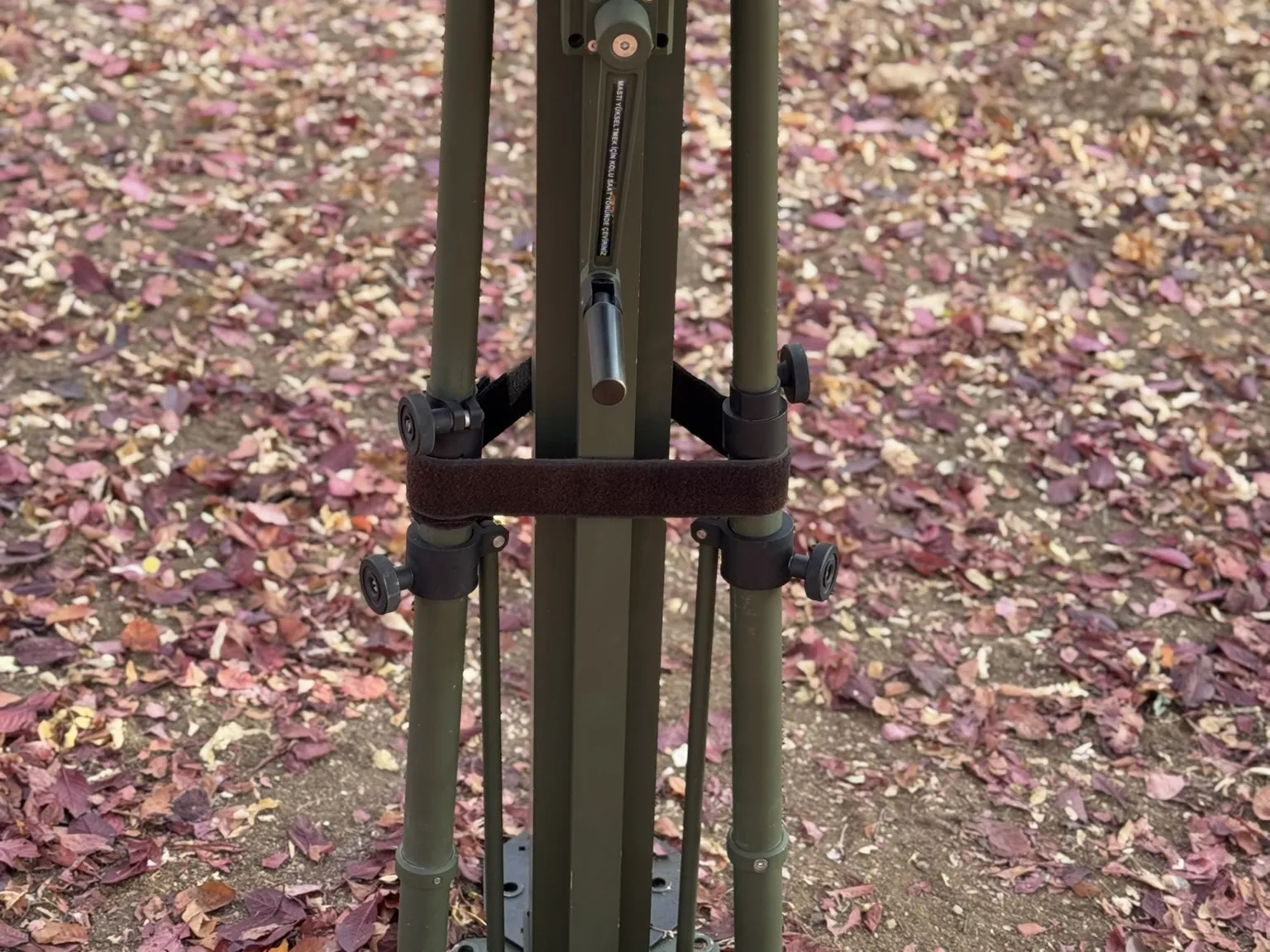

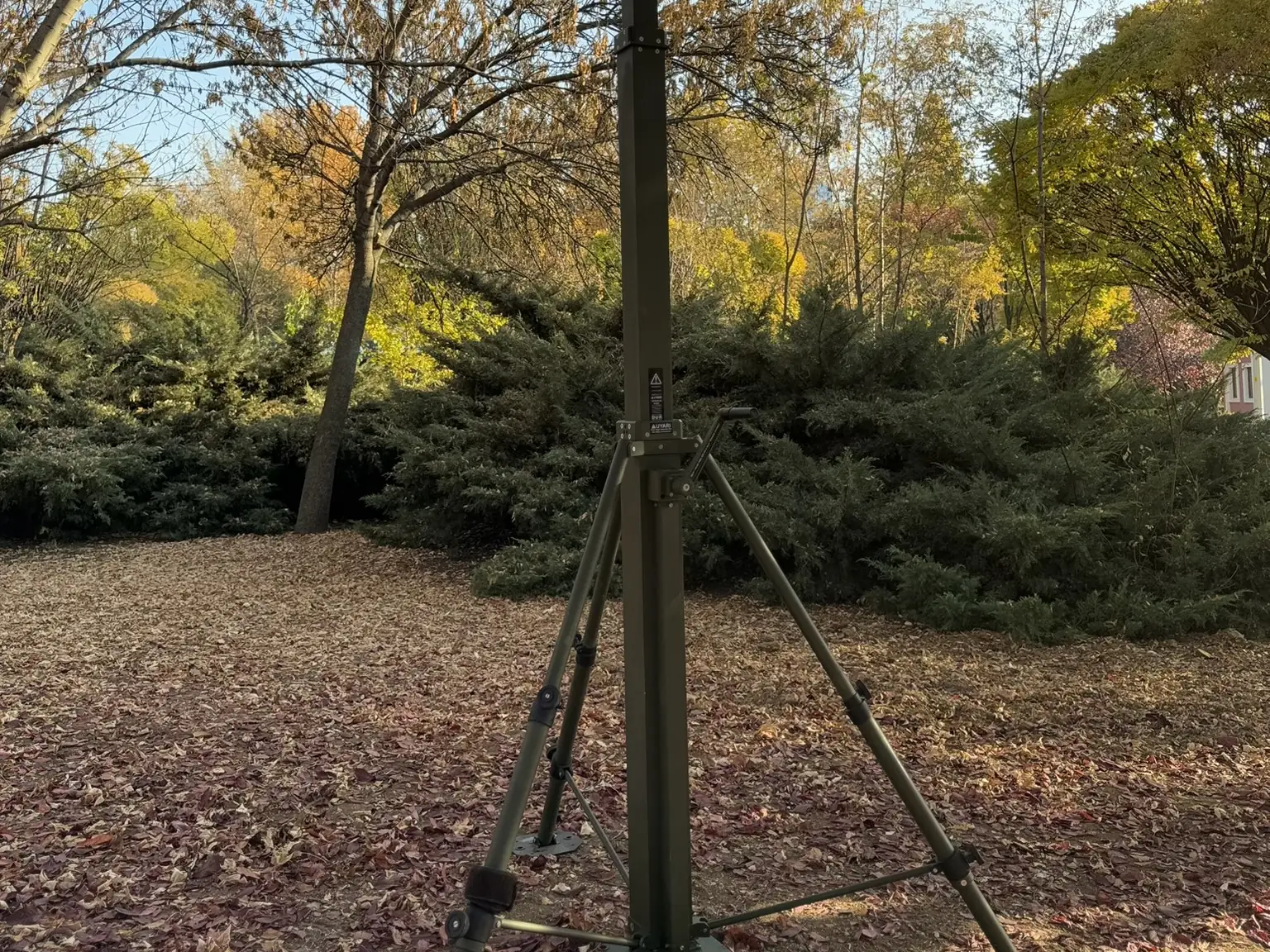

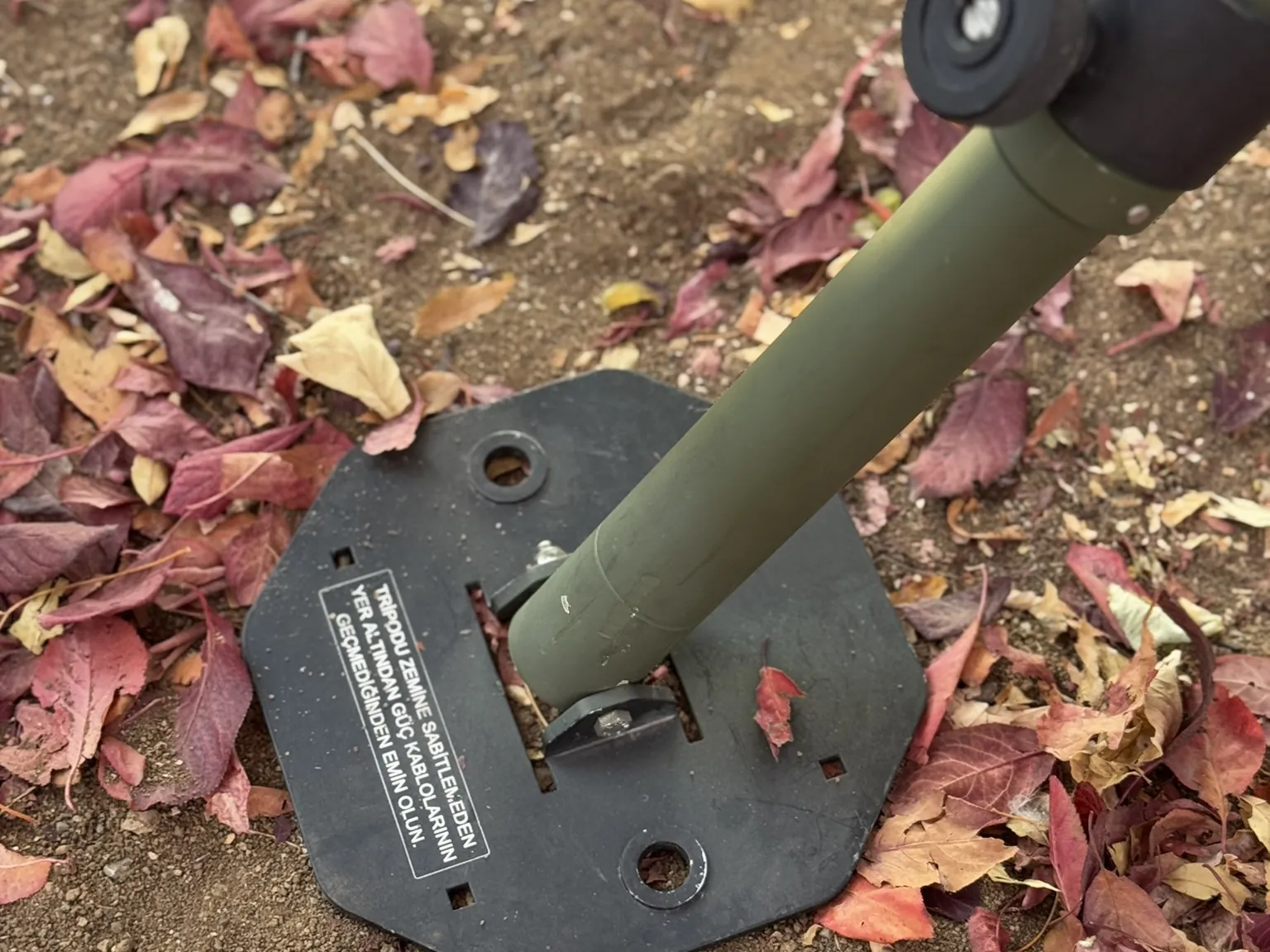

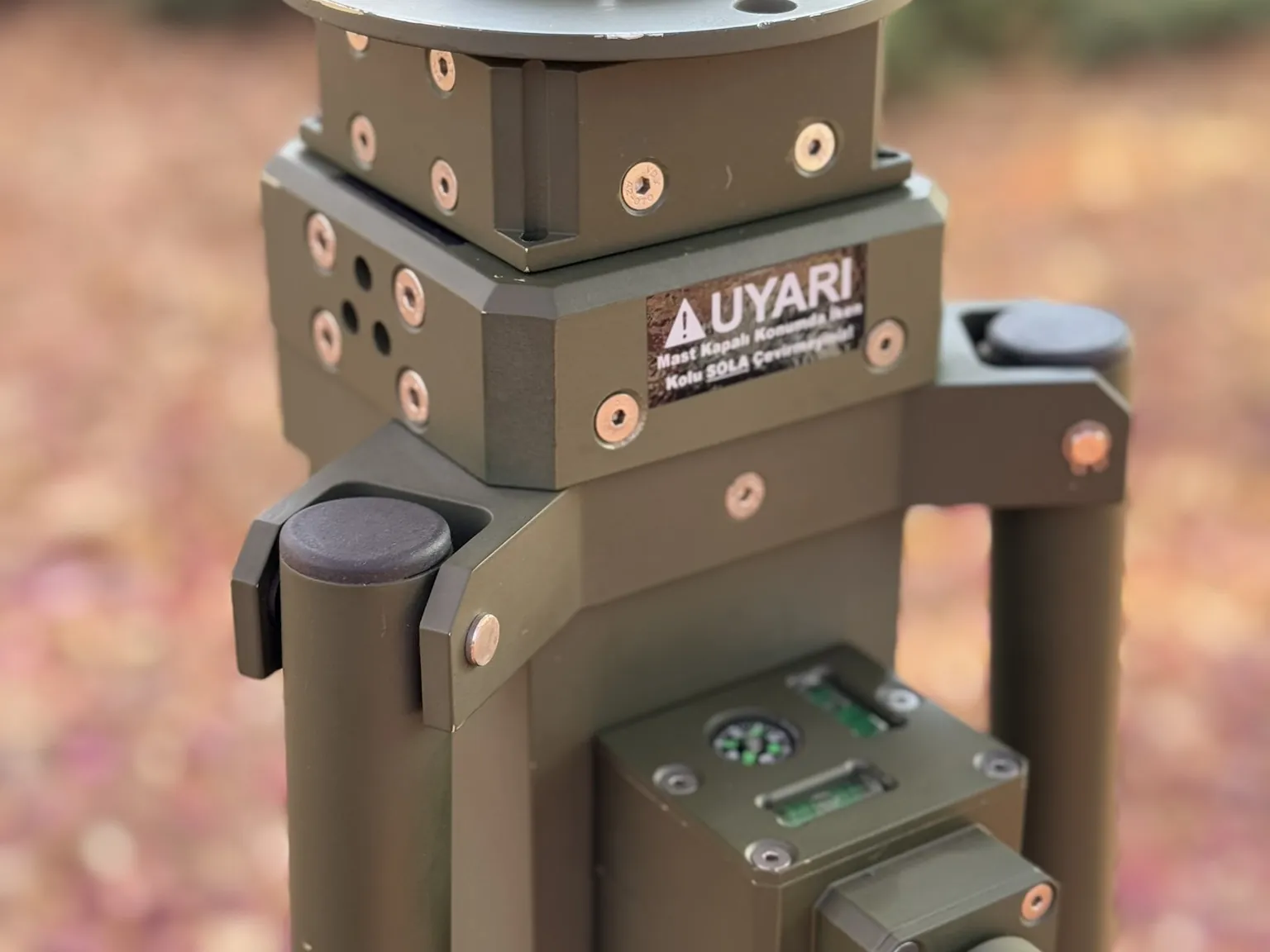

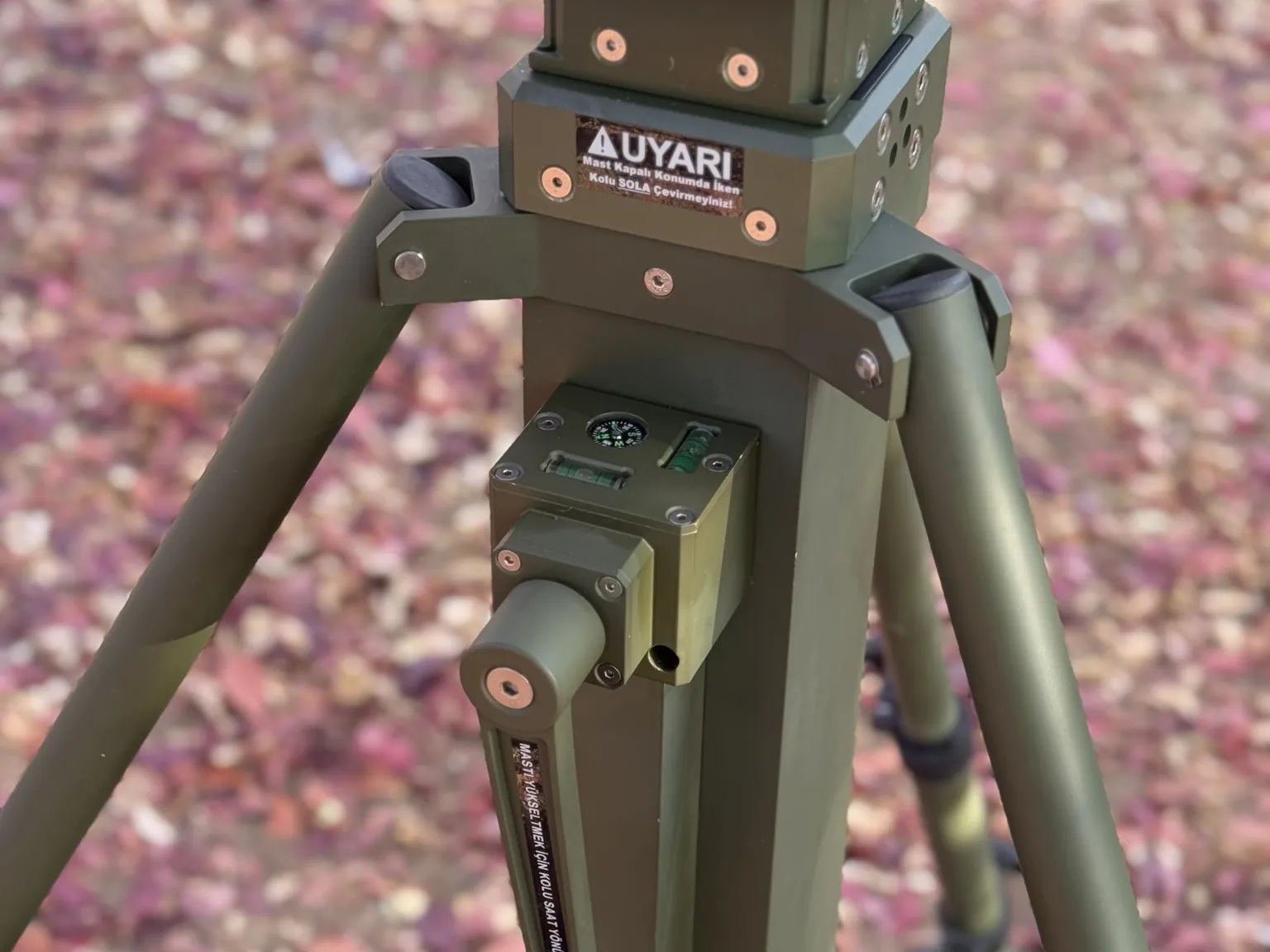

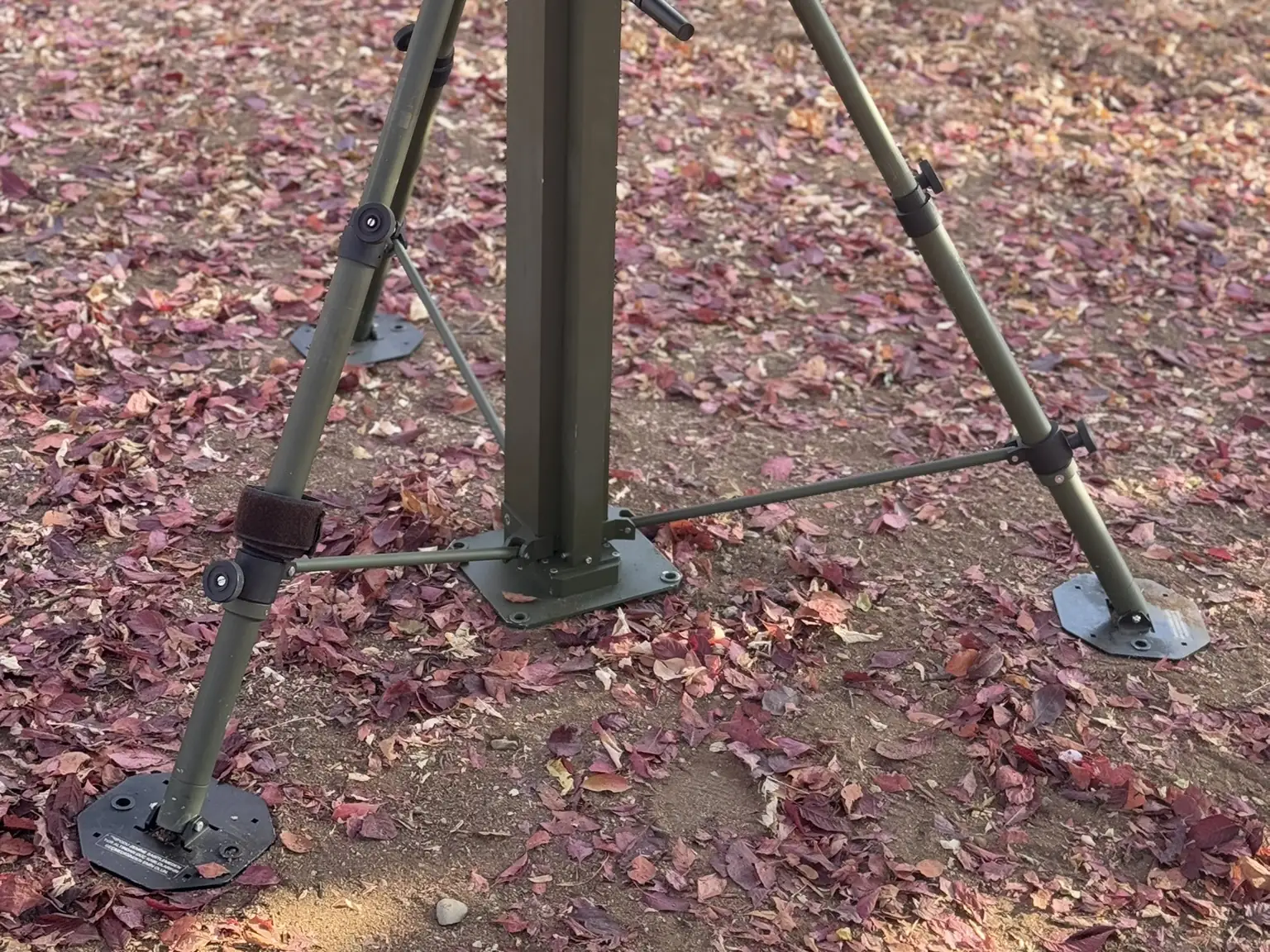

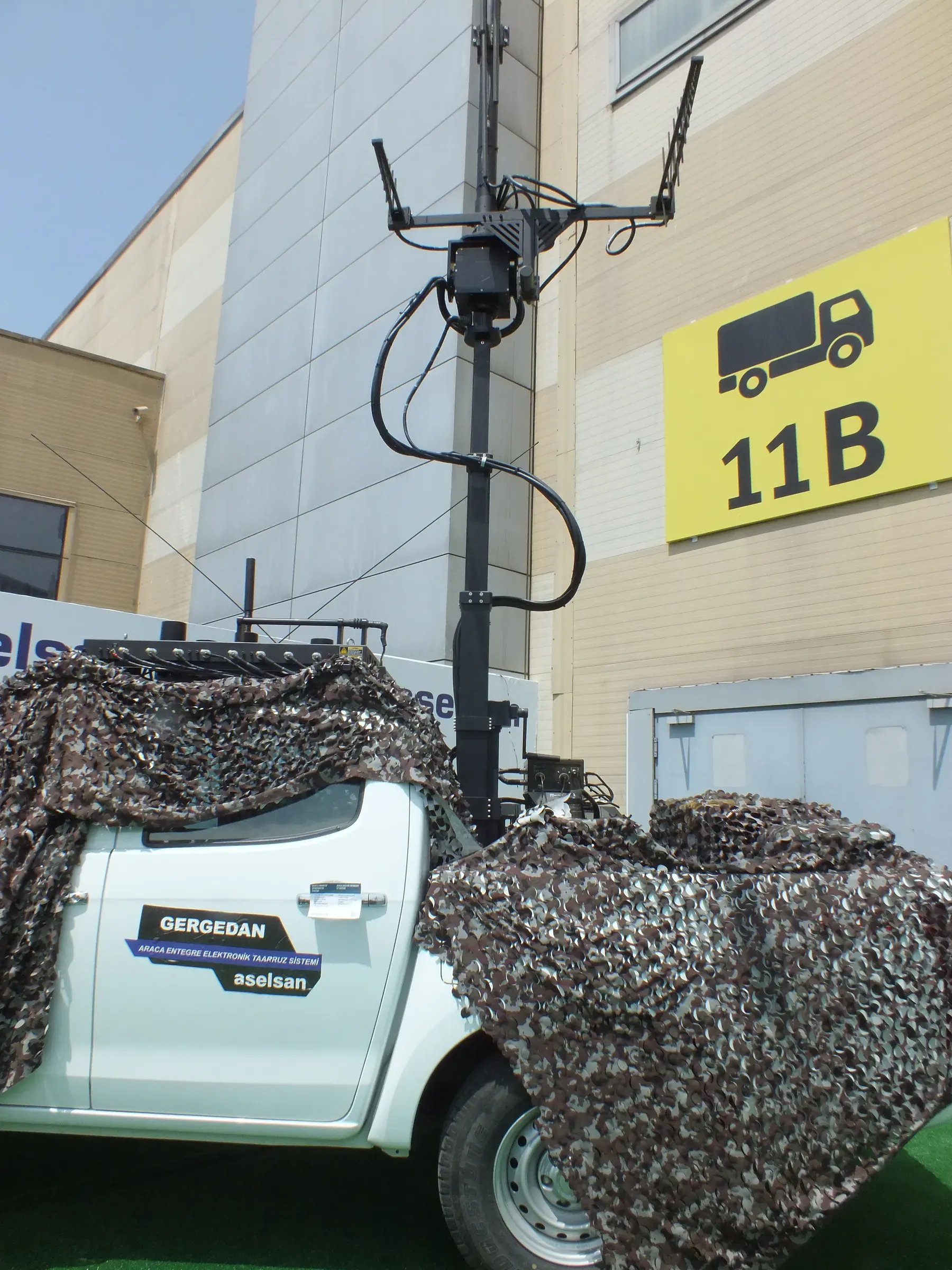

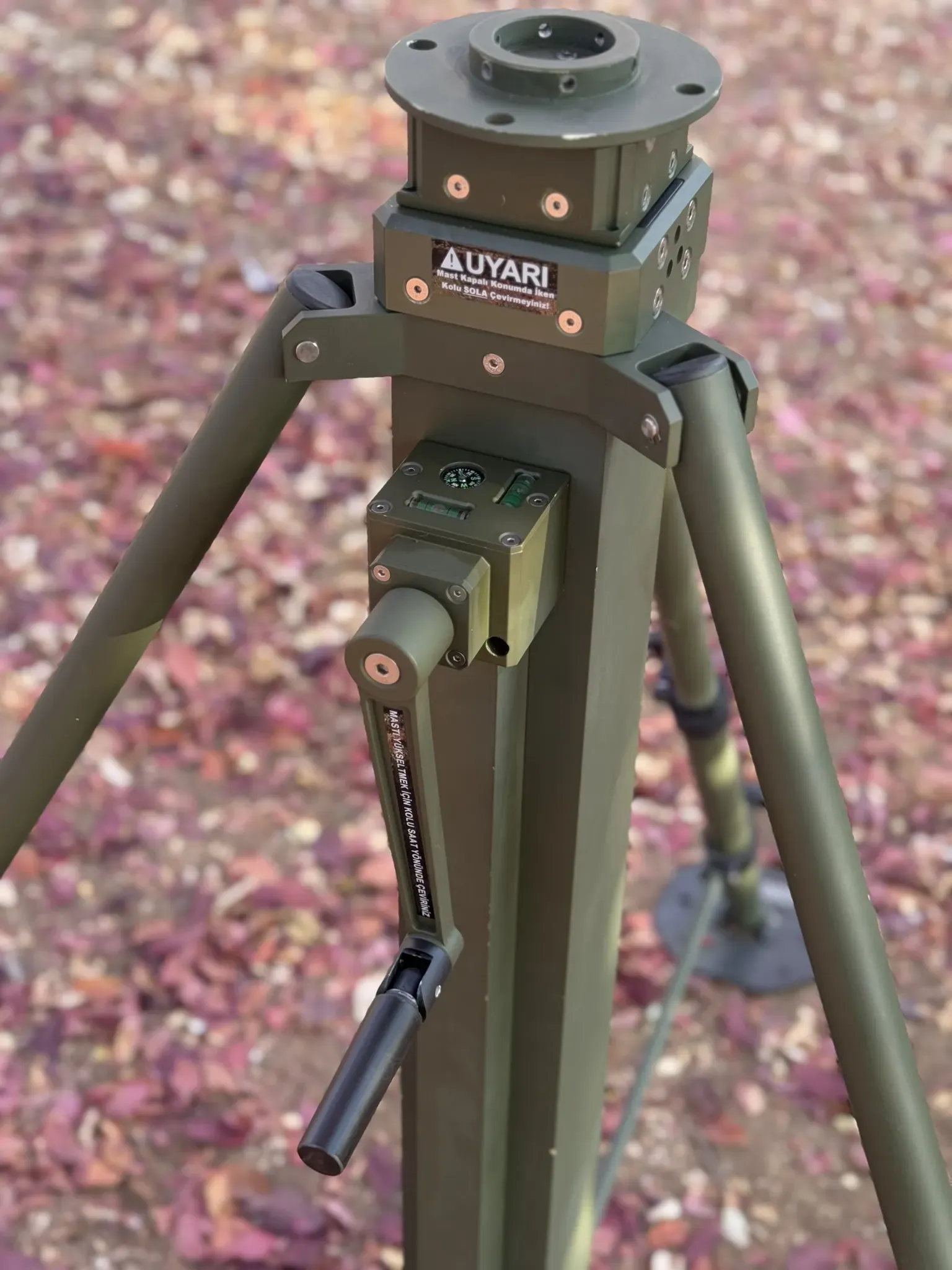

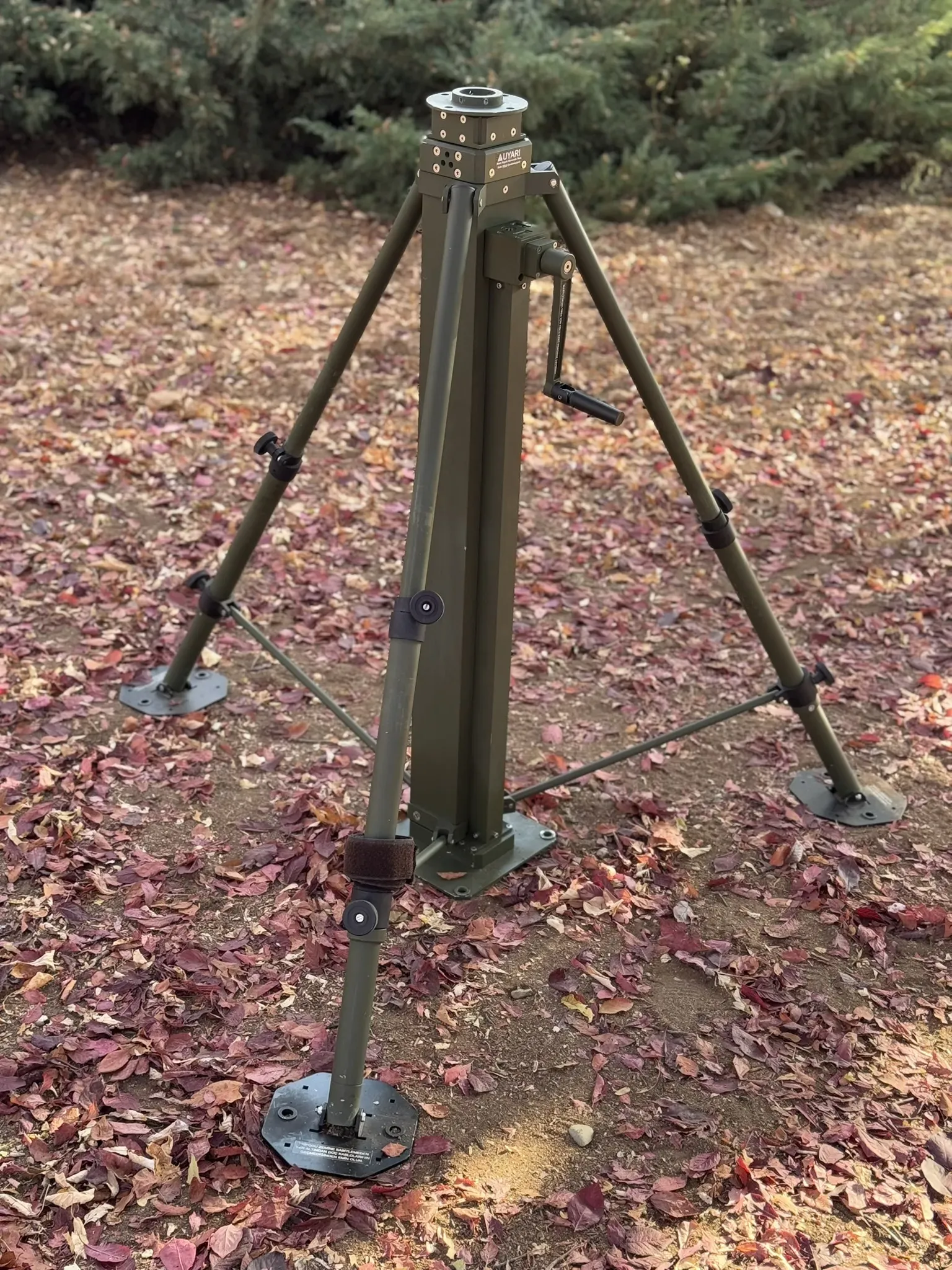

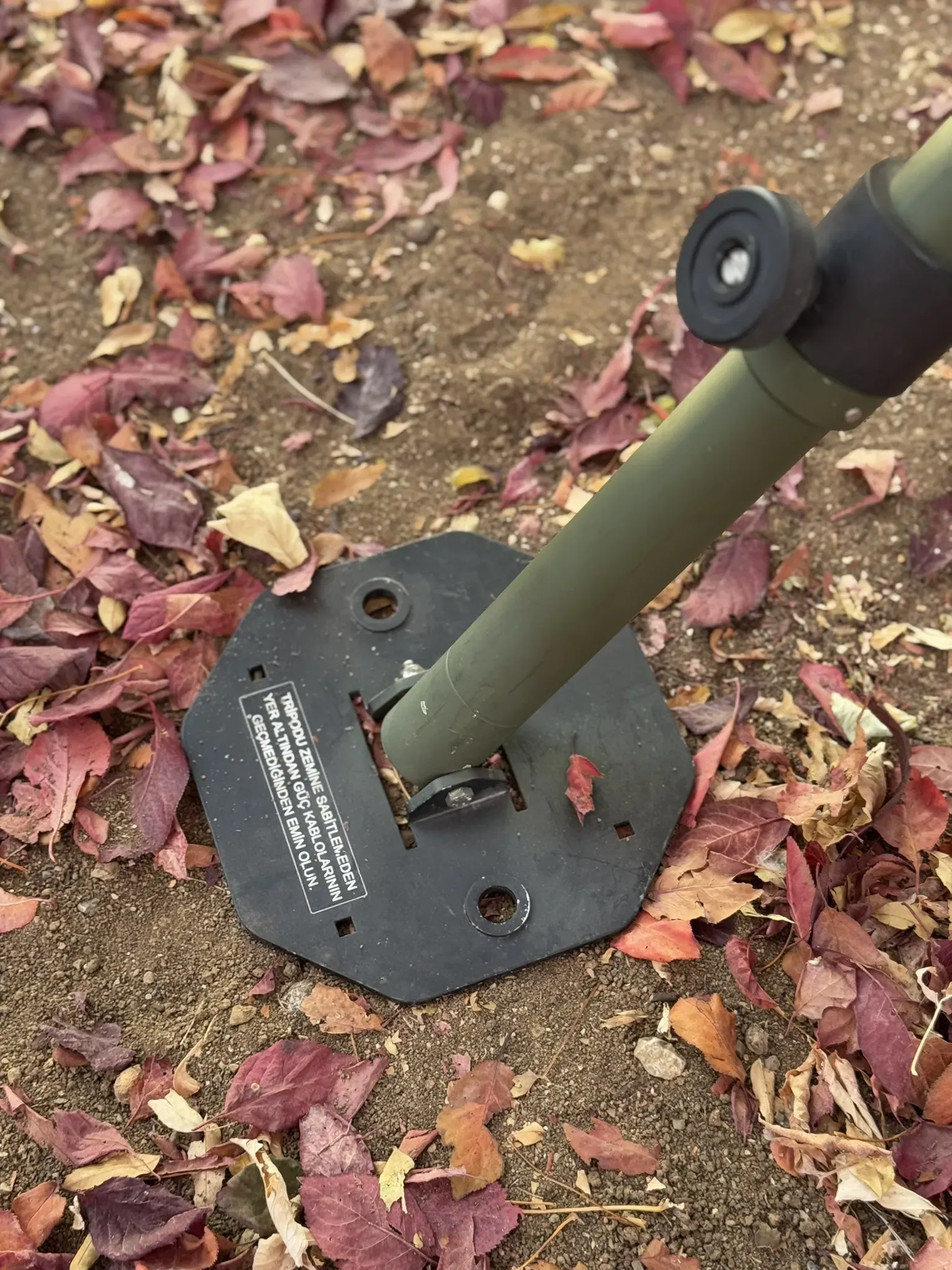

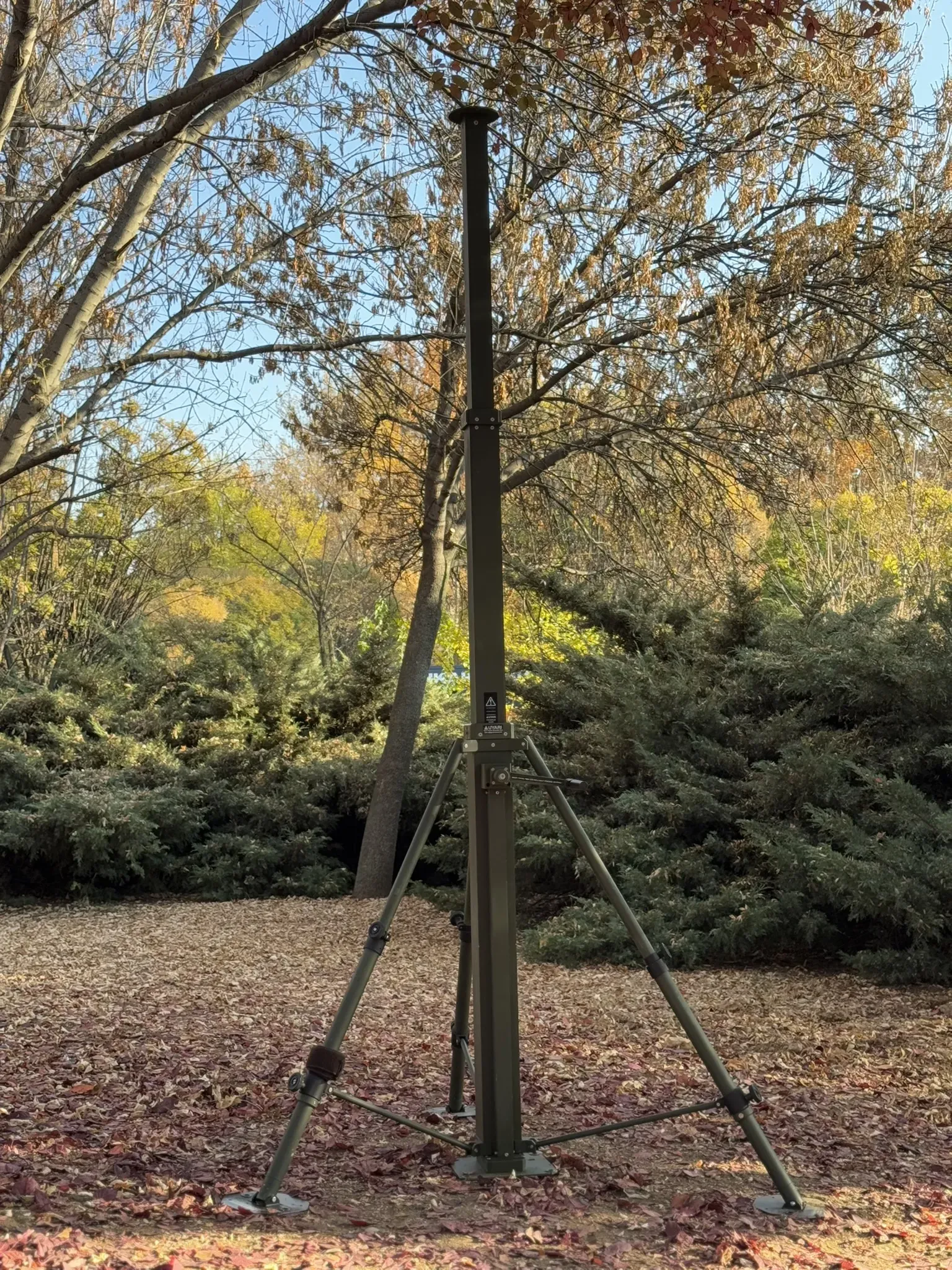

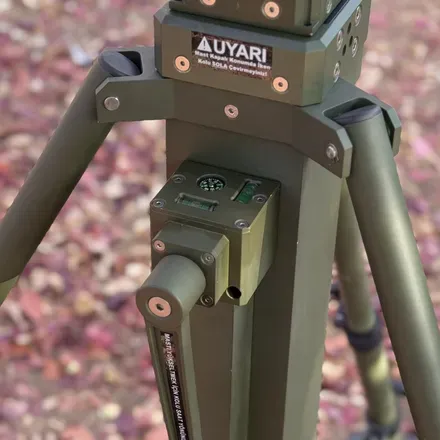

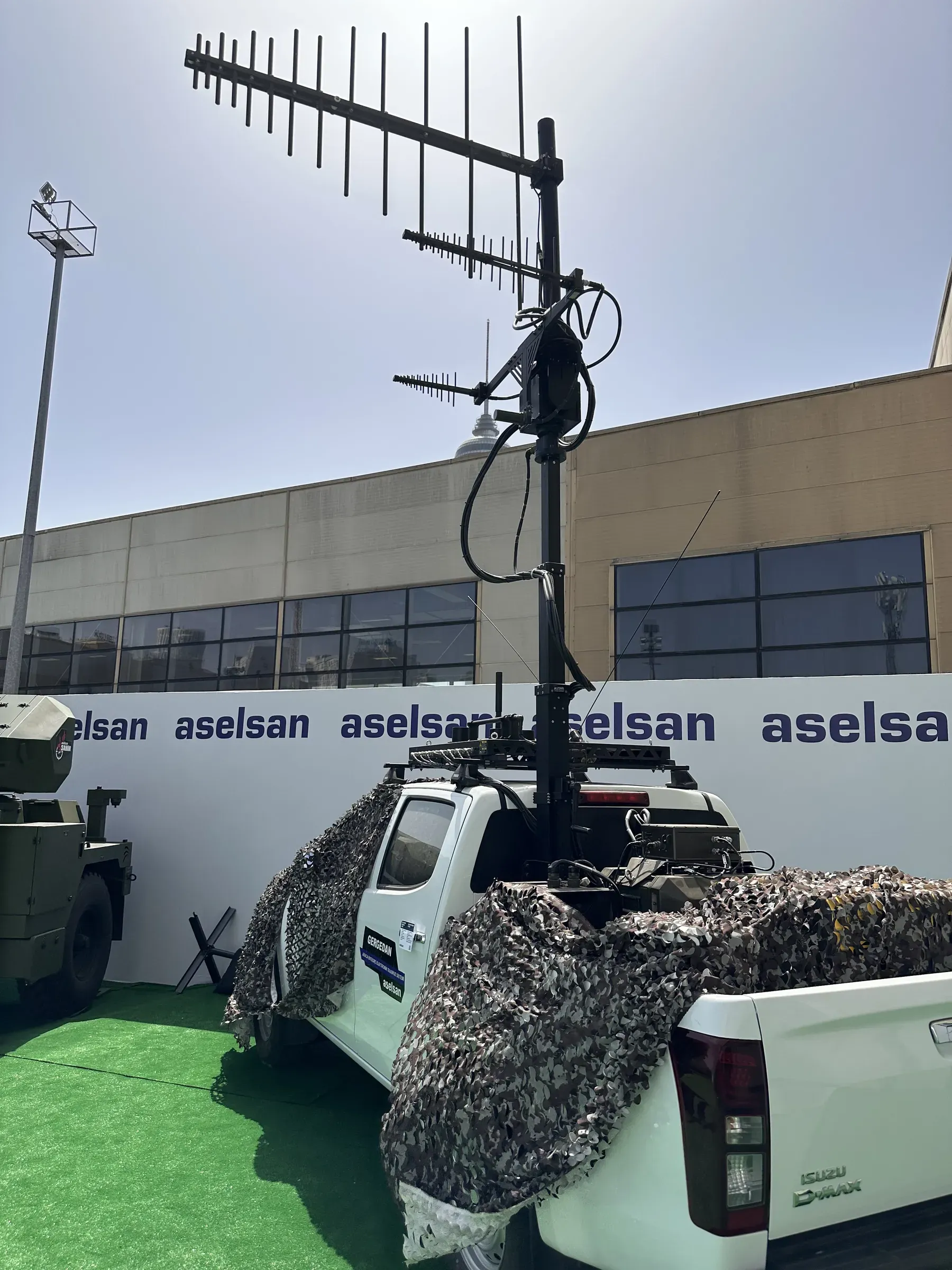

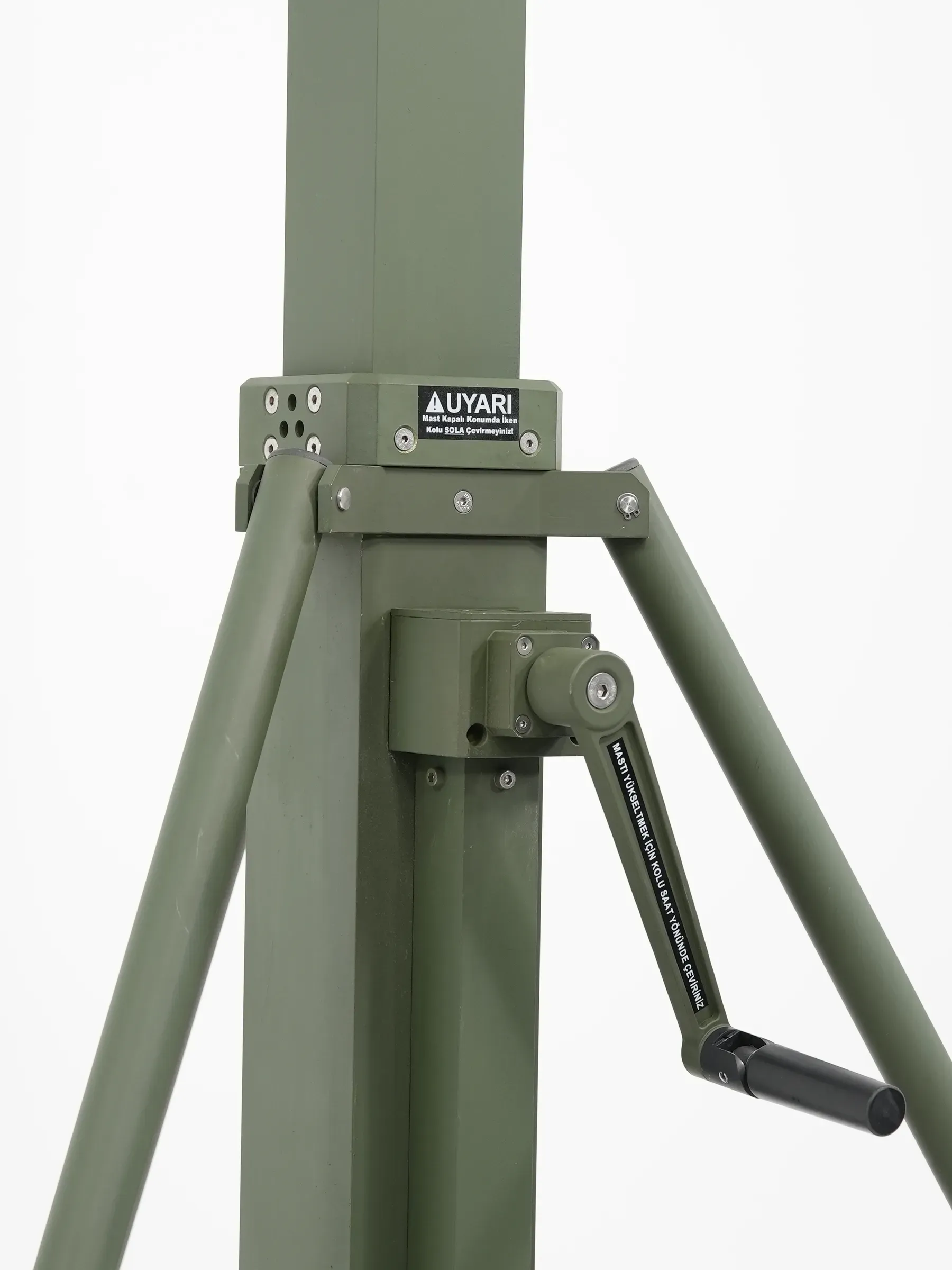

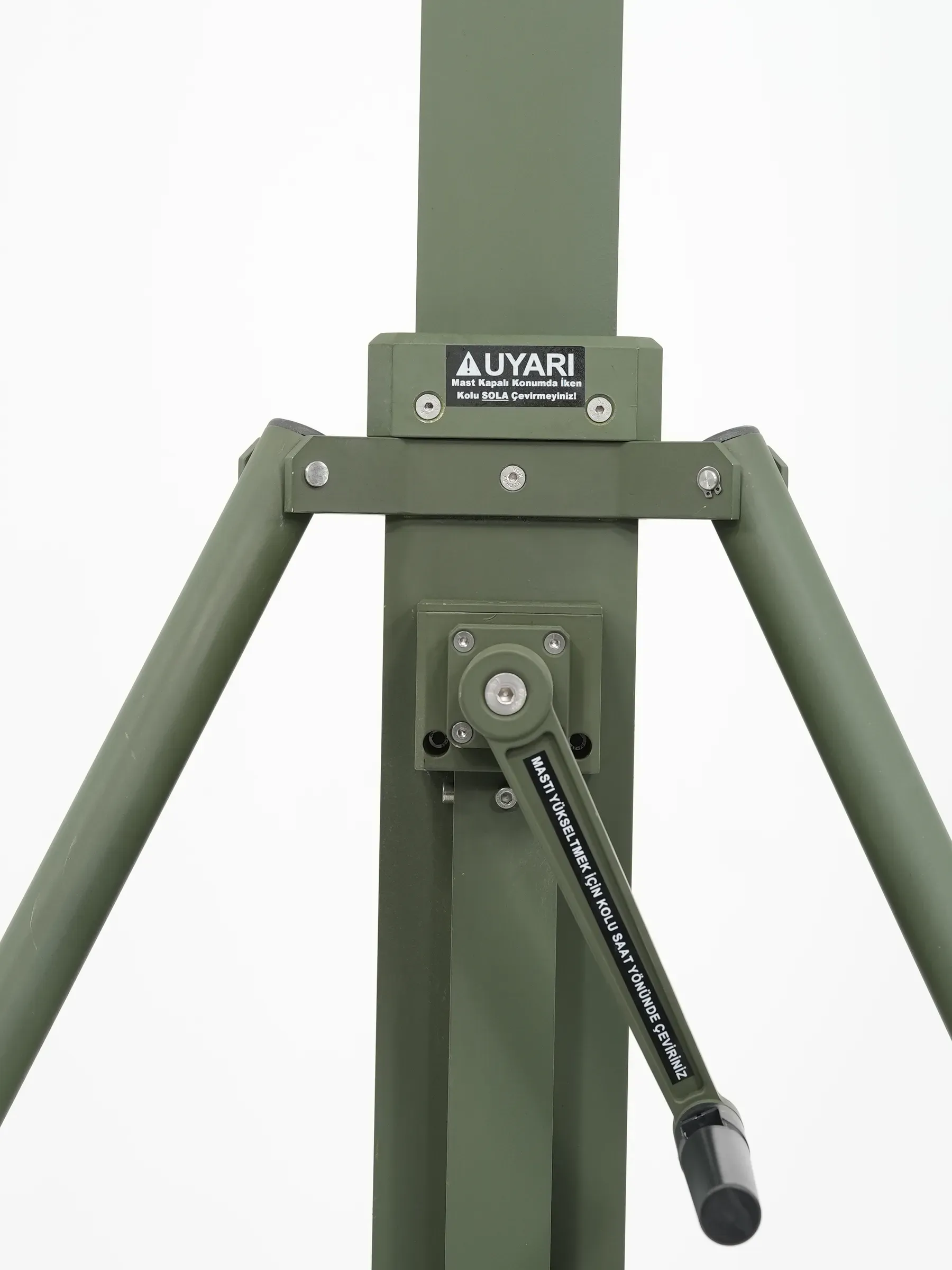

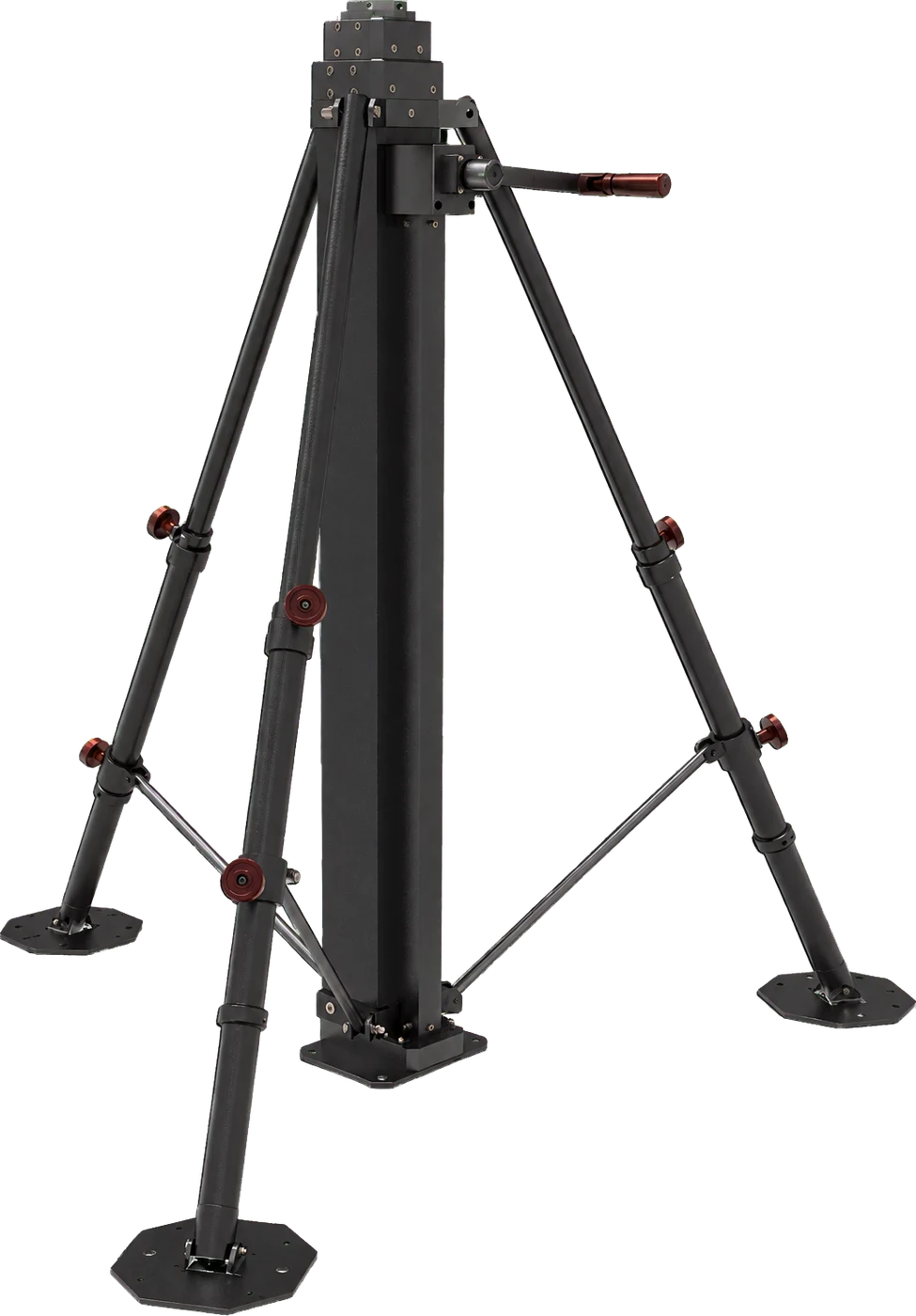

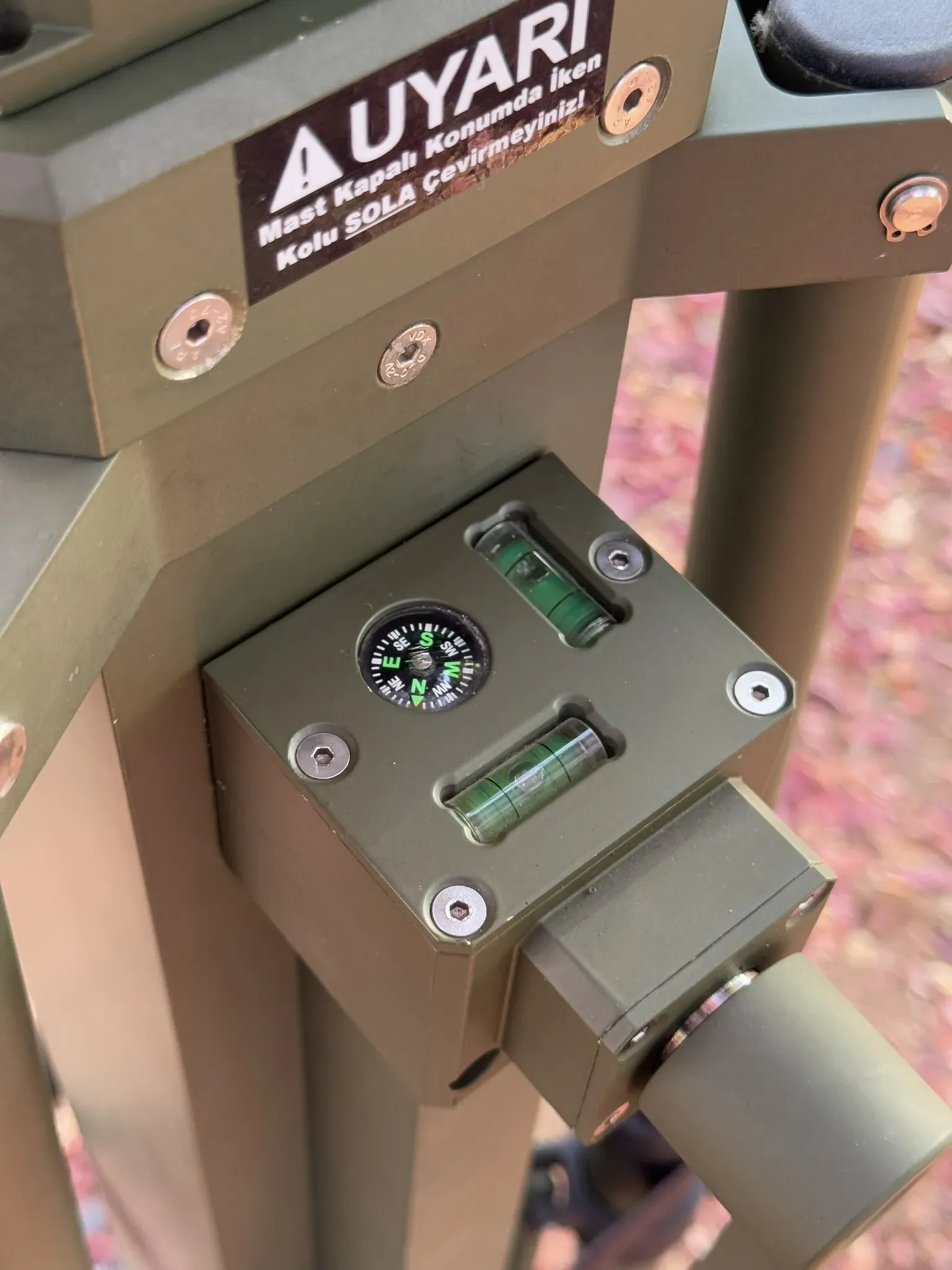

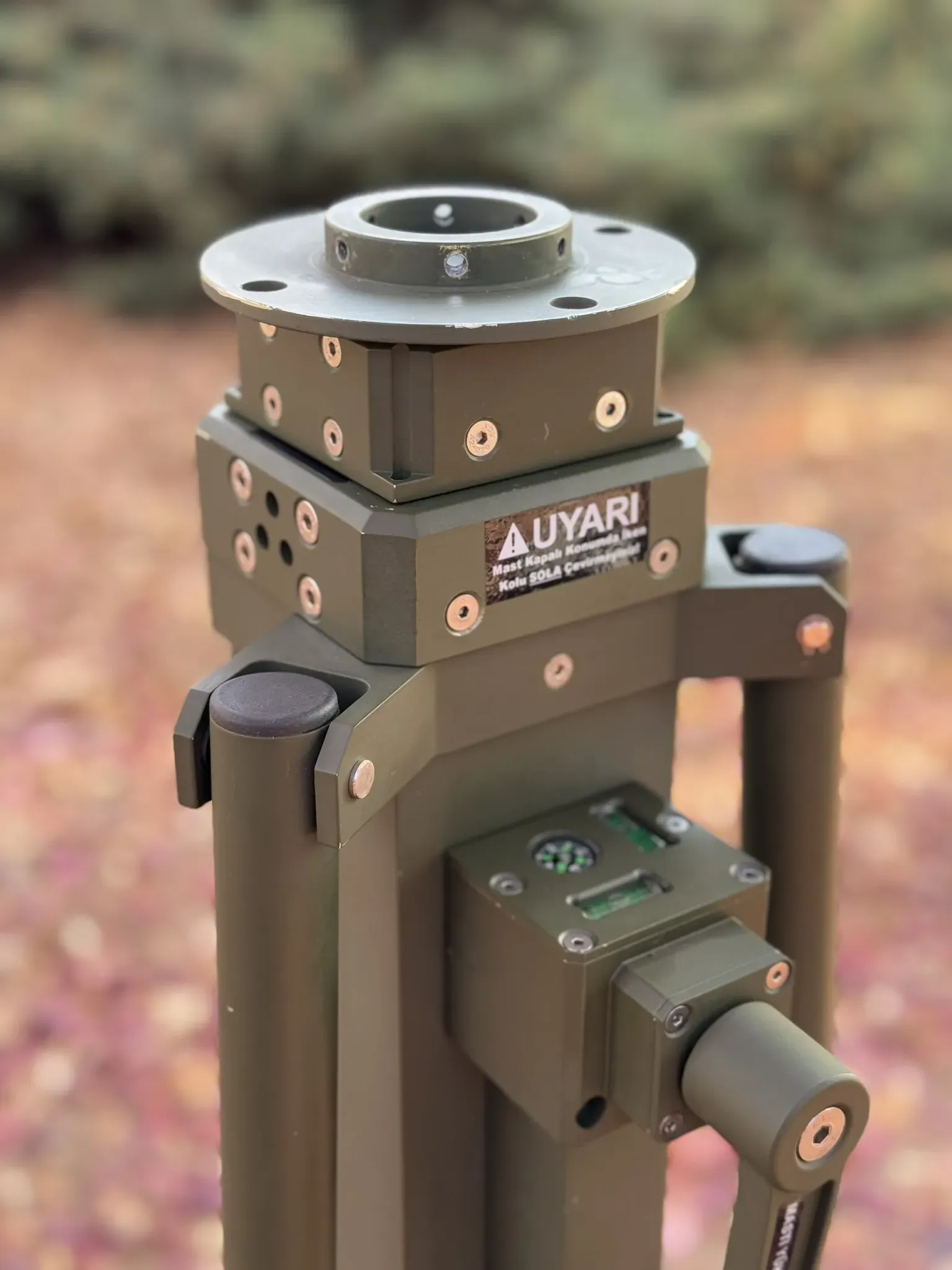

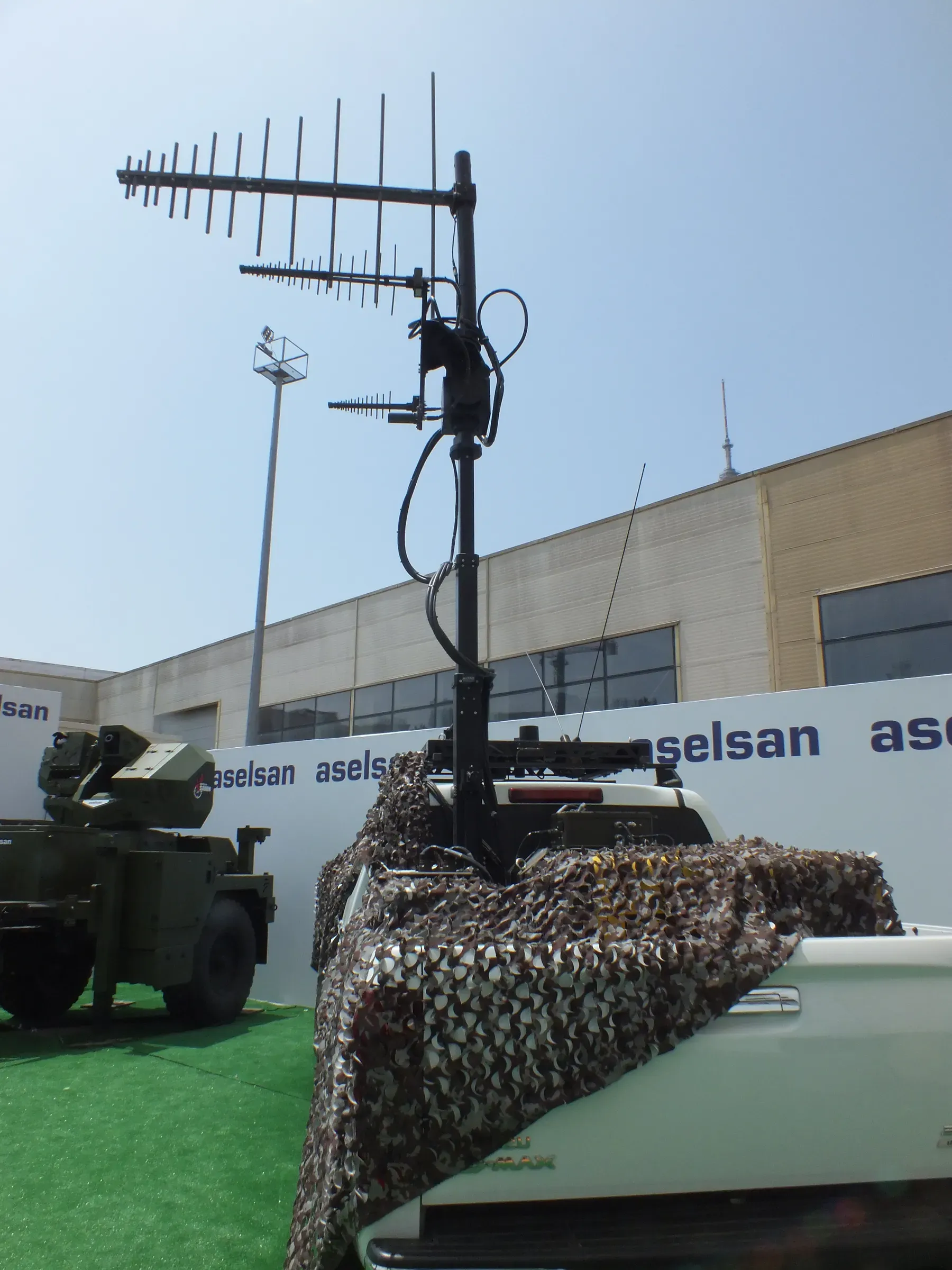

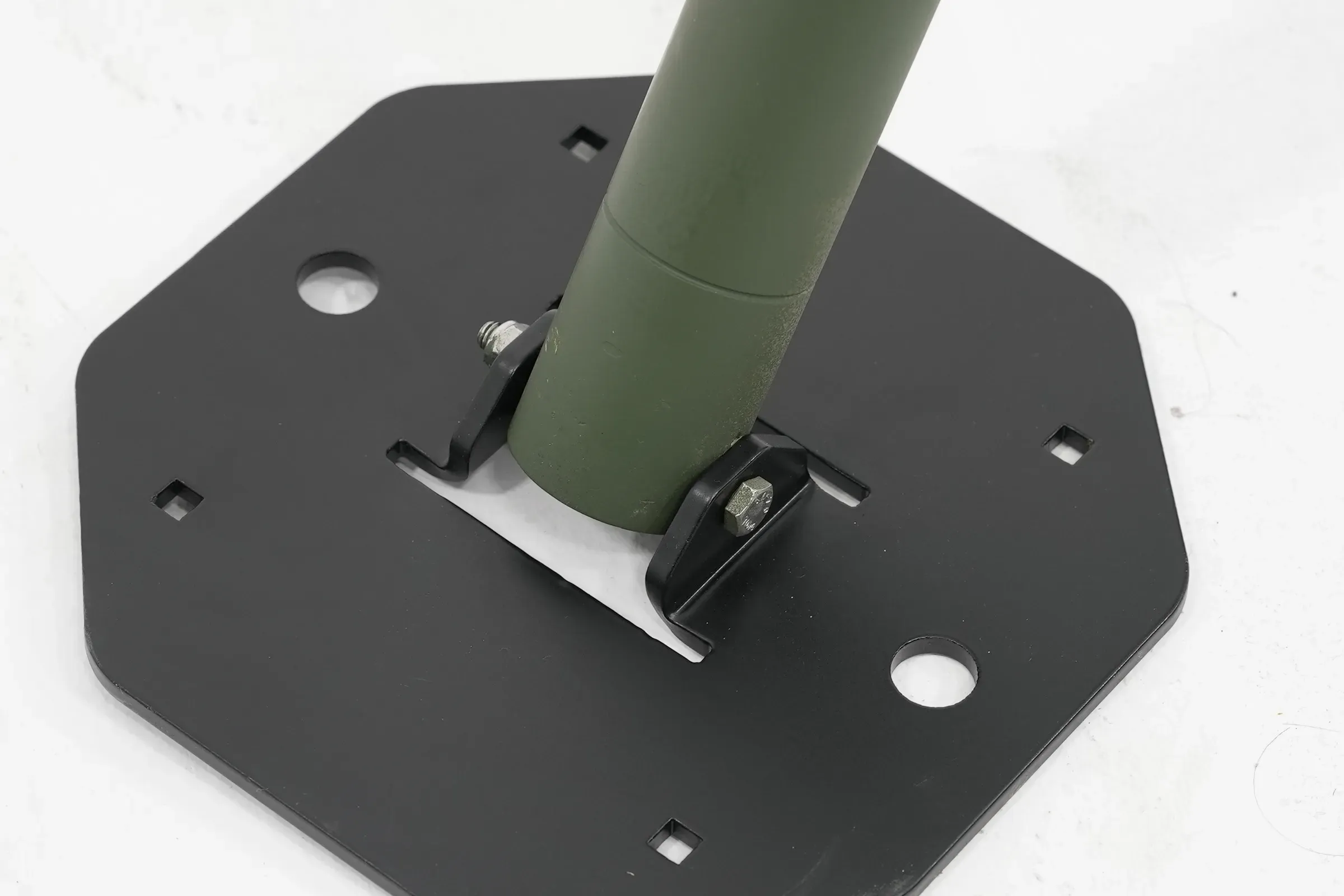

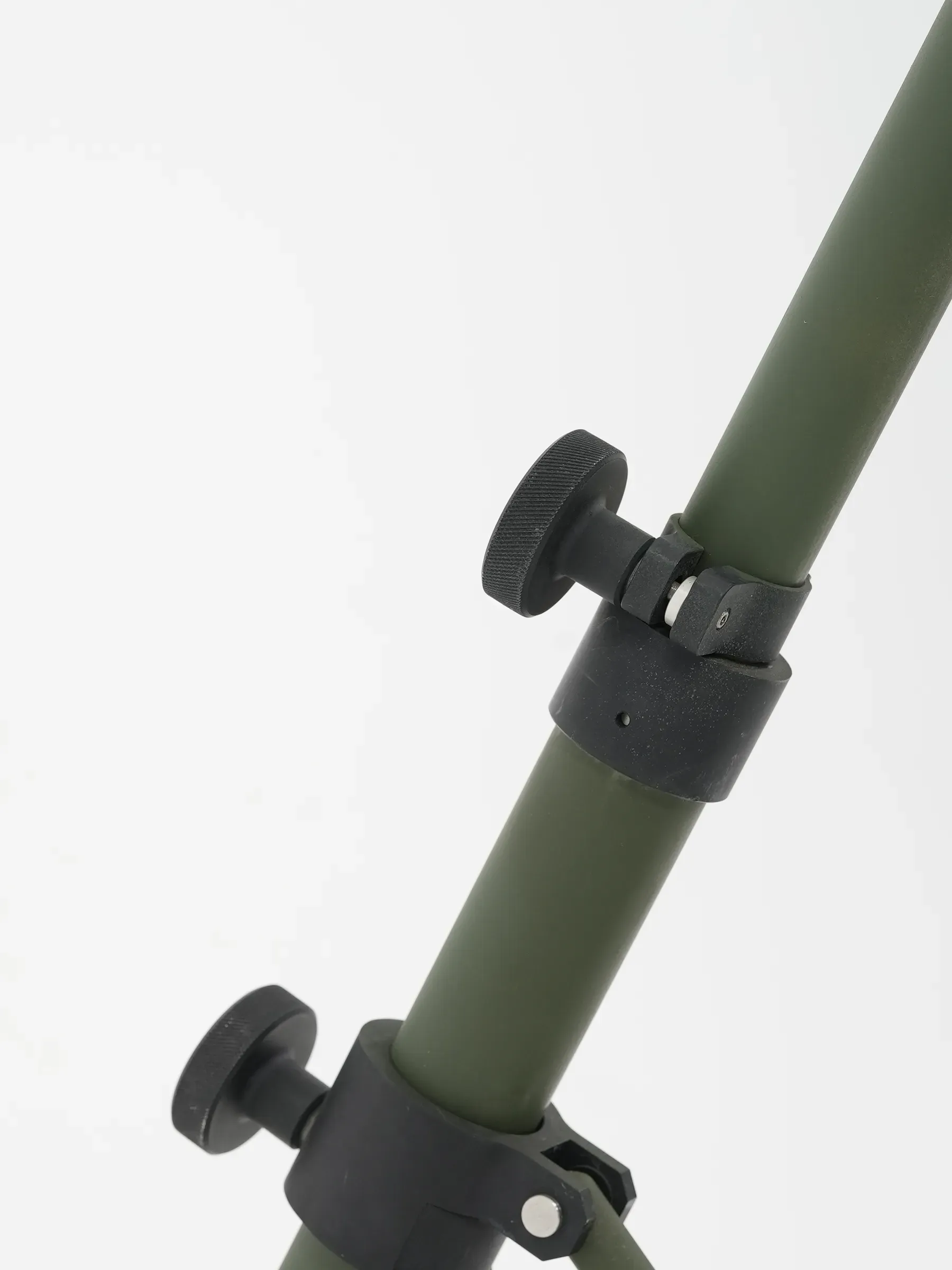

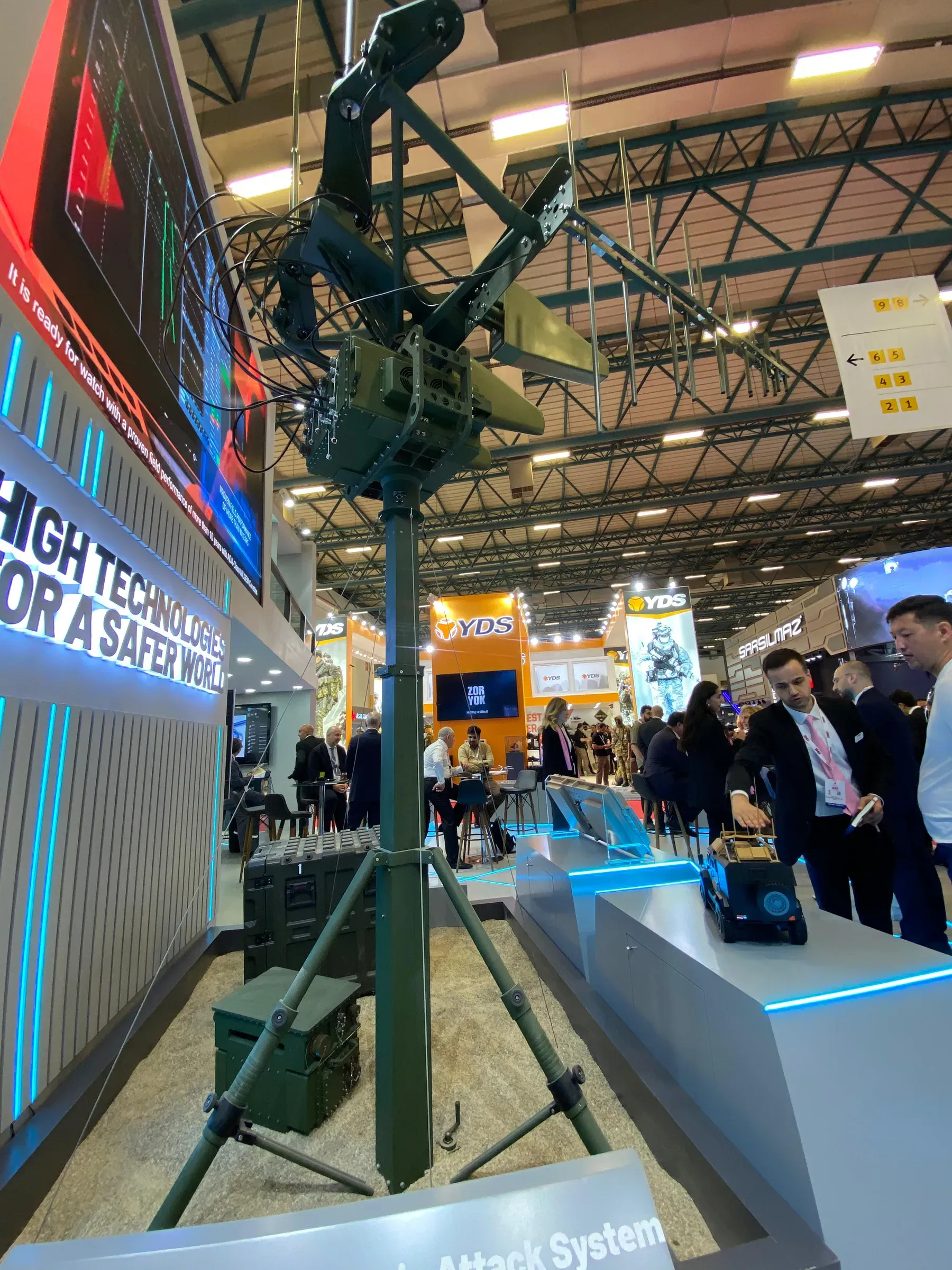

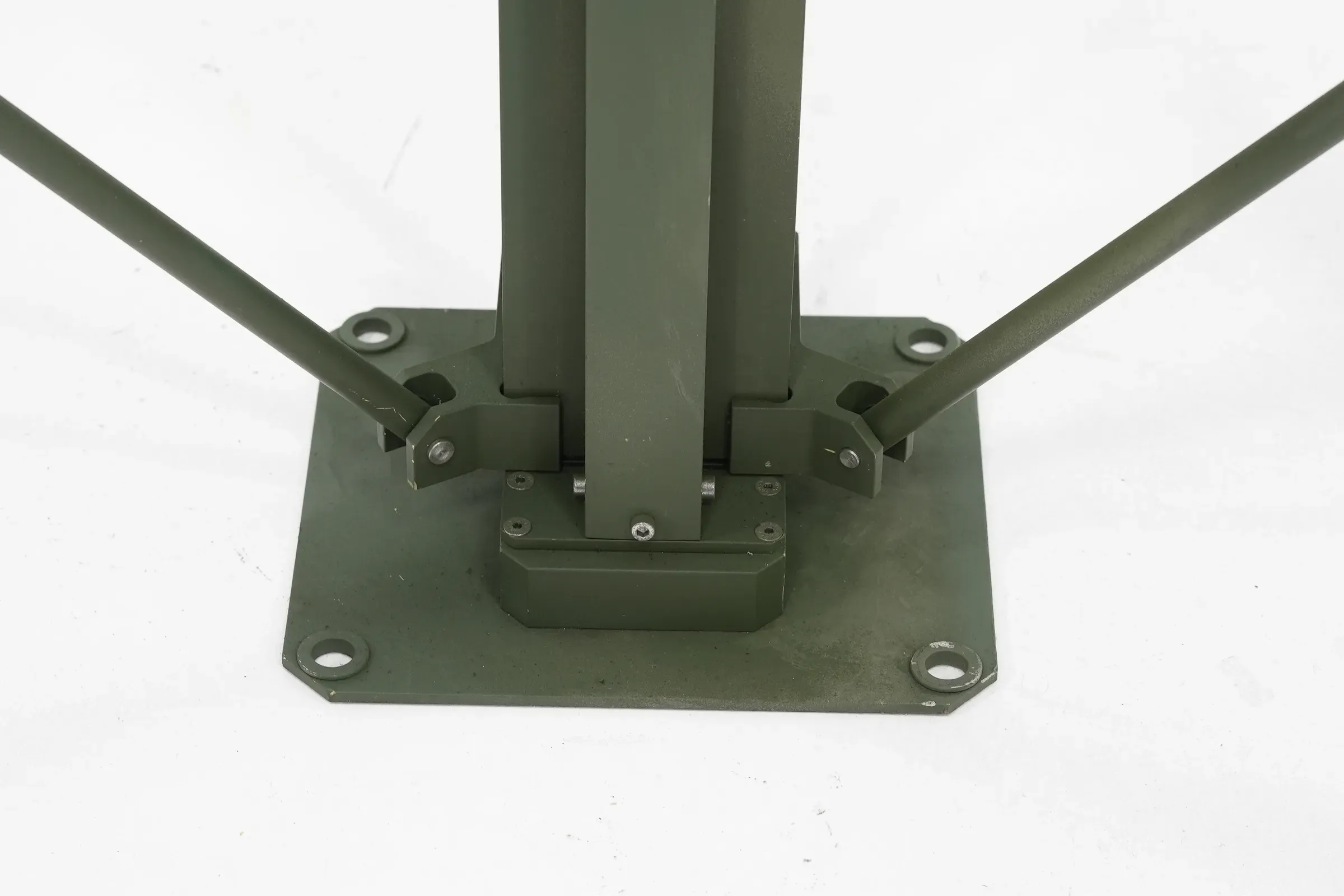

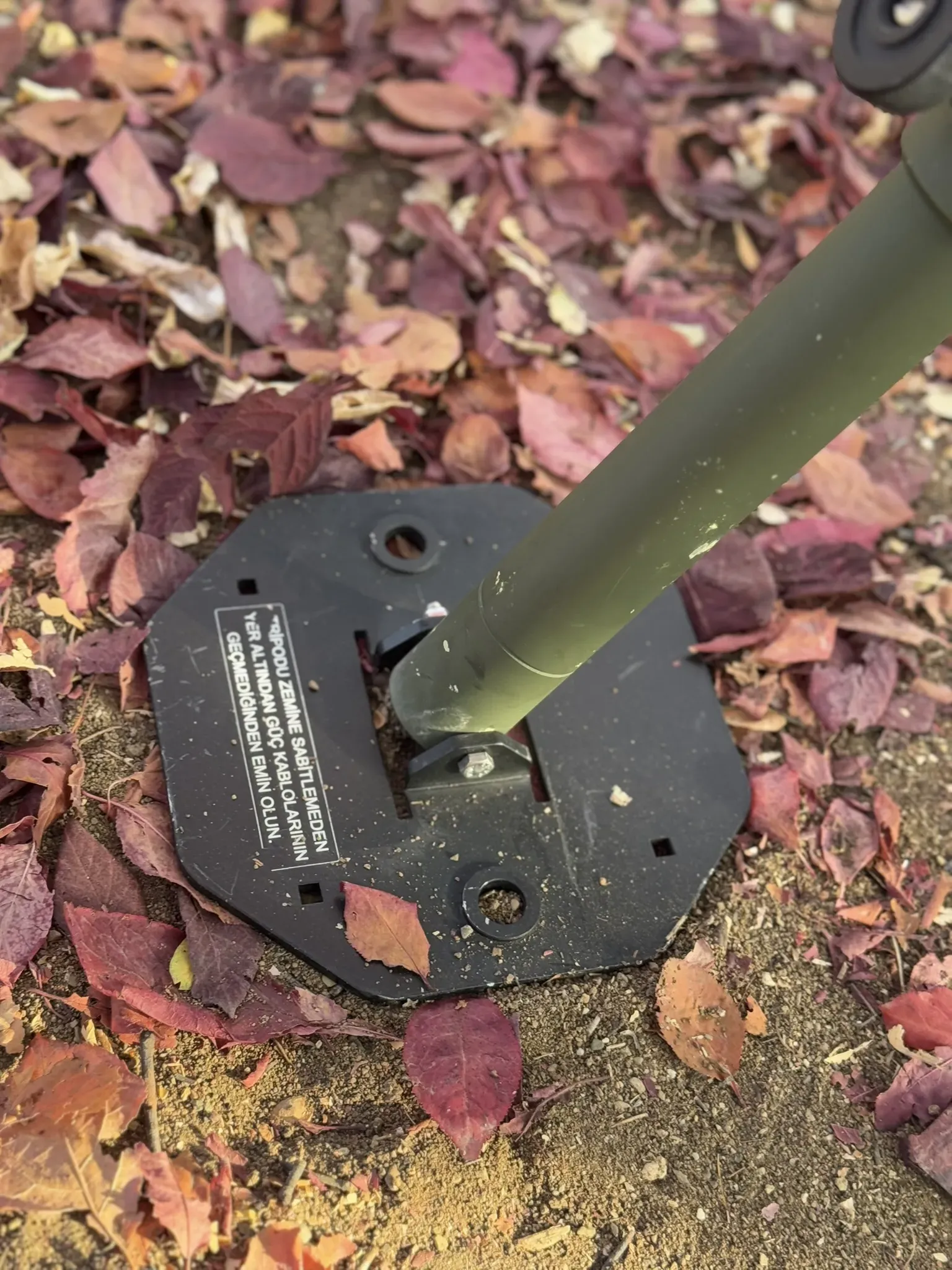

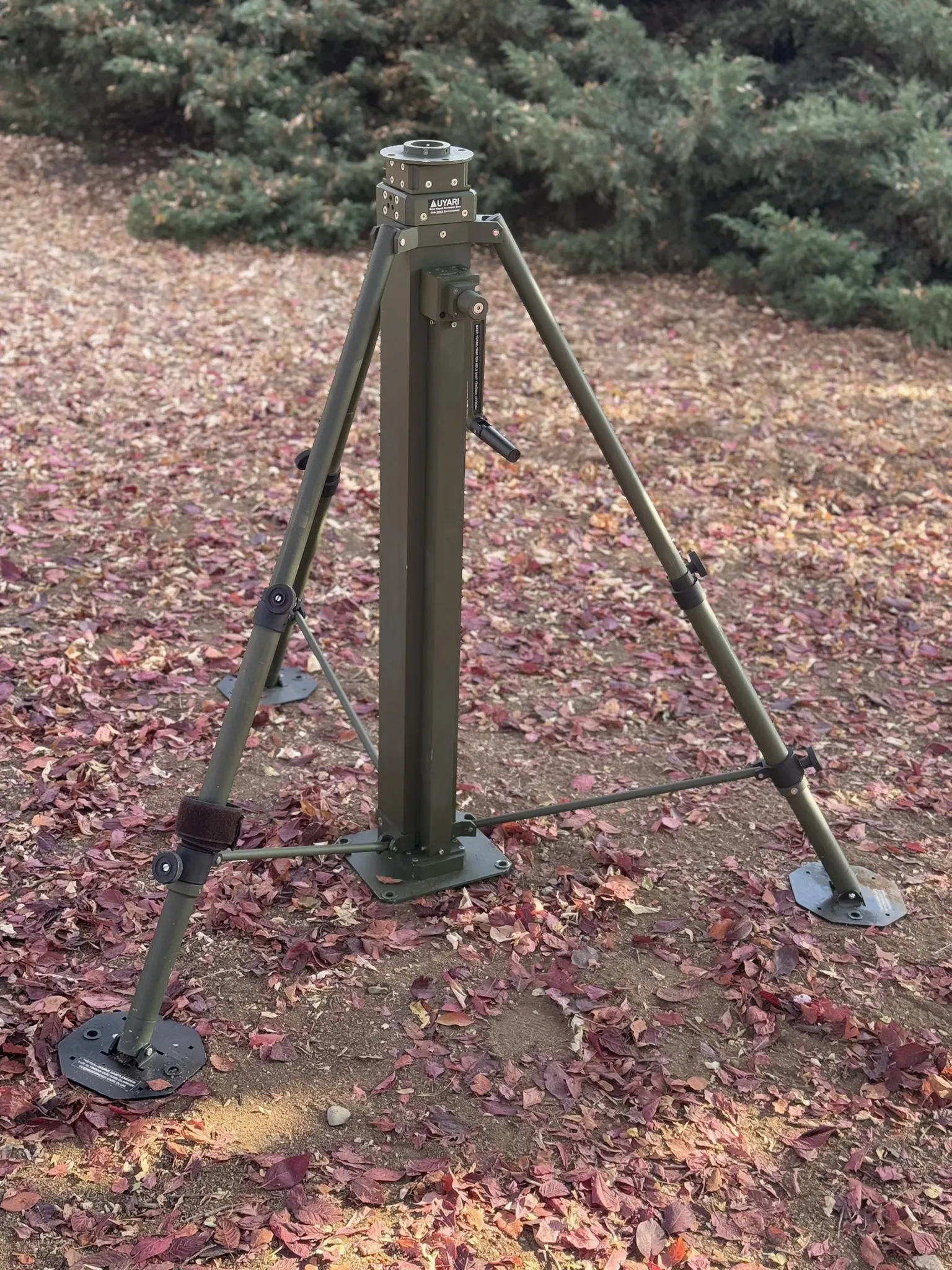

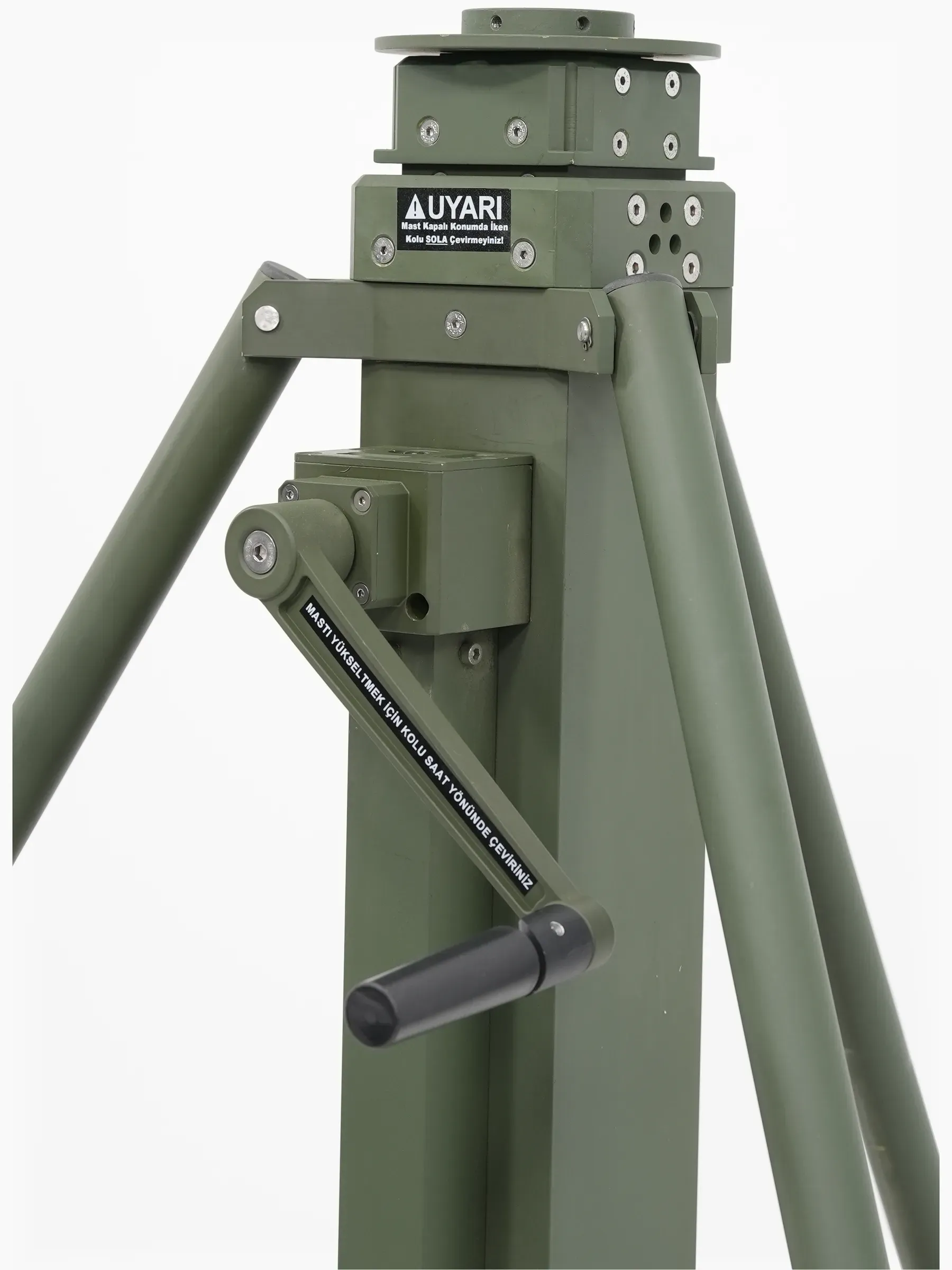

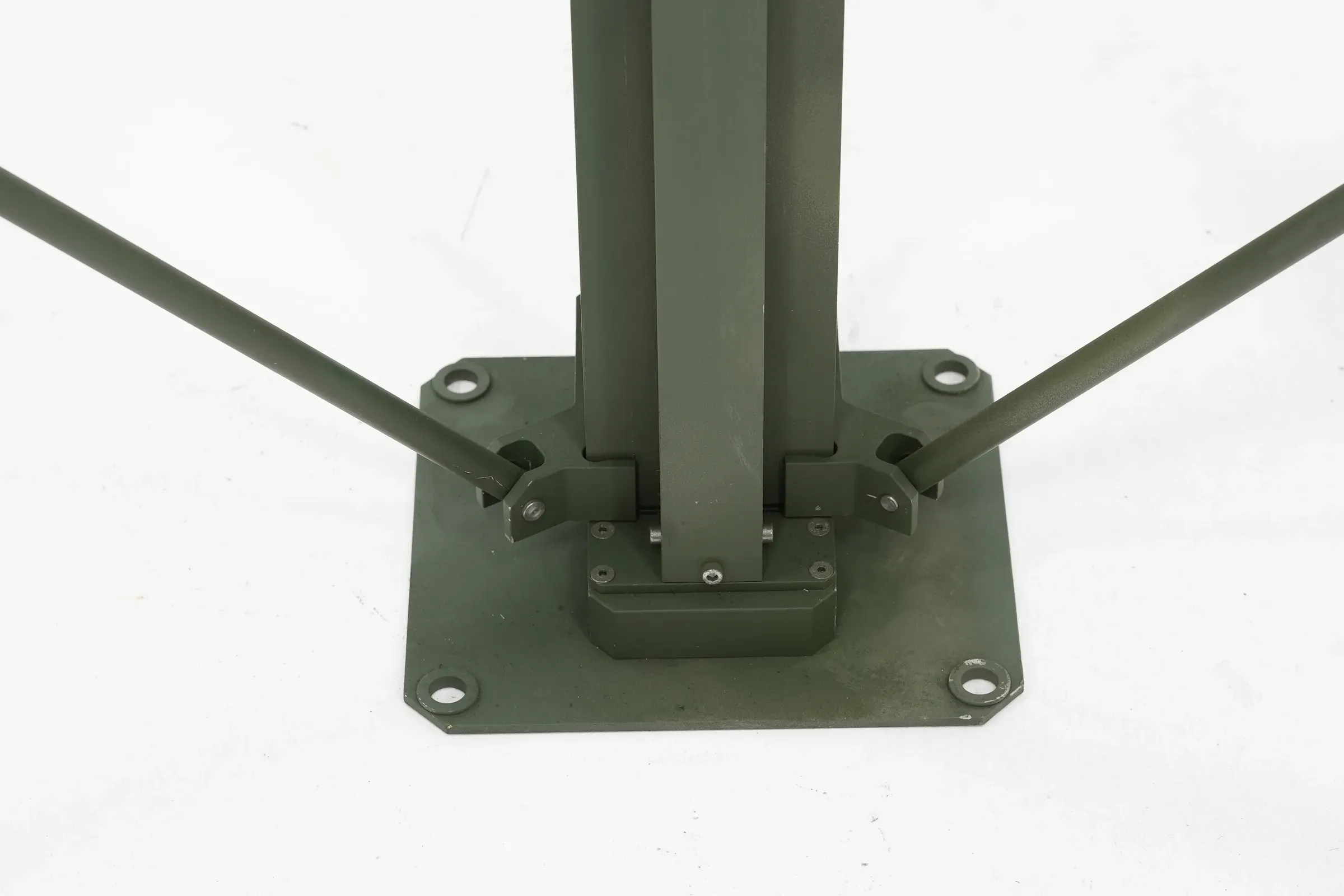

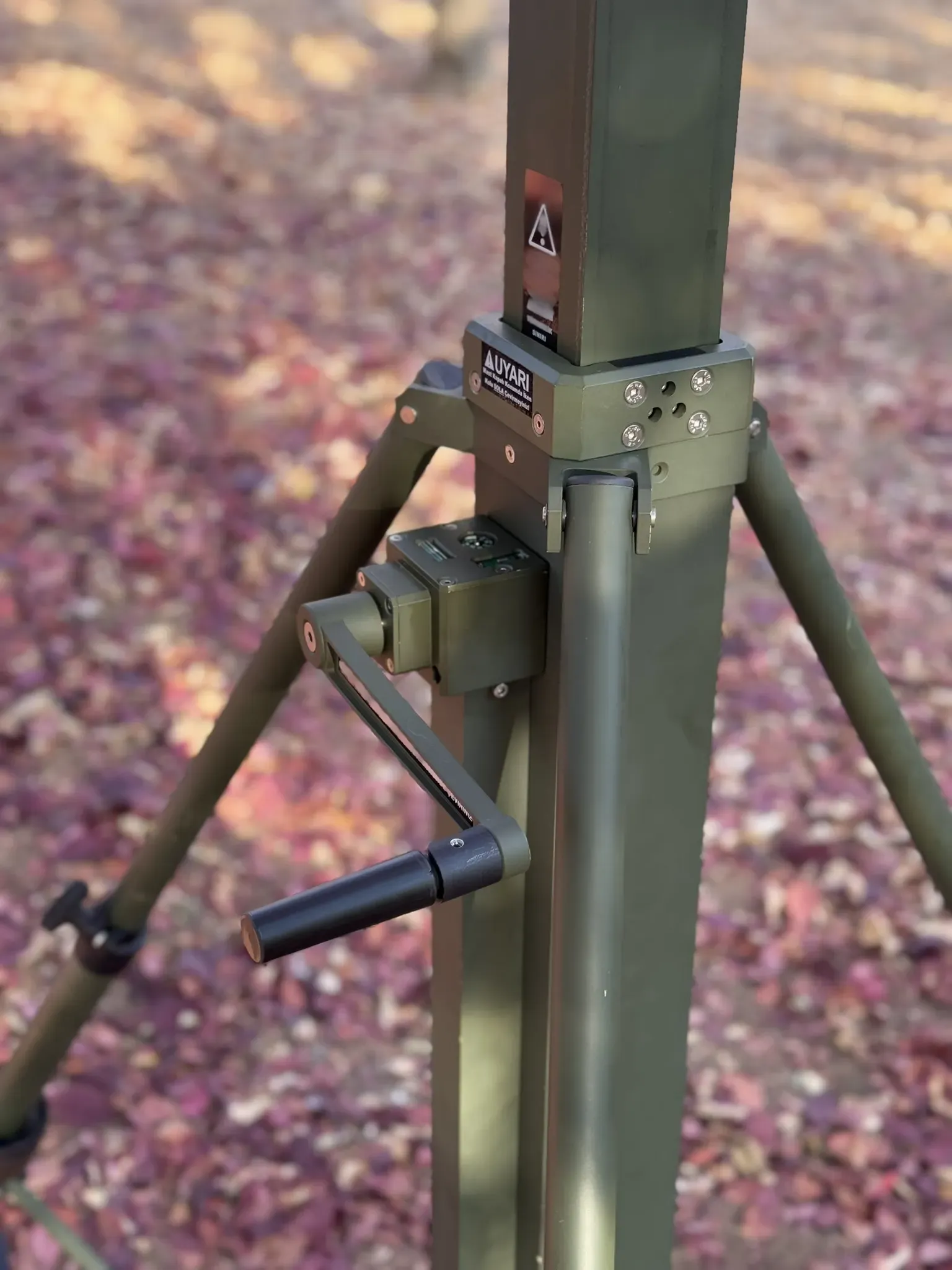

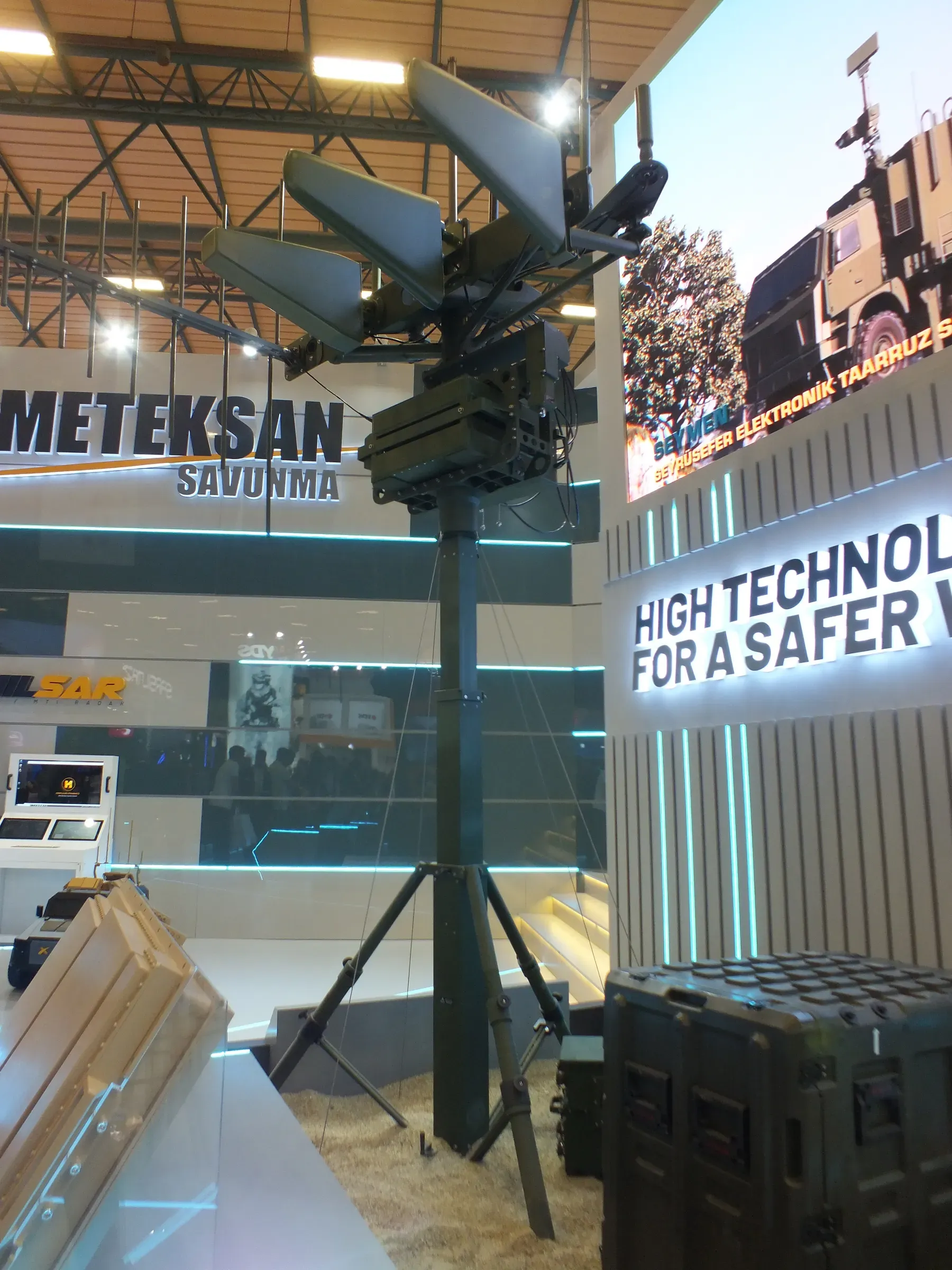

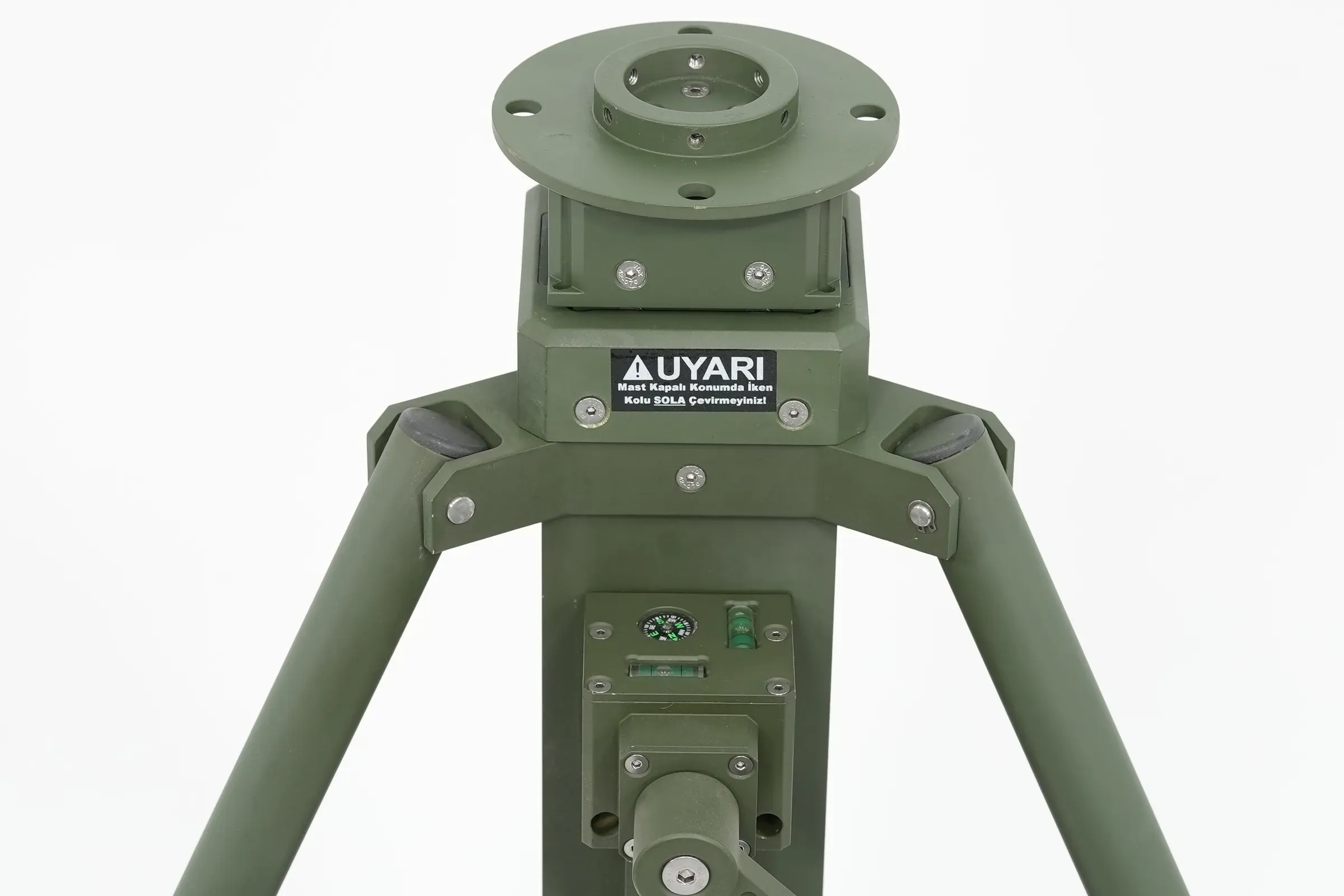

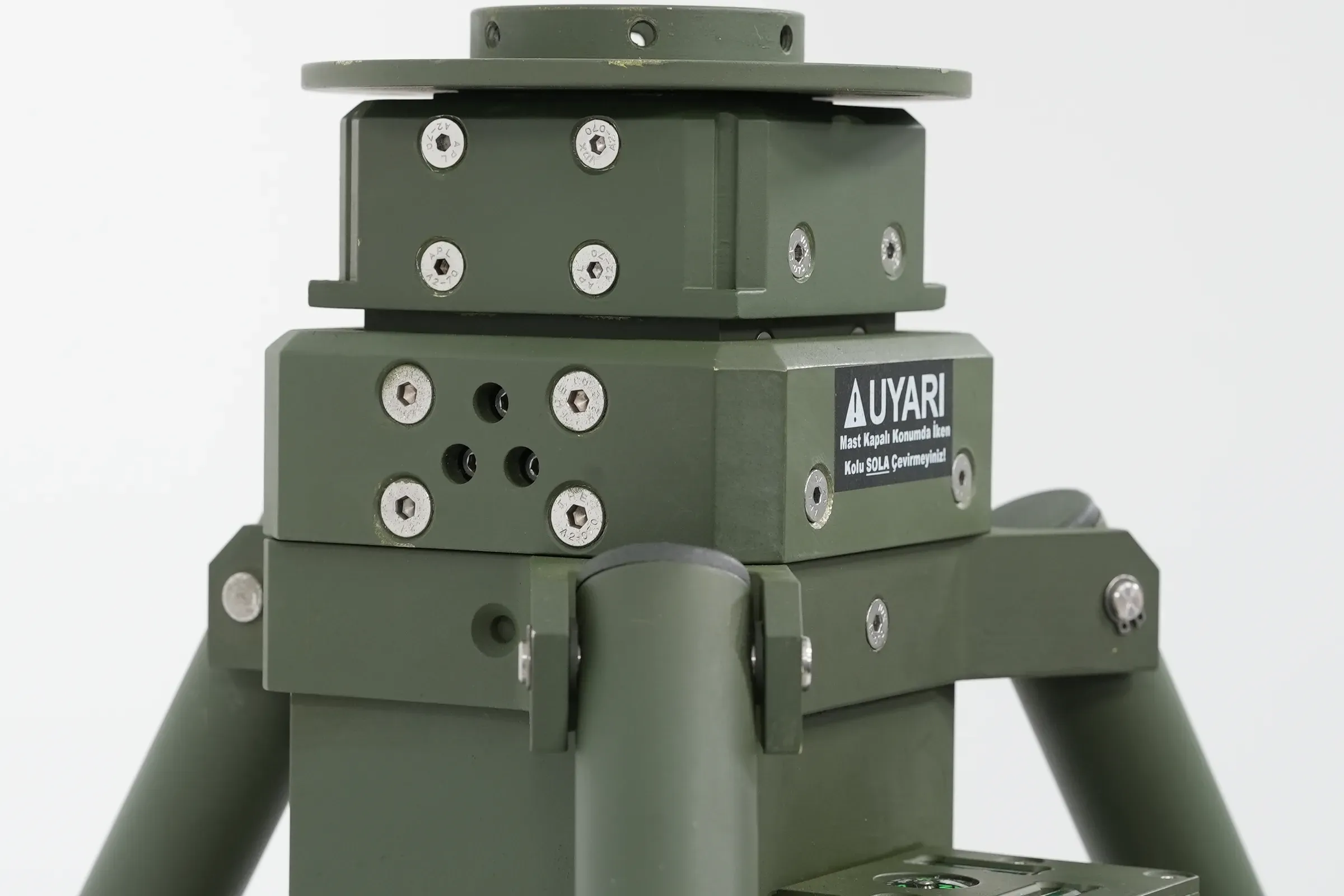

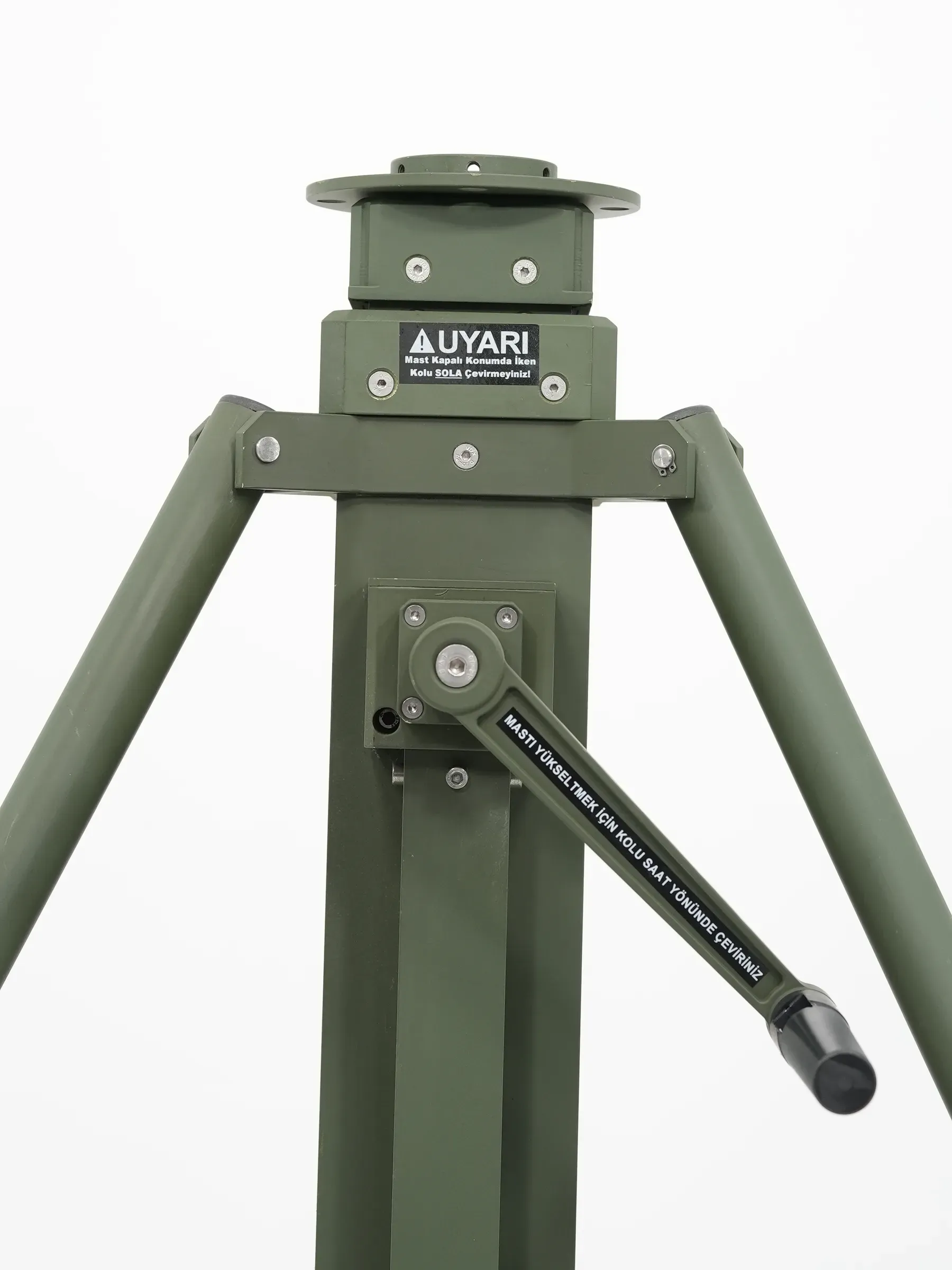

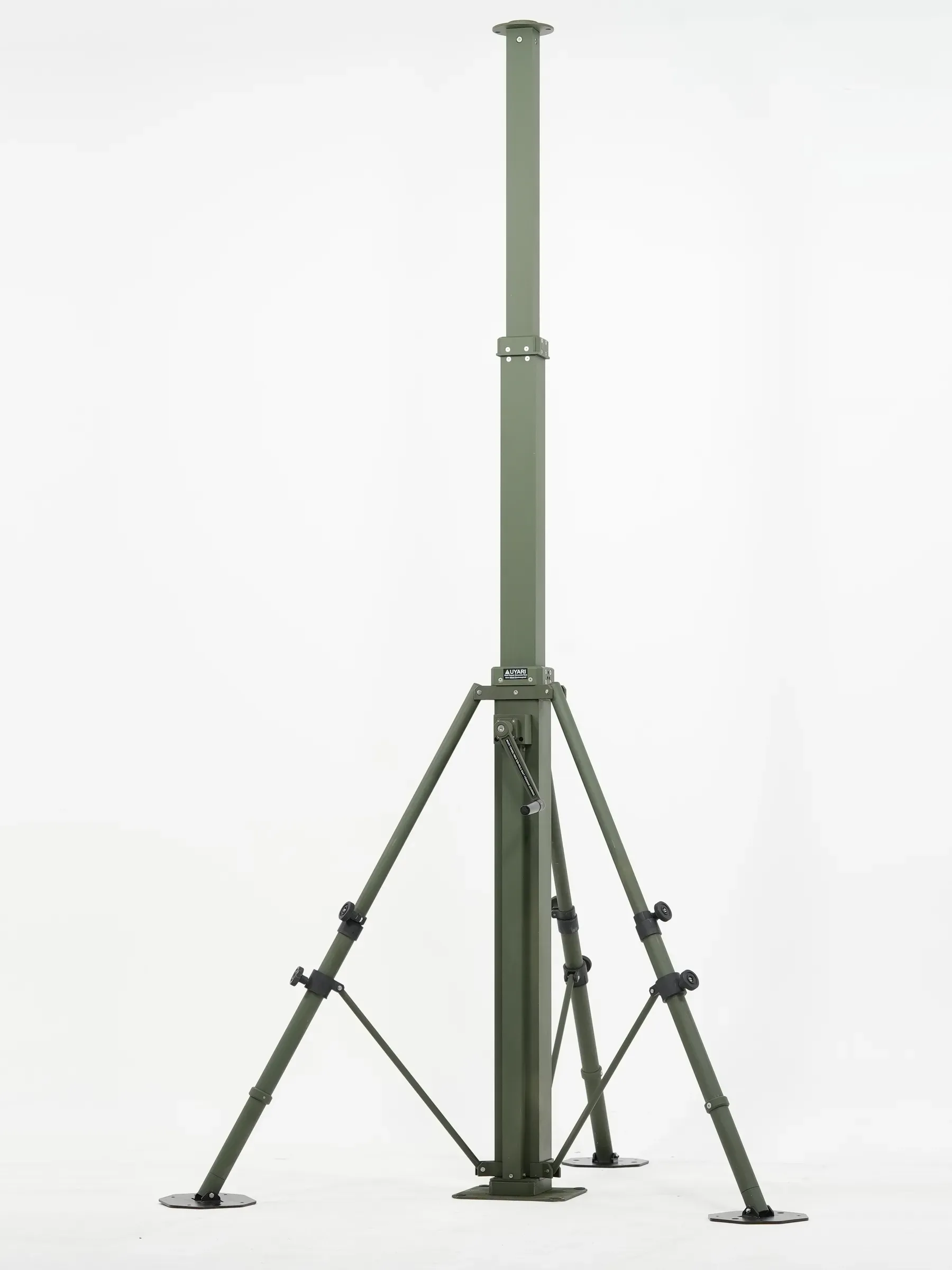

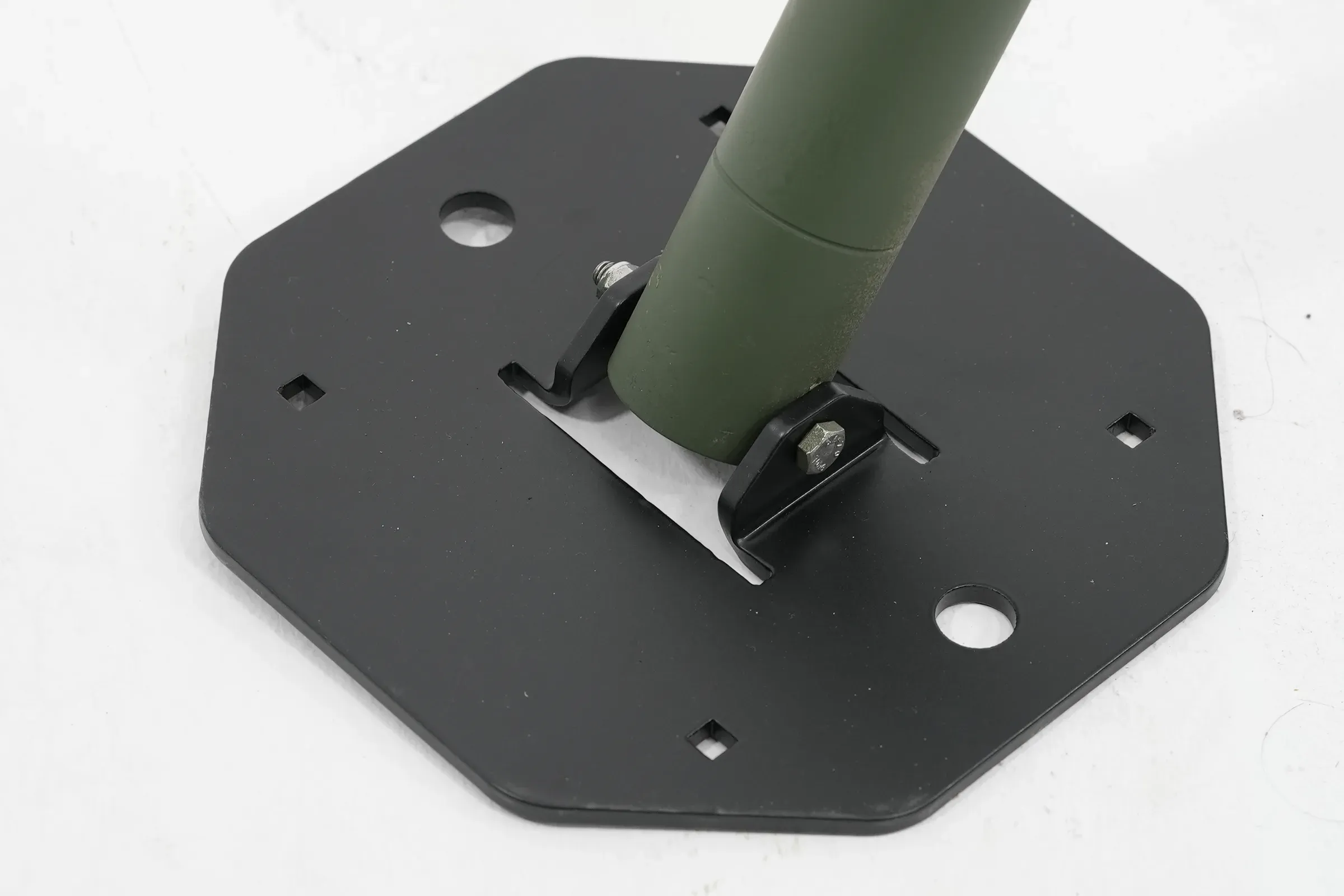

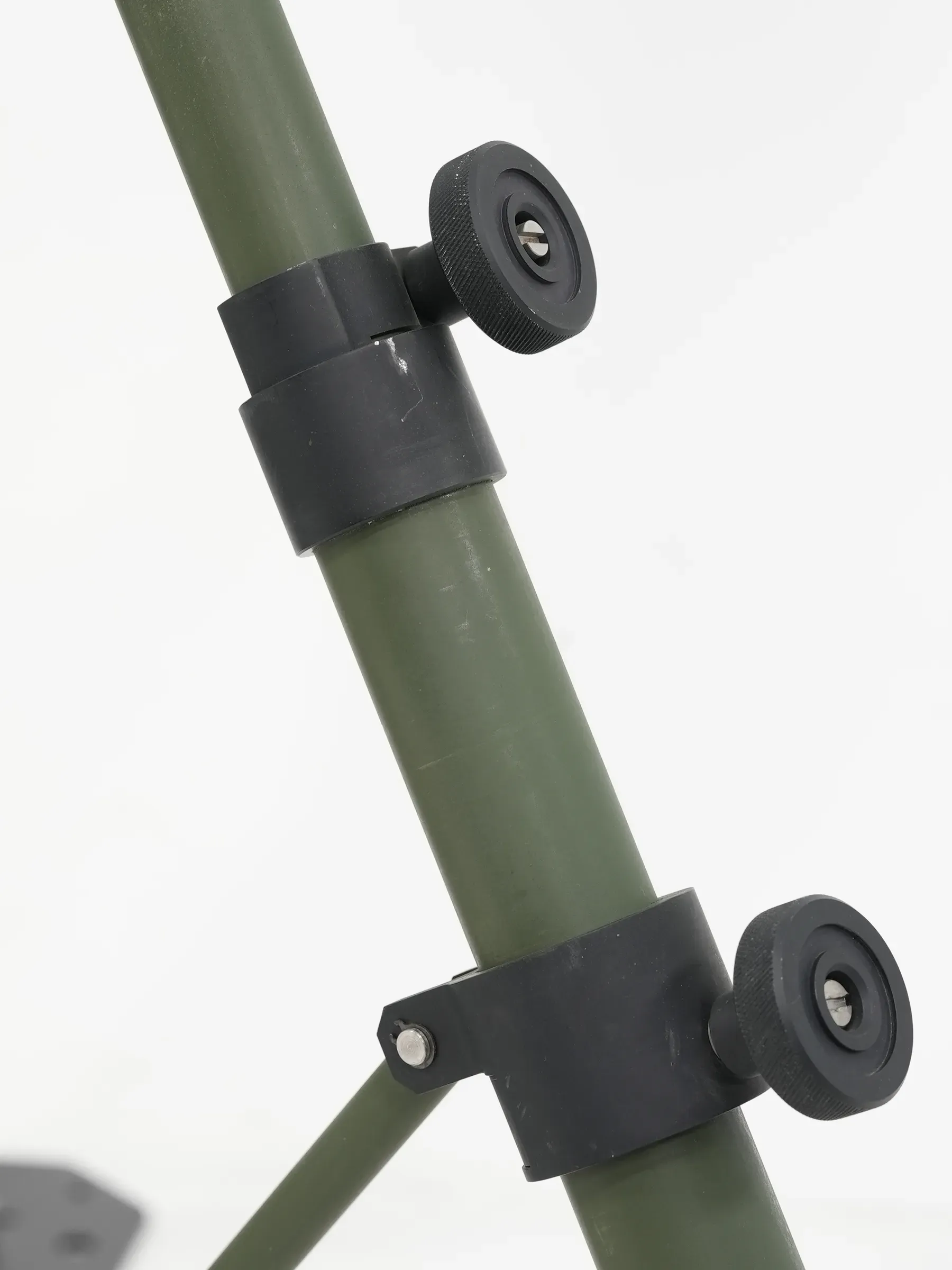

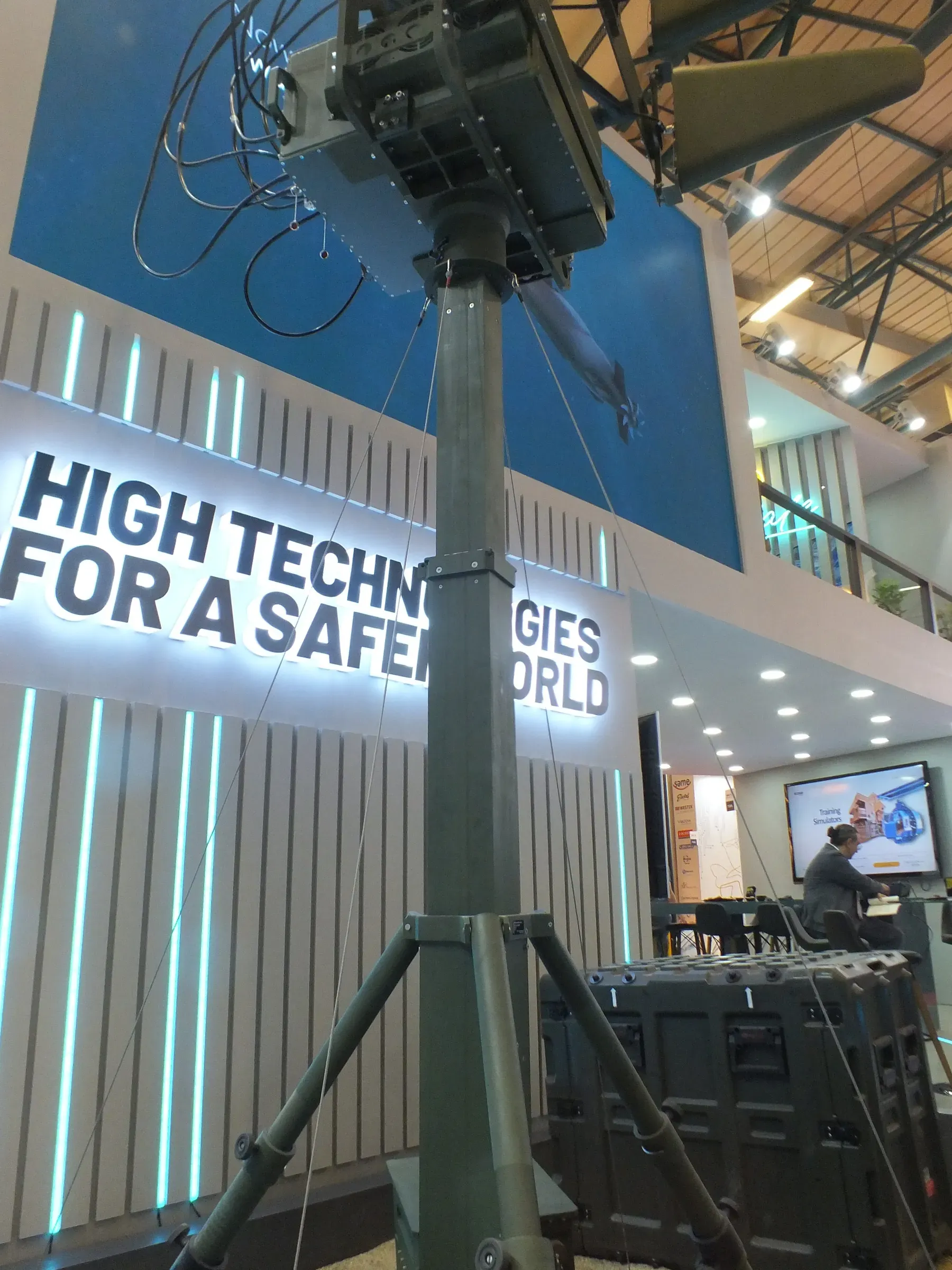

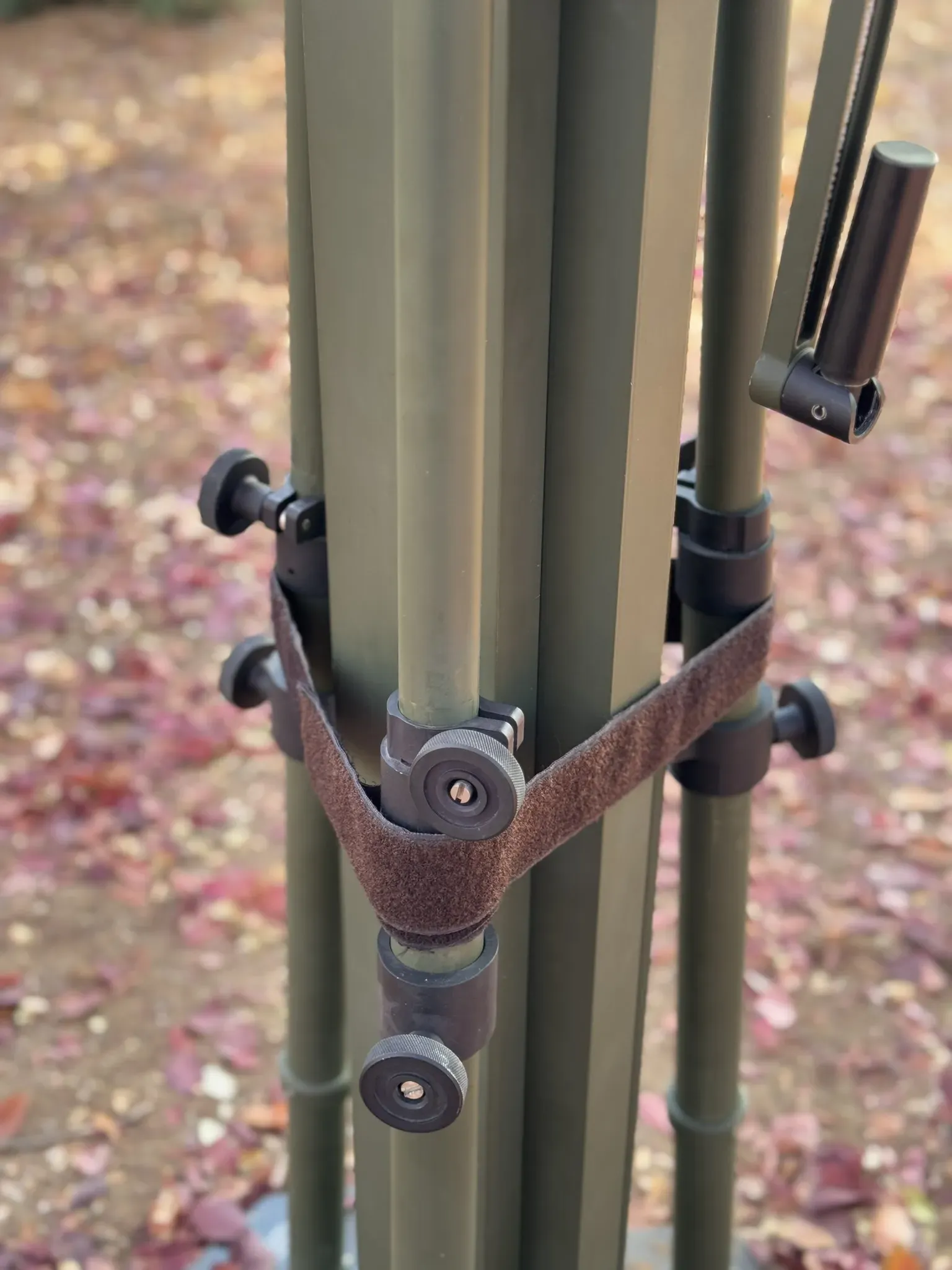

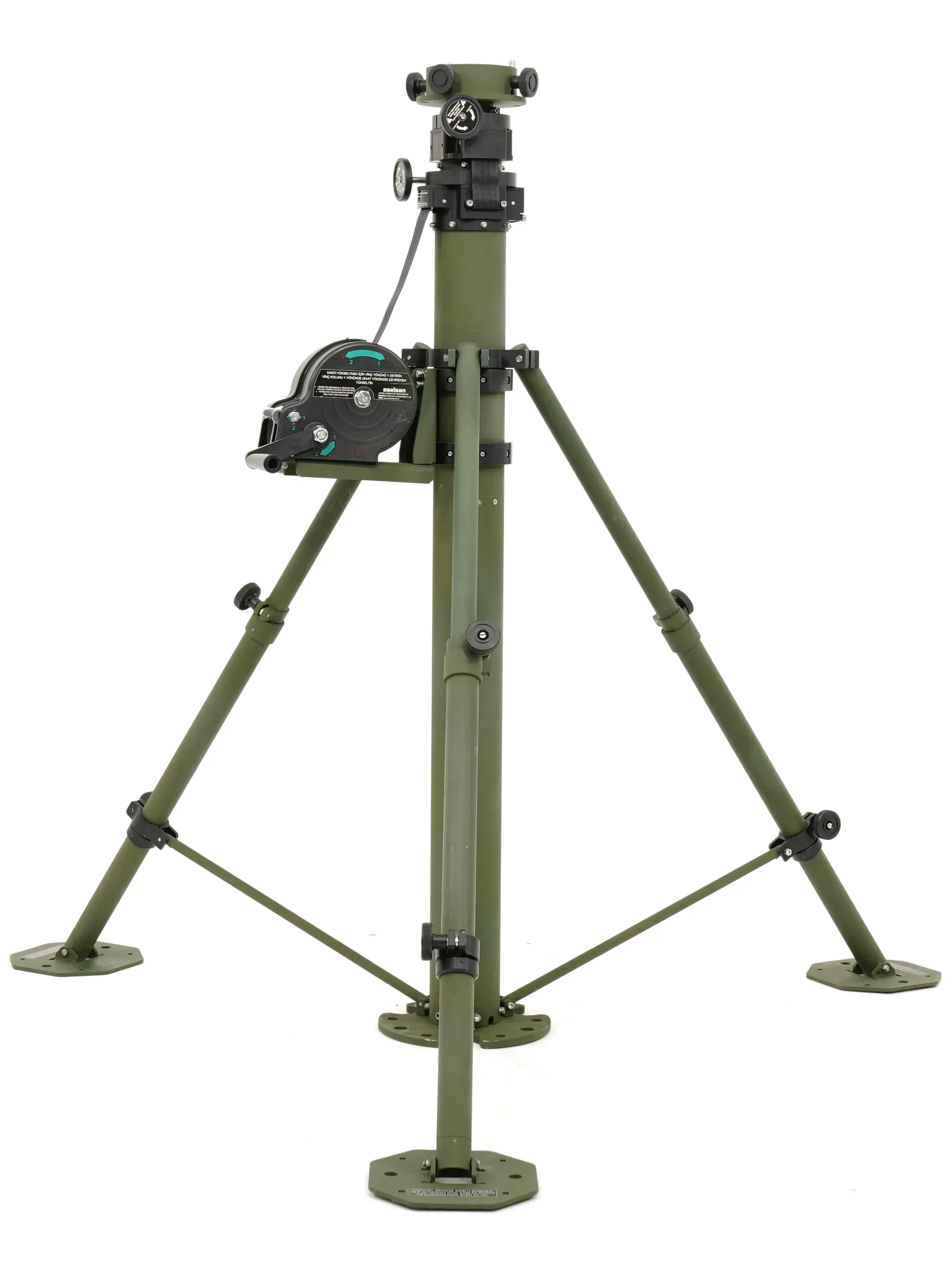

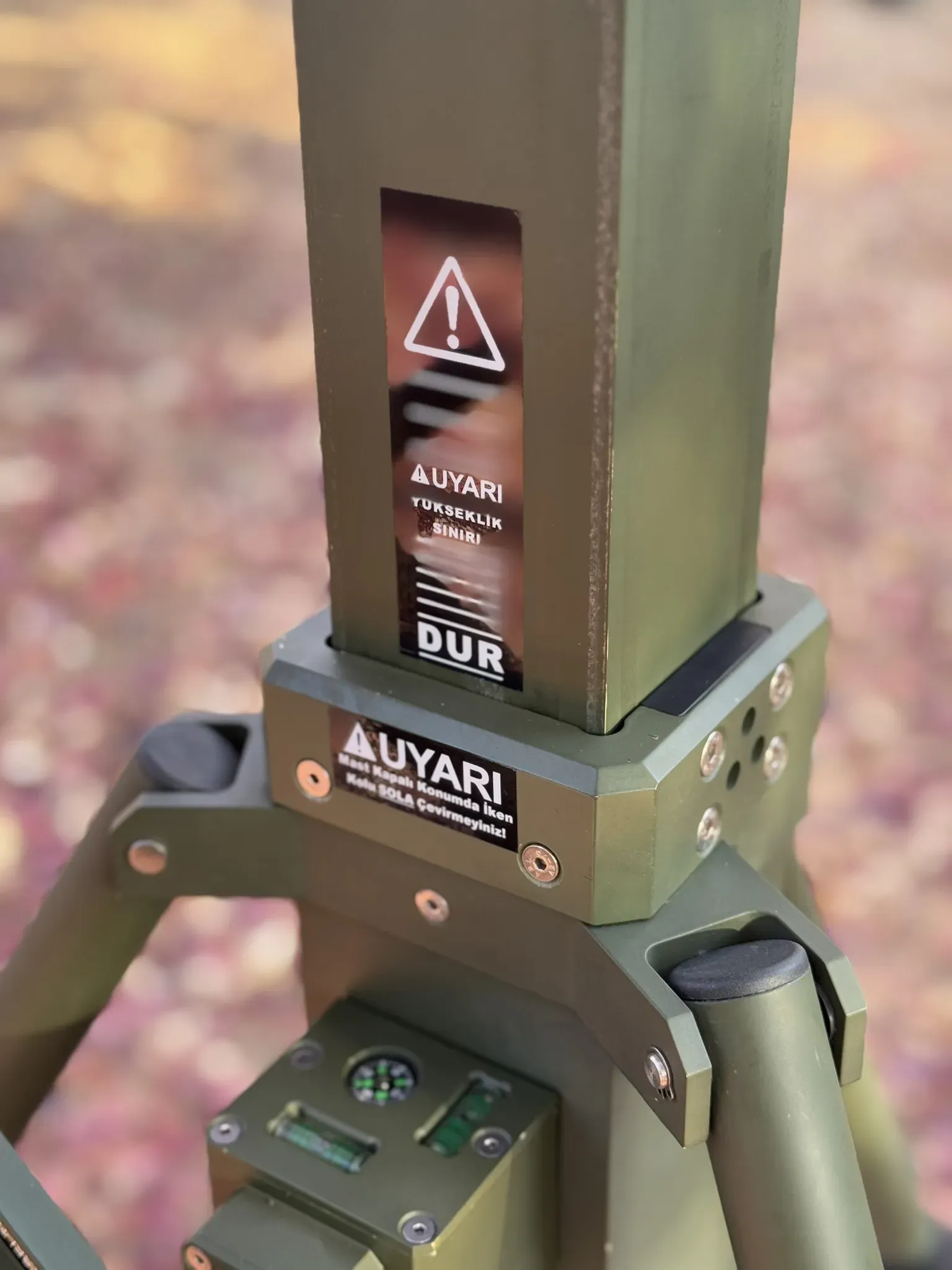

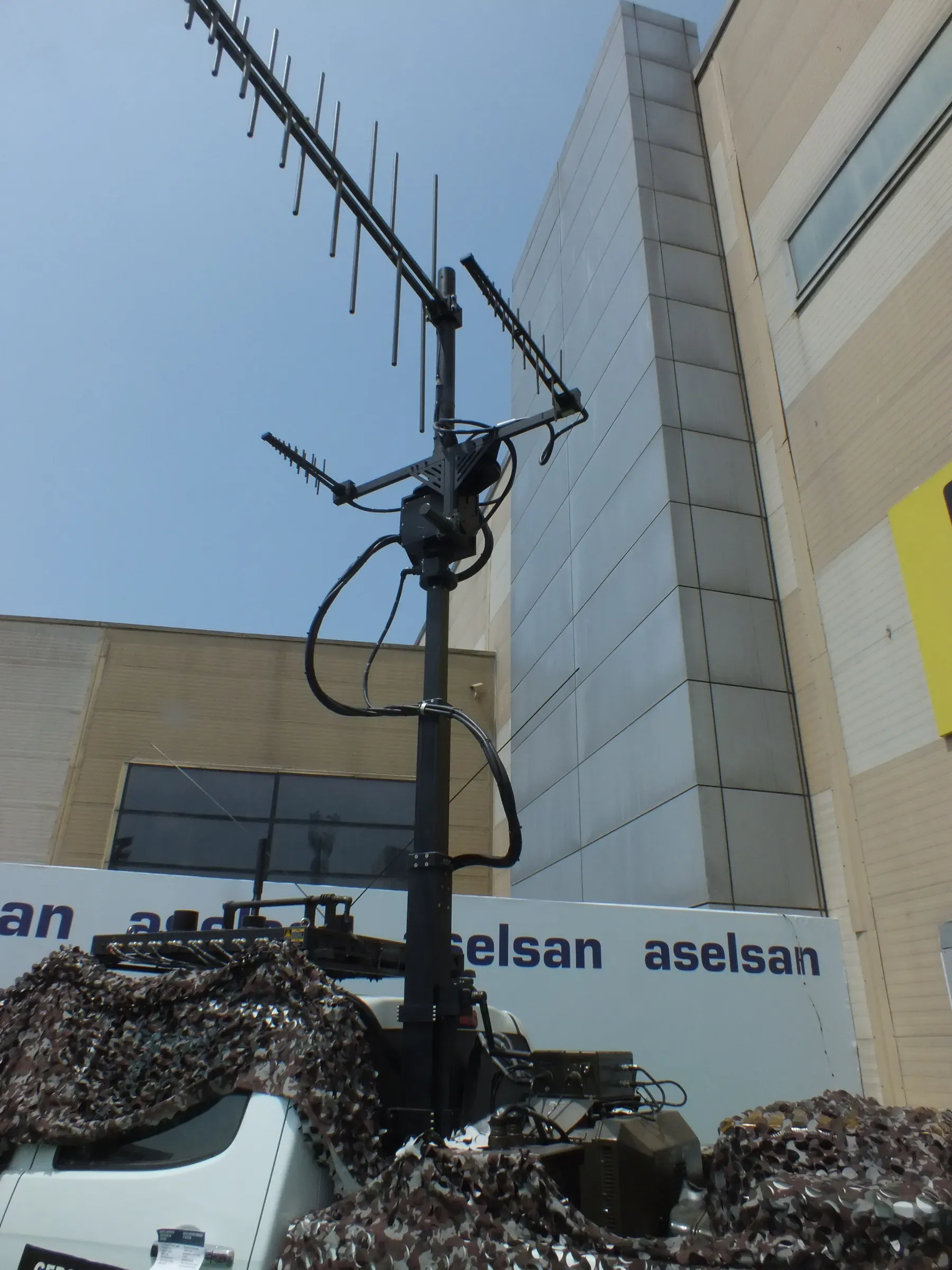

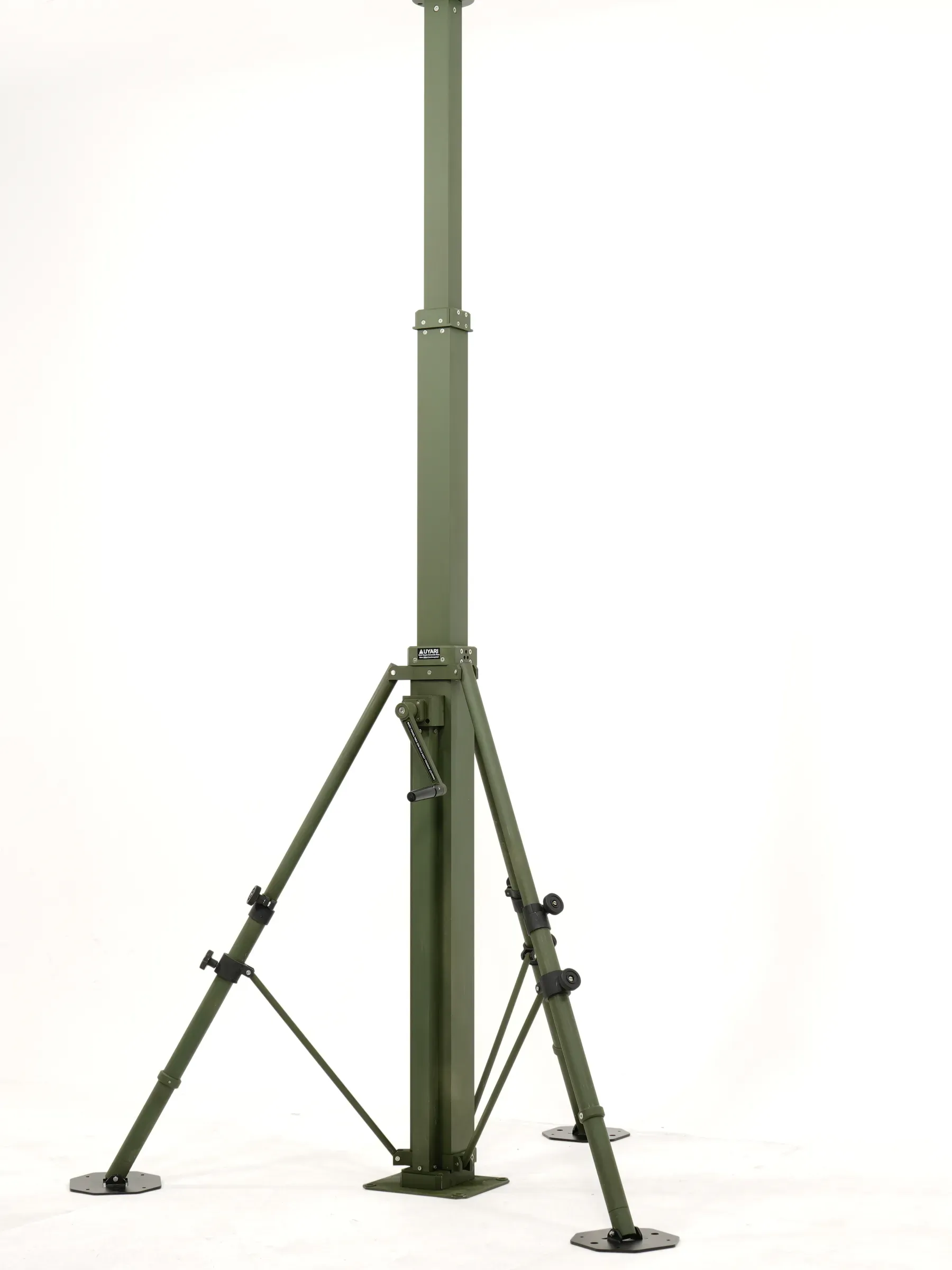

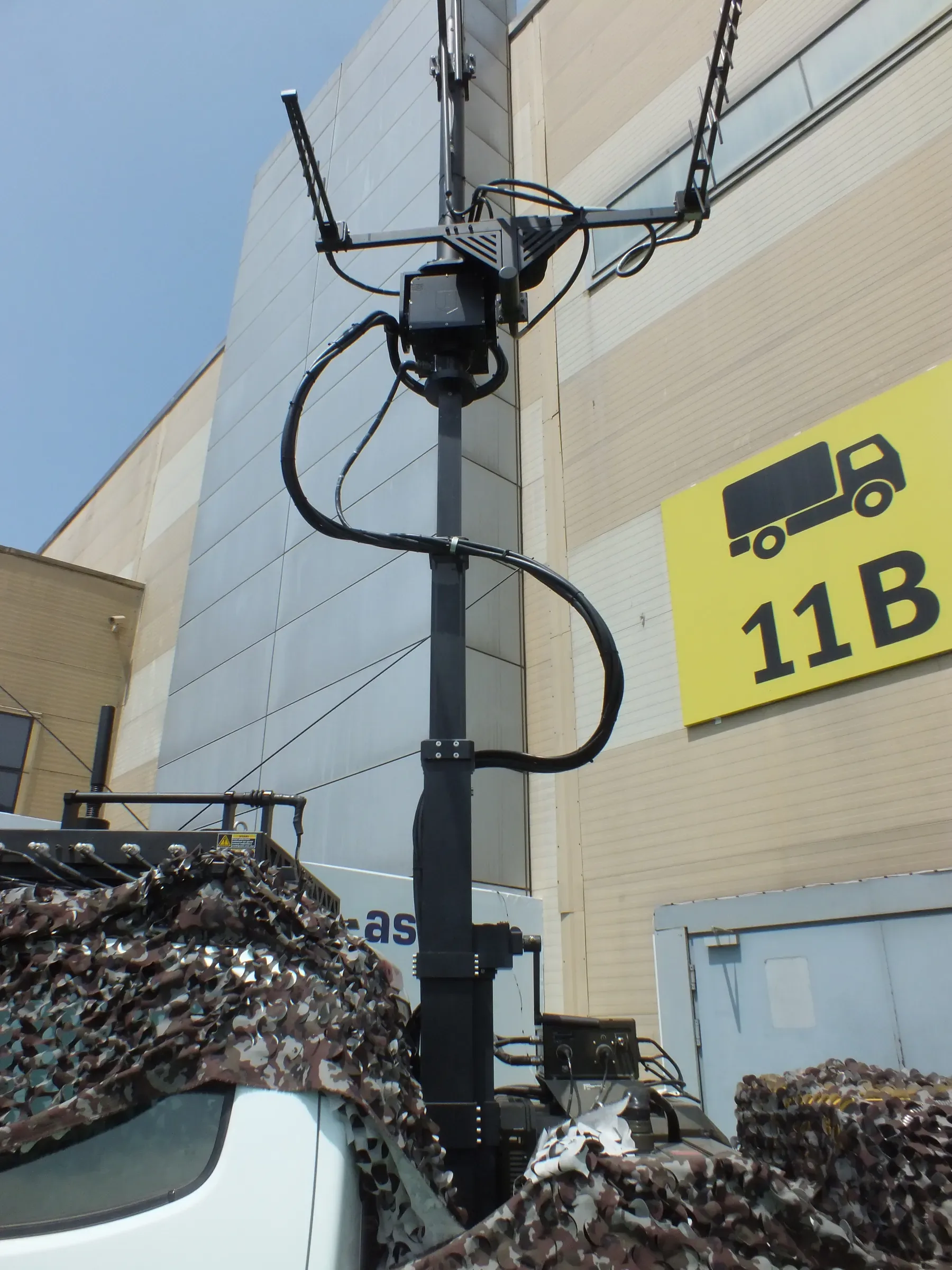

Gallery
Select a frame to open it at full size.
Configurations
| Part Number | retractedmm | extendedmm | payloadkg | weightkg | deploymentmin | Section widthmm | sections |
|---|---|---|---|---|---|---|---|
| MMS20-1200-2500-0058Standard | 1.200 | 2.500 | 58 | 32 | 5 | 140 | 3 |
| MMS20-1700-6000-0052 | 1.700 | 6.000 | 52 | 53 | 10 | 180 | 5 |
| MMS20-2100-8000-0040 | 2.100 | 8.000 | 40 | 65 | 15 | 180 | 5 |
| MMS20-3300-14000-0021 | 3.300 | 14.000 | 21 | 85 | 20 | 180 | 5 |
Options
- LPEKLightning Protection and Earthing Kitordered separately

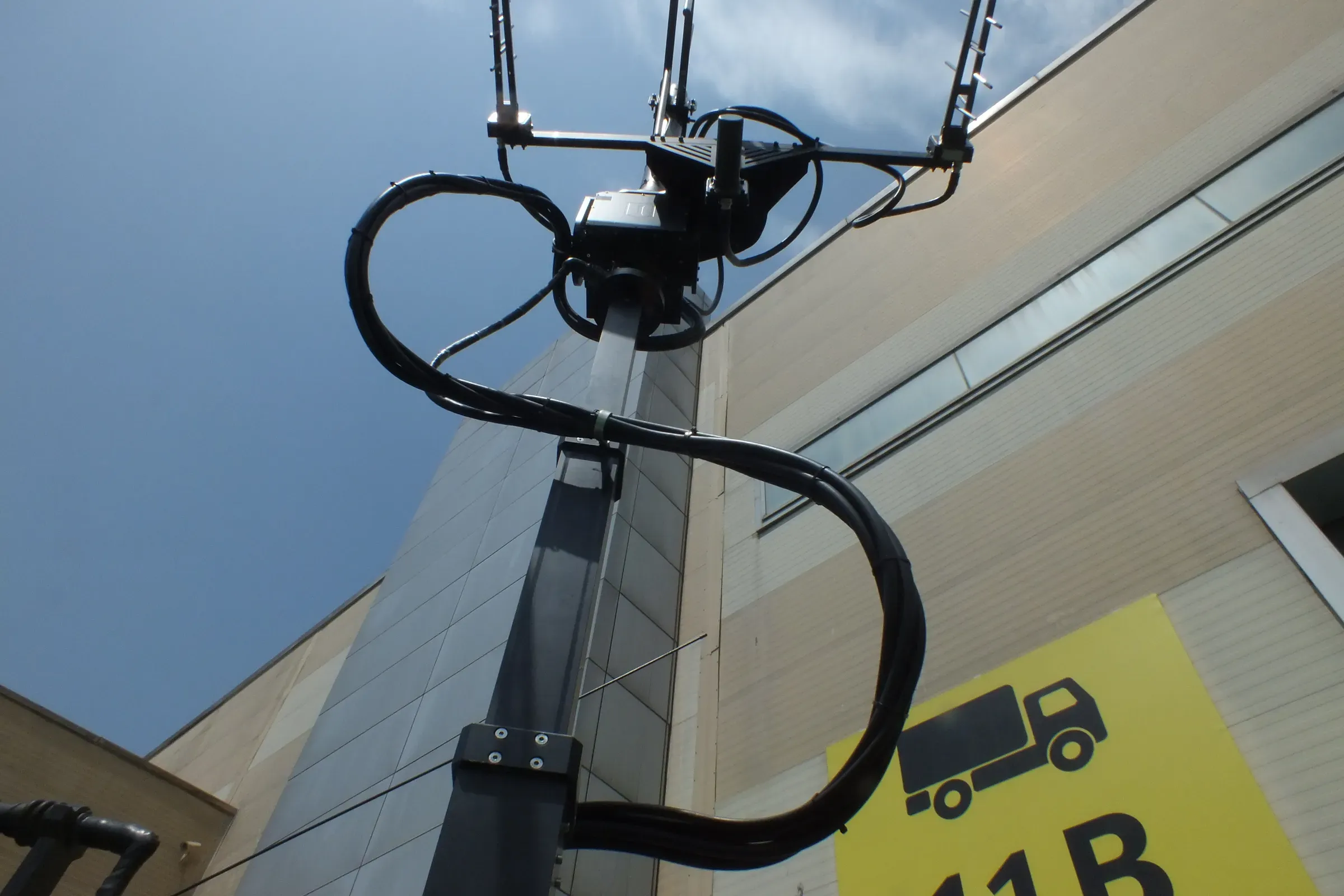

- SPPCSpiral Payload Cableordered separately
- HEX1Height Extenderordered separately1.000 mm
- IFPSIngress / Frost Protection Sleeveordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Rated Payload | 58 kg |
|---|---|
| Wind Load | 120 km/h |
| Wind Load Reference Area | 0,4 m² |
| Actuating Mechanism | Manual |
| Drive Type | Hybrid Trapezoidal Screw and Steel Wire |
| Retracted Height | 1.200 mm |
| Extended Height | 2.500 mm |
| Weight | 32 kg |
| Deployment Time | 5 min |
| Section Width | 140 mm |
|---|---|
| Number of Sections | 3 |
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Humidity | Mtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes |
Documents
- DatasheetDownloadable — PDF, 319 KB
- User ManualOn Request
- 3D Model (STEP)On Request
- Mechanical Interface Control DocumentOn Request
- MIL-STD-810G Environmental Qualification ReportOn Request
