Mast Systems

MEM10

Ultra Stable Electromechanical Mast System

Ultra-rigid mast using individual telescopic screw shafts per section, carrying up to 125 kg with minimum twist for long-range electro-optics.

  • 3 sections
  • 125 kg payload
  • Motorized
2.200 mm
Extended Height
125 kg
Rated Payload
120 km/h
Wind Load
DatasheetCompare Models

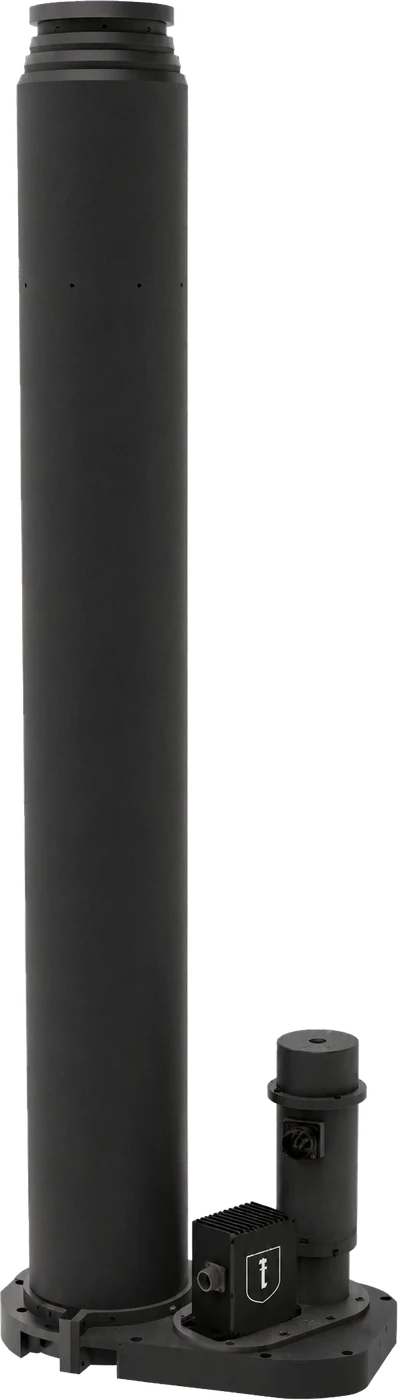

MEM10 stowed on its base plate

Highlights

Where the MEM10 sections nest together

01Rigidity

Individual screw shafts on every section

Instead of one screw shaft driving the whole mast, each outer body node has its own steel telescopic shaft. Combined with 4-way keyways this gives the minimum twist and deflection in the range.

  • Payload 100 to 125 kg at 2.2 to 7.2 m
  • 120 km/h wind load rating
The MEM10 base plate and its screw-shaft drive

02On the move

Usable at extended height while the vehicle drives

The catalogue lists this mast as usable at extended height while the vehicle is moving. That is a structural claim, and it follows from the telescopic screw shaft design rather than from a damper.

  • Opens in 45 to 120 s by configuration
  • Three to five sections, 28 V supply

Configurations

Part NumberretractedmmextendedmmpayloadkgweightkgopeningsNode Ømmsections
MEM10-1000-2200-0125Standard1.0002.20012572451803
MEM10-1200-3000-01201.2003.000120106602005
MEM10-1800-6000-01001.8006.0001001441202305
MEM10-2000-7200-01002.0007.2001002191202305

Options

Each code is four characters and is appended to the part number, the label language code last.

  • LPEKLightning Protection and Earthing Kitordered separately
  • SPPCSpiral Payload Cableordered separately
  • HEX1Height Extenderordered separately1.000 mm
  • IFPSIngress / Frost Protection Sleeveordered separately
  • CRVHControl Remote for Vehicle
  • CBIFCable Bundling Interface
  • IHIFInstant Height Information
  • LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish

Specifications

Performance Parameters
Rated Payload125 kg
Wind Load120 km/h
Wind Load Reference Area0,4 m²
Actuating MechanismMotorized
Drive TypeTelescopic Screw Shaft
Retracted Height1.000 mm
Extended Height2.200 mm
Weight72 kg
Opening Time45 s
Electrical & Interface
Operating Voltage18-32 VDC
Power StandardMIL-STD-1275
Communication InterfaceRS-422
Communication Interface (Optional)Ethernet
Connector TypeMIL-DTL-38999
Mechanical Data
Node Diameter180 mm
Number of Sections3
Material – Main BodyAluminium 6061-T6
Surface FinishElectrostatic Powder Coating
Standard ColourRAL 9005 Matte Black
Accessories
Installation Manual1 × Installation Manual
Environmental Qualifications
Environmental StandardMIL-STD-810G
High Temperature – OperationalMtd. 501.5, Proc. II, +60 °C
High Temperature – StorageMtd. 501.5, Proc. I, +70 °C
Low Temperature – OperationalMtd. 502.5, Proc. II, -32 °C
Low Temperature – StorageMtd. 502.5, Proc. I, -40 °C
Low Pressure – OperationalMtd. 500.5, Proc. II, 10.500 ft
Low Pressure – StorageMtd. 500.5, Proc. I, 37.000 ft
HumidityMtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h
RainMtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face
Salt FogMtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying
Blowing DustMtd. 510.5, Proc. I
Blowing SandMtd. 510.5, Proc. II
VibrationMtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3
ShockMtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes
EMI / EMC
EMI/EMC StandardMIL-STD-461G
CE102Power Leads, 10 kHz – 10 MHz
CS101Power Leads, 30 Hz – 150 kHz
CS114Bulk Cable Injection, 10 kHz – 200 MHz
CS115Bulk Cable Injection, Impulse Excitation
CS116Damped Sinusoidal Transients, 10 kHz – 100 MHz
CS118Personnel Borne Electrostatic Discharge
RE102Electric Field, 10 kHz – 18 GHz
RS103Electric Field, 2 MHz – 18 GHz

Documents

  • DatasheetDownloadable — PDF, 392 KB
  • User ManualOn Request
  • 3D Model (STEP)On Request
  • Mechanical Interface Control DocumentOn Request
  • MIL-STD-810G Environmental Qualification ReportOn Request
  • Electrical Interface Control DocumentOn Request
  • Software Interface Control DocumentOn Request
  • MIL-STD-461G EMI/EMC Test ReportOn Request
