Thermal Imagers

SEG10

Dual Channel (EO-LWIR) Stabilized Gimbal System

Two-axis stabilized gimbal pairing a 30x 1080p day camera with an uncooled 640x512 LWIR channel, sized at 4.4 kg for unmanned and light ground vehicles.

  • LWIR
  • 640 × 512 px
  • 50 mK NETD
1.920 × 1.080 px
Resolution
640 × 512 px
Detector
4,4 kg
Weight
DatasheetCompare Models
DRI Range Calculator
SEG10 with its day and thermal windows

Highlights

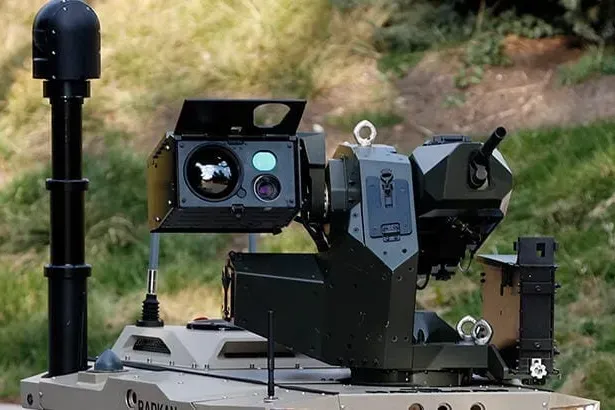

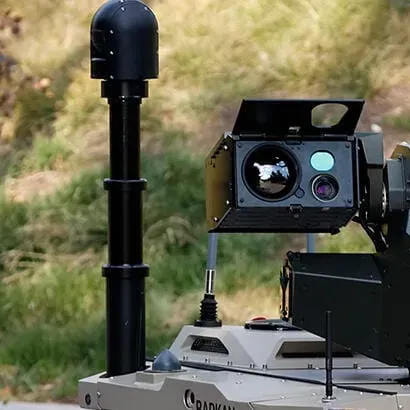

SEG10 on its mast beside the vehicle sight

01Dual channel

Thermal and daylight on one screen

A 1920×1080 EO channel with 30× optical zoom runs alongside an uncooled 640×512 LWIR channel, and both are displayed at the same time. The operator loses nothing when moving between spectra.

  • Uncooled LWIR starts without a cooldown wait; NETD 50 mK
  • Athermalised optics hold focus across −32 to +60 °C
  • HD-SDI and Ethernet output on MIL-DTL-38999 connectors
SEG10 packed down on a BARKAN

02Stabilization

Two-axis stabilization with onboard tracking

An IMU and encoder based dual-loop holds the line of sight on a moving platform. The tracker locks onto a target between 16×16 and 128×128 pixels and reports at 25 Hz.

  • 360° continuous pan, ±45° tilt, 180°/s axis speed
  • Tracker output lag 100 ms

Options

Each code is four characters and is appended to the part number, the label language code last.

  • LCKTLens Cleaning Kit
  • LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish

Specifications

Performance Parameters
Pan and Tilt – Nominal Speed180 °/s
Pan – Axis Range360° continuous
Tilt – Axis Range±45°
Weight4,4 kg
Thermal Imager Module
Spectral BandLWIR
Detector640 × 512 px
Pixel Size12 µm
NETD50 mK
MRTD500 mK
Thermal Lens25 mm
Thermal Optical ZoomNone
Thermal Horizontal Field of View17,7°
Thermal Digital Zoom12×
Detection – Vehicle3,2 km
Recognition – Vehicle0,8 km
Identification – Vehicle0,4 km
EO Camera Module
Resolution1.920 × 1.080 px
EO Optical Zoom30×
EO Horizontal Field of View63,7-2,3°
EO Digital Zoom12×
Minimum Illumination – High Sensitivity0,01 lx
Focusing SystemAutomatic
Detection – Vehicle13,0 km
Recognition – Vehicle6,0 km
Identification – Vehicle2,6 km
Tracker
Tracker StabilizationTwo-axis IMU and encoder based dual-loop
Data Refresh Rate25 Hz
Output Lag100 ms
Target Size16 × 16-128 × 128 px
Electrical & Interface
Power Consumption (Max)150 W
Operating Voltage18-32 VDC
Communication InterfaceRS-422
Communication Interface (Optional)Ethernet
Connector TypeMIL-DTL-38999
Video Output 1HD-SDI
Video Output 2Ethernet
Mechanical Data
Diameter155 mm
Height235 mm
Material – Main BodyAluminum 6061-T6
Surface FinishElectrostatic Powder Coating
Standard ColorRAL 9005 Matte Black
Accessories
Installation Manual1 × Installation Manual
Environmental Qualifications
Environmental StandardMIL-STD-810G
High Temperature – OperationalMtd. 501.5, Proc. II, +60 °C
High Temperature – StorageMtd. 501.5, Proc. I, +70 °C
Low Temperature – OperationalMtd. 502.5, Proc. II, -32 °C
Low Temperature – StorageMtd. 502.5, Proc. I, -40 °C
Low Pressure – OperationalMtd. 500.5, Proc. II, 10.500 ft
Low Pressure – StorageMtd. 500.5, Proc. I, 37.000 ft
RainMtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face
Salt FogMtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying
Blowing DustMtd. 510.5, Proc. I
Blowing SandMtd. 510.5, Proc. II
VibrationMtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3
ShockMtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes
EMI / EMC
EMI/EMC StandardMIL-STD-461G
CE102Power Leads, 10 kHz – 10 MHz
CS101Power Leads, 30 Hz – 150 kHz
CS114Bulk Cable Injection, 10 kHz – 200 MHz
CS115Bulk Cable Injection, Impulse Excitation
CS116Damped Sinusoidal Transients, 10 kHz – 100 MHz
CS118Personnel Borne Electrostatic Discharge
RE102Electric Field, 10 kHz – 18 GHz
RS103Electric Field, 2 MHz – 18 GHz

Documents

  • Product OverviewPDF
  • DatasheetPDF
  • User ManualOn Request
  • 3D Model (STEP)On Request
  • Mechanical Interface Control DocumentOn Request
  • MIL-STD-810G Environmental Qualification ReportOn Request
  • Electrical Interface Control DocumentOn Request
  • Software Interface Control DocumentOn Request
  • MIL-STD-461G EMI/EMC Test ReportOn Request
Request Documents

Complete the System

Application Areas

SEG10 on its mast stub, shell closed

SEG10 on its mast stub, shell closed

1 / 32

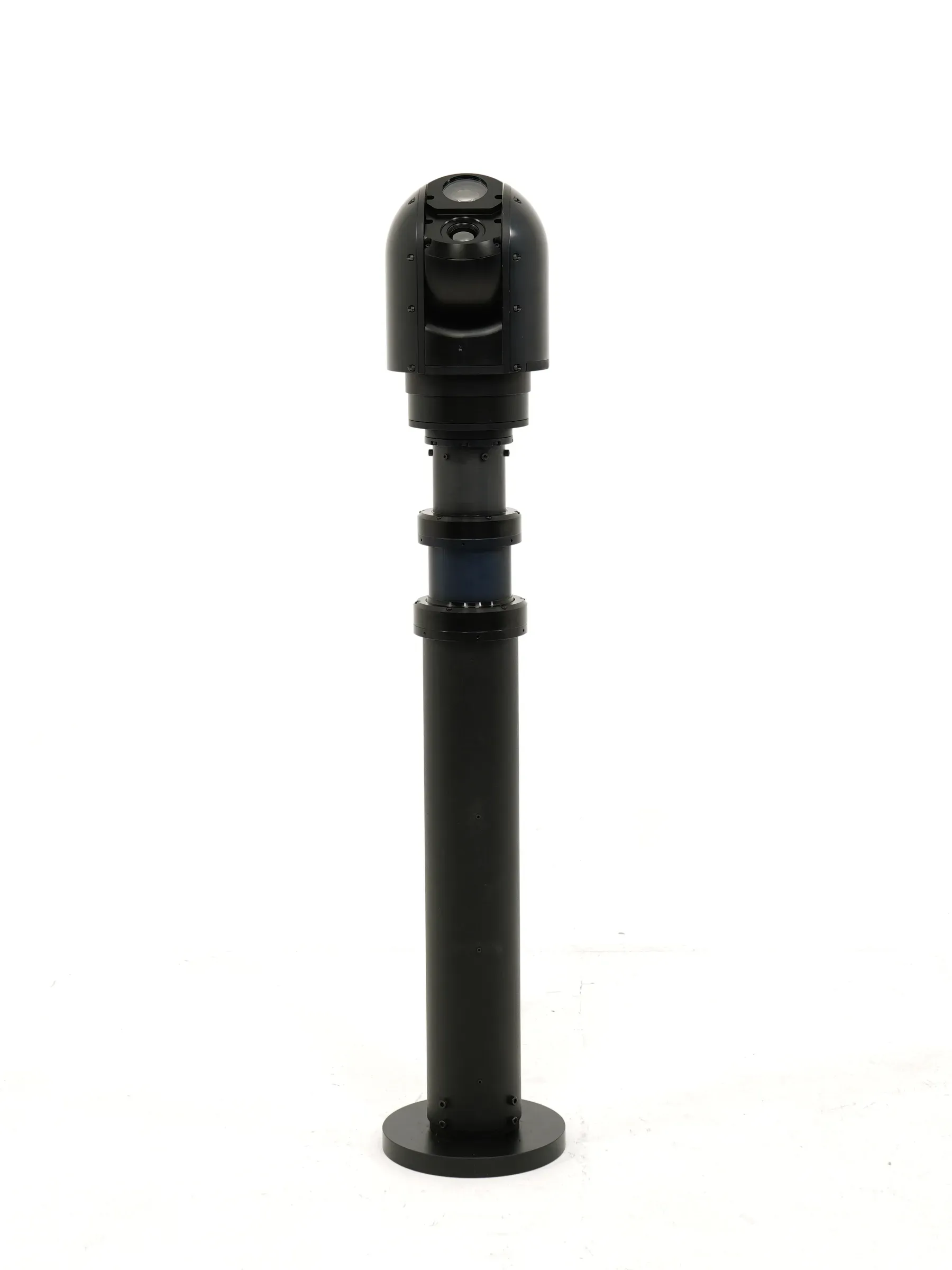

SEG10 on a compact mast

SEG10 on a compact mast

2 / 32

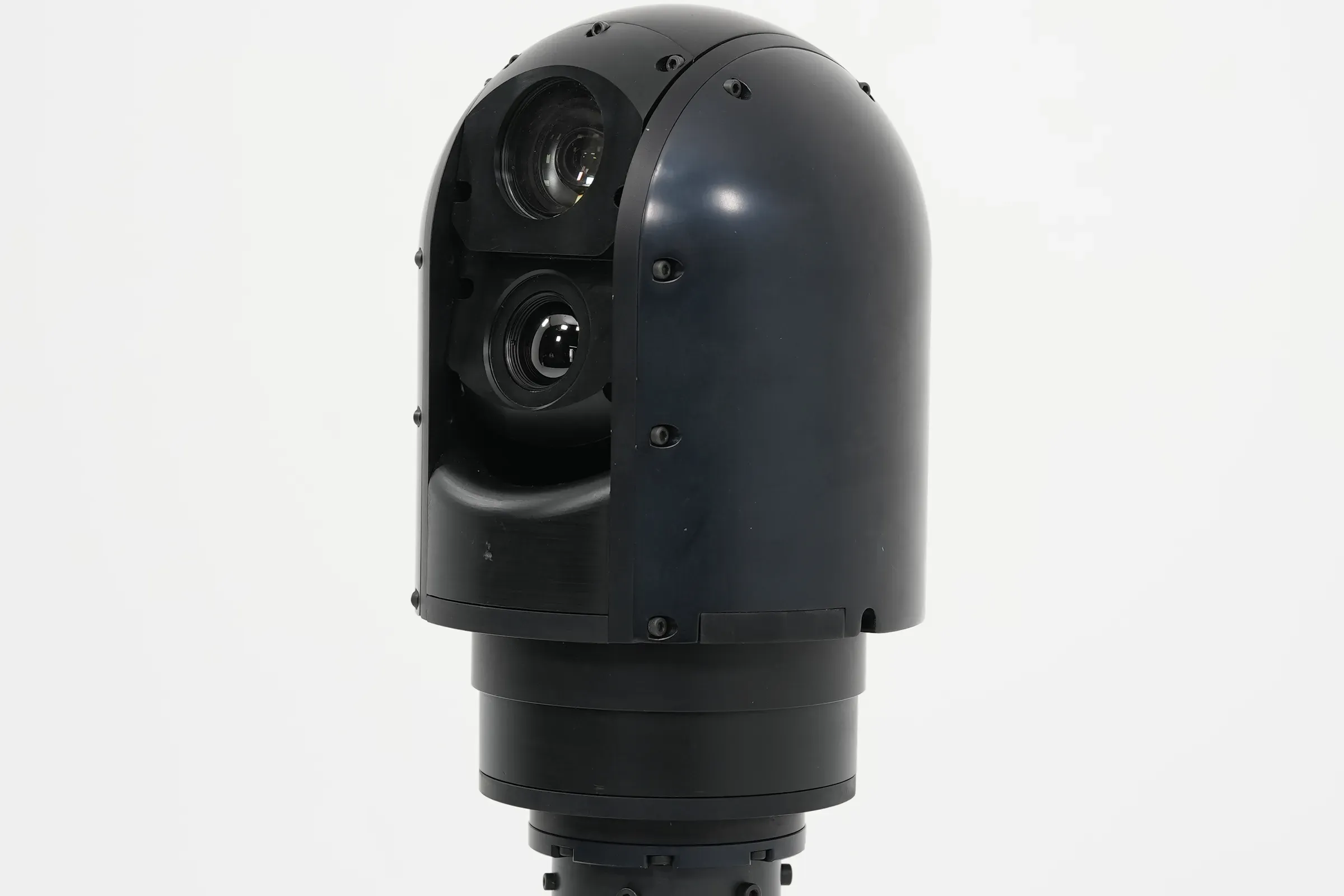

SEG10 turned to the side

SEG10 turned to the side

3 / 32

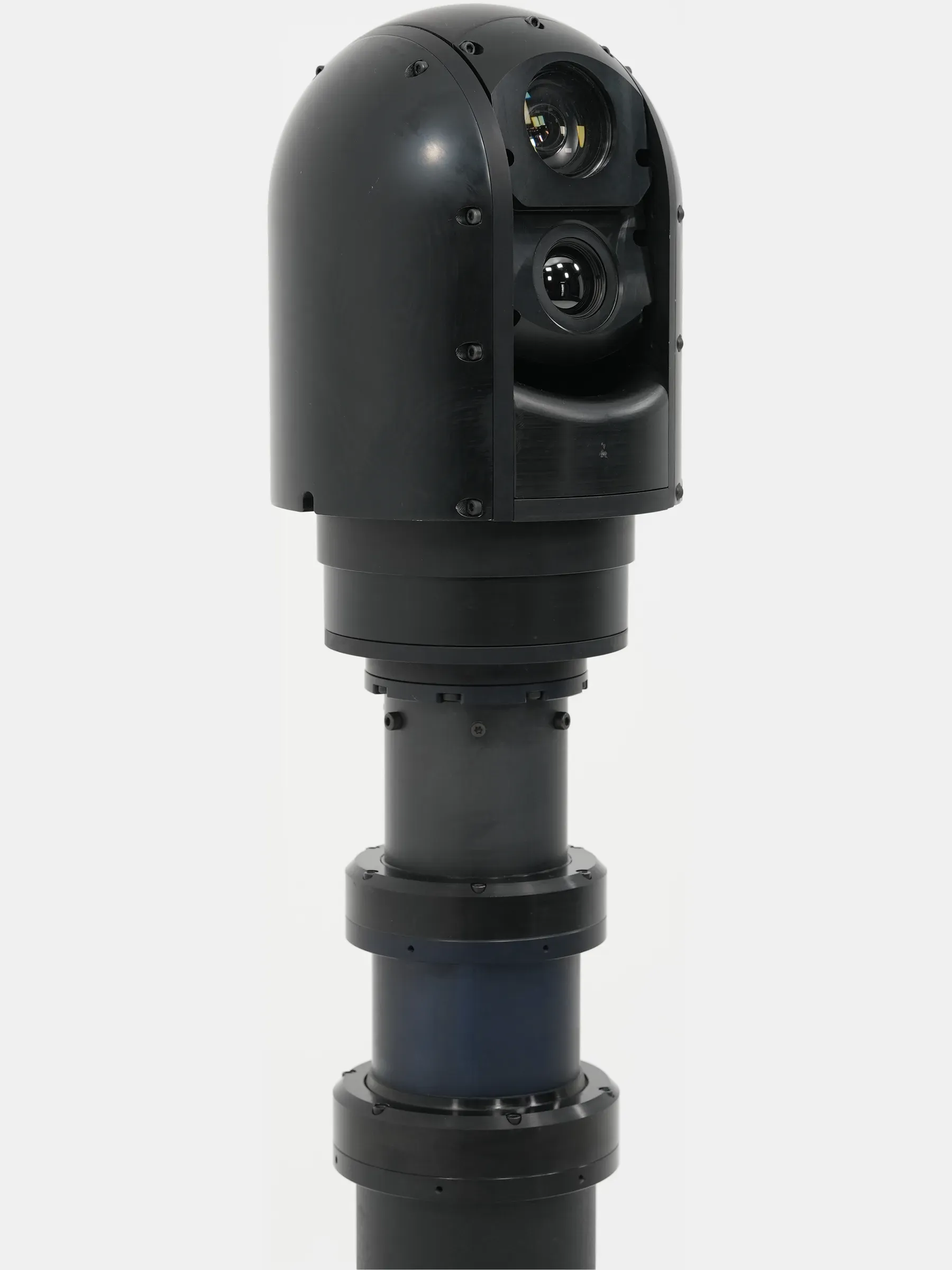

SEG10 on a slim mast column

SEG10 on a slim mast column

4 / 32

SEG10 beside the vehicle sensor head

SEG10 beside the vehicle sensor head

5 / 32

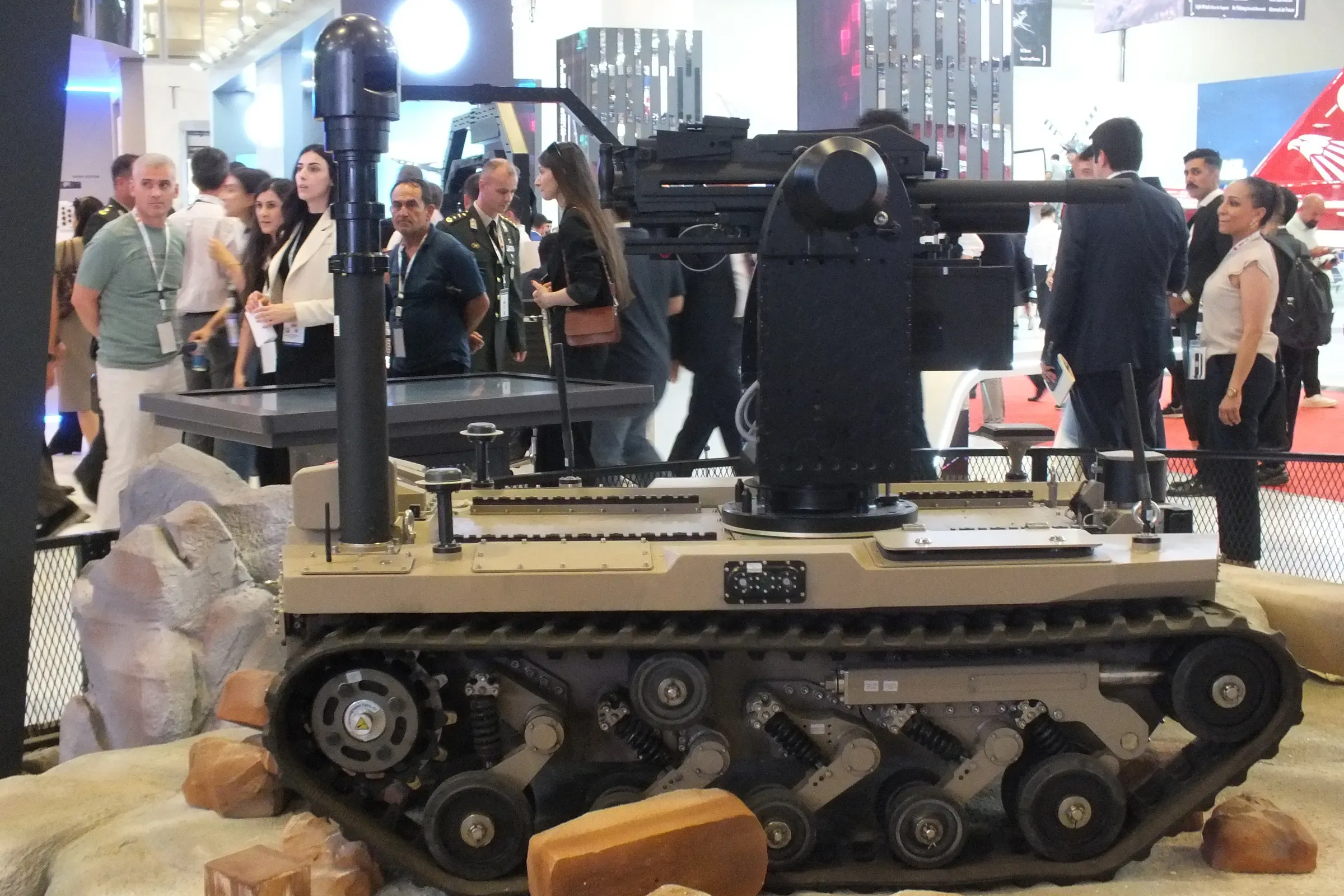

SEG10 raised beside the weapon station

SEG10 raised beside the weapon station

6 / 32

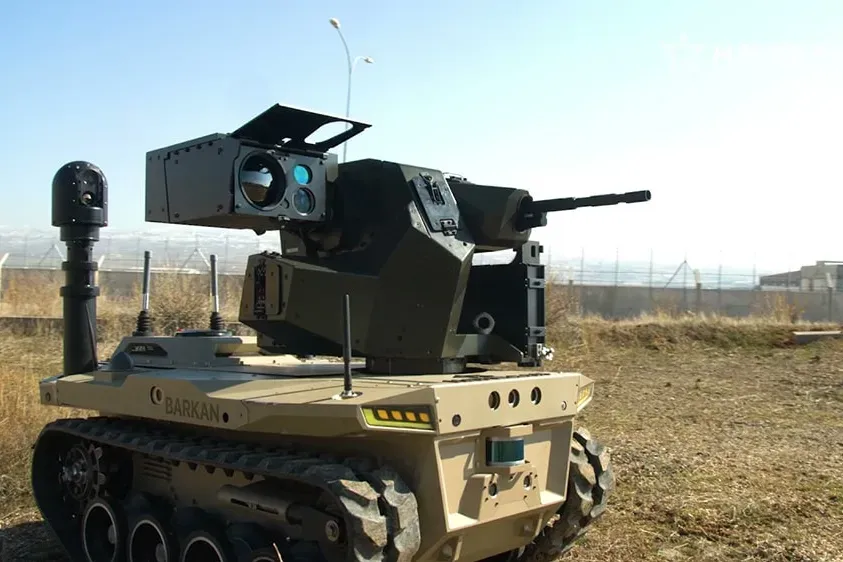

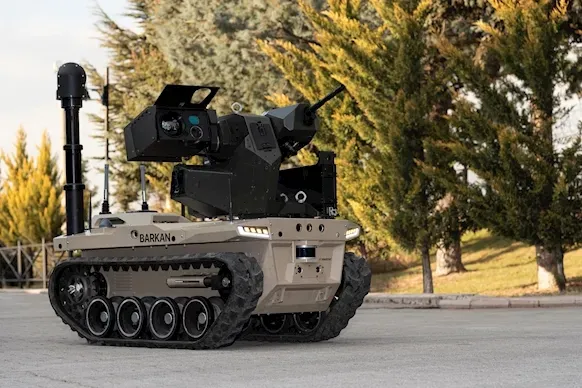

SEG10 at mast height on a parked BARKAN

SEG10 at mast height on a parked BARKAN

7 / 32

SEG10 on the mast across the open ground

SEG10 on the mast across the open ground

8 / 32

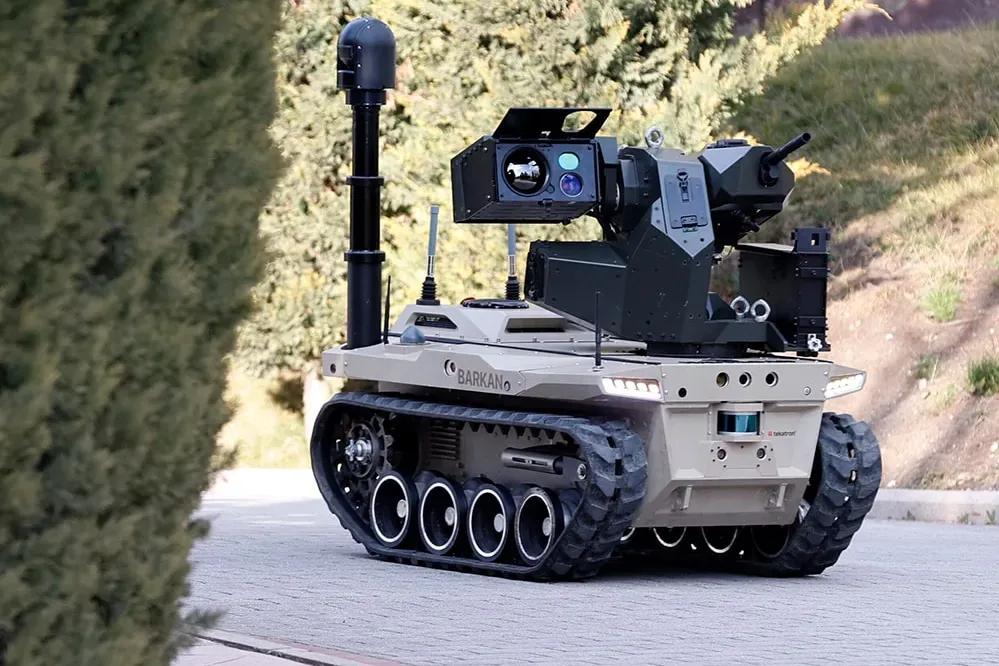

SEG10 clear of the vehicle roof

SEG10 clear of the vehicle roof

9 / 32

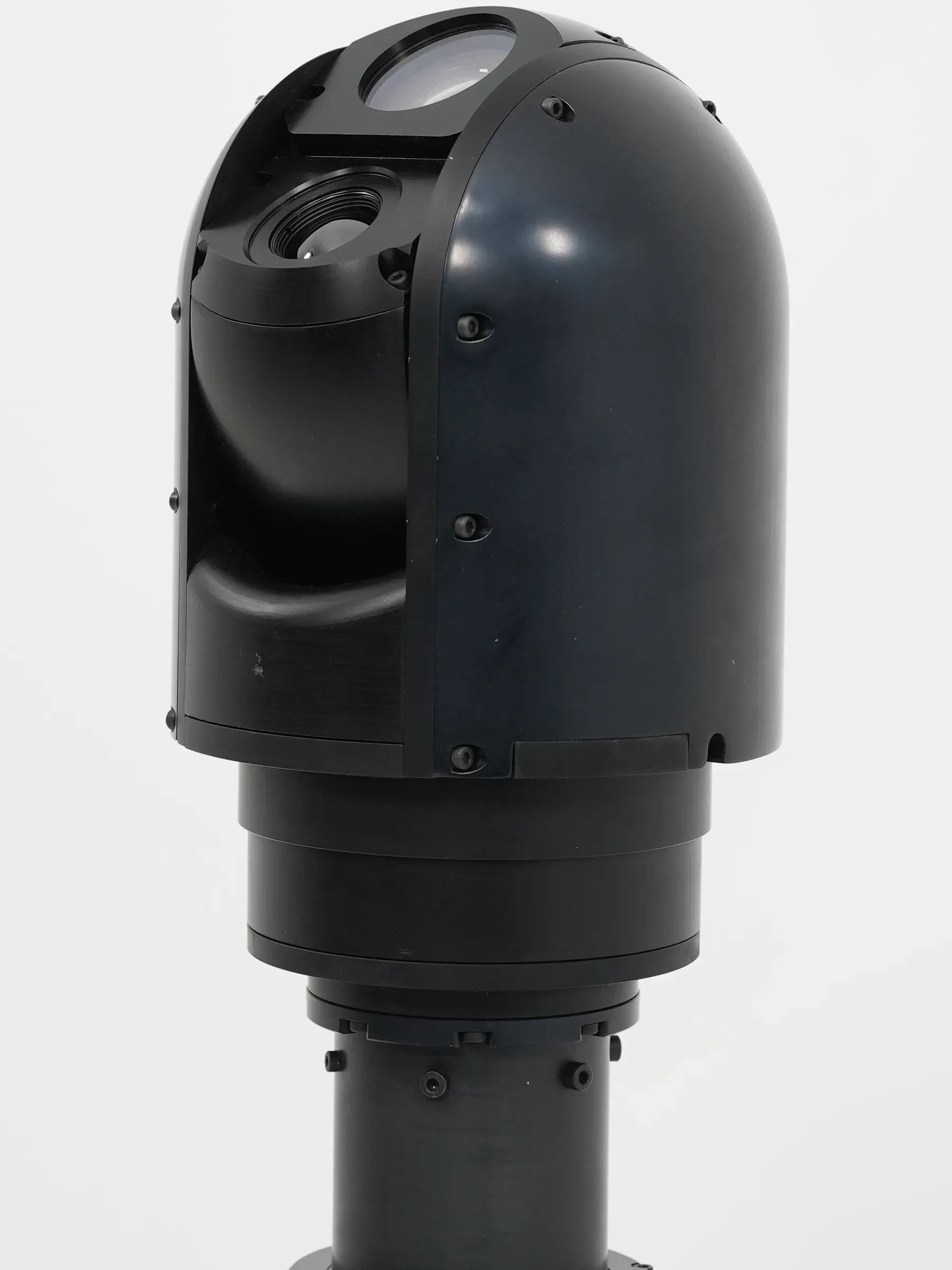

SEG10 on the mast top

SEG10 on the mast top

10 / 32

SEG10 with both windows open

SEG10 with both windows open

11 / 32

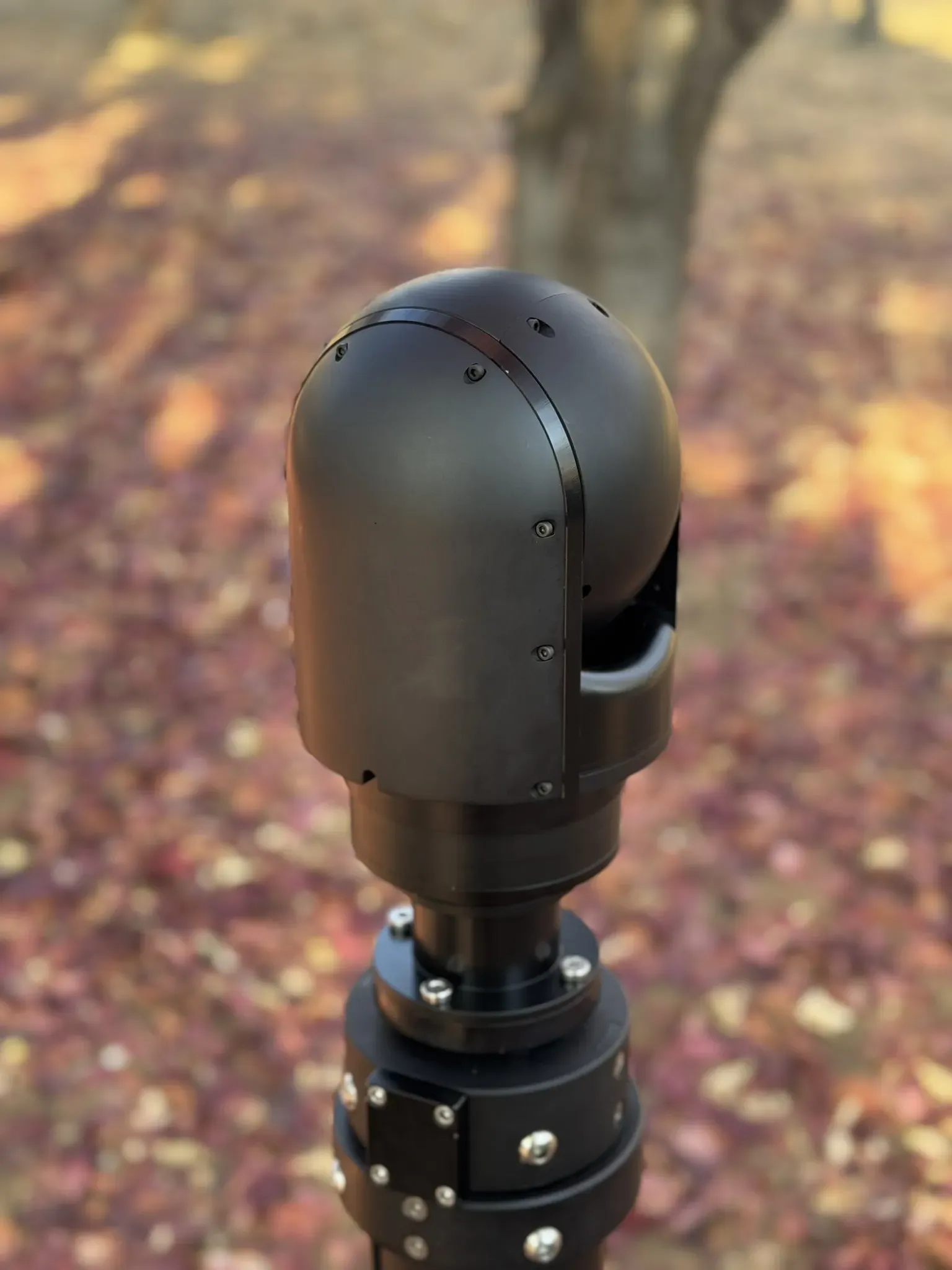

The back of the SEG10 dome

The back of the SEG10 dome

12 / 32

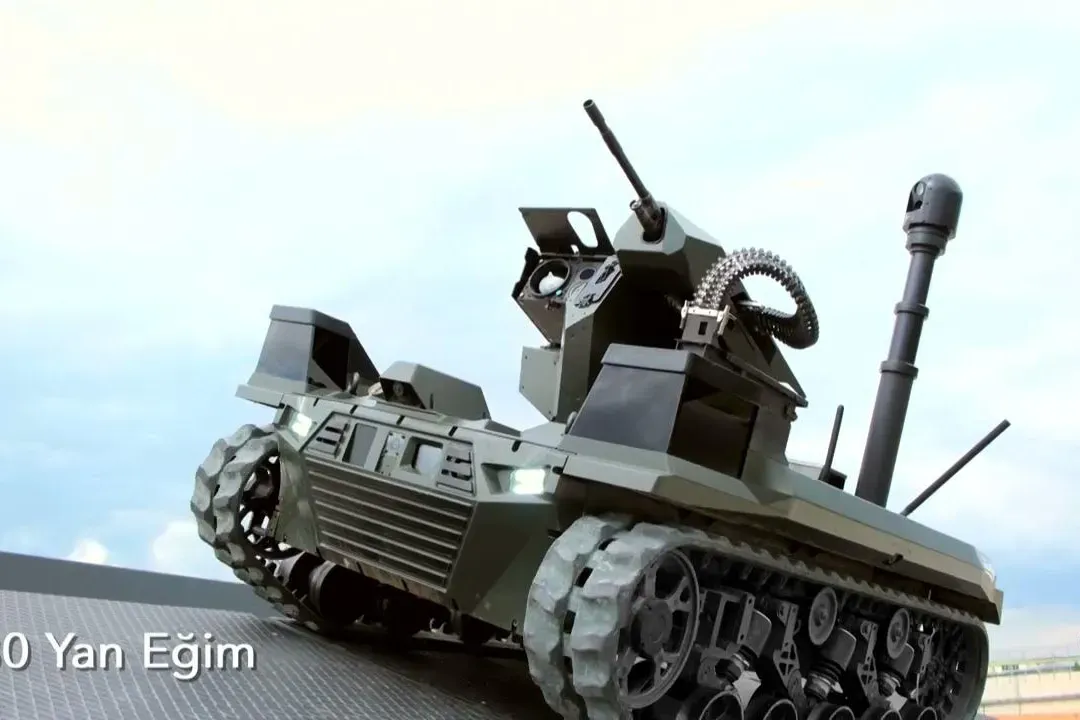

SEG10 upright as the robot leans on the slope

SEG10 upright as the robot leans on the slope

13 / 32

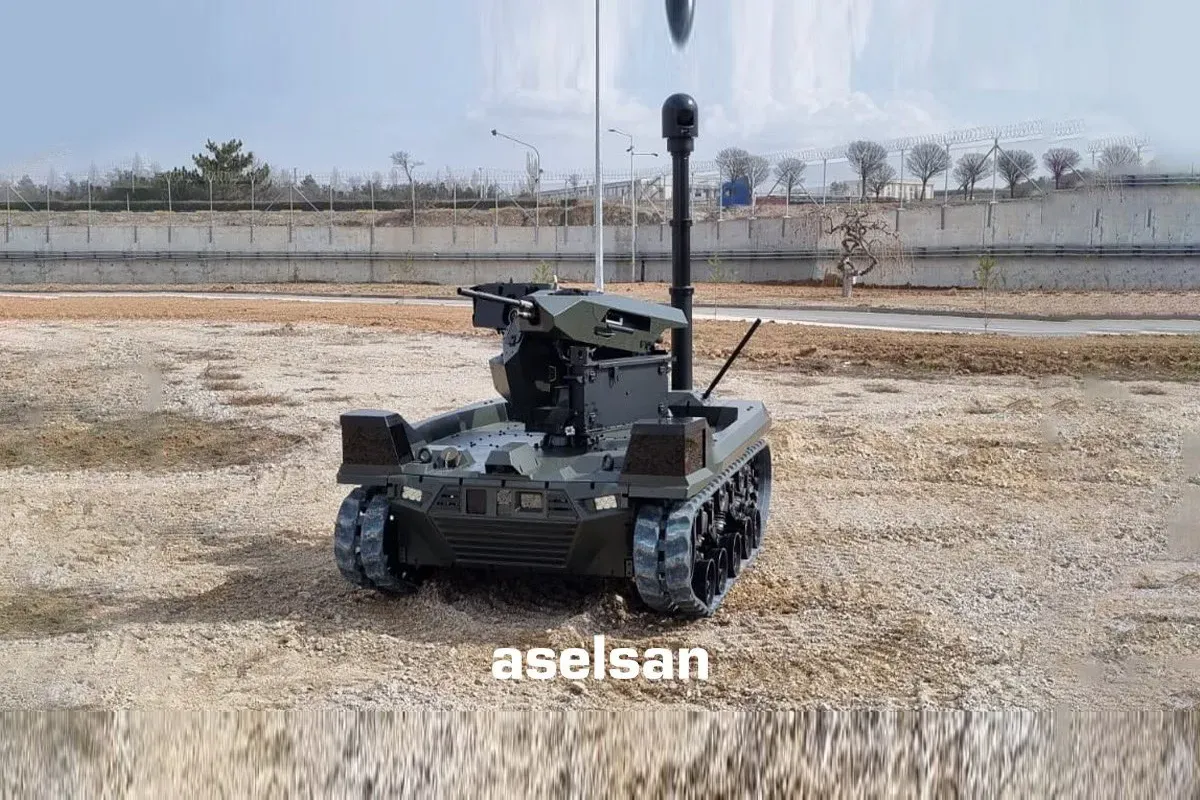

SEG10 up as the robot crosses open ground

SEG10 up as the robot crosses open ground

14 / 32

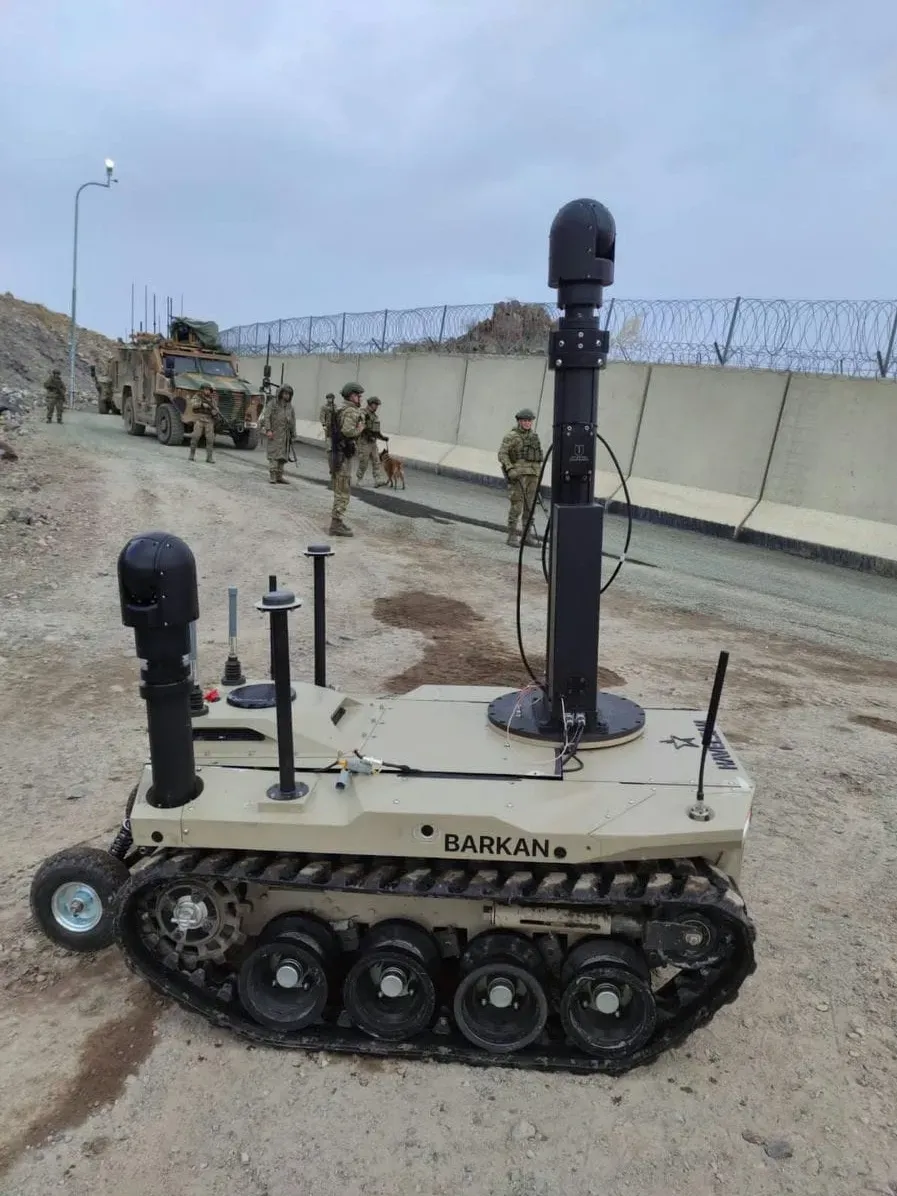

SEG10 above a BARKAN on a tree-lined road

SEG10 above a BARKAN on a tree-lined road

15 / 32

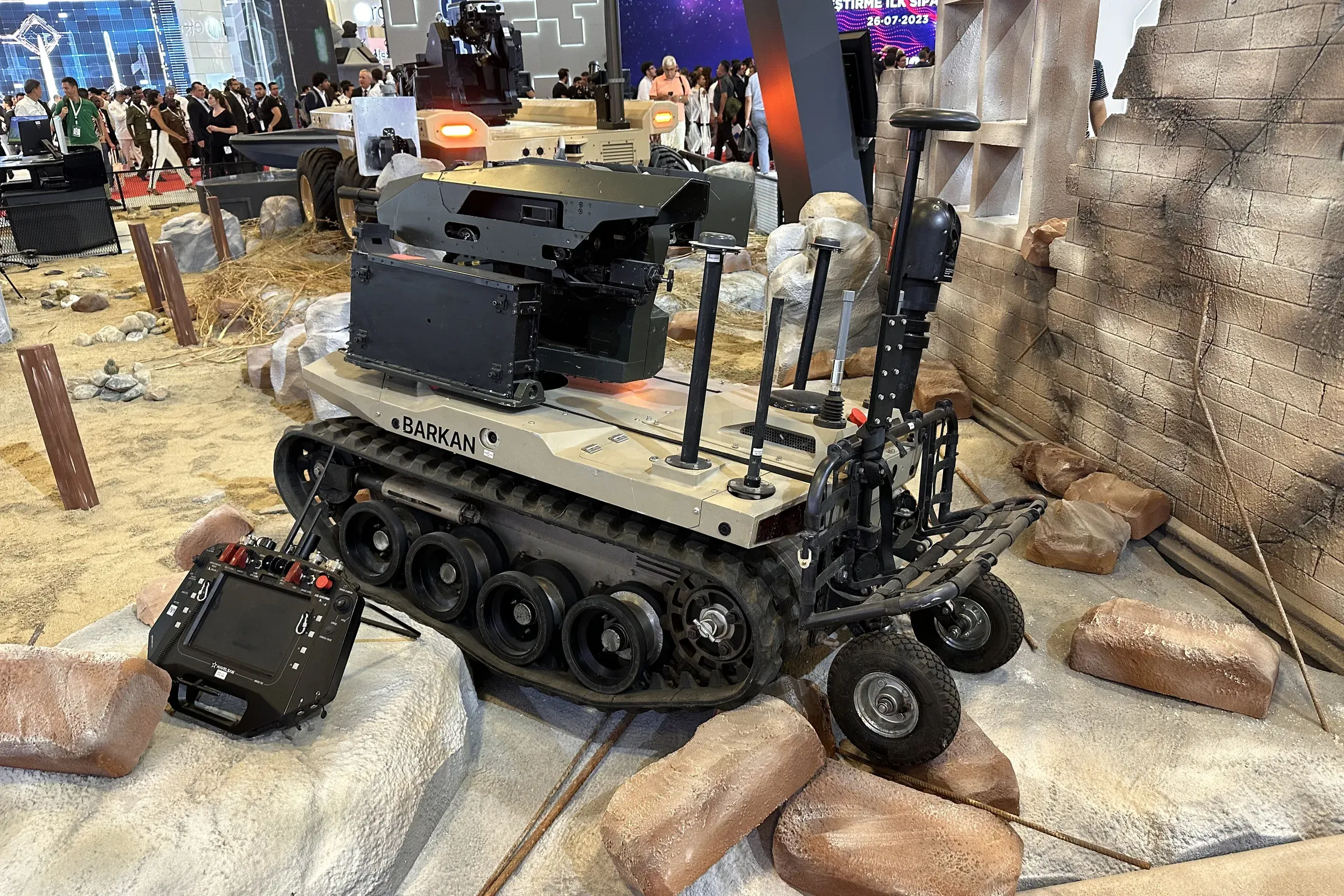

SEG10 on a BARKAN in the compound

SEG10 on a BARKAN in the compound

16 / 32

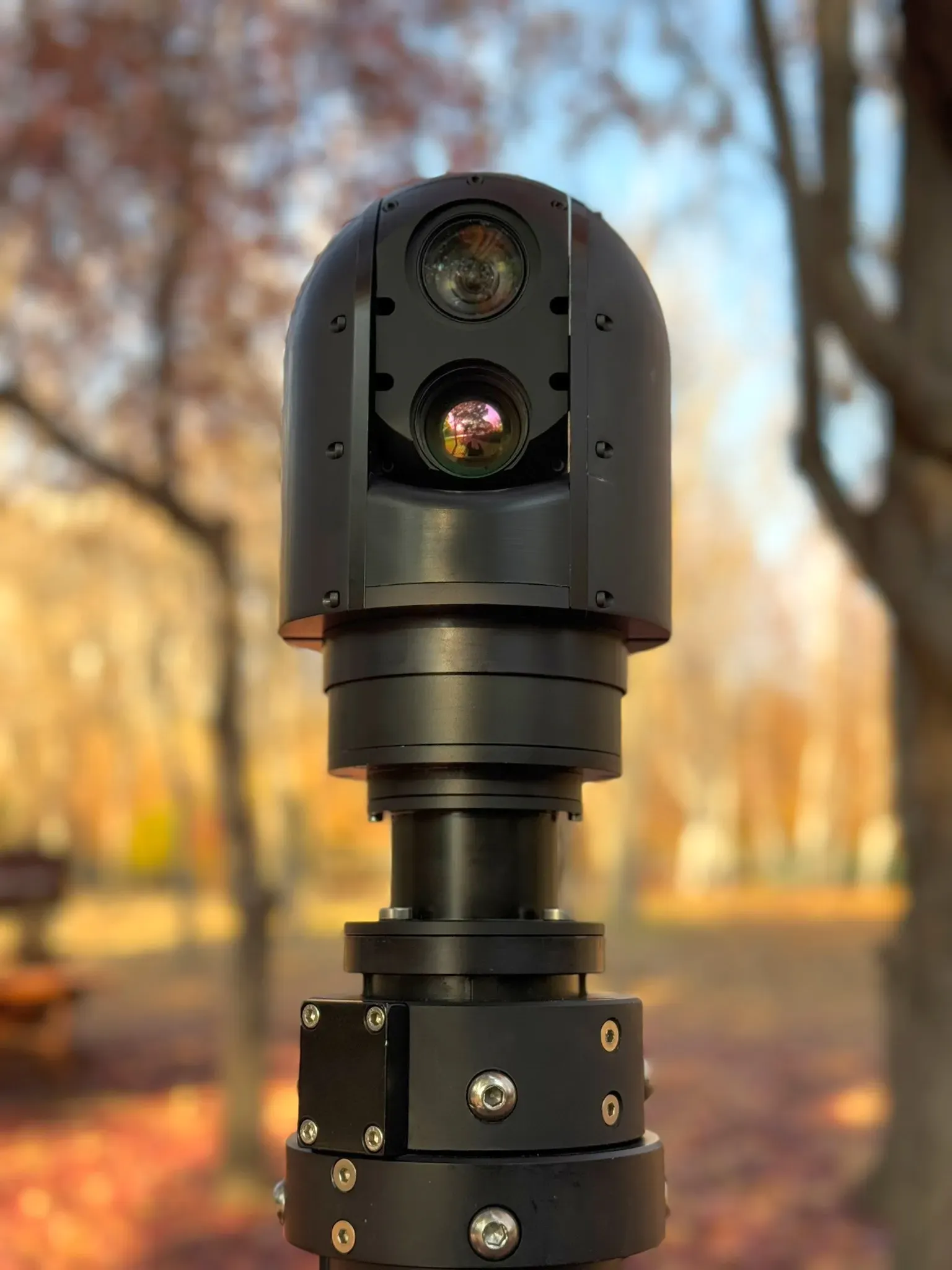

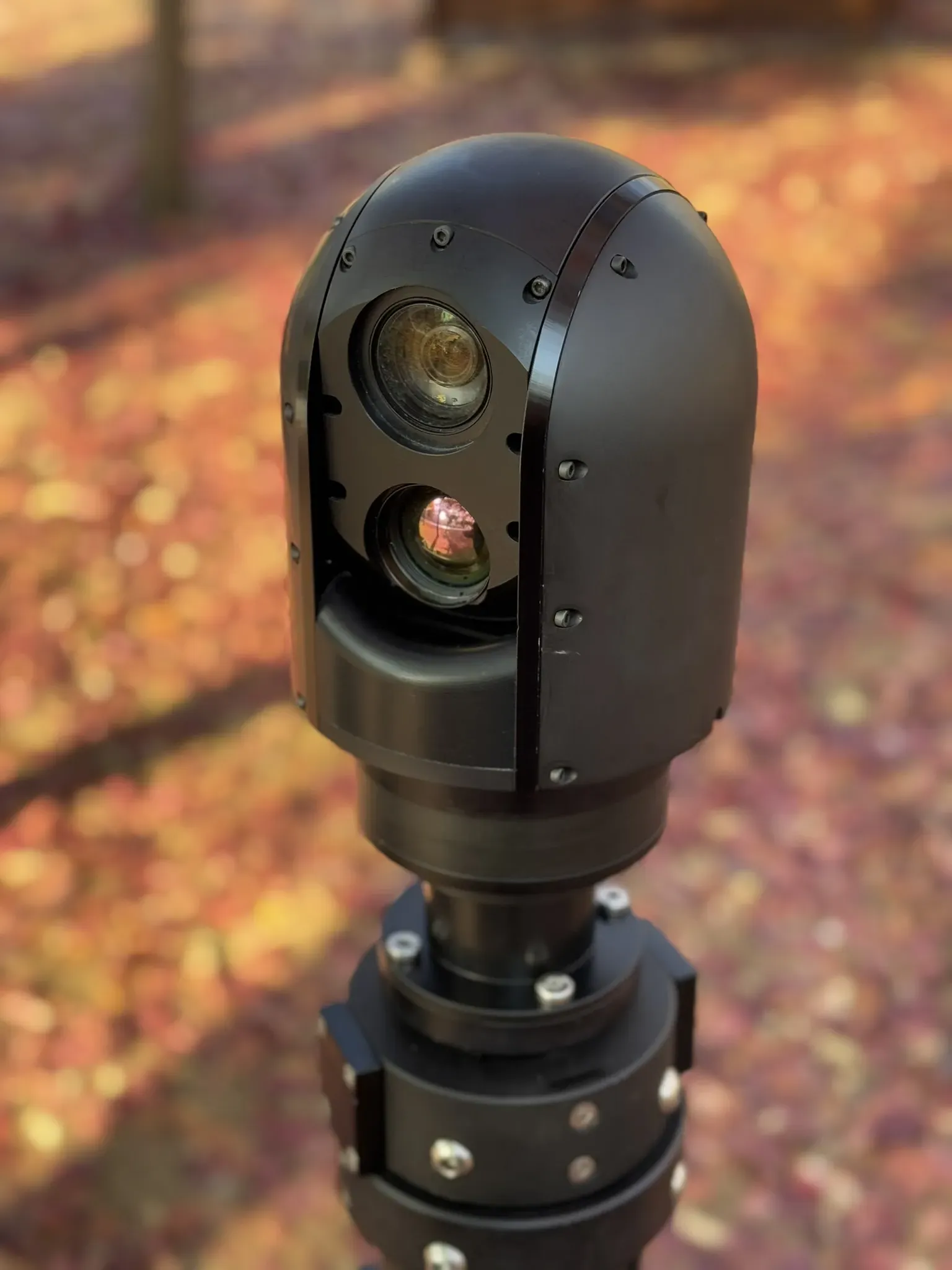

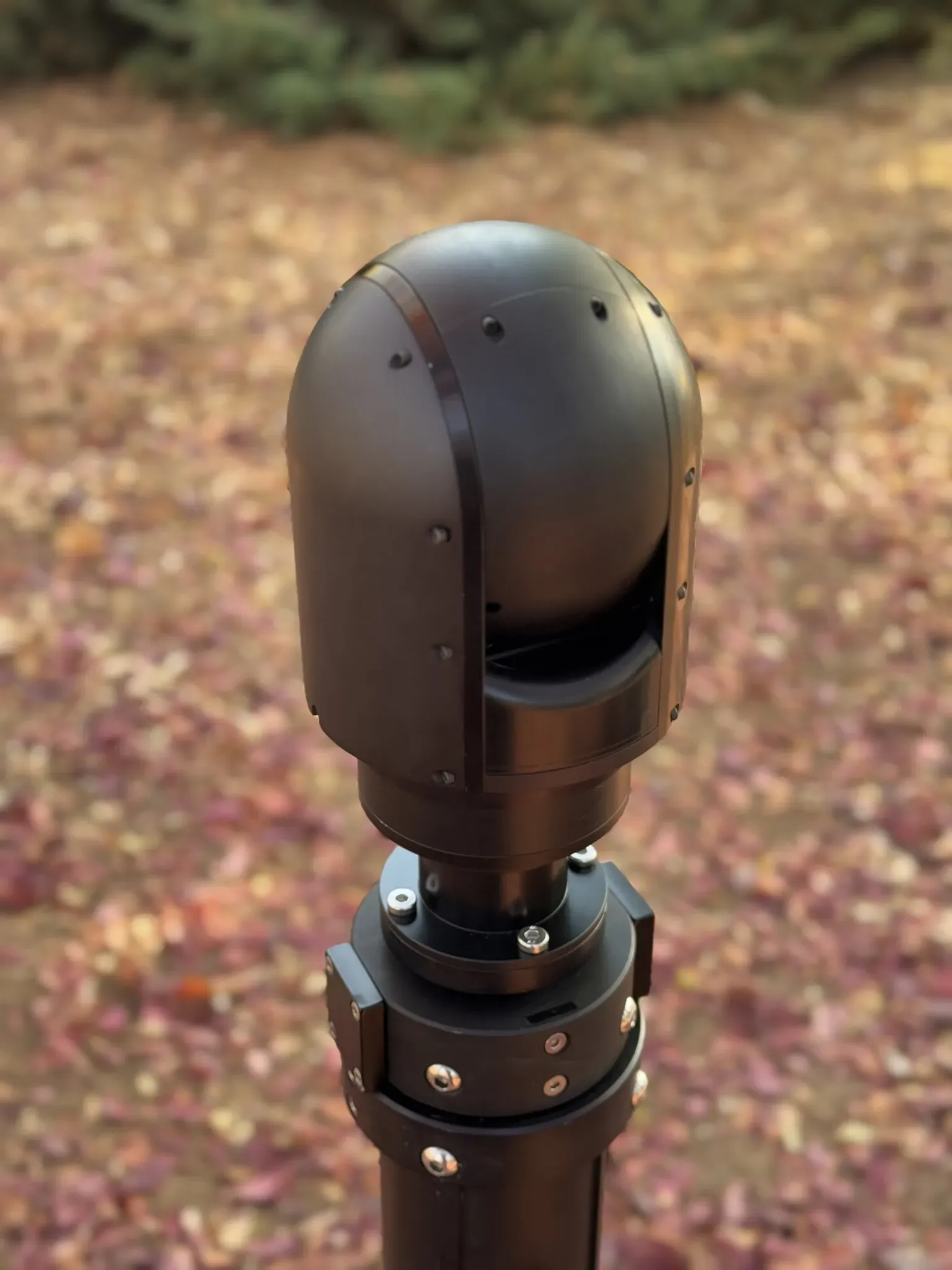

The SEG10 head in the autumn light

The SEG10 head in the autumn light

17 / 32

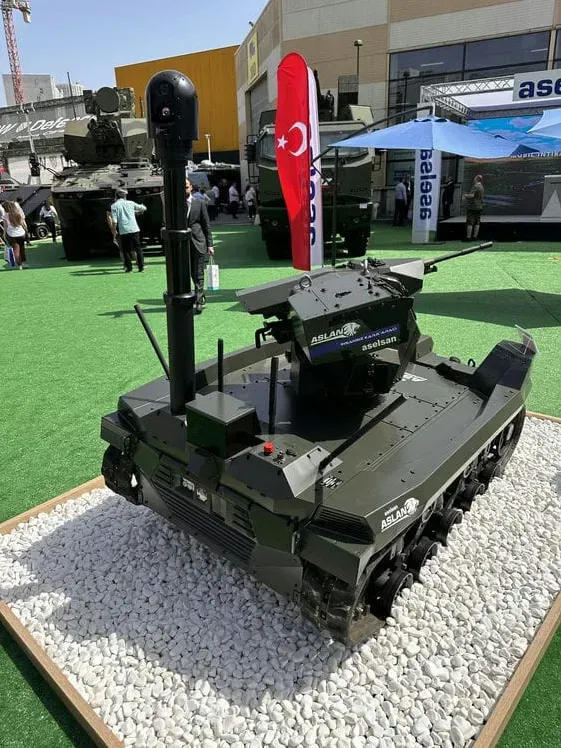

SEG10 on the mast head of a tracked robot

SEG10 on the mast head of a tracked robot

18 / 32

SEG10 at mast height over a BARKAN

SEG10 at mast height over a BARKAN

19 / 32

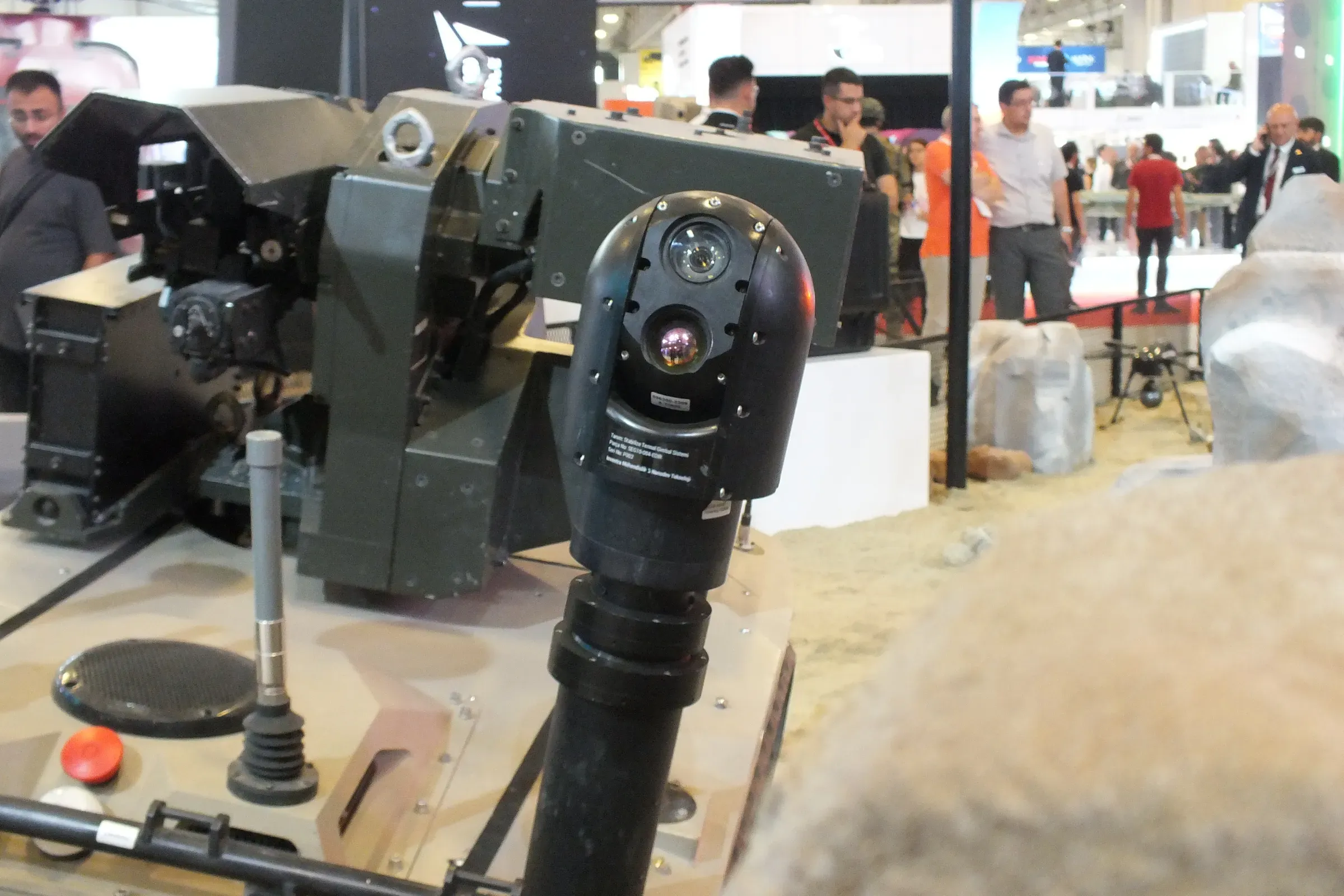

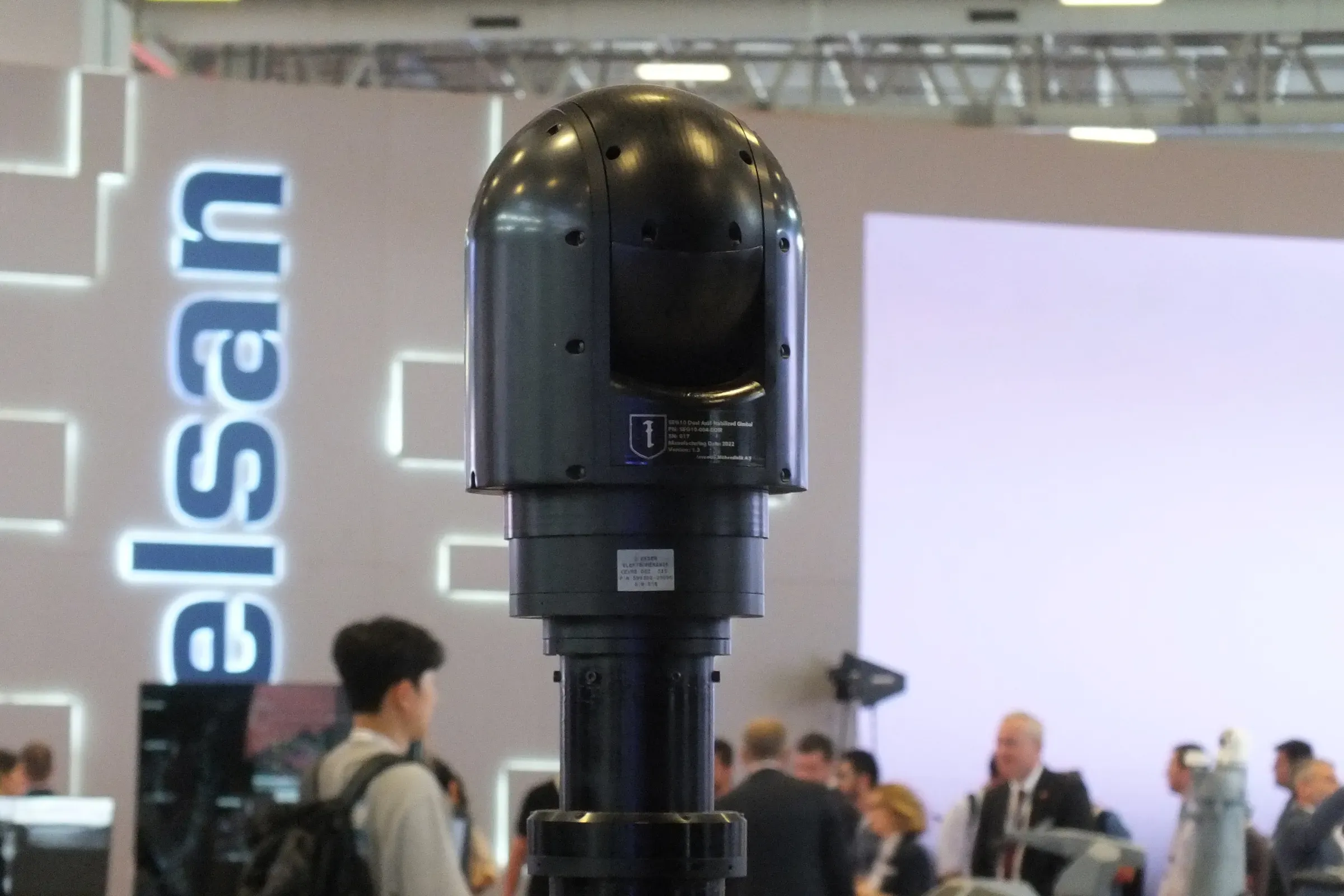

The SEG10 head at the ASELSAN stand

The SEG10 head at the ASELSAN stand

20 / 32

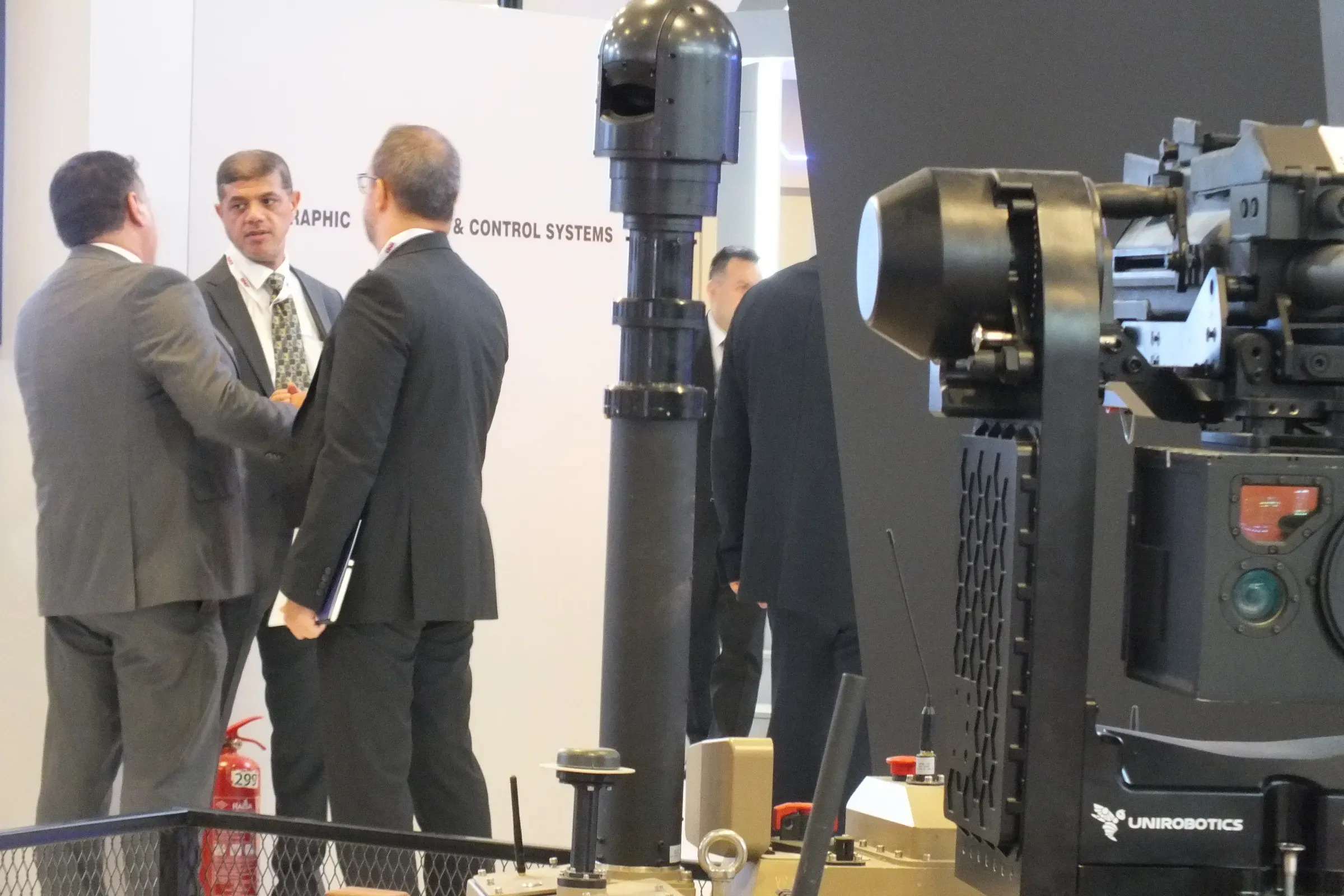

SEG10 above the Unirobotics stand

SEG10 above the Unirobotics stand

21 / 32

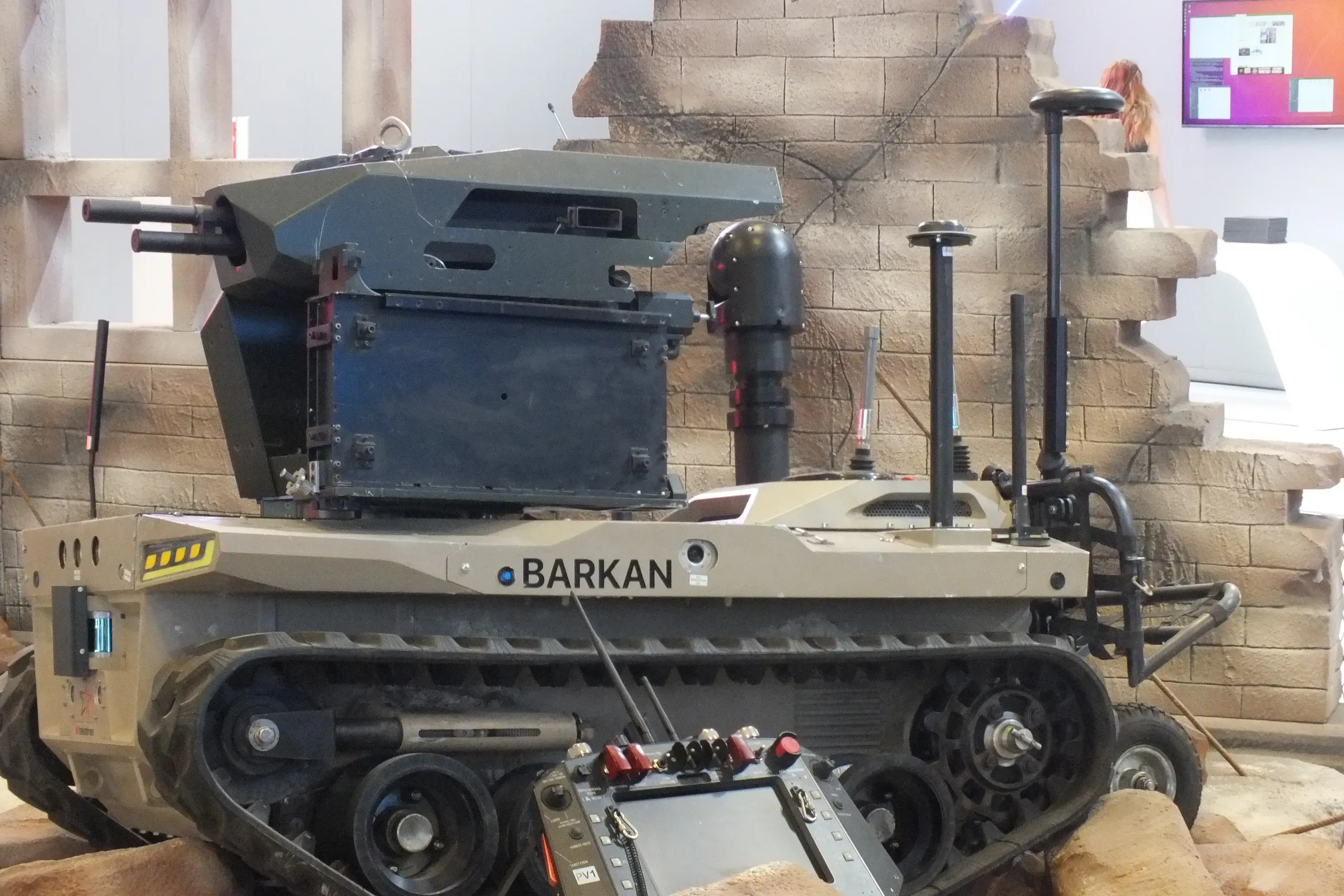

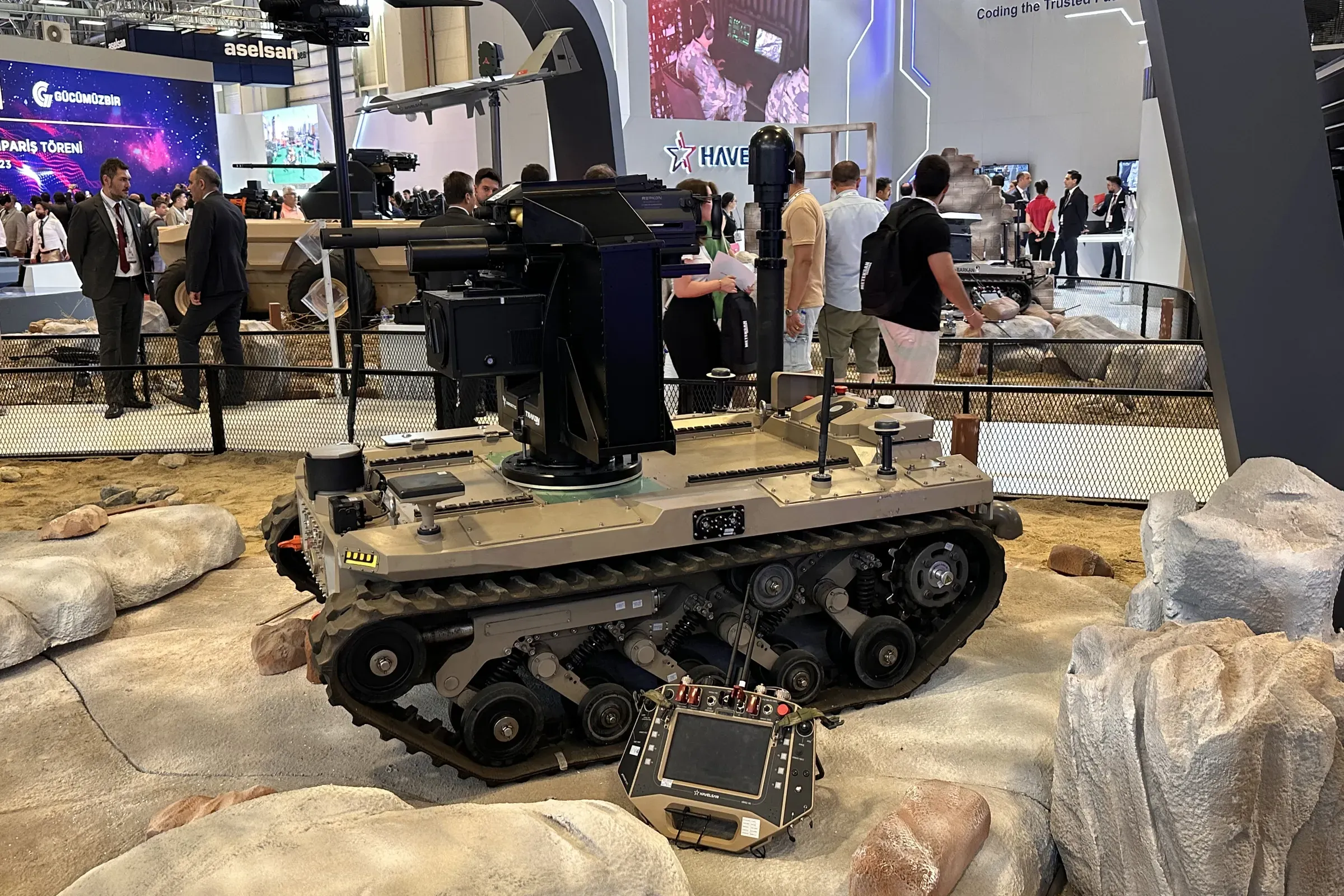

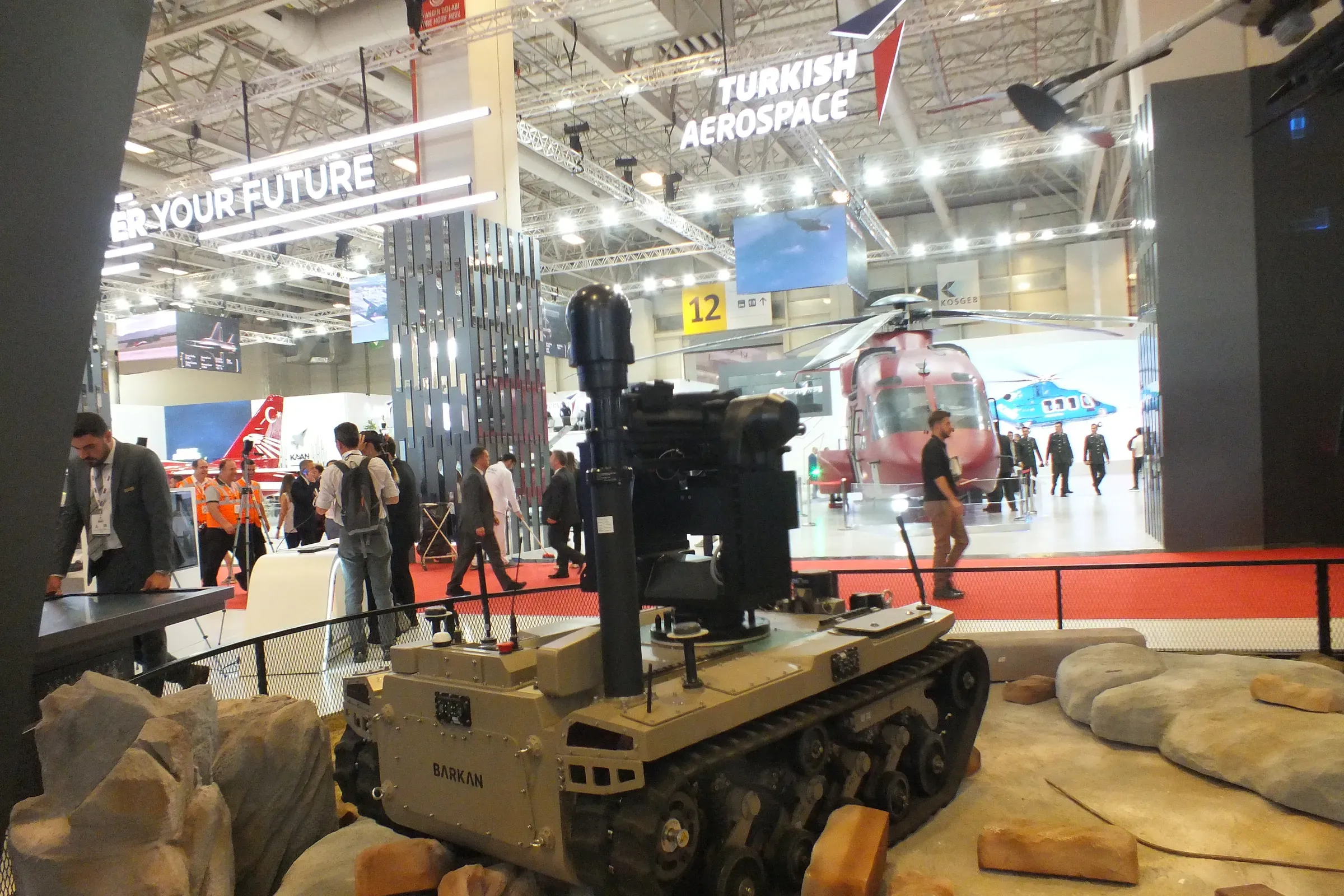

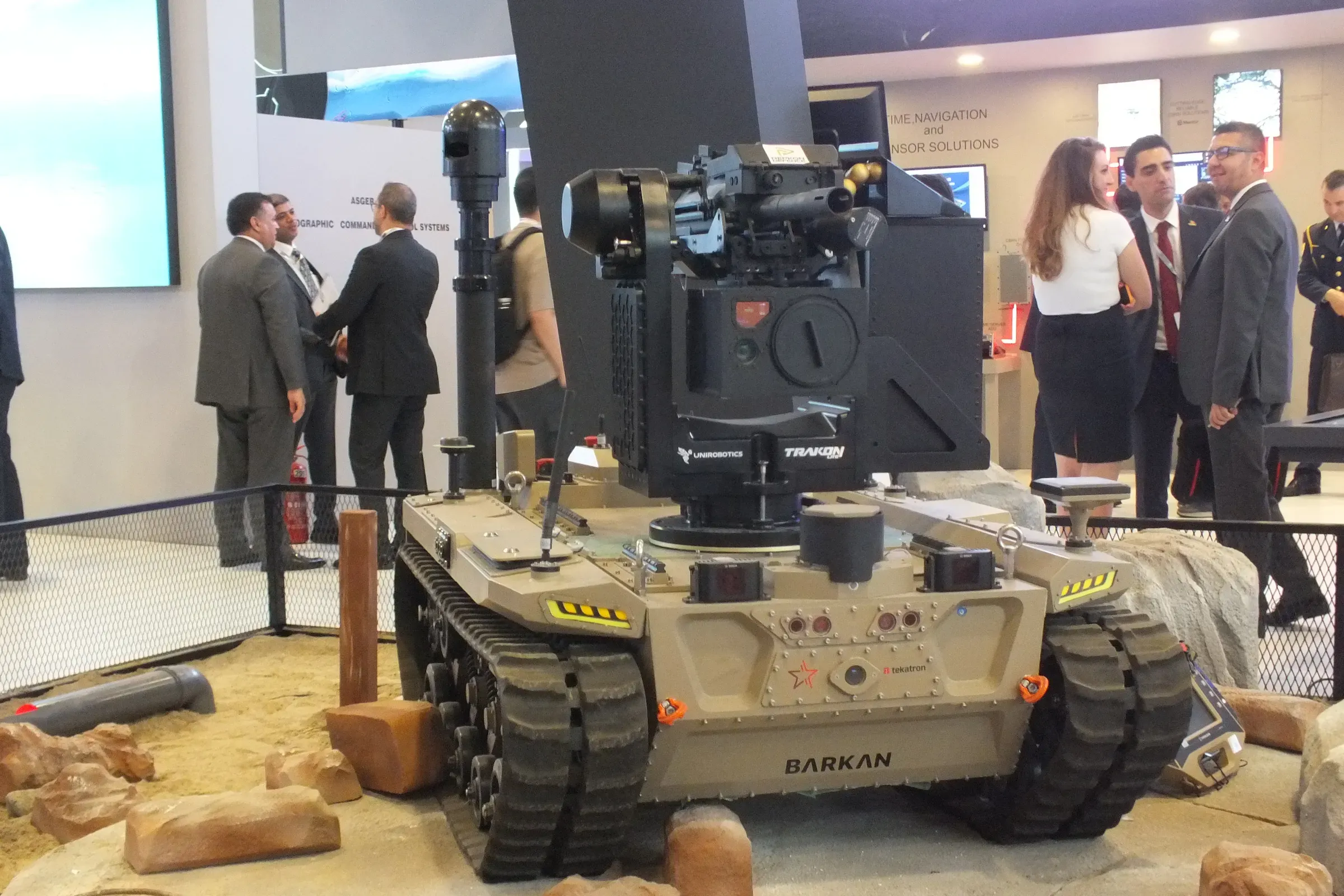

SEG10 held high over the show diorama

SEG10 held high over the show diorama

22 / 32

SEG10 beside the vehicle sight on the deck

SEG10 beside the vehicle sight on the deck

23 / 32

SEG10 on the mast of a BARKAN rear deck

SEG10 on the mast of a BARKAN rear deck

24 / 32

SEG10 above the tracked chassis

SEG10 above the tracked chassis

25 / 32

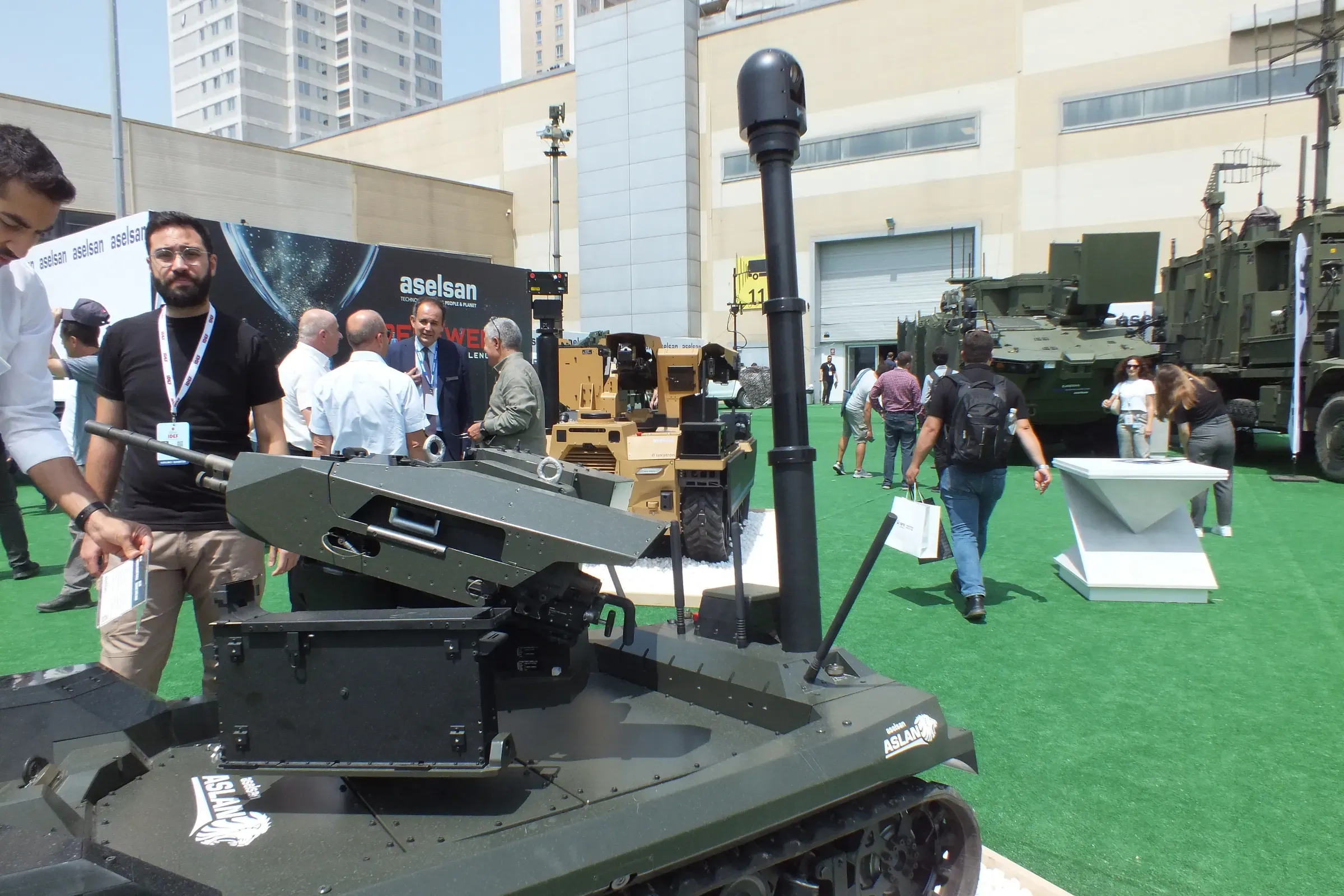

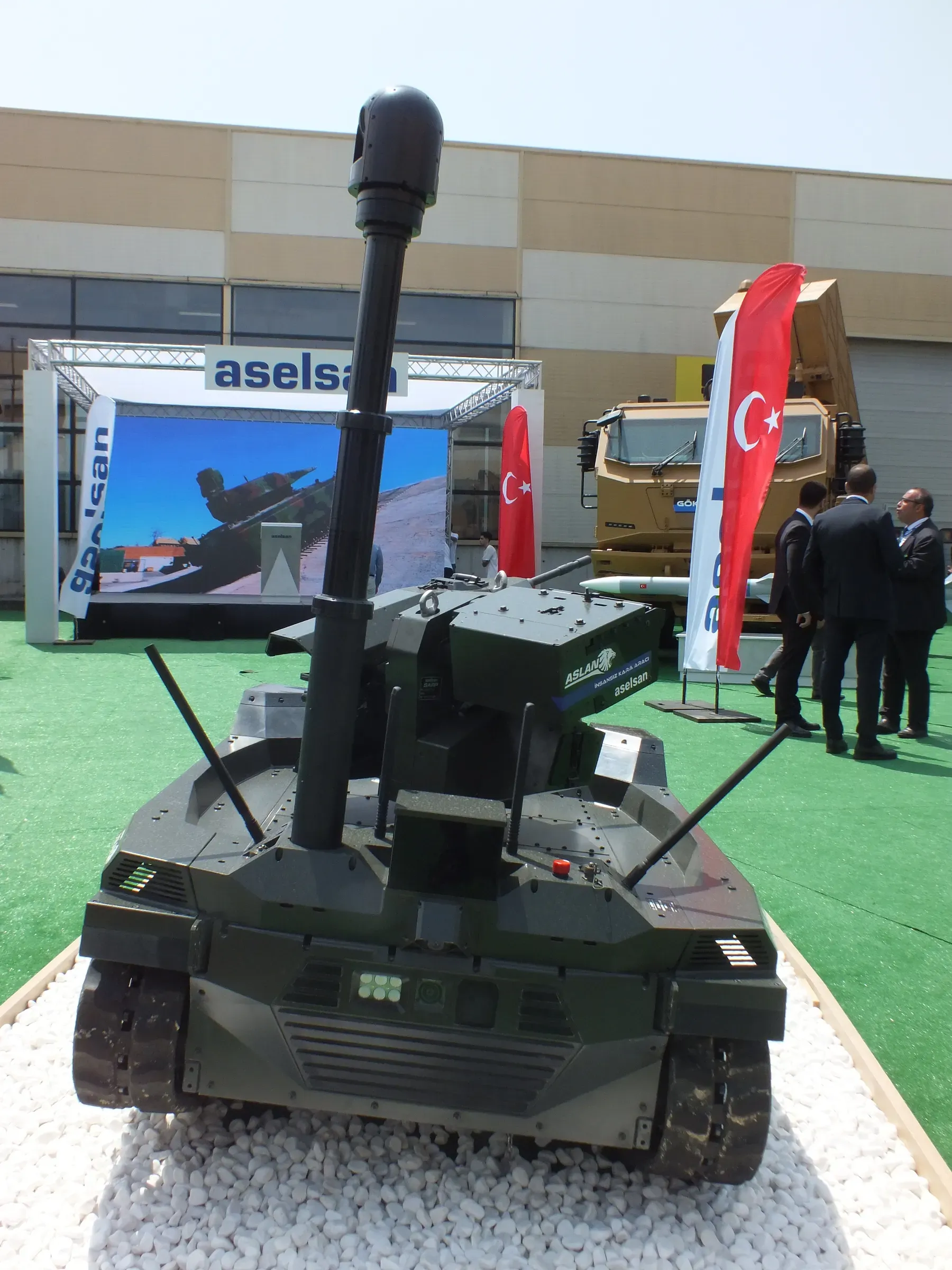

SEG10 up on the mast at the outdoor stand

SEG10 up on the mast at the outdoor stand

26 / 32

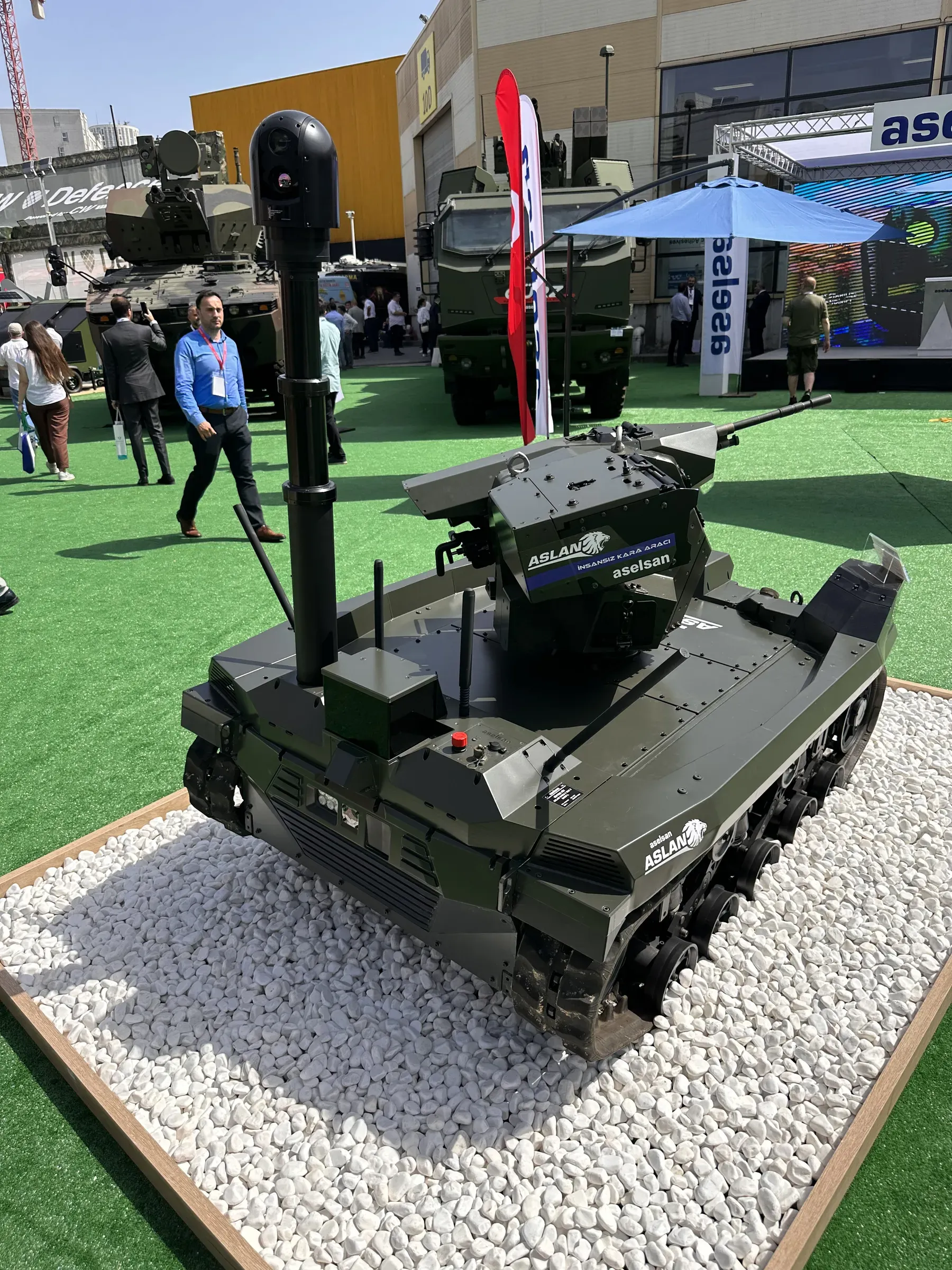

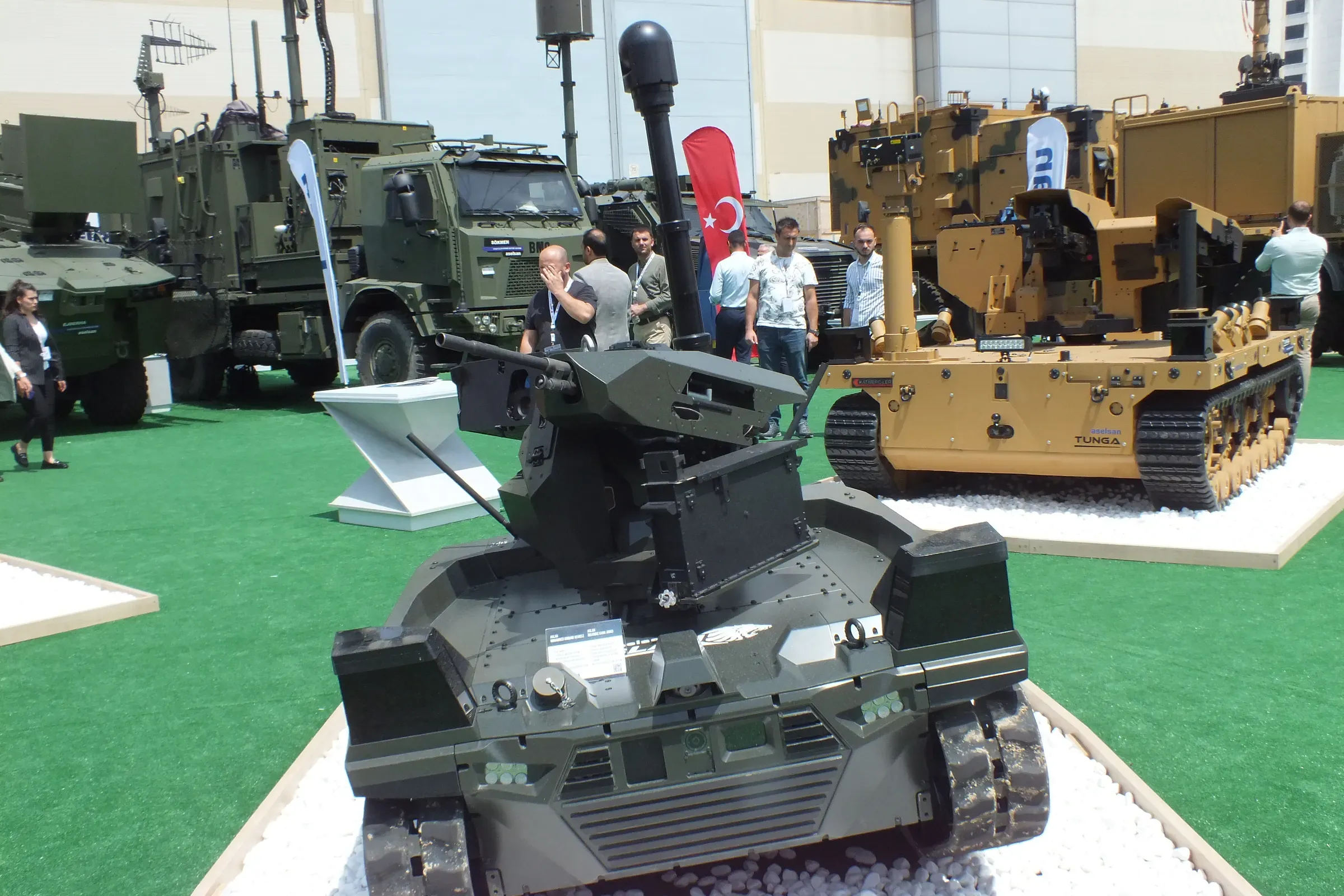

SEG10 centered over a green robot

SEG10 centered over a green robot

27 / 32

SEG10 above the display vehicles

SEG10 above the display vehicles

28 / 32

SEG10 packed down on a BARKAN

SEG10 packed down on a BARKAN

29 / 32

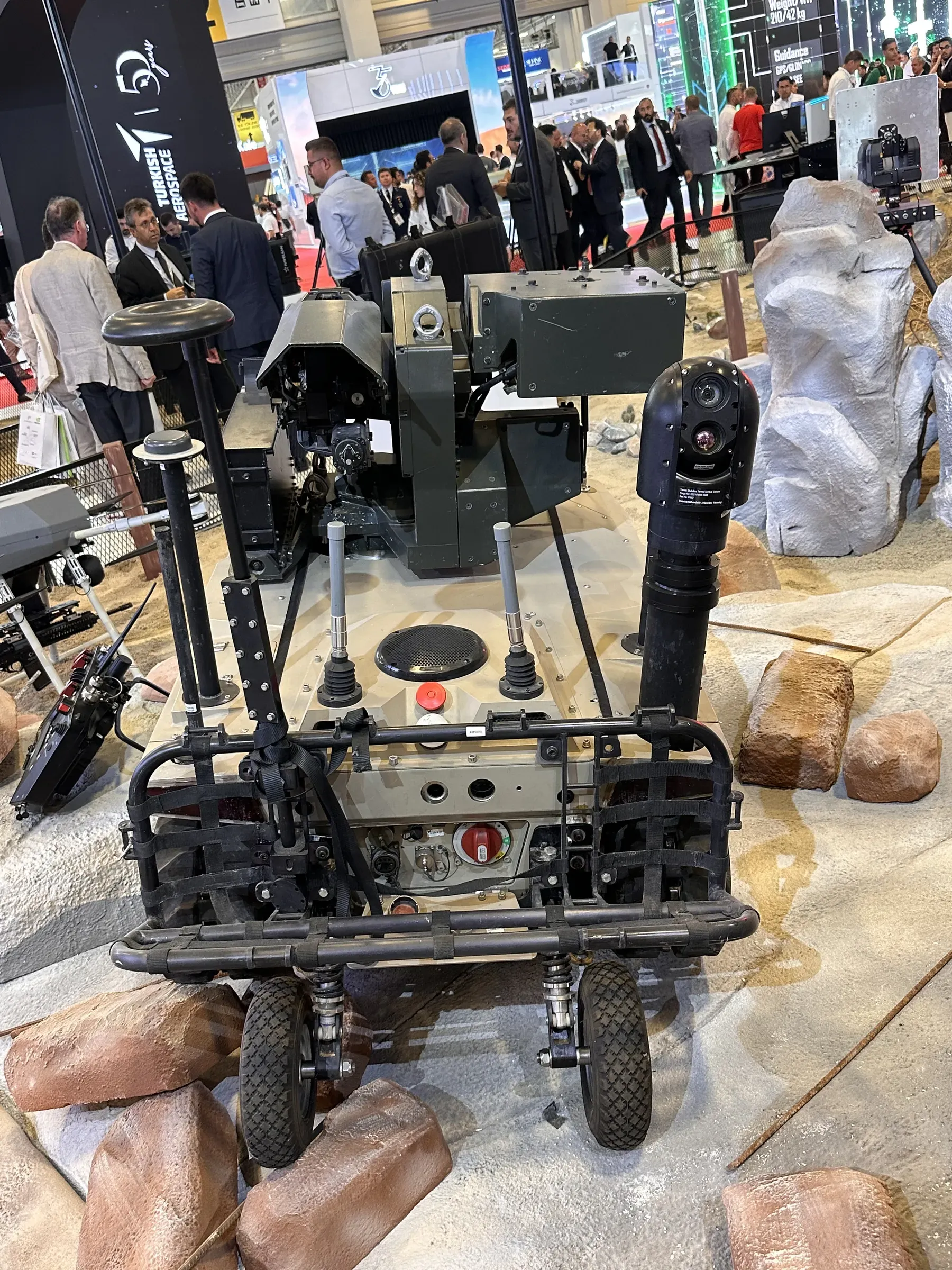

SEG10 above a wheeled robot
