Pan-Tilt & Positioning Systems

PED10

Ultra Precision Electromechanical Pan-Tilt

Ultra precision pan-tilt rated for 30 million revolutions without maintenance, reaching 180 degrees per second at 0.002 degree axis resolution.

  • N × 360°
  • 0,002° resolution
  • 60 pcs lines
0,04°
Accuracy
0,002°
Axis Resolution
16,1 kg
Weight
DatasheetCompare Models

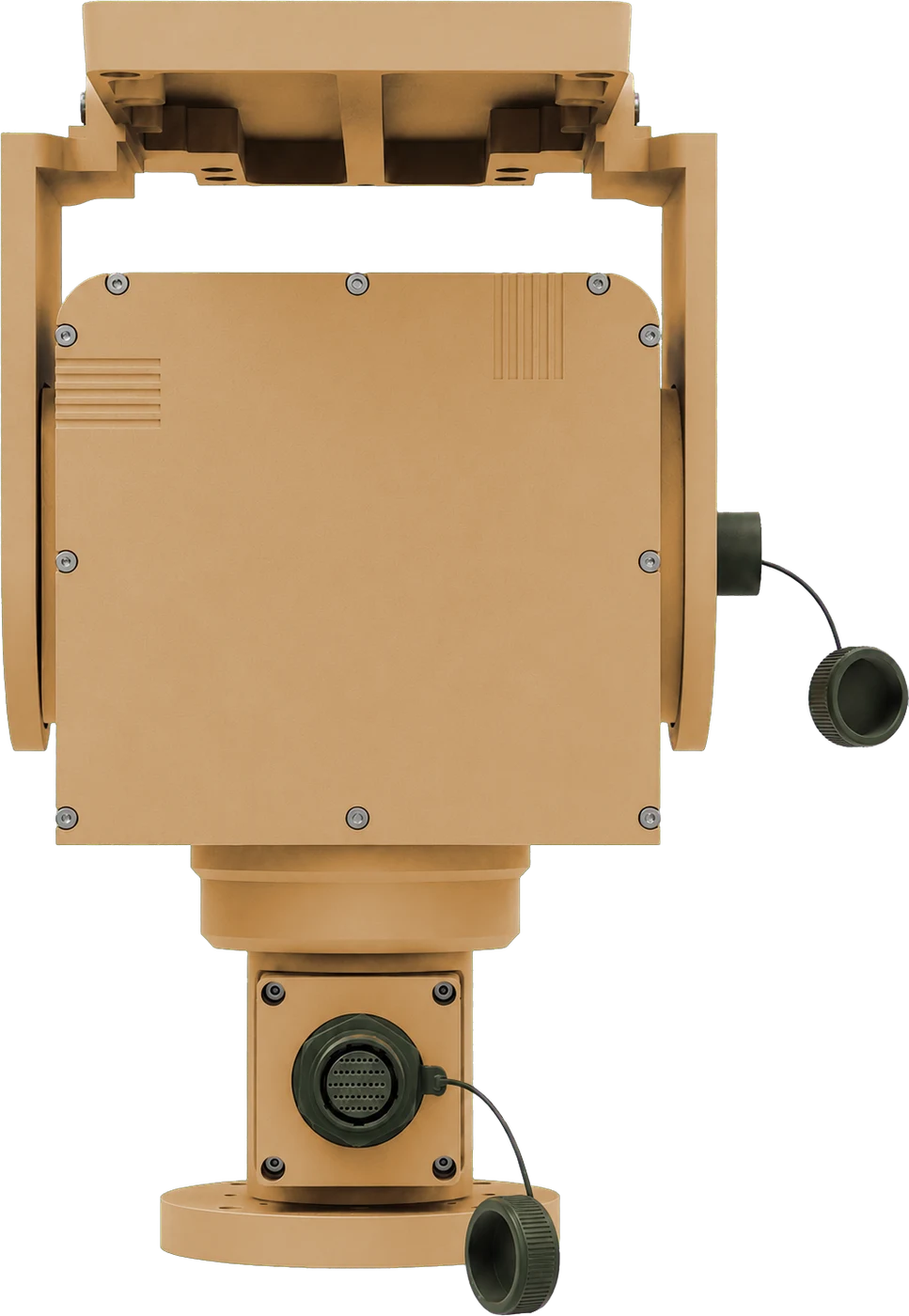

PED10 with its cradle empty

Highlights

The payload box and its connector

01Torque

Up to 275 Nm nominal on the tilt axis

Nominal tilt torque reaches 275 Nm across the published configurations, with 225 Nm peak on the standard build. That range carries a cooled long-range gimbal or a radar antenna rather than a light sensor.

  • Pan torque 60–185 Nm nominal by configuration
  • Axis speed 28 to 180°/s by configuration

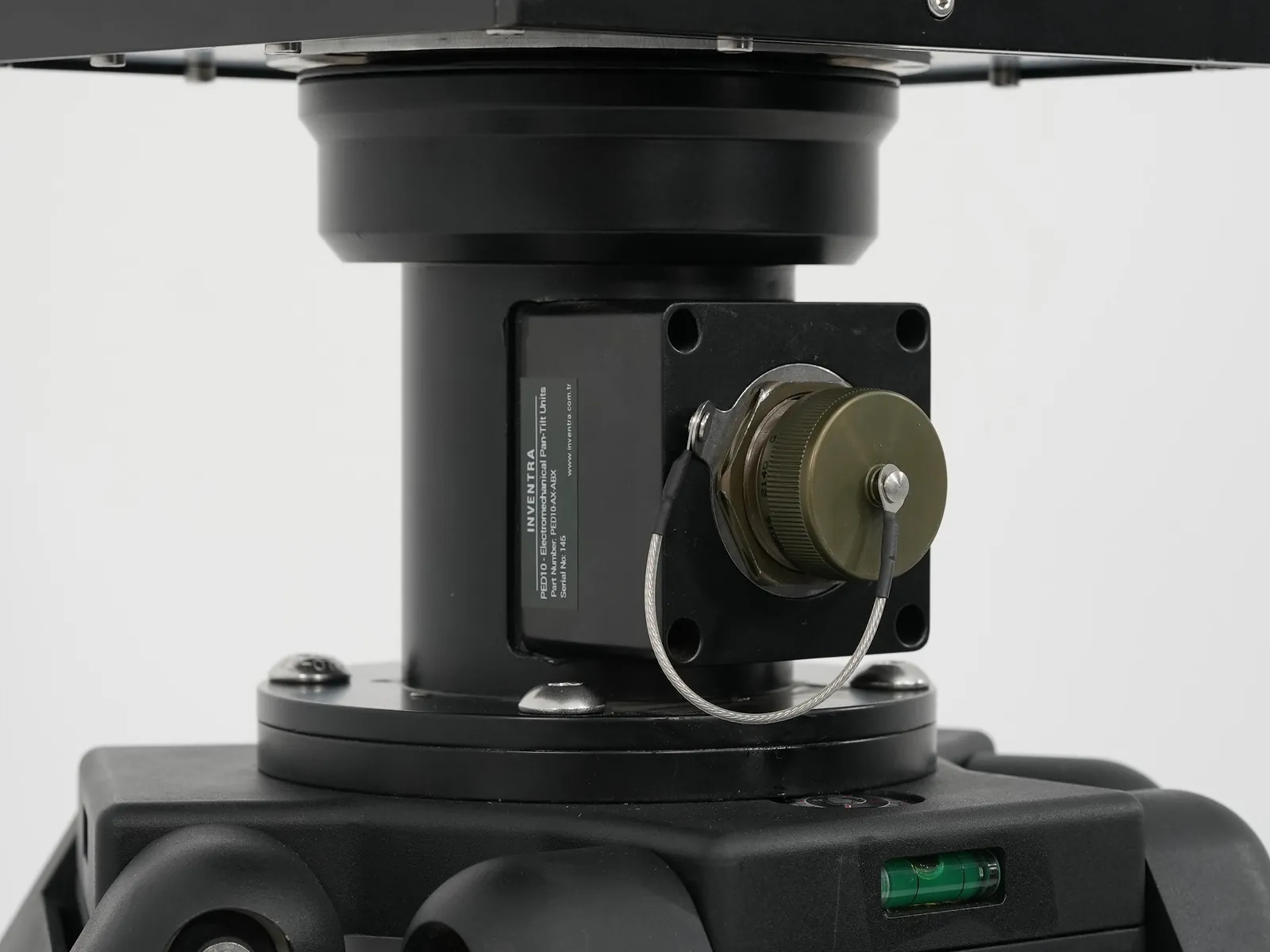

The screw cap on the base connector

02Dual-loop control

0.001° with the secondary encoder

The standard loop resolves 0.002° and points to 0.032°. Adding the secondary encoder closes a second loop on the output side and takes control accuracy to 0.001°.

  • Zero backlash brushless servo drive
  • Tilt configurable up to ±90°

Configurations

Part NumberPan speed°/sPan torqueNmTilt speed°/sTilt torqueNm
PED10-0480-0150-0280-0185Standard4815028185
PED10-0280-0185-0280-01852818528185
PED10-0280-0185-0480-01502818548150
PED10-0280-0185-0960-0080281859680
PED10-0280-0185-1800-00602818518060
PED10-0280-0185-0280-02752818528275
PED10-0280-0185-0480-01752818548175
PED10-0480-0150-0480-01504815048150
PED10-0480-0150-0960-0080481509680
PED10-0480-0150-1800-00604815018060
PED10-0480-0150-0280-02754815028275
PED10-0480-0150-0480-01754815048175
PED10-0960-0080-0280-0185968028185
PED10-0960-0080-0480-0150968048150
PED10-0960-0080-0960-008096809680
PED10-0960-0080-1800-0060968018060
PED10-0960-0080-0280-0275968028275
PED10-0960-0080-0480-0175968048175
PED10-1800-0060-0280-01851806028185
PED10-1800-0060-0480-01501806048150
PED10-1800-0060-0960-0080180609680
PED10-1800-0060-1800-00601806018060
PED10-1800-0060-0280-02751806028275
PED10-1800-0060-0480-01751806048175
Request the full configuration table

Options

Each code is four characters and is appended to the part number, the label language code last.

  • STABStabilization
  • HNDCHand Controller
  • MPIFMultiple Payload Interface
  • DLPCDual-Loop ControlAvailable – 0,001° with secondary encoder
  • SRSHSun and Rain Shieldordered separately
  • LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish

Specifications

Performance Parameters
Tilt – Nominal Speed28 °/s
Tilt – Nominal Torque185 Nm
Pan – Nominal Speed48 °/s
Pan – Nominal Torque150 Nm
Pan – Axis RangeN × 360°
Tilt – Axis Range±45°
Axis Resolution0,002°
Pan – Peak Torque215 Nm
Tilt – Peak Torque225 Nm
Accuracy0,04°
Weight16,1 kg
Slip Ring
Line Count60 pcs
Rated Life30.000.000 revolutions
Signal 11 Gbit Ethernet
Signal 2 – Line Count52 pcs
Signal 2 – Current Rating2 A
Electrical & Interface
Operating Voltage18-32 VDC
Communication InterfaceRS-422
Communication Interface (Optional)Ethernet
Connector TypeMIL-DTL-38999
Mechanical Data
Width250 mm
Height350-395 mm
Depth202 mm
Material – Main BodyAluminium 6061-T6
Surface FinishElectrostatic Powder Coating
Standard ColourRAL 9005 Matte Black
Accessories
Installation Manual1 × Installation Manual
Environmental Qualifications
Environmental StandardMIL-STD-810G
High Temperature – OperationalMtd. 501.5, Proc. II, +60 °C
High Temperature – StorageMtd. 501.5, Proc. I, +70 °C
Low Temperature – OperationalMtd. 502.5, Proc. II, -32 °C
Low Temperature – StorageMtd. 502.5, Proc. I, -40 °C
Low Pressure – OperationalMtd. 500.5, Proc. II, 10.500 ft
Low Pressure – StorageMtd. 500.5, Proc. I, 37.000 ft
HumidityMtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h
RainMtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face
Salt FogMtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying
Blowing DustMtd. 510.5, Proc. I
Blowing SandMtd. 510.5, Proc. II
VibrationMtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3
ShockMtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes
EMI / EMC
EMI/EMC StandardMIL-STD-461G
CE102Power Leads, 10 kHz – 10 MHz
CS101Power Leads, 30 Hz – 150 kHz
CS114Bulk Cable Injection, 10 kHz – 200 MHz
CS115Bulk Cable Injection, Impulse Excitation
CS116Damped Sinusoidal Transients, 10 kHz – 100 MHz
CS118Personnel Borne Electrostatic Discharge
RE102Electric Field, 10 kHz – 18 GHz
RS103Electric Field, 2 MHz – 18 GHz

Documents

  • Datasheet Downloadable — PDF, 390 KB
  • User Manual On Request
  • 3D Model (STEP) On Request
  • Mechanical Interface Control Document On Request
  • MIL-STD-810G Environmental Qualification Report On Request
  • Electrical Interface Control Document On Request
  • Software Interface Control Document On Request
  • MIL-STD-461G EMI/EMC Test Report On Request
Request Quote

Application Areas

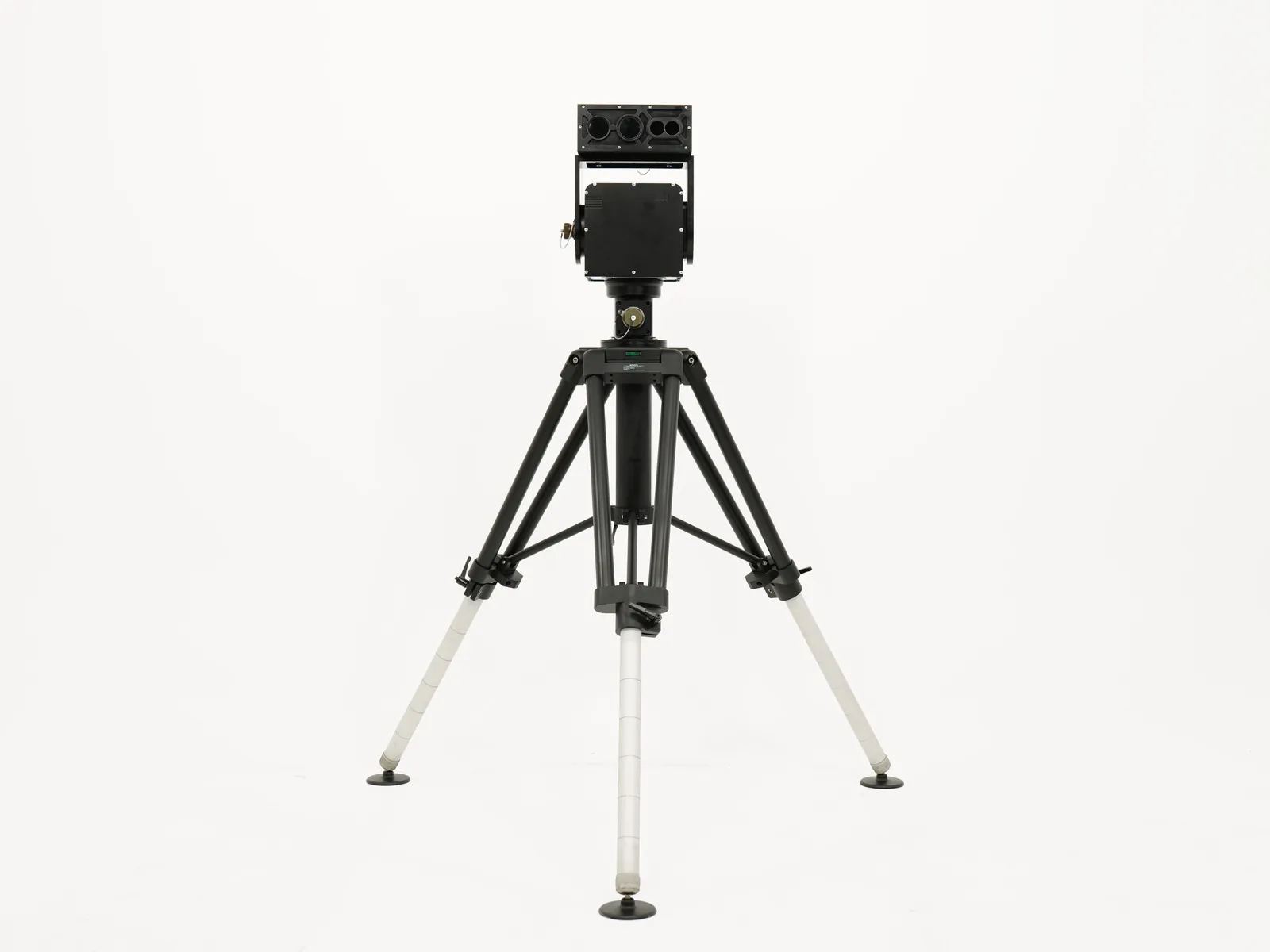

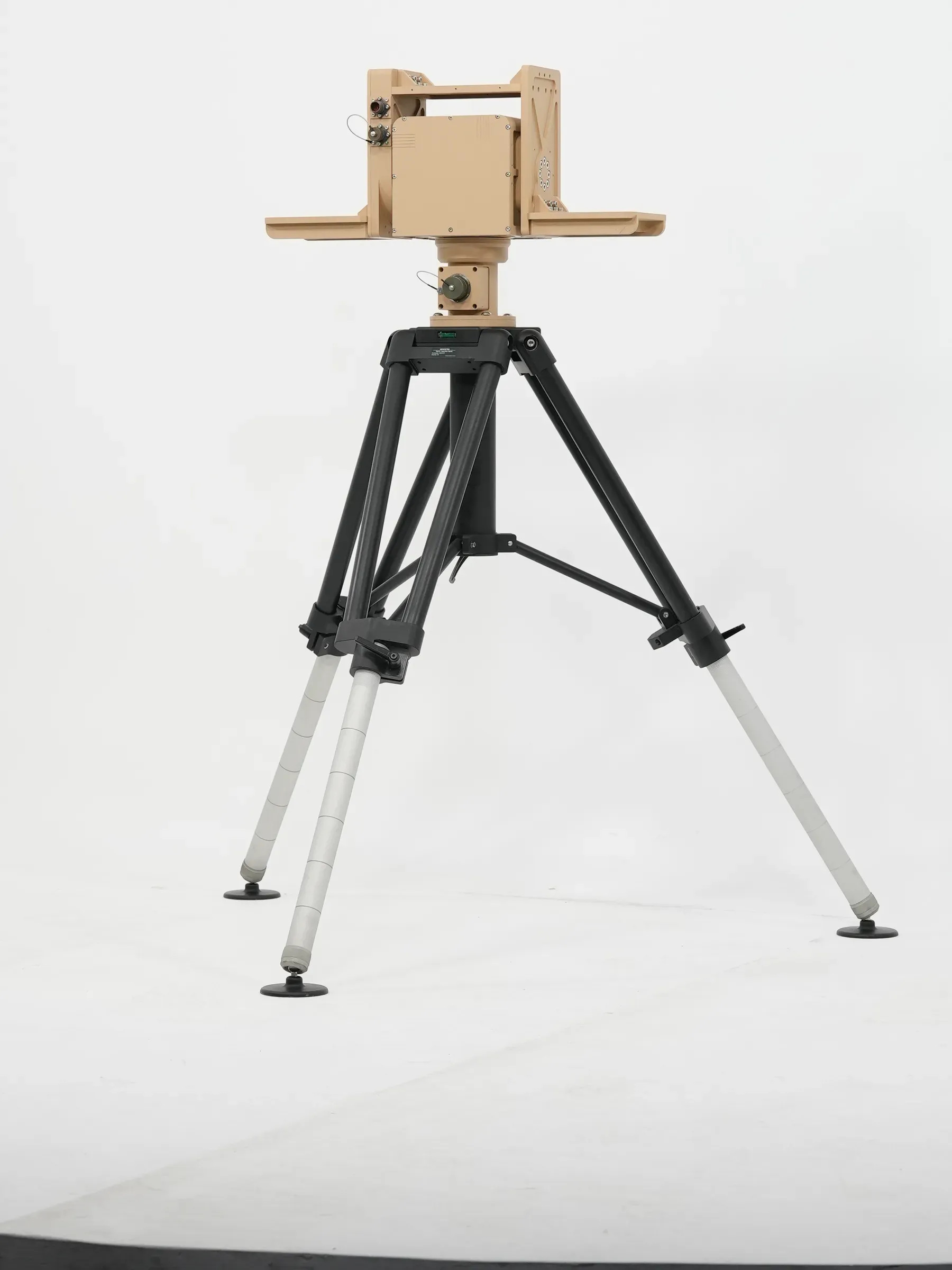

PED10 on its tripod, no payload

PED10 on its tripod, no payload

1 / 39

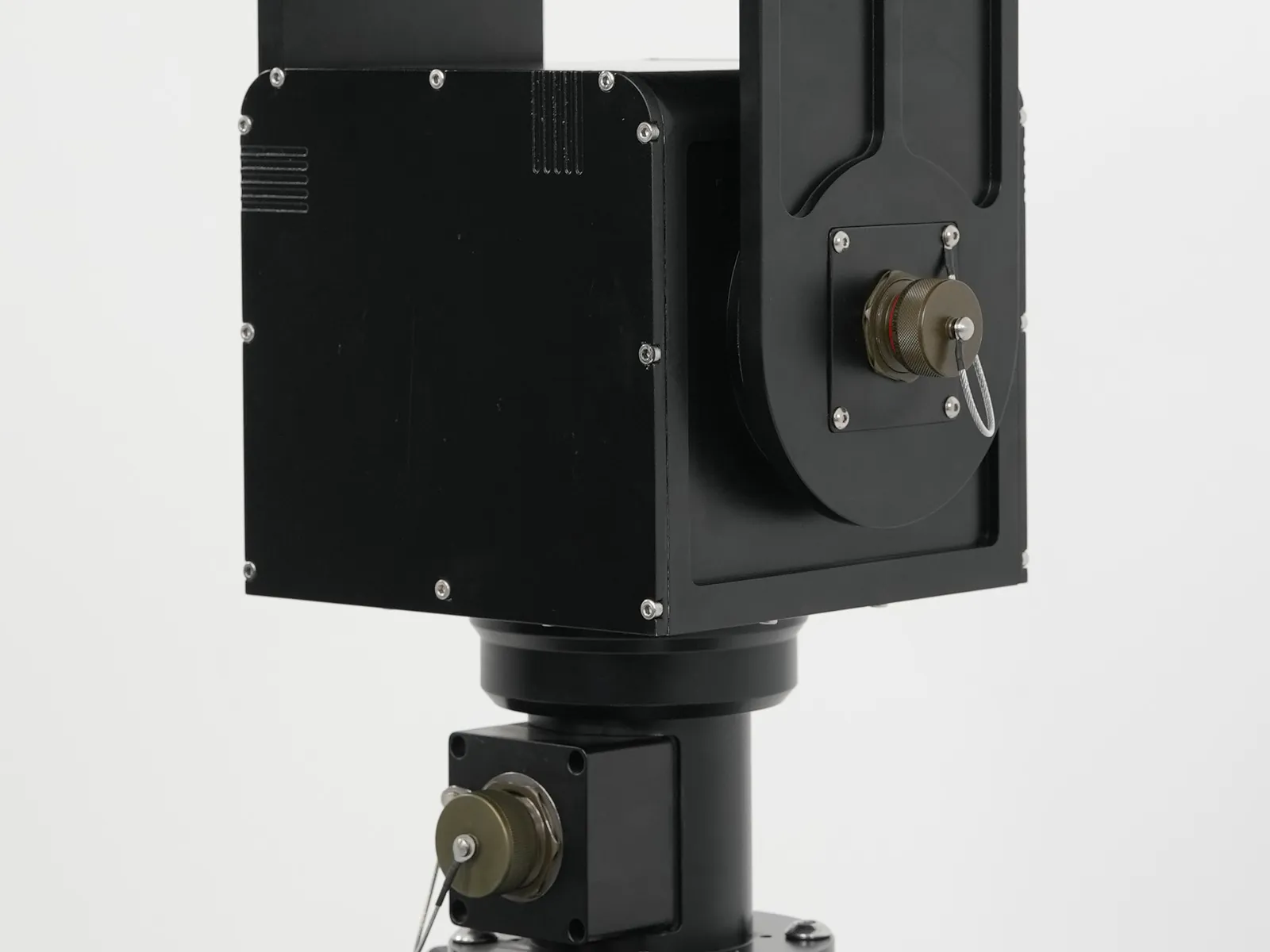

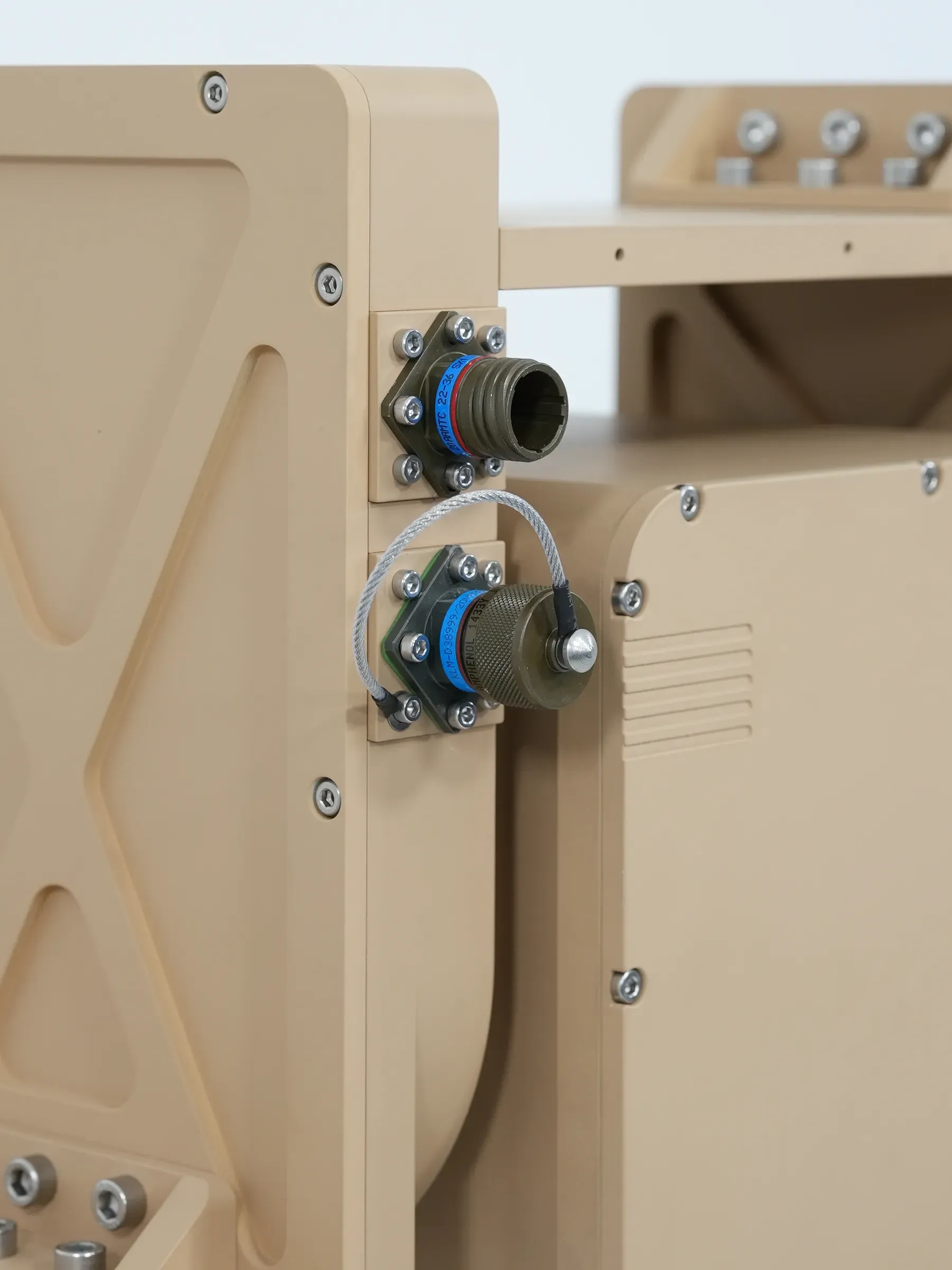

The connectors on the side panel

The connectors on the side panel

2 / 39

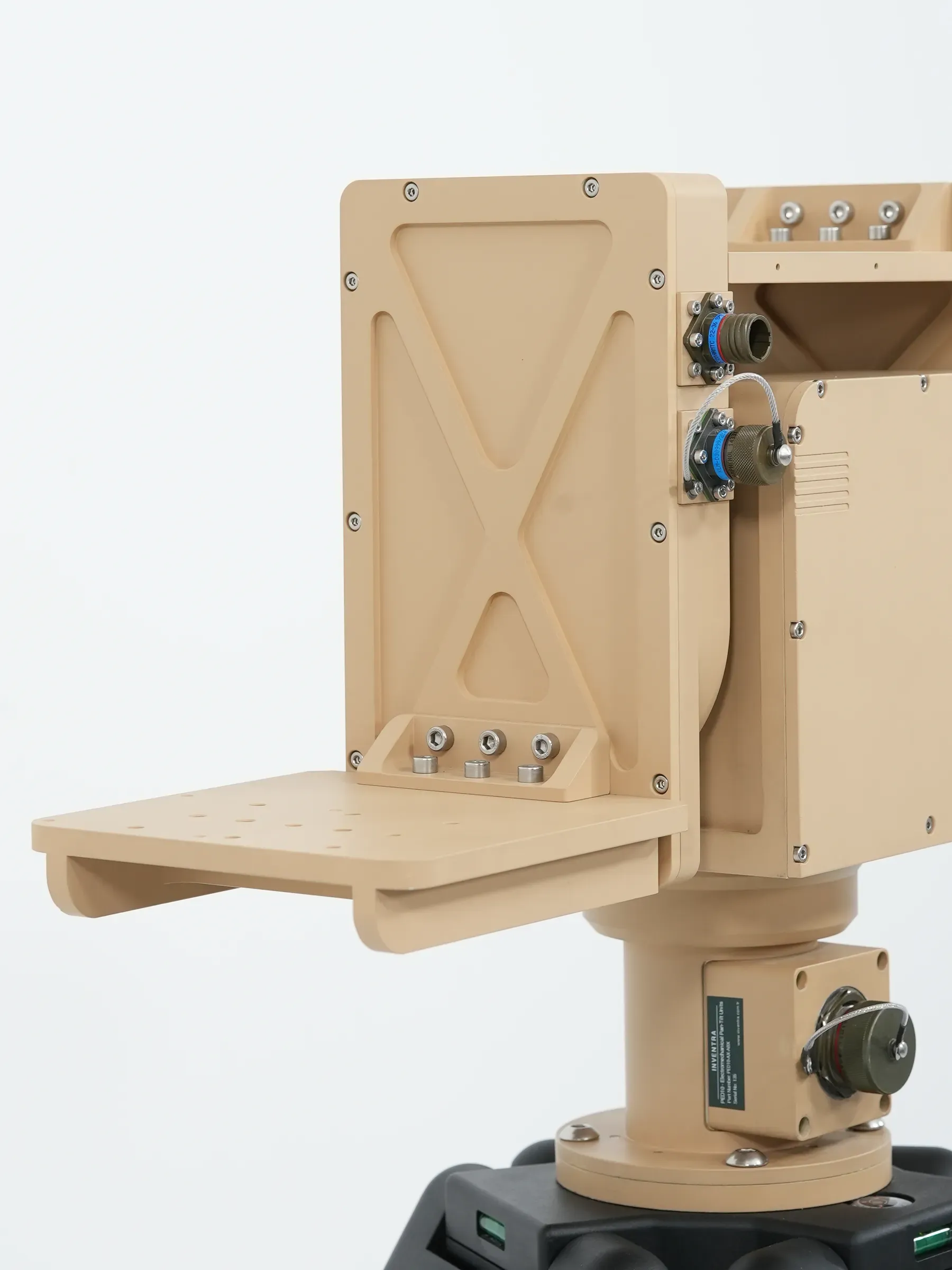

The mounting shelf swung out from the fork

The mounting shelf swung out from the fork

3 / 39

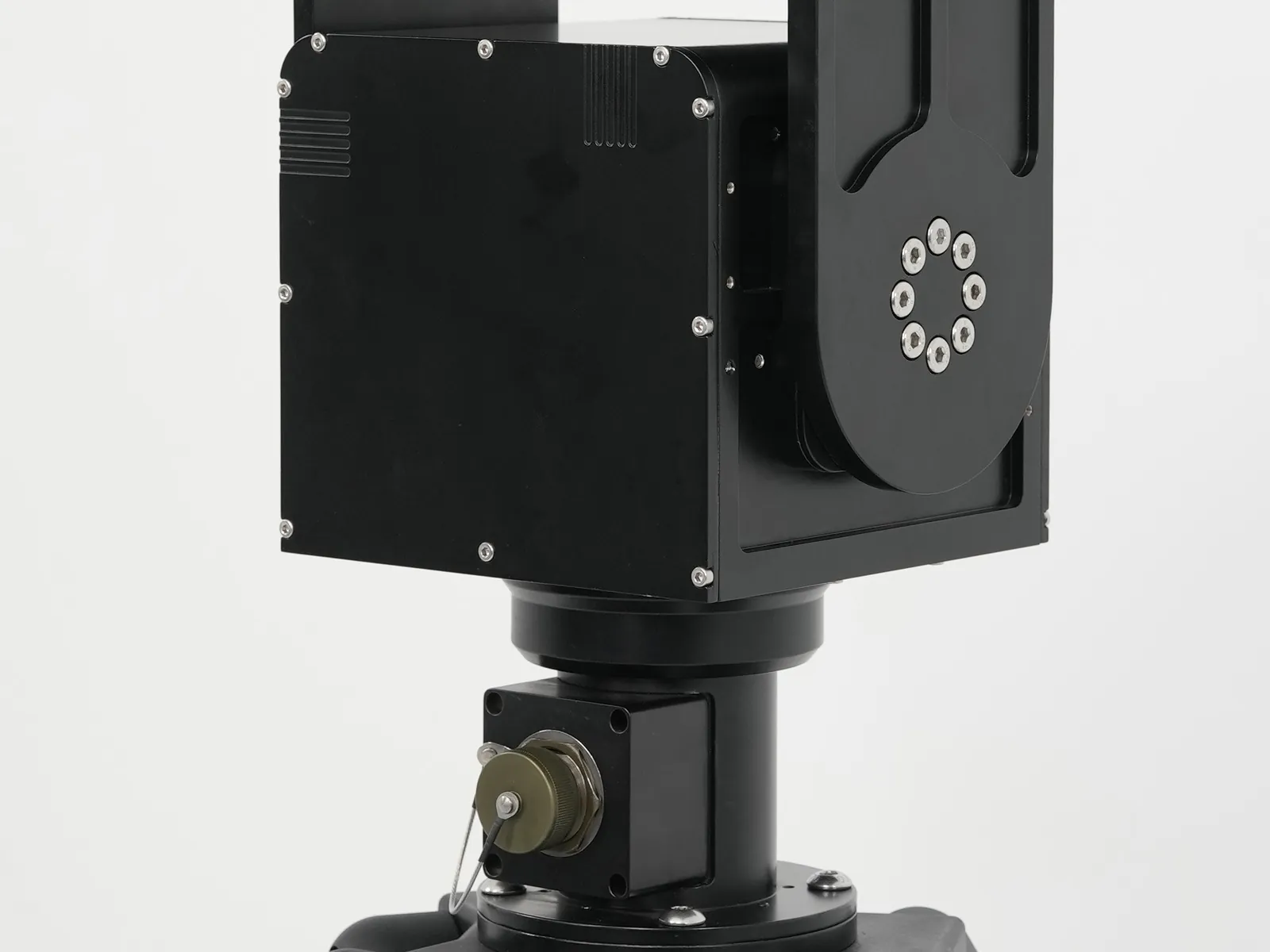

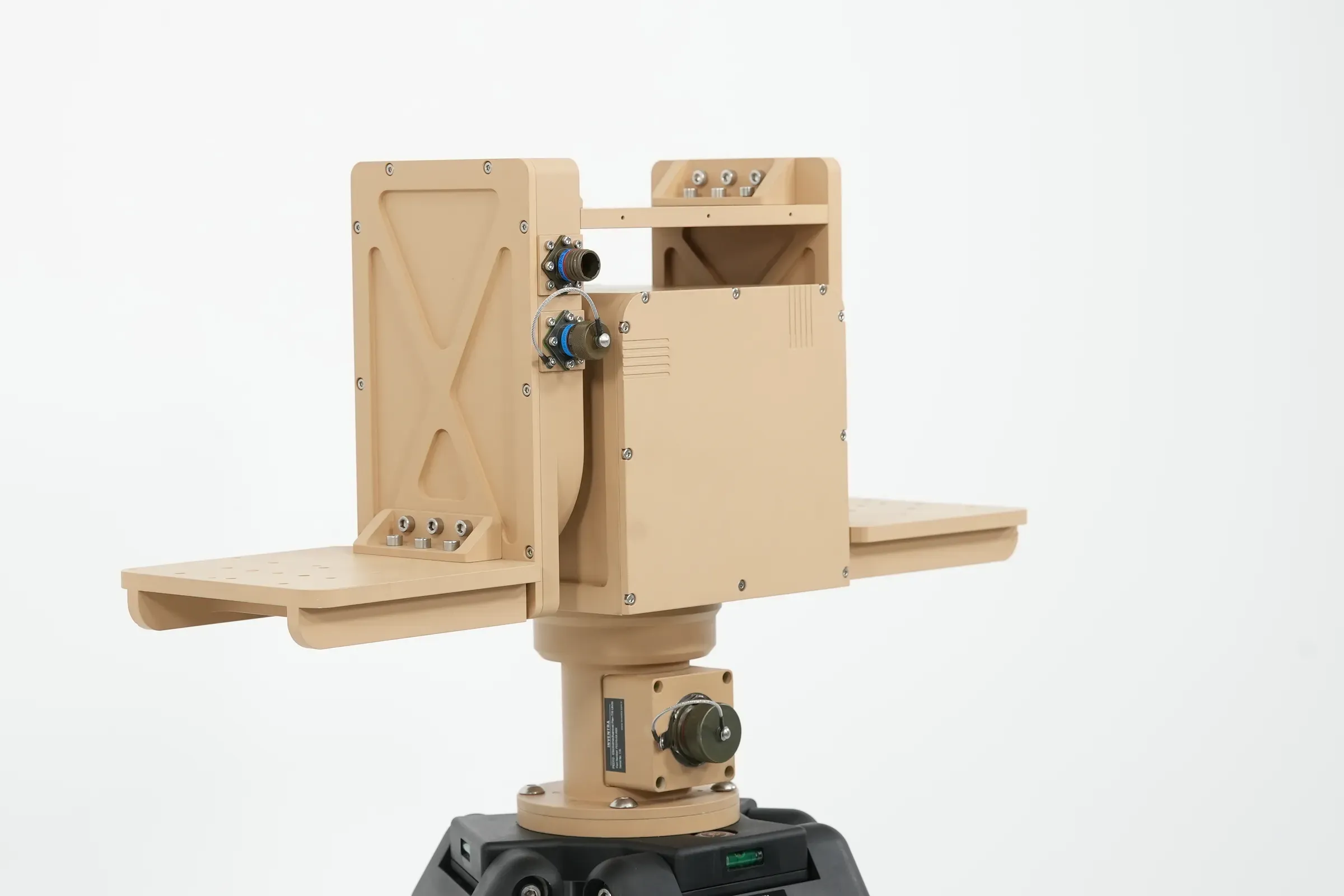

PED10 with its shelf and connector plate

PED10 with its shelf and connector plate

4 / 39

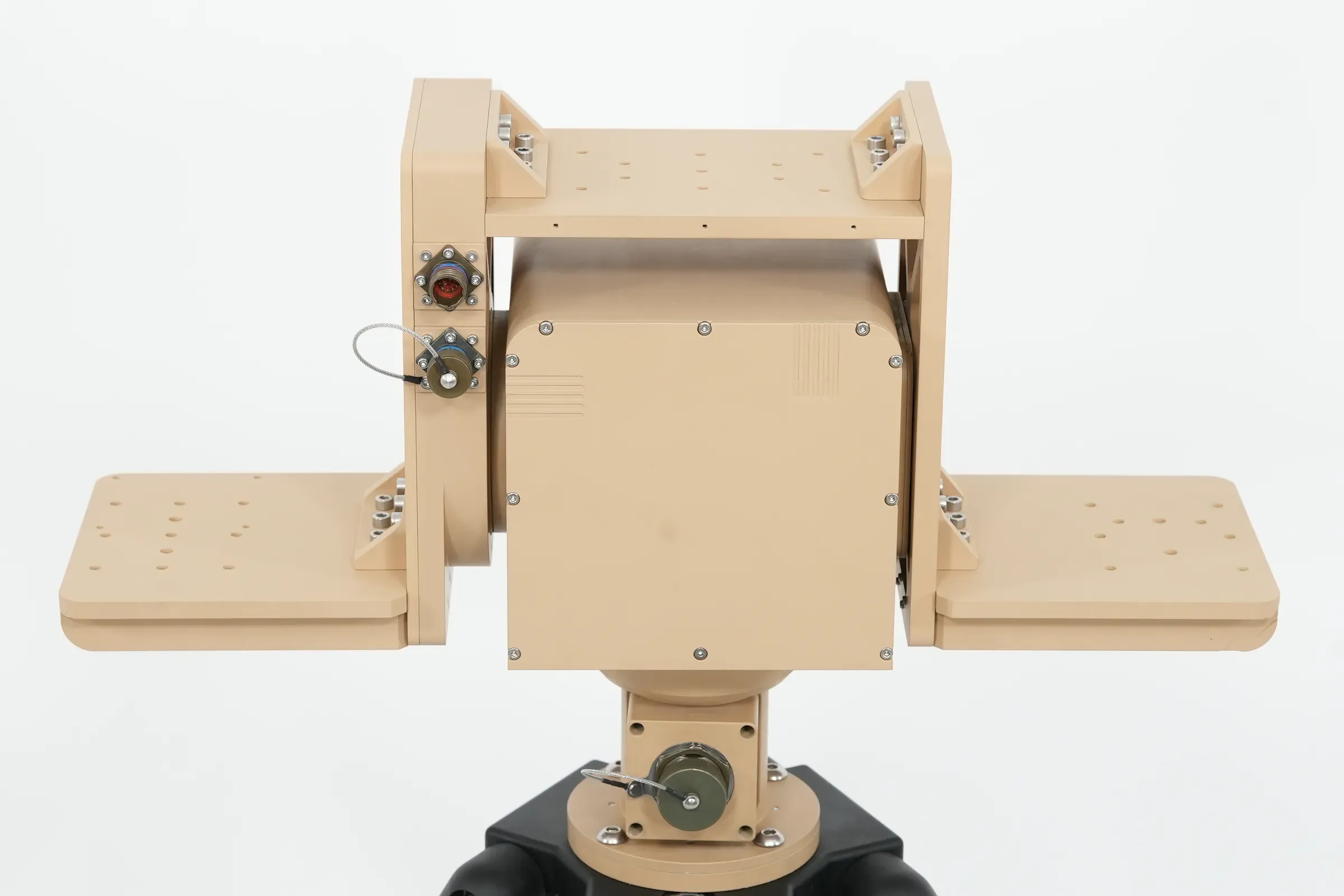

Both mounting shelves out

Both mounting shelves out

5 / 39

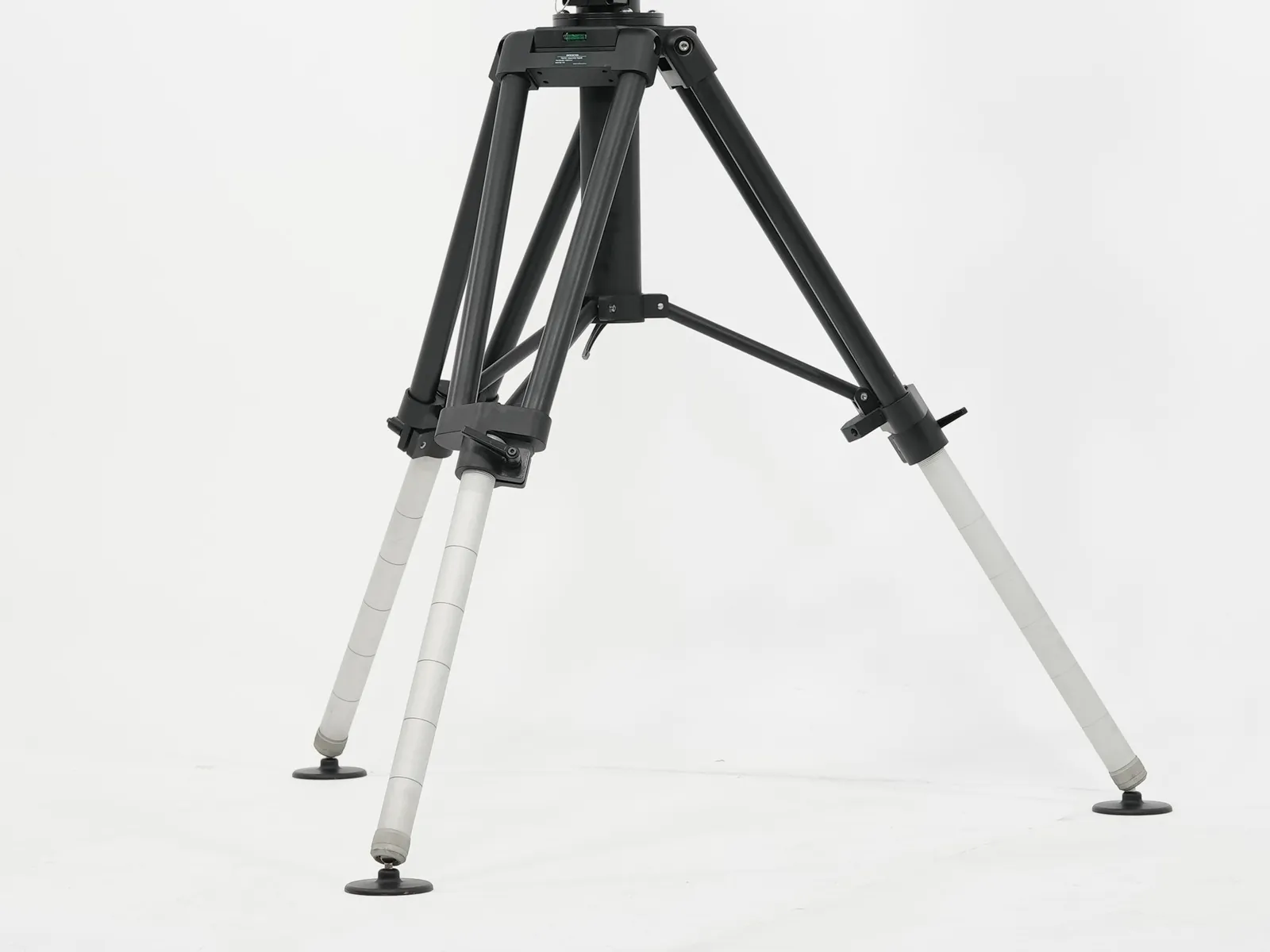

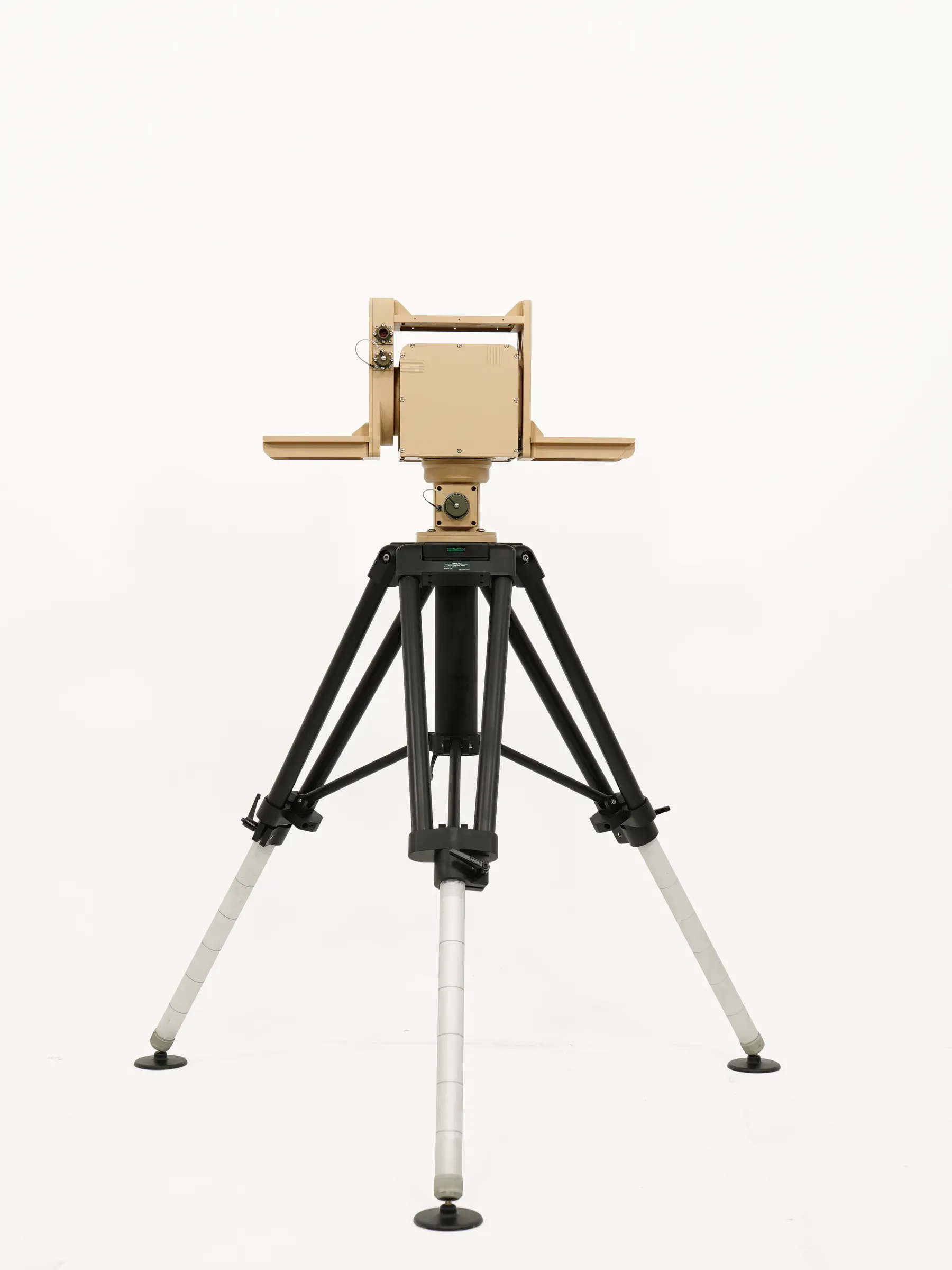

PED10 squared up on its tripod

PED10 squared up on its tripod

6 / 39

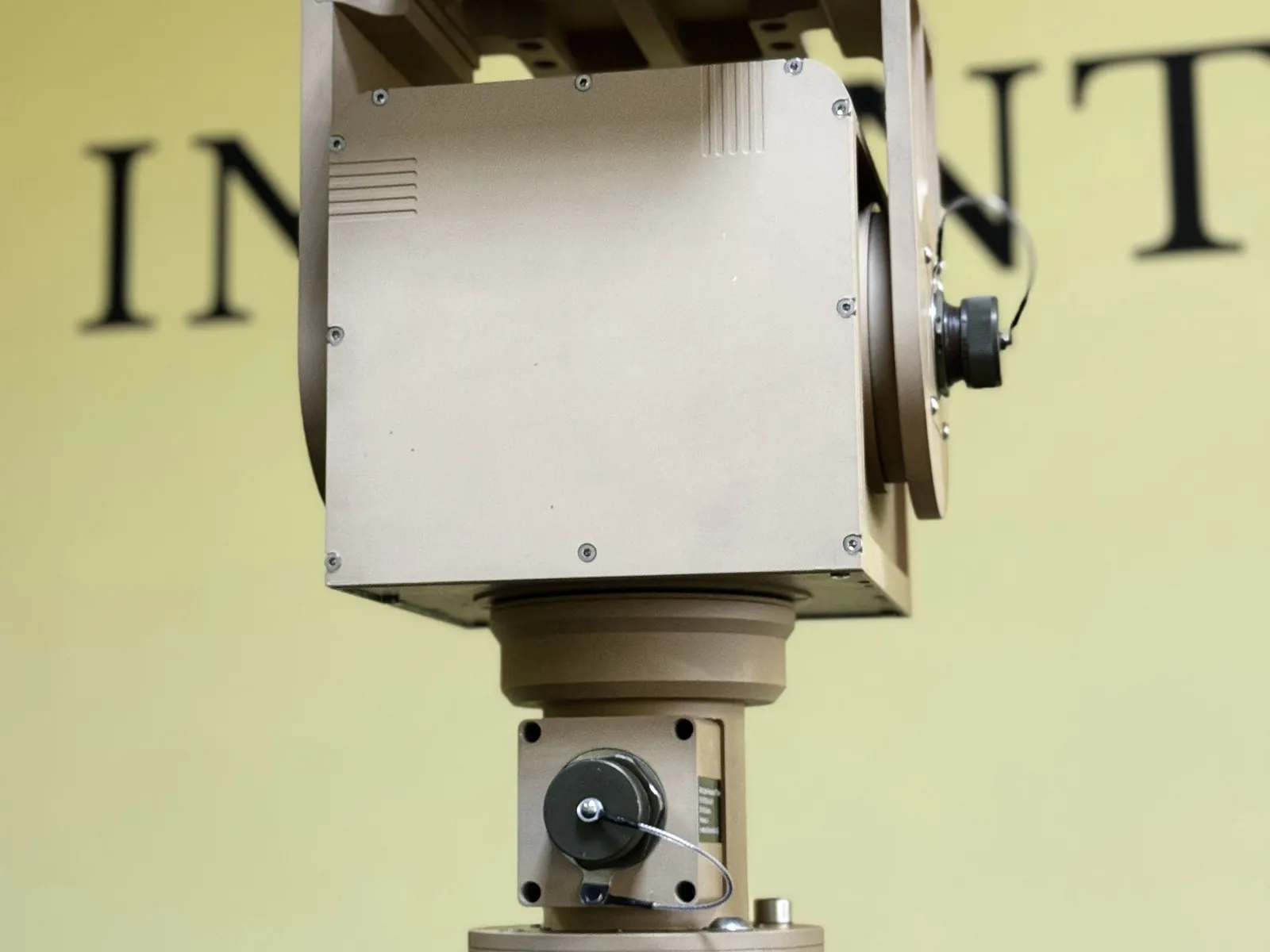

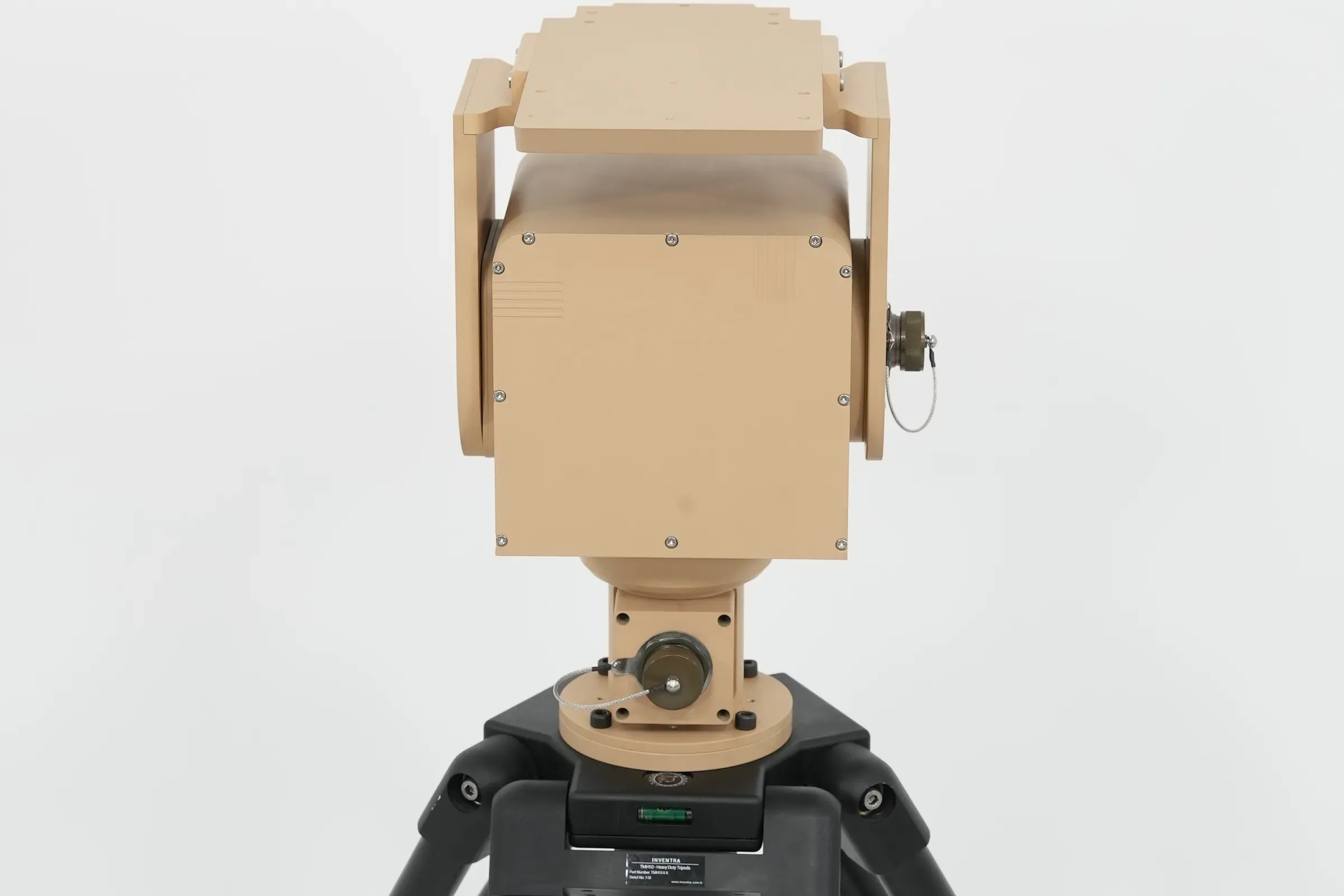

The back of the unit and its shade plate

The back of the unit and its shade plate

7 / 39

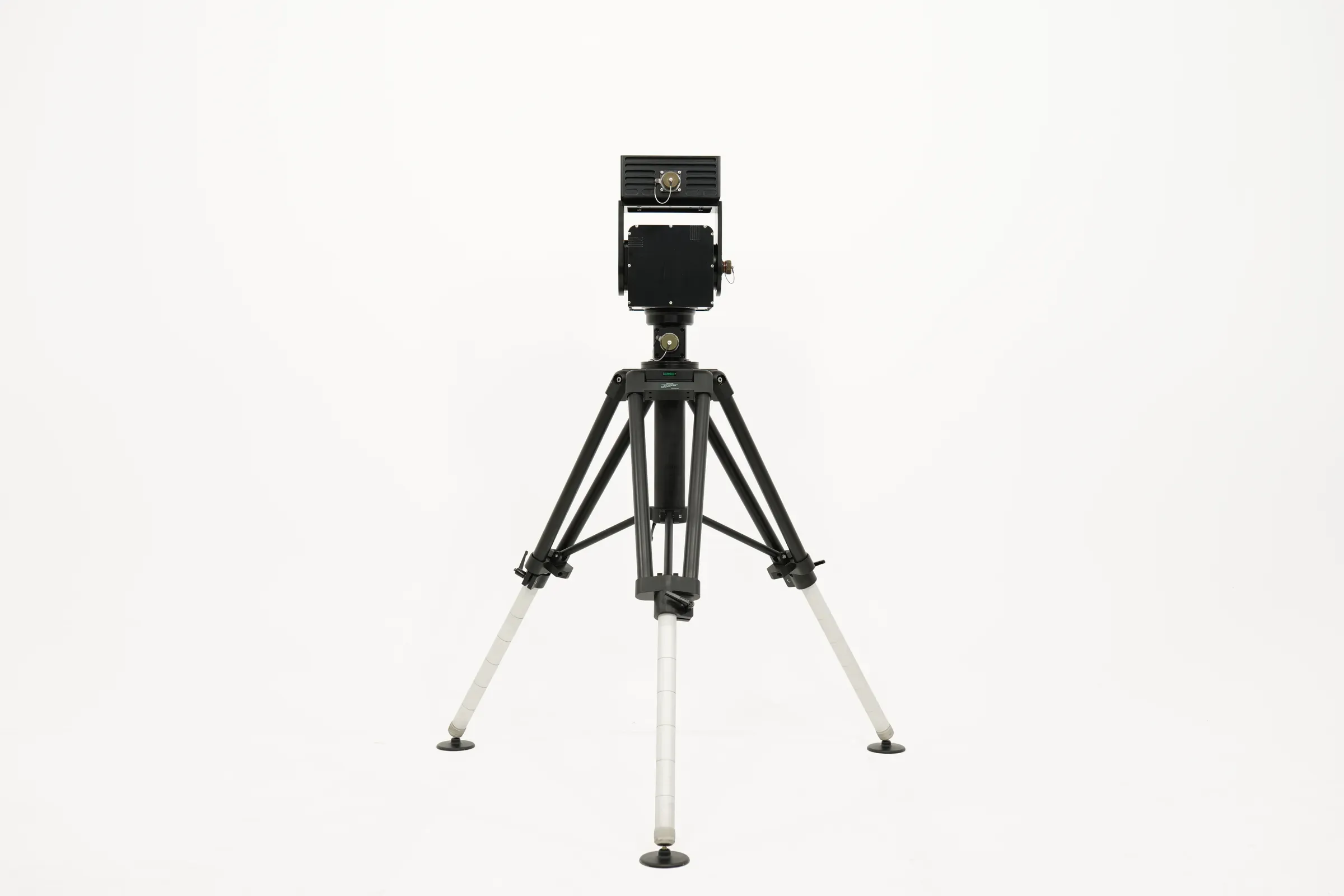

PED10 on its tripod

PED10 on its tripod

8 / 39

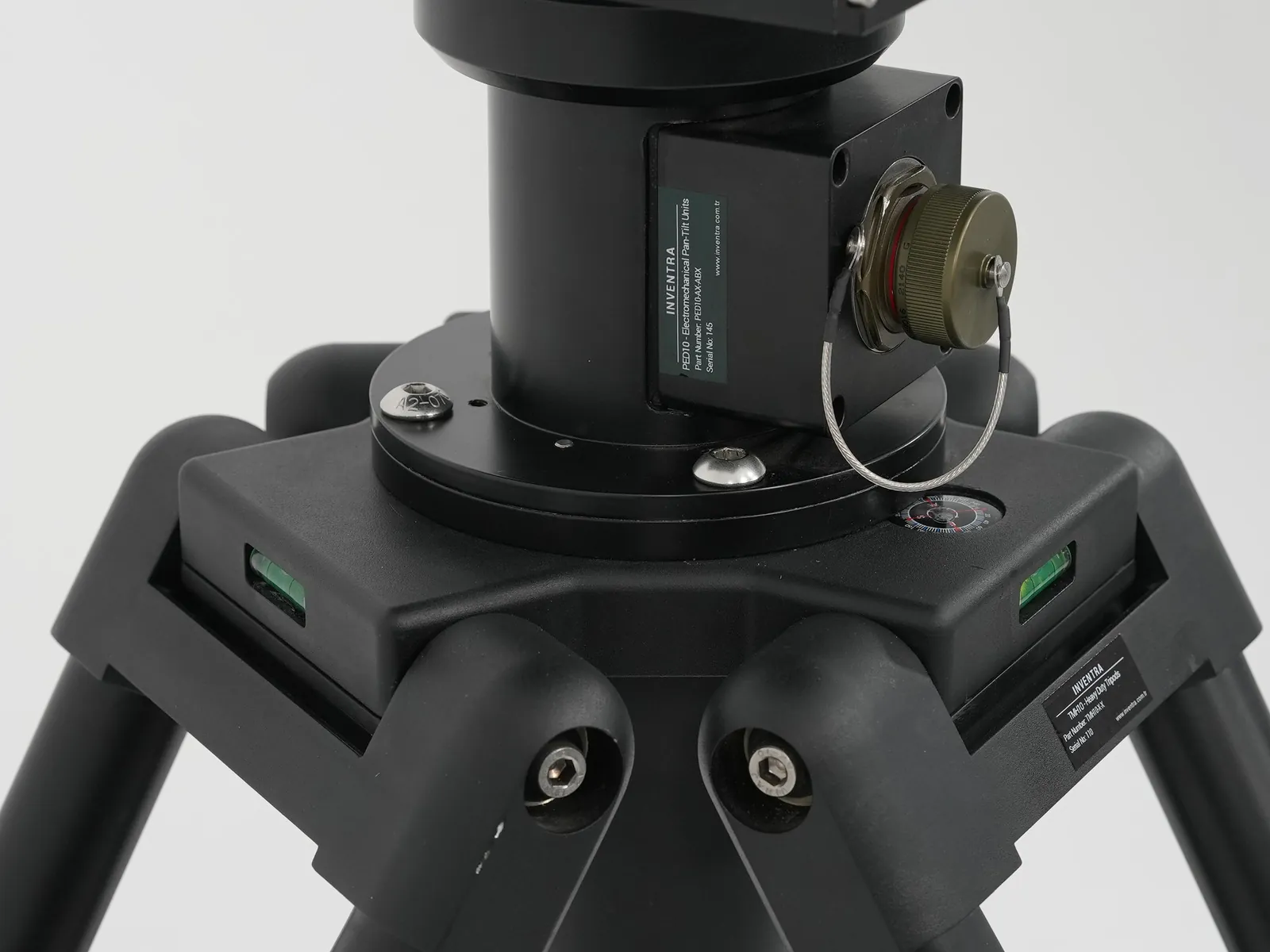

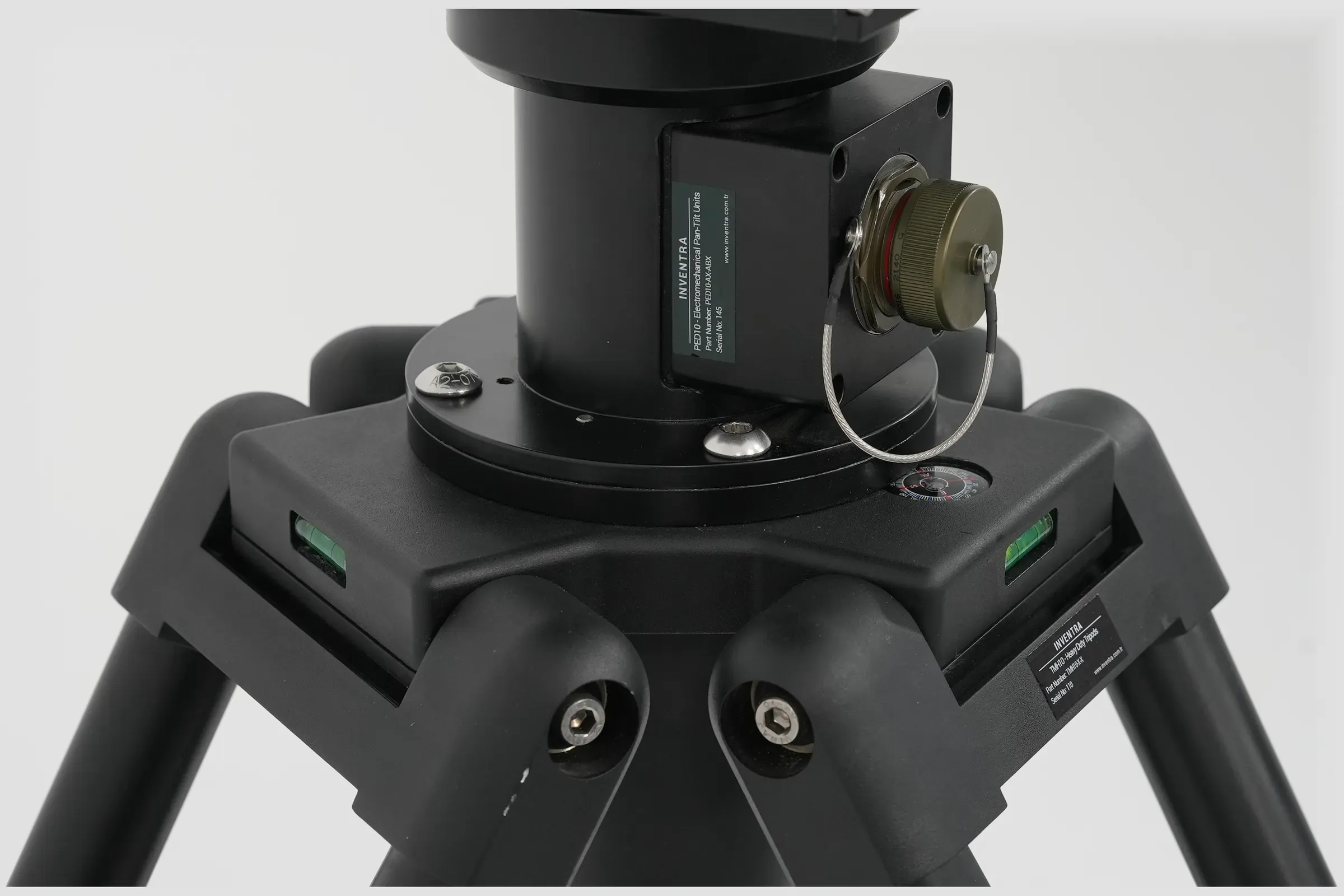

The tripod head under the pan drive

The tripod head under the pan drive

9 / 39

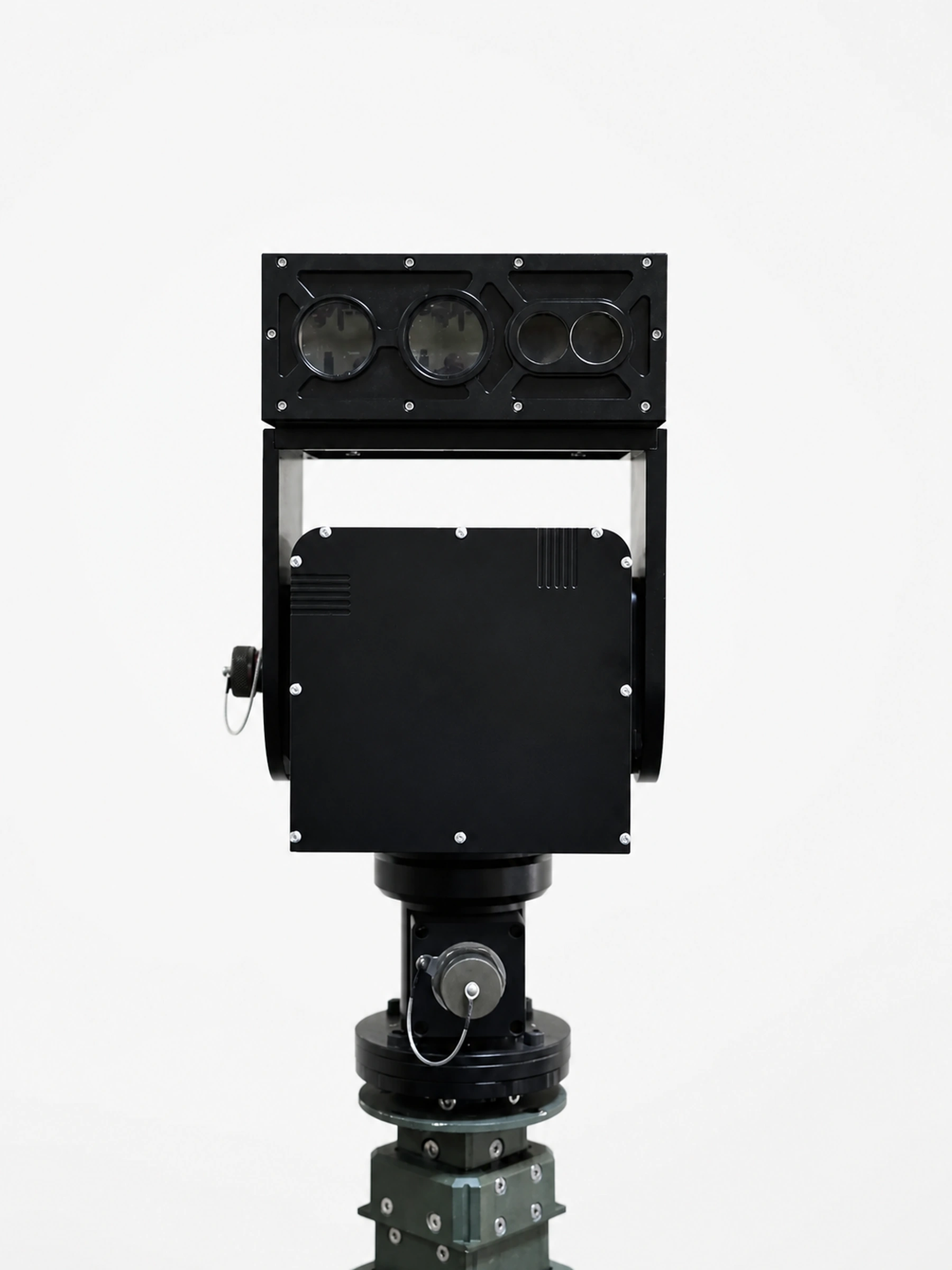

PED10 with a sensor block on a mast

PED10 with a sensor block on a mast

10 / 39

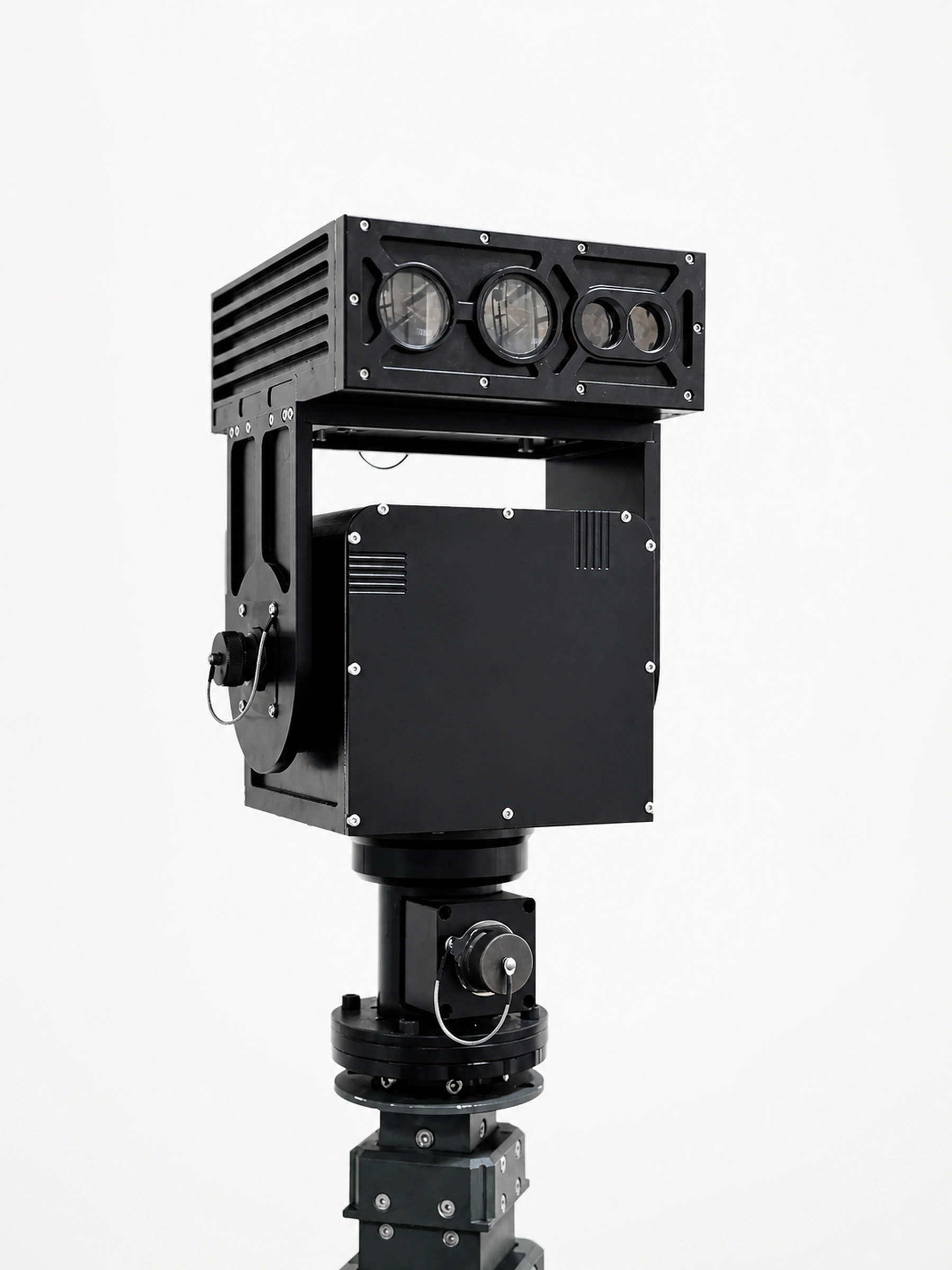

The same head turned aside

The same head turned aside

11 / 39

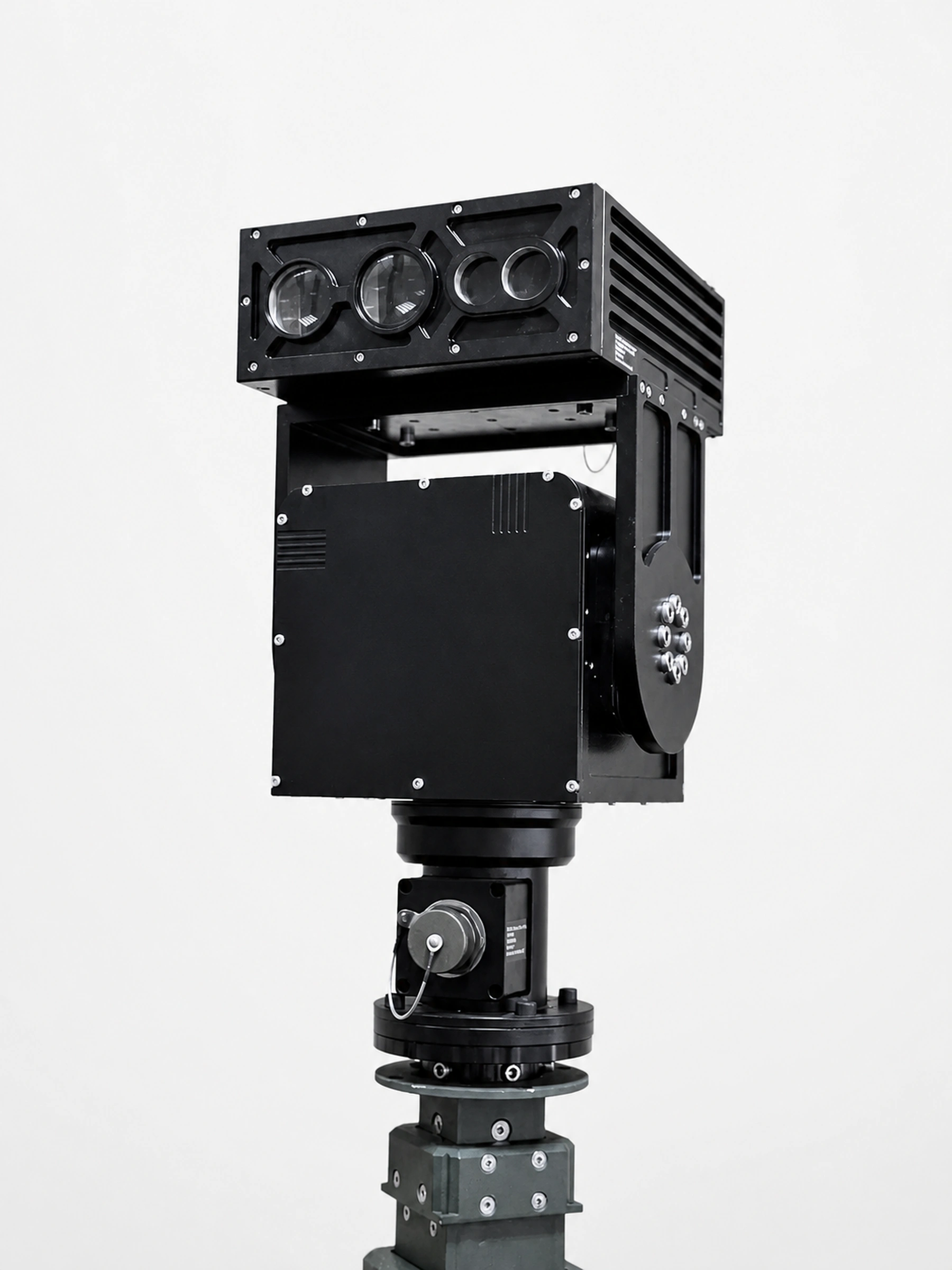

The sensor block tilted down on the PED10

The sensor block tilted down on the PED10

12 / 39

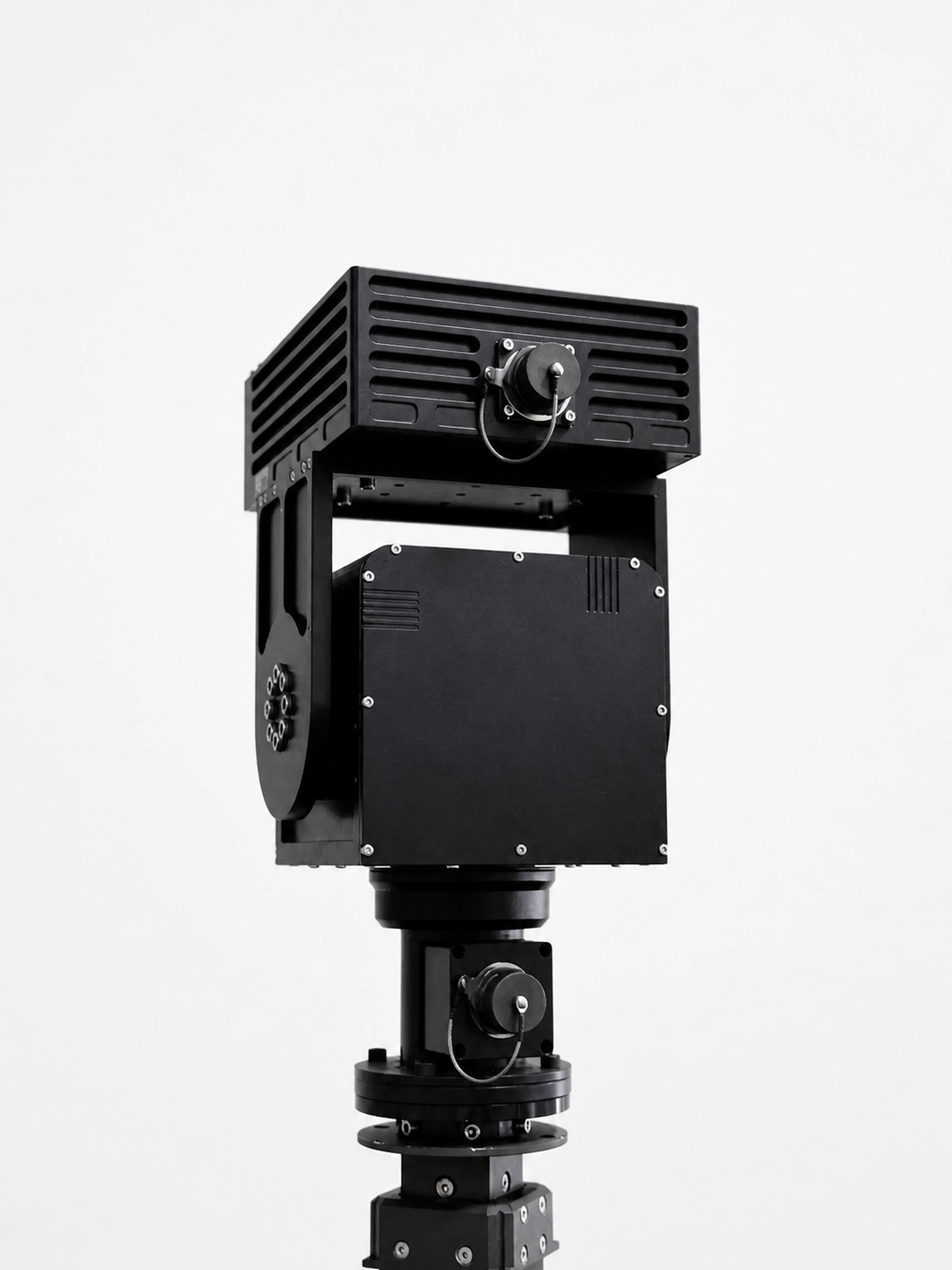

PED10 and its payload facing forward

PED10 and its payload facing forward

13 / 39

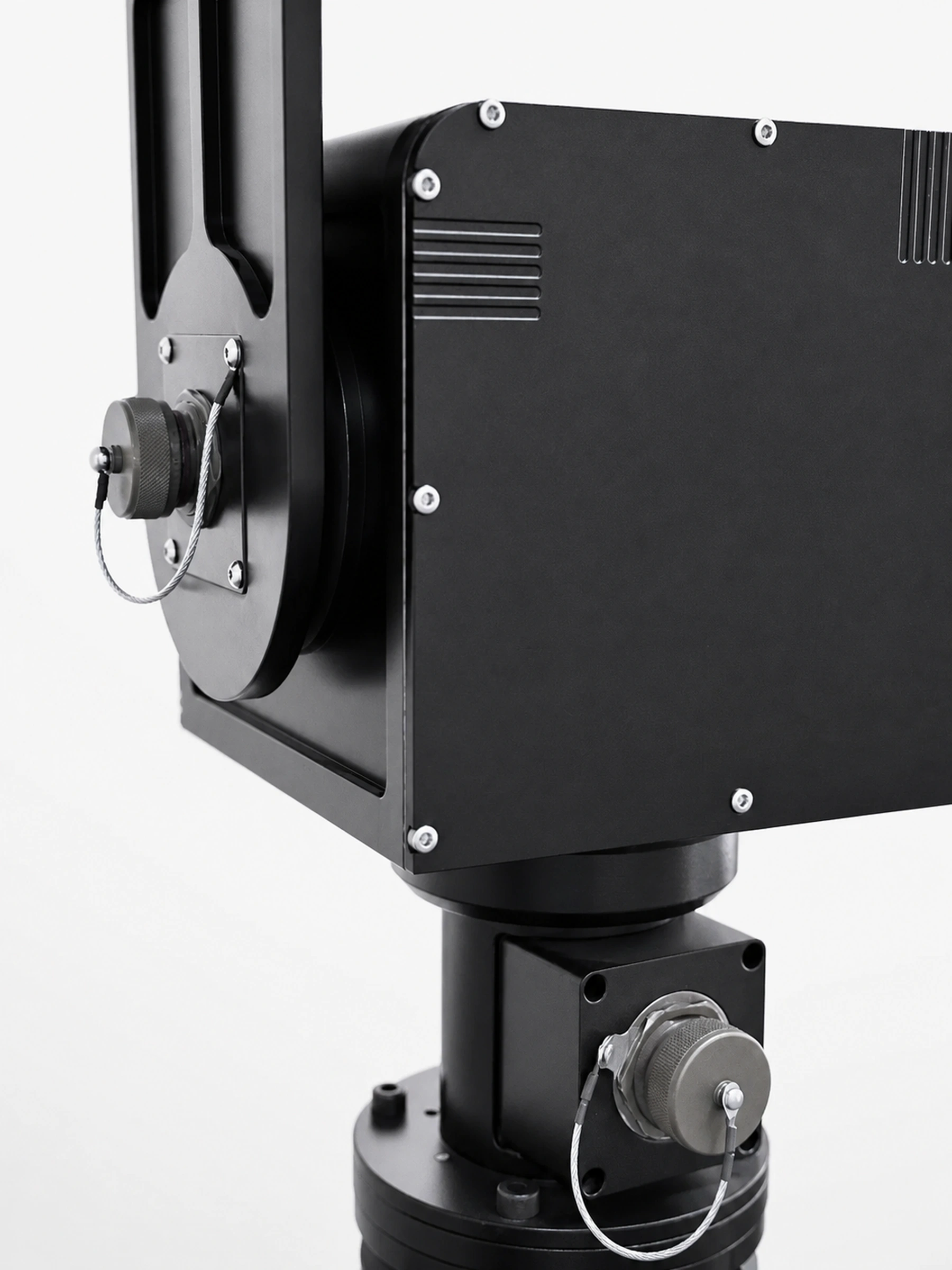

The side connector on the PED10

The side connector on the PED10

14 / 39

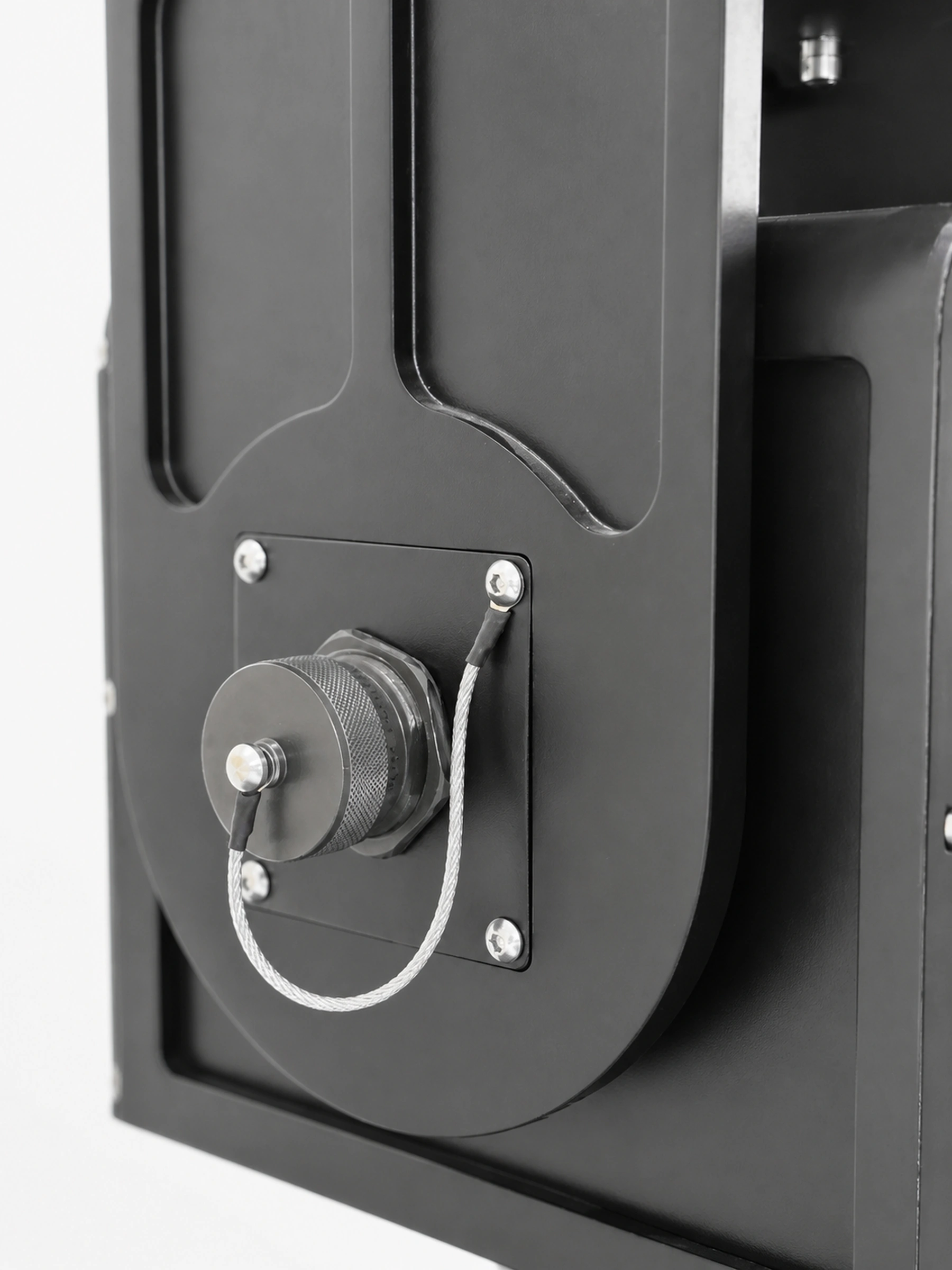

The capped connector on the side arm

The capped connector on the side arm

15 / 39

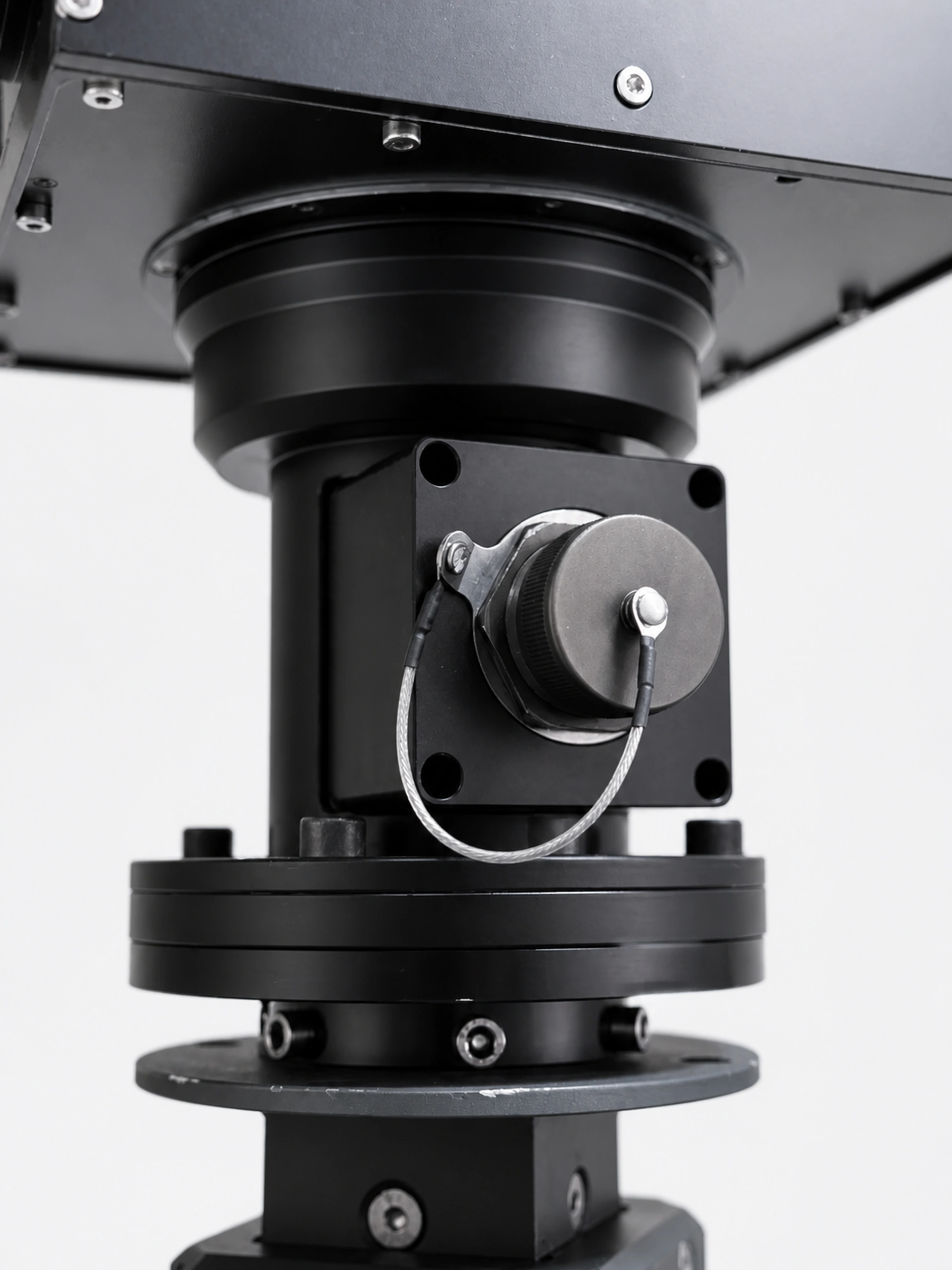

The mounting plate under the pan drive

The mounting plate under the pan drive

16 / 39

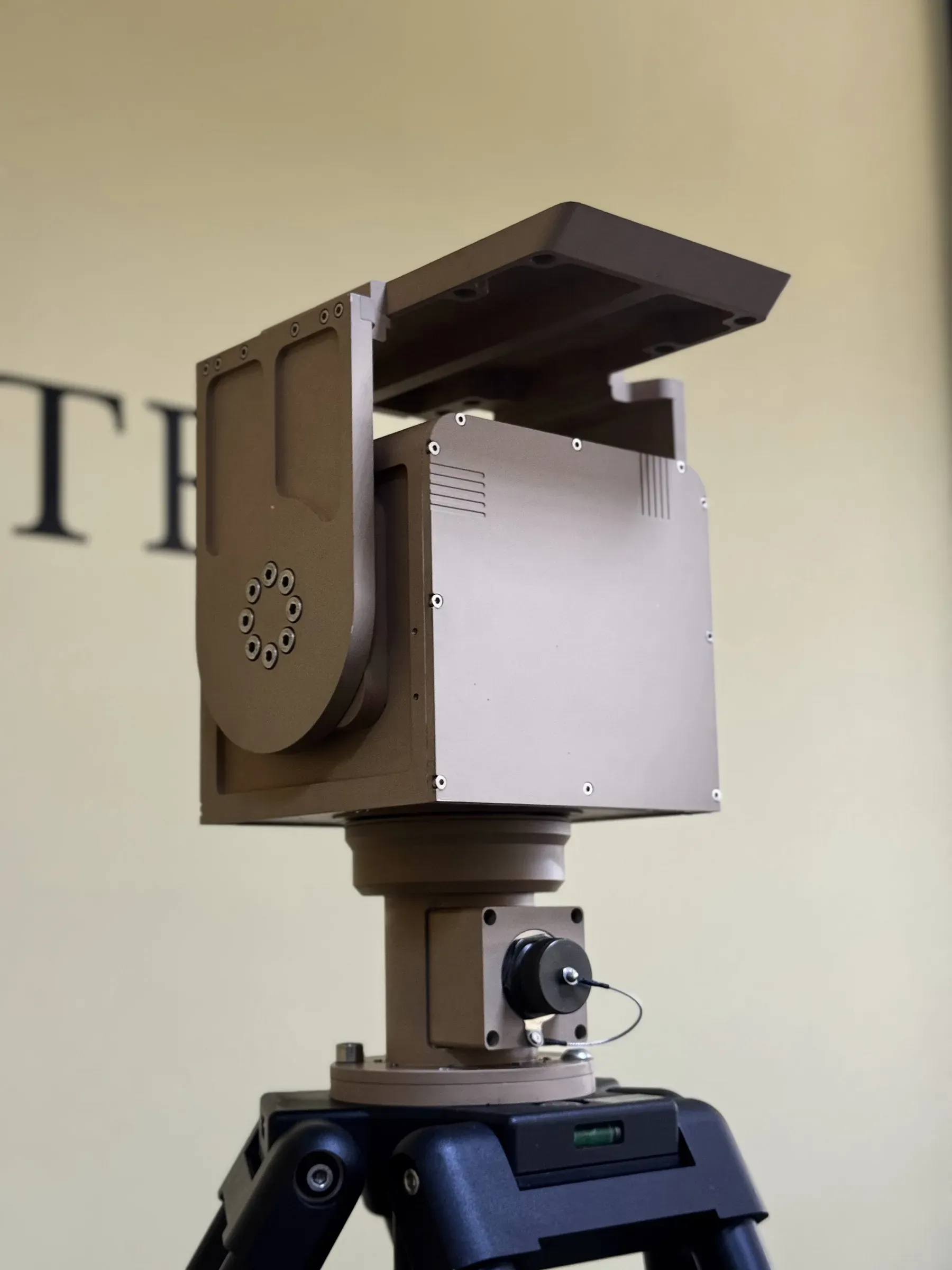

PED10 carrying a payload box under its shade

PED10 carrying a payload box under its shade

17 / 39

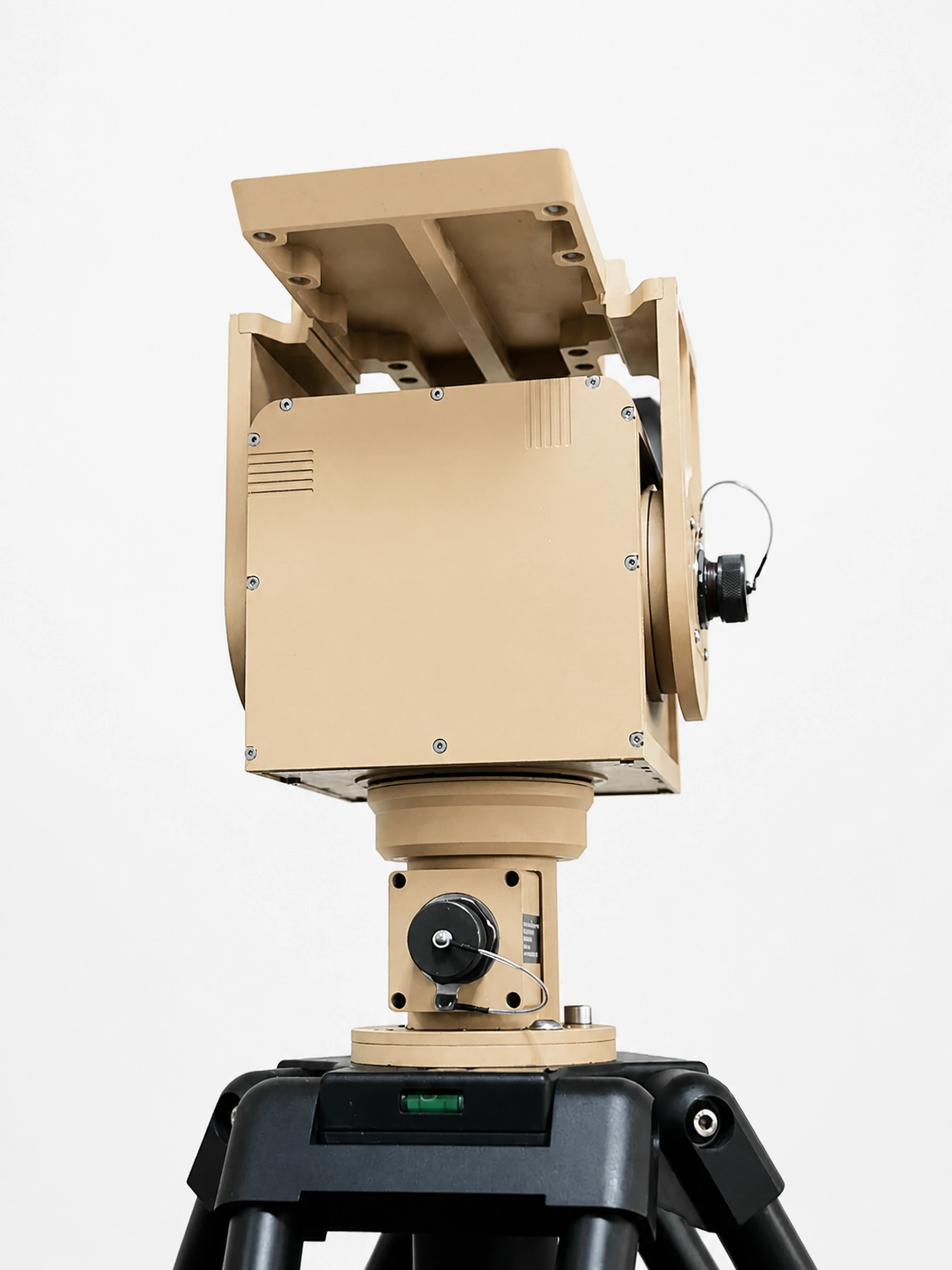

The rear of the fork and its shade plate

The rear of the fork and its shade plate

18 / 39

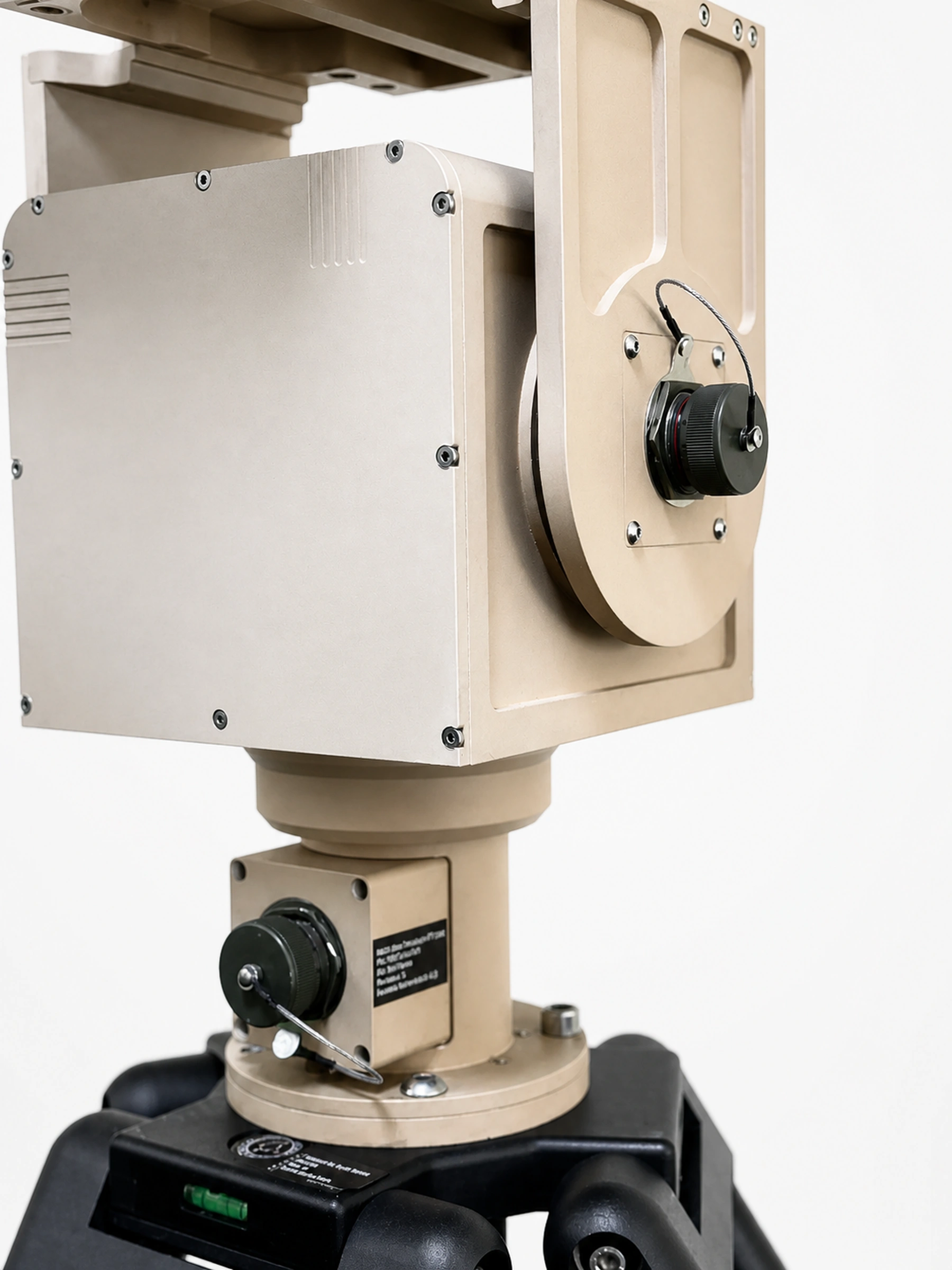

The payload box mounted on one arm

The payload box mounted on one arm

19 / 39

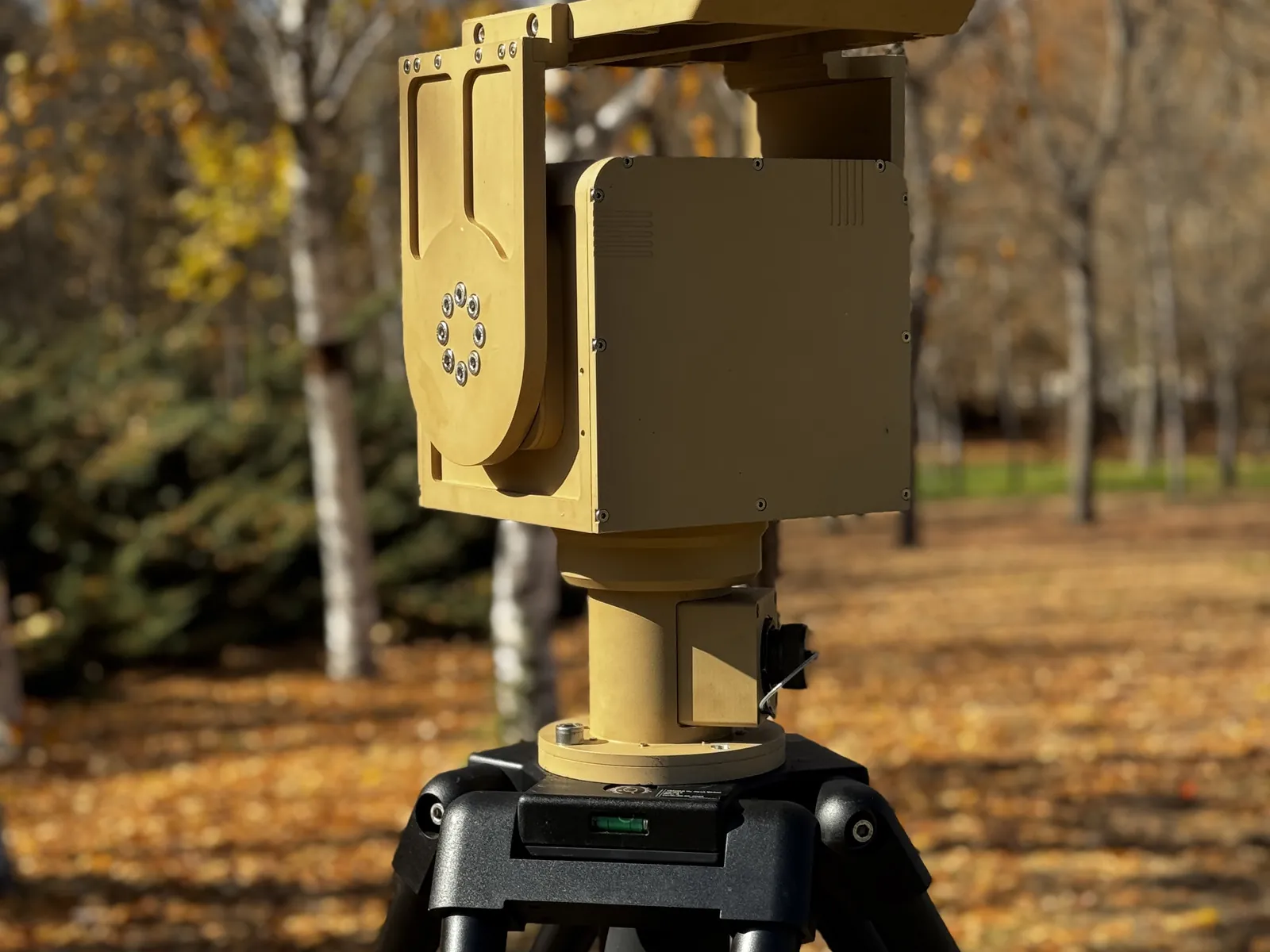

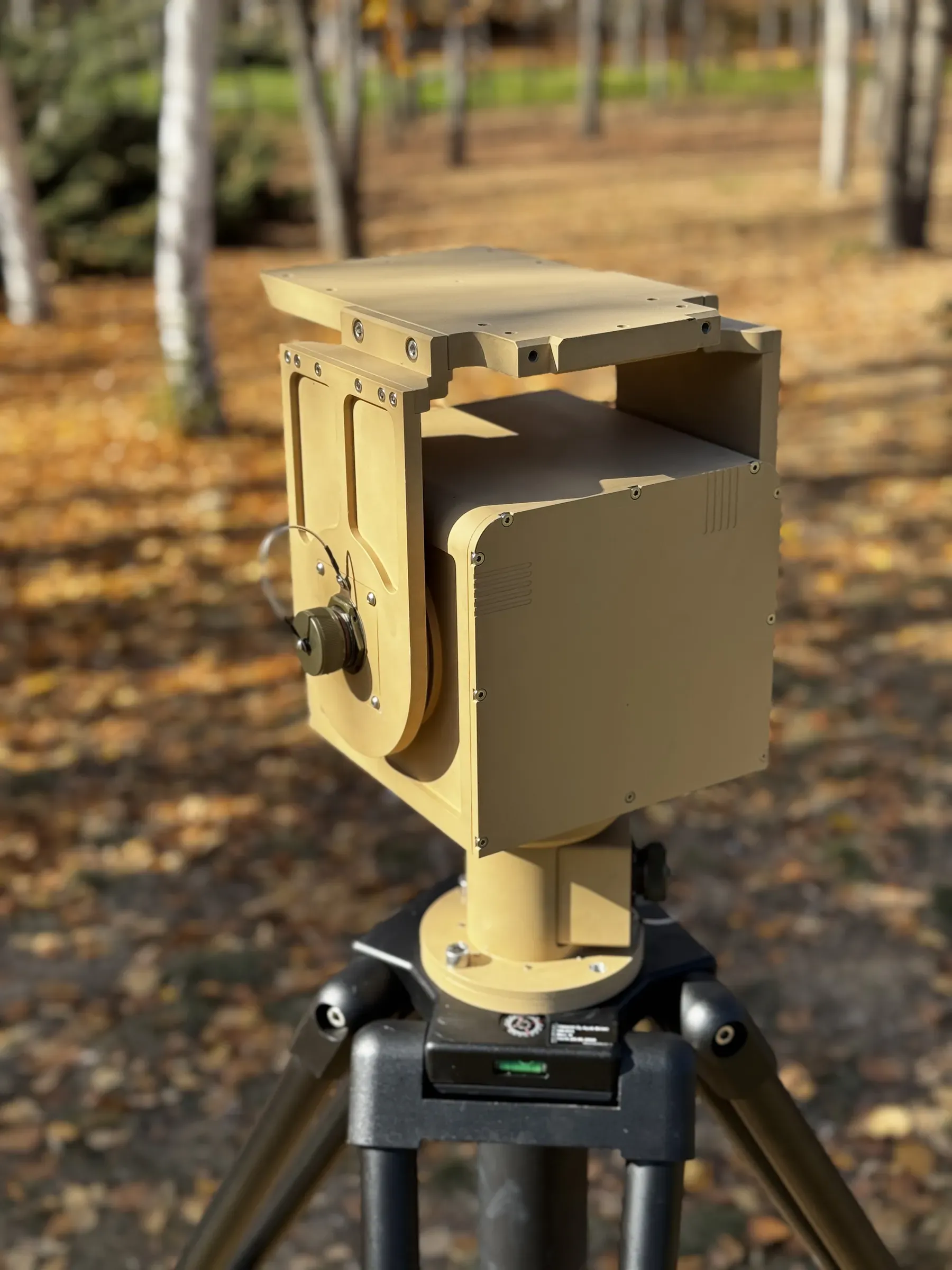

PED10 on a tripod in the woods

PED10 on a tripod in the woods

20 / 39

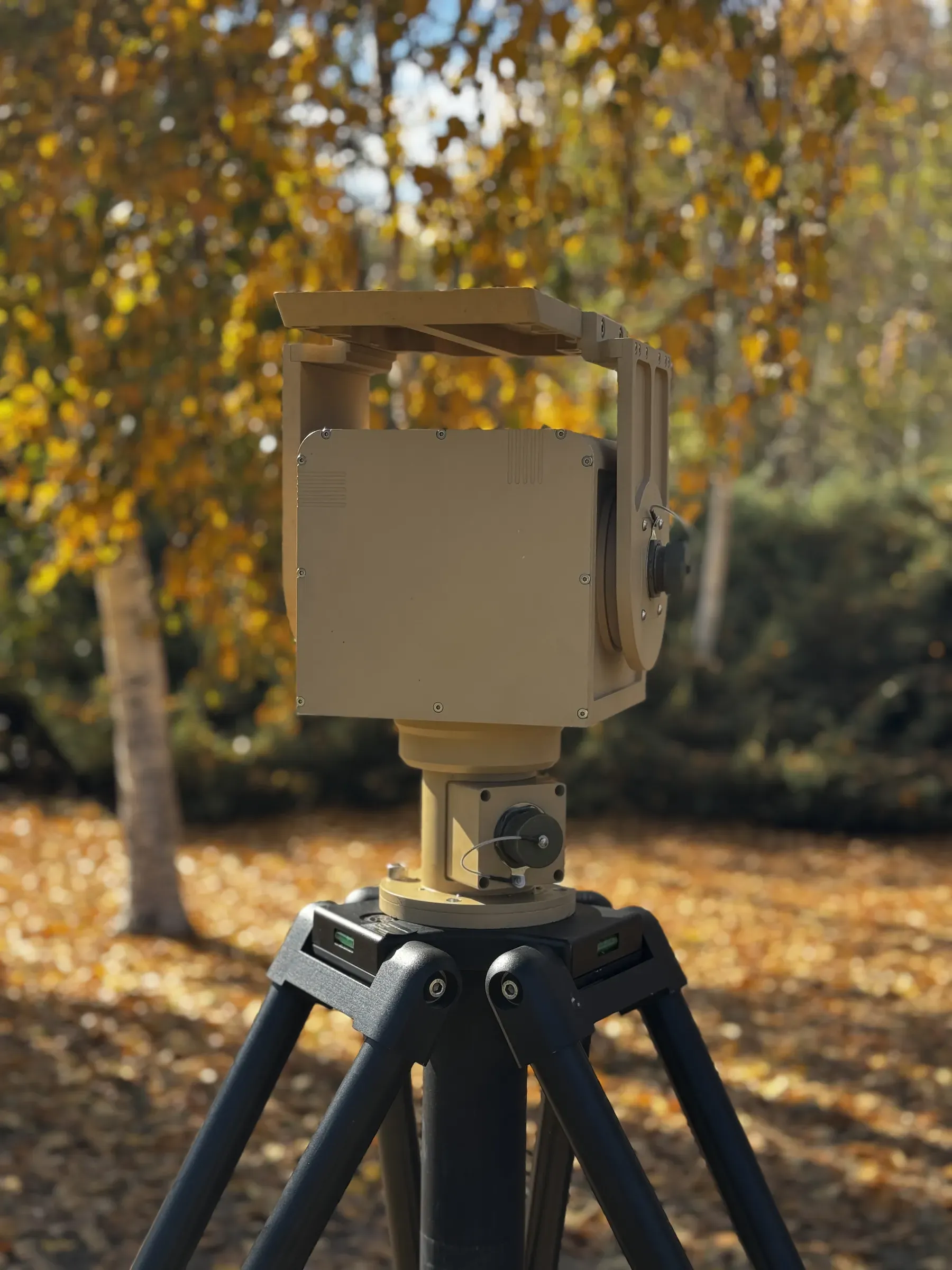

PED10 between the birches

PED10 between the birches

21 / 39

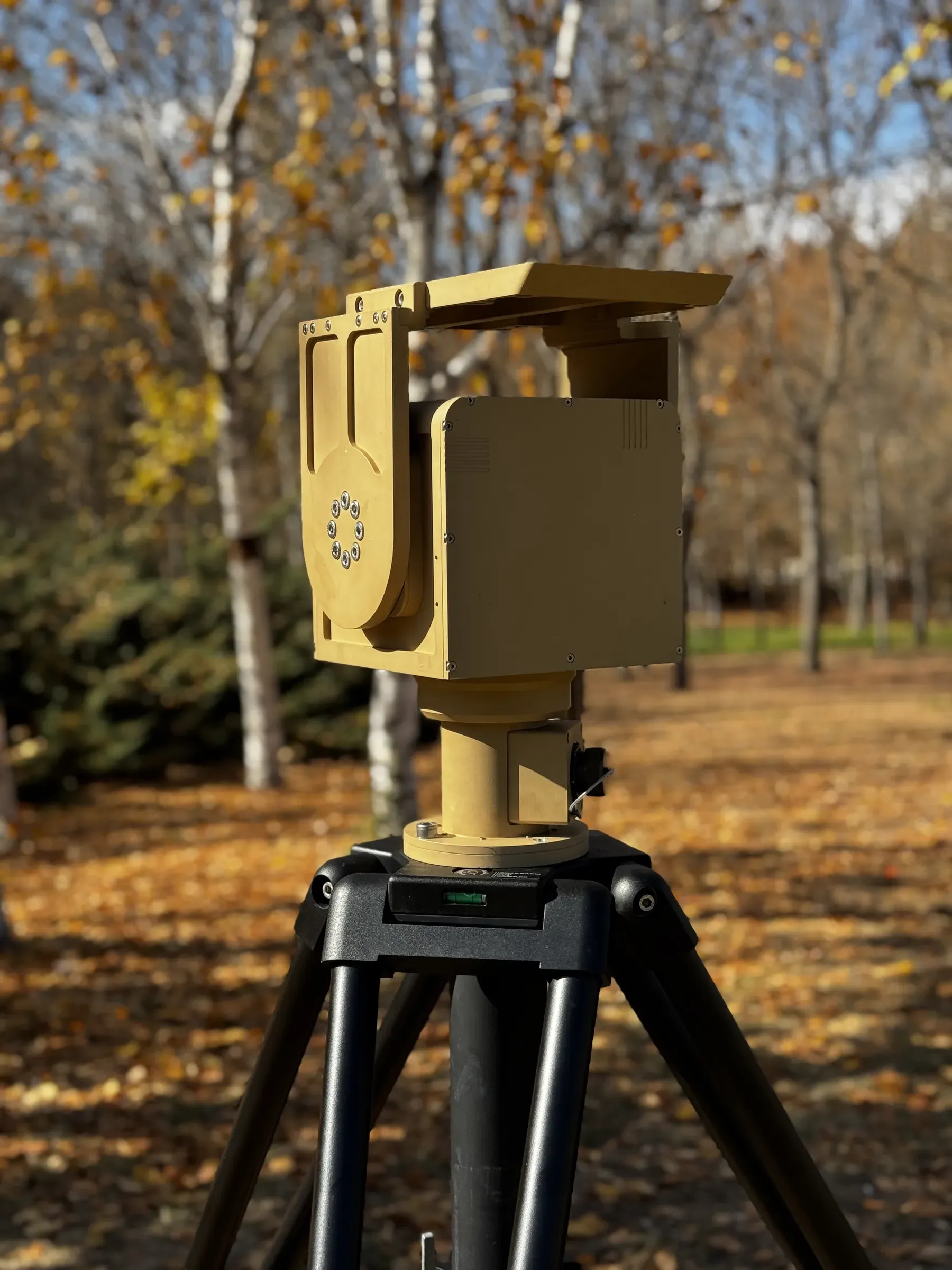

The payload bolt circle on the fork arm

The payload bolt circle on the fork arm

22 / 39

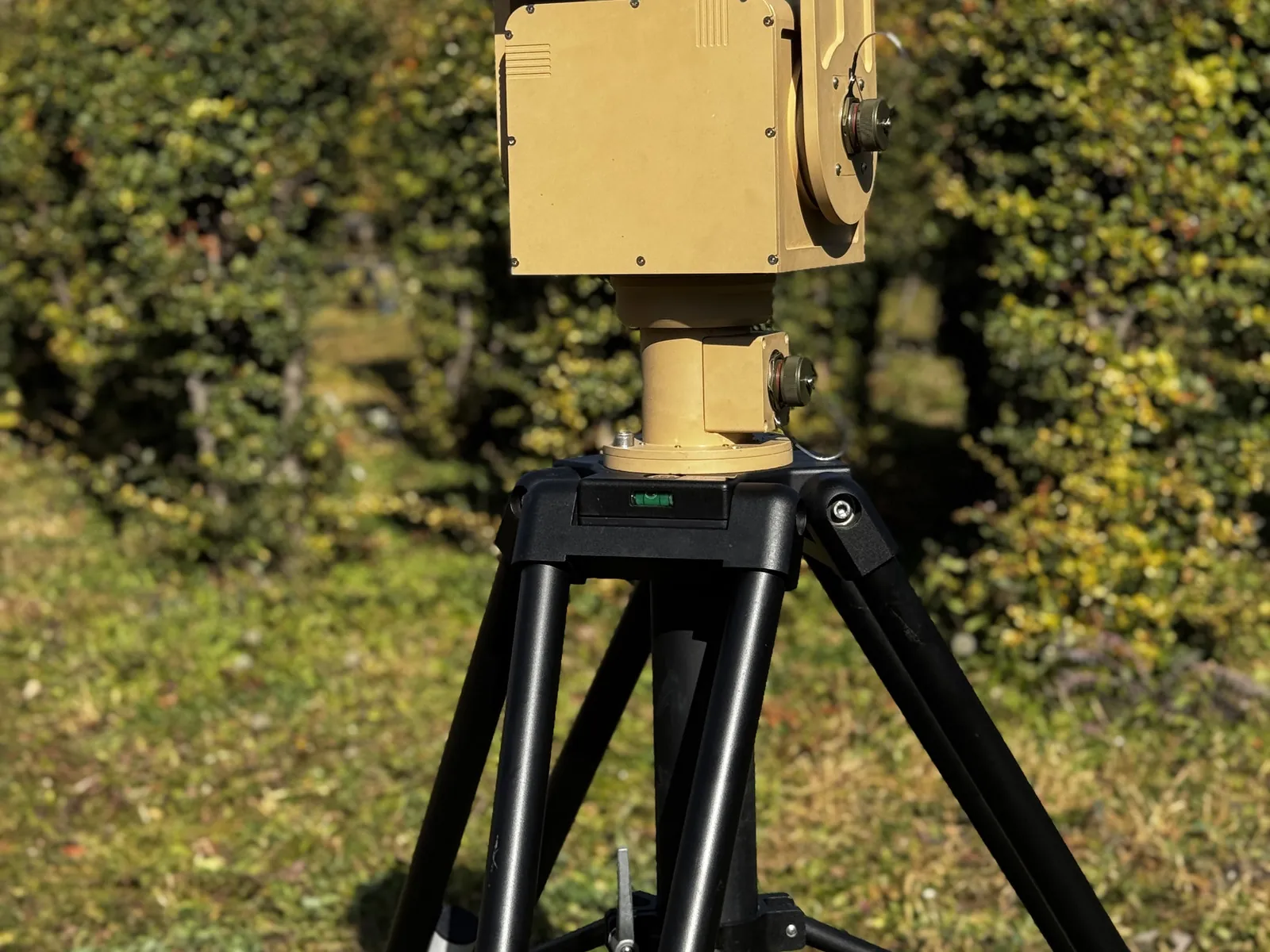

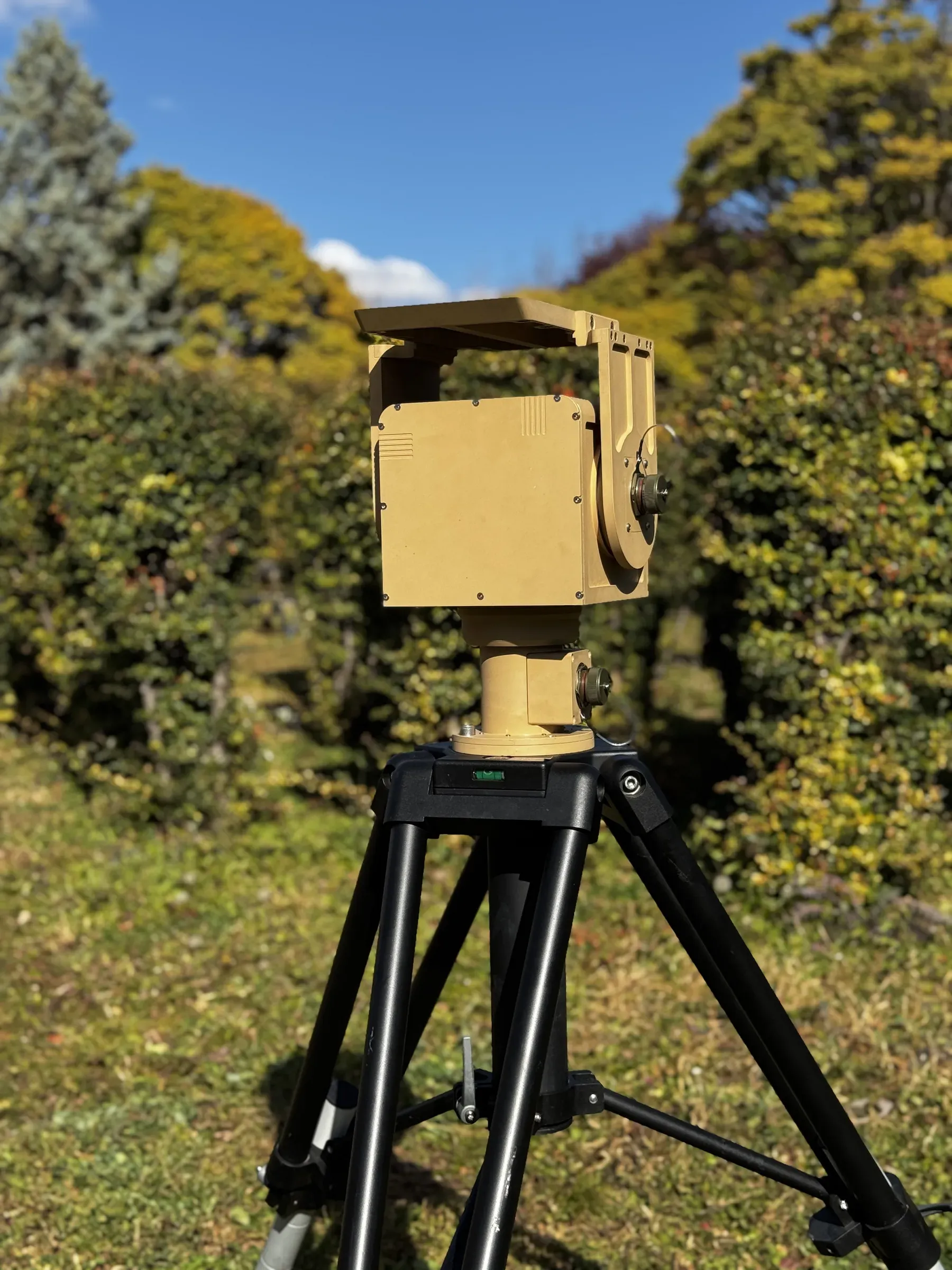

PED10 on its tripod in the garden

PED10 on its tripod in the garden

23 / 39

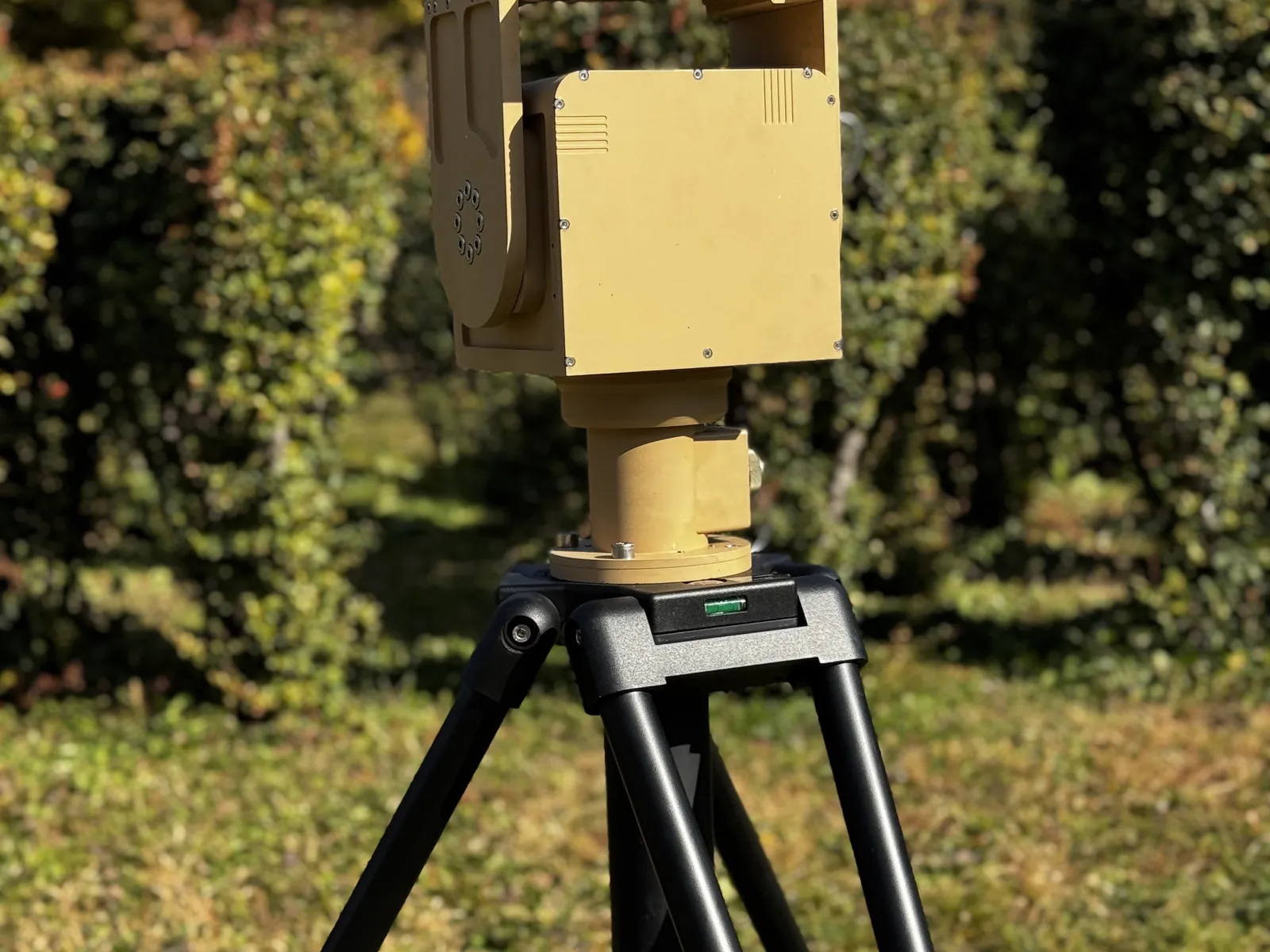

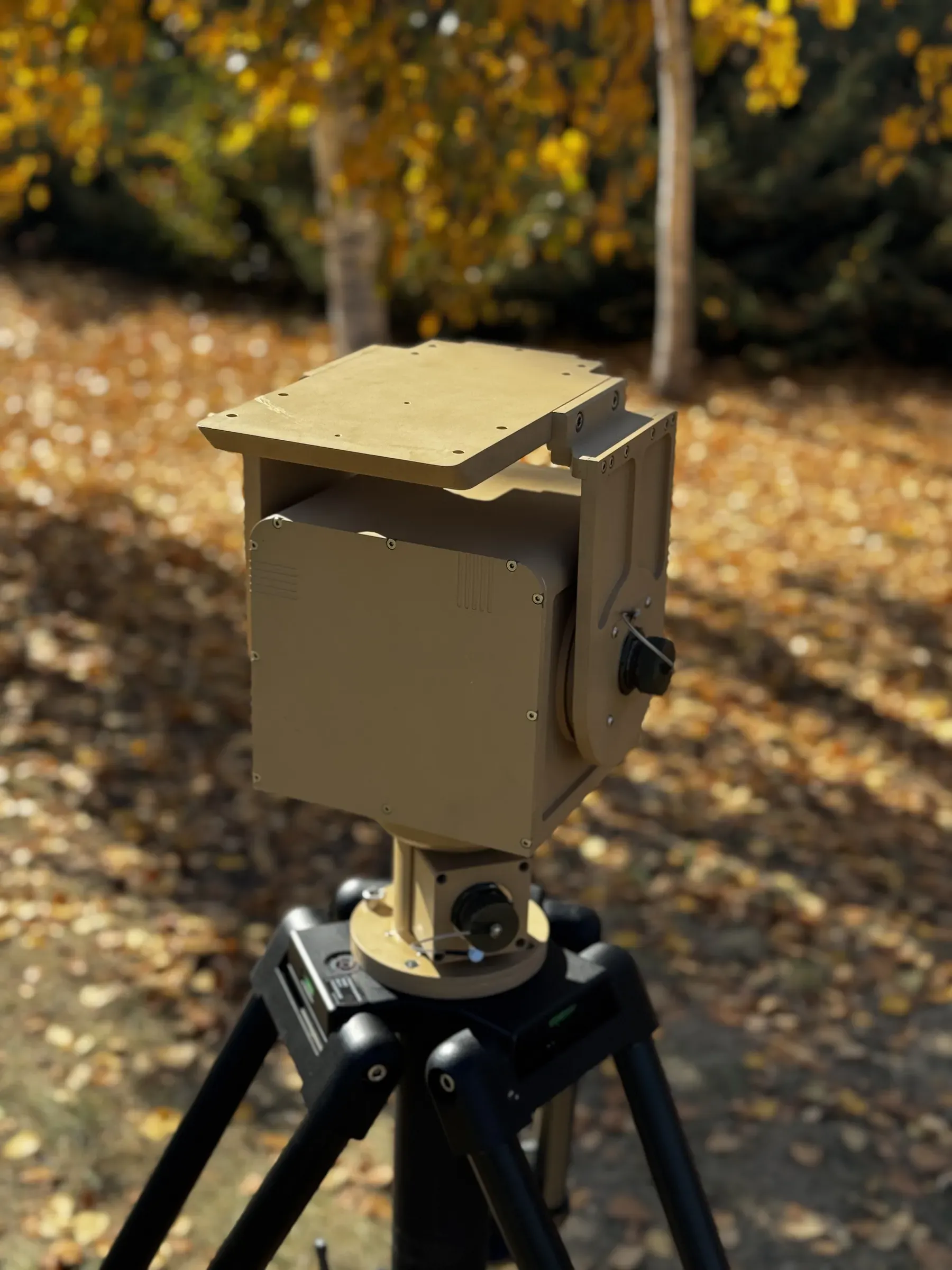

The sun shade over the open fork

The sun shade over the open fork

24 / 39

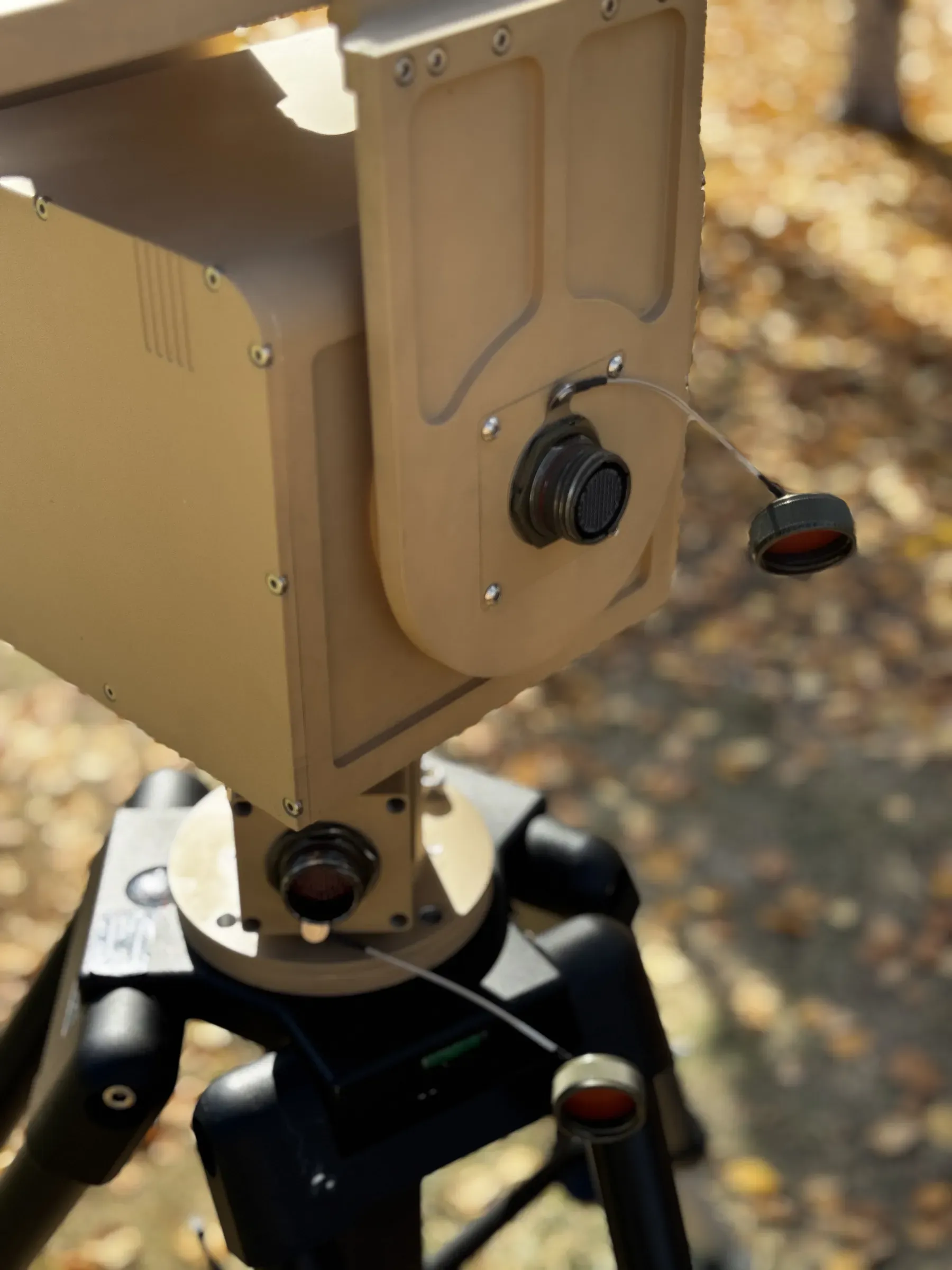

The connectors at the PED10 base

The connectors at the PED10 base

25 / 39

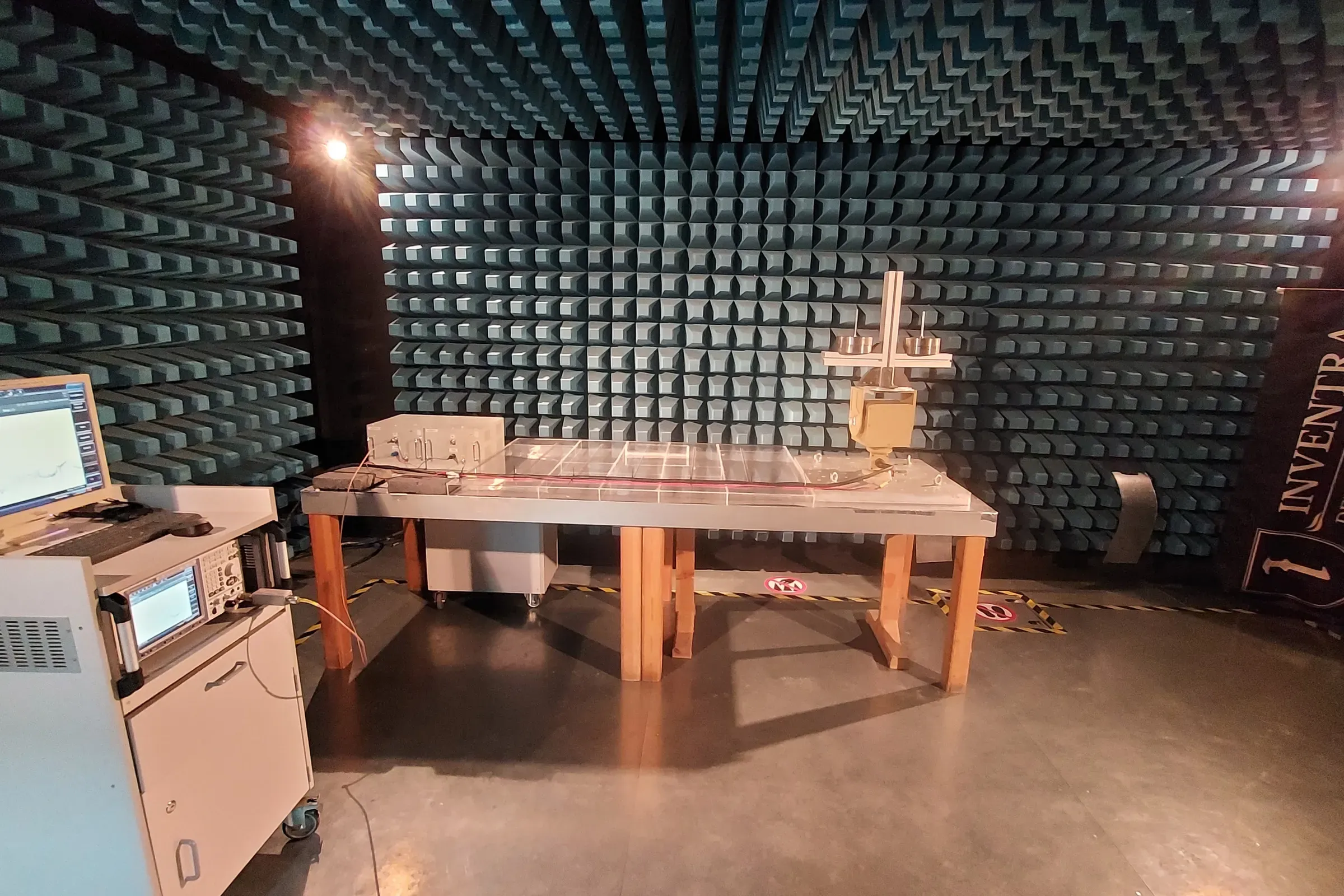

PED10 in the anechoic chamber

PED10 in the anechoic chamber

26 / 39

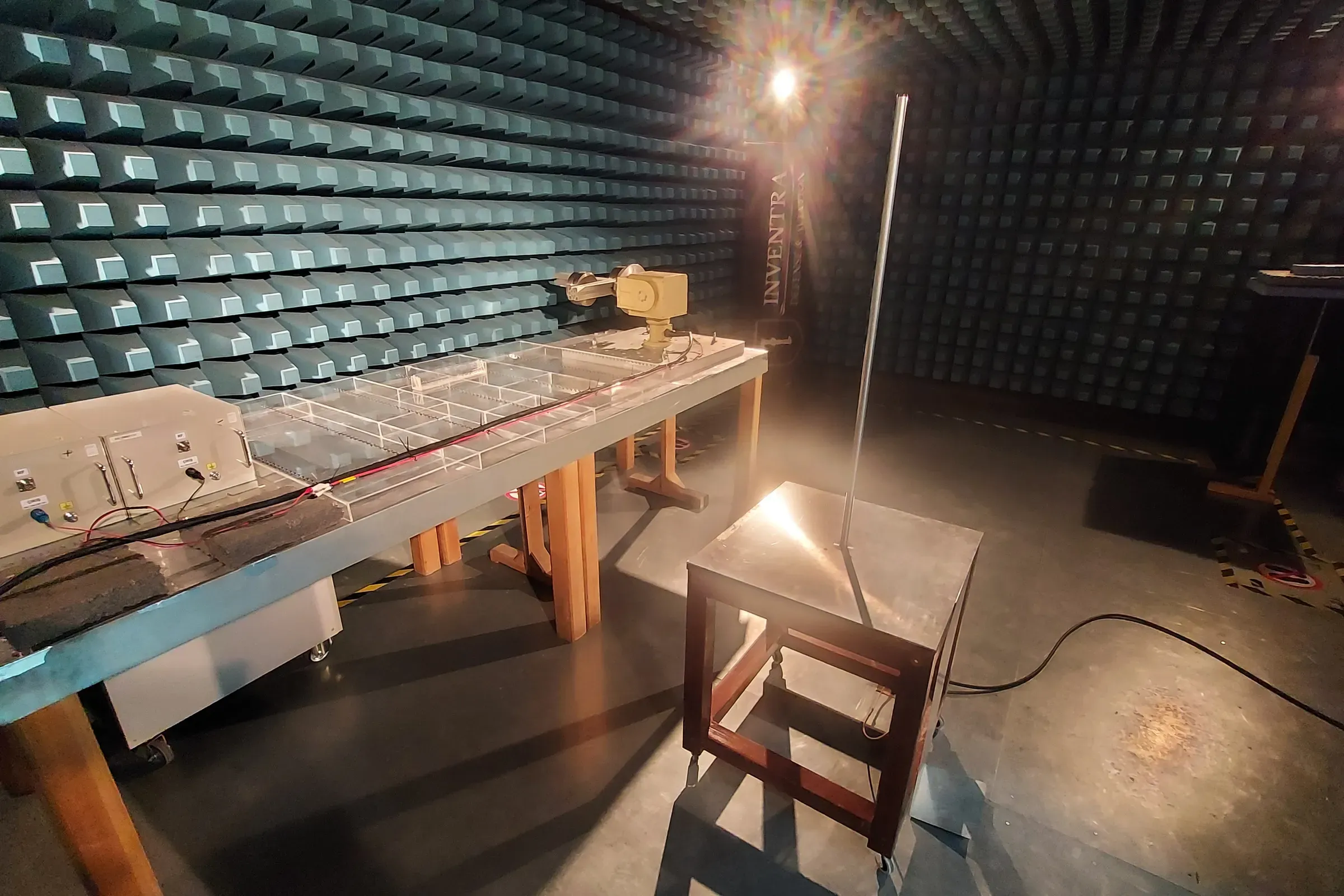

The same chamber from the far end

The same chamber from the far end

27 / 39

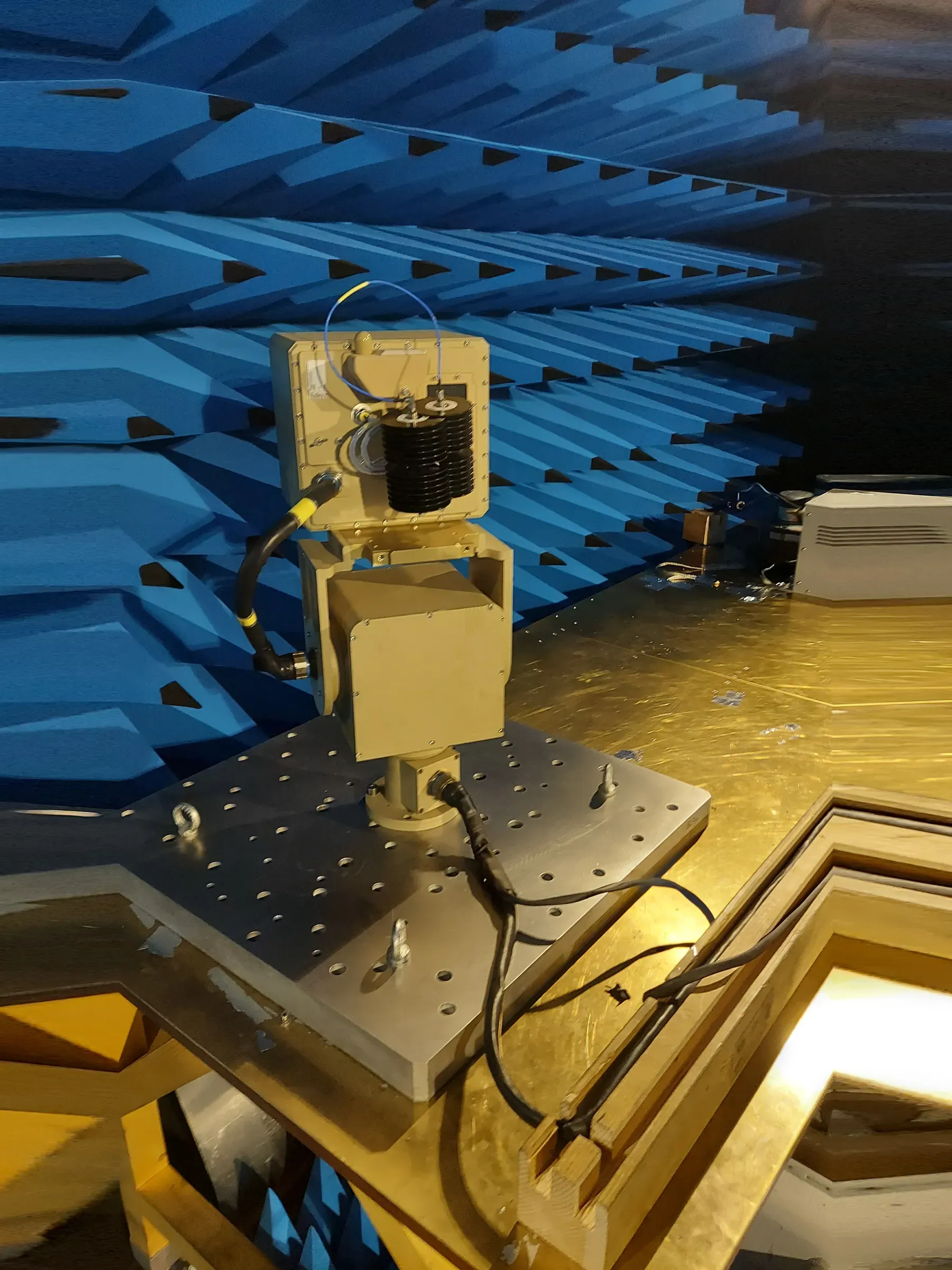

PED10 wired up on the positioner table

PED10 wired up on the positioner table

28 / 39

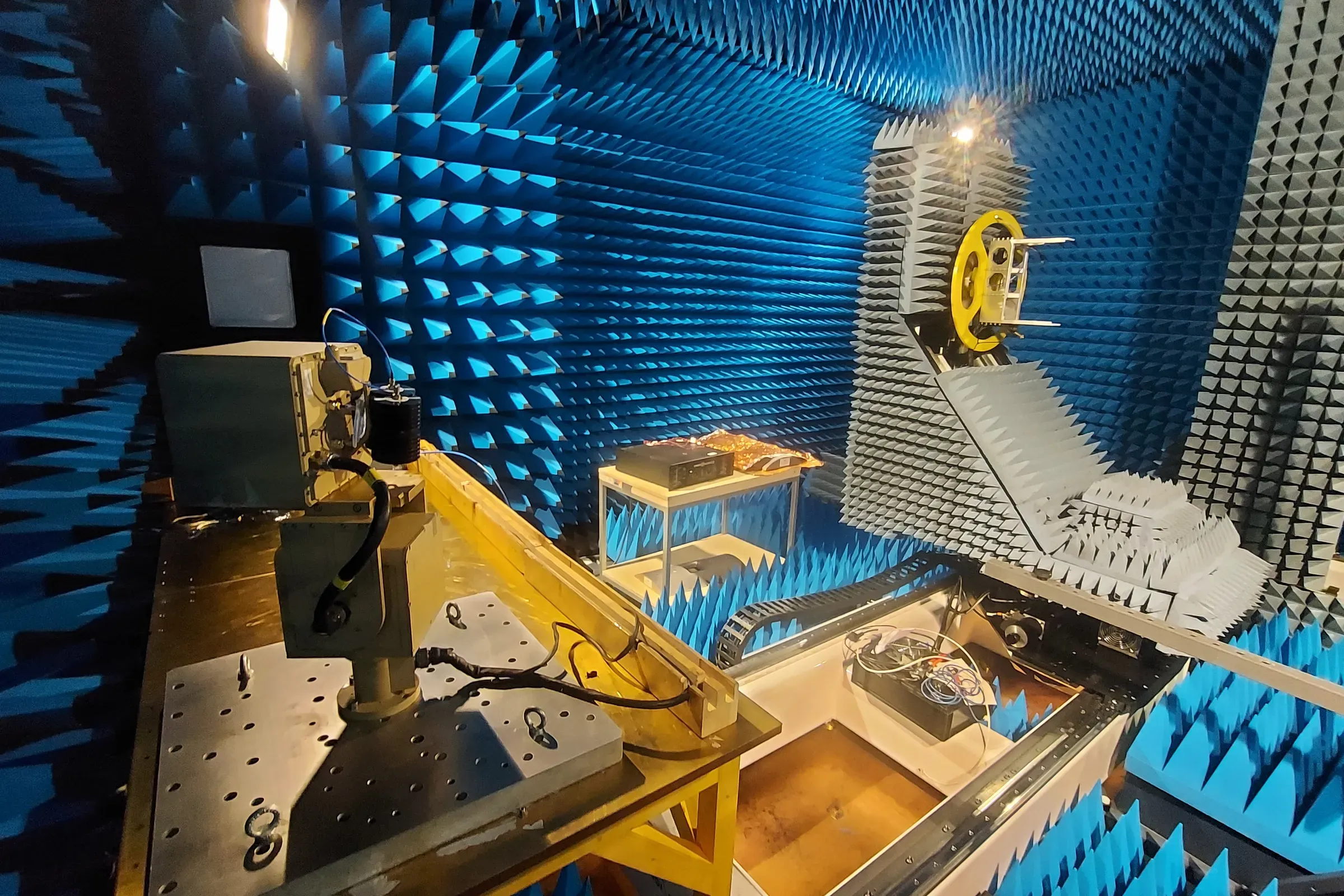

The test rig: PED10, fixtures and a ring antenna

The test rig: PED10, fixtures and a ring antenna

29 / 39

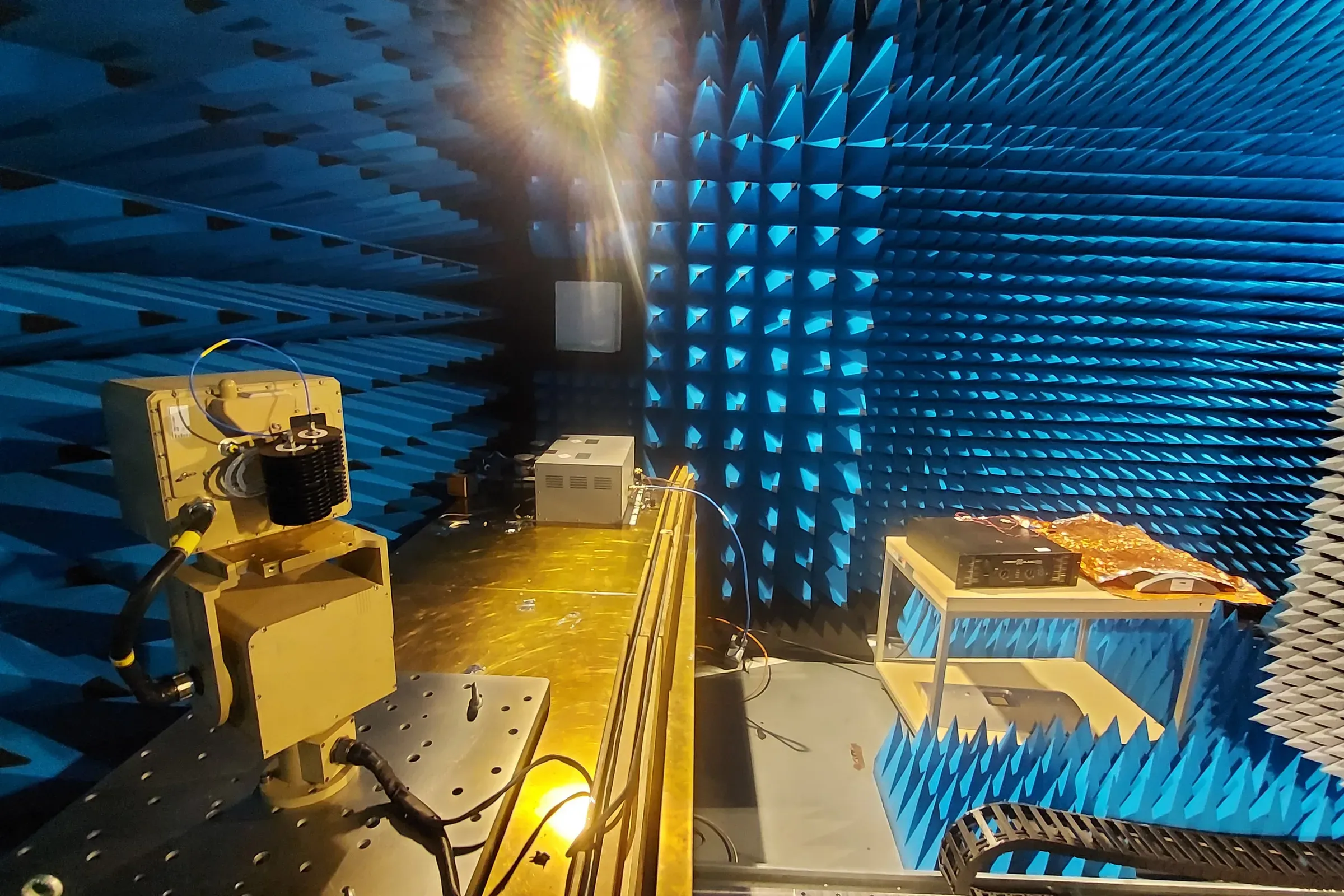

PED10 in front of the absorber walls

PED10 in front of the absorber walls

30 / 39

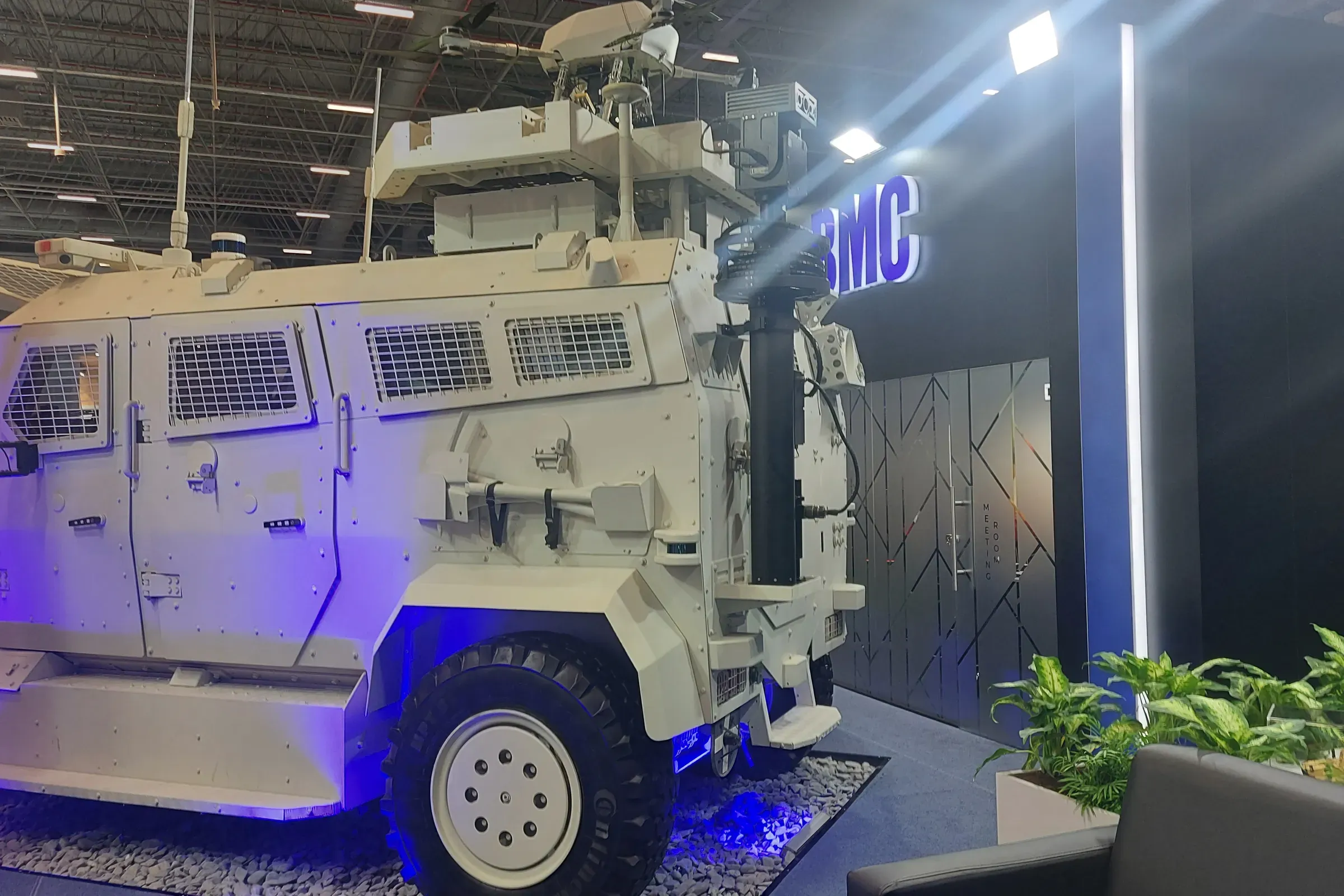

PED10 at the top of the mast on a BMC armoured 4×4, on the stand
