Pan-Tilt & Positioning Systems
PED08
Compact Electromechanical Pan-Tilt
Compact brushless pan-tilt for thermal imagers and directional antennas, with zero gear backlash and 22-bit encoders in a 9 kg envelope.
- N × 360°
- 0,002° resolution
- 60 pcs lines
- 0,04°
- Accuracy
- 0,002°
- Axis Resolution
- 9,0 kg
- Weight
Highlights
01Zero backlash
Brushless servo drive with no rotational play
Brushless motors replace stepper actuation and 22-bit encoders close the loop, so the axis carries no backlash and the controller counters external disturbance rather than absorbing it.
- Resolution 0.002°, pointing accuracy 0.04°
- N × 360° continuous pan, ±45° tilt
02Low power
10 W draw in smart driving mode
The catalogue rates the unit at 10 W in its smart driving mode, which matters where the positioner runs off a vehicle battery or a field power budget rather than mains.
- 9 kg unit, 18–32 V supply
- Up to 135 Nm nominal tilt torque by configuration

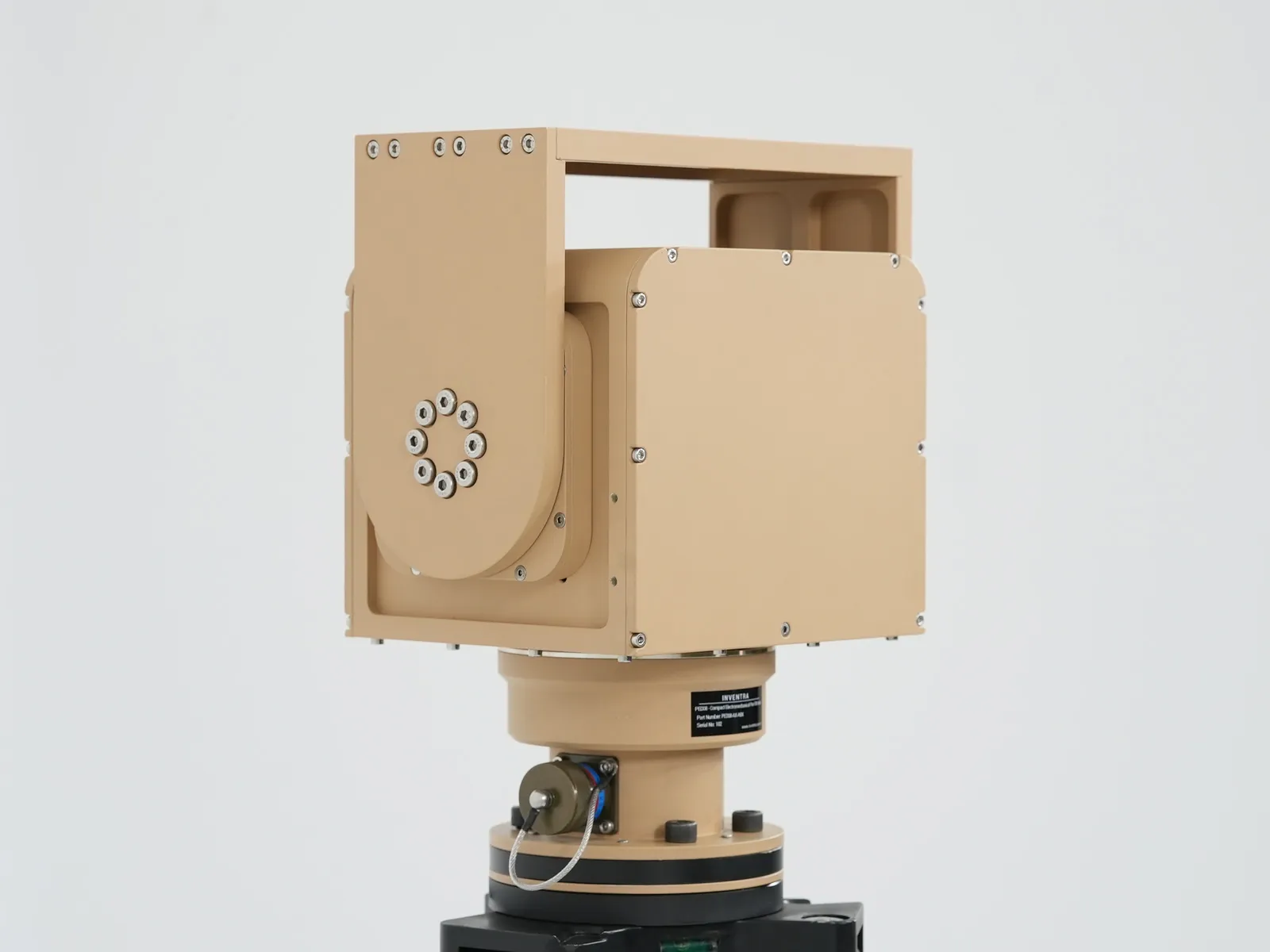

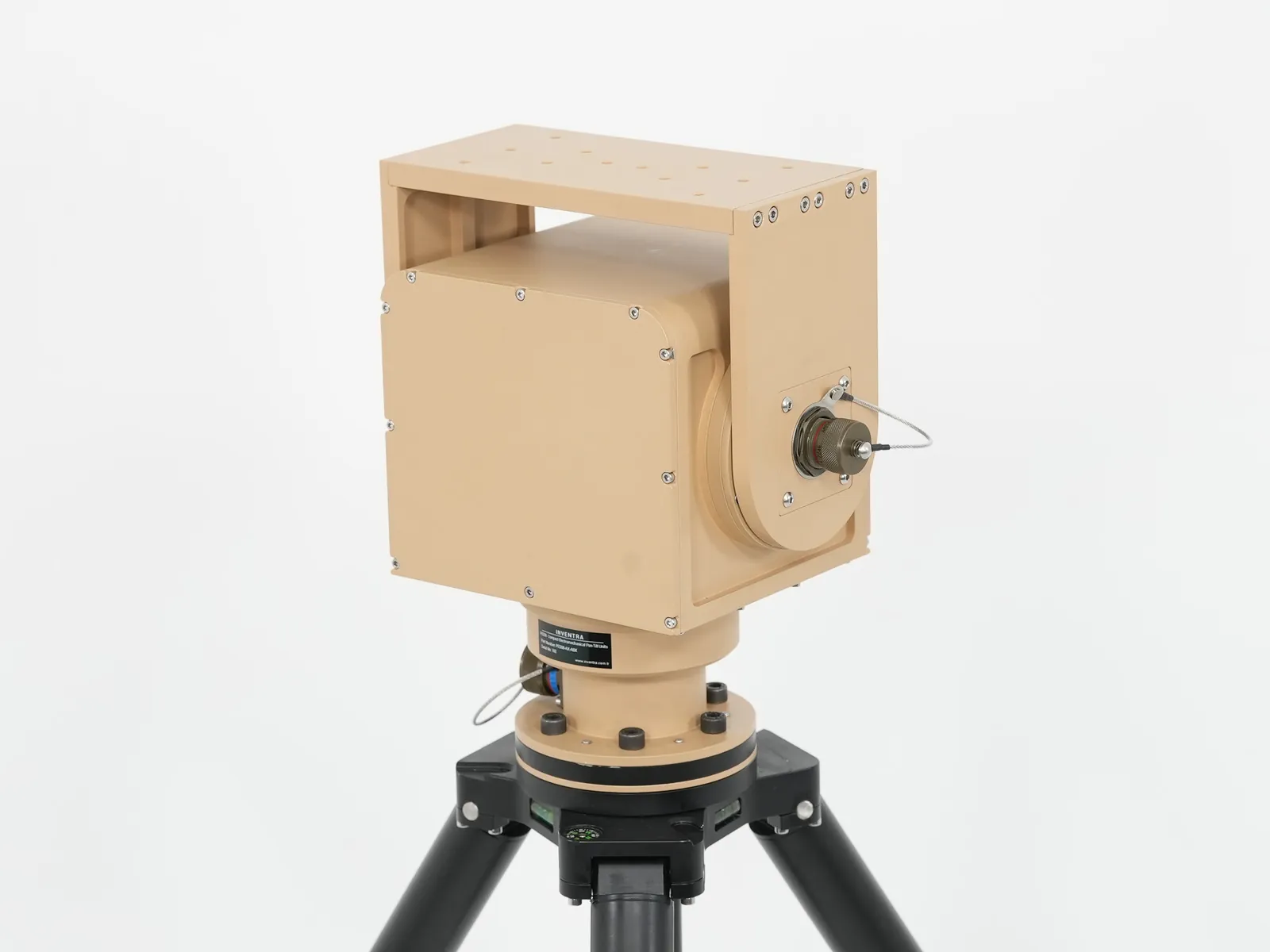

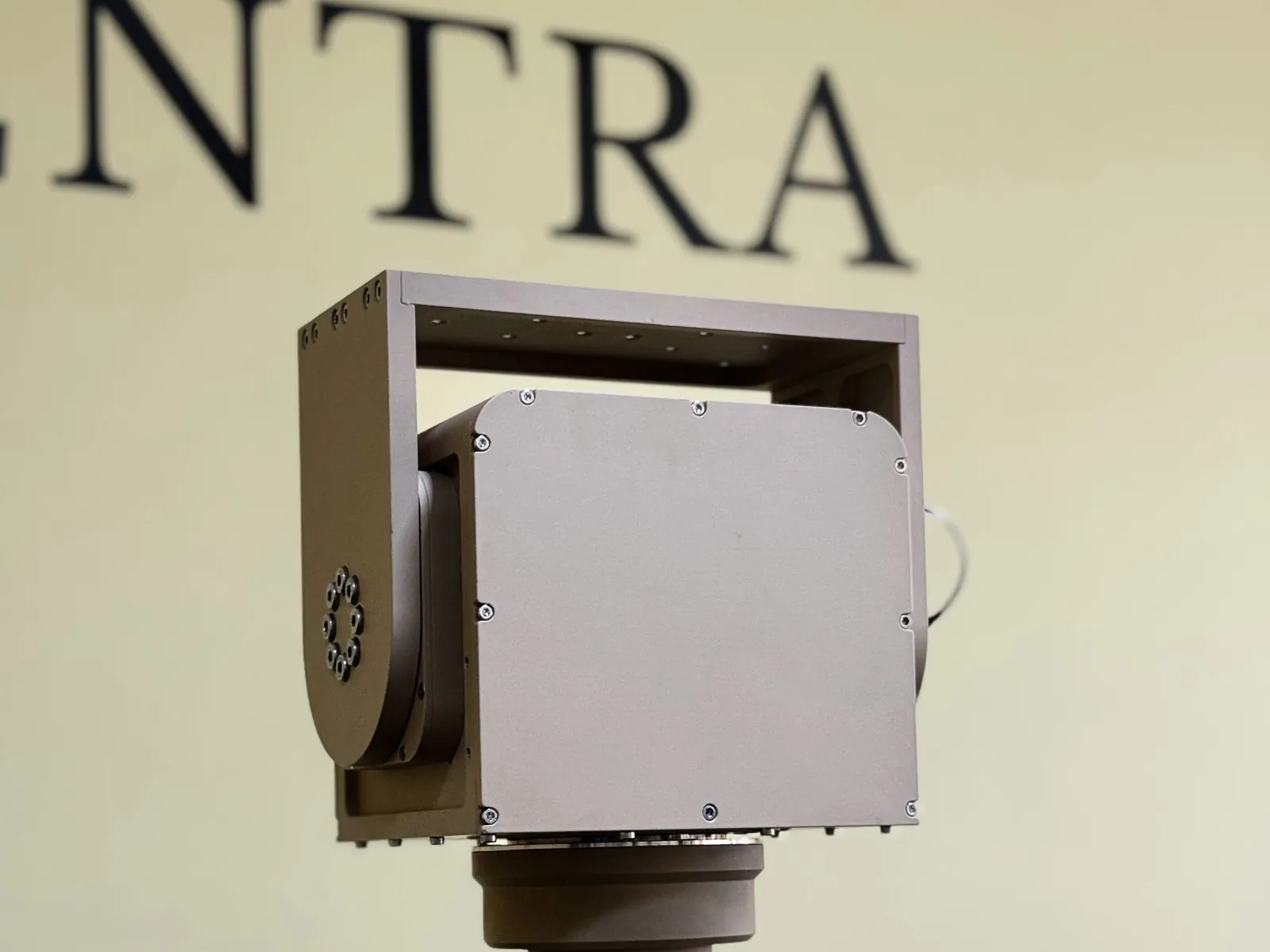

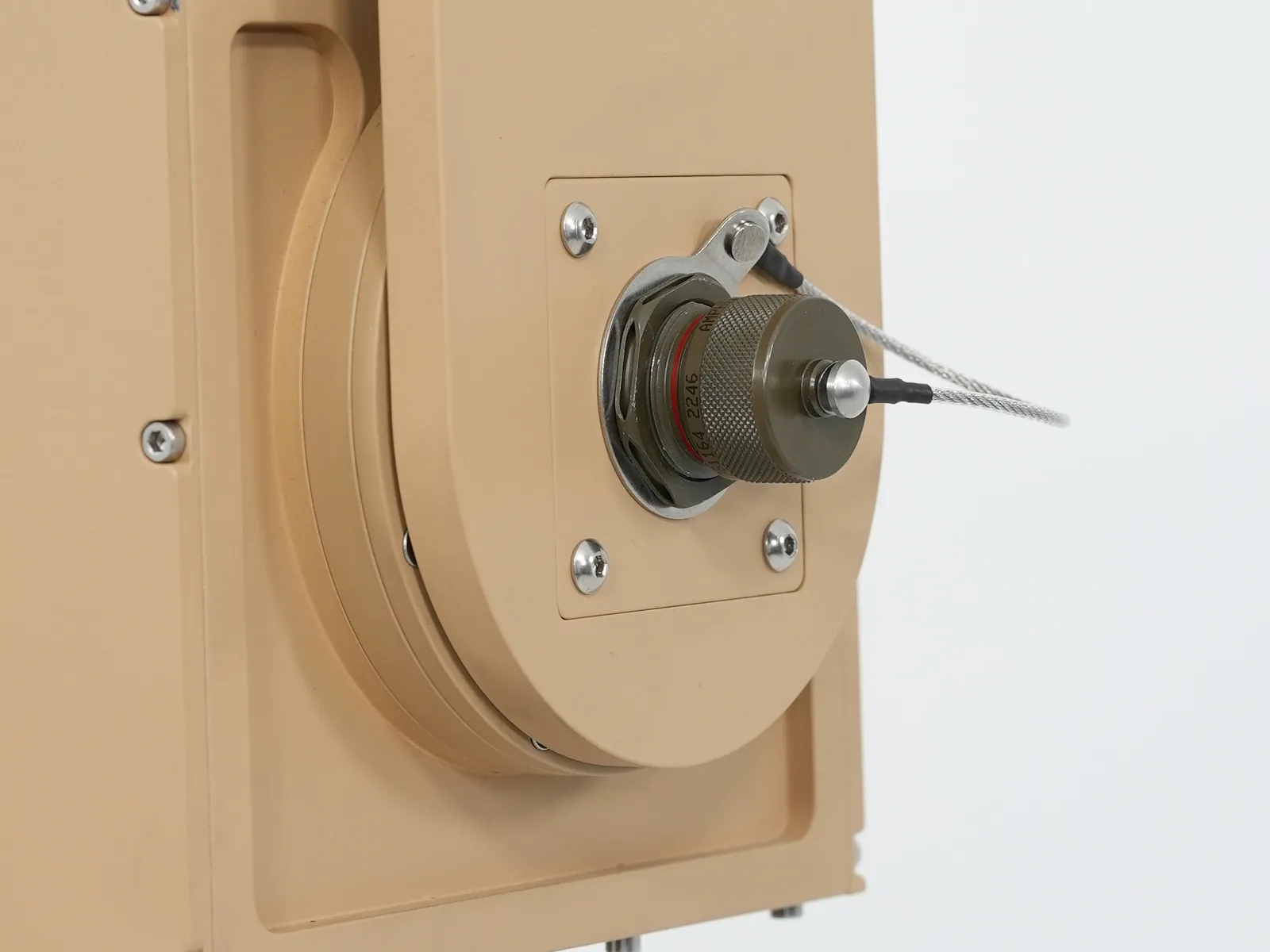

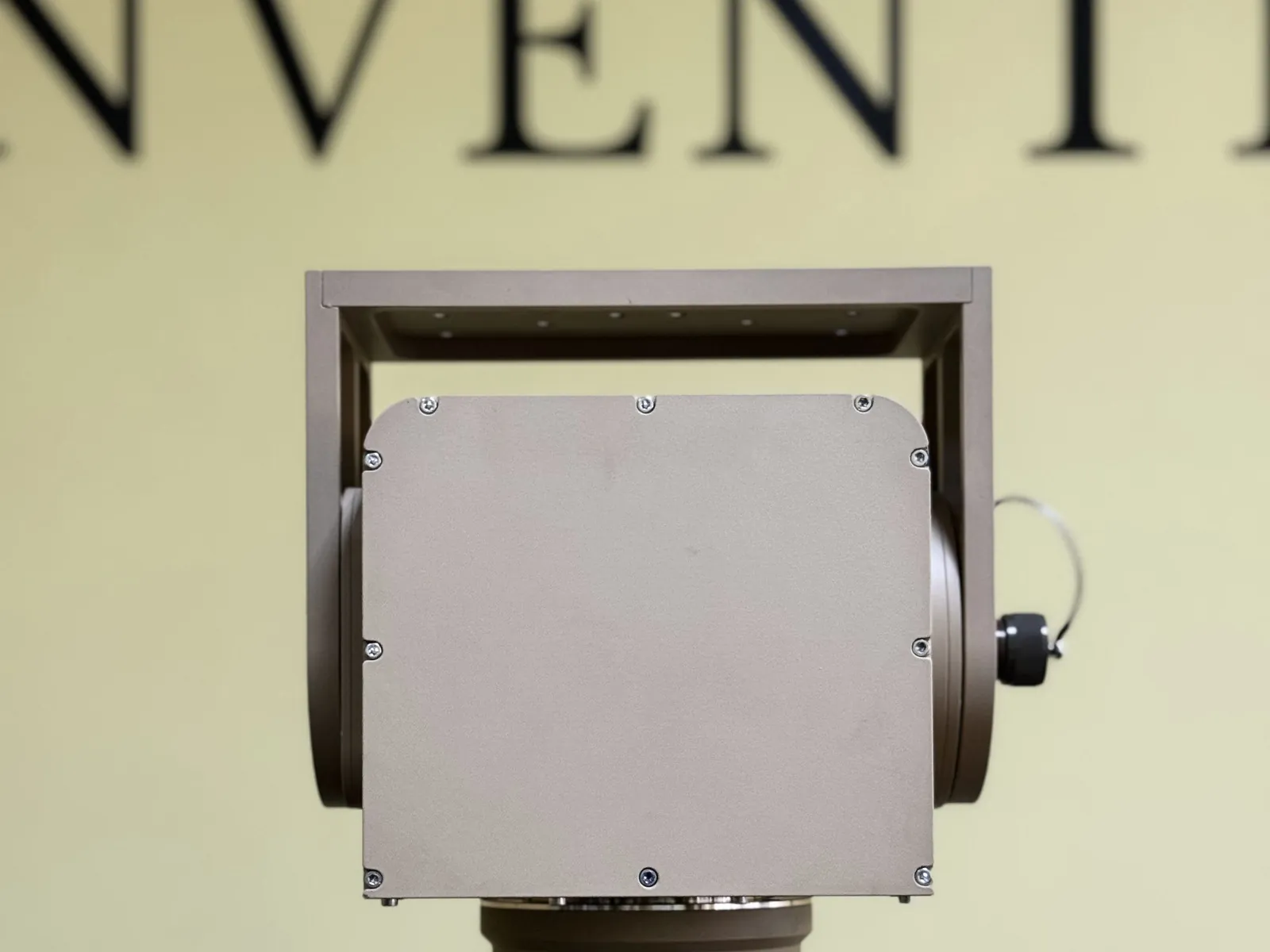

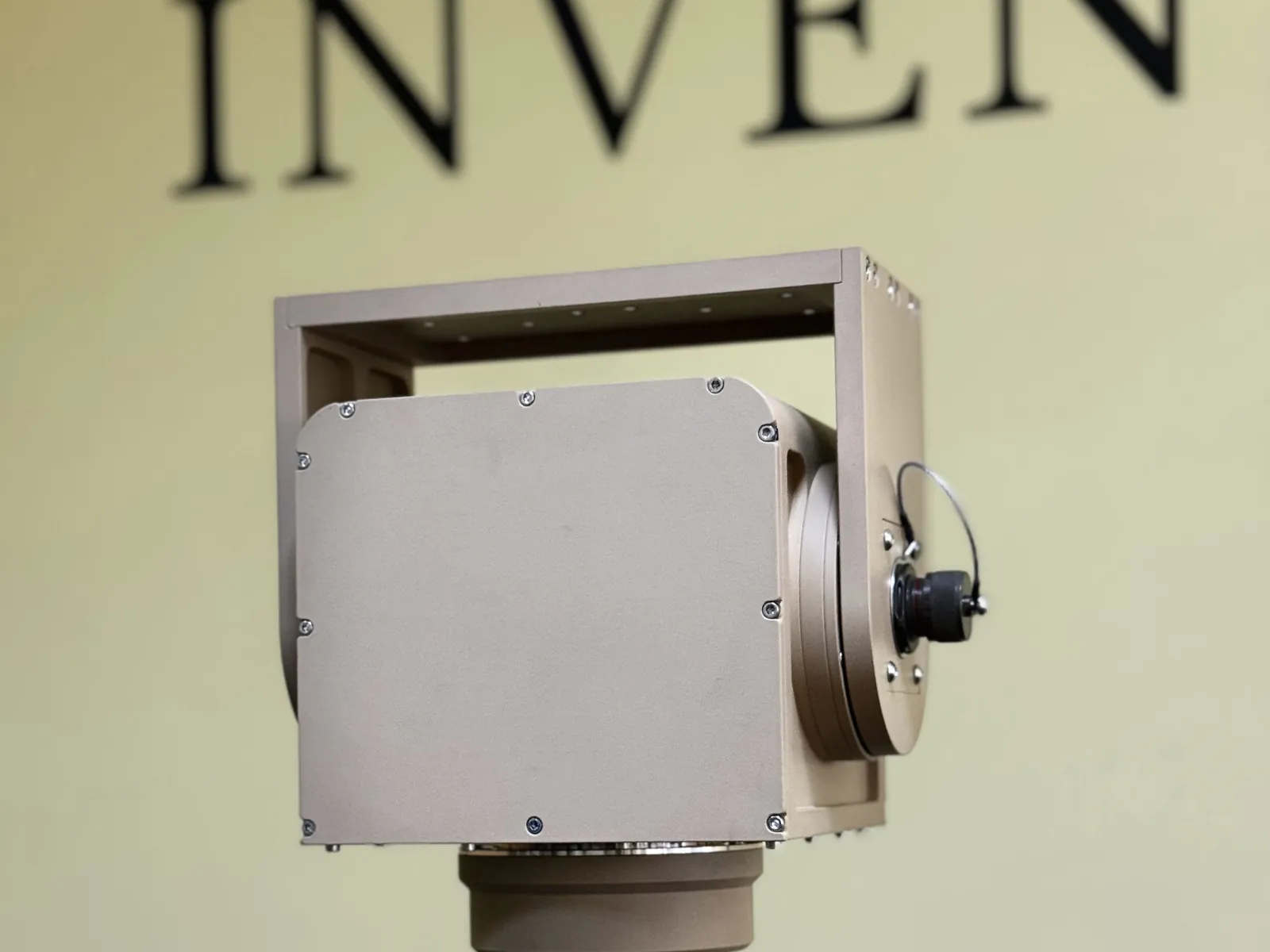

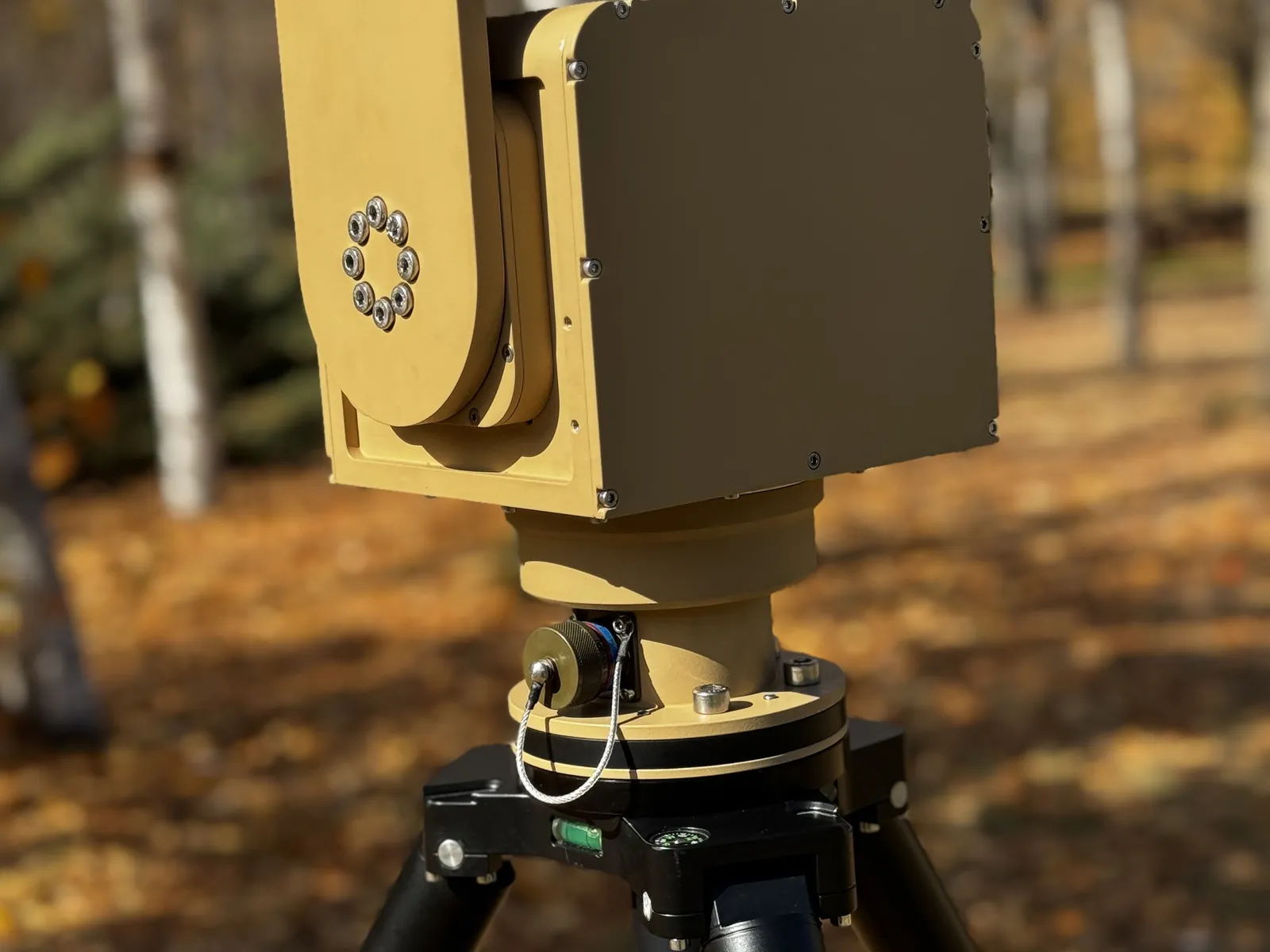

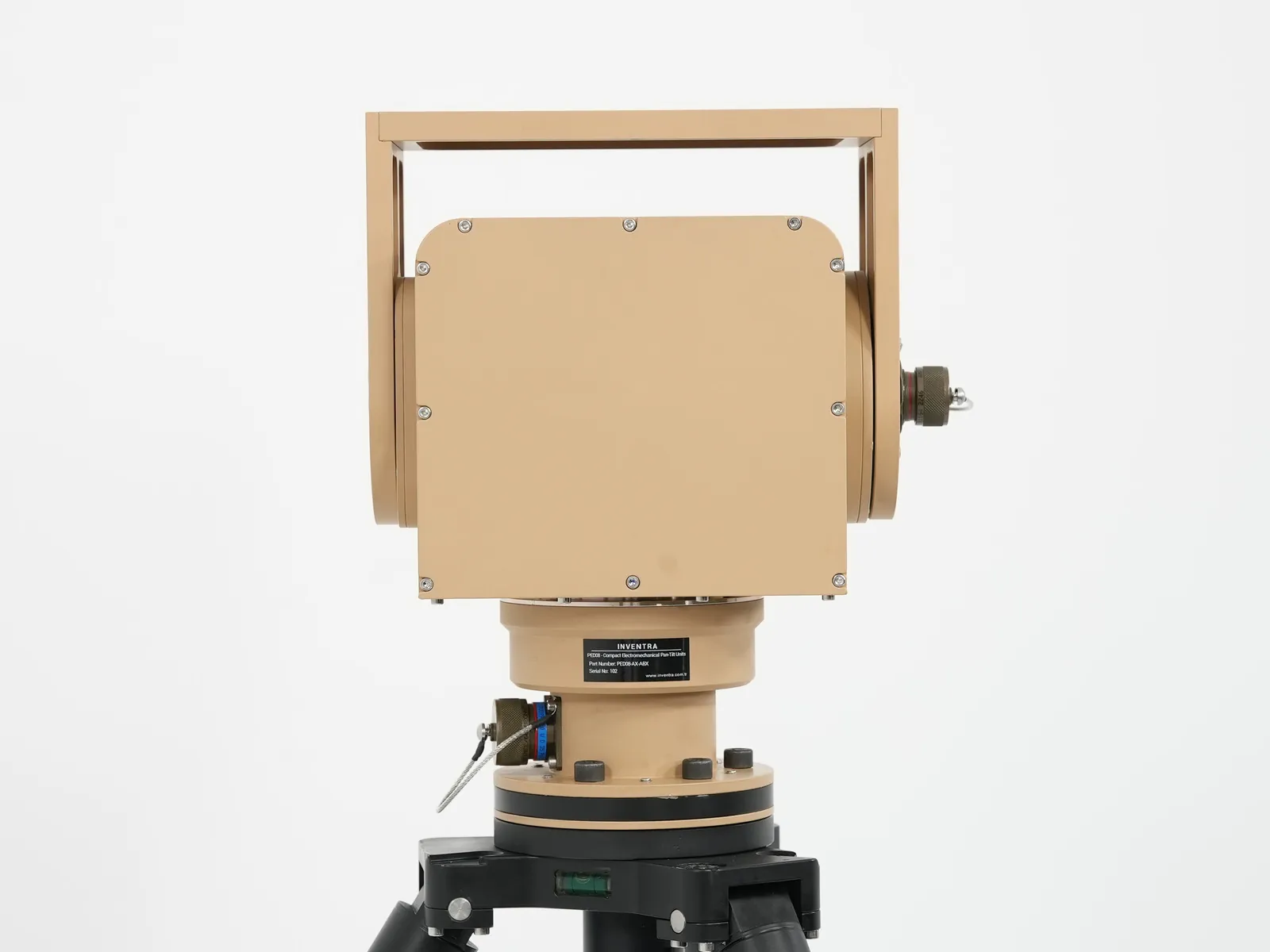

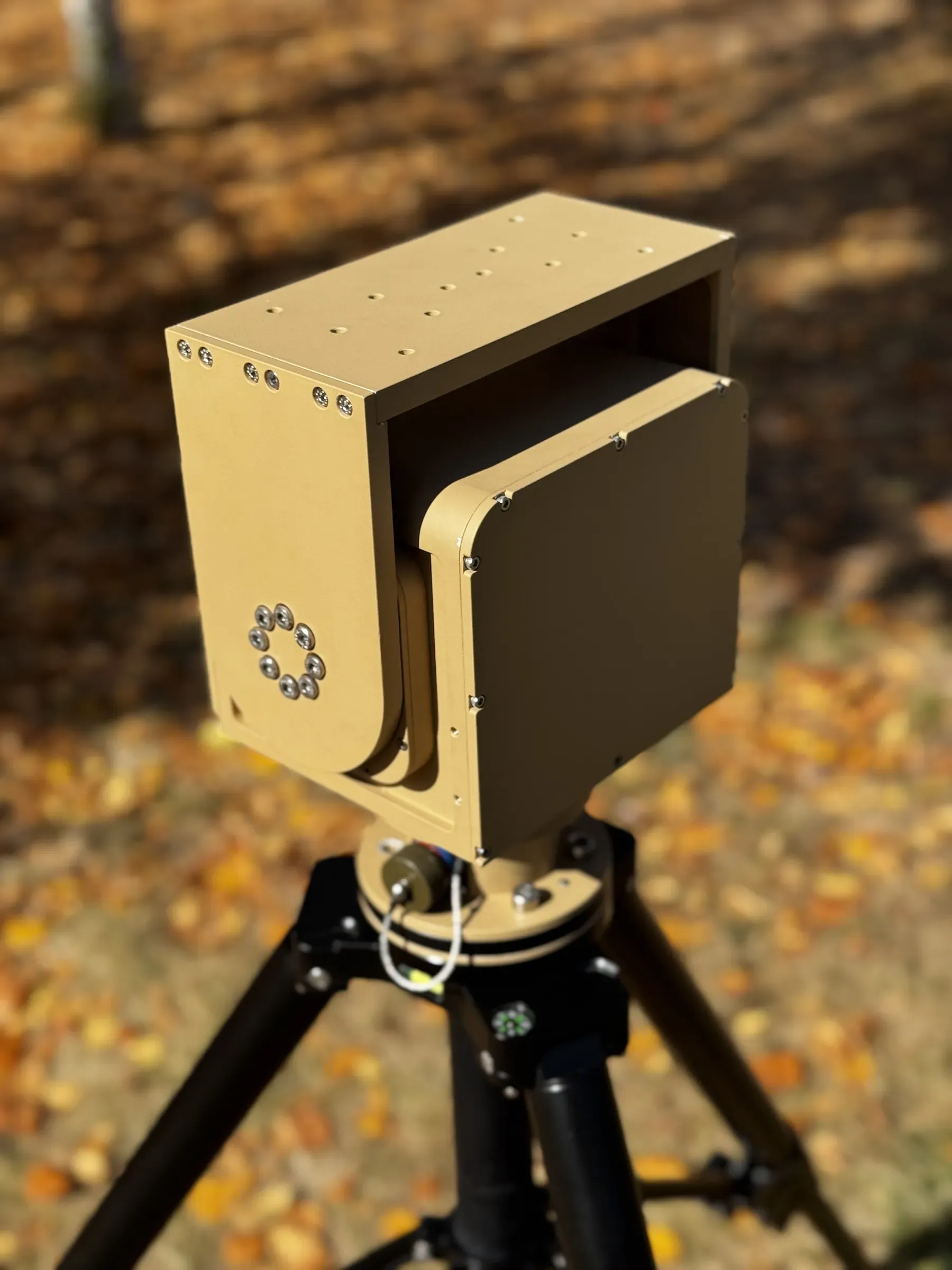

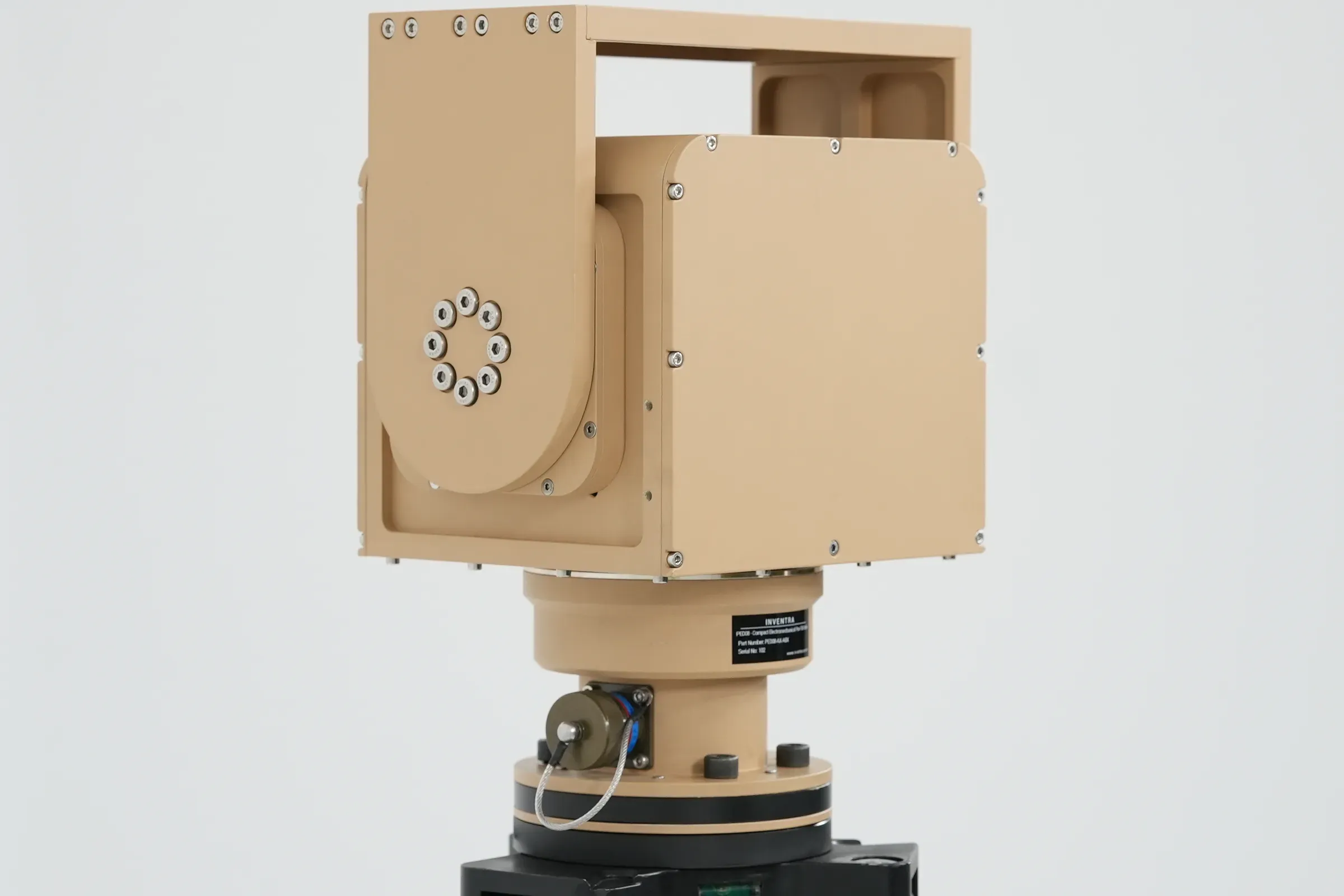

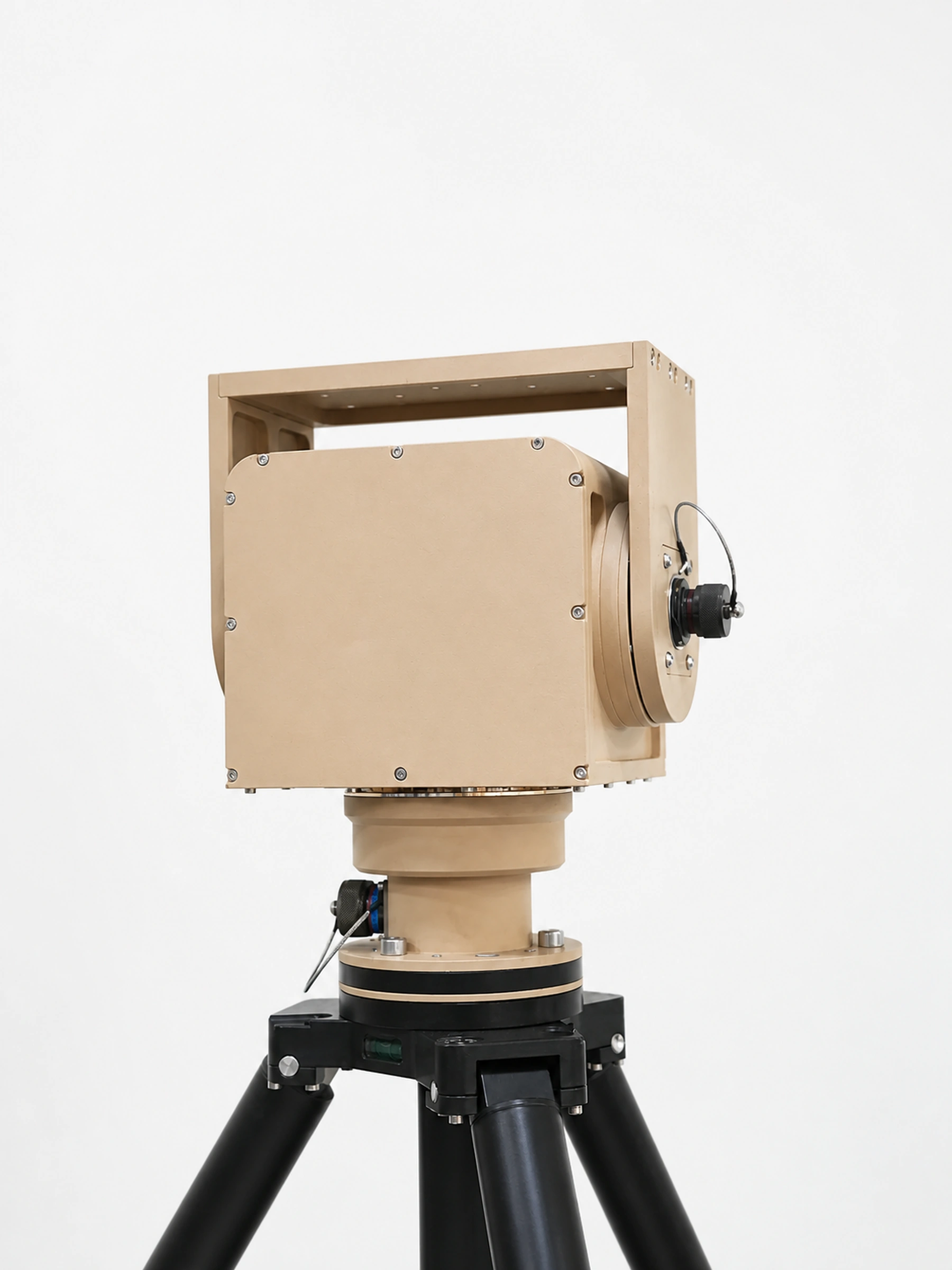

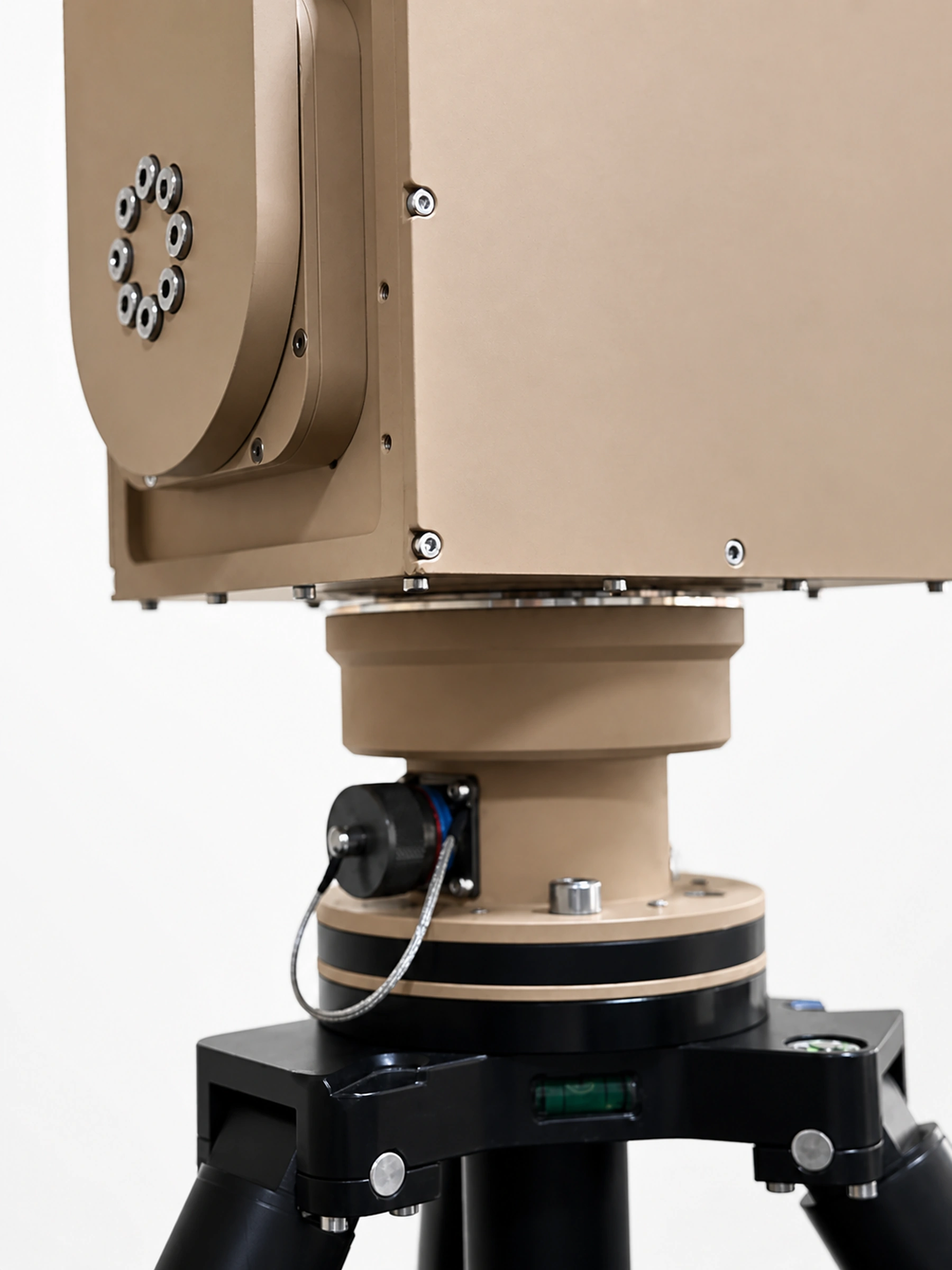

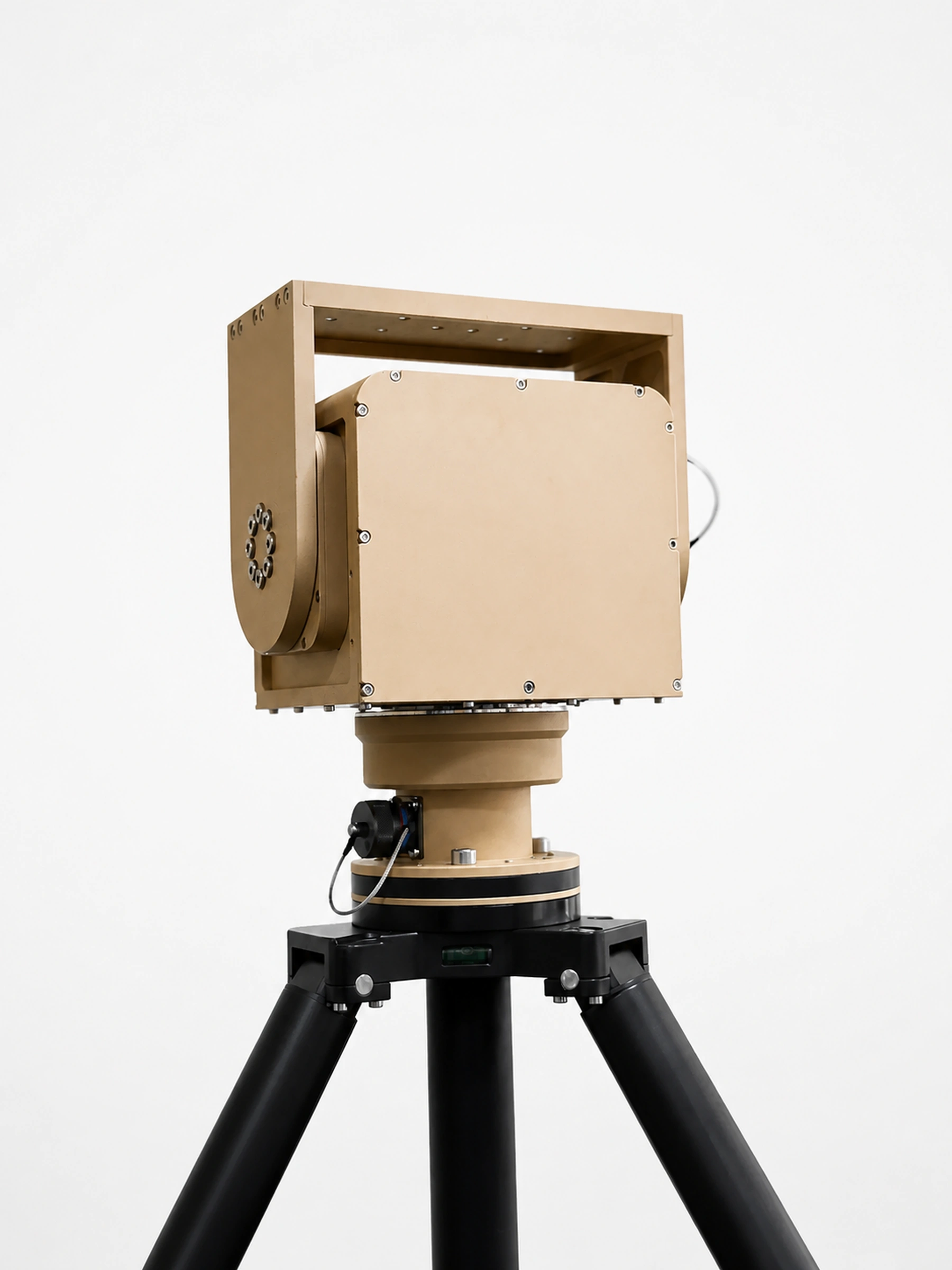

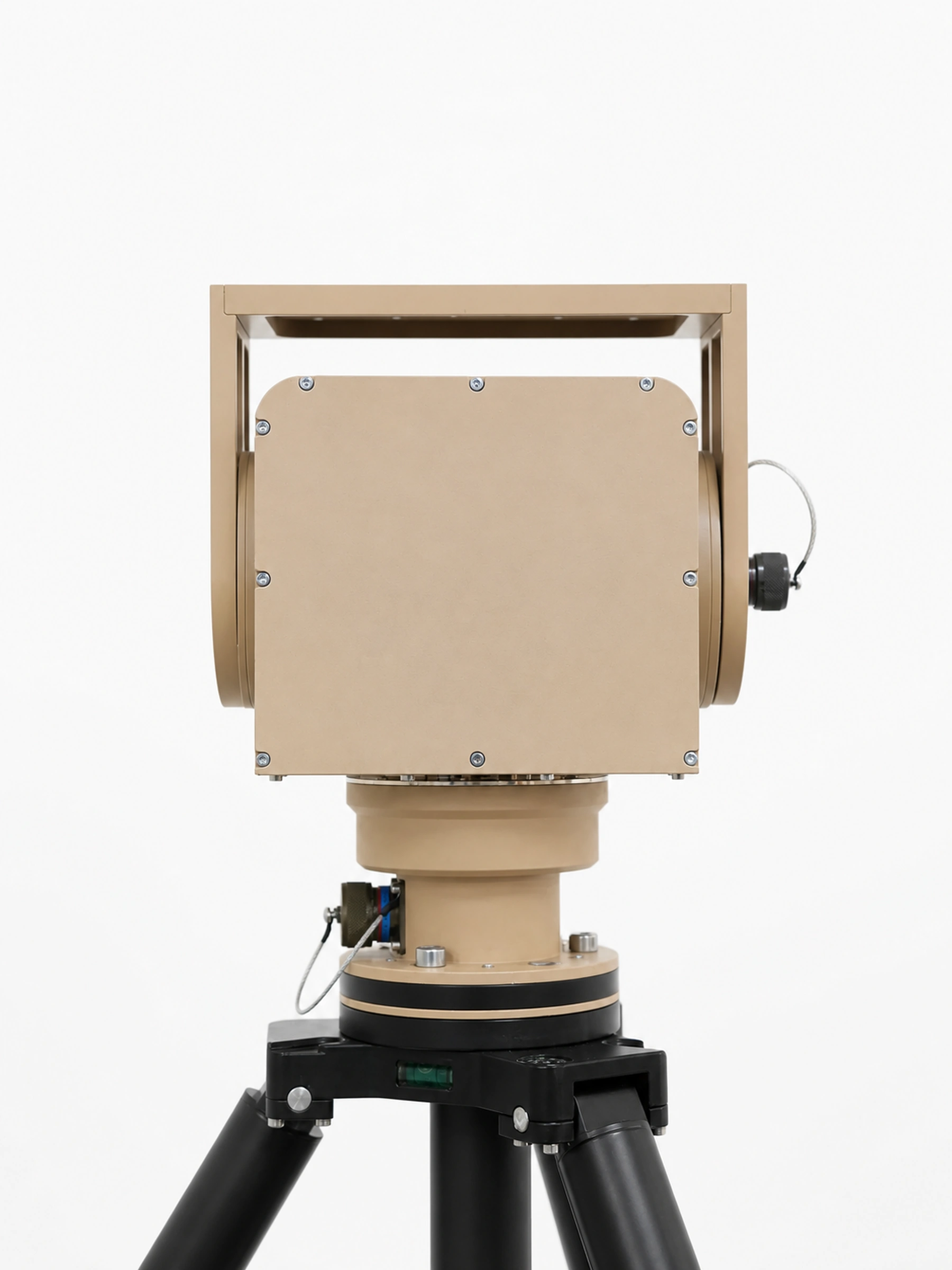

Gallery

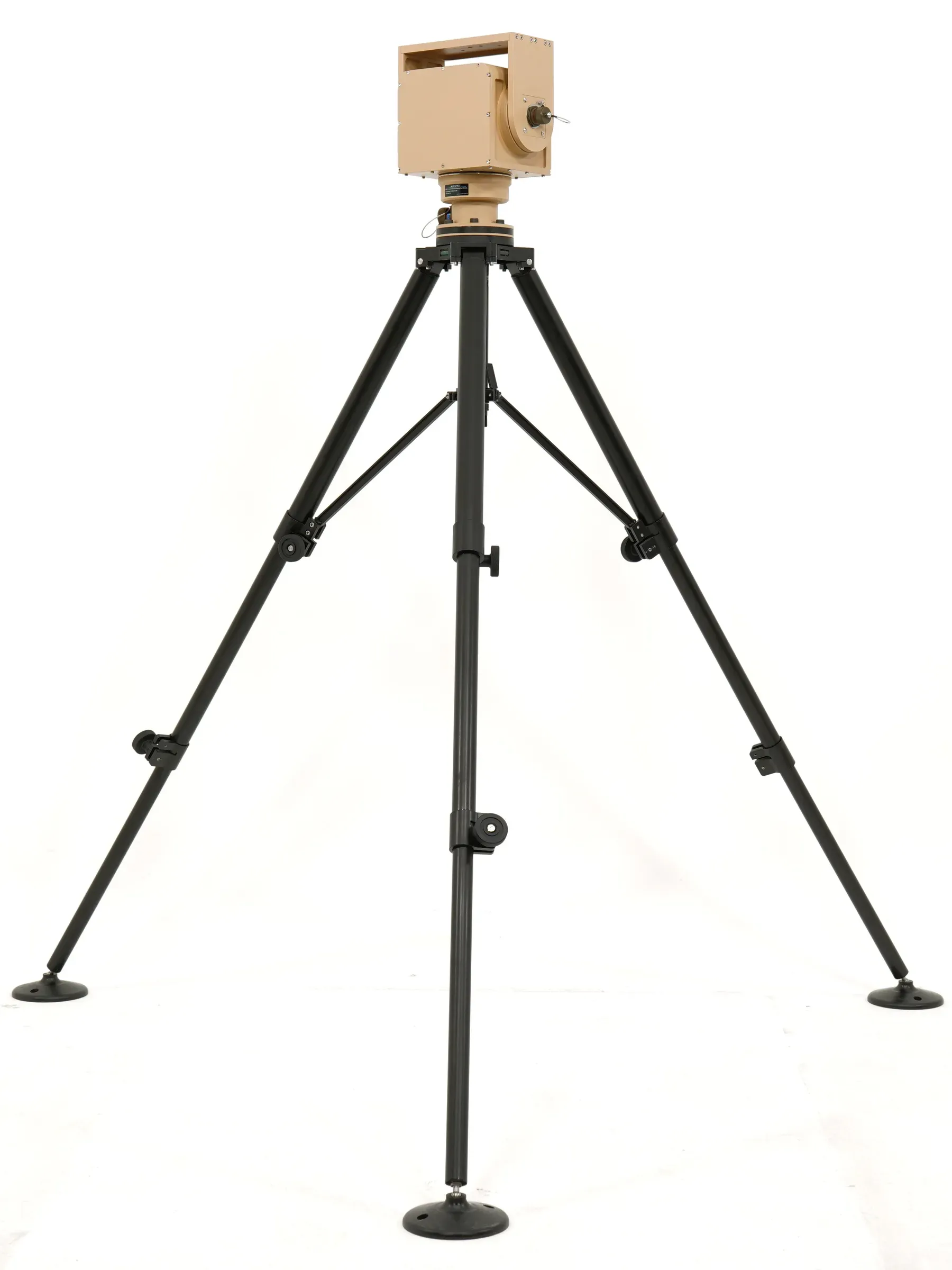

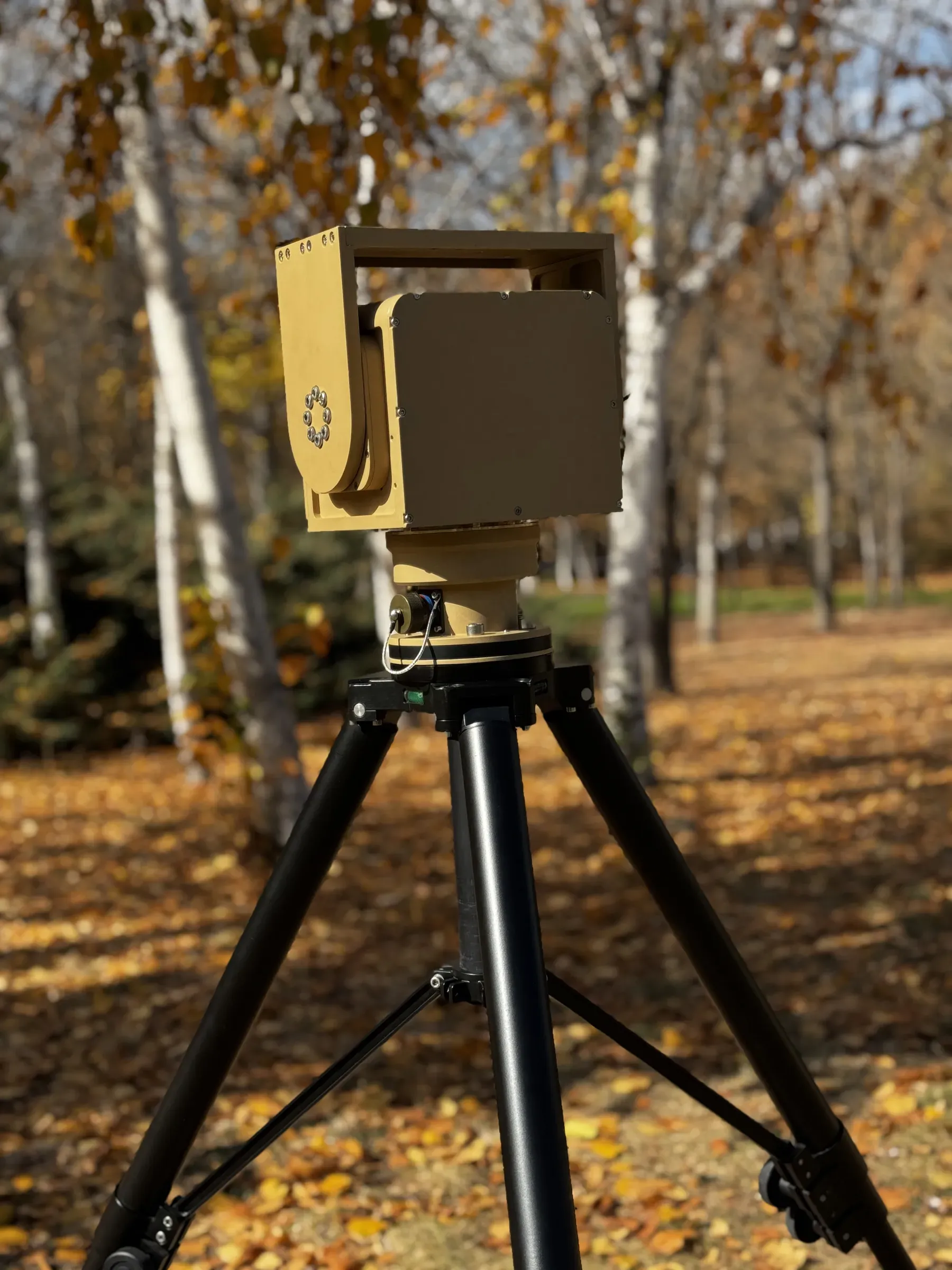

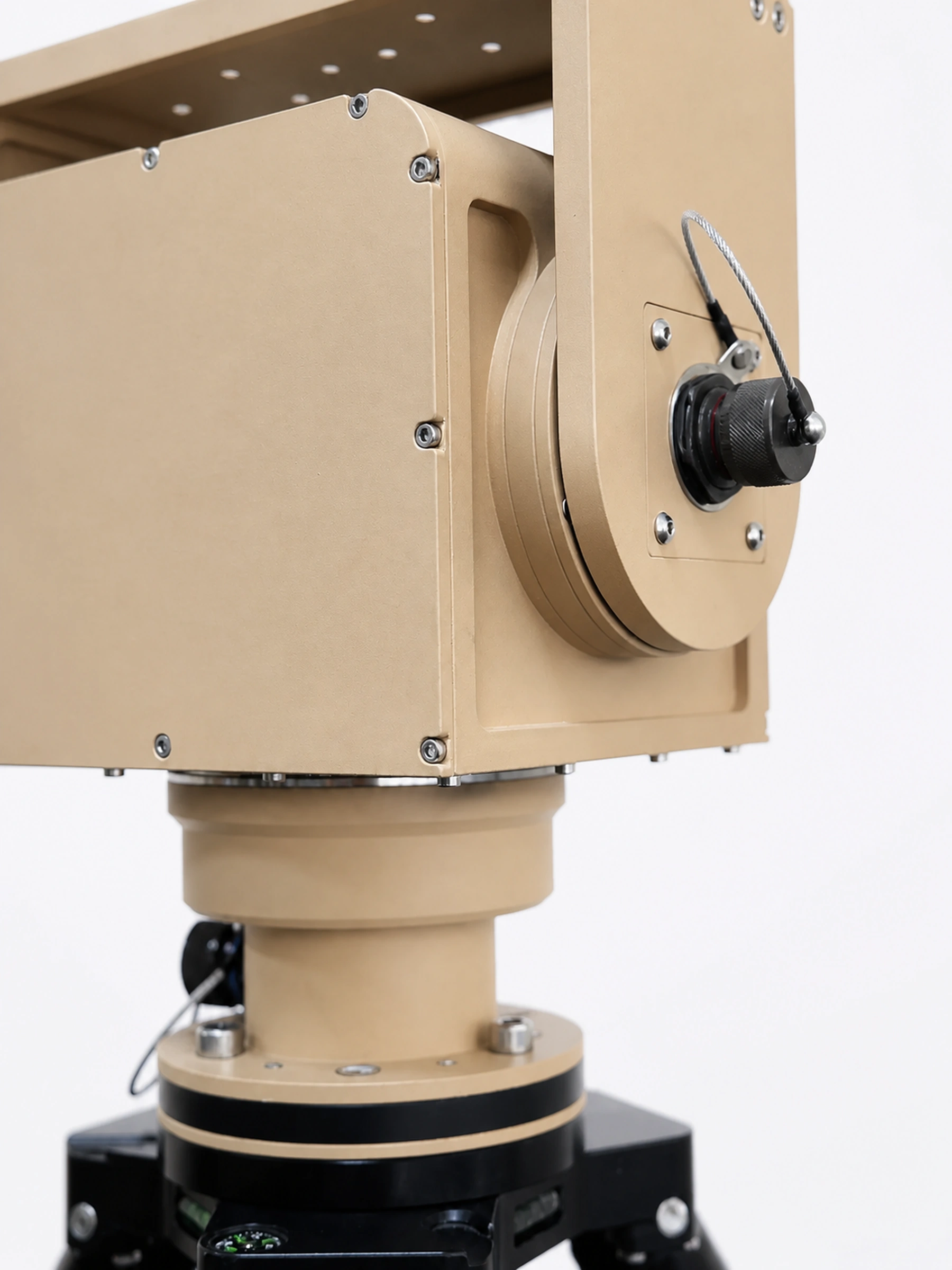

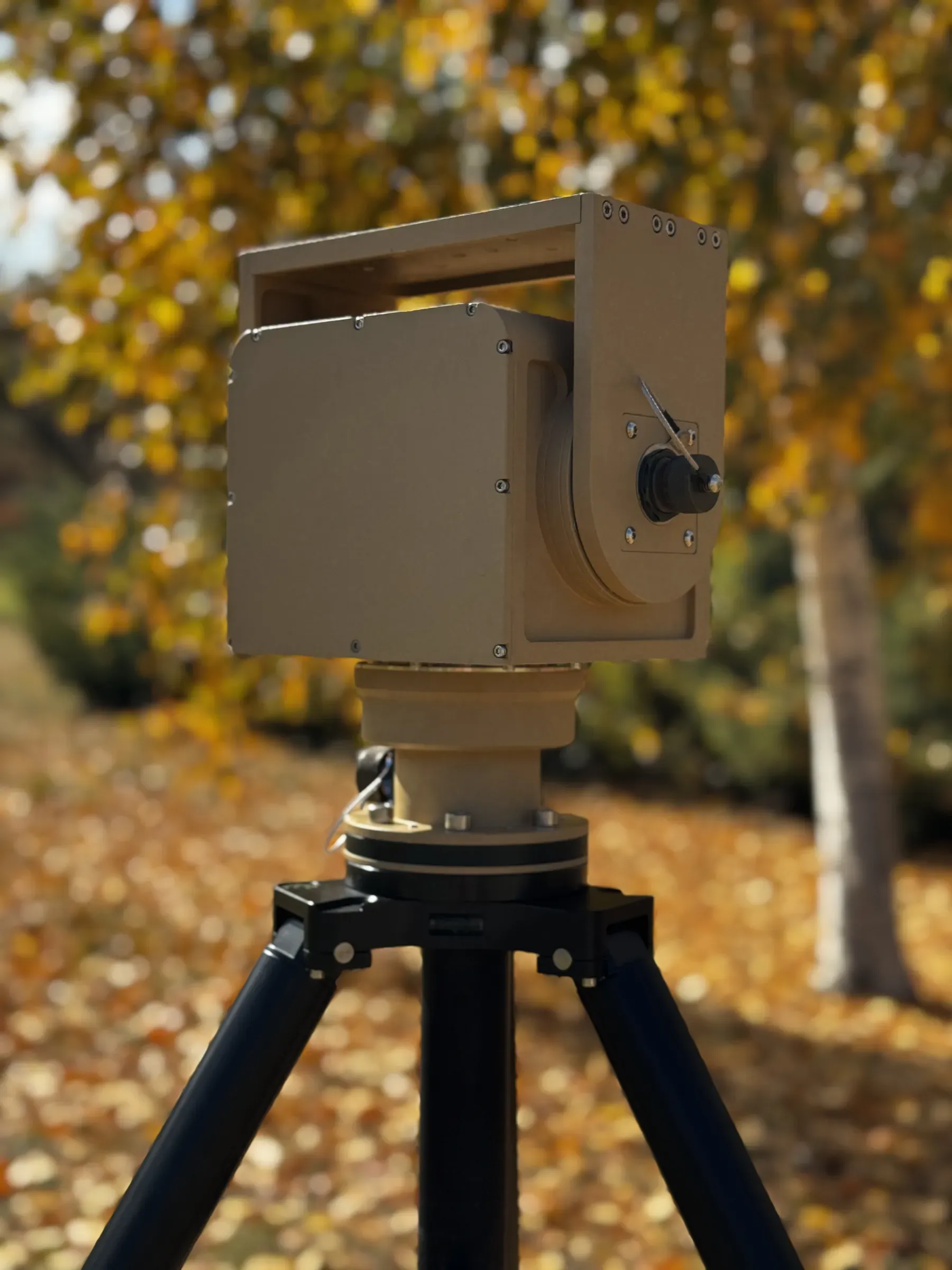

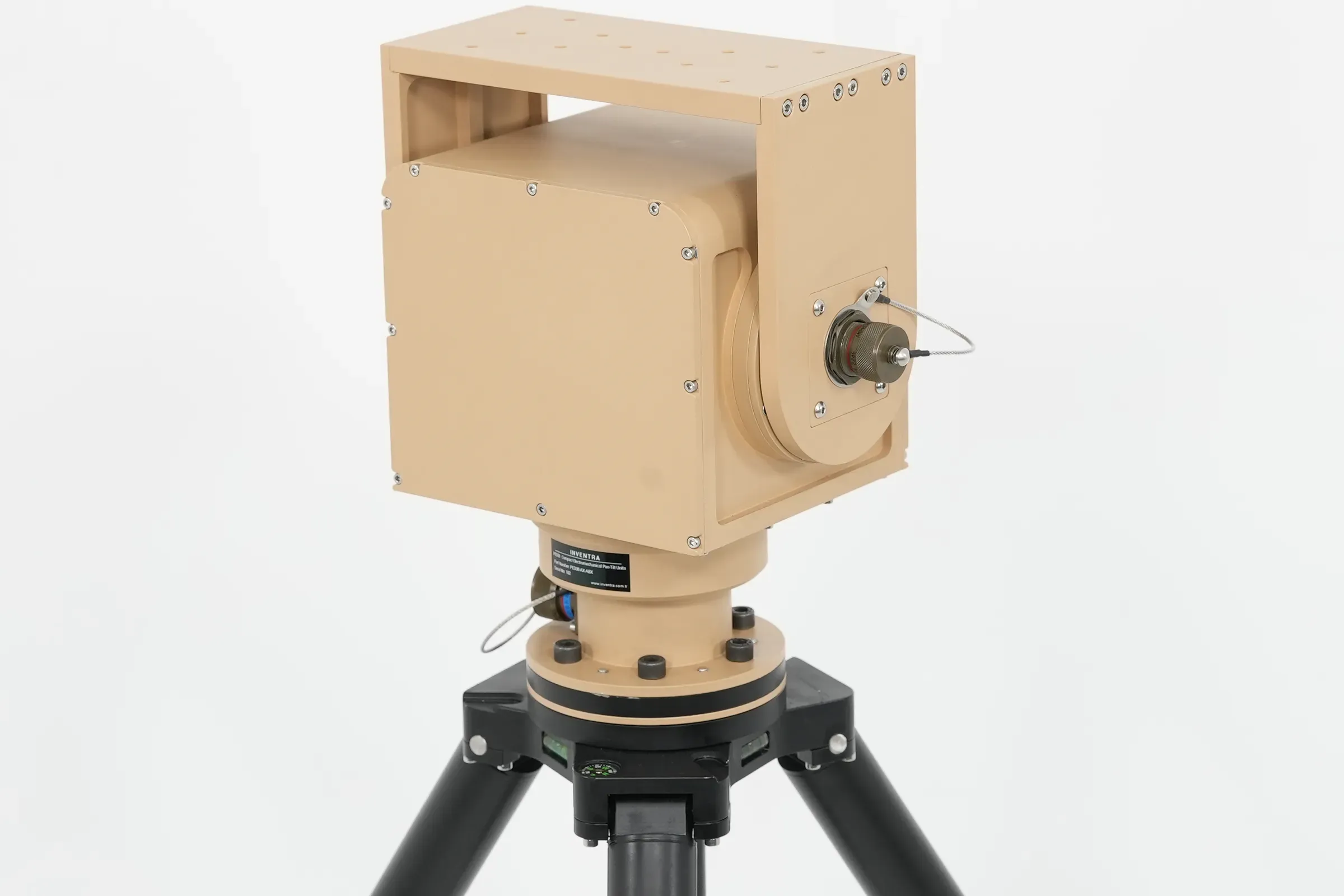

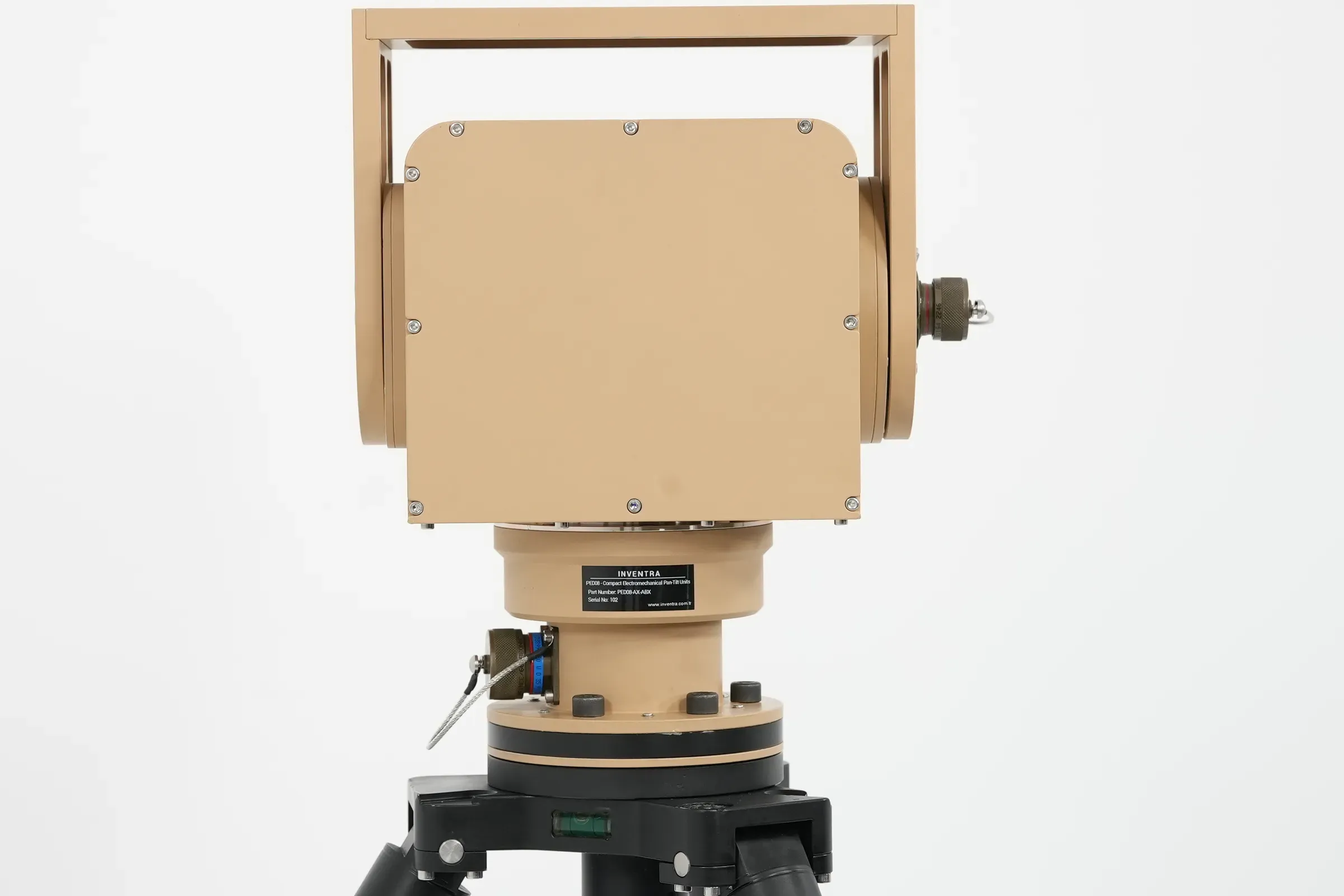

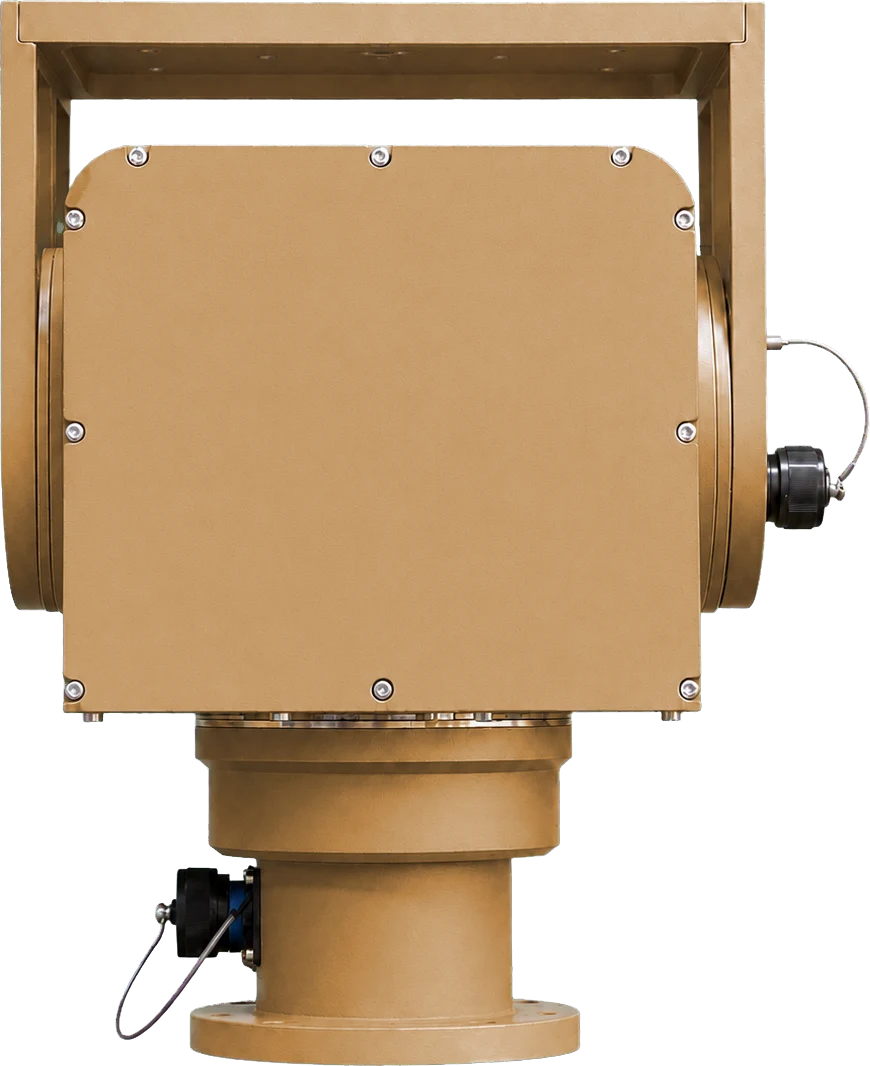

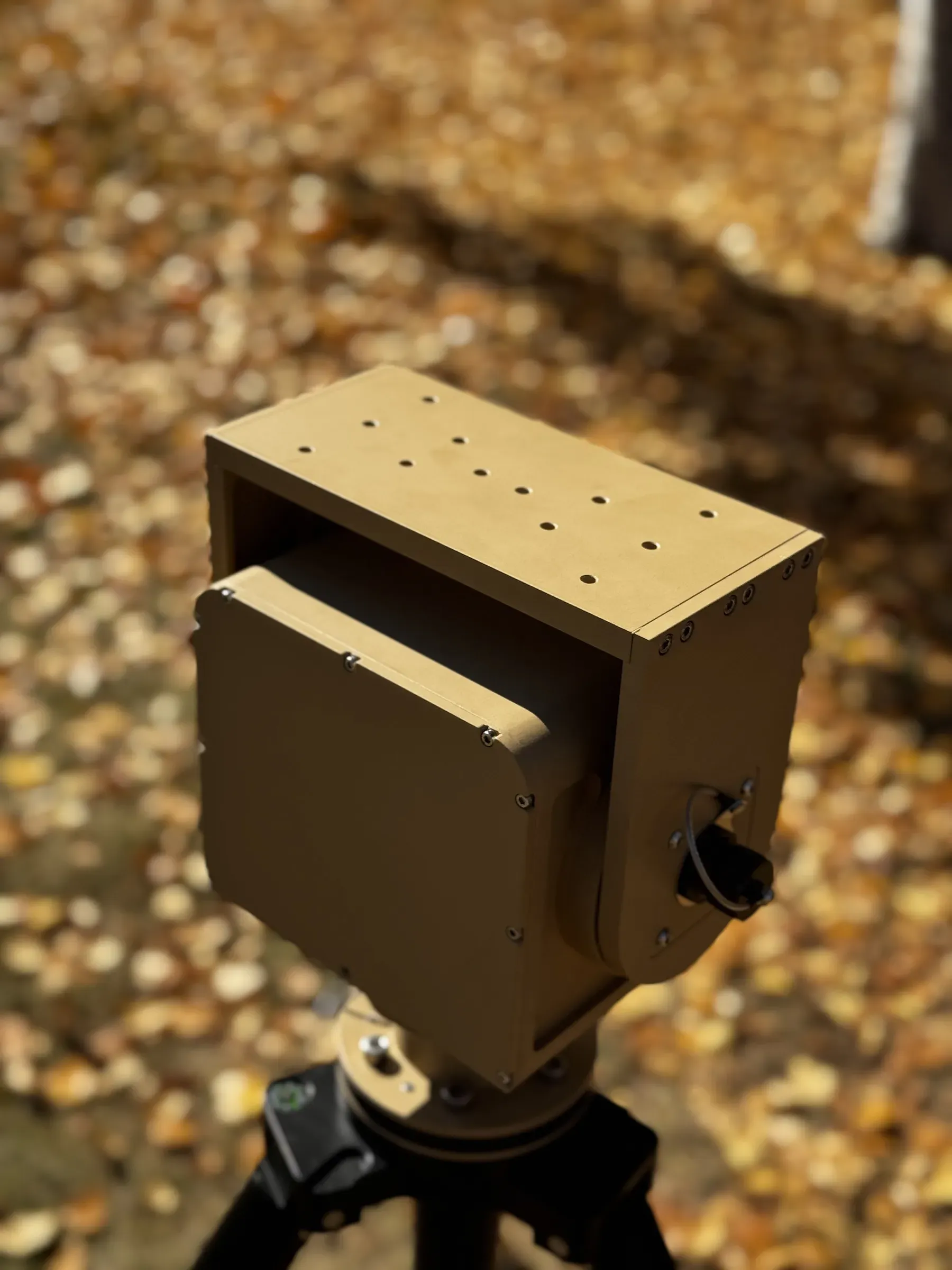

Select a frame to open it at full size.
Configurations
| Part Number | Pan speed°/s | Pan torqueNm | Tilt speed°/s | Tilt torqueNm |
|---|---|---|---|---|
| PED08-0120-0060-0060-0085Standard | 12 | 60 | 6 | 85 |
| PED08-0060-0085-0060-0085 | 6 | 85 | 6 | 85 |
| PED08-0060-0085-0120-0060 | 6 | 85 | 12 | 60 |
| PED08-0060-0085-0240-0045 | 6 | 85 | 24 | 45 |
| PED08-0060-0085-0480-0030 | 6 | 85 | 48 | 30 |
| PED08-0060-0085-0060-0135 | 6 | 85 | 6 | 135 |
| PED08-0060-0085-0120-0085 | 6 | 85 | 12 | 85 |
| PED08-0120-0060-0120-0060 | 12 | 60 | 12 | 60 |
| PED08-0120-0060-0240-0045 | 12 | 60 | 24 | 45 |
| PED08-0120-0060-0480-0030 | 12 | 60 | 48 | 30 |
| PED08-0120-0060-0060-0135 | 12 | 60 | 6 | 135 |
| PED08-0120-0060-0120-0085 | 12 | 60 | 12 | 85 |
| PED08-0240-0045-0060-0085 | 24 | 45 | 6 | 85 |
| PED08-0240-0045-0120-0060 | 24 | 45 | 12 | 60 |
| PED08-0240-0045-0240-0045 | 24 | 45 | 24 | 45 |
| PED08-0240-0045-0480-0030 | 24 | 45 | 48 | 30 |
| PED08-0240-0045-0060-0135 | 24 | 45 | 6 | 135 |
| PED08-0240-0045-0120-0085 | 24 | 45 | 12 | 85 |
| PED08-0480-0030-0060-0085 | 48 | 30 | 6 | 85 |
| PED08-0480-0030-0120-0060 | 48 | 30 | 12 | 60 |
| PED08-0480-0030-0240-0045 | 48 | 30 | 24 | 45 |
| PED08-0480-0030-0480-0030 | 48 | 30 | 48 | 30 |
| PED08-0480-0030-0060-0135 | 48 | 30 | 6 | 135 |
| PED08-0480-0030-0120-0085 | 48 | 30 | 12 | 85 |
Options
- STABStabilization
- HNDCHand Controller
- MPIFMultiple Payload Interface
- SRSHSun and Rain Shieldordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Tilt – Nominal Speed | 6 °/s |
|---|---|
| Tilt – Nominal Torque | 85 Nm |
| Pan – Nominal Speed | 12 °/s |
| Pan – Nominal Torque | 60 Nm |
| Pan – Axis Range | N × 360° |
| Tilt – Axis Range | ±45° |
| Axis Resolution | 0,002° |
| Accuracy | 0,04° |
| Pan – Peak Torque | 120 Nm |
| Tilt – Peak Torque | 120 Nm |
| Weight | 9,0 kg |
| Line Count | 60 pcs |
|---|---|
| Rated Life | 30.000.000 revolutions |
| Signal 1 | 1 Gbit Ethernet |
| Signal 2 – Line Count | 52 pcs |
| Signal 2 – Current Rating | 2 A |
| Operating Voltage | 18-32 VDC |
|---|---|
| Power Consumption (Typical) | 10 W |
| Communication Interface | RS-422 |
| Communication Interface (Optional) | Ethernet |

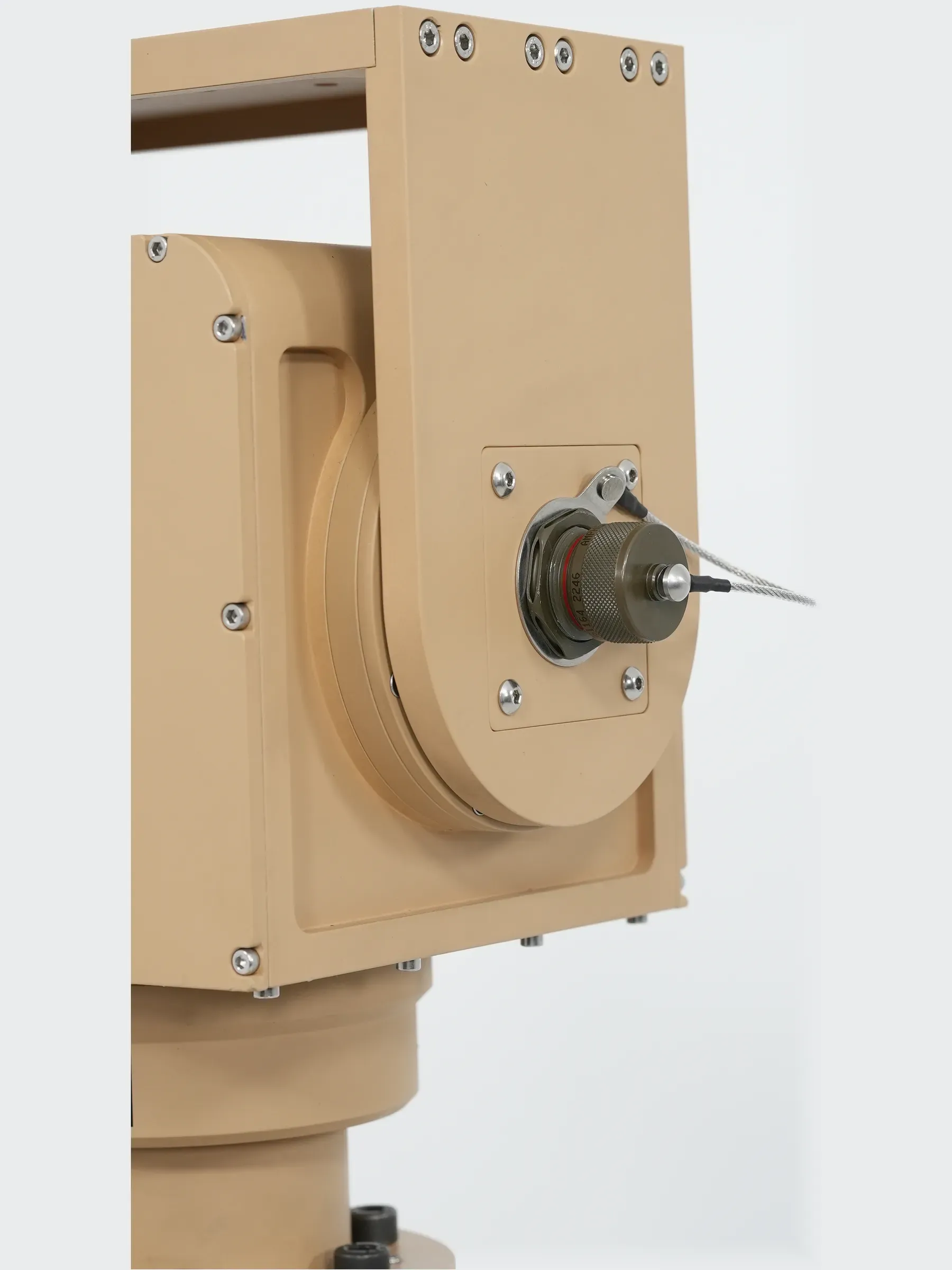

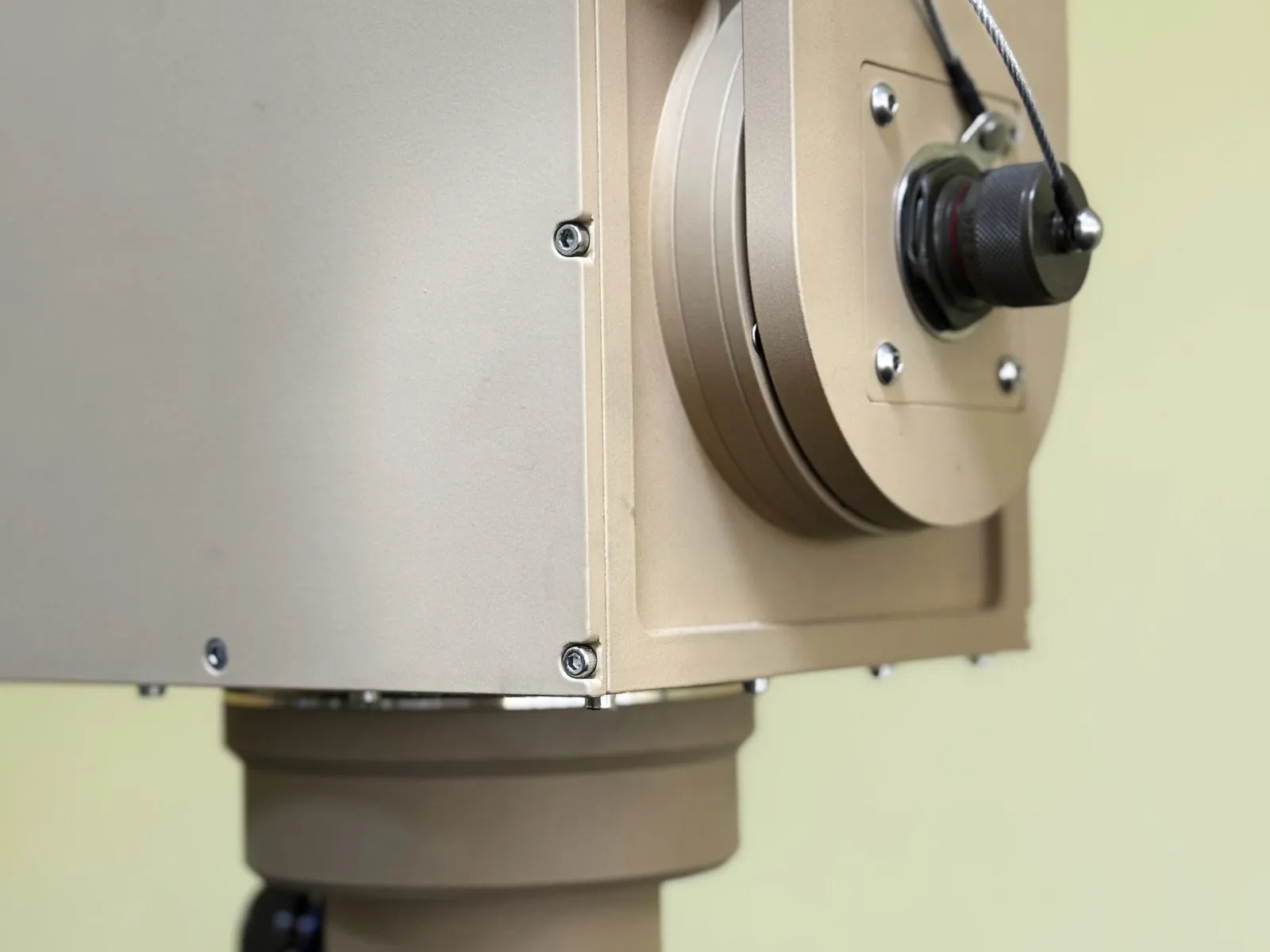

| Connector Type | MIL-DTL-38999 |
| Width | 220 mm |
|---|---|
| Height | 287 mm |
| Depth | 160 mm |
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Humidity | Mtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes |
| EMI/EMC Standard | MIL-STD-461G |
|---|---|
| CE102 | Power Leads, 10 kHz – 10 MHz |
| CS101 | Power Leads, 30 Hz – 150 kHz |
| CS114 | Bulk Cable Injection, 10 kHz – 200 MHz |
| CS115 | Bulk Cable Injection, Impulse Excitation |
| CS116 | Damped Sinusoidal Transients, 10 kHz – 100 MHz |
| CS118 | Personnel Borne Electrostatic Discharge |
| RE102 | Electric Field, 10 kHz – 18 GHz |
| RS103 | Electric Field, 2 MHz – 18 GHz |
Documents
- DatasheetDownloadable — PDF, 192 KB
- User ManualOn Request
- 3D Model (STEP)On Request
- Mechanical Interface Control DocumentOn Request
- MIL-STD-810G Environmental Qualification ReportOn Request
- Electrical Interface Control DocumentOn Request
- Software Interface Control DocumentOn Request
- MIL-STD-461G EMI/EMC Test ReportOn Request
