Pan-Tilt & Positioning Systems
PEG03

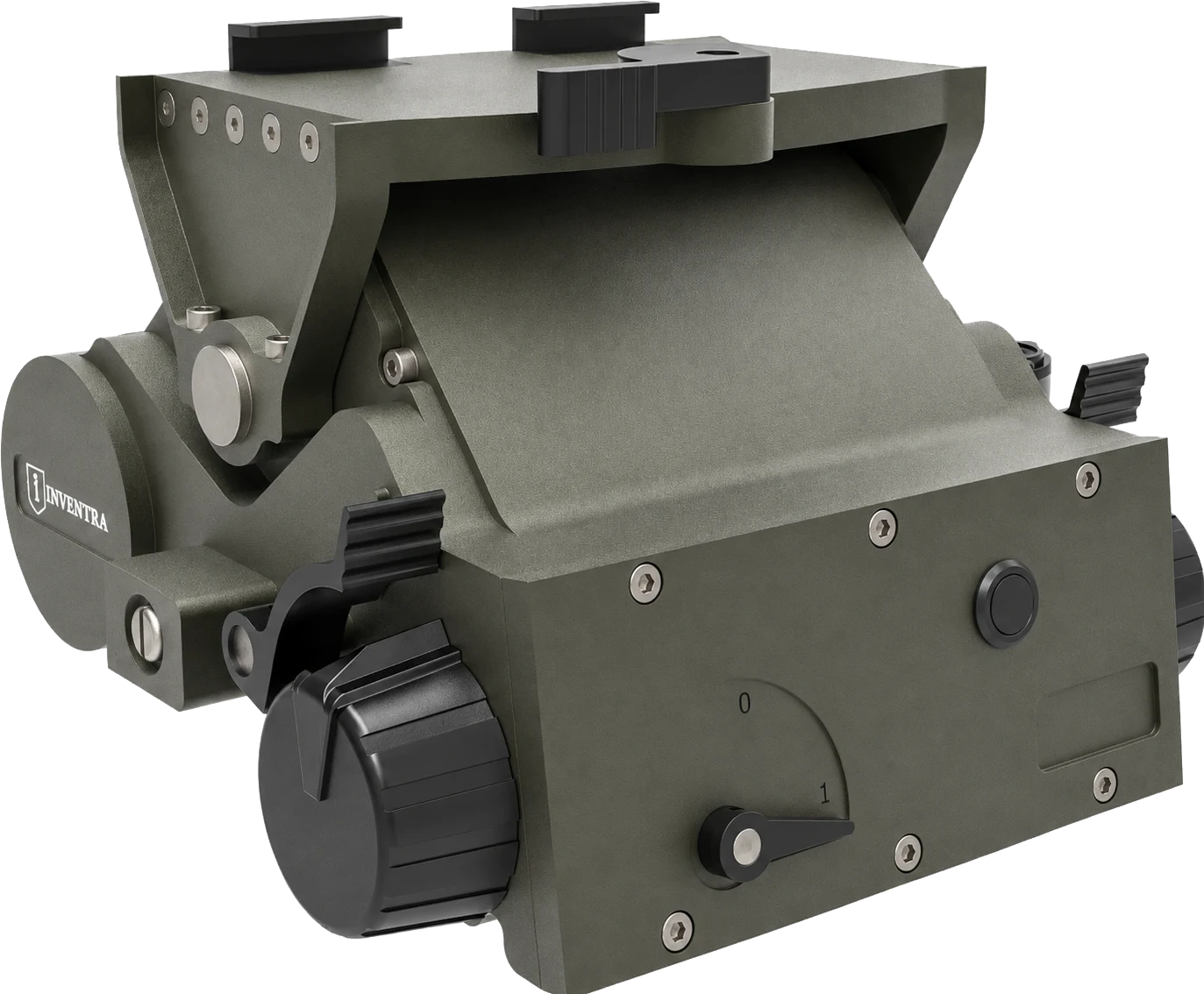

Lightweight Goniometer
Man-portable digital goniometer under 3 kg giving 0.1 mil resolution and 1 mil accuracy on both axes for line-of-sight measurement.
- N × 360°
- 0,0056° resolution
- 12 kg payload
- 12 kg
- Rated Payload
- 0,056°
- Accuracy
- 0,0056°
- Axis Resolution
Highlights
01Goniometer accuracy
0.0056° resolution, one tenth of a mil
High-resolution encoders read 0.0056°, which the catalogue states as 0.1 mil, and hold accuracy to 0.056° on both axes. That is the level a line-of-sight measurement needs to be worth reporting.
- N × 360° continuous pan, ±45° tilt
- Digital magnetic compass compatible
02Fine adjustment
Independent fine adjust and braking per axis
Each axis has its own fine adjustment over 0.8438° and its own brake, so a sighting can be set on one axis and held while the other is worked.
- Selectable payload counterbalance up to 12 kg
- Braking available on both axes

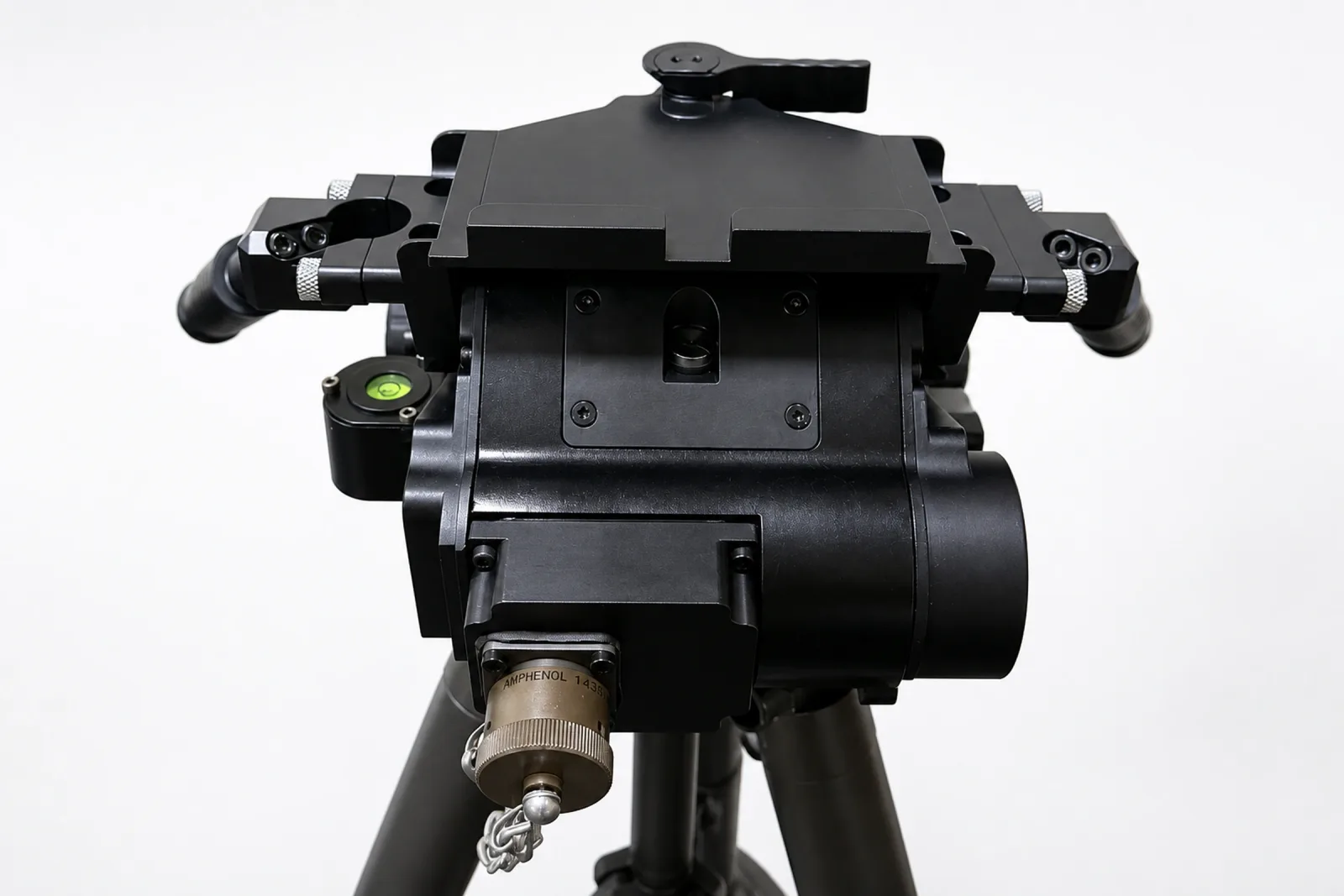

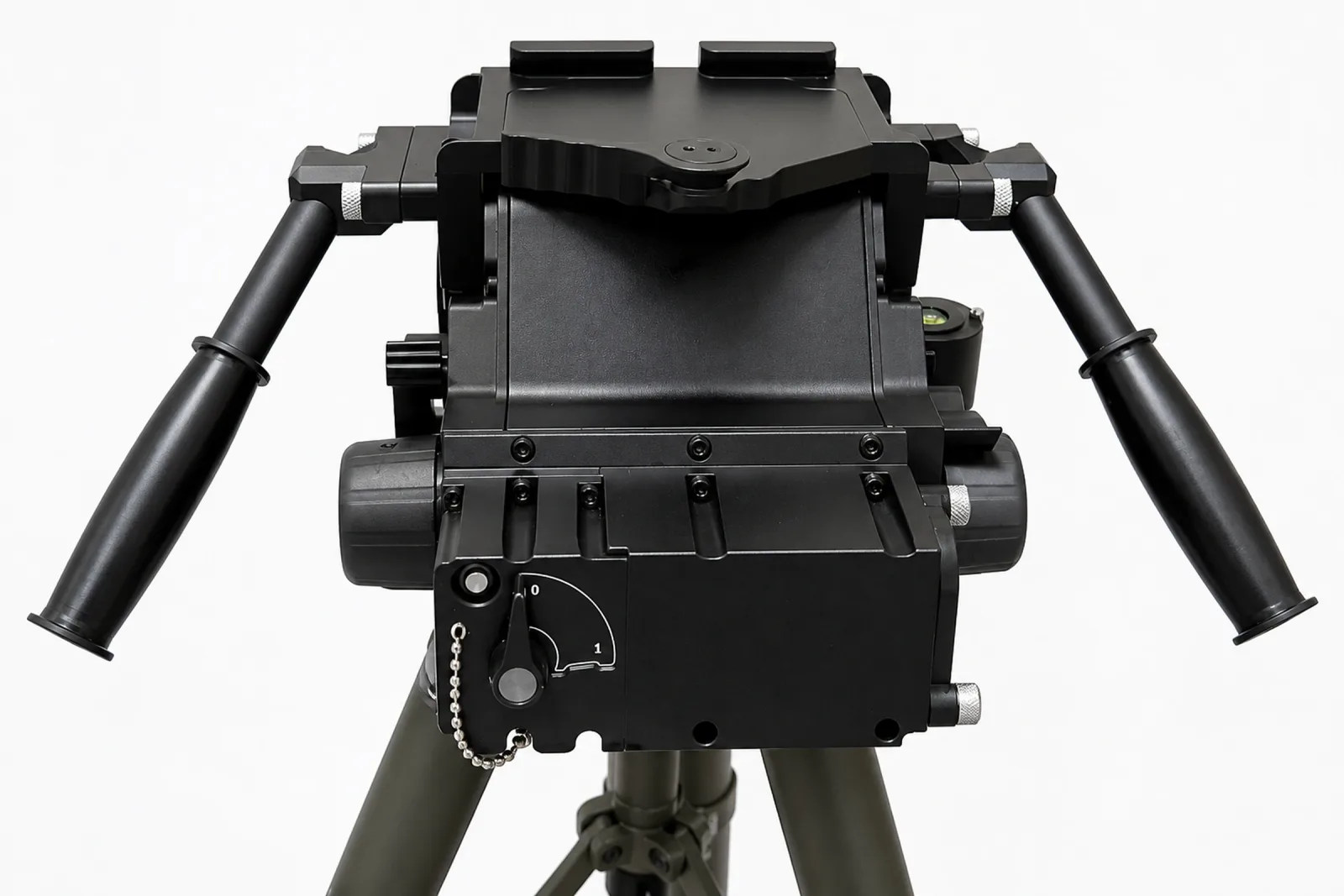

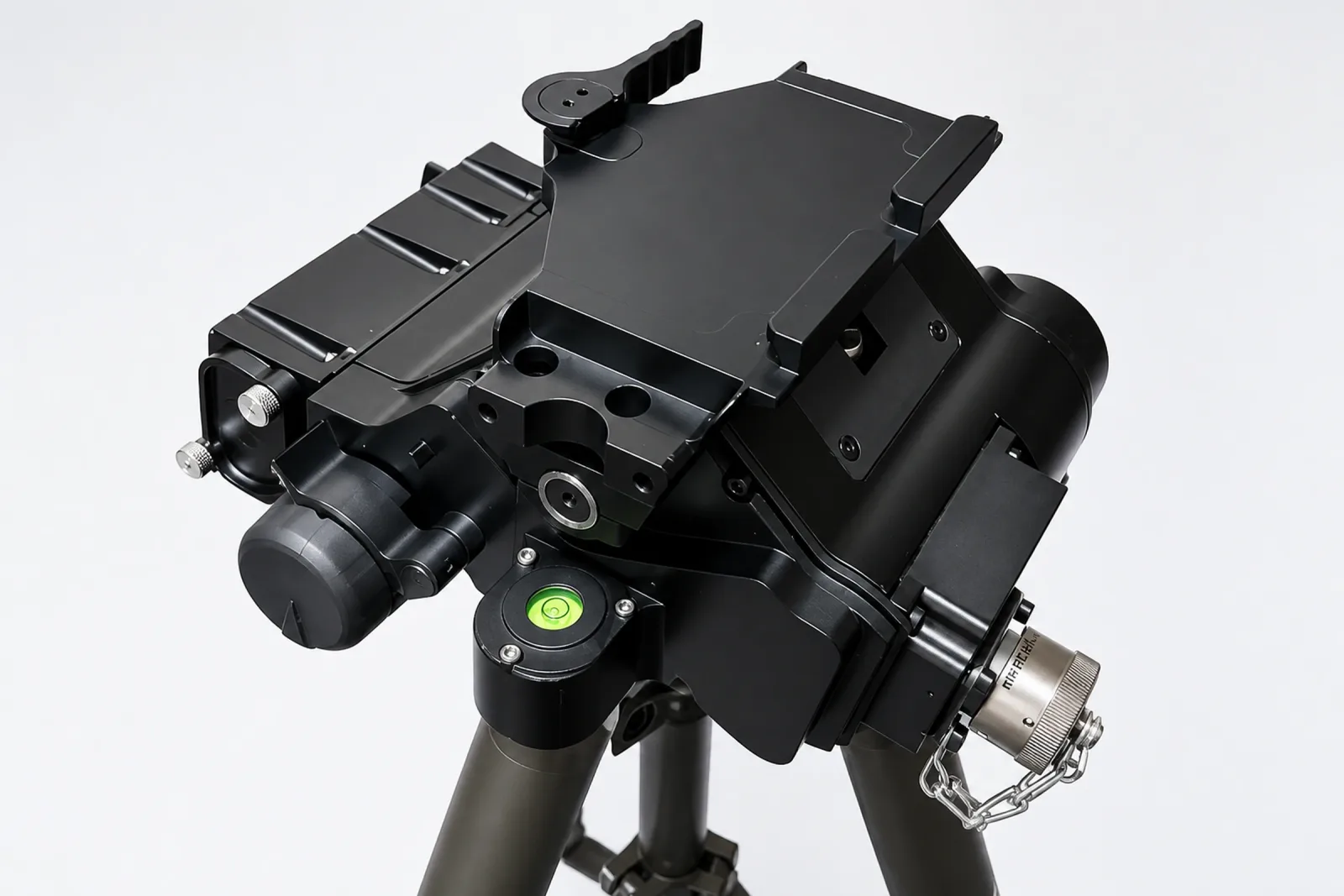

Gallery

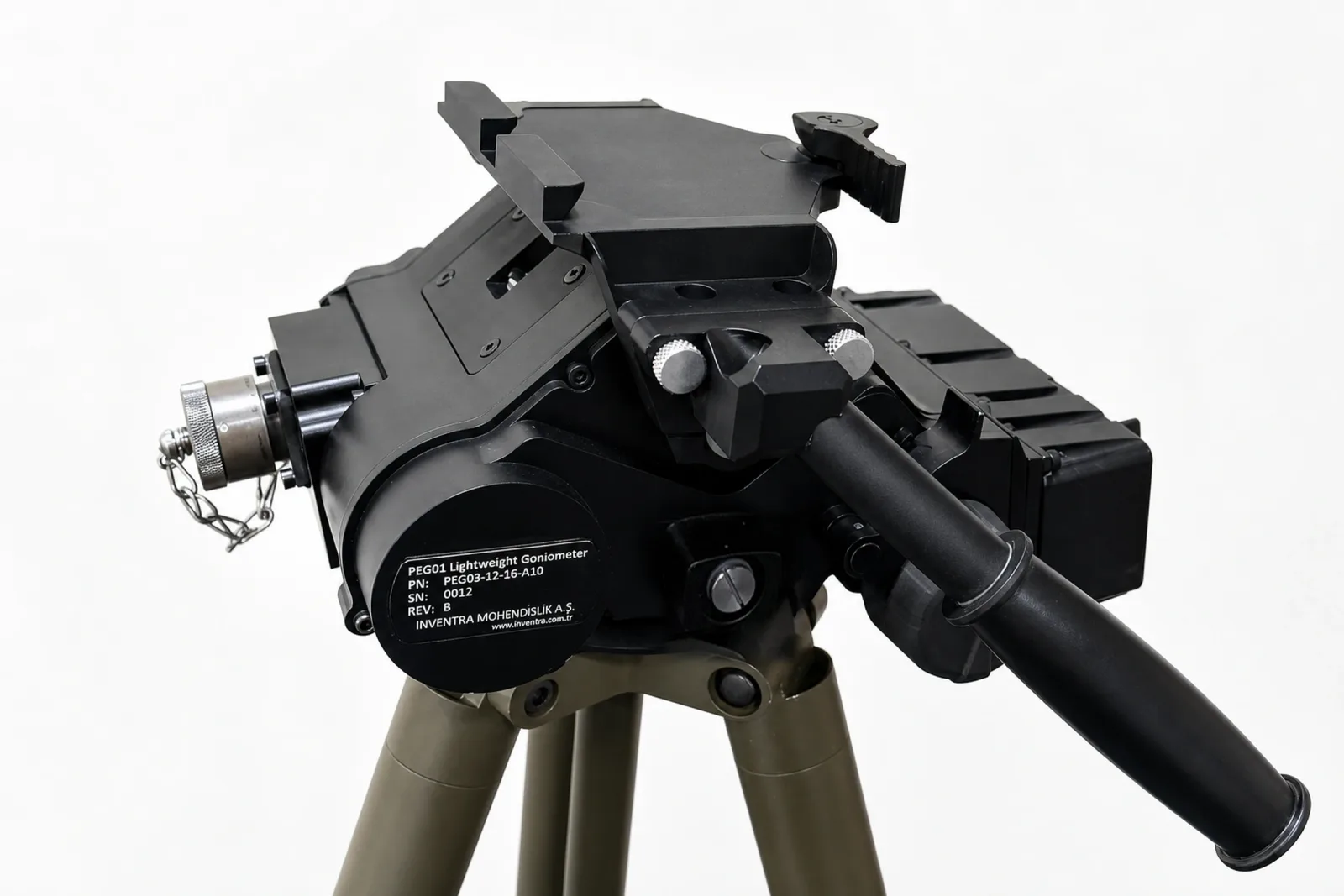

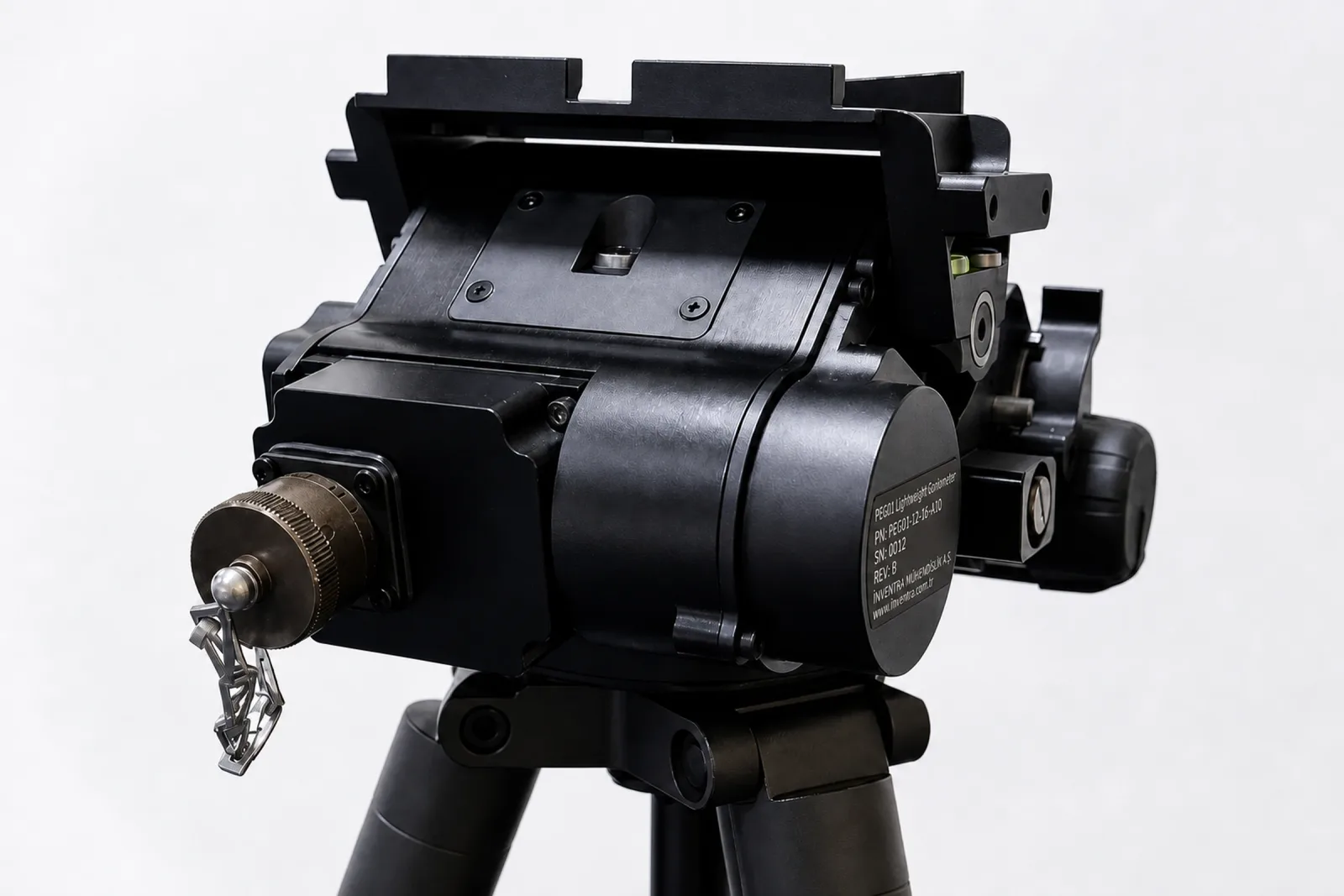

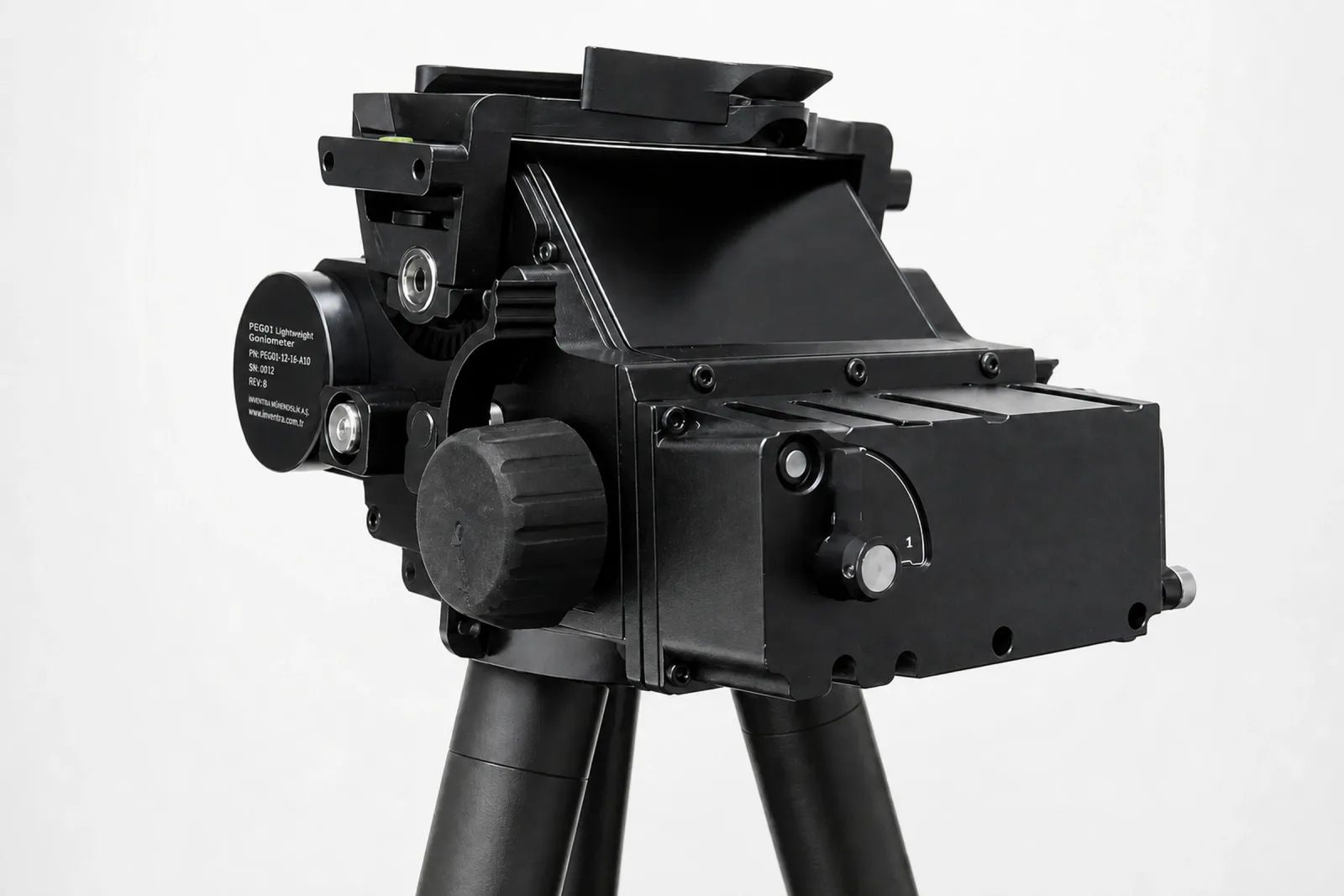

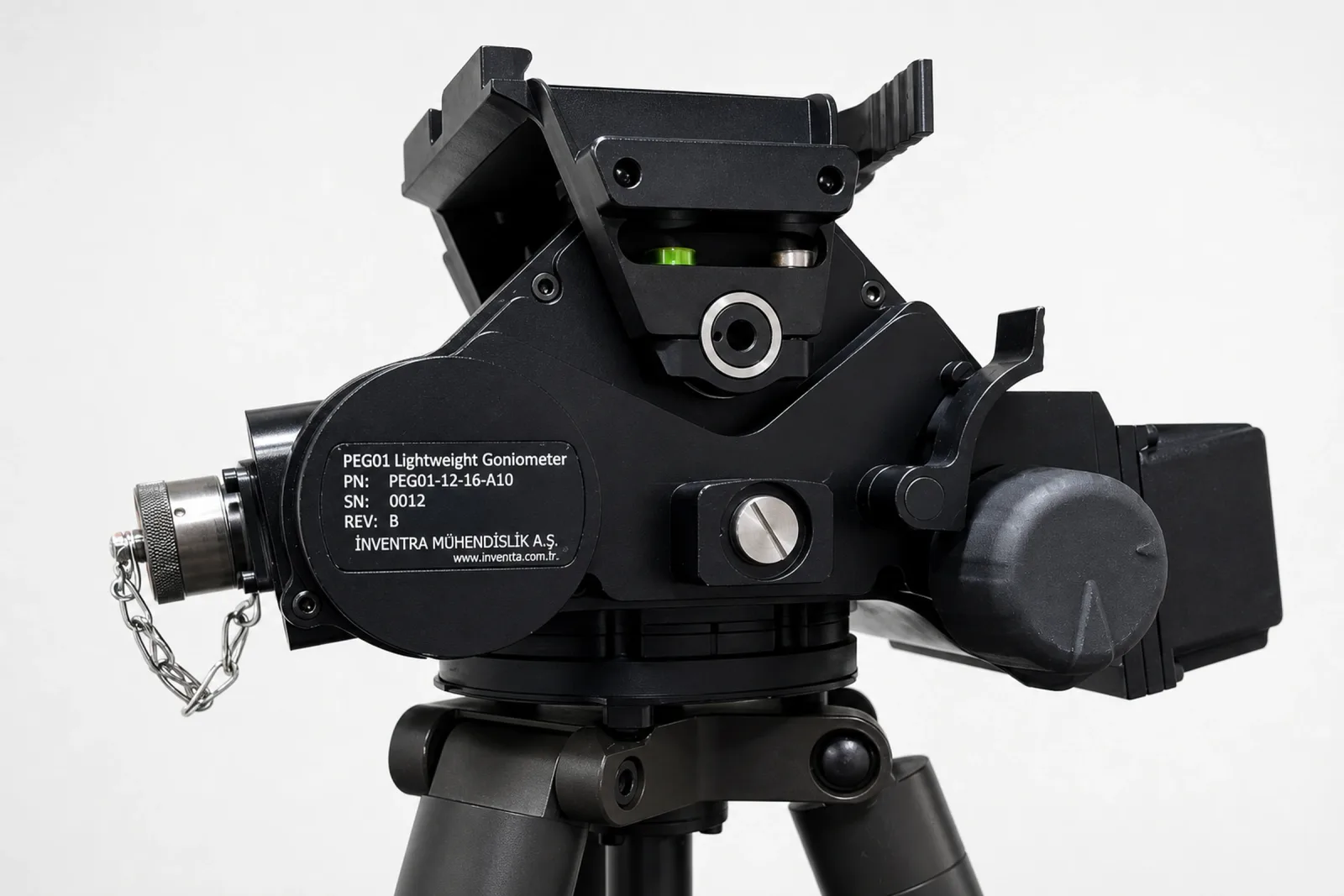

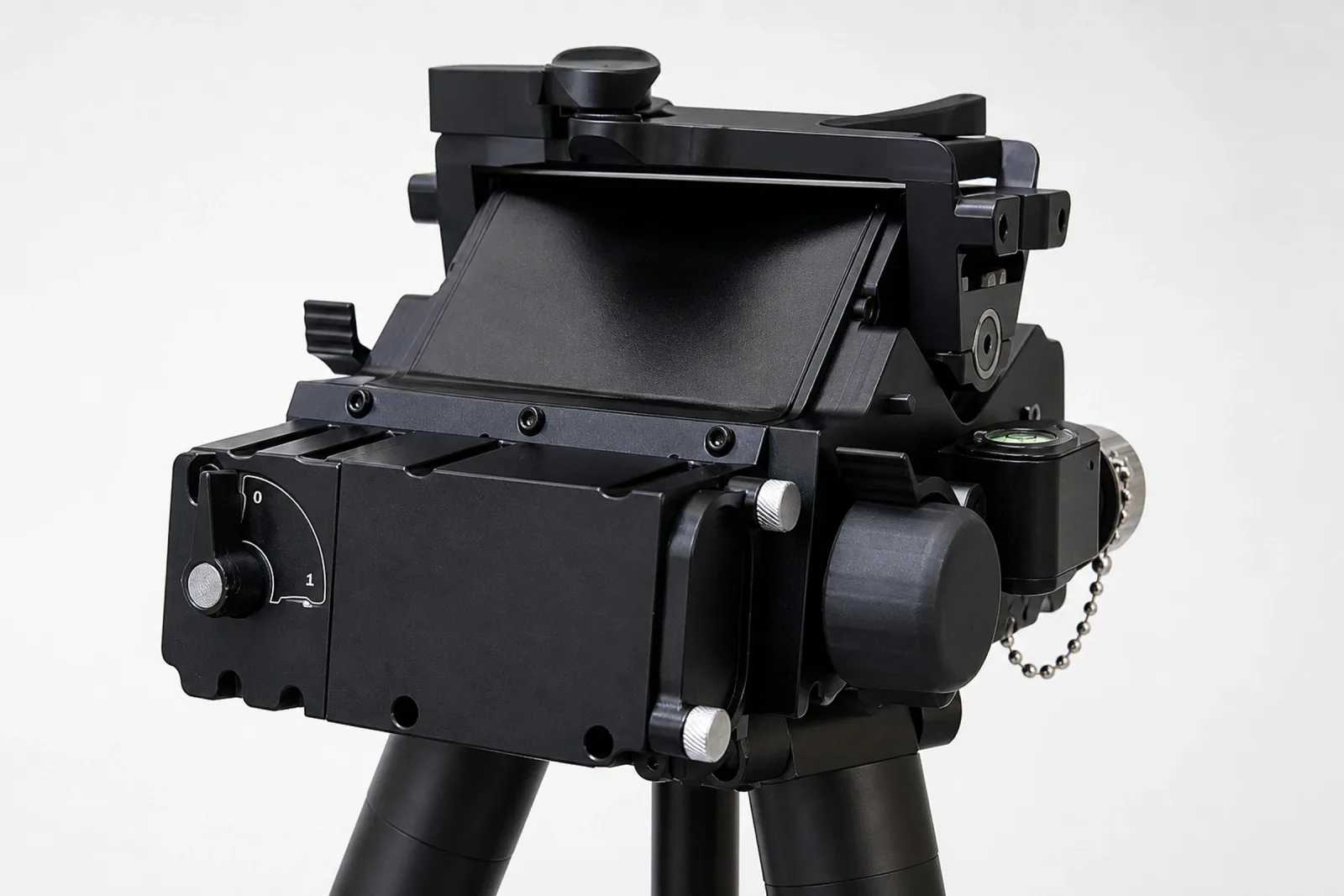

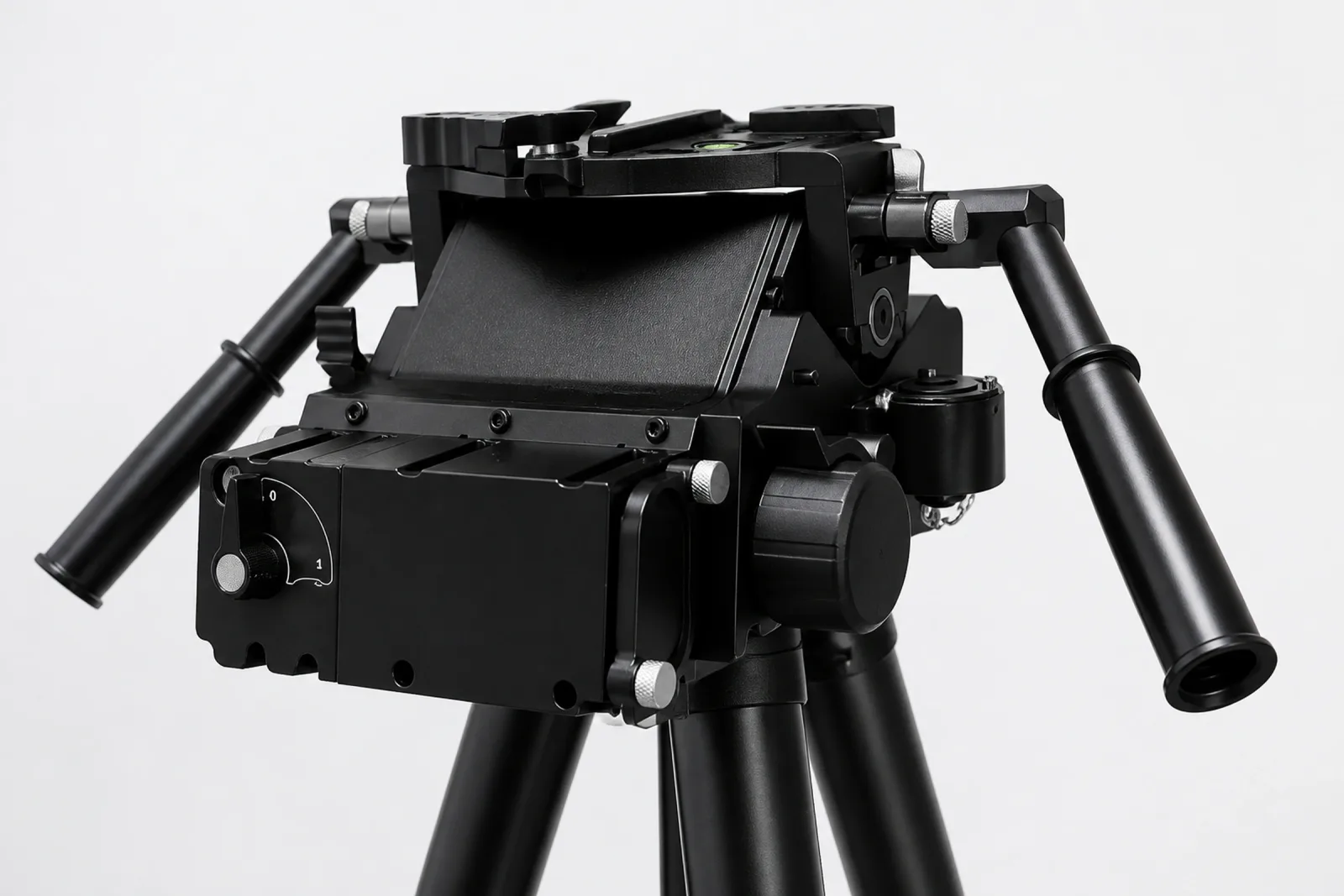

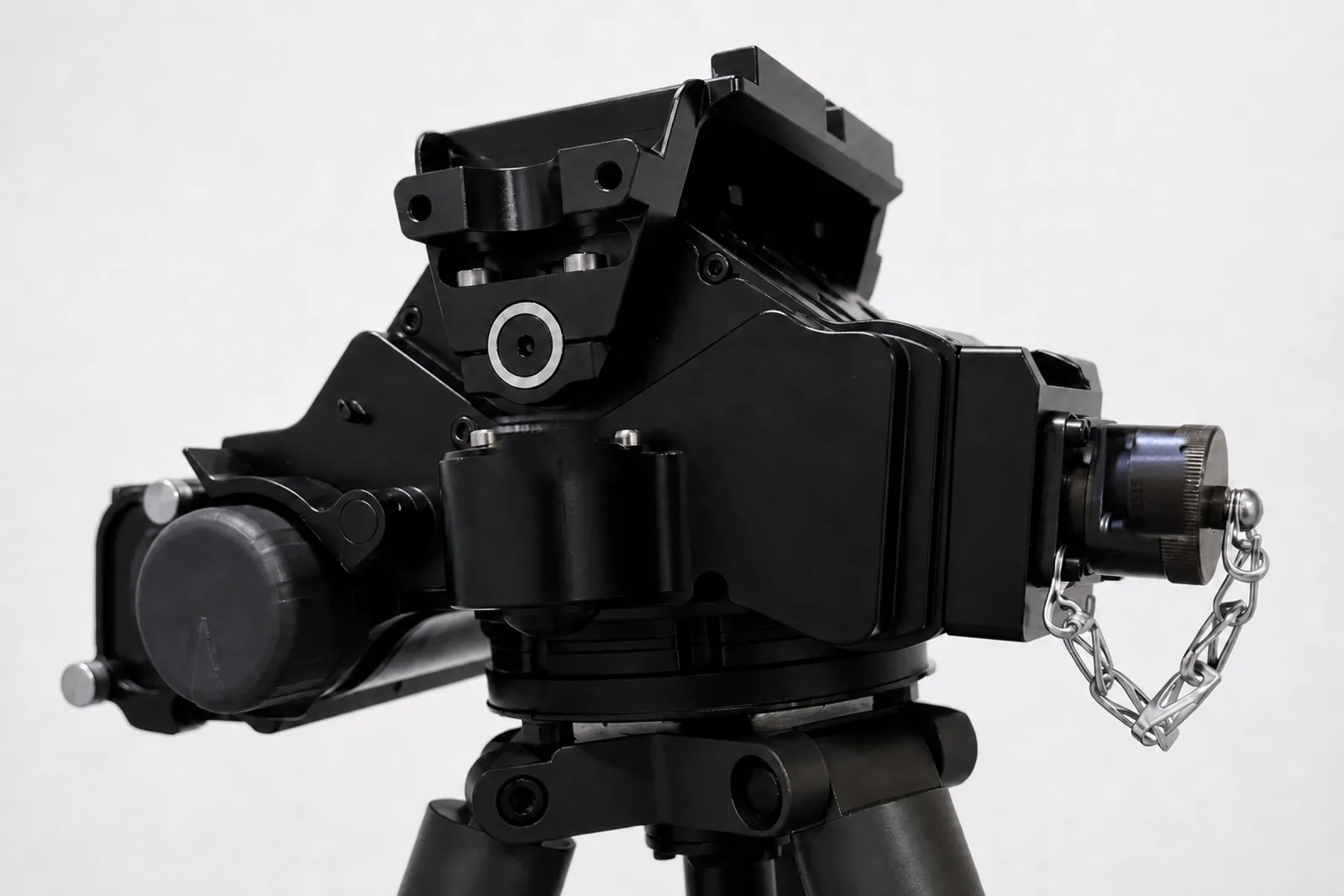

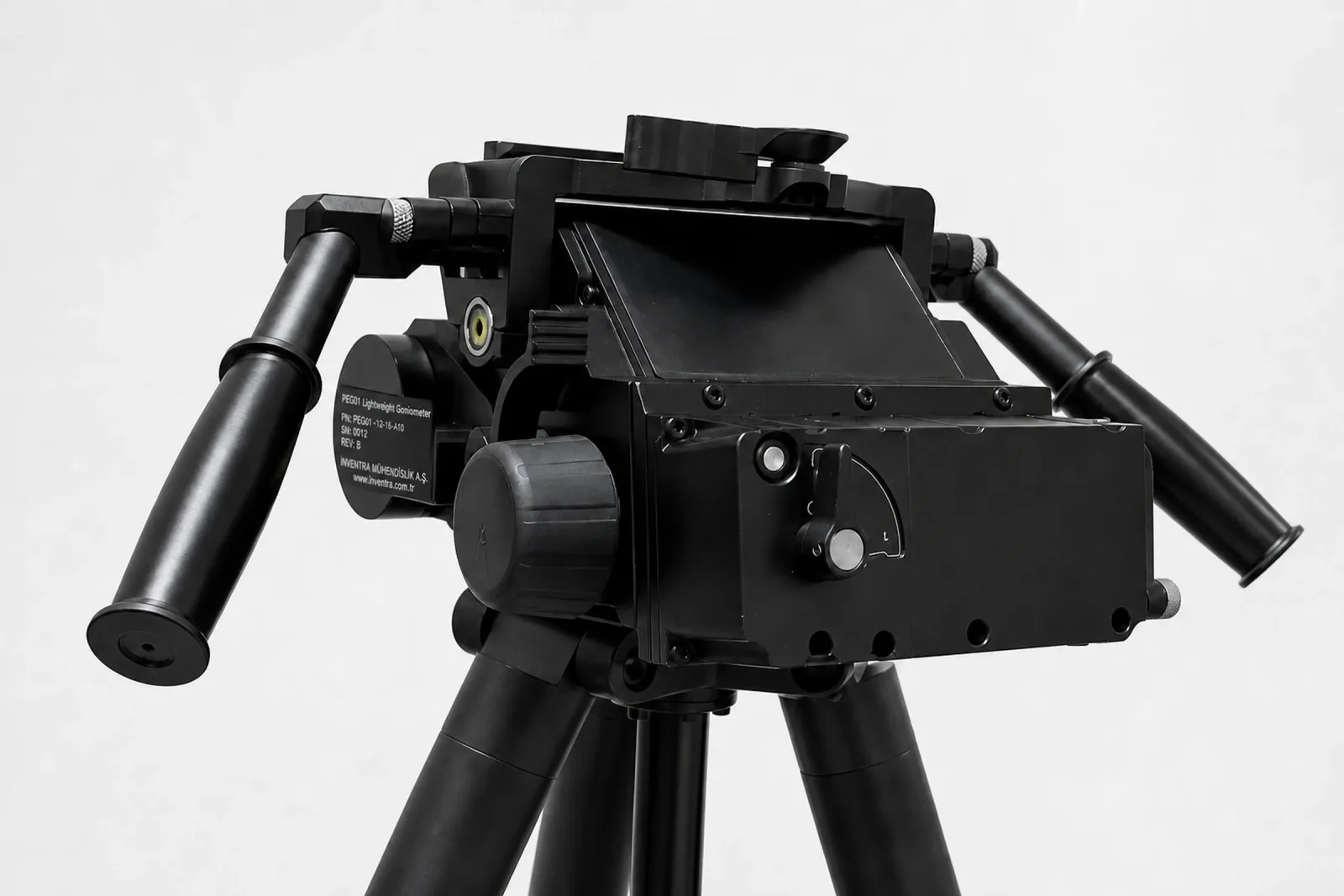

Select a frame to open it at full size.
Options
- BT74Nominal Voltage7,4 VCapacity3.250 mAhChemistryLi-Ion
- SRSHSun and Rain Shieldordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Rated Payload | 12 kg |
|---|---|
| Pan – Axis Range | N × 360° |
| Tilt – Axis Range | ±45° |
| Axis Resolution | 0,0056° |
| Accuracy | 0,056° |
| Weight | 2,9 ± 0,1 kg |
| Performance Independent Braking | Available |
| Fine Adjustment Range | ±0,8438° |
| Operating Voltage | 18-32 VDC |
|---|---|
| Communication Interface | RS-422 |
| Communication Interface (Optional) | Ethernet |

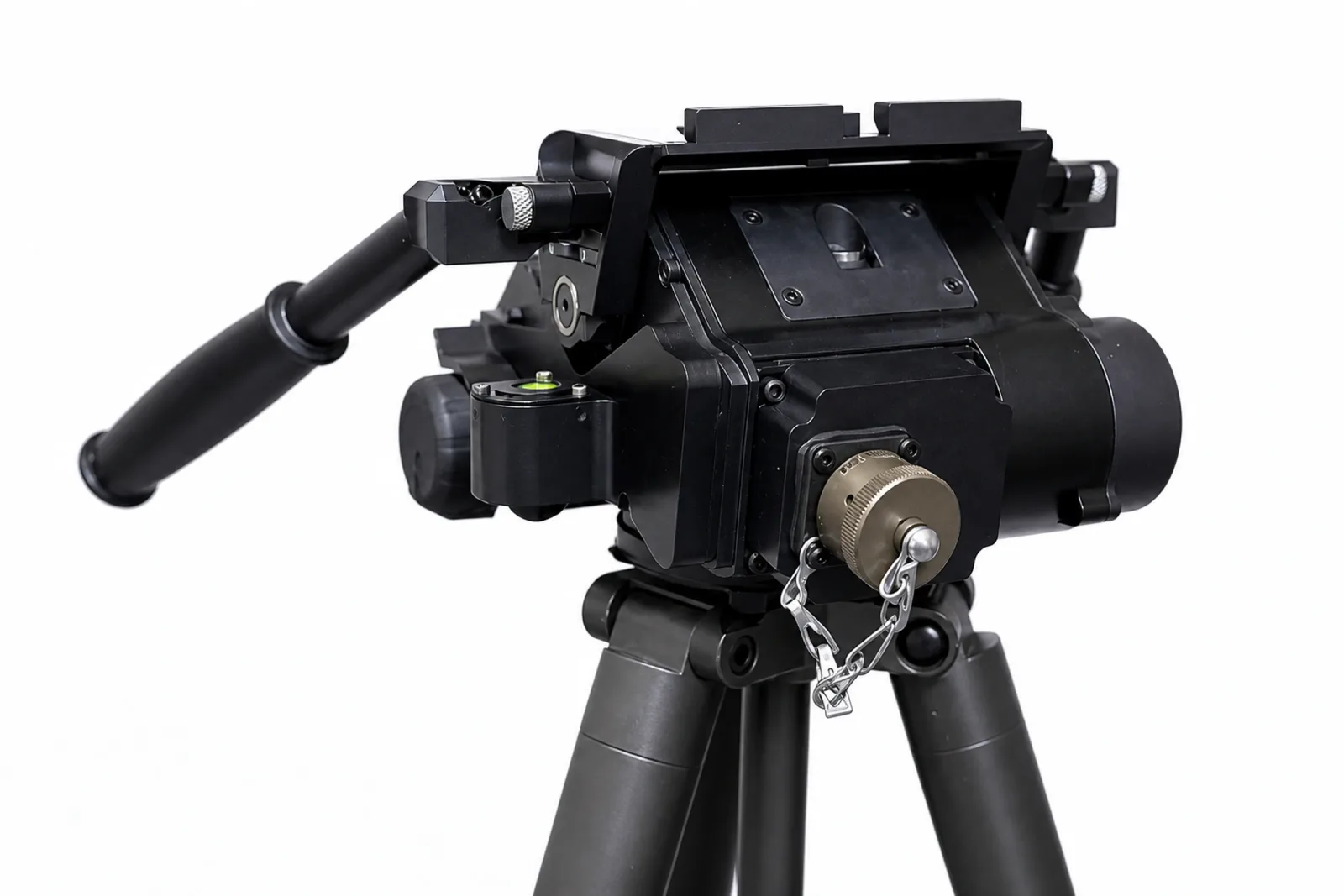

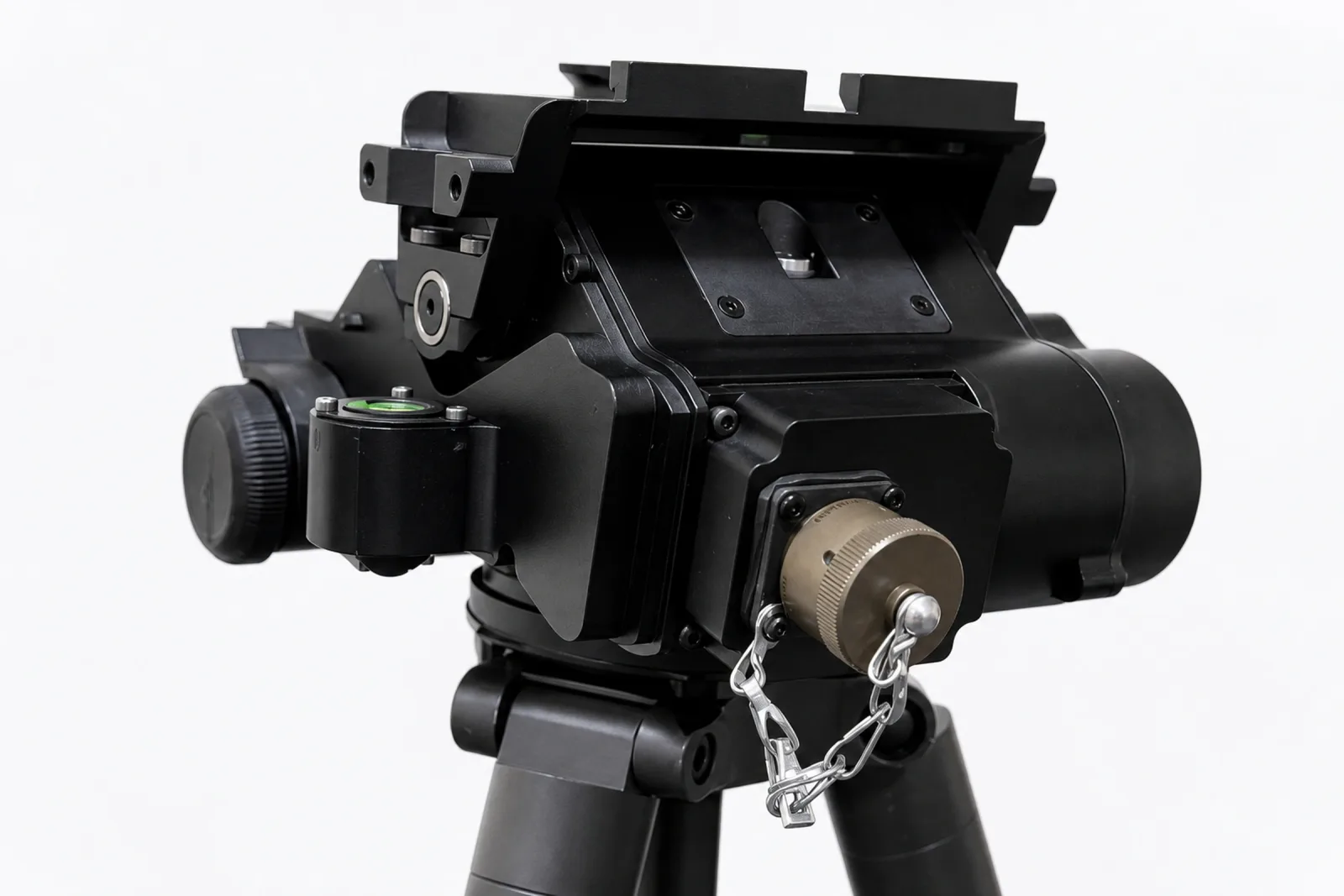

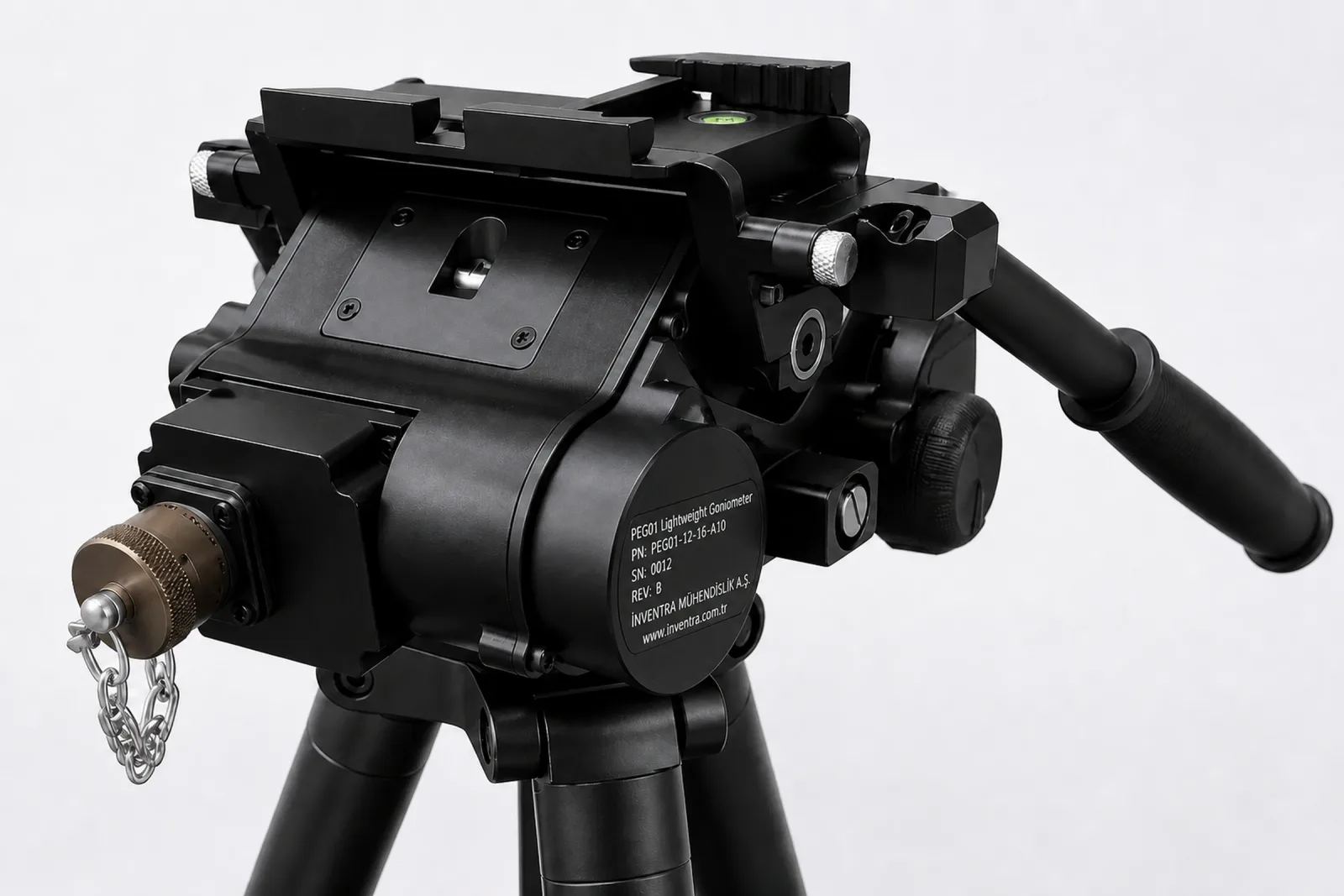

| Connector Type | MIL-DTL-38999 |
| Width | 180 mm |
|---|---|
| Depth | 205 mm |
| Height | 130 mm |
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Humidity | Mtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes |
| EMI/EMC Standard | MIL-STD-461G |
|---|---|
| CE102 | Power Leads, 10 kHz – 10 MHz |
| CS101 | Power Leads, 30 Hz – 150 kHz |
| CS114 | Bulk Cable Injection, 10 kHz – 200 MHz |
| CS115 | Bulk Cable Injection, Impulse Excitation |
| CS116 | Damped Sinusoidal Transients, 10 kHz – 100 MHz |
| CS118 | Personnel Borne Electrostatic Discharge |
| RE102 | Electric Field, 10 kHz – 18 GHz |
| RS103 | Electric Field, 2 MHz – 18 GHz |
Documents
- DatasheetDownloadable — PDF, 186 KB
- User ManualOn Request
- 3D Model (STEP)On Request
- Mechanical Interface Control DocumentOn Request
- MIL-STD-810G Environmental Qualification ReportOn Request
- Electrical Interface Control DocumentOn Request
- Software Interface Control DocumentOn Request
- MIL-STD-461G EMI/EMC Test ReportOn Request
