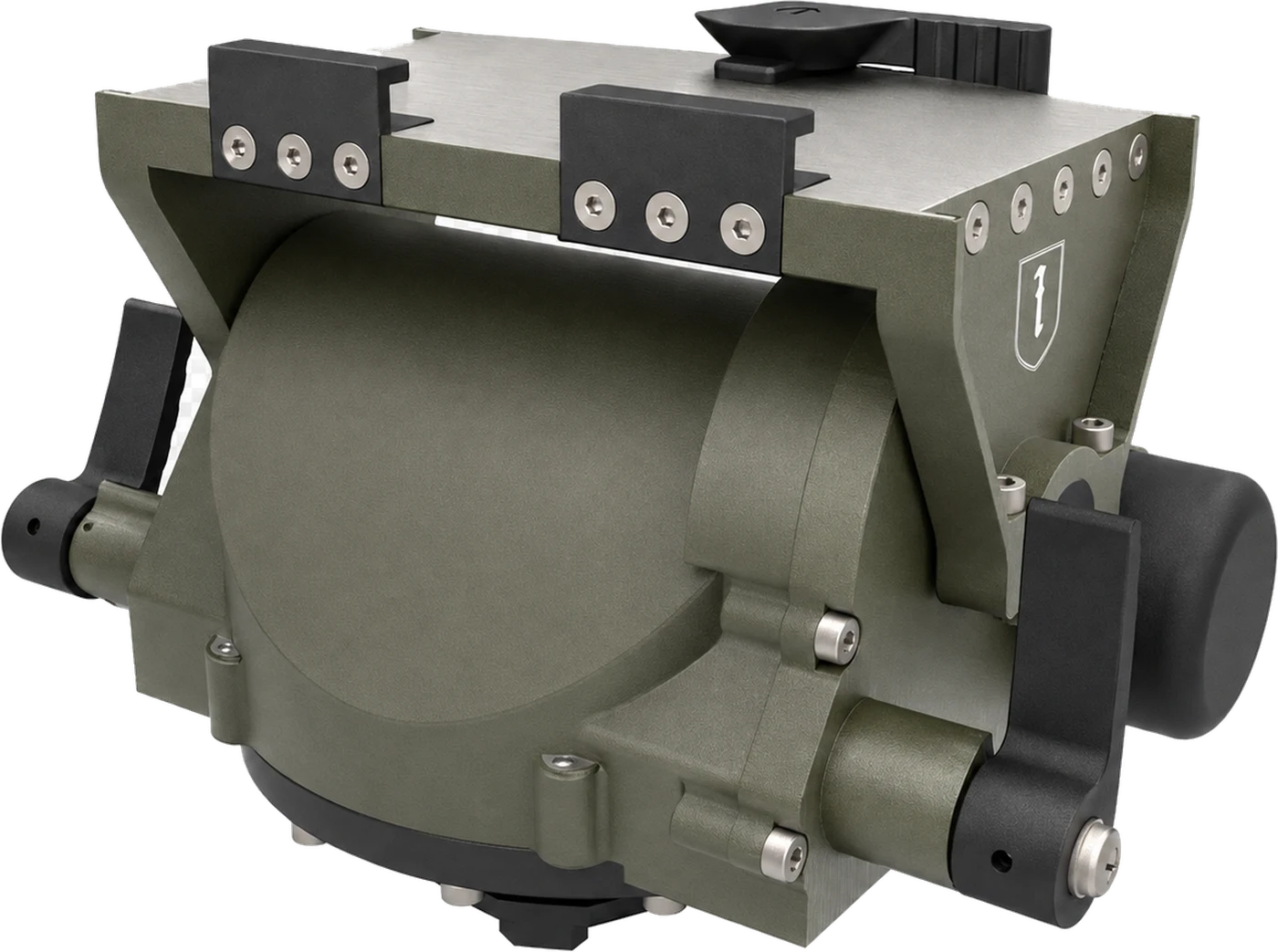

PMD01
Lightweight Manual Pan-Tilt
Manual pan-tilt head under 1.4 kg with viscous damping and independent braking, for aligning EO sensors, designators and long-range optics.
- N × 360°
- 0,0056° resolution
- 10 kg payload
- 10 kg
- Rated Payload
- 0,0056°
- Axis Resolution
- 1,4 kg
- Weight
Highlights
01Lightest head

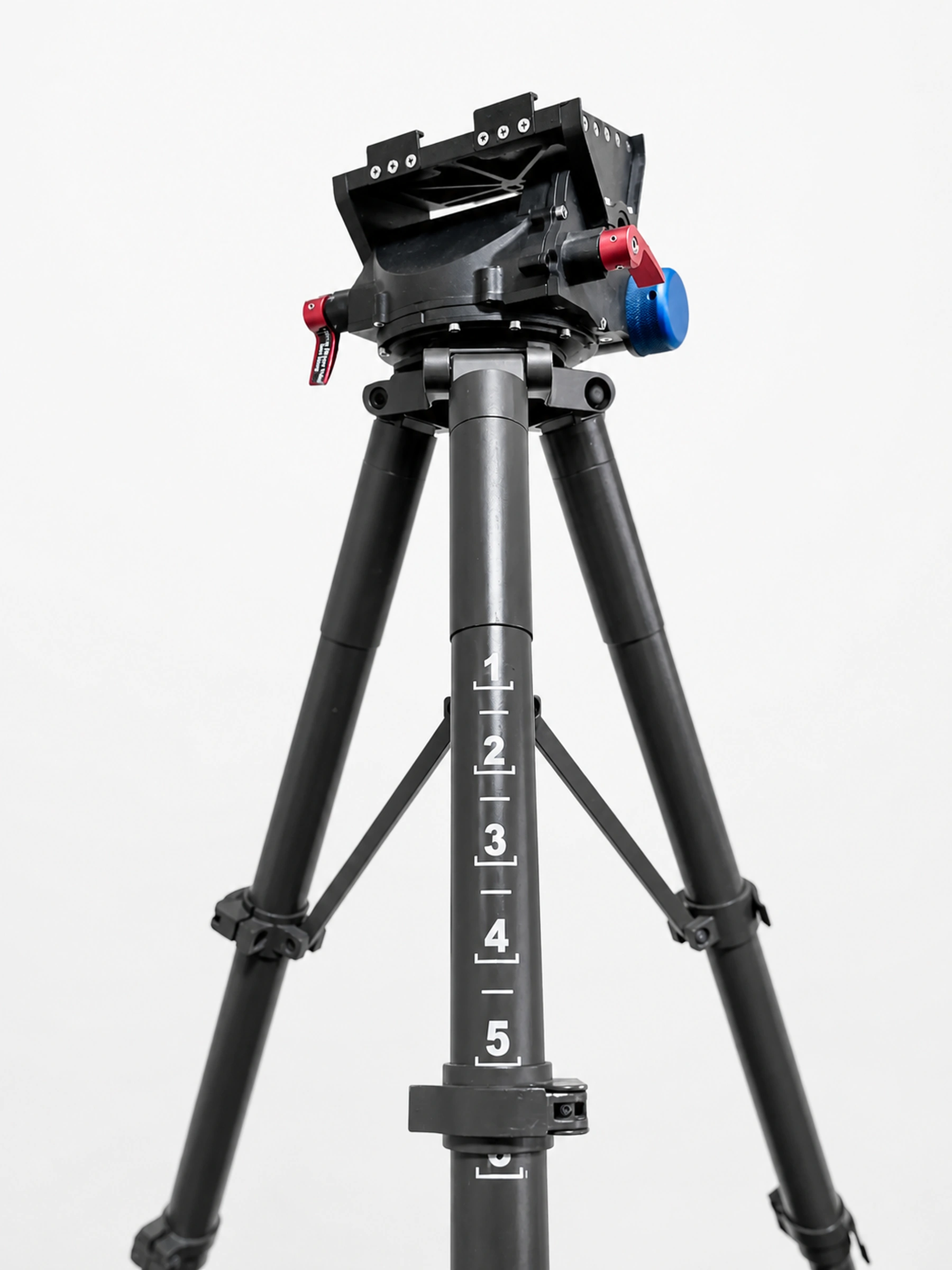

1.4 kg carrying up to 10 kg
At 1.4 kg the head is the lightest in the range and still takes 10 kg of payload. It needs no power, so nothing is added to the field load beyond its own weight.
- N × 360° continuous pan, ±45° tilt
- Resolution 0.084° with elevation scale
02Axis damping
Viscous damping for smooth manual tracking
Viscous damping on both axes turns a manual head into something that can follow a moving object without overshoot, and it settles the sensor during initial alignment.
- Fine adjustment 1.13 to 2.5° per axis

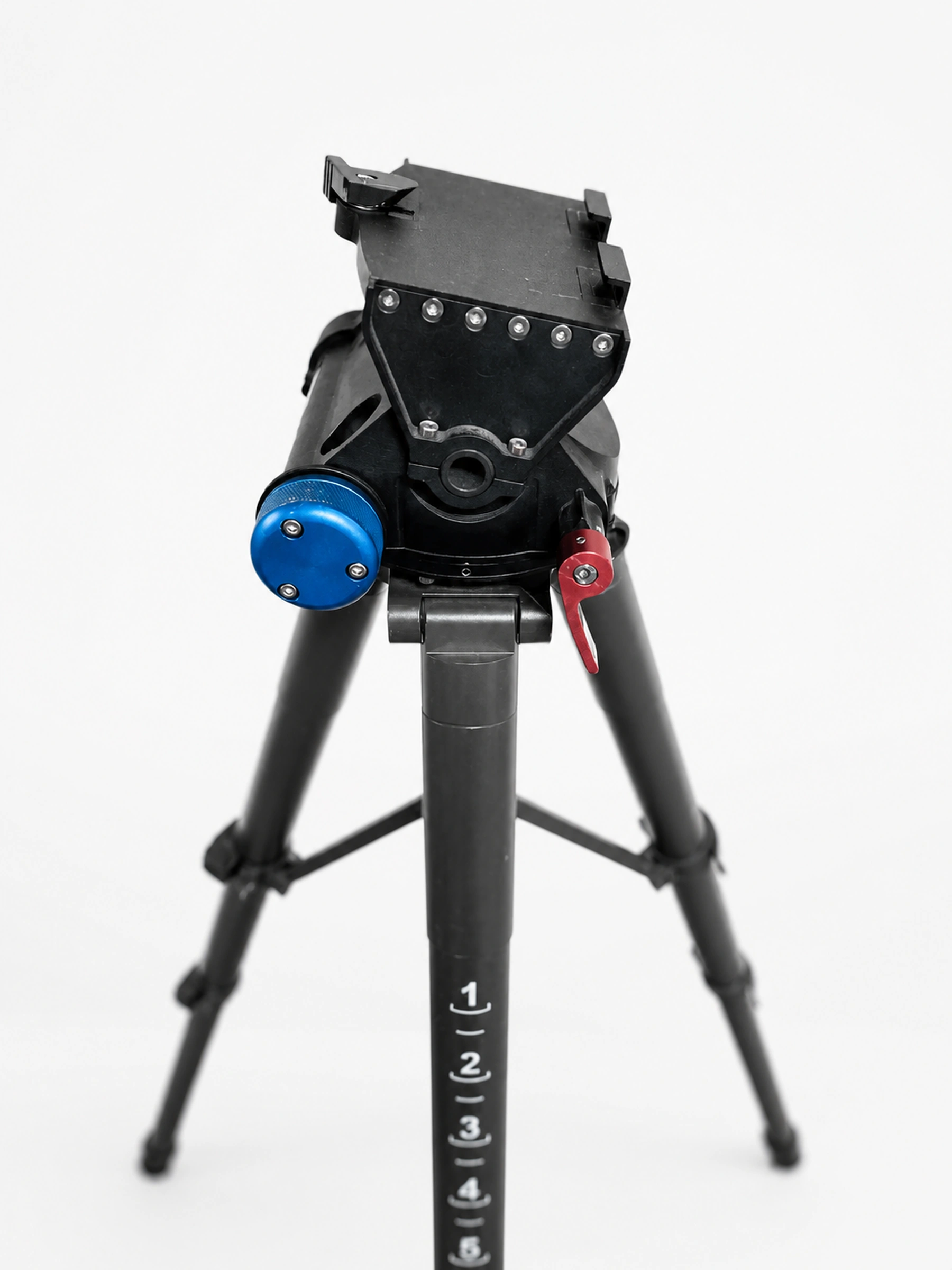

- Independent braking on both axes
Gallery

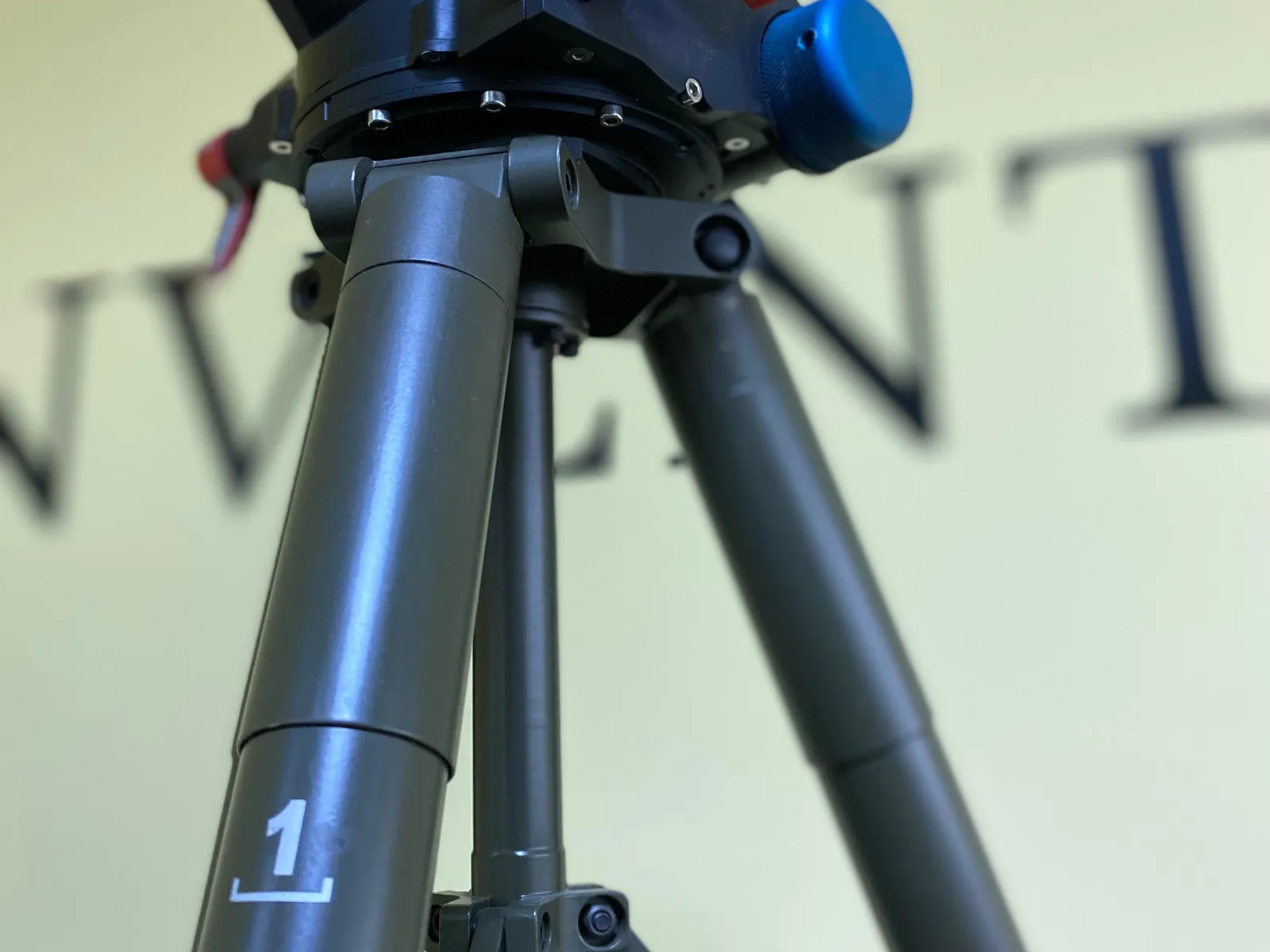

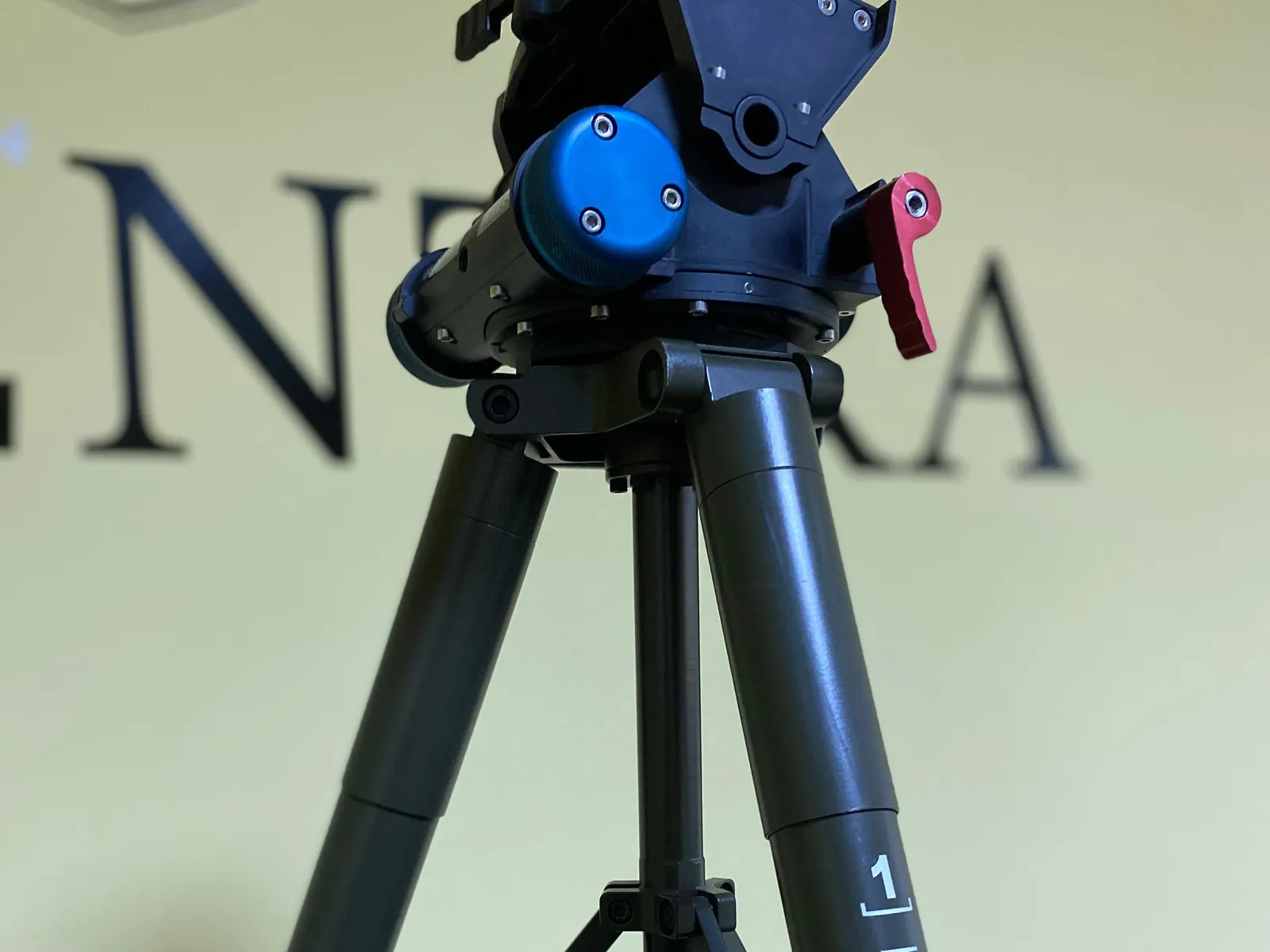

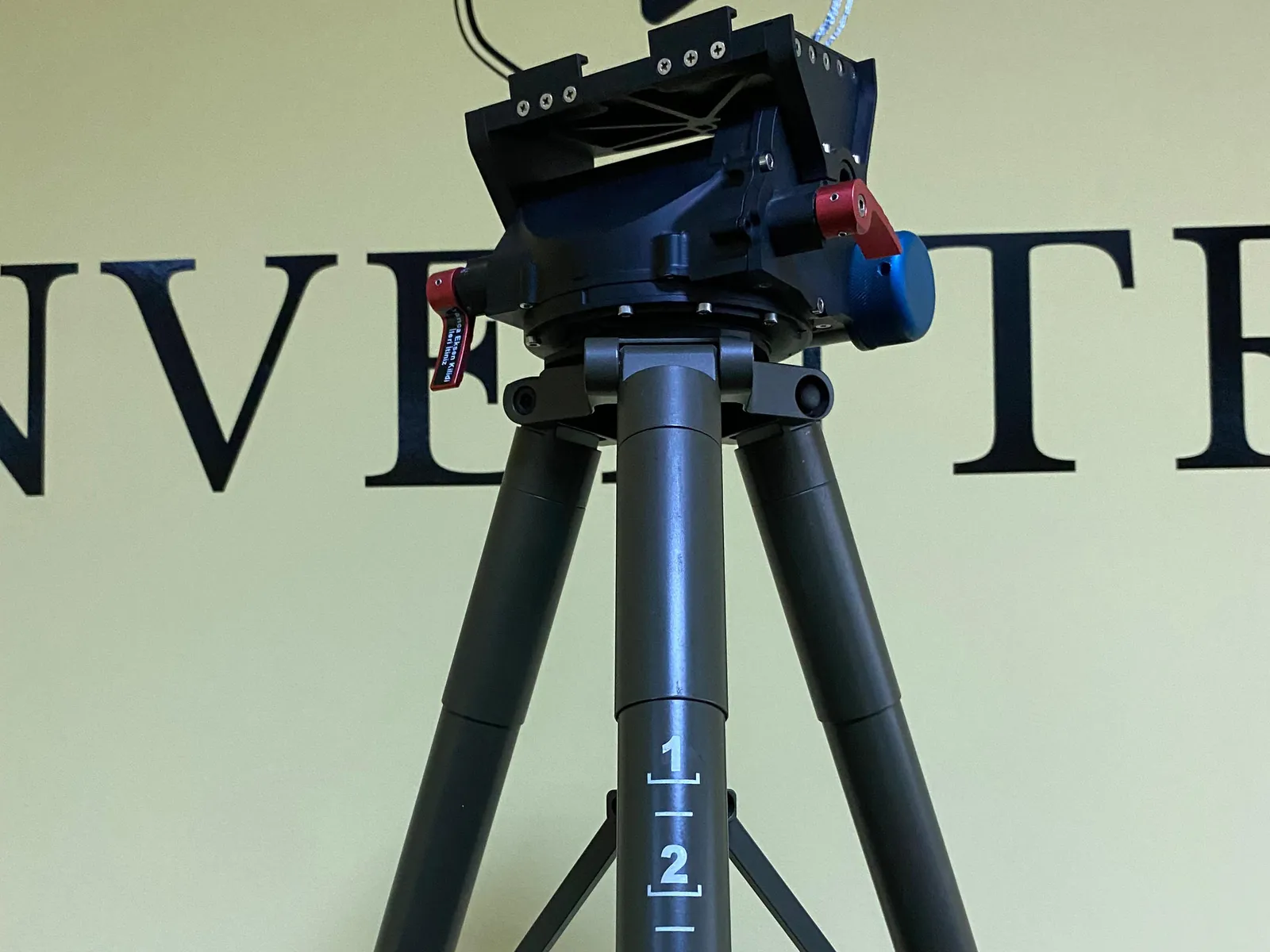

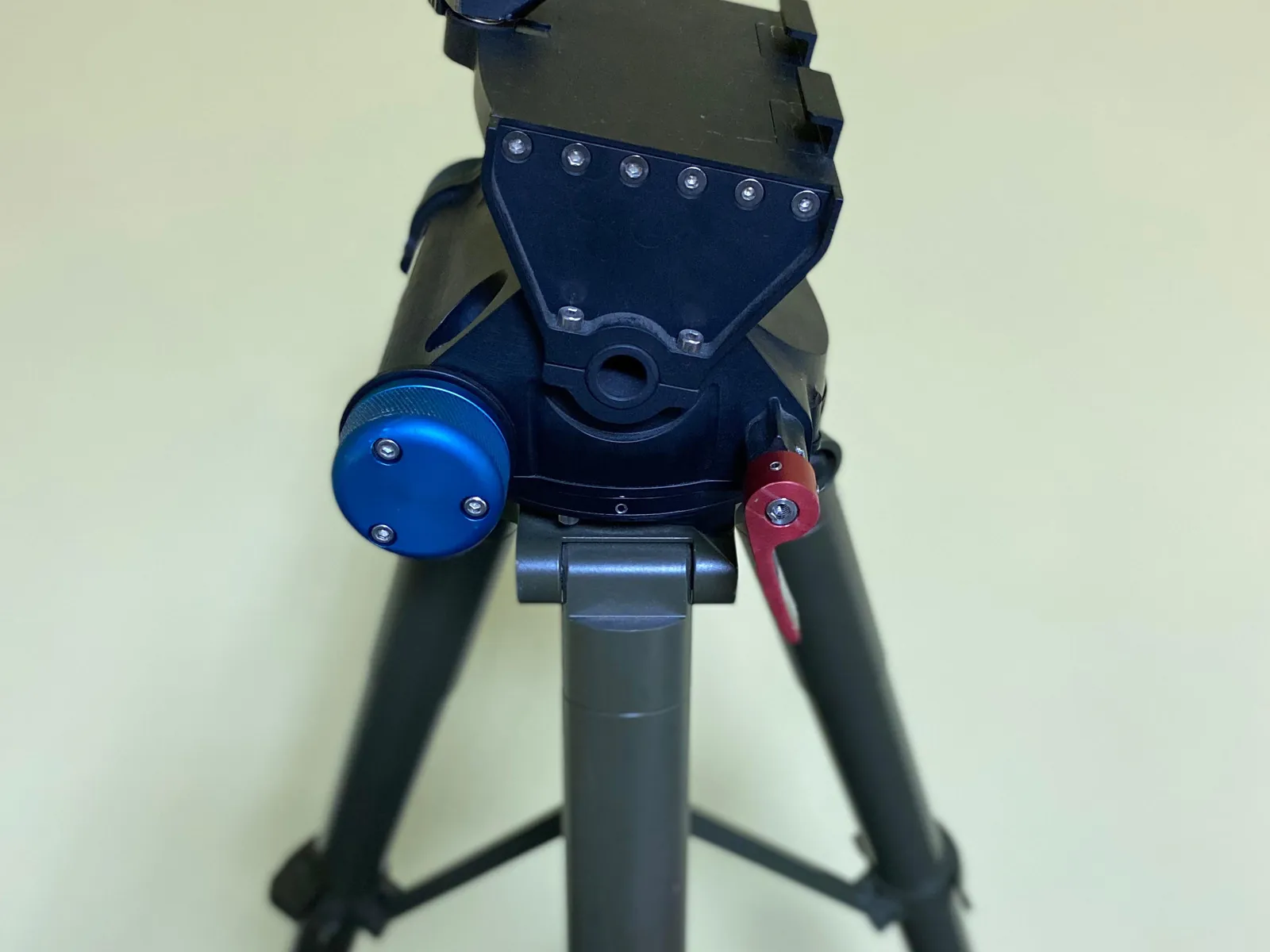

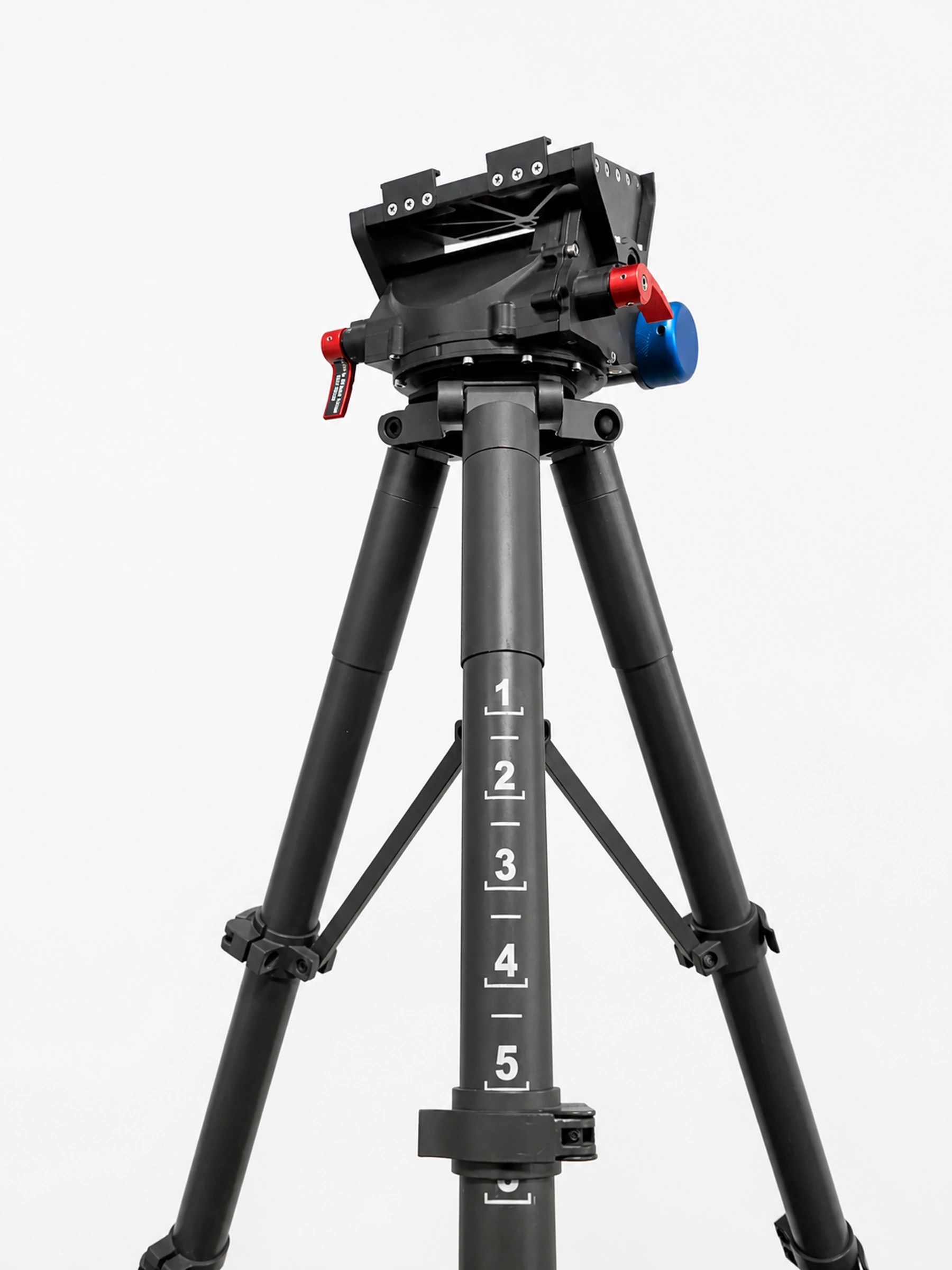

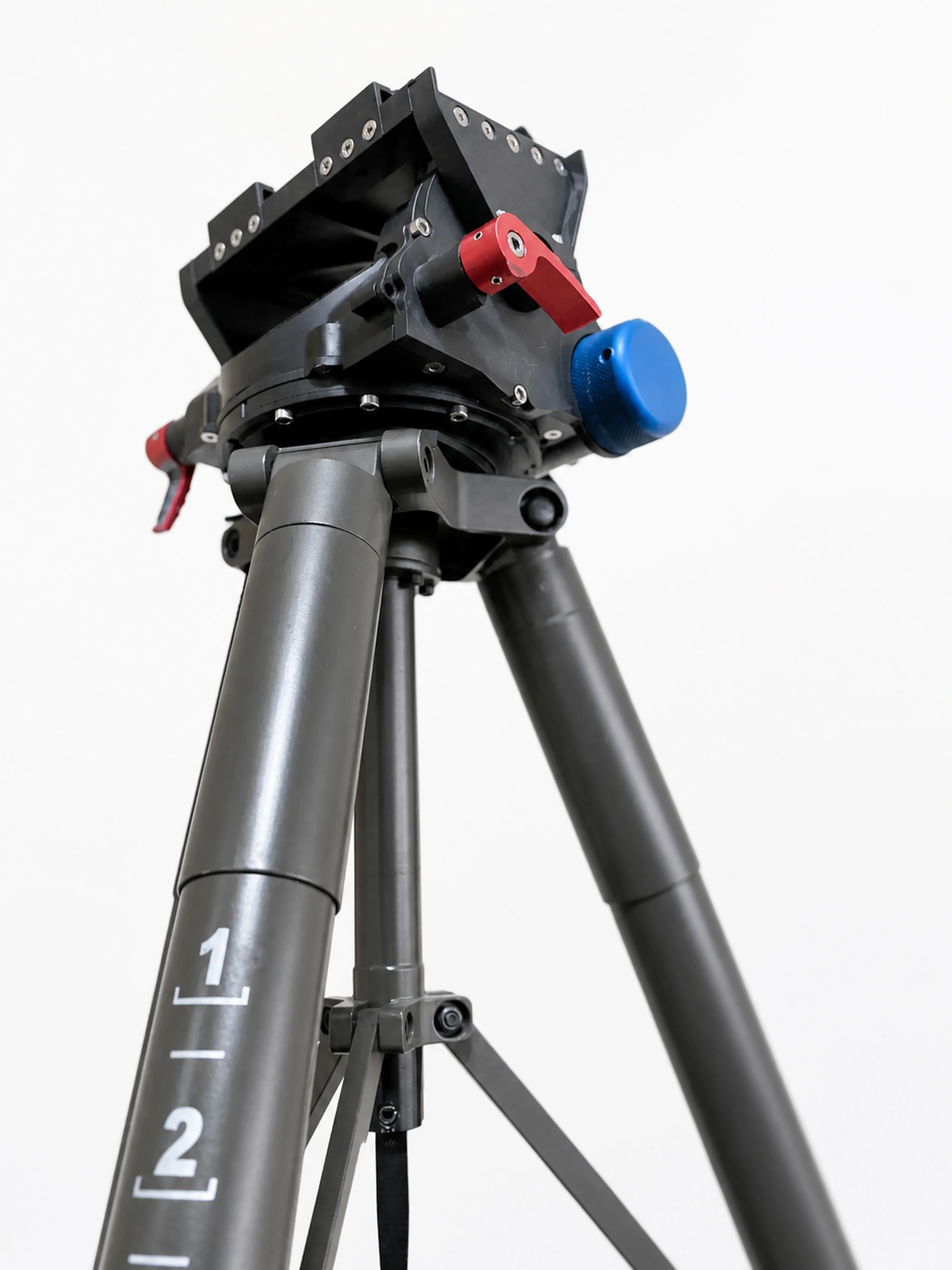

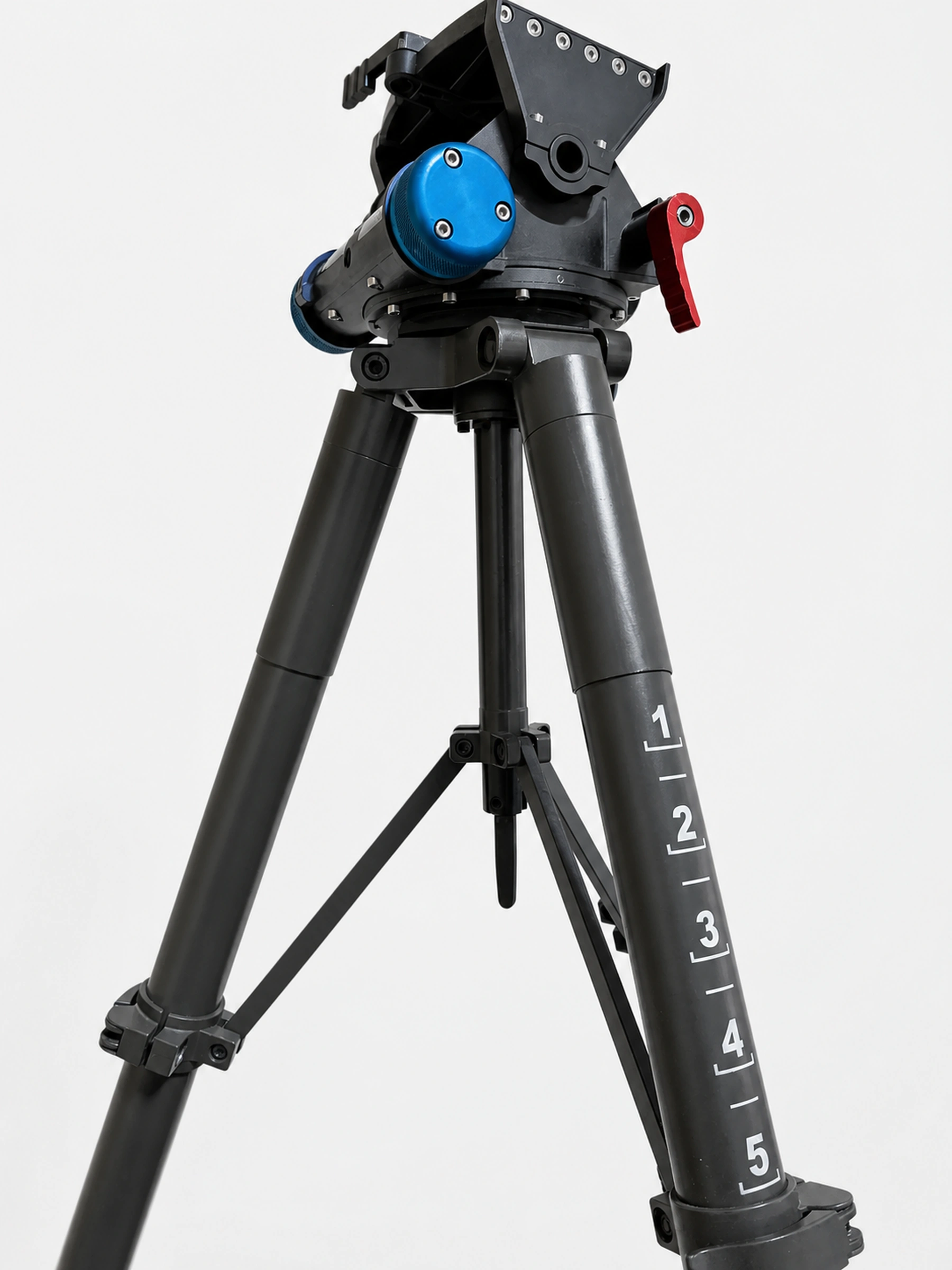

Select a frame to open it at full size.
Options
- SRSHSun and Rain Shieldordered separately
- LG##Label LanguageEN English, FR French, TR Turkish, AR Arabic, ES Spanish
Specifications
| Rated Payload | 10 kg |
|---|---|
| Pan – Axis Range | N × 360° |
| Tilt – Axis Range | ±45° |
| Pan Axis – Fine Adjustment Range | ±2,50° |
| Tilt Axis – Fine Adjustment Range | ±1,13° |
| Axis Resolution | 0,0056° |
| Weight | 1,4 kg |
| Performance Independent Braking | Available |
| Width | 173 mm |
|---|---|
| Depth | 120 mm |
| Height | 110 mm |
| Material – Main Body | Aluminium 6061-T6 |
| Surface Finish | Electrostatic Powder Coating |
| Standard Colour | RAL 9005 Matte Black |
| Installation Manual | 1 × Installation Manual |
|---|
| Environmental Standard | MIL-STD-810G |
|---|---|
| High Temperature – Operational | Mtd. 501.5, Proc. II, +60 °C |
| High Temperature – Storage | Mtd. 501.5, Proc. I, +70 °C |
| Low Temperature – Operational | Mtd. 502.5, Proc. II, -32 °C |
| Low Temperature – Storage | Mtd. 502.5, Proc. I, -40 °C |
| Low Pressure – Operational | Mtd. 500.5, Proc. II, 10.500 ft |
| Low Pressure – Storage | Mtd. 500.5, Proc. I, 37.000 ft |
| Humidity | Mtd. 507.5, Proc. II, 90 % RH non-condensing at +60 °C, 10 cycles of 24 h |
| Rain | Mtd. 506.5, Proc. I, 1,7 mm/min, 18 m/s wind, 30 min per exposed face |
| Salt Fog | Mtd. 509.5, 5 % NaCl, 2 cycles of 24 h fog and 24 h drying |
| Blowing Dust | Mtd. 510.5, Proc. I |
| Blowing Sand | Mtd. 510.5, Proc. II |
| Vibration | Mtd. 514.6, Proc. I, Cat. 4 – Secured Cargo, Fig. 514.6C-3 |
| Shock | Mtd. 516.6, Proc. I, 20 g, 11 ms, 3 shocks per direction in 3 axes |
