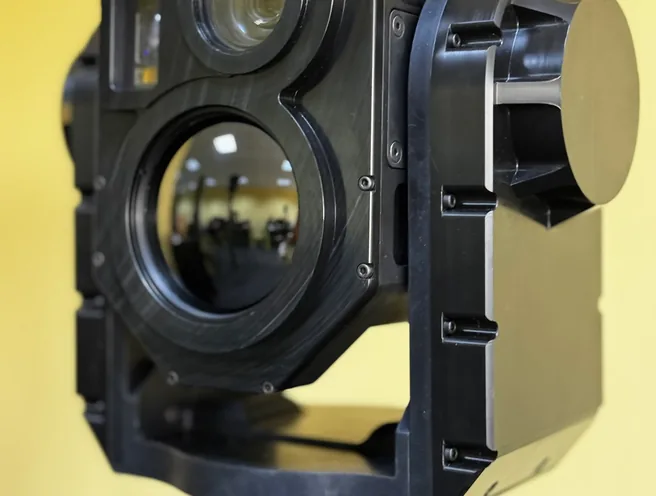

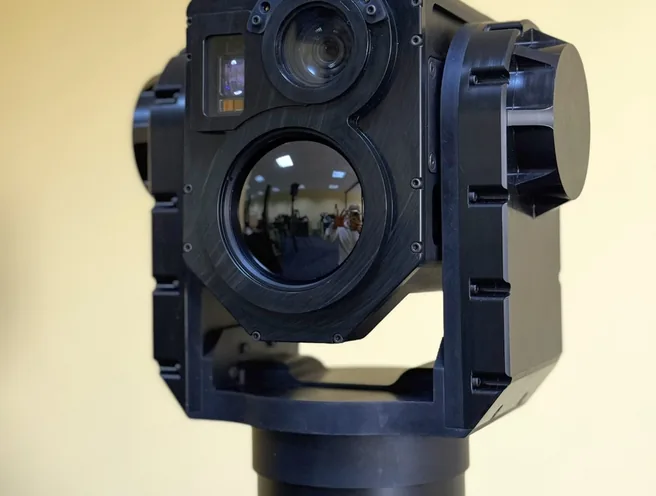

SEG14 — Multi Channel (EO-LWIR-LRF) Stabilized Gimbal System

Highlights

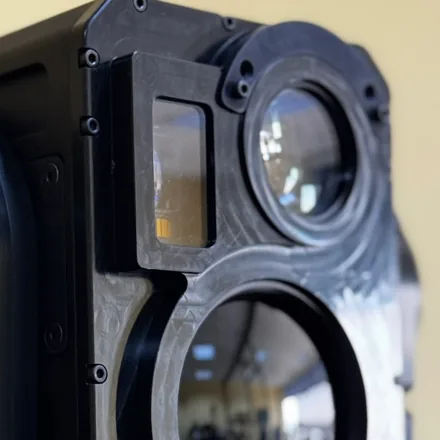

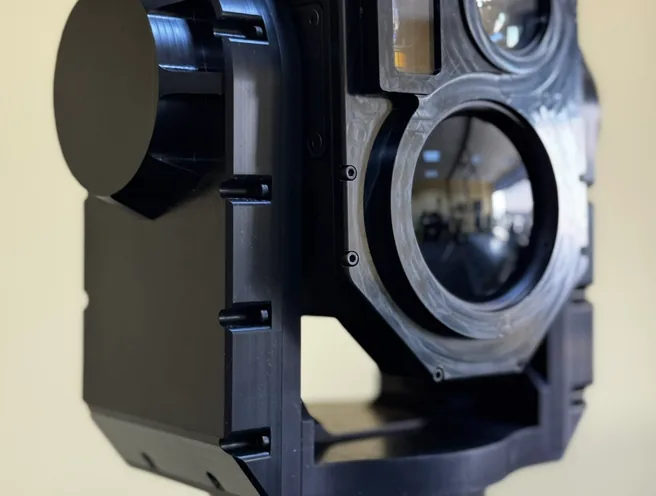

Close crop of the laser window among the lens barrels, angled so the window is distinct from the optics either side of it.

01Long range

Laser ranging out to 32 km

The 1500 nm rangefinder reaches 32,000 m, which puts target measurement well beyond the range at which the thermal channel first detects. An eye-safe 635 nm pointer marks the target for others.

  • Class 1 eye-safe pointer at 635 nm
  • Triple channel: EO, LWIR and LRF in real time

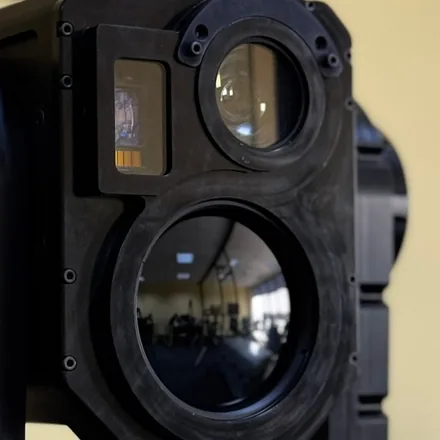

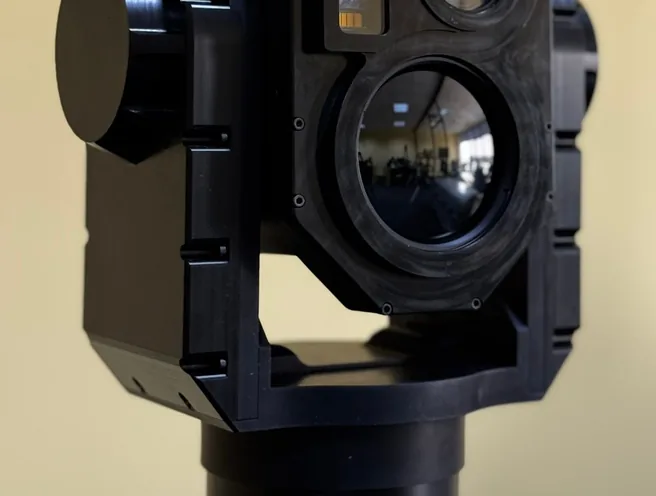

Close crop of the thermal barrel head-on beside the large day objective, so the two apertures can be compared.

02Thermal optics

3.2× optical zoom on the thermal channel

Most uncooled channels are fixed focal length. Here the thermal path zooms optically from 28 to 90 mm, so magnification is gained without giving up resolution to digital interpolation.

  • NETD 30 mK with shutter and scene calibration
  • 12 µm pitch 1280×1024 detector

Field Video

Video pending

Specifications

Sensor
Thermal Spectral BandLWIR
Thermal Detector Resolution1280 × 1024 px
Thermal Pixel Pitch12 µm
Thermal NETD≤ 30 mK
Thermal CalibrationShutter and scene calibration
EO Resolution1920 × 1080 px
Performance
Stabilization TypeTwo-axis IMU and encoder based dual-loop
Axis Speed180°/s
Pan Axis Range360° continuous
Tilt Axis Range±45°
Tracker Output Latency< 100 ms
Tracker Target Size16×16 to 128×128 px
Electrical
Operating Voltage20–32 V
Maximum Power Consumption150 W
Optics
Thermal Optical Zoom3.2x or 5x
Thermal Focal Length28–90 mm
Thermal Diagonal Field of View19.92° – 6.26°
EO Optical Zoom30x
EO Digital Zoom12x
EO Focal Length4.3–129 mm
EO Horizontal Field of View63.7° – 2.3°
Laser Rangefinder Range32 km
Laser Rangefinder Wavelength1500 nm
Laser Pointer635 nm, Class 1, eye safe

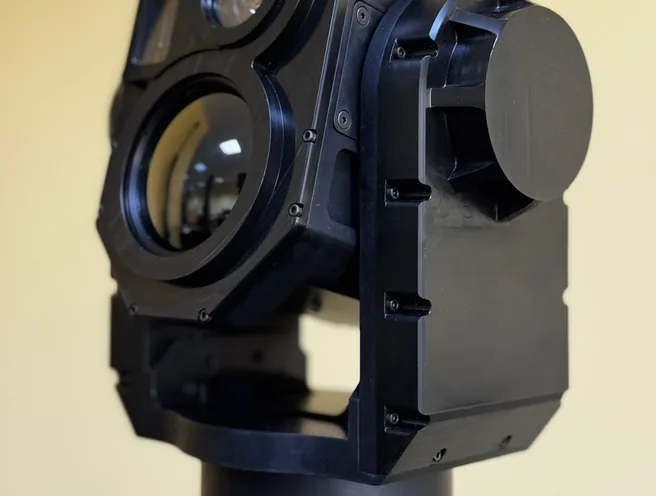

Mechanical
Weight< 8.0 kg
Width325 mm
Depth257 mm
Height178 mm
Interface
Control InterfaceRS-422 / RS-485 / Ethernet
Video OutputHD-SDI, Ethernet
Environmental
IP RatingIP65
Operating Temperature−32 °C to +60 °C
Storage Temperature−40 °C to +70 °C
Qualification StandardMIL-STD-810G, tactical armored vehicle class
Vibration QualificationMIL-STD-810G Method 514.6 Proc. I Cat. 20
Shock QualificationMIL-STD-810G Method 516.6 Proc. I, 20 g / 11 ms
Rain QualificationMIL-STD-810G Method 506.5 Proc. I

Values are for the standard configuration. Mission-specific configurations are offered on request.
