SEG10

Dual Channel (EO-LWIR) Stabilized Gimbal System

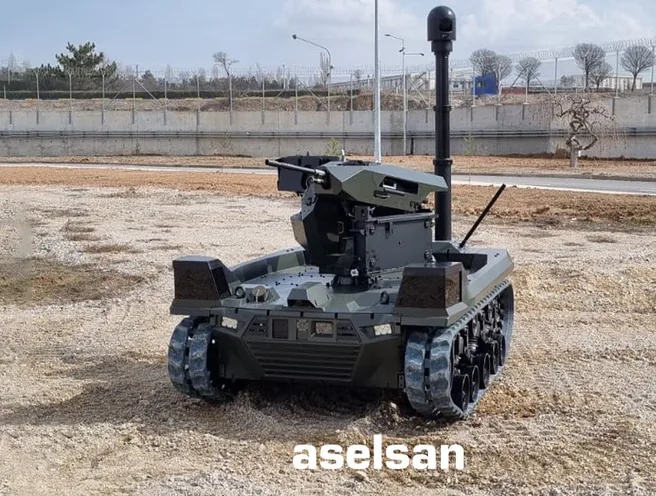

Two-axis stabilized gimbal pairing a 30x 1080p day camera with an uncooled 640x512 LWIR channel, sized at 4.4 kg for unmanned and light ground vehicles.

  • MIL-STD-810G, tactical armored vehicle class
  • IP65
  • MIL-DTL-38999
LWIR
Thermal Spectral Band
640 × 512 px
Thermal Detector Resolution
30x
EO Optical Zoom
Request QuoteCompare Models

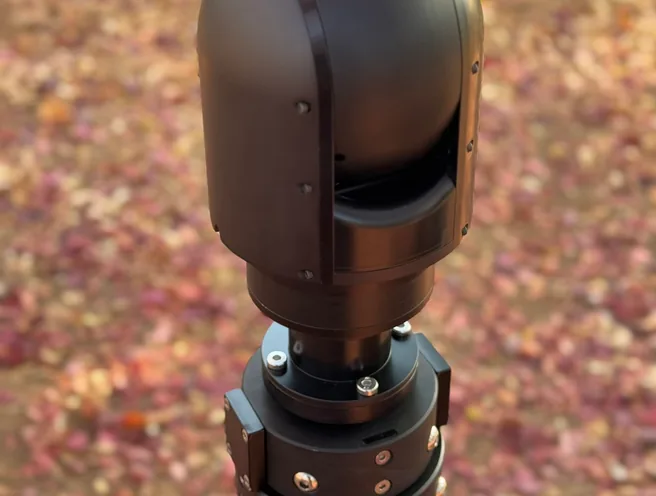

SEG10 — Dual Channel (EO-LWIR) Stabilized Gimbal System

Highlights

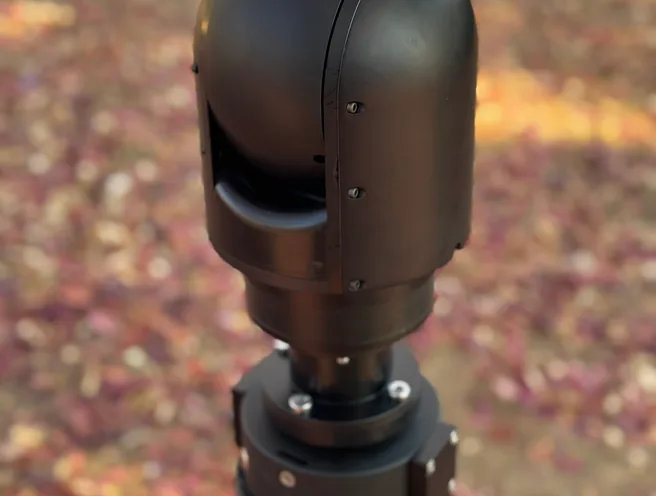

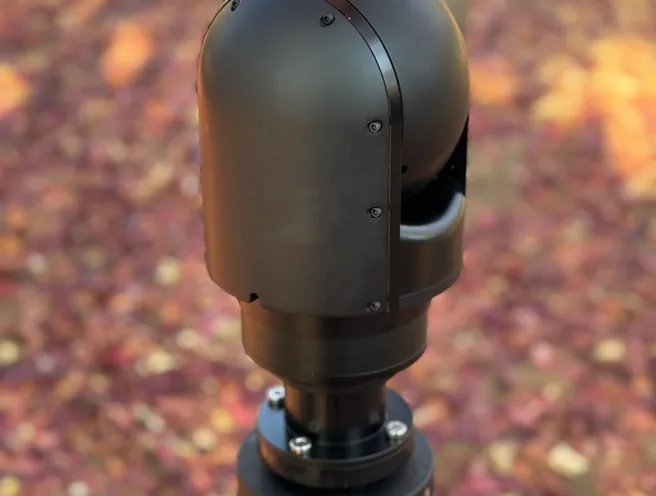

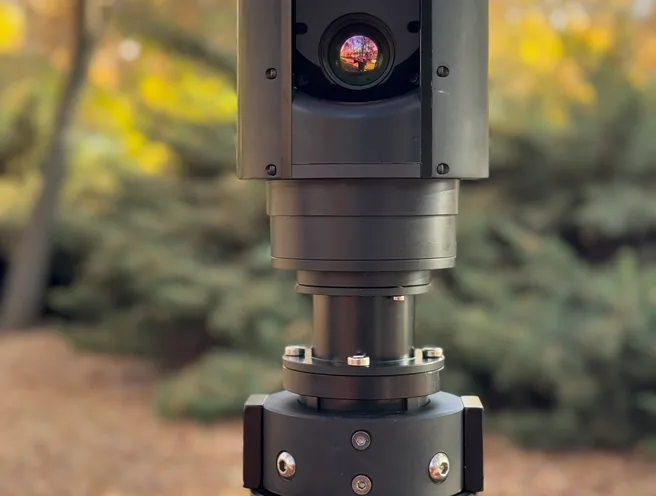

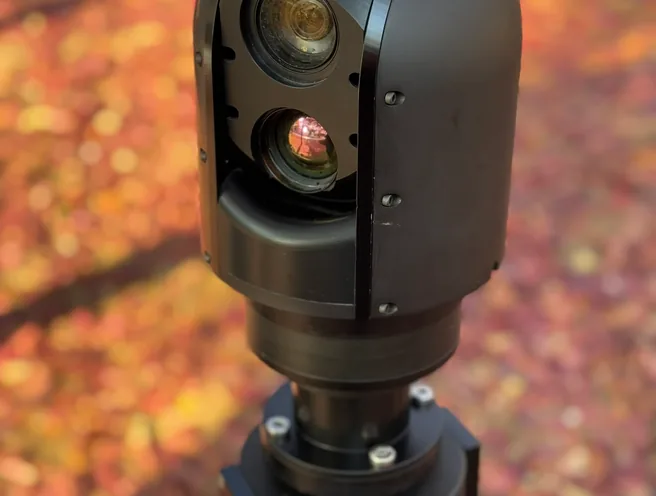

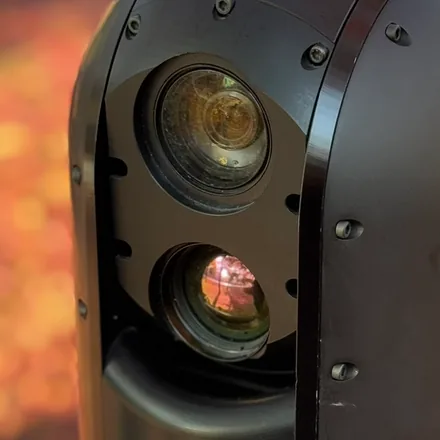

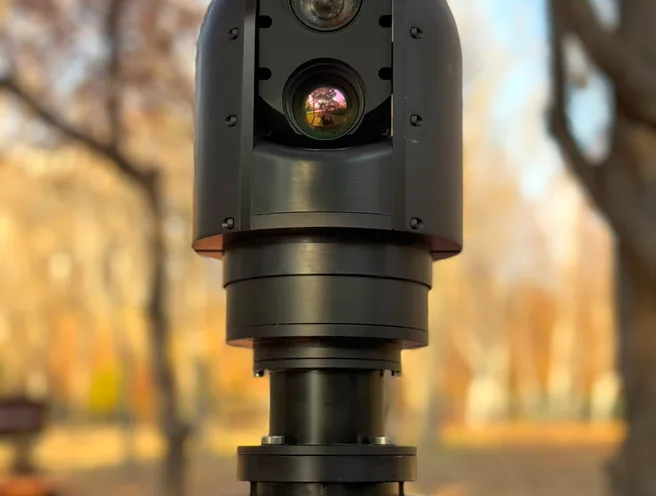

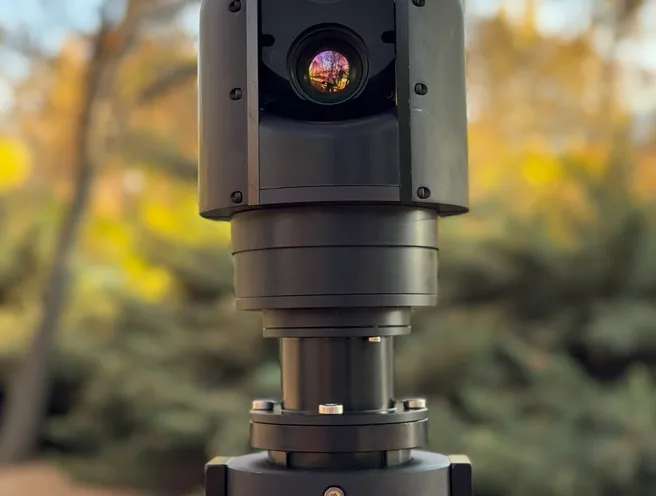

Close crop of the two stacked apertures on the front of the gimbal head, filling the square.

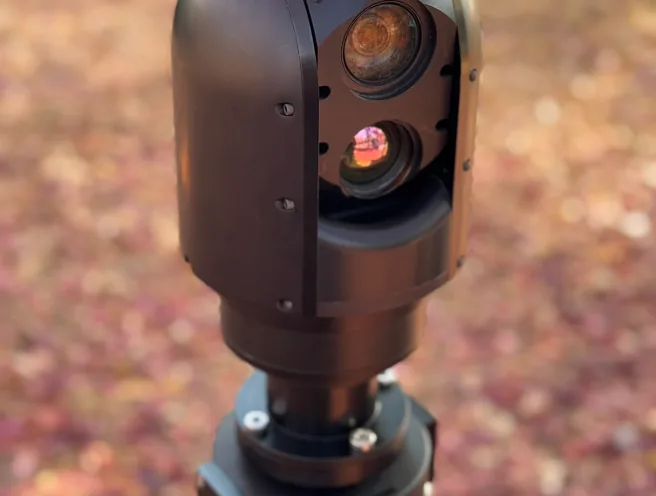

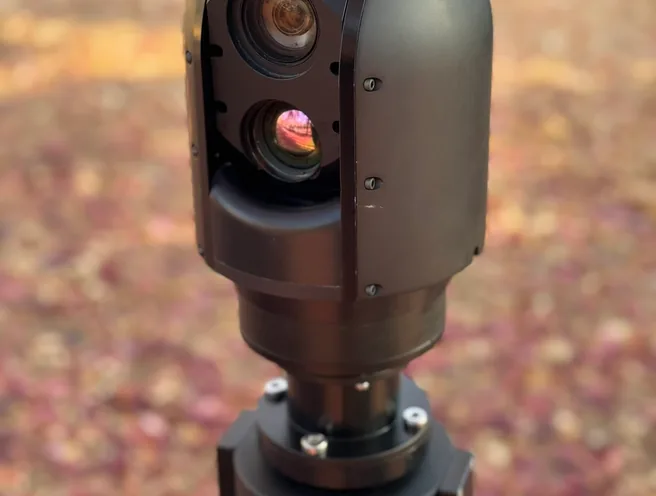

01Dual channel

Thermal and daylight on one screen

A 1920×1080 EO channel with 30× optical zoom runs alongside an uncooled 640×512 LWIR channel, and both are displayed at the same time. The operator loses nothing when moving between spectra.

  • Uncooled LWIR starts without a cooldown wait; NETD 50 mK
  • Athermalised optics hold focus across −32 to +60 °C
  • HD-SDI, HDMI and Ethernet output on MIL-DTL-38999 connectors

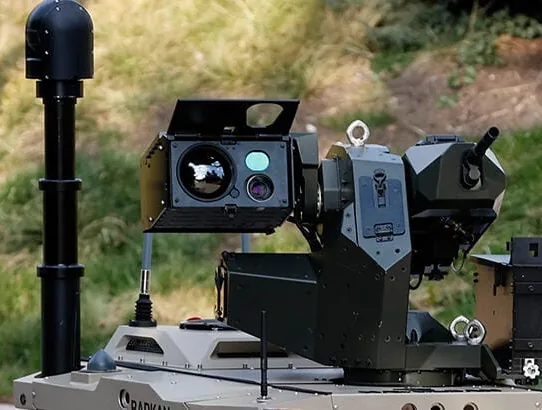

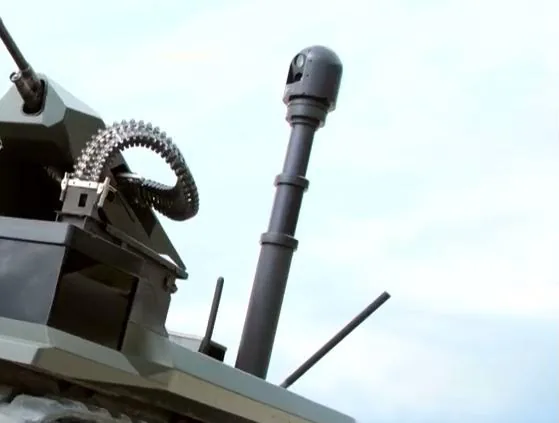

Close crop of the head on the mast above the vehicle deck, hillside blurred behind.

02Stabilisation

Two-axis stabilisation to 0.1° with onboard tracking

An IMU and encoder based dual-loop holds the line of sight on a moving platform. The tracker locks onto a target between 16×16 and 128×128 pixels and reports at 25 Hz.

  • 360° continuous pan, ±45° tilt, 180°/s axis speed
  • Tracker output latency under 100 ms

Field Video

Video pending

Specifications

Sensor
Thermal Spectral BandLWIR
Thermal Detector Resolution640 × 512 px
Thermal Pixel Pitch12 µm
Thermal NETD≤ 50 mK
Thermal MRTD≤ 500 mK
Thermal Focus TypeAthermalized
Automatic Non-Uniformity Correction✓
EO Image Sensor1/2.8-type Exmor R CMOS
EO Resolution1920 × 1080 px
EO Minimum Illumination0.01 lx
EO Signal-to-Noise Ratio> 50 dB
Mechanical
Weight4.4 kg
Diameter155 mm
Height235 mm
Electrical
Operating Voltage20–32 V
Maximum Power Consumption150 W
Optics
Thermal Horizontal Field of View17.7°
Thermal Digital Zoom2x / 3x / 4x
EO Optical Zoom30x
EO Digital Zoom12x
EO Focal Length4.3–129 mm
EO Horizontal Field of View63.7° – 2.3°
Performance
Stabilization Accuracy0.1°
Positioning Accuracy0.1°
Stabilization TypeTwo-axis IMU and encoder based dual-loop
Axis Speed180°/s
Pan Axis Range360° continuous
Tilt Axis Range±45°
Tracker Data Refresh Rate25 Hz
Tracker Output Latency< 100 ms
Tracker Target Size16×16 to 128×128 px
Video Compression✓
Interface
Control InterfaceRS-485
Video OutputHD-SDI, HDMI, Ethernet
Connector TypeMIL-DTL-38999
Environmental
IP RatingIP65
Operating Temperature−32 °C to +60 °C
Storage Temperature−40 °C to +70 °C
Qualification StandardMIL-STD-810G, tactical armored vehicle class
Vibration QualificationMIL-STD-810G Method 514.6 Proc. I Cat. 20
Shock QualificationMIL-STD-810G Method 516.6 Proc. I, 20 g / 11 ms
Rain QualificationMIL-STD-810G Method 506.5 Proc. I

Values are for the standard configuration. Mission-specific configurations are offered on request.
