PED12

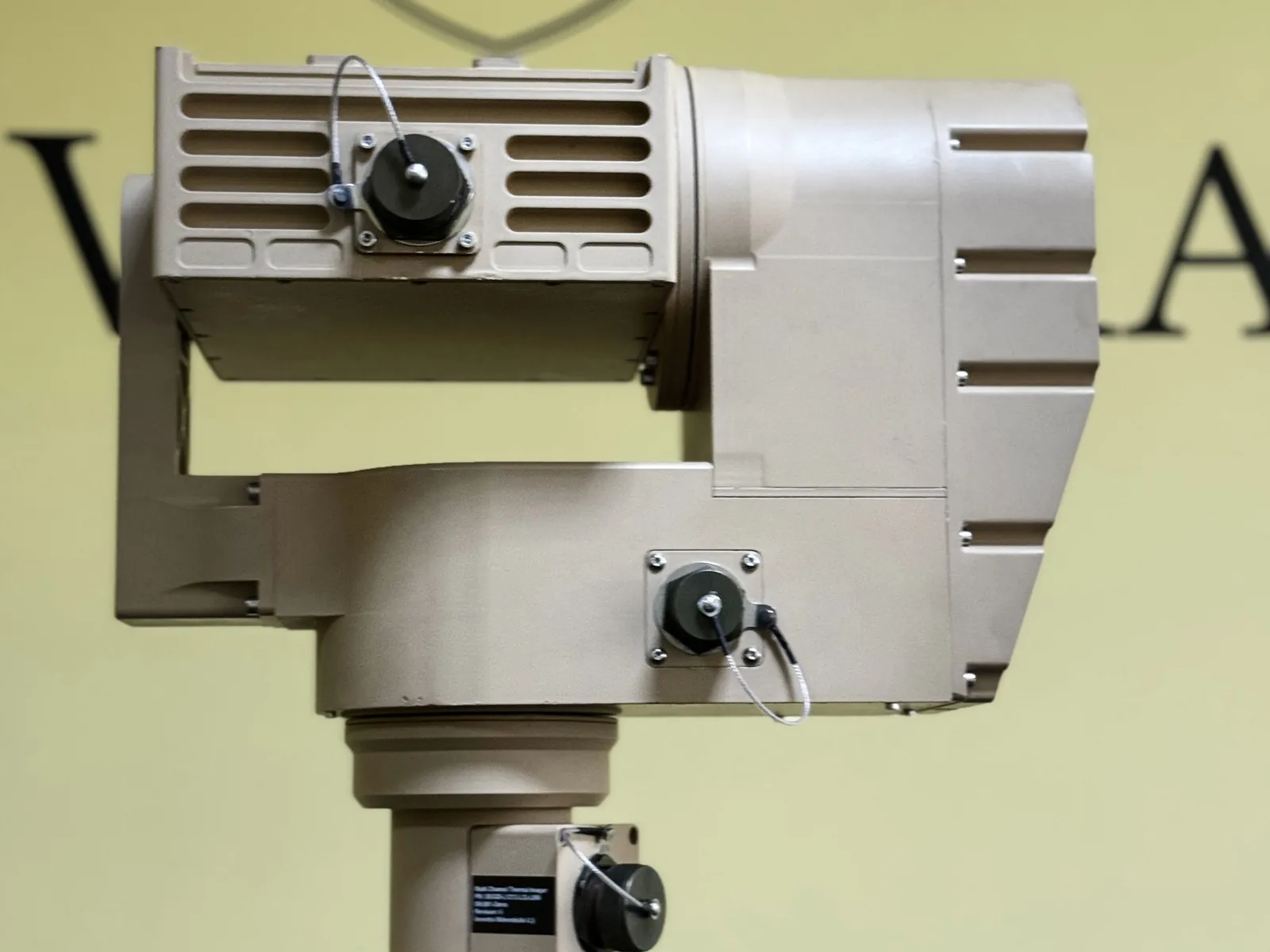

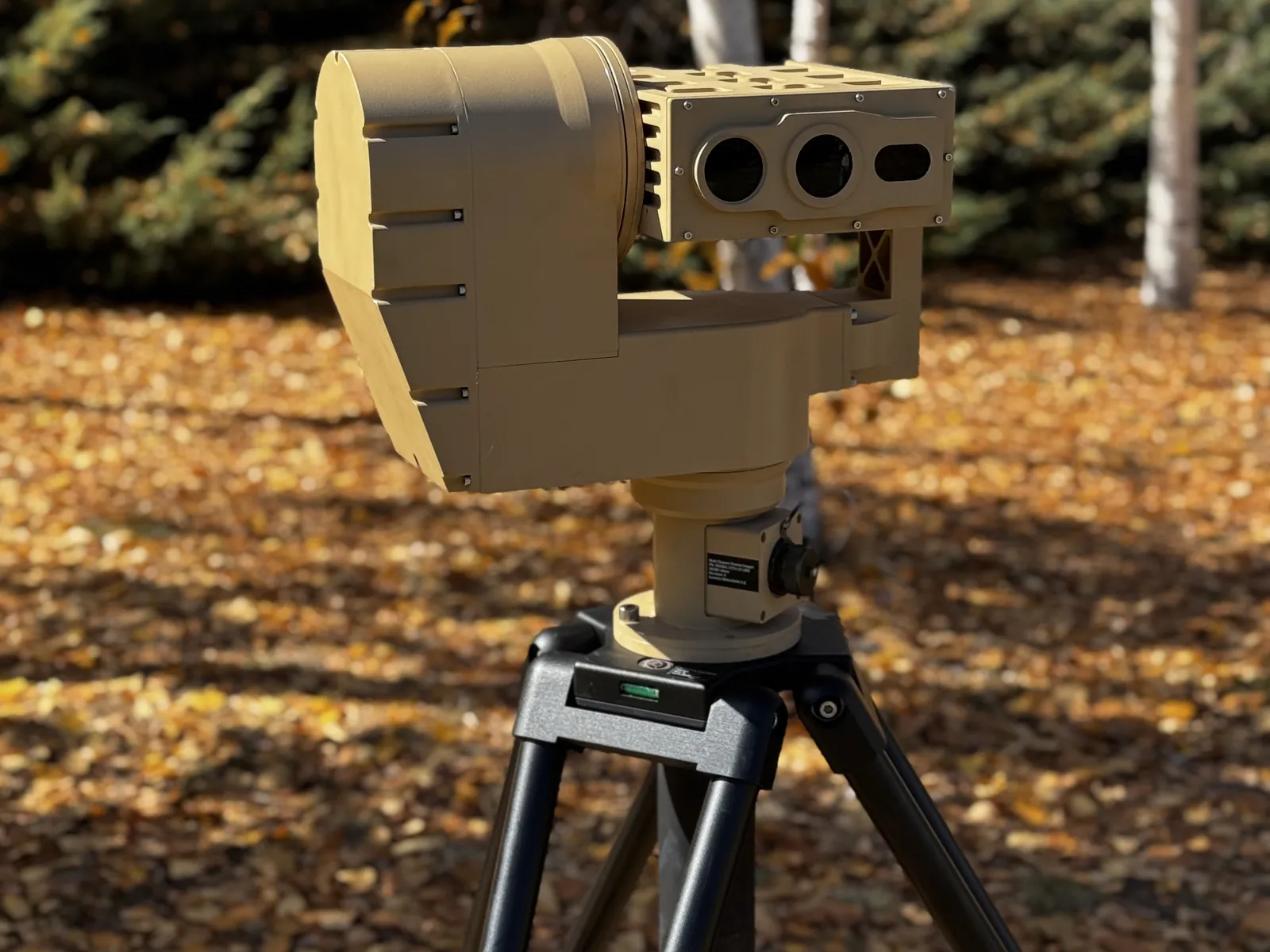

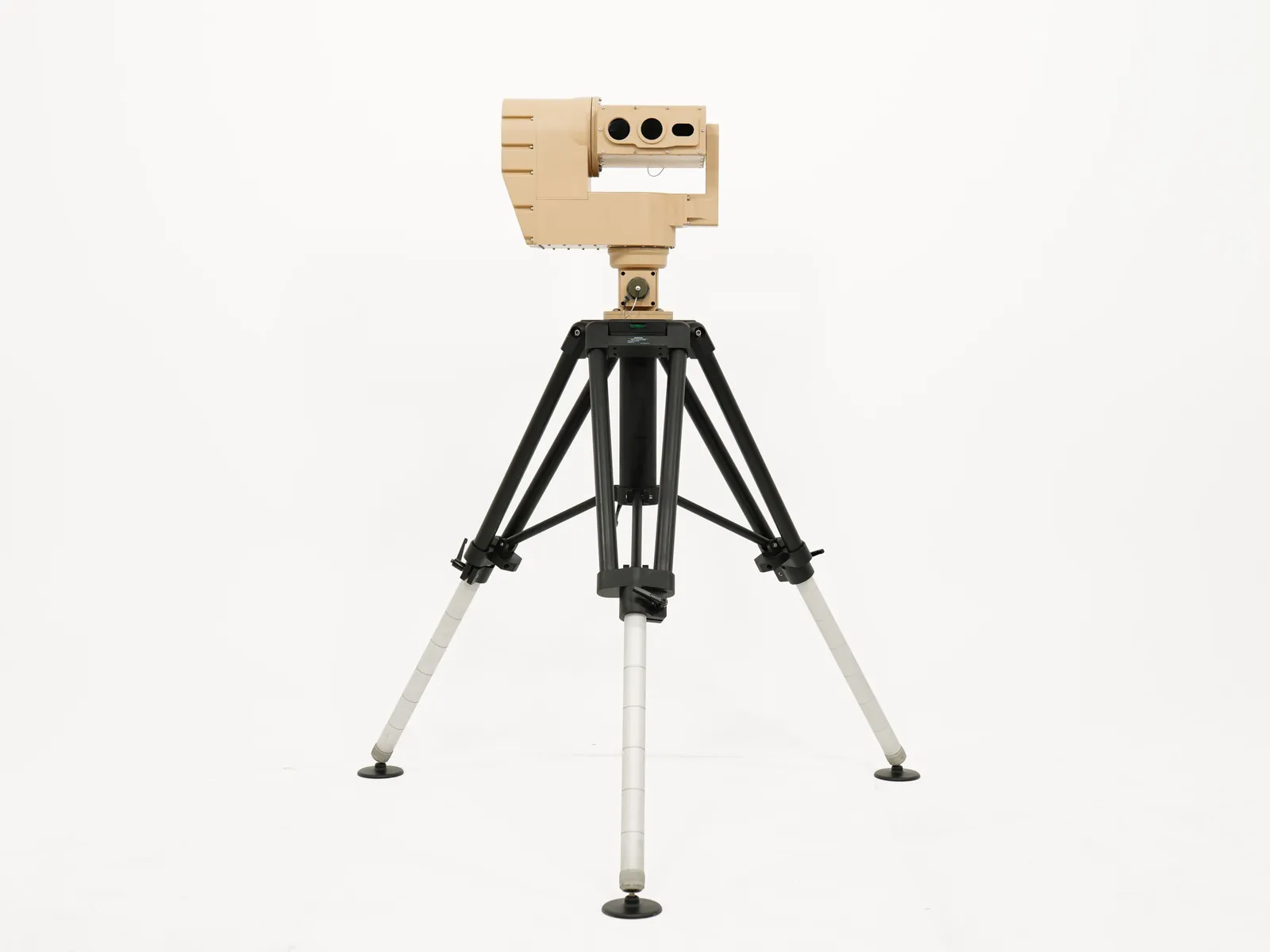

Stabilized Electromechanical Pan-Tilt

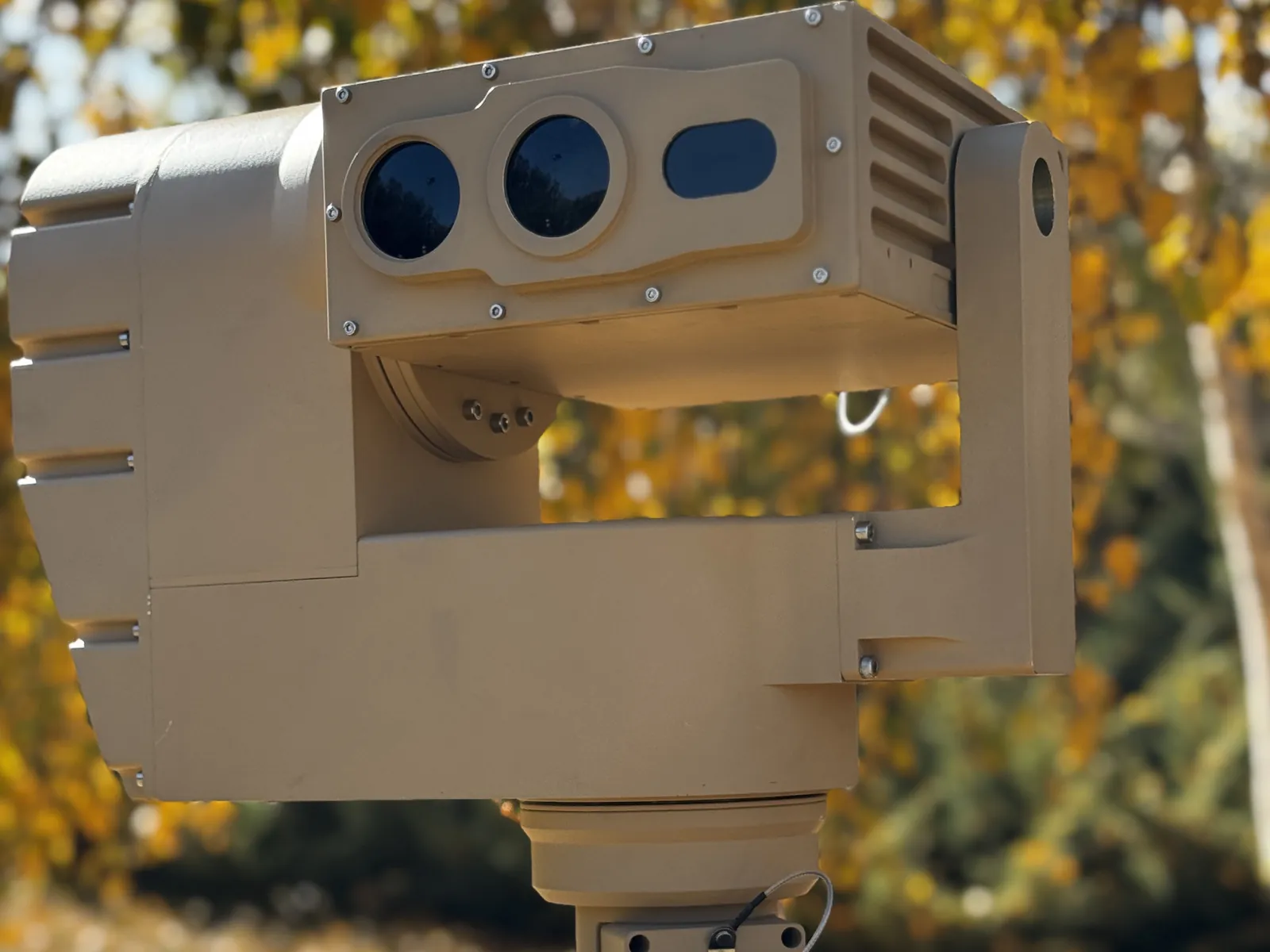

Gyro-stabilized high-capacity pan-tilt with a configurable U-arm, built for long-range surveillance from vehicles and unstable platforms.
- MIL-STD-810G
- IP65
- MIL-DTL-38999
- 60–185 Nm by configuration
- Pan Nominal Torque
- 0.028–0.038 °
- Positioning Accuracy
- 0.04 °
- Stabilization Accuracy
- 16.1 kg (17.5 kg for A1-B1)
- Weight
Highlights
Why This Model
01Gyro stabilisation
Steady tracking on an unstable platform
Gyro stabilisation keeps the payload pointed while the platform itself moves. On a vessel or a vehicle in motion this is the difference between a usable image and a search pattern.
- Dual-loop control to 0.001° with secondary encoder
- Pointing accuracy from 0.028°, resolution 0.002°

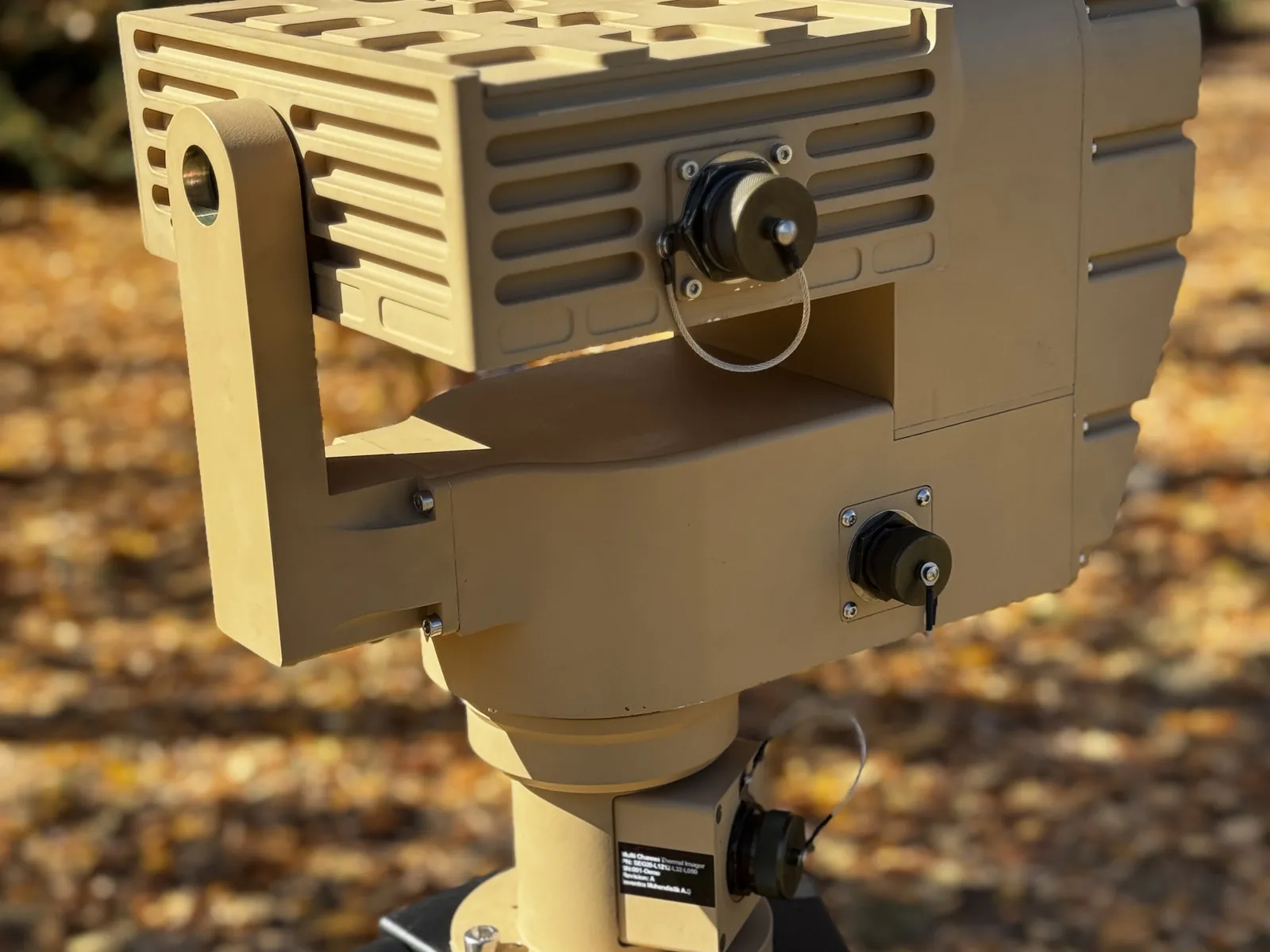

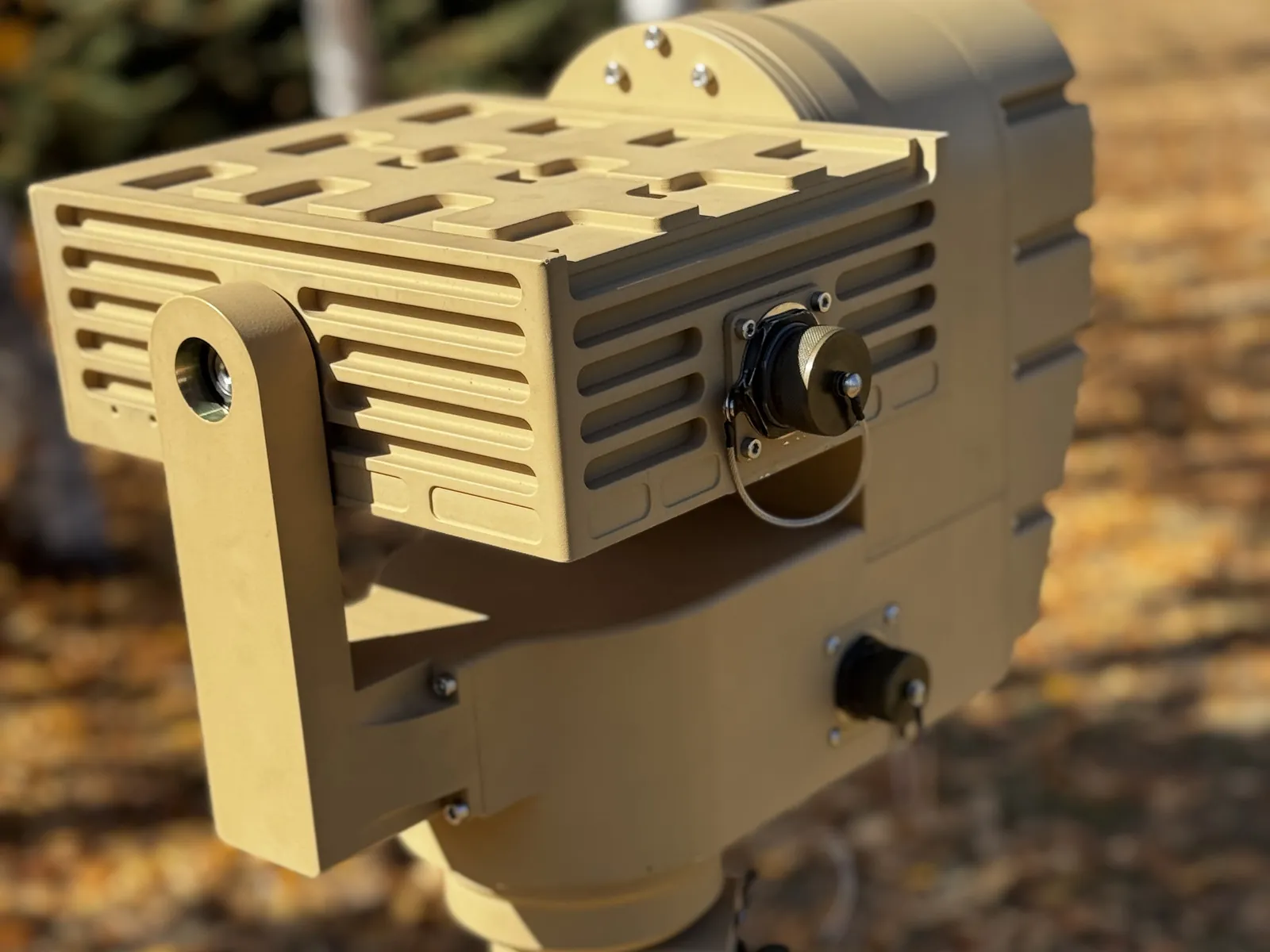

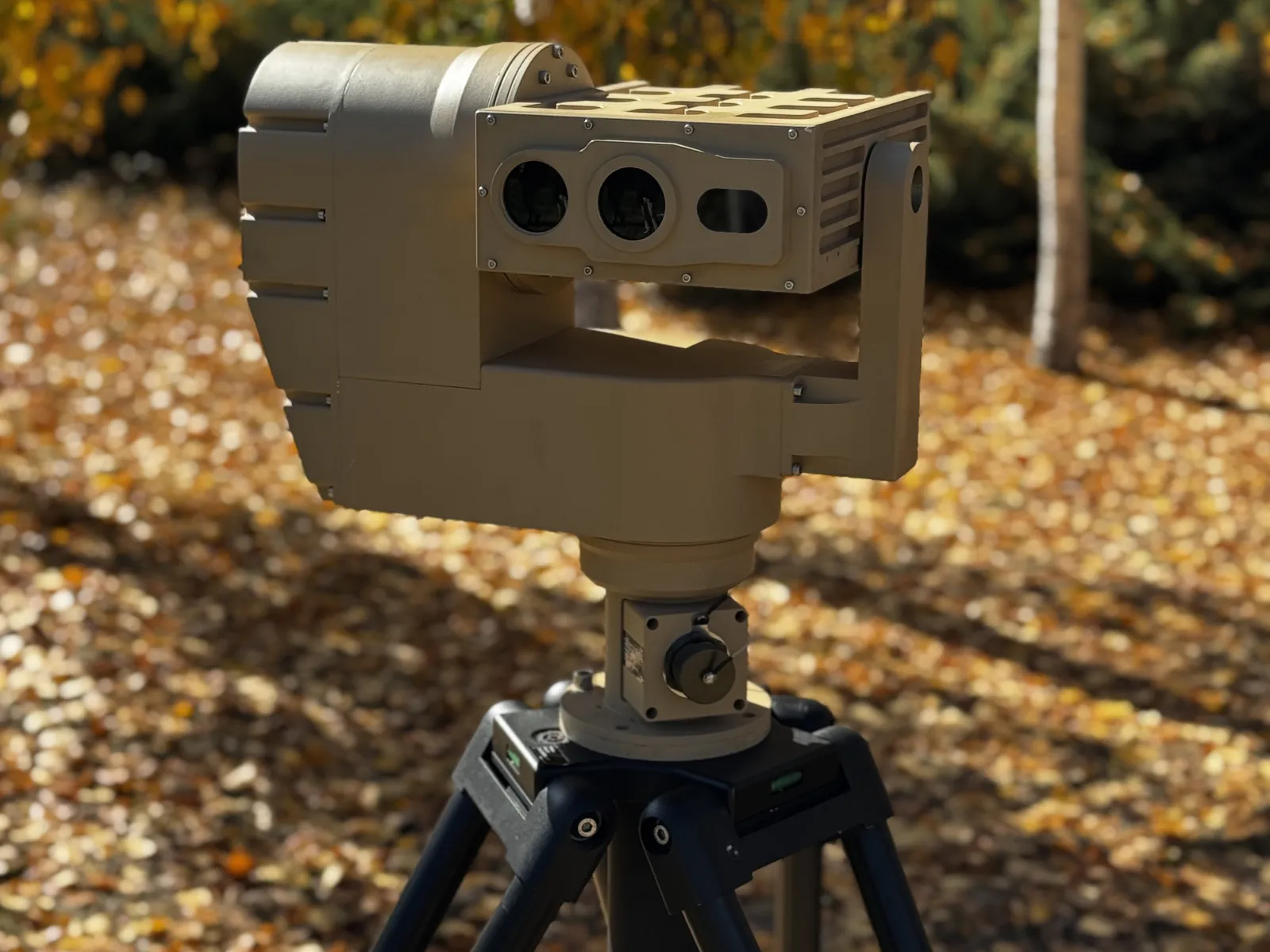

02Configurable U-arm
Arm width set to the payload it carries
The U-arm width is configured to the sensor suite rather than fixed, so an off-centre or oversized payload can be balanced about the tilt axis instead of loading it eccentrically.
- Torque to 475 Nm peak tilt, 875 Nm momentary
- Video tracking available as an option
03Coastal service
Built for corrosion and impact exposure
The build is specified for marine and rugged terrain: corrosion resistance for coastal operation, IP65 sealing, and shock and vibration resistance for high-impact conditions.
- MIL-STD-810G and MIL-STD-461G qualified

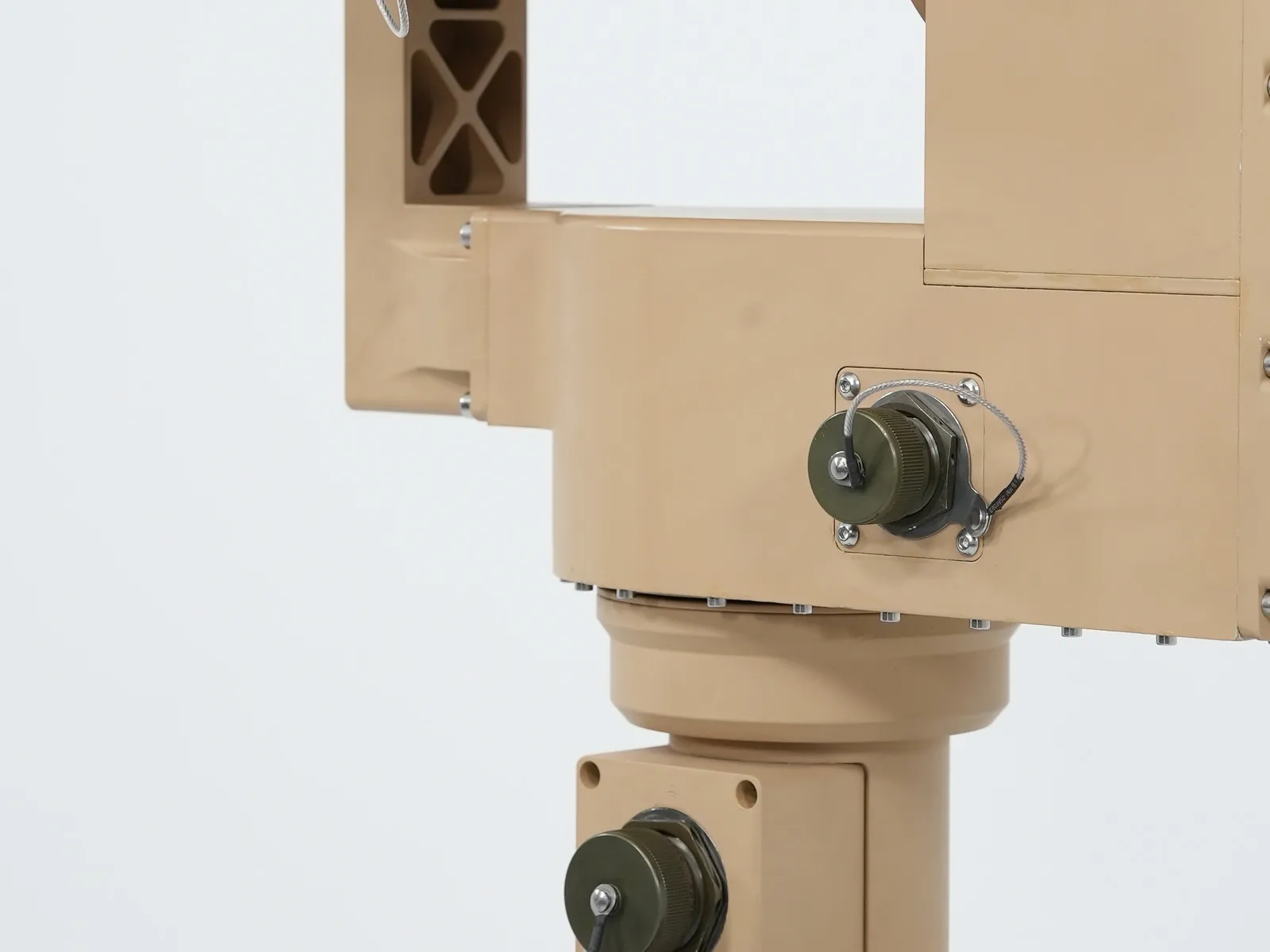

- 76-line slip ring, MIL-DTL-38999 connectors
Field Video
PED12
Technical Data
Specifications
| Pan Nominal Torque | 60–185 Nm by configuration |
|---|---|
| Pan Peak Torque | 100–225 Nm |
| Tilt Nominal Torque | 185–275 Nm |
| Tilt Peak Torque | 225–475 Nm |
| Momentary Peak Torque | Up to 875 Nm |
| Axis Speed | 28–180 °/s |
| Pan Axis Range | N × 360° continuous |
| Tilt Axis Range | Up to ±45° |
| Axis Resolution | 0.002 ° |
| Positioning Accuracy | 0.028–0.038 ° |
| Stabilization Accuracy | 0.04 ° |
| Stabilization Type | Gyro stabilization; dual-loop control to 0.001° with secondary encoder |
| Weight | 16.1 kg (17.5 kg for A1-B1) |
|---|---|
| Width | 430 mm |
| Height | 445 mm (depends on slip ring) |
| Depth | 270 mm |
| Slip Ring Lines | Up to 76 lines (1 Gbit Ethernet, RS-422, RS-232, HD-SDI) |
| Control Interface | Ethernet, RS-485, RS-422 full duplex, USB |
|---|---|
| Connector Type | MIL-DTL-38999 |
| IP Rating | IP65 |
|---|---|
| Wind Load | 120 km/h |
| Operating Temperature | −32 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Qualification Standard | MIL-STD-810G |
| EMI/EMC Qualification | MIL-STD-461G (CE102, CS101, CS114/115/116/118, RE102, RS103) |
Values are for the standard configuration. Mission-specific configurations are offered on request.
Technical Data
Configurations
Published configurations and their part numbers. Combinations outside this table are engineered to order.
| Part number | Pan Axis Speed°/s | Pan Nominal TorqueNm | Pan Peak TorqueNm | Tilt Nominal TorqueNm | Tilt Peak TorqueNm | Positioning Accuracy° | Weightkg |
|---|---|---|---|---|---|---|---|
| PED12-A2-A1 | 48 | 150 | 215 | 185 | 225 | 0.038 | 16.1 |
| PED12-A4-A1 | 180 | 60 | 100 | 185 | 225 | 0.032 | 16.1 |
| PED12-A1-B1 | 28 | 185 | 225 | 275 | 475 | 0.028 | 17.5 |
Documents
Datasheet on request
The datasheet, interface control documents and the 3D model are sent on request. Write from a corporate address and name the product.
