EO/IR Imager Systems
SEB20

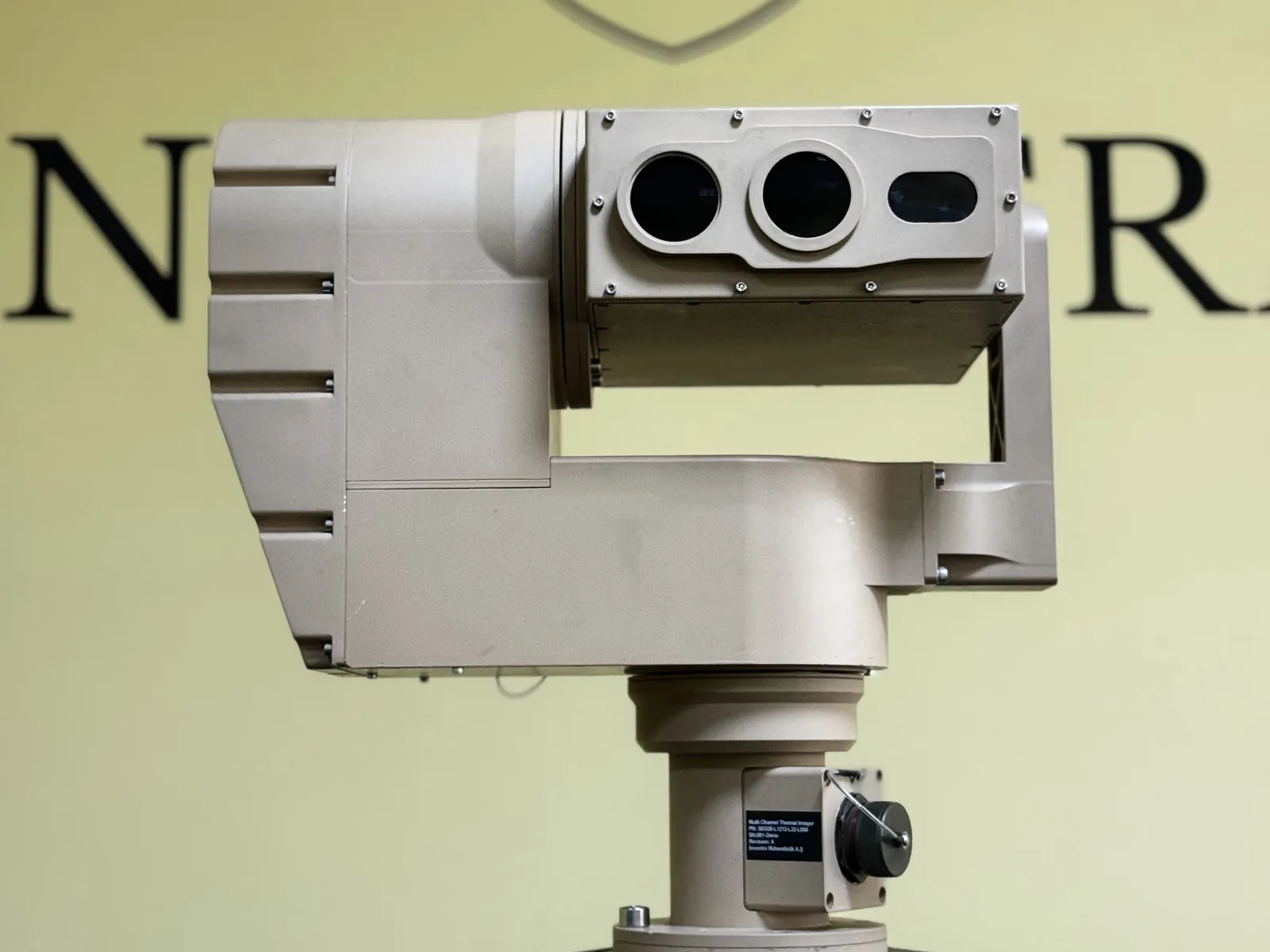

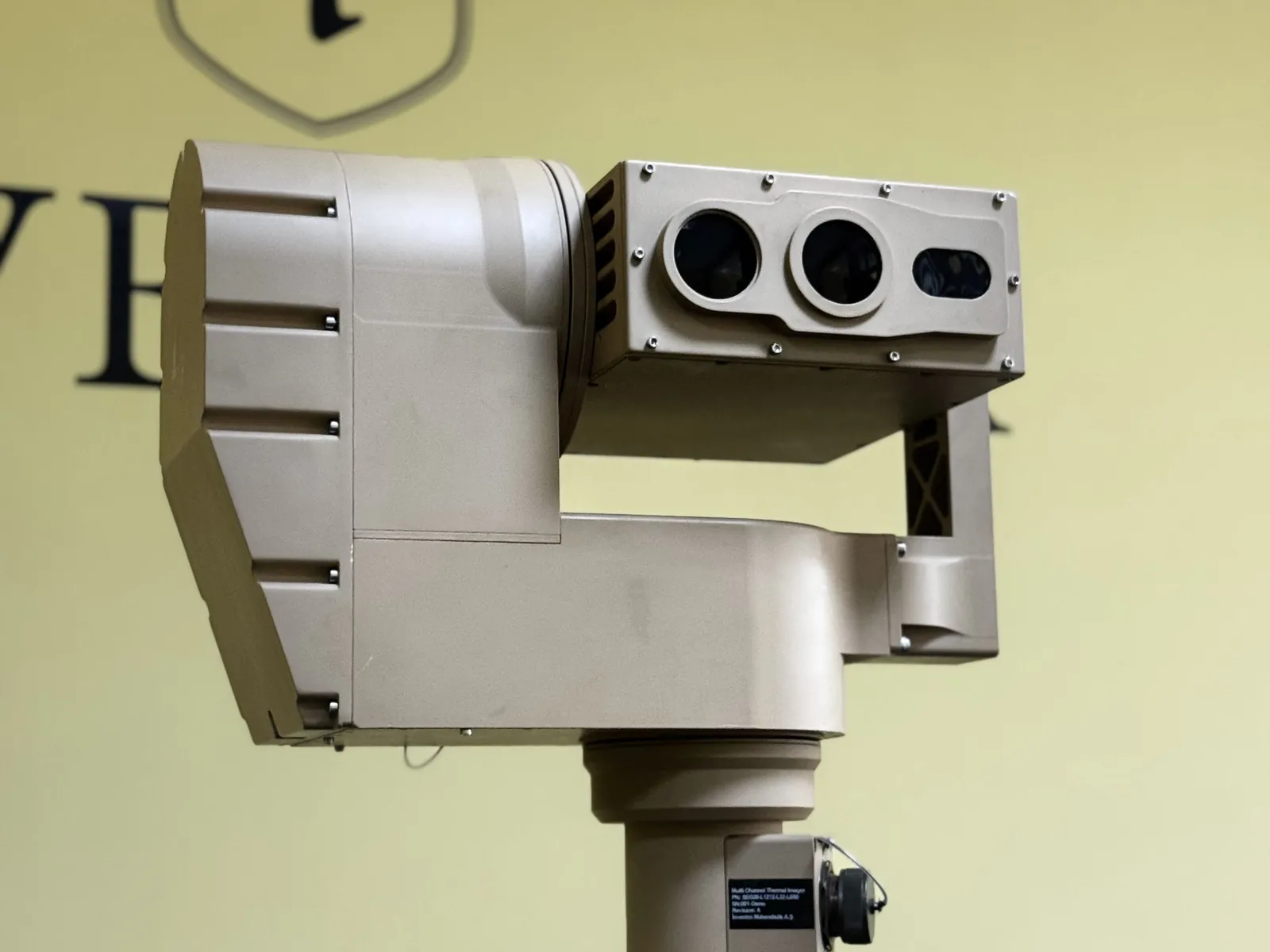

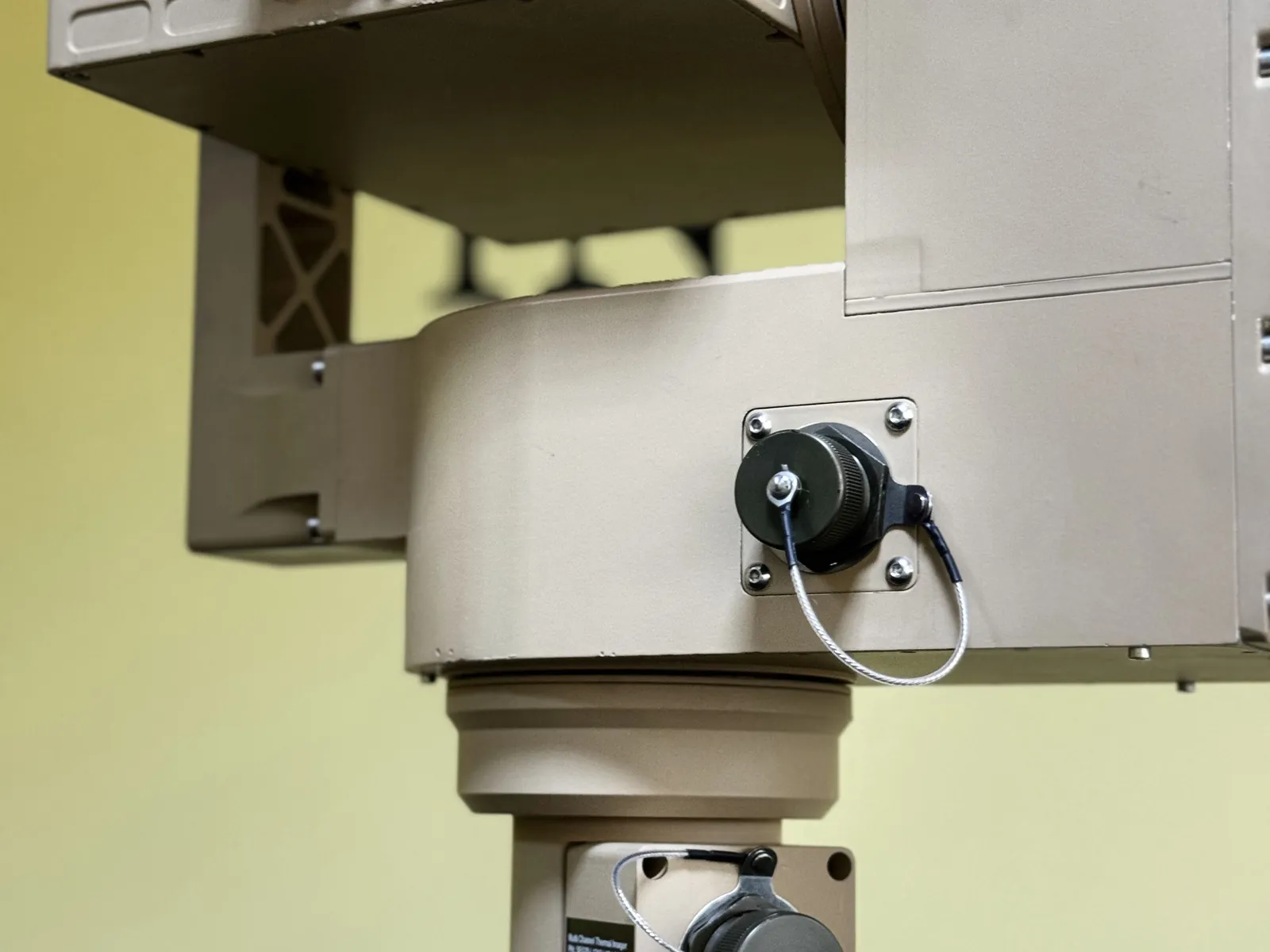

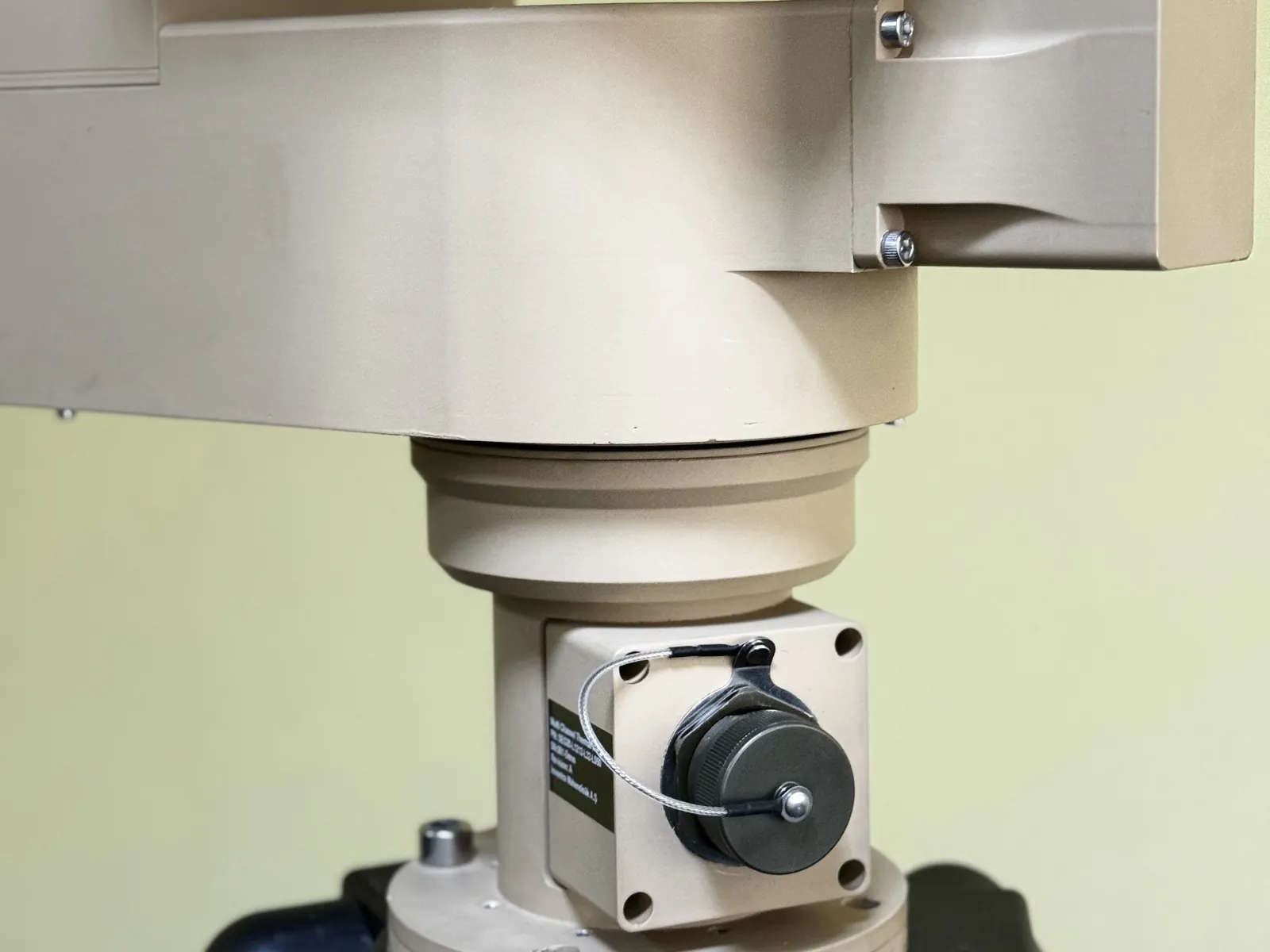

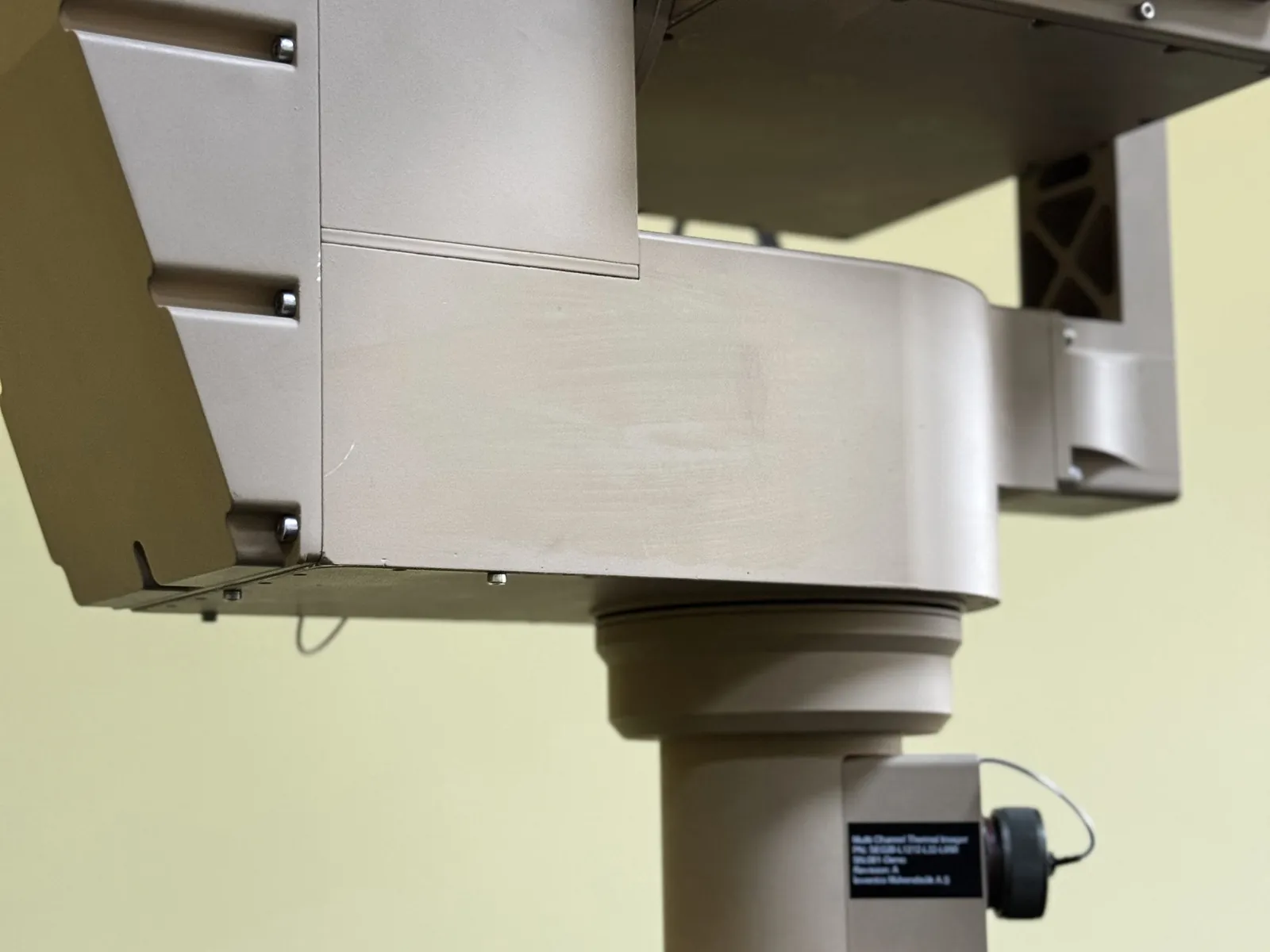

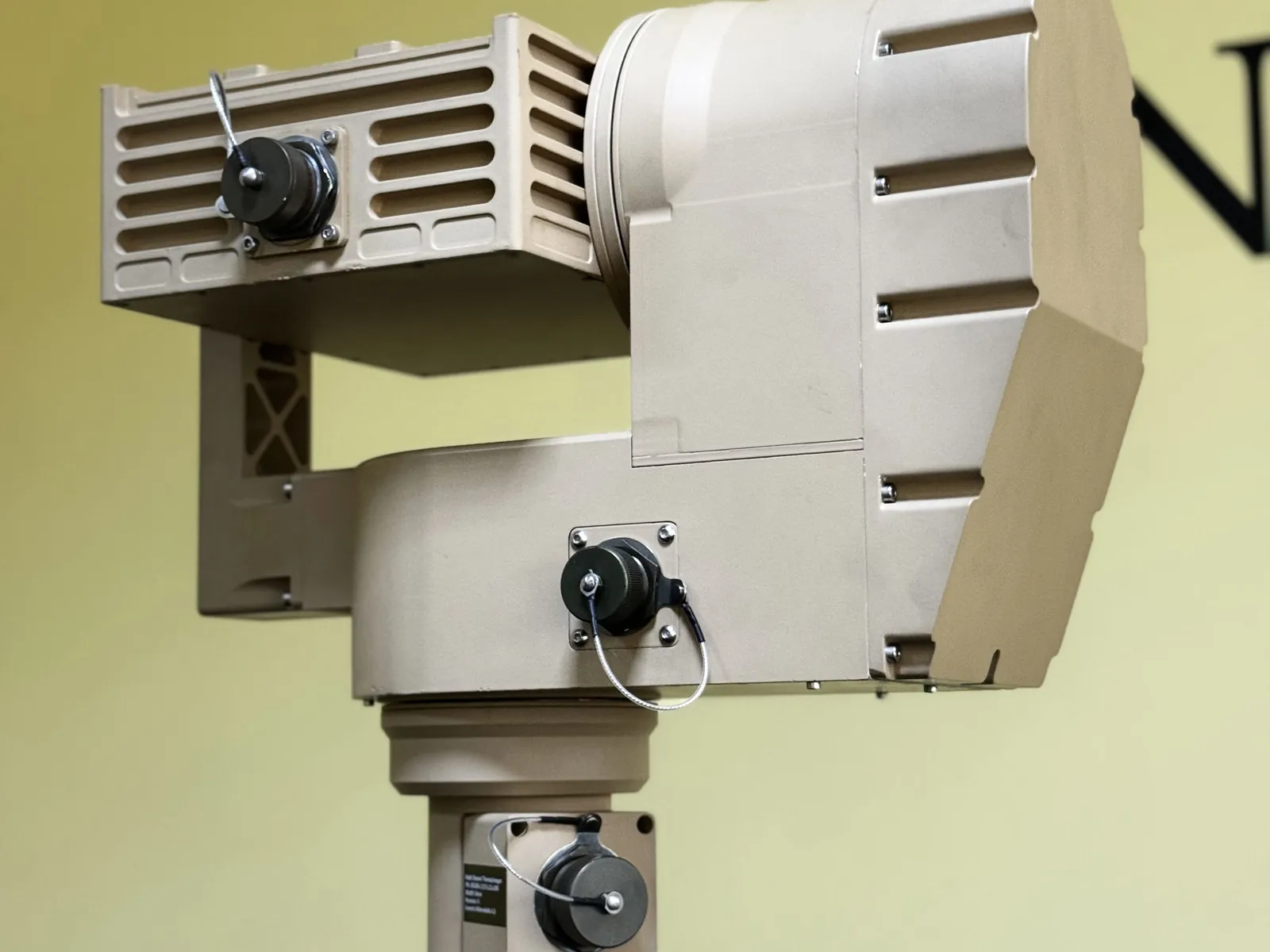

Multi Channel (EO-MWIR-LRF-LD) Thermal Imager
Black-box MWIR imager with 1280x1024 detector, up to 90x day zoom, 32 km rangefinder and an optional STANAG laser designator for weapon systems.
- IP65
- Cooled MWIR 3.7–4.8 µm
- Thermal Spectral Band
- 1280 × 1024 px
- Thermal Detector Resolution
- Up to 90x (E90 option)
- EO Optical Zoom
- 5–32,000 m
- Laser Rangefinder Range
- < 50 µrad (≈ 0.003°)
- Stabilization Accuracy
Highlights
Why This Model
01Quad channel
EO, MWIR, rangefinder and designator in one unit
Four channels acquire data and accept commands simultaneously. Observation, identification, ranging and designation happen from the same line of sight rather than across separate instruments.
- 90× optical zoom on the 1920×1080 EO channel
- Rangefinder from 5 m to 32,000 m
02Designation
50 mJ designator to STANAG 3733
The 1064 nm designator outputs 50 mJ with a 10 to 25 ns pulse and follows STANAG 3733 Band I and II coding, so it works with the guidance seekers that expect that standard.
- Stabilisation accuracy 0.003°, pointing 0.006°
- Fibre gyro and encoder based dual-loop
03Detector
1280×1024 cooled MWIR at 20 mK
The cooled 3.7–4.8 µm detector reads 1280×1024 at a 12 µm pitch with NETD 20 mK, and the thermal path zooms optically from 37.5 to 750 mm.
- Thermal field of view from 23.5° down to 1.17°
- 40 g / 11 ms shock qualified, 18.4 kg
Field Video
SEB20
Technical Data
Specifications
| Thermal Spectral Band | Cooled MWIR 3.7–4.8 µm |
|---|---|
| Thermal Detector Resolution | 1280 × 1024 px |
| Thermal Pixel Pitch | 12 µm |
| Thermal NETD | ≤ 20 mK |
| EO Resolution | 1920 × 1080 px |
| EO Minimum Illumination | 0.001 lx (E50UL ultra low light) |
| Thermal Optical Zoom | 20 x |
|---|---|
| Thermal Focal Length | 37.5–750 mm |
| Thermal Horizontal Field of View | 23.5° – 1.17° |
| EO Optical Zoom | Up to 90x (E90 option) |
| EO Digital Zoom | 16 x |
| Laser Rangefinder Range | 5–32,000 m |
| Laser Rangefinder Wavelength | 1500 nm |
| Designator Output Energy | > 50 mJ (LD050 option) |
| Designator Wavelength | 1064 nm |
| Designator Pulse Coding | STANAG 3733 I & II |
| Designator Pulse Width | 10–25 ns |
| Stabilization Accuracy | < 50 µrad (≈ 0.003°) |
|---|---|
| Positioning Accuracy | < 100 µrad (≈ 0.006°) |
| Stabilization Type | Fiber gyro and encoder based dual-loop |
| Tracker Data Refresh Rate | 25 Hz |
| Tracker Output Latency | < 100 ms |
| Tracker Target Size | 16×16 to 128×128 px |
| Weight | 18.4 kg without pan-tilt unit |
|---|---|
| Width | 325 mm |
| Depth | 360 mm |
| Height | 155 mm |
| Operating Voltage | 20–32 V |
|---|
| Control Interface | RS-422 |
|---|---|
| Video Output | HD-SDI, Ethernet |
| IP Rating | IP65 |
|---|---|
| Operating Temperature | −32 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Shock Qualification | MIL-STD-810G Method 516.6 Proc. I, 40 g / 11 ms |
| Vibration Qualification | MIL-STD-810G Method 514.6 Proc. I Cat. 20 |
| Humidity Qualification | MIL-STD-810G Method 507.5 Proc. I, 90% non-condensing |
| Salt Fog Qualification | MIL-STD-810G Method 509.5, 2 × 24 h cycles |
Values are for the standard configuration. Mission-specific configurations are offered on request.
Documents
Datasheet on request
The datasheet, interface control documents and the 3D model are sent on request. Write from a corporate address and name the product.
