EO/IR Imager Systems
SEG12

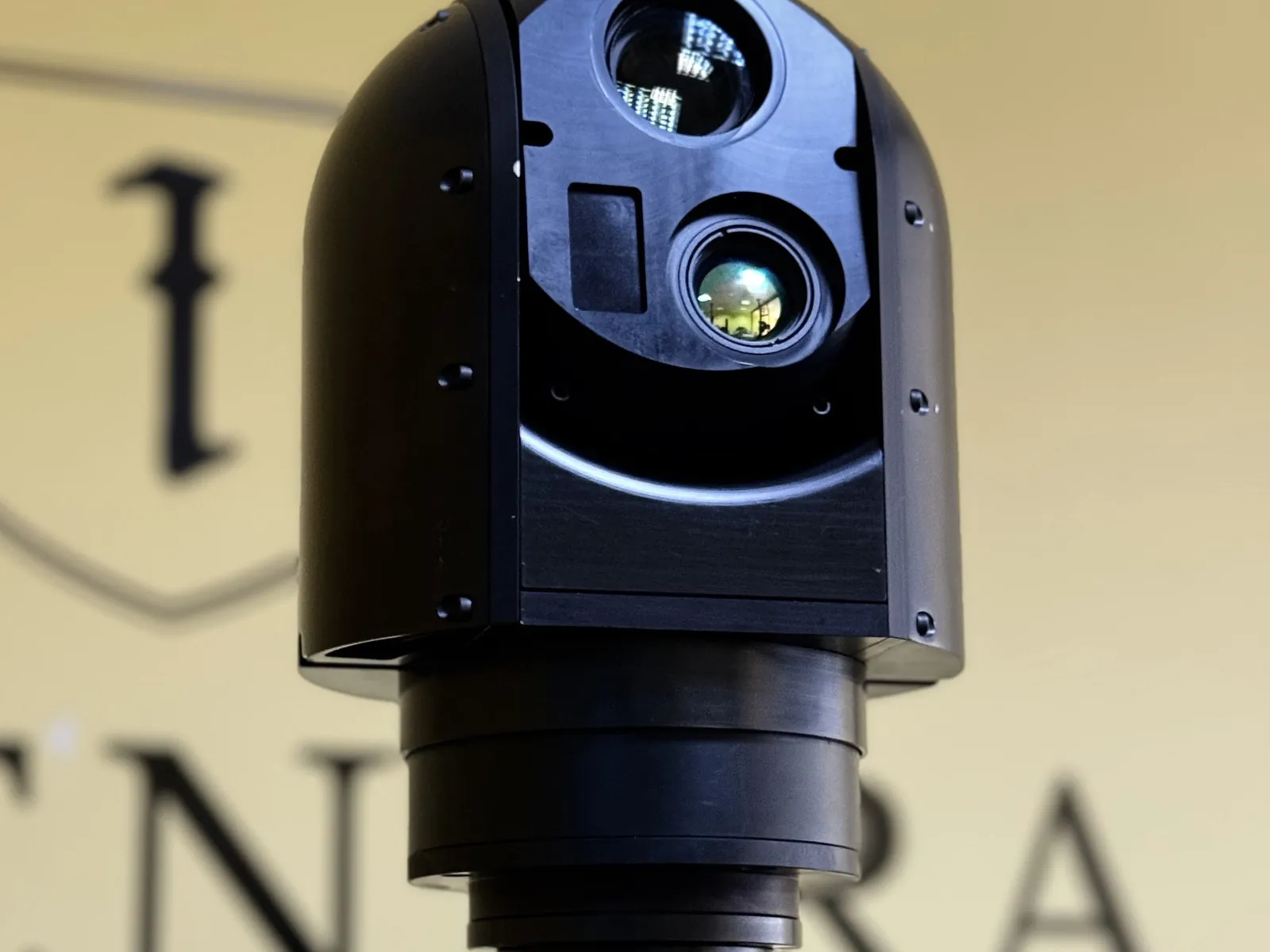

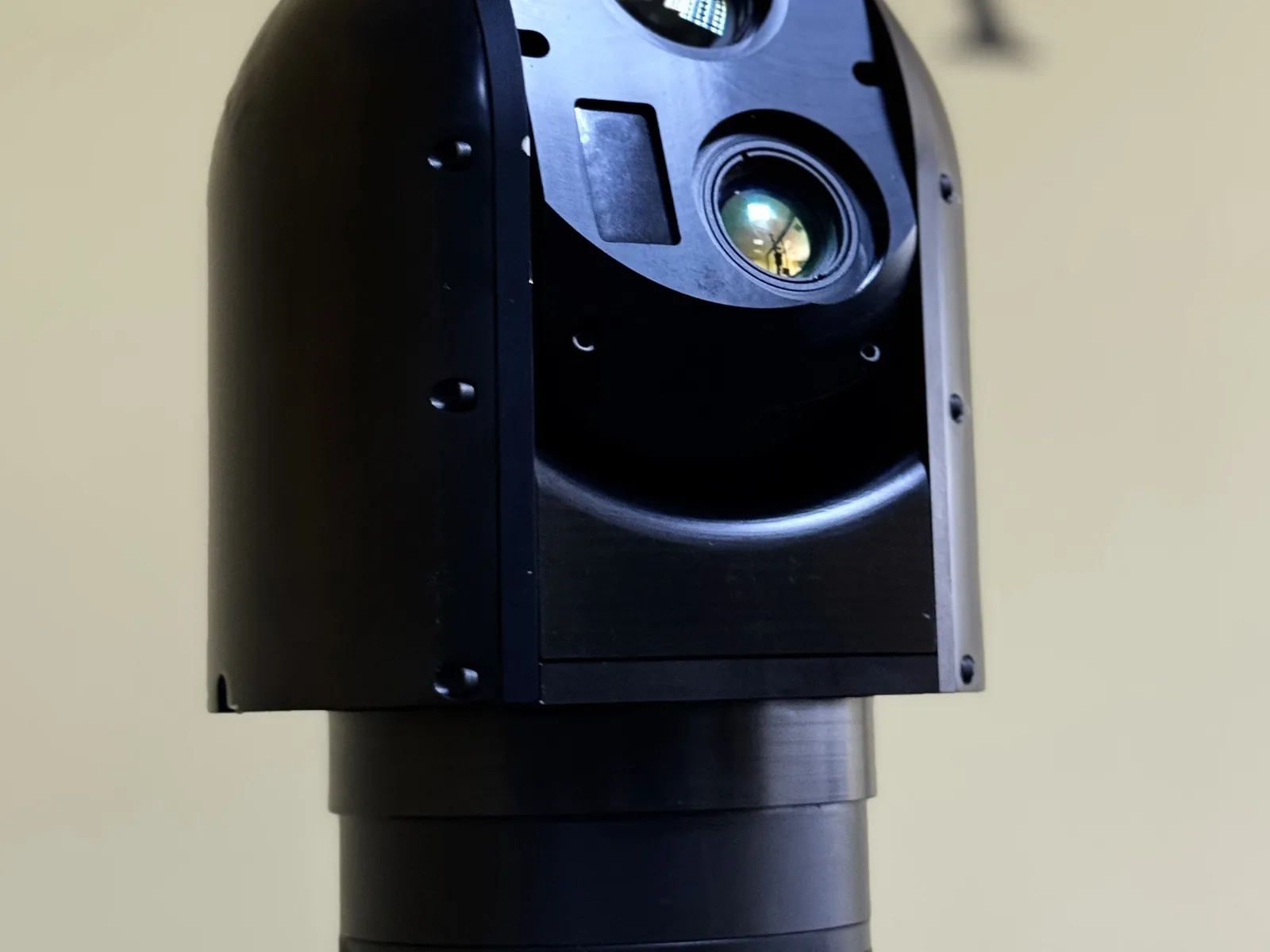

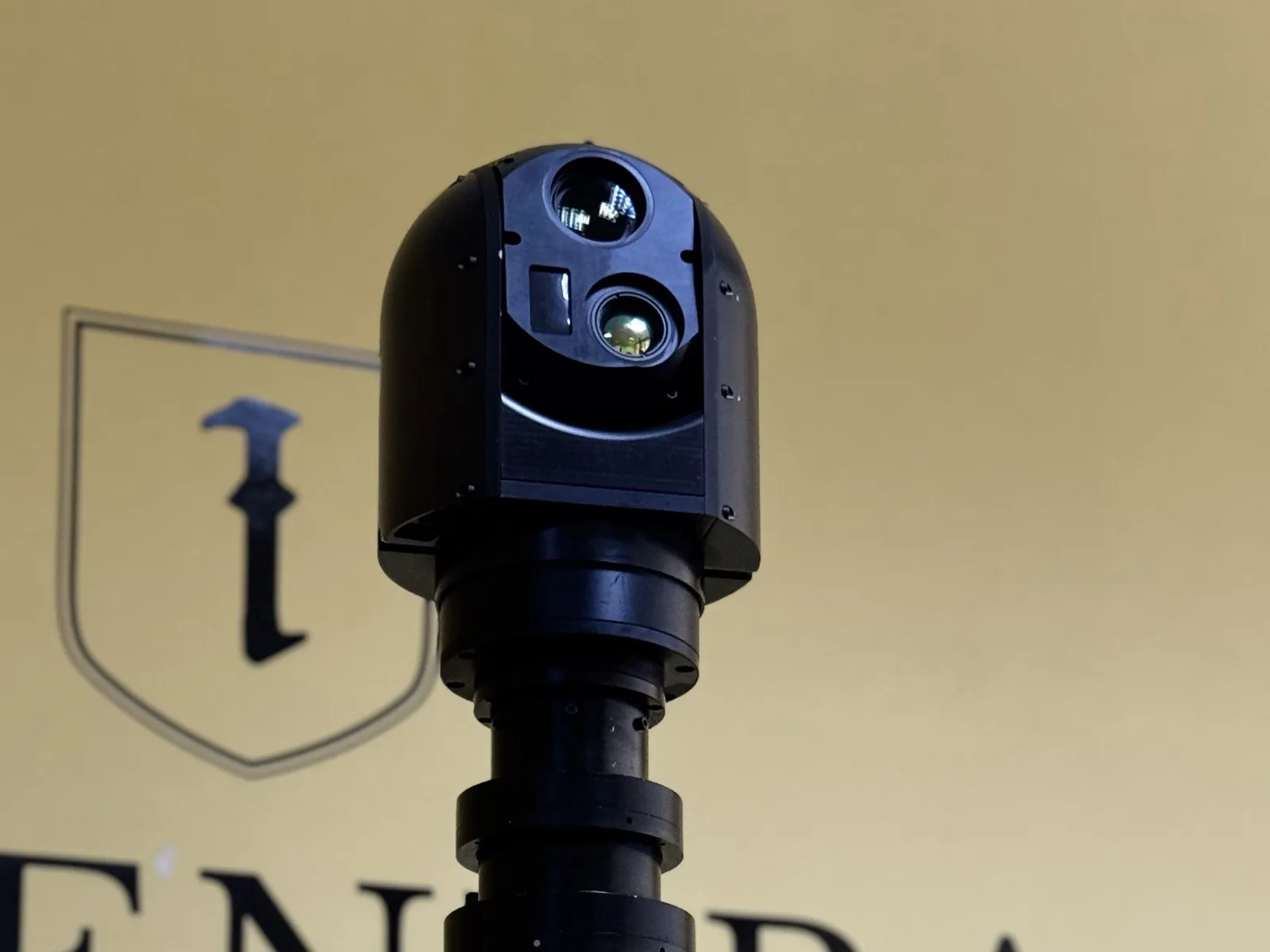

Multi Channel (EO-LWIR-LRF) Stabilized Gimbal System
Compact triple-channel gimbal adding a 4500 m laser rangefinder to the 30x EO and 640x512 LWIR channels, with digital image blending on one video downlink.
- MIL-STD-810G, tactical armored vehicle class
- IP65
- 640 × 512 px
- Thermal Detector Resolution
- 30 x
- EO Optical Zoom
- 5–4500 m
- Laser Rangefinder Range
- 0.05 °
- Stabilization Accuracy
- 4.6 kg
- Weight
Highlights
Why This Model

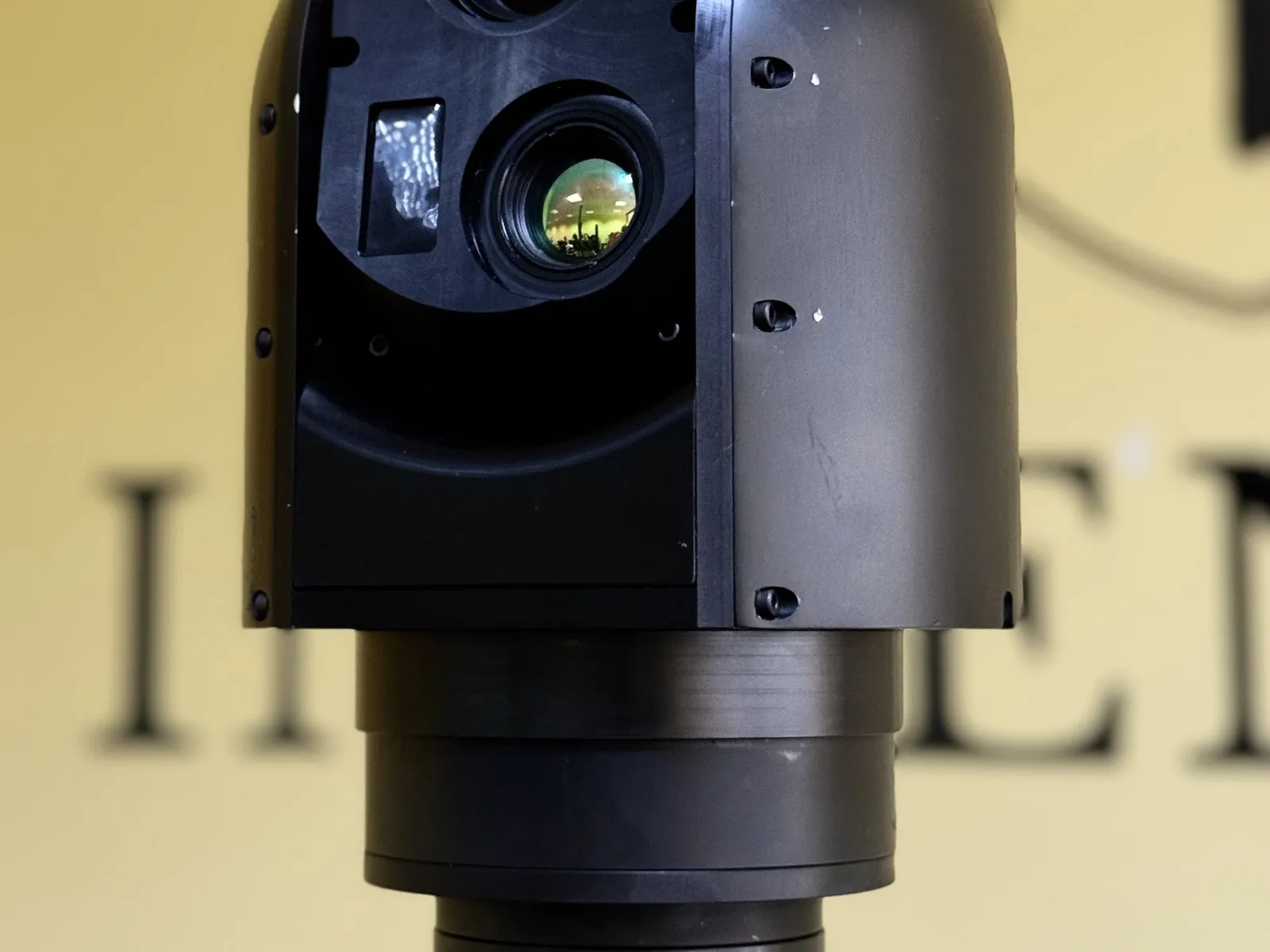

01Triple channel
EO, thermal and laser ranging on one downlink
The EO, LWIR and laser rangefinder channels acquire data and take commands at the same time. A 4500 m rangefinder turns an observation into a coordinate.
- 1500 nm rangefinder, 5 to 4500 m
- Optional laser pointer on the same head
02Image blending
Thermal and colour combined in one video channel
Full digital blending merges the thermal and colour images before they leave the unit, so a single downlink carries the combined view rather than two feeds the operator must reconcile.
- Uncooled LWIR keeps MTBF high and ownership cost low
- Onboard video compression for narrow links
03Servo precision
Brushless drive holds pointing to 0.04°
True servo drive with brushless motors and high-resolution encoders replaces stepper actuation, which is what brings positioning to 0.04° and stabilisation to 0.05°.
- 4.6 kg unit, 160 mm across
- Category 20 vibration and 20 g shock qualified

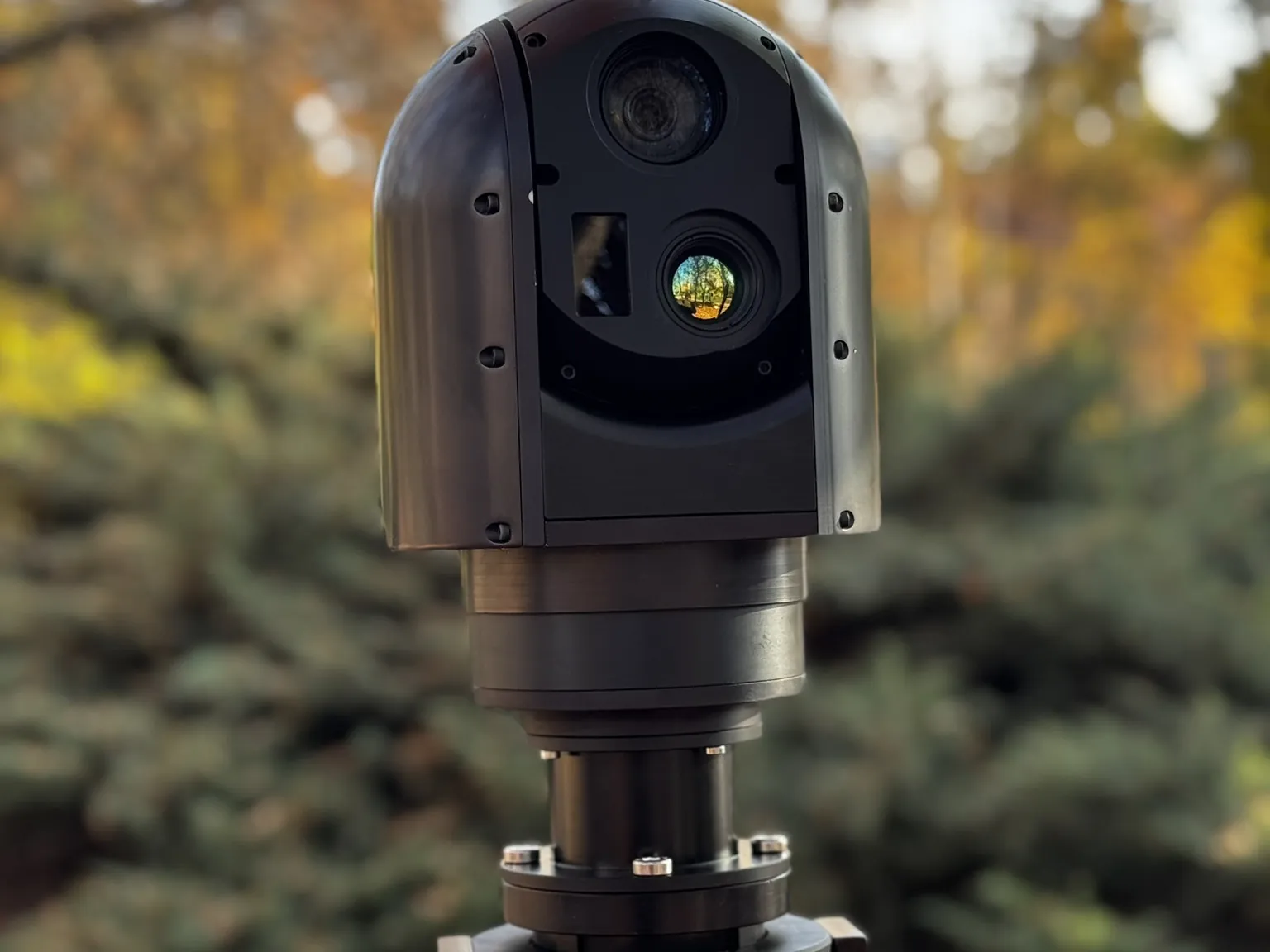

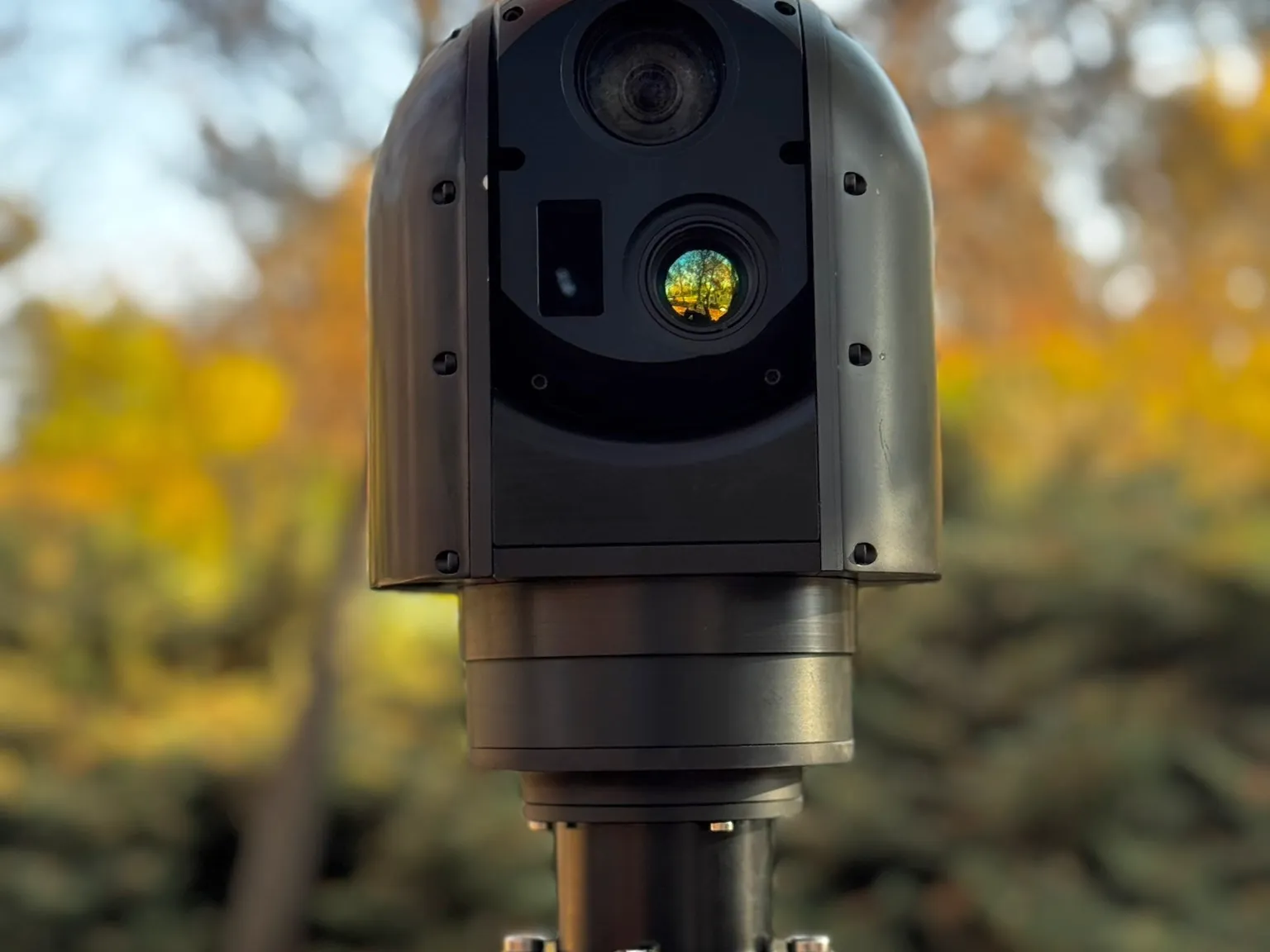

Field Video
SEG12
Technical Data
Specifications
| Thermal Spectral Band | Uncooled LWIR |
|---|---|
| Thermal Detector Resolution | 640 × 512 px |
| Thermal Pixel Pitch | 17 µm |
| Thermal NETD | ≤ 50 mK @ 25 °C |
| Thermal MRTD | ≤ 500 mK |
| Thermal Focus Type | Athermalized |
| Automatic Non-Uniformity Correction | ✓ |
| EO Image Sensor | 1/2.8-type Exmor R CMOS |
| EO Resolution | 1920 × 1080 px |
| EO Minimum Illumination | 0.01 lx (F1.6, AGC on, 1/30 s) |
| Thermal Horizontal Field of View | 17.7 ° |
|---|---|
| Thermal Digital Zoom | 2x / 3x / 4x |
| EO Optical Zoom | 30 x |
| EO Digital Zoom | 12 x |
| EO Focal Length | 4.3–129 mm |
| EO Horizontal Field of View | 63.7° (wide) – 2.3° (tele) |
| Laser Rangefinder Range | 5–4500 m |
| Laser Rangefinder Wavelength | 1500 nm |
| Laser Pointer | Optional |
| Stabilization Accuracy | 0.05 ° |
|---|---|
| Positioning Accuracy | 0.04 ° |
| Stabilization Type | Two-axis IMU and encoder based dual-loop |
| Axis Speed | 180 °/s |
| Pan Axis Range | 360° continuous |
| Tilt Axis Range | ±45° |
| Tracker Data Refresh Rate | 25 Hz |
| Tracker Output Latency | < 100 ms |
| Tracker Target Size | 16×16 to 128×128 px |
| Video Compression | ✓ |
| Weight | 4.6 kg |
|---|---|
| Diameter | 160 mm |
| Height | 256 mm |
| Operating Voltage | 20–32 V |
|---|---|
| Maximum Power Consumption | 150 W |
| Control Interface | RS-485 |
|---|---|
| Video Output | HD-SDI, Ethernet |
| IP Rating | IP65 |
|---|---|
| Operating Temperature | −32 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Qualification Standard | MIL-STD-810G, tactical armored vehicle class |
| Vibration Qualification | MIL-STD-810G Method 514.6 Proc. I Cat. 20 |
| Shock Qualification | MIL-STD-810G Method 516.6 Proc. I, 20 g / 11 ms |
| Rain Qualification | MIL-STD-810G Method 506.5 Proc. I |
Values are for the standard configuration. Mission-specific configurations are offered on request.
