EO/IR Imager Systems
SEG10

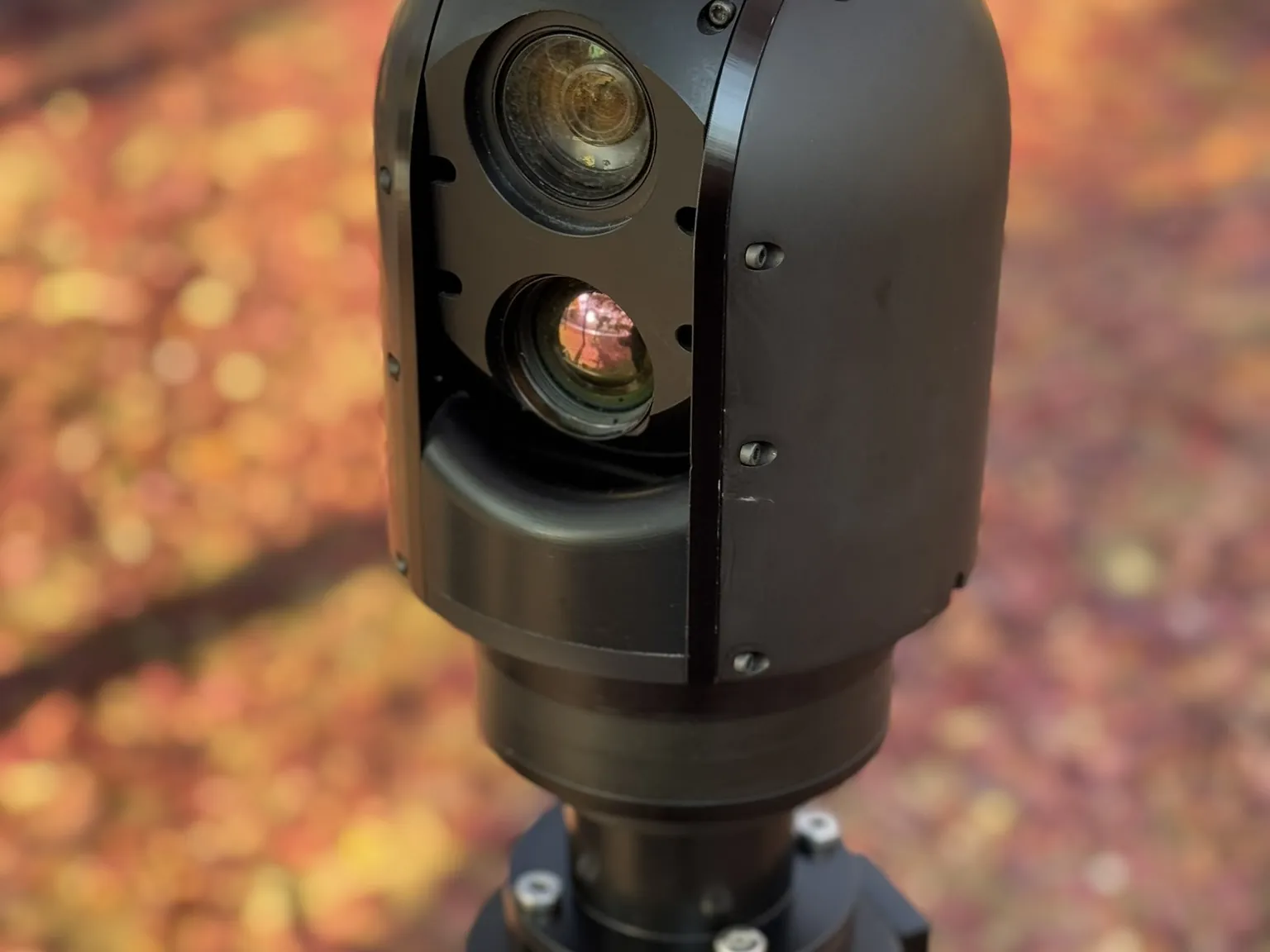

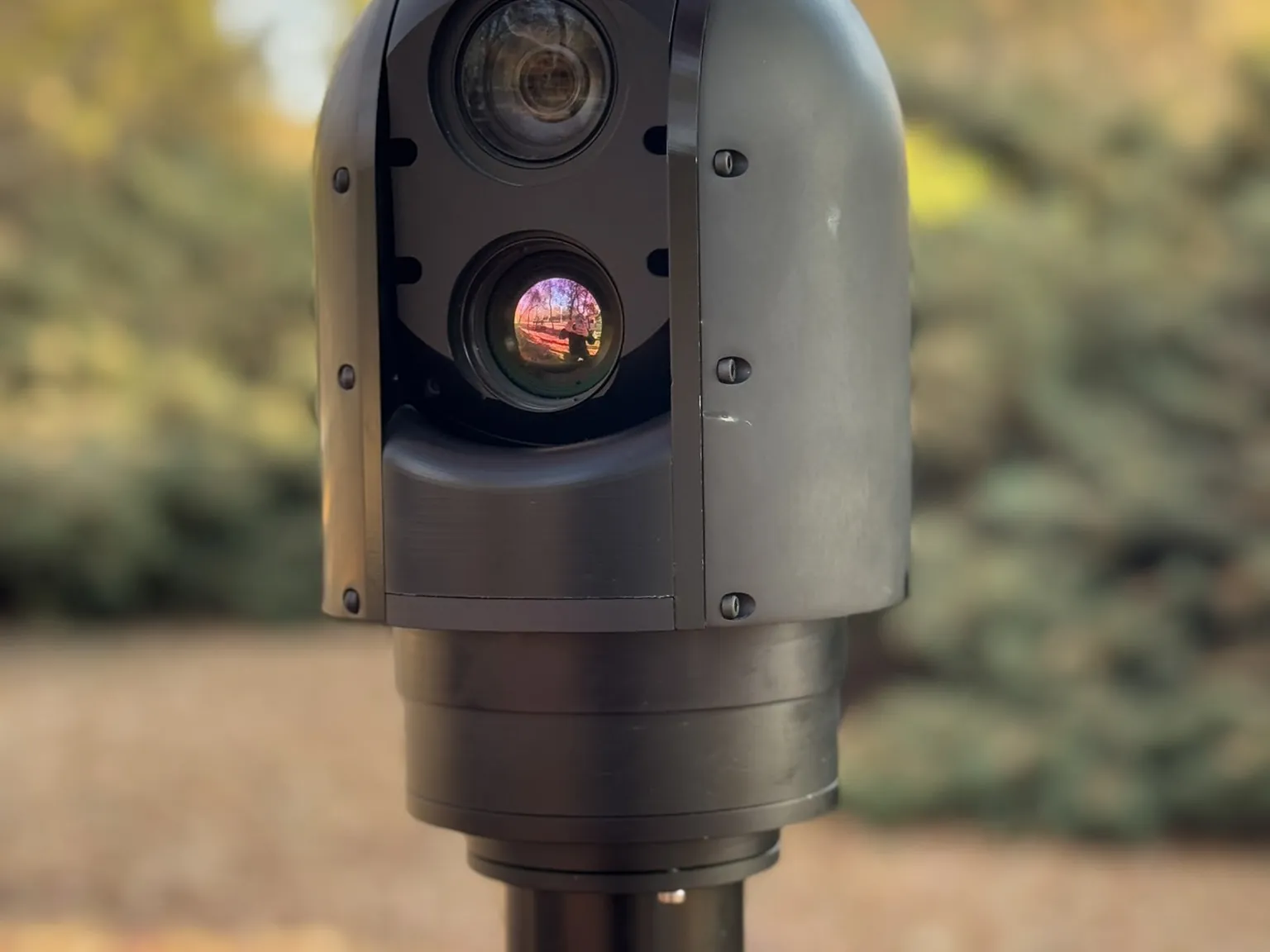

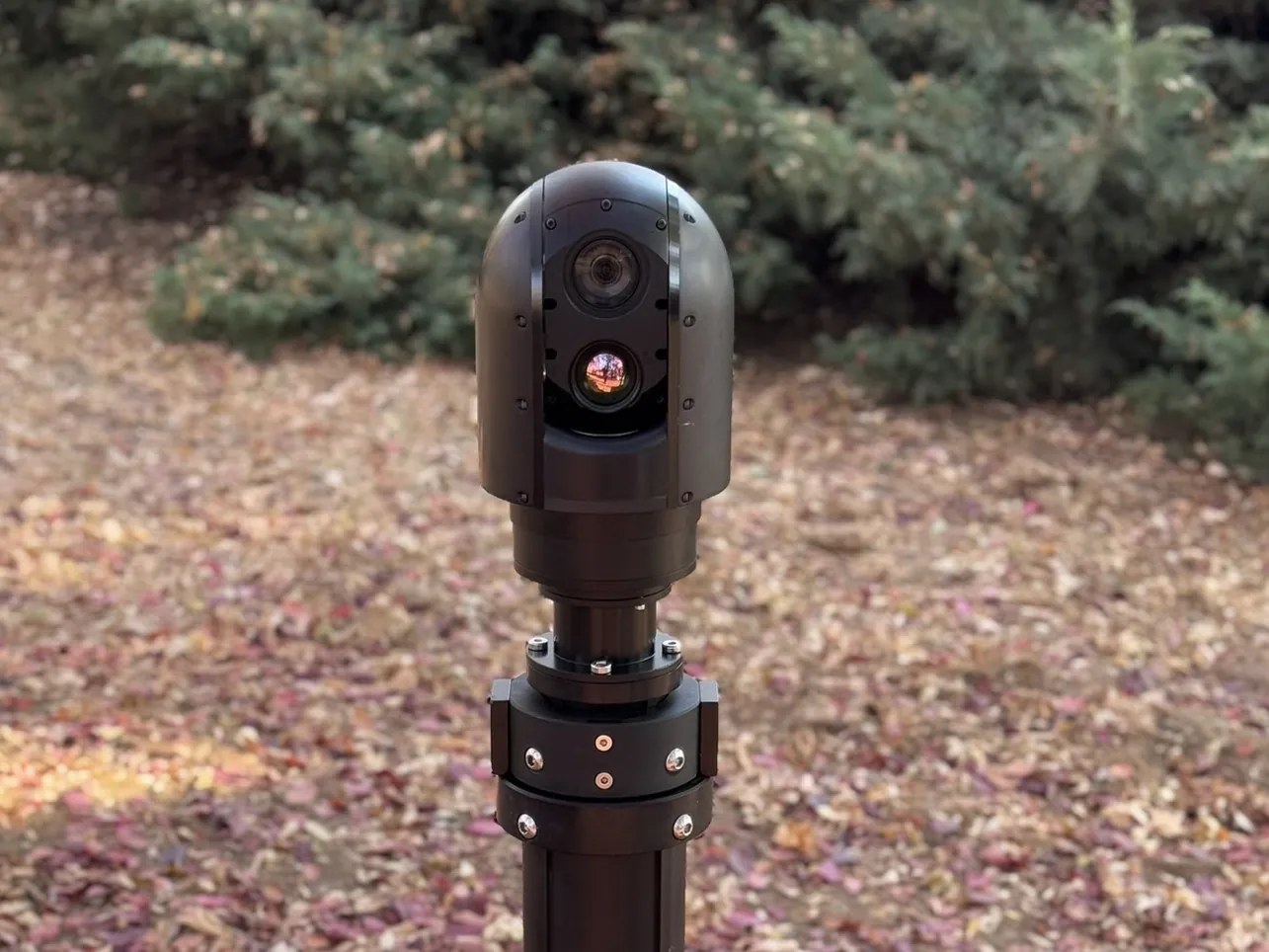

Dual Channel (EO-LWIR) Stabilized Gimbal System
Two-axis stabilized gimbal pairing a 30x 1080p day camera with an uncooled 640x512 LWIR channel, sized at 4.4 kg for unmanned and light ground vehicles.
- MIL-STD-810G, tactical armored vehicle class
- IP65
- MIL-DTL-38999
- Uncooled LWIR 8–14 µm
- Thermal Spectral Band
- 640 × 512 px
- Thermal Detector Resolution
- 30 x
- EO Optical Zoom
- 0.1 °
- Stabilization Accuracy
- 4.4 kg
- Weight
Highlights
Why This Model

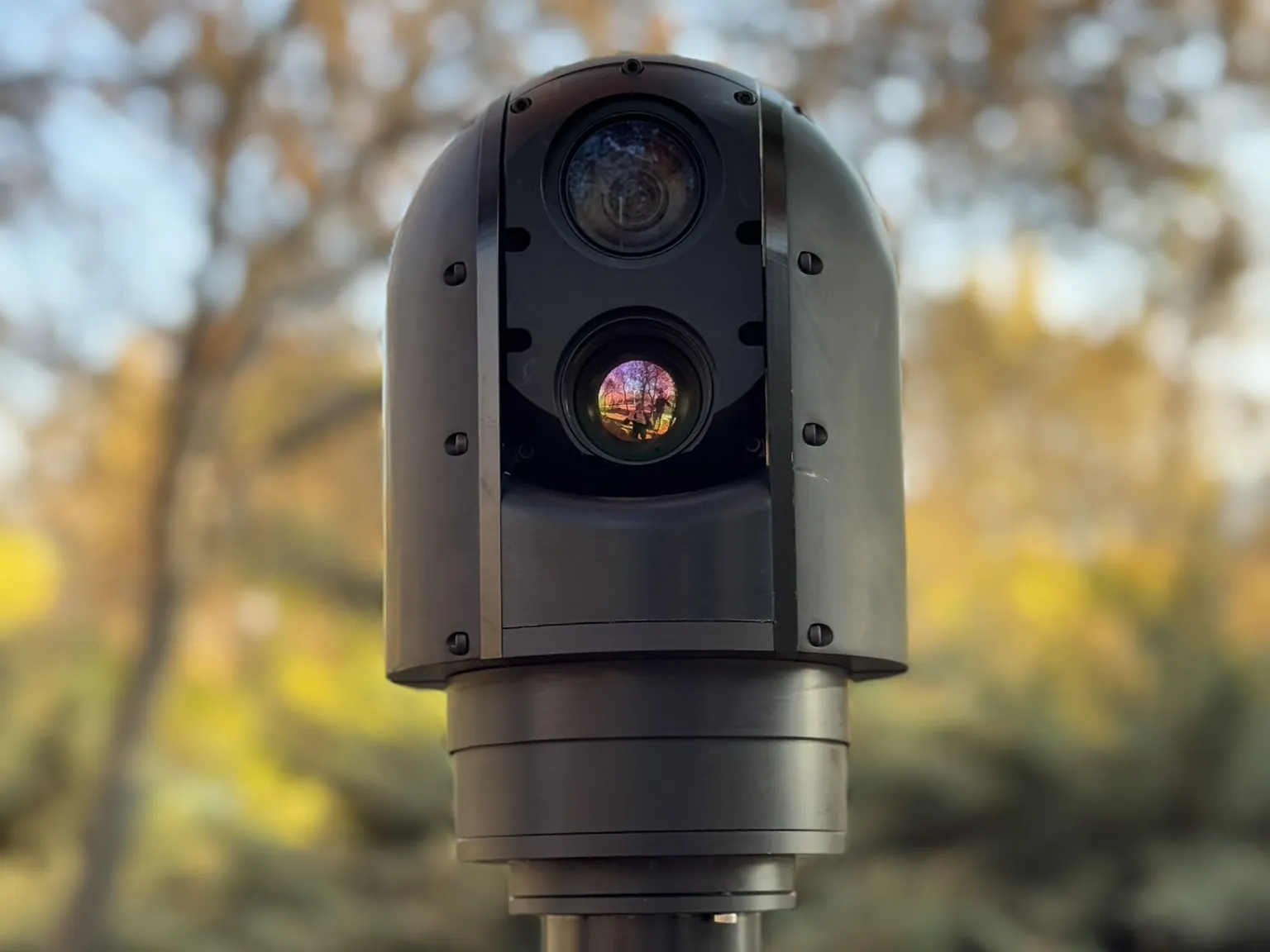

01Dual channel
Thermal and daylight on one screen

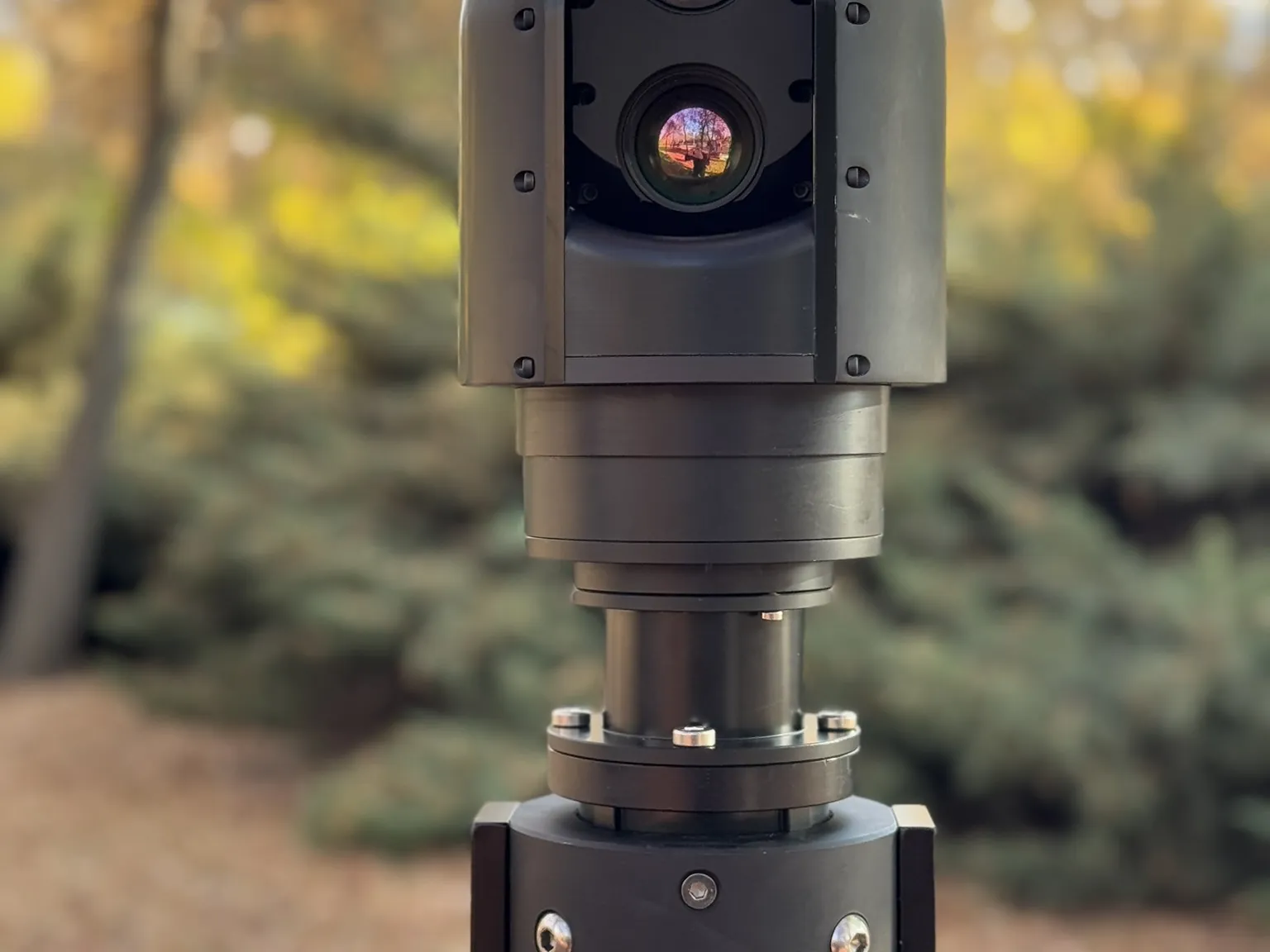

A 1920×1080 EO channel with 30× optical zoom runs alongside an uncooled 640×512 LWIR channel, and both are displayed at the same time. The operator loses nothing when moving between spectra.
- Uncooled LWIR starts without a cooldown wait; NETD 50 mK
- Athermalised optics hold focus across −32 to +60 °C
- HD-SDI, HDMI and Ethernet output on MIL-DTL-38999 connectors
02Stabilisation
Two-axis stabilisation to 0.1° with onboard tracking
An IMU and encoder based dual-loop holds the line of sight on a moving platform. The tracker locks onto a target between 16×16 and 128×128 pixels and reports at 25 Hz.
- 360° continuous pan, ±45° tilt, 180°/s axis speed
- Tracker output latency under 100 ms
03Vehicle class
4.4 kg, qualified for armoured vehicle service

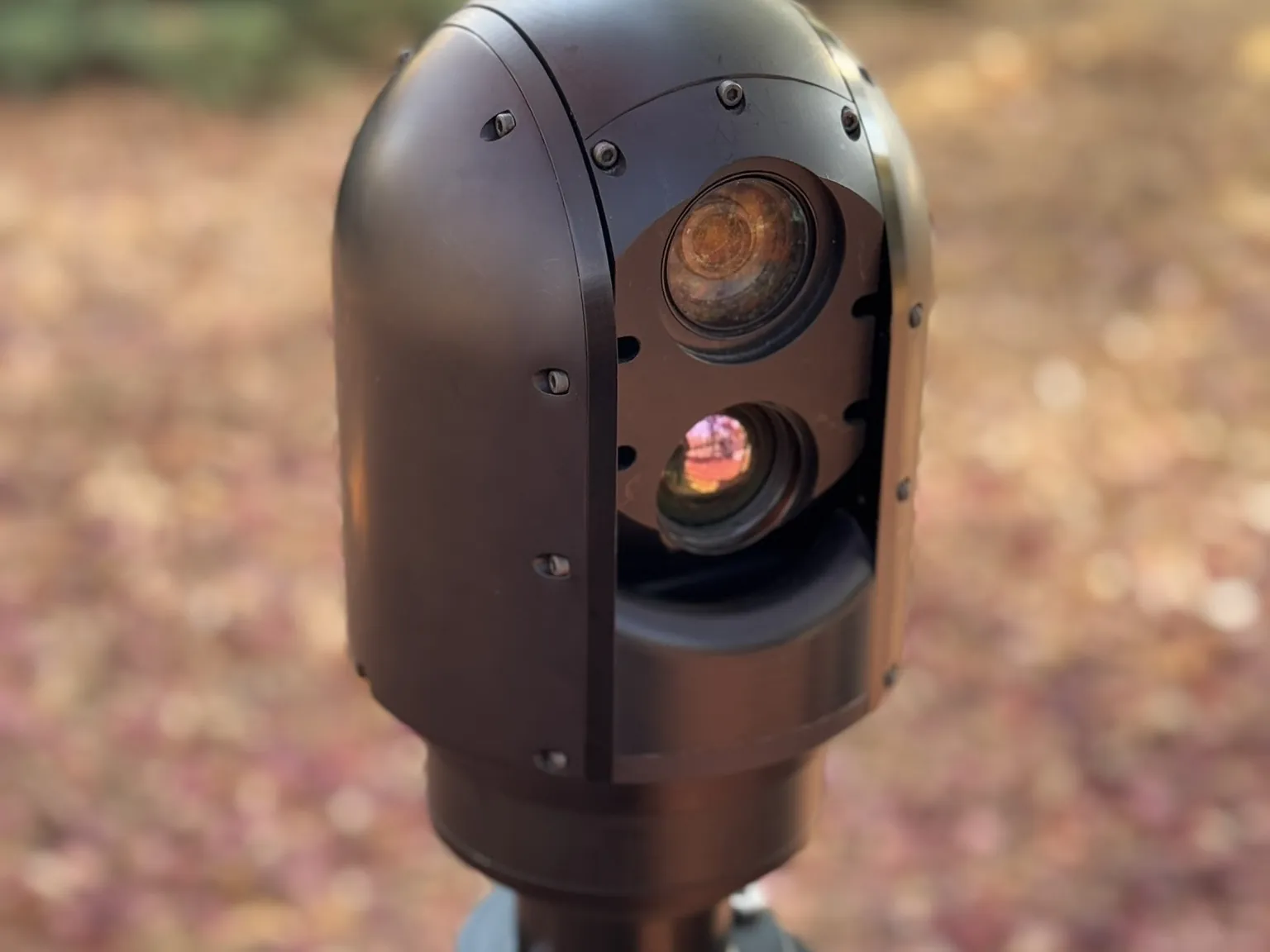

The housing is 155 mm across and weighs 4.4 kg, which keeps it within the payload budget of unmanned and light ground vehicles. Qualification is to the tactical armoured vehicle class of MIL-STD-810G.
- 20 g / 11 ms shock, Category 20 vibration
- IP65 sealing, 20–32 V supply
Field Video
SEG10
Technical Data
Specifications
| Thermal Spectral Band | Uncooled LWIR 8–14 µm |
|---|---|
| Thermal Detector Resolution | 640 × 512 px |
| Thermal Pixel Pitch | 12 µm |
| Thermal NETD | ≤ 50 mK @ 25 °C |
| Thermal MRTD | ≤ 500 mK |
| Thermal Focus Type | Athermalized |
| Automatic Non-Uniformity Correction | ✓ |
| EO Image Sensor | 1/2.8-type Exmor R CMOS |
| EO Resolution | 1920 × 1080 px |
| EO Minimum Illumination | 0.01 lx (F1.6, AGC on, 1/30 s) |
| EO Signal-to-Noise Ratio | > 50 dB |
| Thermal Horizontal Field of View | 17.7 ° |
|---|---|
| Thermal Digital Zoom | 2x / 3x / 4x |
| EO Optical Zoom | 30 x |
| EO Digital Zoom | 12 x |
| EO Focal Length | 4.3–129 mm |
| EO Horizontal Field of View | 63.7° (wide) – 2.3° (tele) |
| Stabilization Accuracy | 0.1 ° |
|---|---|
| Positioning Accuracy | 0.1 ° |
| Stabilization Type | Two-axis IMU and encoder based dual-loop |
| Axis Speed | 180 °/s |
| Pan Axis Range | 360° continuous |
| Tilt Axis Range | ±45° |
| Tracker Data Refresh Rate | 25 Hz |
| Tracker Output Latency | < 100 ms |
| Tracker Target Size | 16×16 to 128×128 px |
| Video Compression | ✓ |
| Weight | 4.4 kg |
|---|---|
| Diameter | 155 mm |
| Height | 235 mm |
| Operating Voltage | 20–32 V |
|---|---|
| Maximum Power Consumption | 150 W |
| Control Interface | RS-485 |
|---|---|
| Video Output | HD-SDI, HDMI, Ethernet |
| Connector Type | MIL-DTL-38999 |
| IP Rating | IP65 |
|---|---|
| Operating Temperature | −32 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Qualification Standard | MIL-STD-810G, tactical armored vehicle class |
| Vibration Qualification | MIL-STD-810G Method 514.6 Proc. I Cat. 20 |
| Shock Qualification | MIL-STD-810G Method 516.6 Proc. I, 20 g / 11 ms |
| Rain Qualification | MIL-STD-810G Method 506.5 Proc. I |
Values are for the standard configuration. Mission-specific configurations are offered on request.
Documents
Datasheet on request
The datasheet, interface control documents and the 3D model are sent on request. Write from a corporate address and name the product.
