EO/IR Imager Systems
SEG14

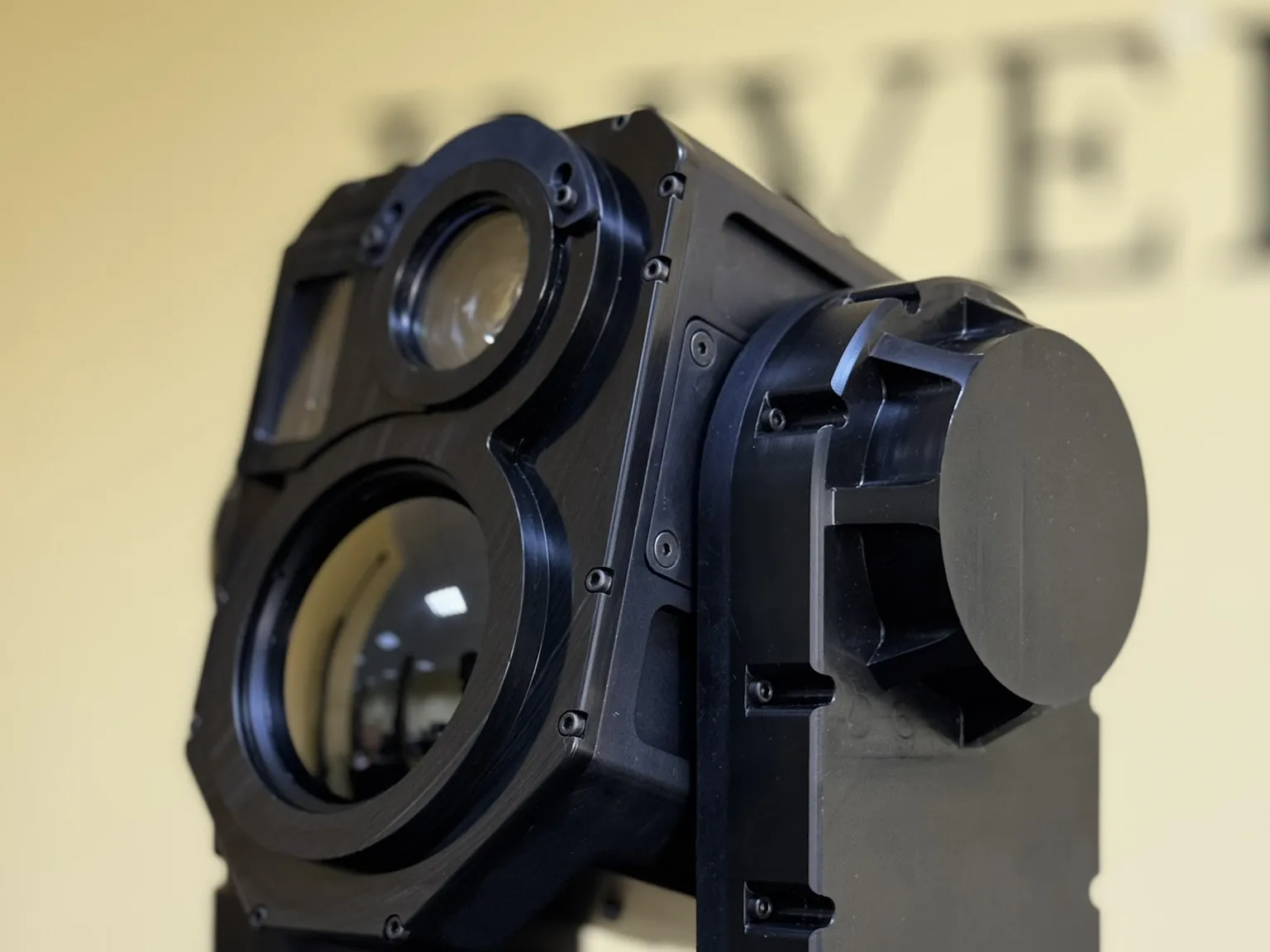

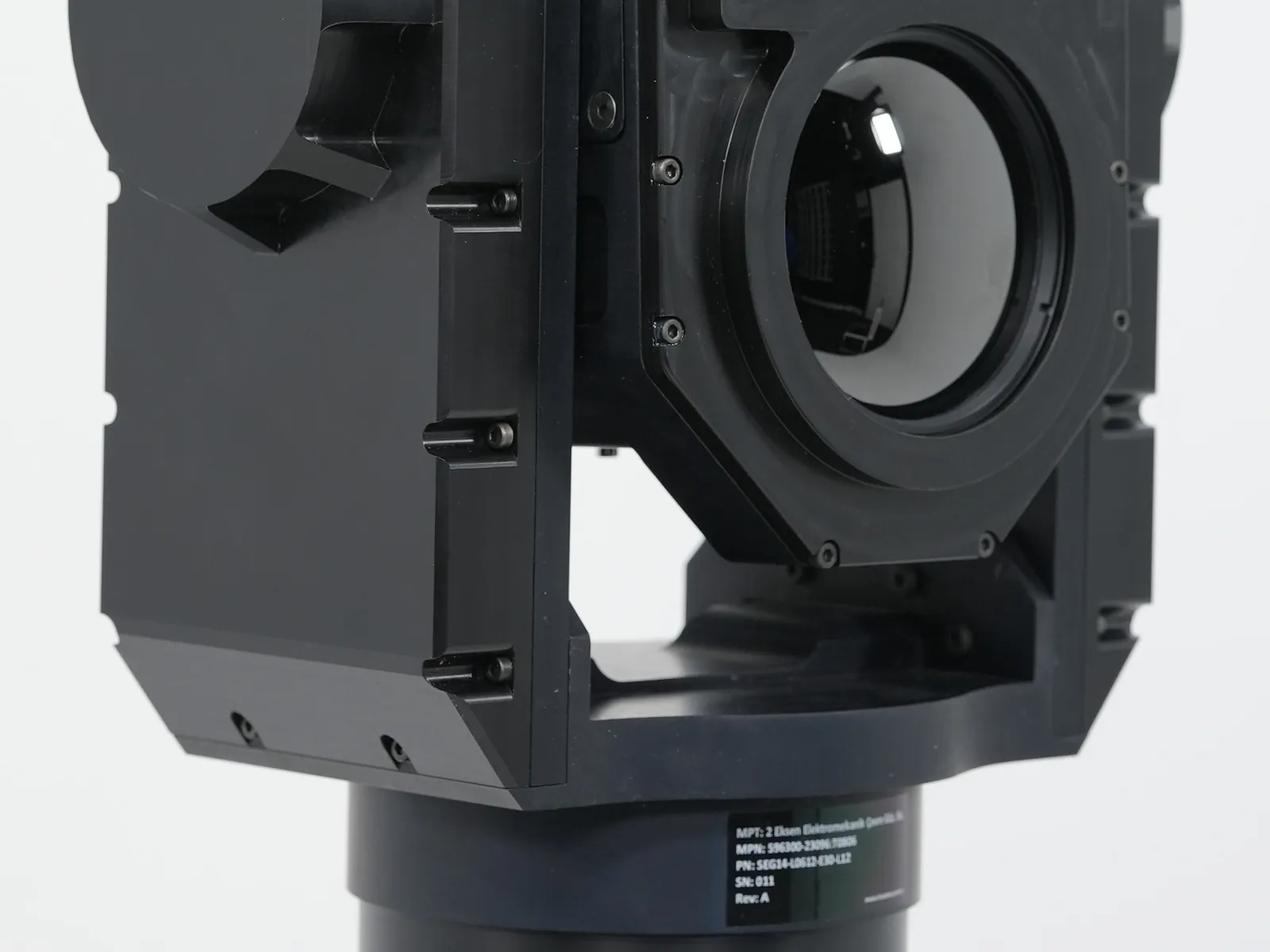

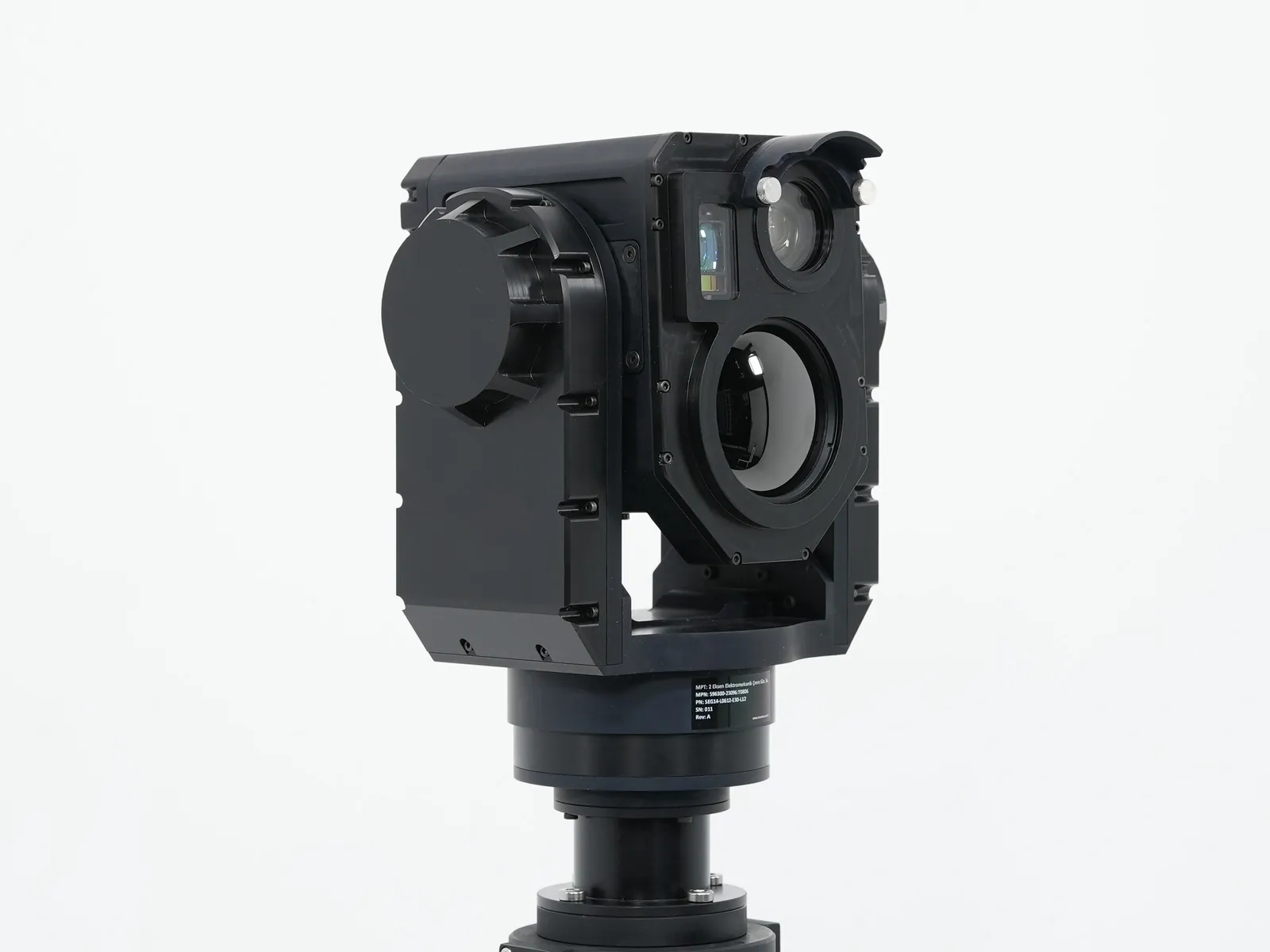

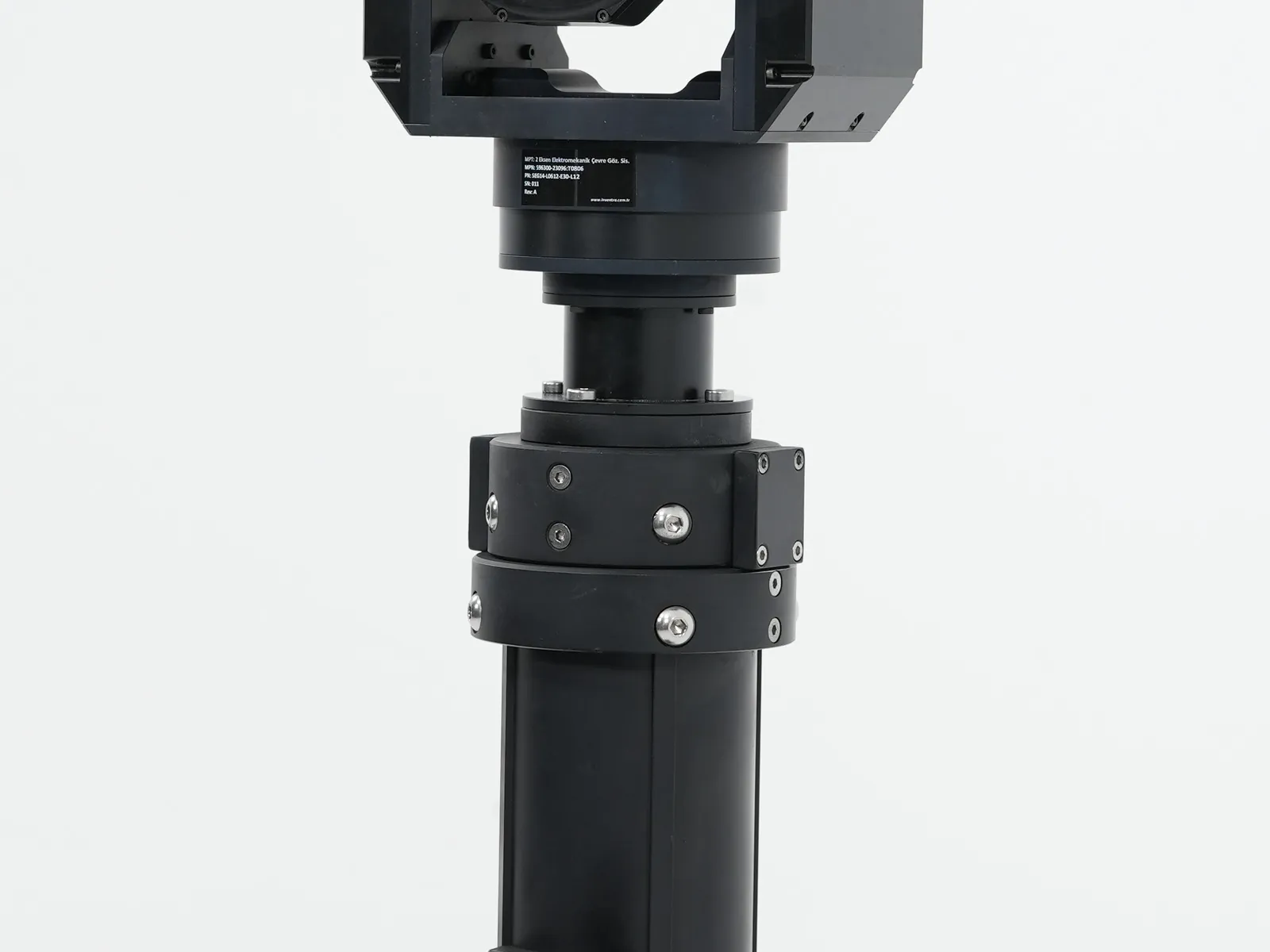

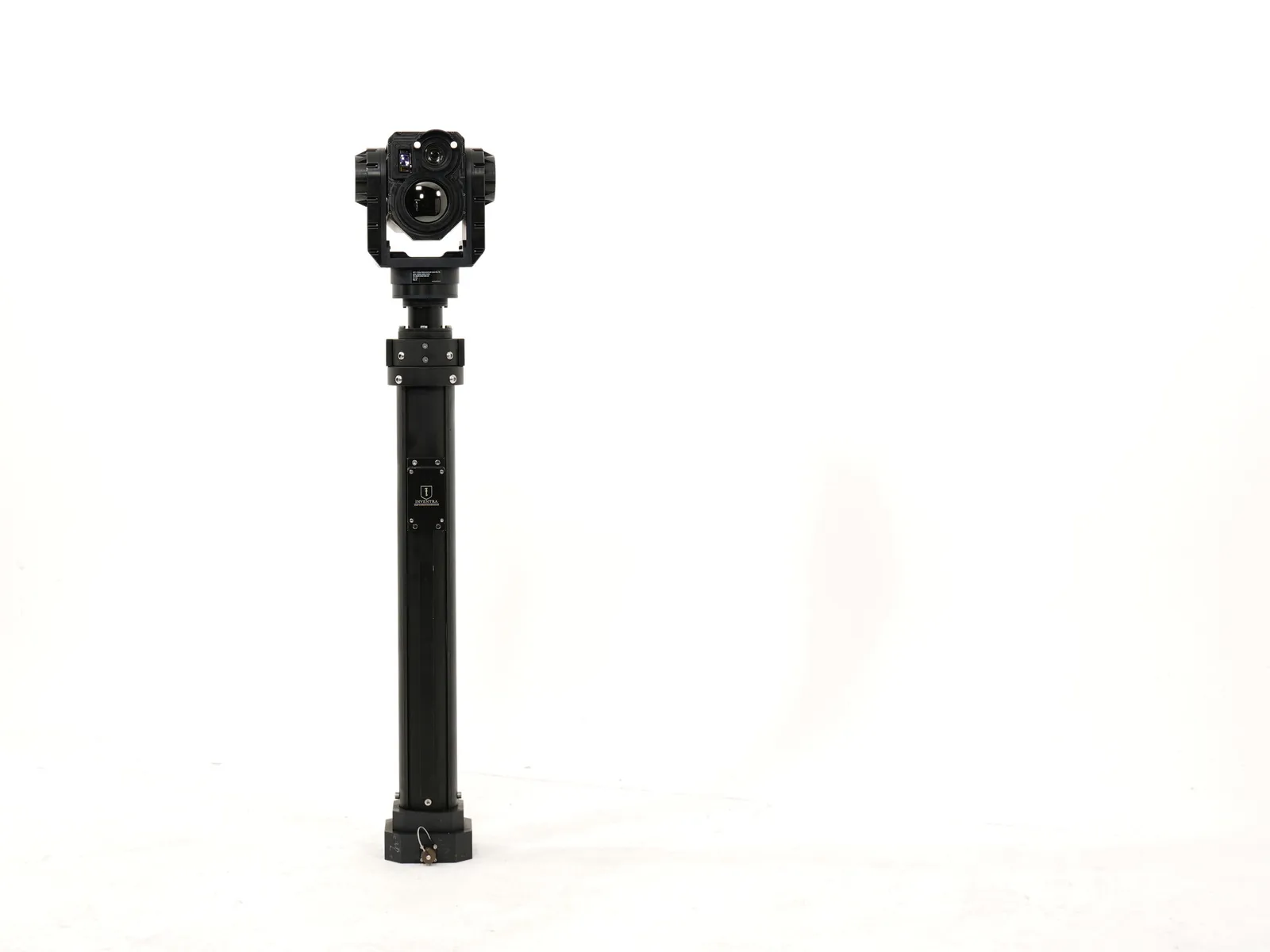

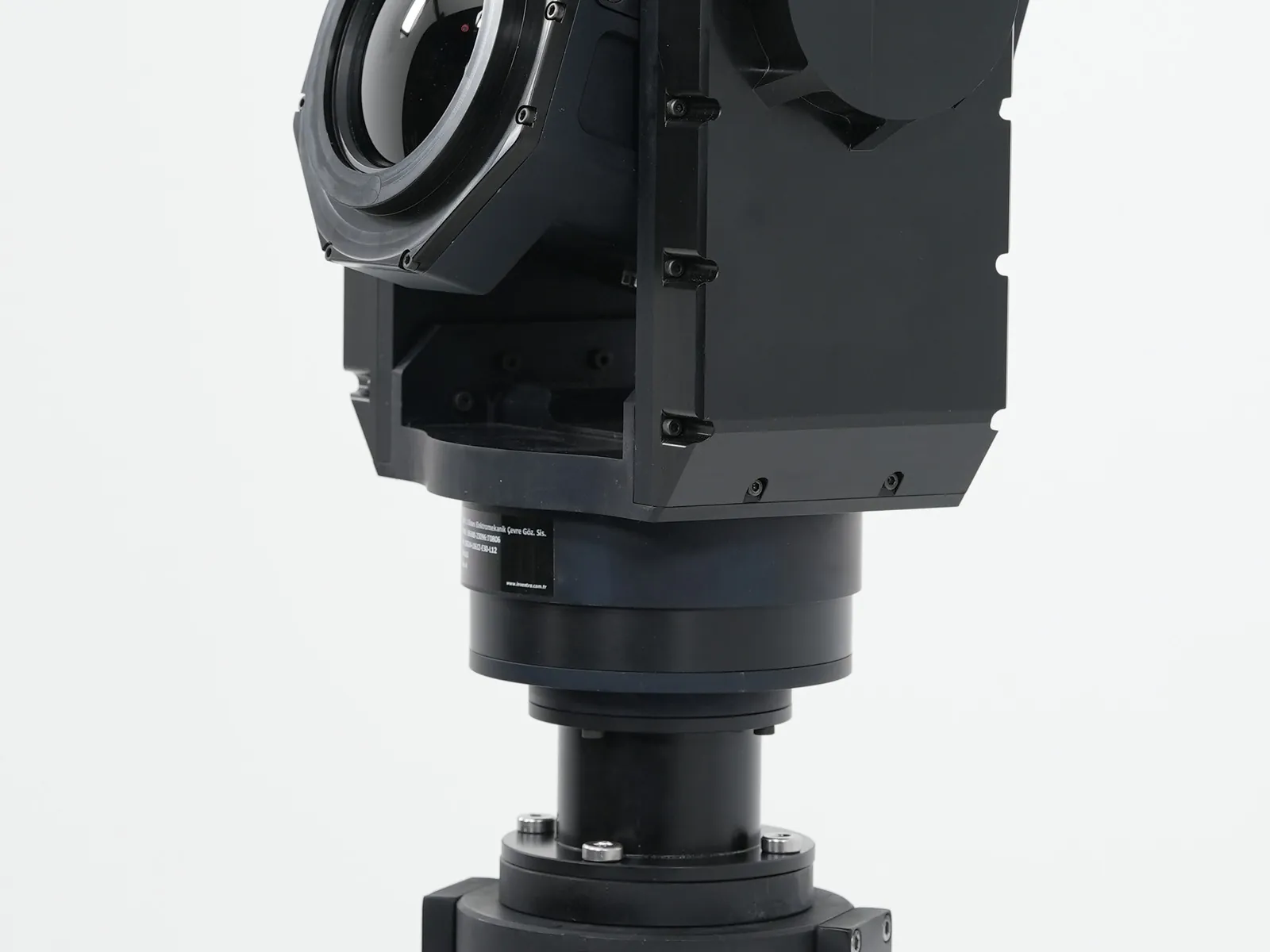

Multi Channel (EO-LWIR-LRF) Stabilized Gimbal System
Multi-channel gimbal with an optically zoomed LWIR channel and long-range rangefinder, under 8 kg, for precision targeting and intelligence gathering.
- MIL-STD-810G, tactical armored vehicle class
- IP65
- Uncooled LWIR
- Thermal Spectral Band
- 640 × 512 (1280 × 1024 optional)
- Thermal Detector Resolution
- 30 x
- EO Optical Zoom
- Up to 32,000 m
- Laser Rangefinder Range
- < 8.0 kg
- Weight
Highlights
Why This Model
01Long range
Laser ranging out to 32 km
The 1500 nm rangefinder reaches 32,000 m, which puts target measurement well beyond the range at which the thermal channel first detects. An eye-safe 635 nm pointer marks the target for others.
- Class 1 eye-safe pointer at 635 nm
- Triple channel: EO, LWIR and LRF in real time

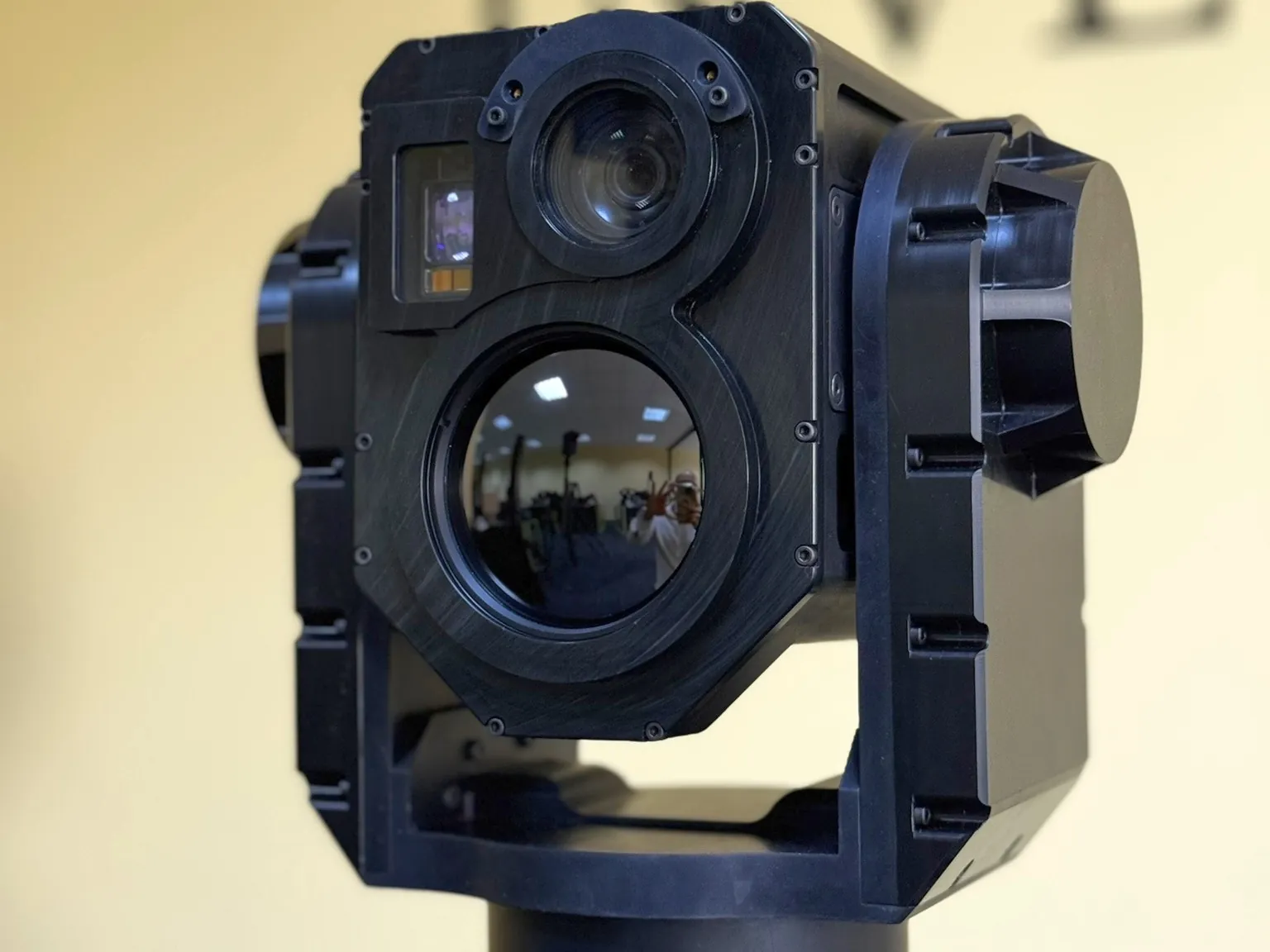

02Thermal optics
3.2× optical zoom on the thermal channel
Most uncooled channels are fixed focal length. Here the thermal path zooms optically from 28 to 90 mm, so magnification is gained without giving up resolution to digital interpolation.
- NETD 30 mK with shutter and scene calibration
- 12 µm pitch 640×512 detector
03Servo control
Brushless drive and encoders for stable tracking
Brushless motors with high-resolution encoders give the control precision the catalogue states as ±0.01°, and digital blending puts the thermal and EO views into one feed.
- 8 kg unit, 325 × 257 × 178 mm
- RS-422, RS-485 and Ethernet control

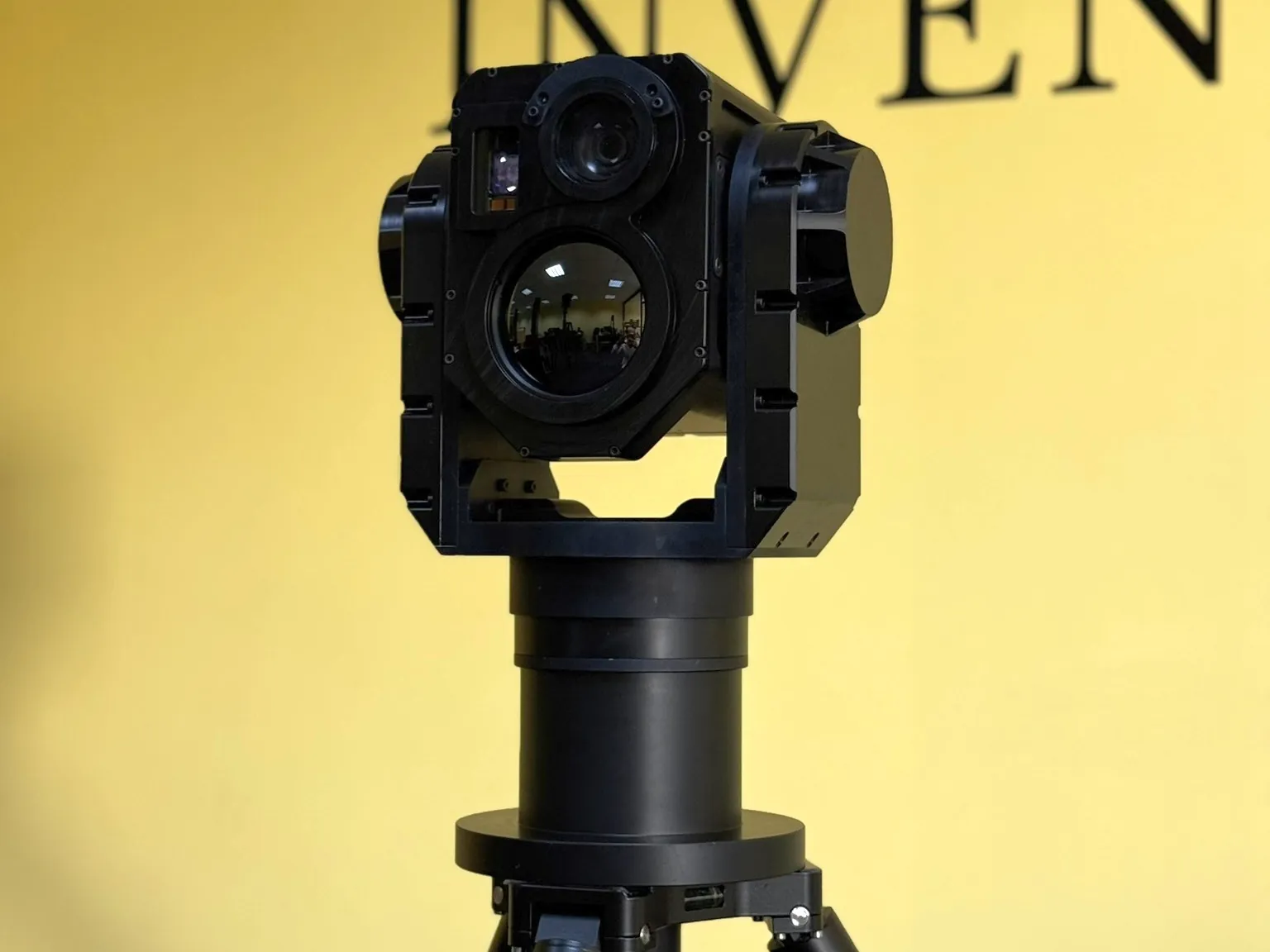

Field Video
SEG14
Technical Data
Specifications
| Thermal Spectral Band | Uncooled LWIR |
|---|---|
| Thermal Detector Resolution | 640 × 512 (1280 × 1024 optional) |
| Thermal Pixel Pitch | 12 µm |
| Thermal NETD | ≤ 30 mK @ 25 °C |
| Thermal Calibration | Shutter and scene calibration |
| EO Resolution | 1920 × 1080 px |
| Thermal Optical Zoom | 3.2x (28–90 mm) or 5x (15–75 mm) |
|---|---|
| Thermal Focal Length | 28–90 mm |
| Thermal Diagonal Field of View | 19.92° @ 28 mm – 6.26° @ 90 mm |
| EO Optical Zoom | 30 x |
| EO Digital Zoom | 12 x |
| EO Focal Length | 4.3–129 mm |
| EO Horizontal Field of View | 63.7° (wide) – 2.3° (tele) |
| Laser Rangefinder Range | Up to 32,000 m |
| Laser Rangefinder Wavelength | 1500 nm |
| Laser Pointer | 635 nm, Class 1, eye safe |
| Stabilization Type | Two-axis IMU and encoder based dual-loop |
|---|---|
| Axis Speed | 180 °/s |
| Pan Axis Range | 360° continuous |
| Tilt Axis Range | ±45° |
| Tracker Output Latency | < 100 ms |
| Tracker Target Size | 16×16 to 128×128 px |
| Weight | < 8.0 kg |
|---|---|
| Width | 325 mm |
| Depth | 257 mm |
| Height | 178 mm |
| Operating Voltage | 20–32 V |
|---|---|
| Maximum Power Consumption | 150 W |
| Control Interface | RS-422 / RS-485 / Ethernet |
|---|---|
| Video Output | HD-SDI, Ethernet |
| IP Rating | IP65 |
|---|---|
| Operating Temperature | −32 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Qualification Standard | MIL-STD-810G, tactical armored vehicle class |
| Vibration Qualification | MIL-STD-810G Method 514.6 Proc. I Cat. 20 |
| Shock Qualification | MIL-STD-810G Method 516.6 Proc. I, 20 g / 11 ms |
| Rain Qualification | MIL-STD-810G Method 506.5 Proc. I |
Values are for the standard configuration. Mission-specific configurations are offered on request.
